HALOSPRTAN's Master chief Halo 4 suit WIP First Build

HALOSPRTAN · Apr 8, 2014

Hey guys, this is my first shot at a thread and build. I will try to post as many photos as possible, but i am in school so my time is limited. I did some work on this suit beforehand and i have decided to start a thread. I hope you see work you like and if you have any questions just ask. I am making a ultra HD suit and going for complete game accuracy, enjoy. I am currently working on the helmet and other pieces. Here are the finished pieces:

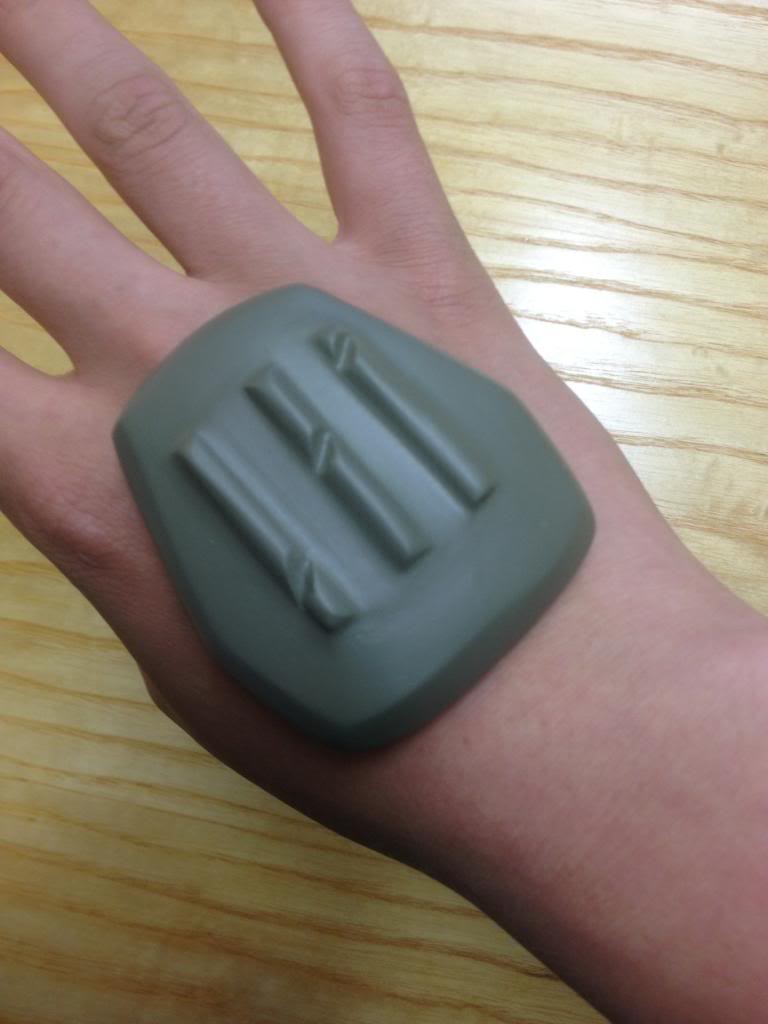

Handplates:

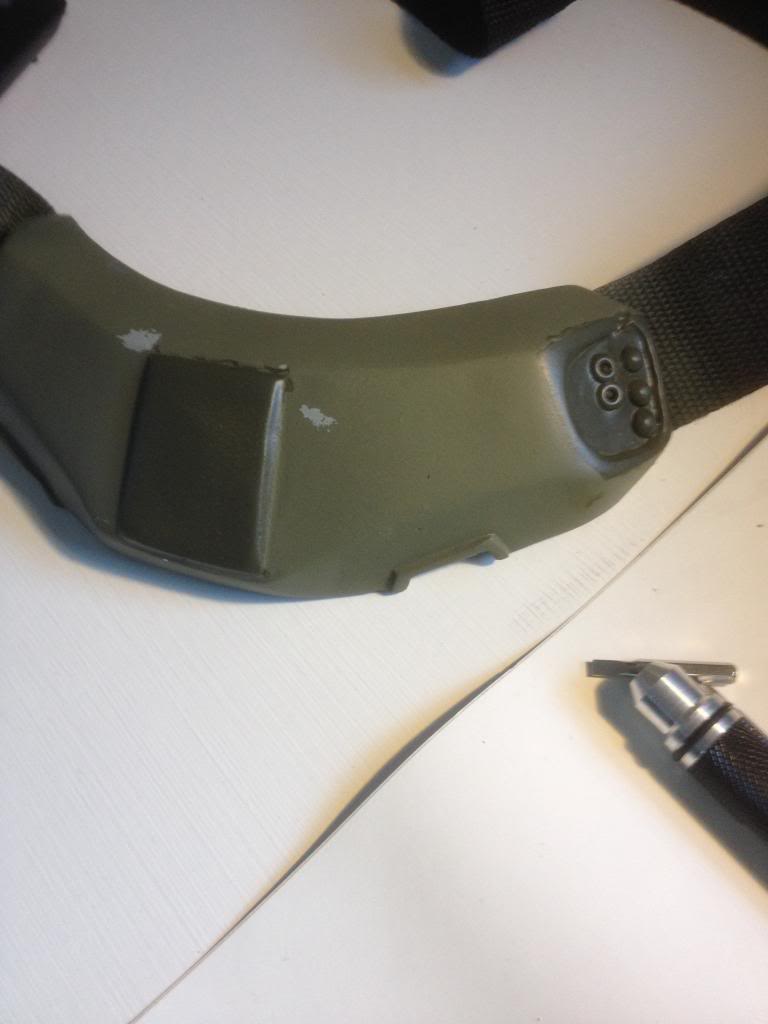

Abdominal plate:

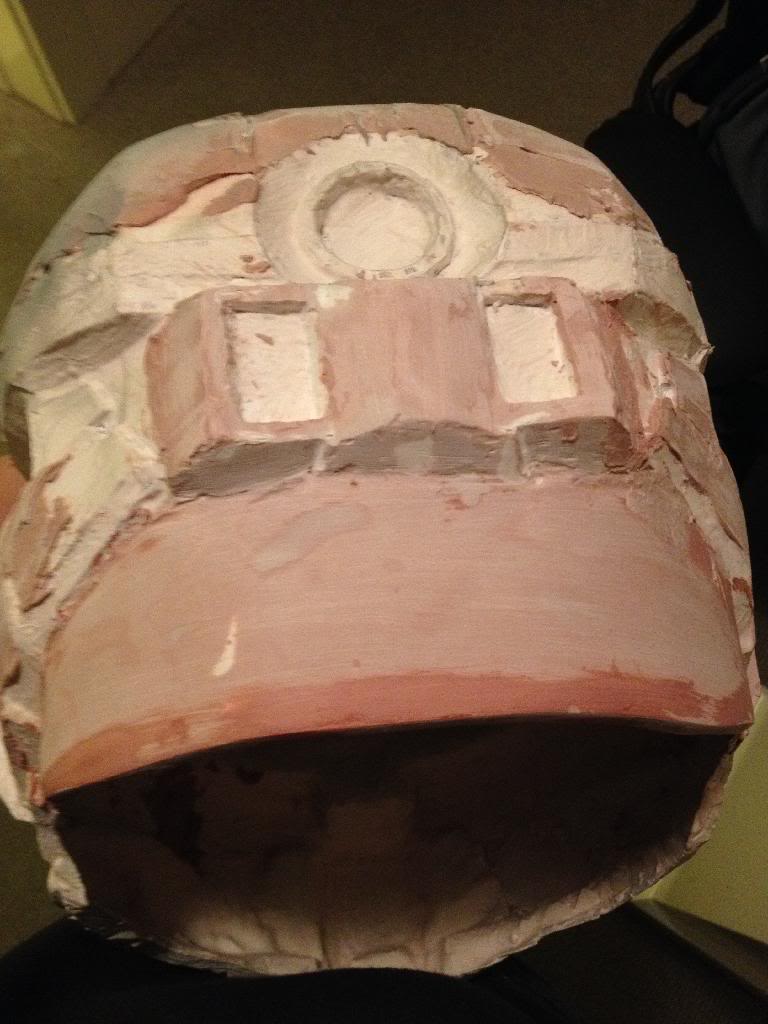

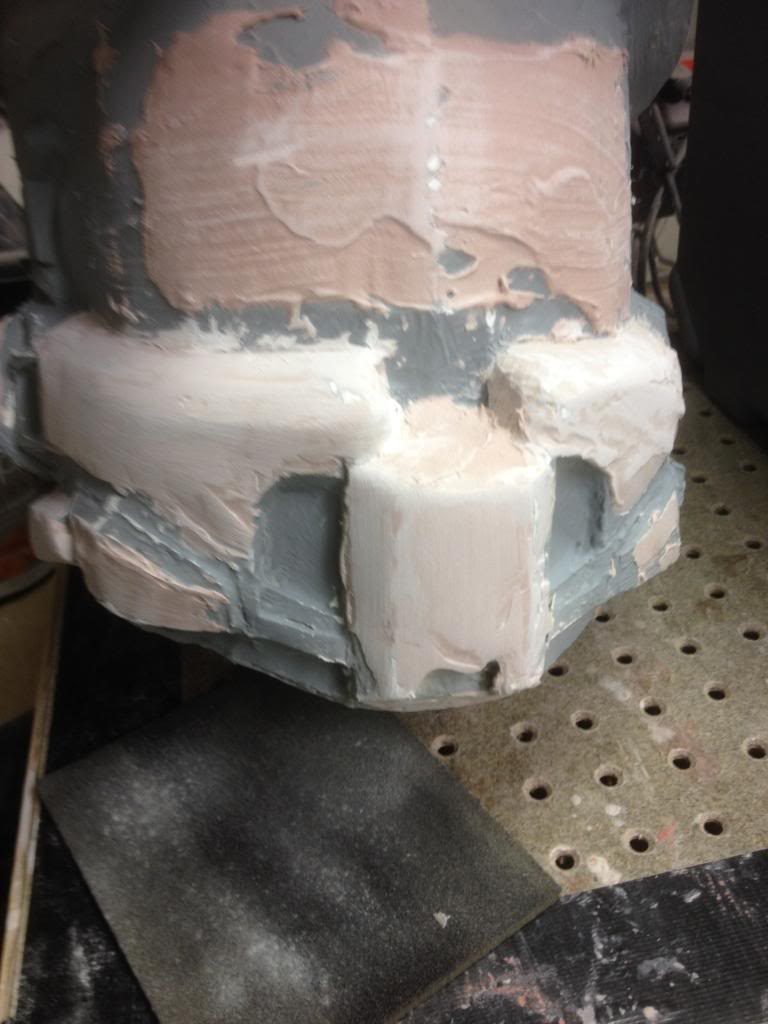

Current progress on the helmet: this will be updated as the build continues along with other parts

Hope you like what you see, advice wanted, subs appreciated.

Cheers

HALOSPRTAN · Apr 8, 2014

If anyone has any help they could give me, that would be great, im still new to this community and want to be a part of it.

Thanks, Benjamin

Demogorgon · Apr 8, 2014

It's looking pretty good so far. Seems like you've got a good grasp of how things are done

If you have any specific questions about anything, feel free to ask and we'll be more than happy to help.

HALOSPRTAN · Apr 8, 2014

Demogorgon said:
It's looking pretty good so far. Seems like you've got a good grasp of how things are done If you have any specific questions about anything, feel free to ask and we'll be more than happy to help.

Thanks man, im mainly wondering about the casting process, because i dont like the idea of wearing my high detail masters to events with the possibility of them breaking.

HALOSPRTAN · Apr 8, 2014

*UPDATE*

today i had time so i quickly pepped out the 2 handplates:

With bondo and resin on, just a rough coat:

HALOSPRTAN · Apr 10, 2014

Update
I had some time, so I applied some spot puddy and built up some details with bondo

[/URL][/IMG]

HALOSPRTAN · Apr 11, 2014

I finished one of the hand plates last night, i hadnt primed it yet;

Demogorgon · Apr 11, 2014

The hand plate looks great. I like the little bit of battle damage you added. Keep it up.

HALOSPRTAN · Apr 11, 2014

Thanks, im not sure which helmet file to use for pepakura, do you have any advice?

Demogorgon · Apr 11, 2014

I haven't made any of the MC helmets so I can't say really. I'd go with the H4 helmet V2 on MS7's database - HERE

EVAkura · Apr 11, 2014

In those earlier pictures, it sure looks like a vacuum forming table the handplates are setting on... dost thee eyes deceive me?

Nice work on the pieces so far btw... I really like the battle damage as well.

glasscutter · Apr 12, 2014

Is that a downdraft table for sanding on in the pictures? If so, does the pegboard top work well vice wooden slats?

HALOSPRTAN · Apr 12, 2014

EVAkura said:
In those earlier pictures, it sure looks like a vacuum forming table the handplates are setting on... dost thee eyes deceive me?

Nice work on the pieces so far btw... I really like the battle damage as well.

glasscutter said:
Is that a downdraft table for sanding on in the pictures? If so, does the pegboard top work well vice wooden slats?

Tha is actually a downdraft table for my sanding, you are correct glasscutter, unfortunately the vacuum i use is not the most effective, i am getting a dust collector for my shop very soon, thanks for the ongoing support, i will post more progress soon.

the pegboard is actually a piece of masonite that i drilled holes in with a drill press, and then made a box with a slant inside leading to the vacuum, it would work better if i had a better vacuum

HALOSPRTAN · Apr 12, 2014

Demogorgon said:
I haven't made any of the MC helmets so I can't say really. I'd go with the H4 helmet V2 on MS7's database - HERE

thanks, i tried that one but it ended up being extremly large, i scaled it but i have no idea what happened...

HALOSPRTAN · Apr 12, 2014

i might try and go with a lower def helm and then build up details with bondo, what do you guys think?

glasscutter · Apr 12, 2014

I am starting to do the scaling with low def pieces anyway. Then when I have the measurement right build the Hi-def version. You could always open up the low-def and hi-def pep files side by side and compare them. Should give you a good idea of how much work the low-def piece would need. This is one reason I am glad the 405th is not formally associated with Microsoft or Bungie like the 501st is with Lucas. The suits can have as little or as much detail as wanted, instead of having to conform to a set model or construction method.

HALOSPRTAN · Apr 12, 2014

glasscutter said:
I am starting to do the scaling with low def pieces anyway. Then when I have the measurement right build the Hi-def version. You could always open up the low-def and hi-def pep files side by side and compare them. Should give you a good idea of how much work the low-def piece would need. This is one reason I am glad the 405th is not formally associated with Microsoft or Bungie like the 501st is with Lucas. The suits can have as little or as much detail as wanted, instead of having to conform to a set model or construction method.

yeah, i see what you mean, i think i am going to make the low def build, then use bondo to build up the details instead, because with my perfectionism, i think it would be hard to get into those nooks and crannies with a dremel, so i will do a helmet fully, THEN do detailing with bondo

HALOSPRTAN · Apr 12, 2014

This morning I printed my helmet

I was able to pep the left top area of the helmet

HALOSPRTAN · Apr 13, 2014

I had more time so i pepped the right side of the top of the helmet, as well as the middle including the AI port:

center area

AI Port

i had a little frustrating warp in the bridge of the helmet, hopefully that will correct itself as the build progresses

HALOSPRTAN · Apr 17, 2014

So after hours of work and 6 seasons of RvB on youtube, i finally finished the h4 master chief helmet pep.
Here it is:Front

Side

Back

tell me your feedback, tips greatly appriciated
Cheers,
Ben
