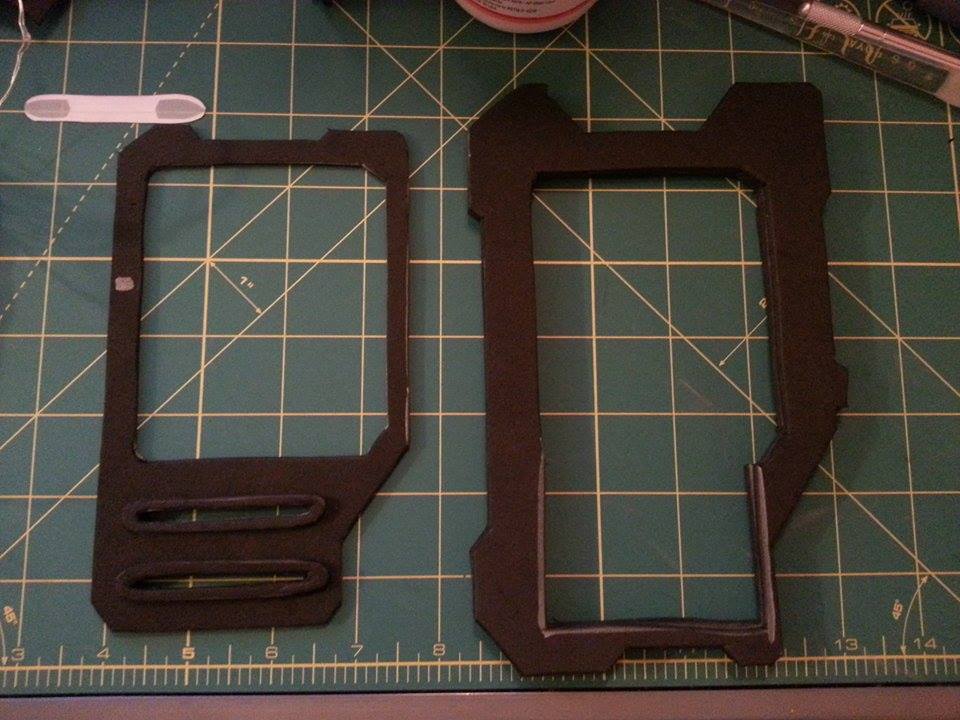

Glued the first 3 layers together and cut out a space for the battery pack. It'll be hidden by the face place. Cut out the spaces for the light bars. The silver dot I need to cut out and then fill with red tinted glue for the "on" light.
Rough test of recessed lighting. I made a scrap TacPad to use for altering as needed to see what would and wouldn't work. Going to clean it up for the final product.
Glued the first 3 layers together and cut out a space for the battery pack. It'll be hidden by the face place. Cut out the spaces for the light bars. The silver dot I need to cut out and then fill with red tinted glue for the "on" light.
HR TacPad render. My reference image and ultimately served as the solution to my "screen" problem!
Detail bits plus the lighting system. You can laugh, but I was stunned at how well the fairy lights illuminate the "screen".
Once I file down the marked bits I'm going to seal the "screen" onto the acrylic. I purchased some sample sheets of light blue and turquoise colored vellum online. Perfect amount of transparency. I resized the reference image to fit the screen opening and tada!
The acrylic "screen" arrived thicker and larger than I had intended. I marked off the areas that have to be filed down in order to properly fit. I have three more pieces so if this ends up being sacrificed as a test run, so be it!
I used 3mm thick EVA craft foam for the body of the tacpad. I cut it individually since two need to be cut further to fir the acrylic "screen". It's also the perfect height to fit the battery pack of the fairy lights.
C

Glued the first 3 layers together and cut out a space for the battery pack. It'll be hidden by the face place. Cut out the spaces for the light bars. The silver dot I need to cut out and then fill with red tinted glue for the "on" light.
