I was working on Booth props for Longsword's Planet Comicon booth props and Noble asked me to share them for other Regiments that may have an interest in using them as well. They are from the multiplayer map Live Fire but fit well in any general halo aesthetic. I modeled the Surveillance cameras and some flood lights and an access key pad. from screen shots of the map. these were specific assets that Fallen asked for to add an in game feel to the booth.

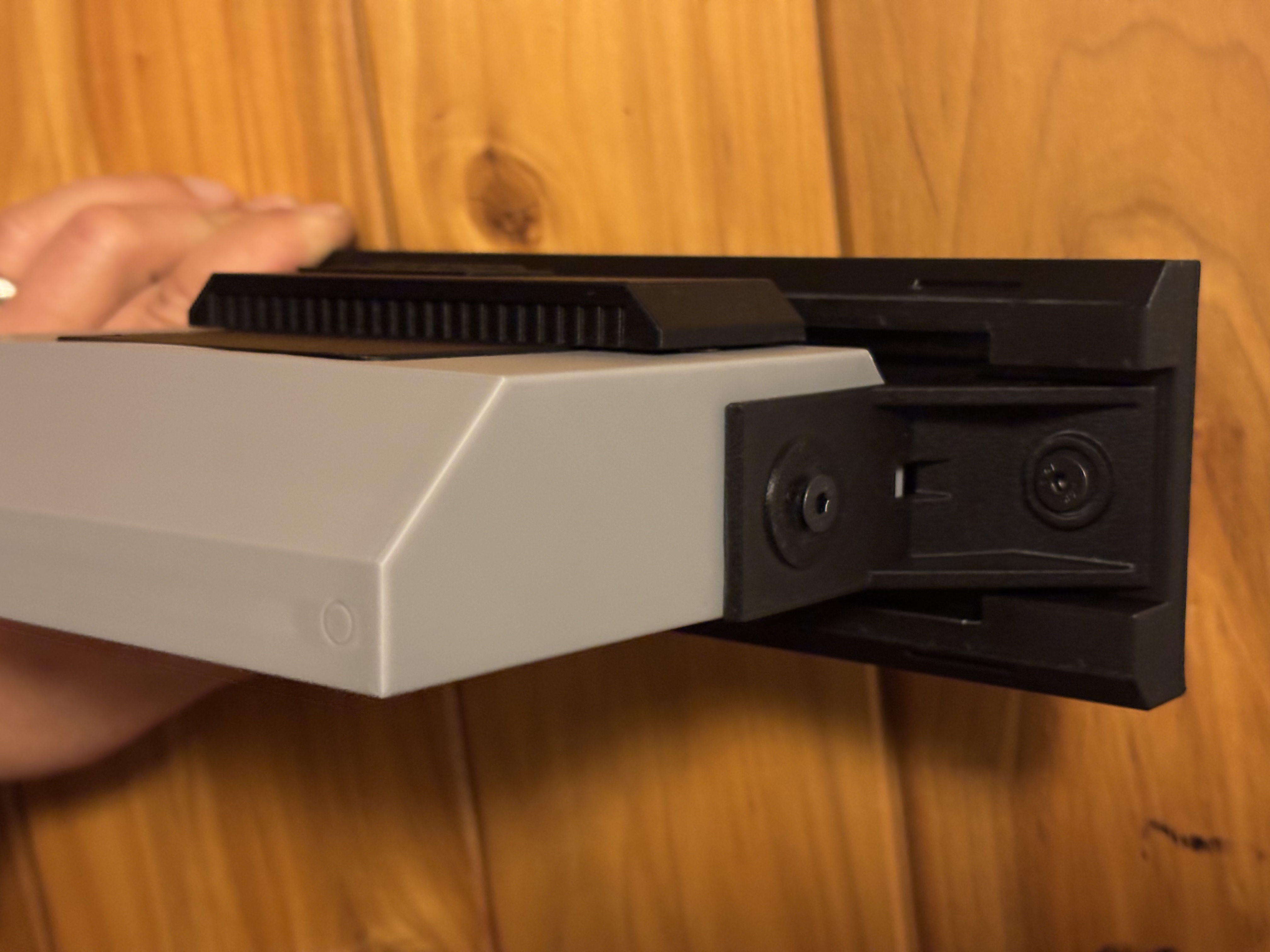

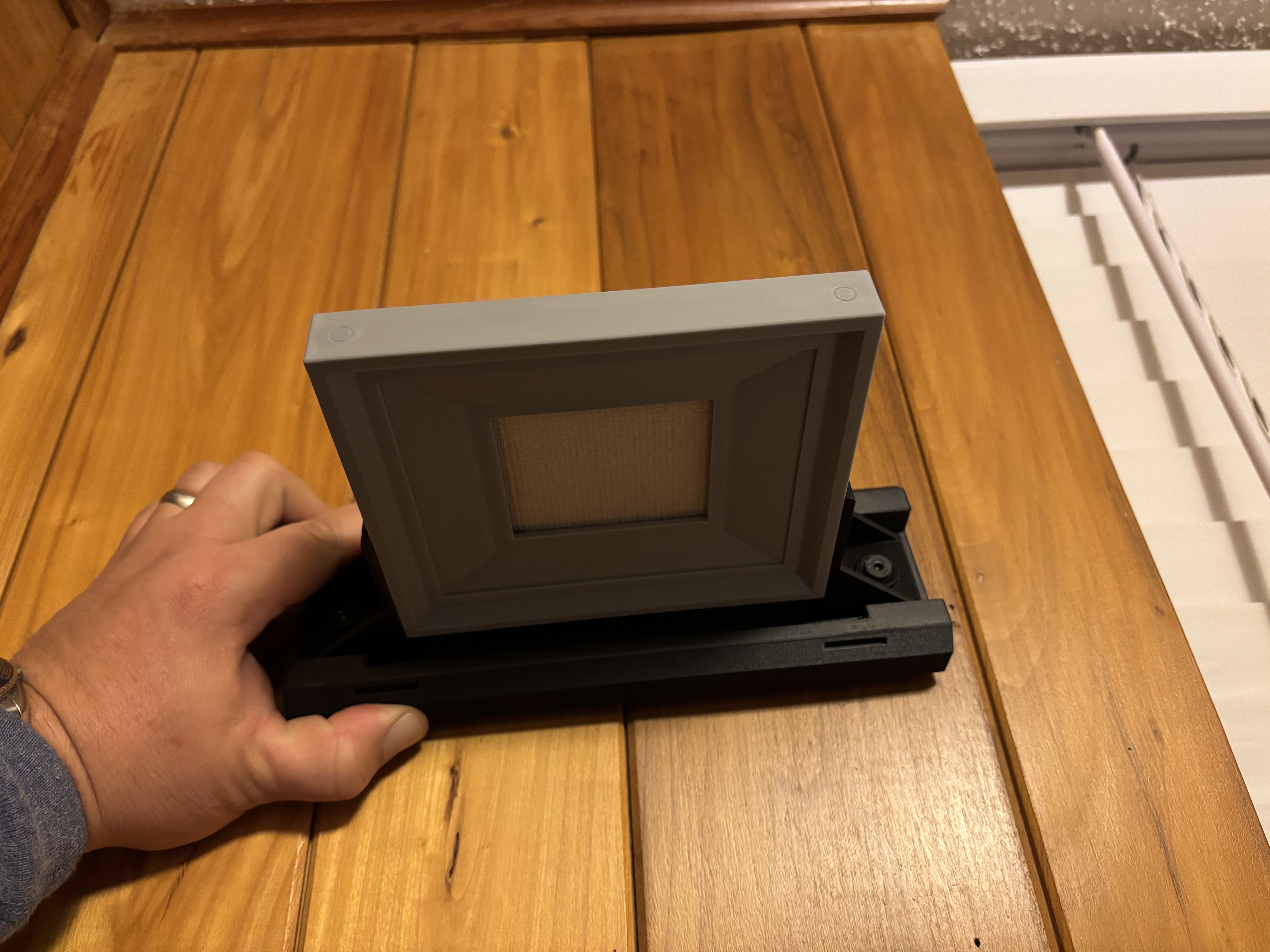

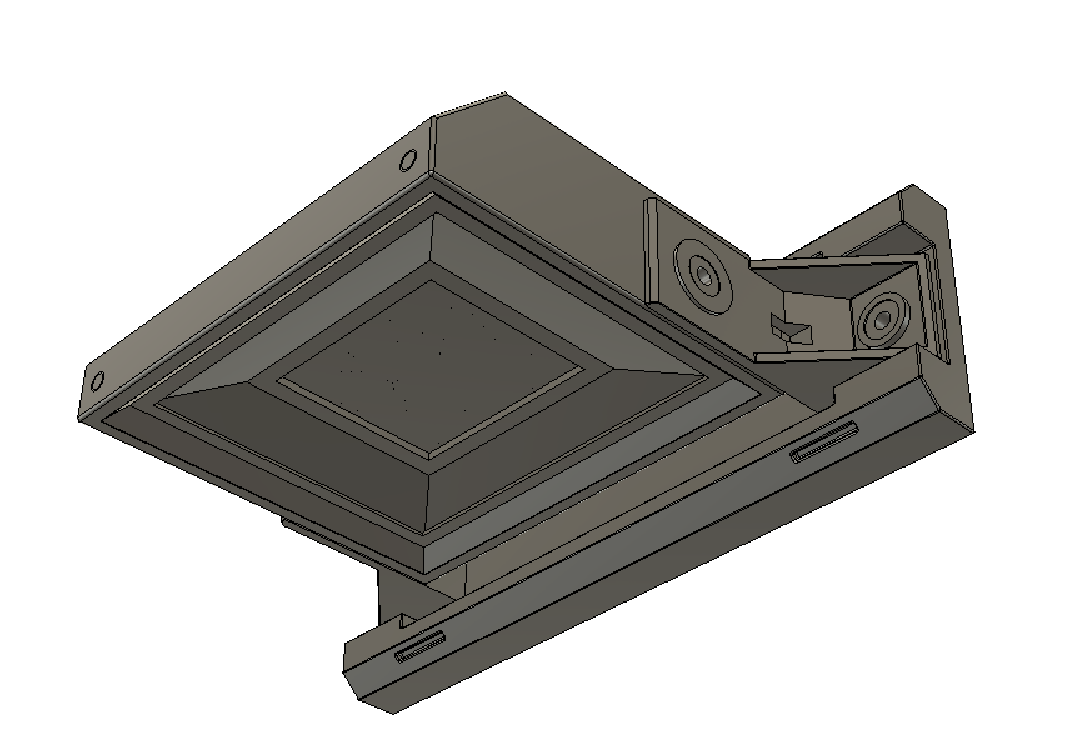

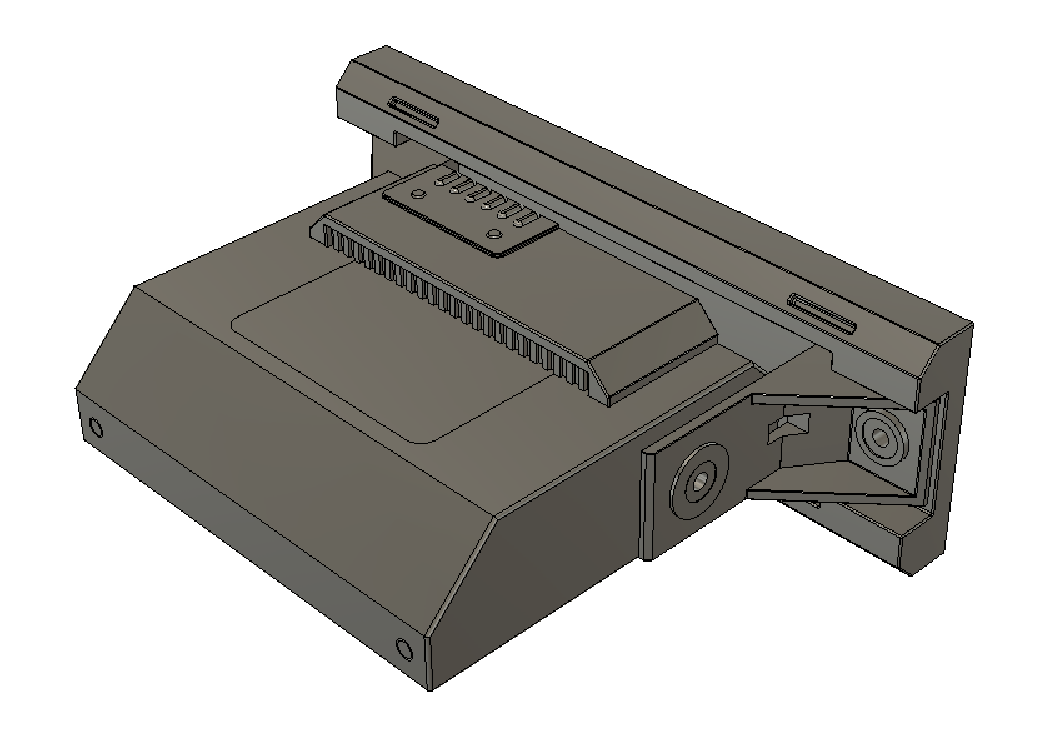

The booth Light uses these LEDS from Amazon ,10mm x 2mm magnets and M5 hardware.

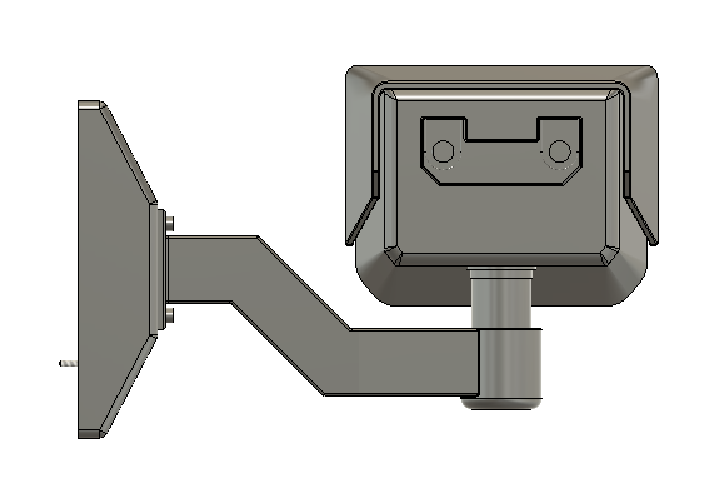

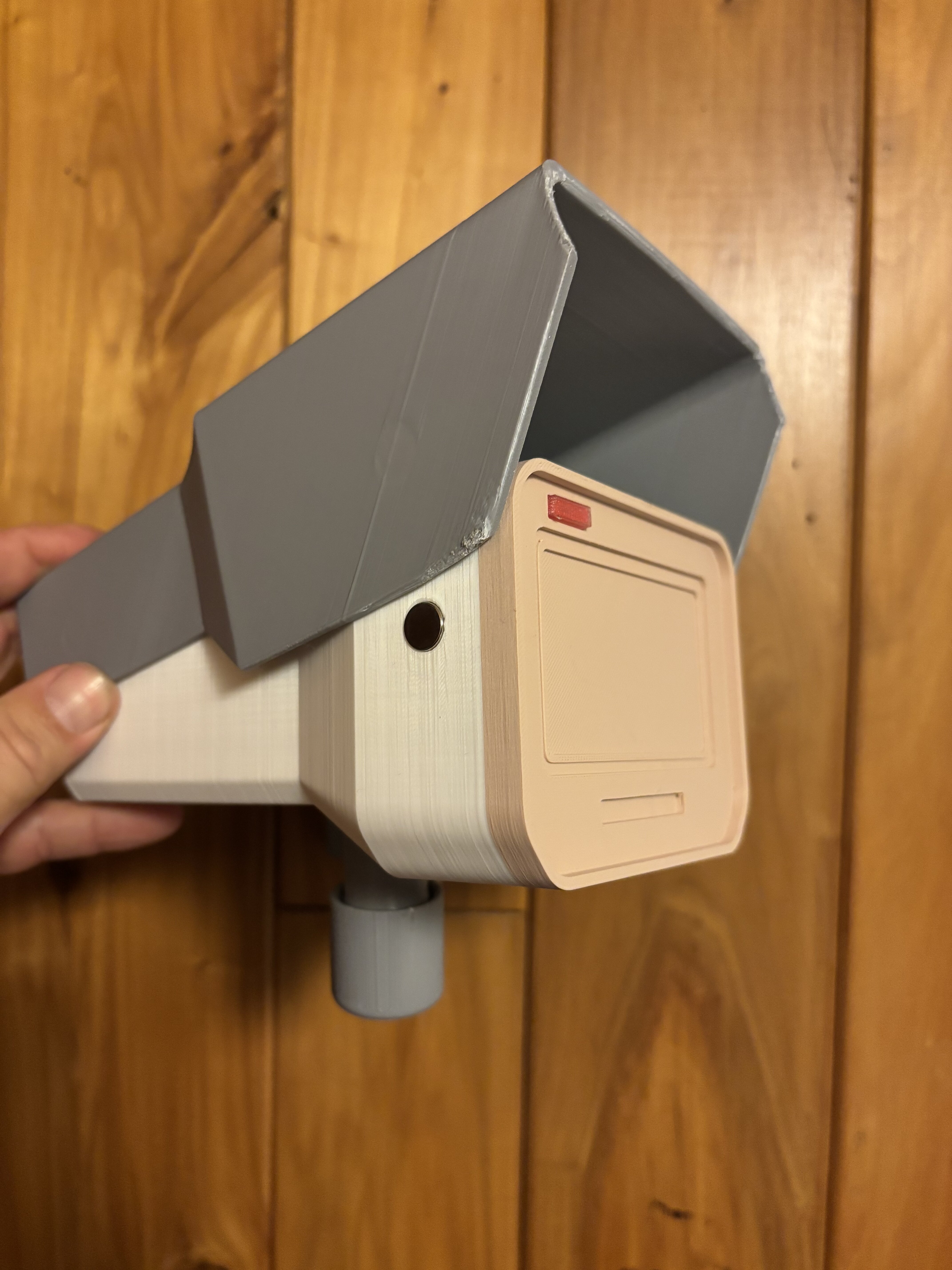

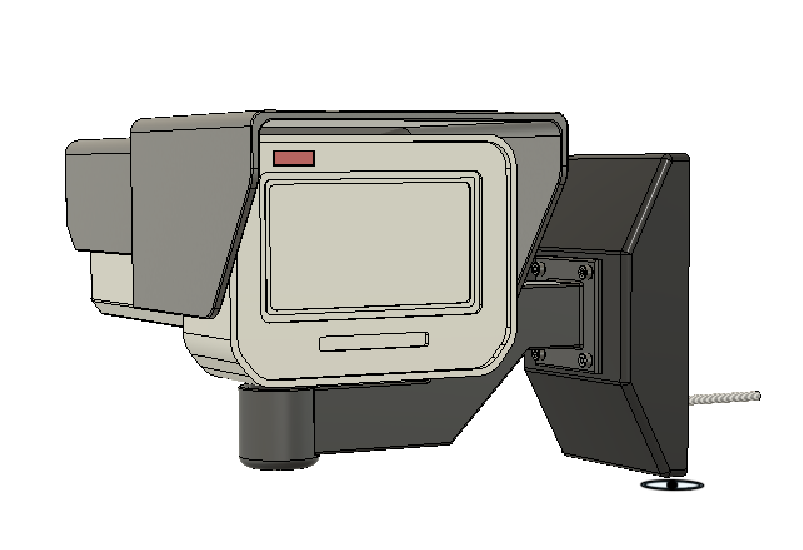

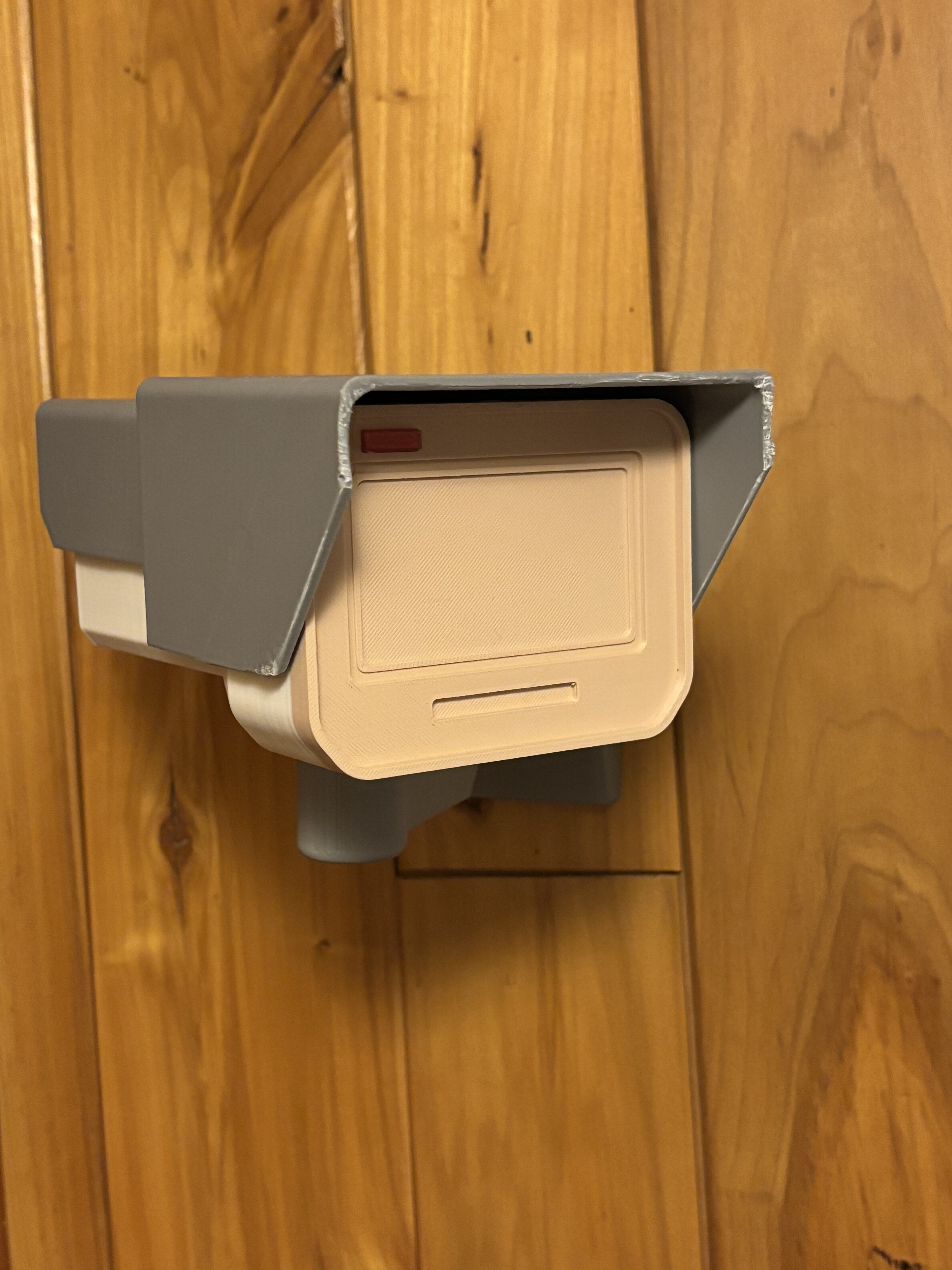

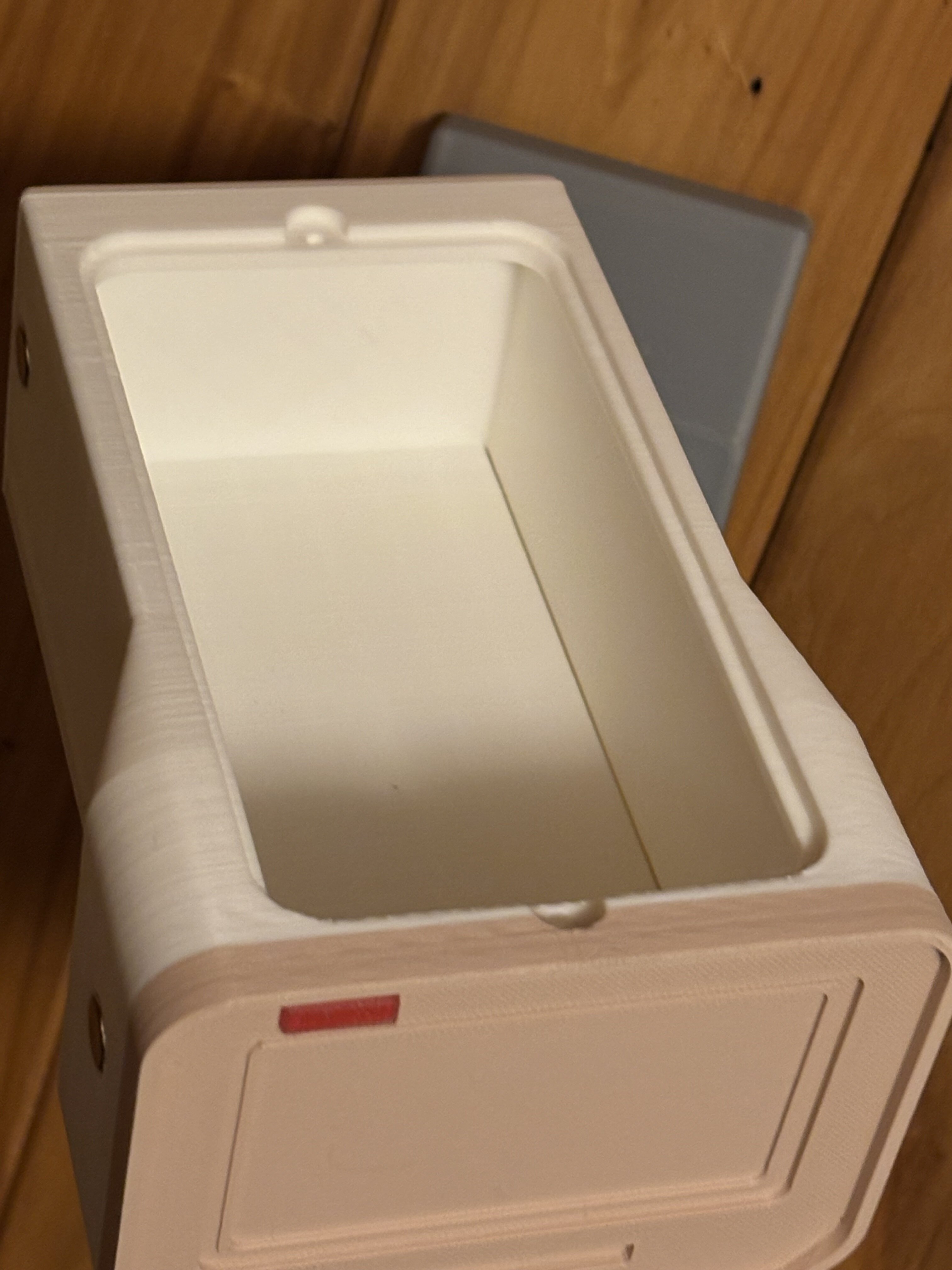

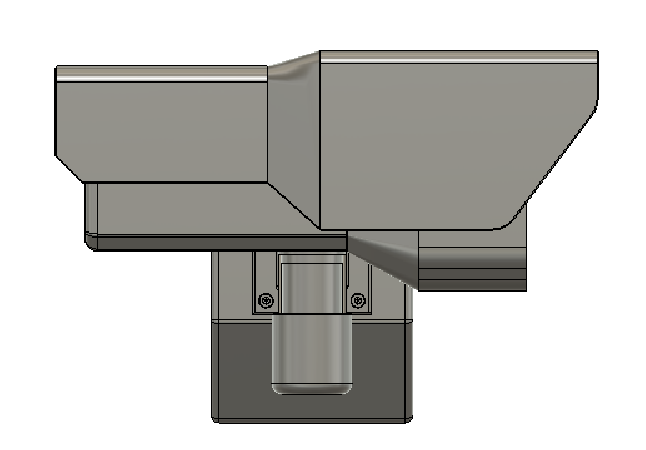

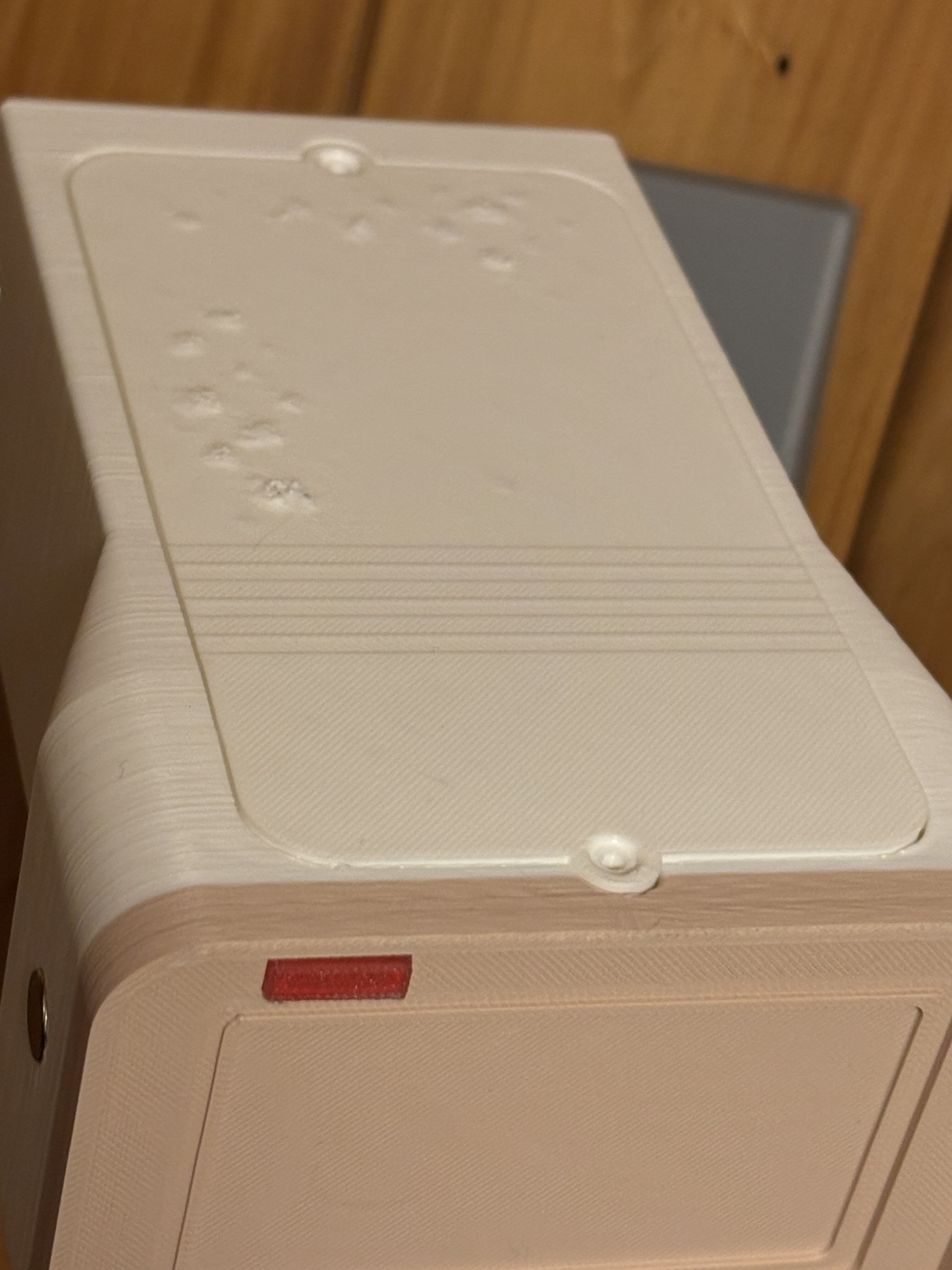

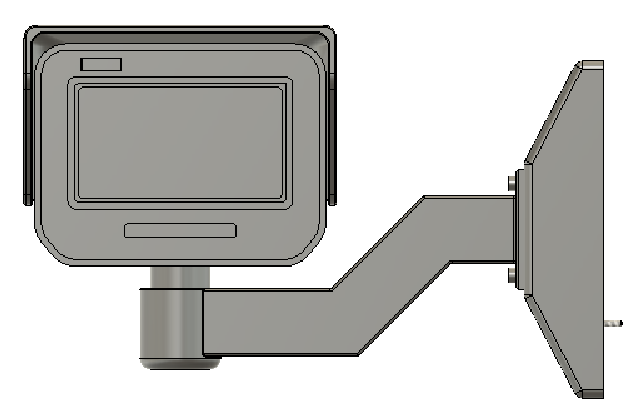

I designed the Camera to have a space inside for optional electronics, a gopro style camera, or a Bluetooth speaker for mood music. All magnets are 10mm X 2mm the bolts for the arm are M3 socket head and mounting screws should be #5 or #6 drywall screws.

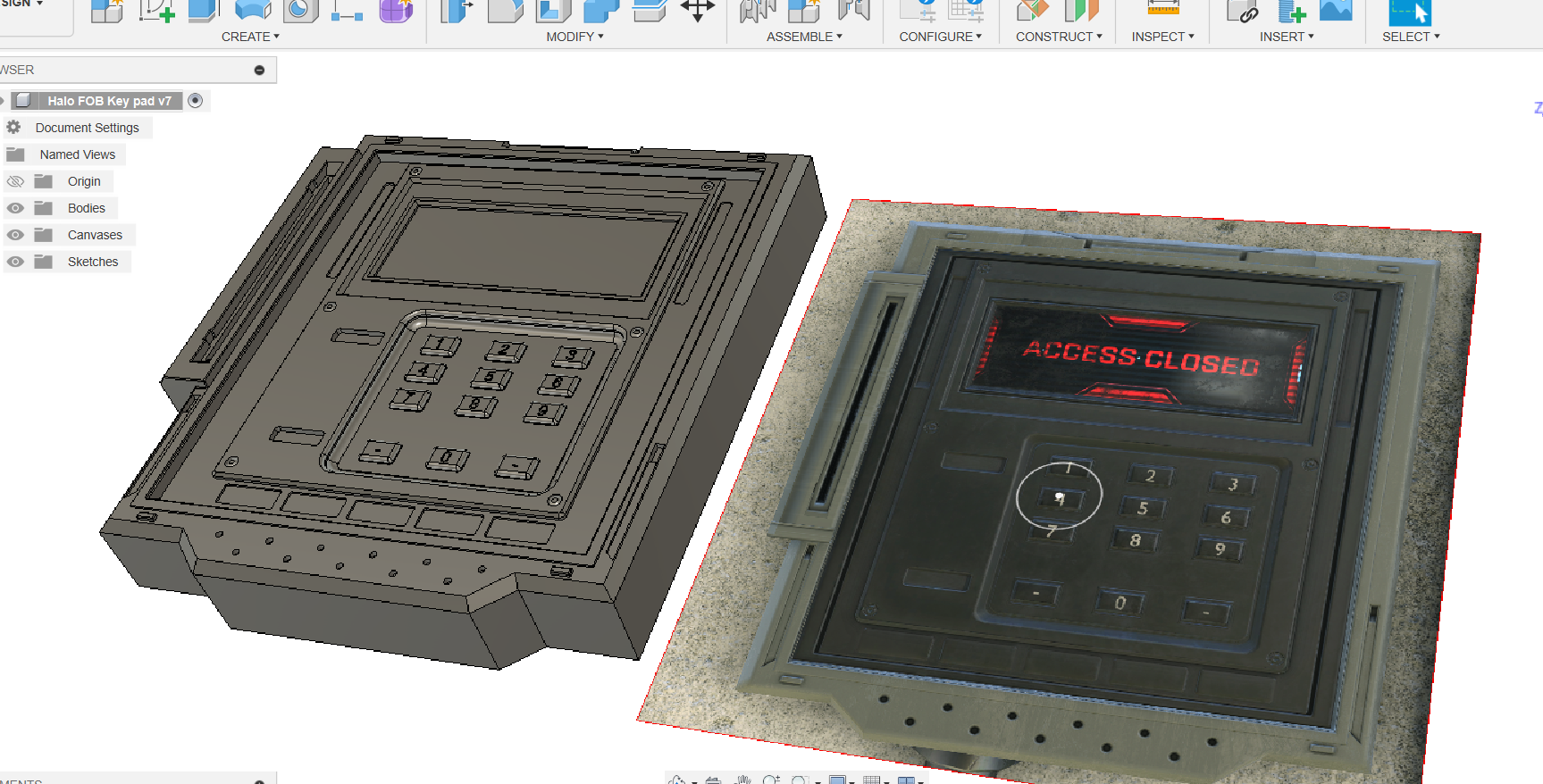

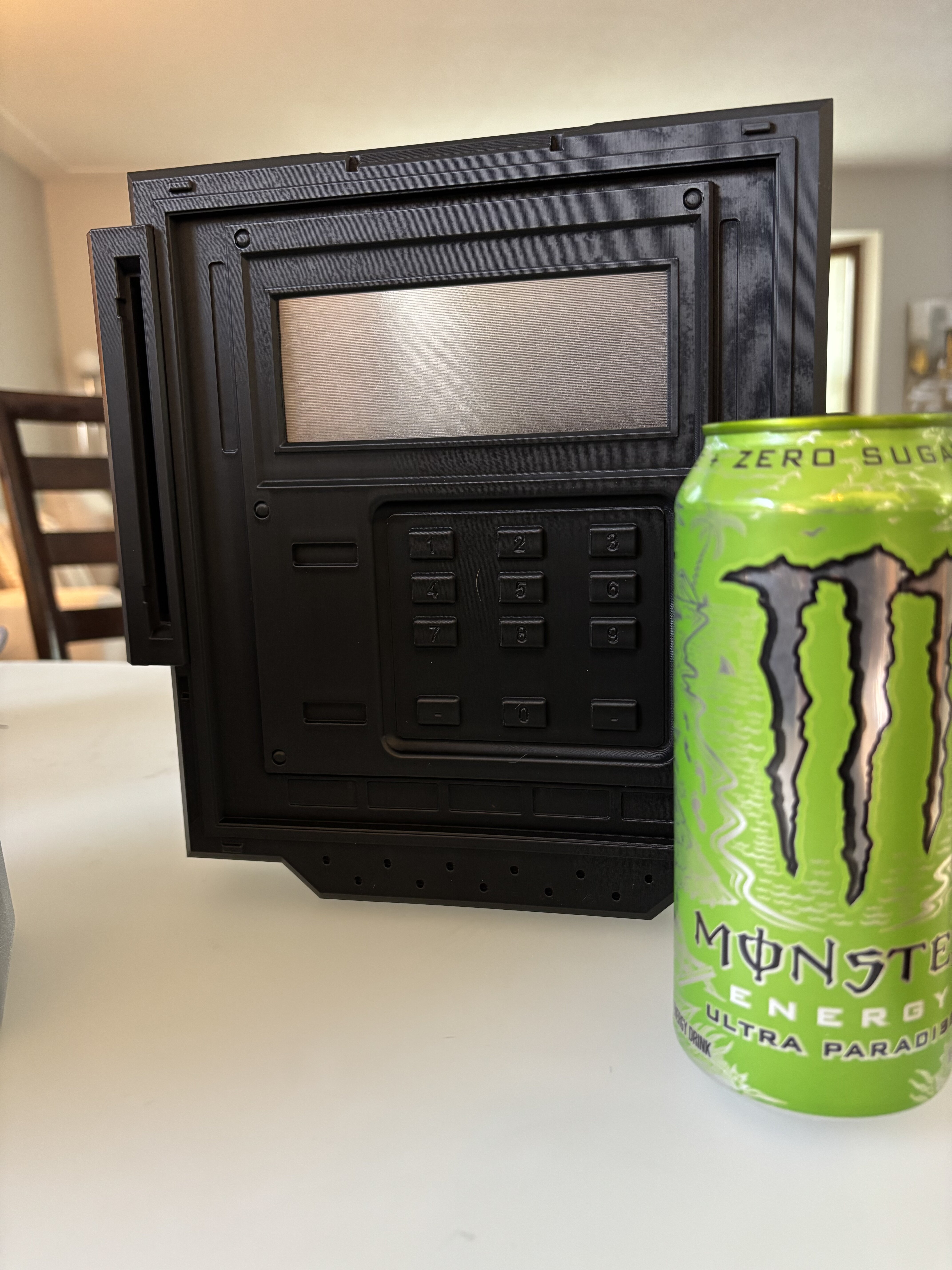

The key pad also has an opening in the back to add electronics or a back light that could illuminate a waterslide decal on a clear lens. It is mounted with dry wall screws as well.
I will add the 3mf files here that are bambu ready and I will also drop the a link to the Stl files below. If you would like the Fusion files I could share them at a later date.
Booth Light
Booth Camera
Booth Key Pad
The booth Light uses these LEDS from Amazon ,10mm x 2mm magnets and M5 hardware.
I designed the Camera to have a space inside for optional electronics, a gopro style camera, or a Bluetooth speaker for mood music. All magnets are 10mm X 2mm the bolts for the arm are M3 socket head and mounting screws should be #5 or #6 drywall screws.
The key pad also has an opening in the back to add electronics or a back light that could illuminate a waterslide decal on a clear lens. It is mounted with dry wall screws as well.
I will add the 3mf files here that are bambu ready and I will also drop the a link to the Stl files below. If you would like the Fusion files I could share them at a later date.
Booth Light
Booth Camera
Booth Key Pad
