Hello guys and gals! I have recently been working on a Halo Reach suit and decided its about time I pull my weight and start posting some updates and pics :p Its taken a few tries at different pieces before I finally settled on the suit I wanted to build but I think I've got it. The plan is to eventually have a full E.O.D tech suit with the associated specialized pieces but first things first, the base suit needs to be made :p

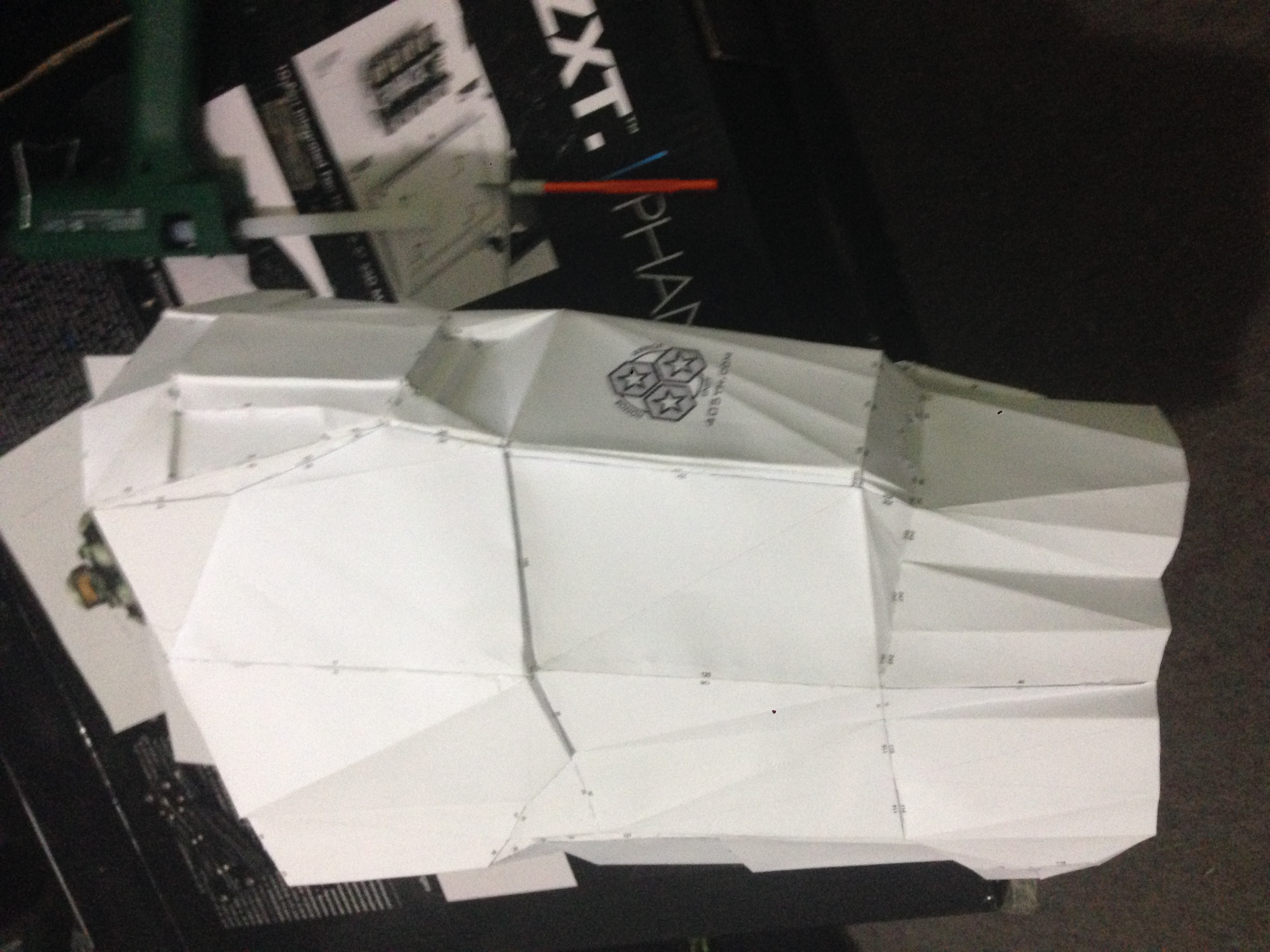

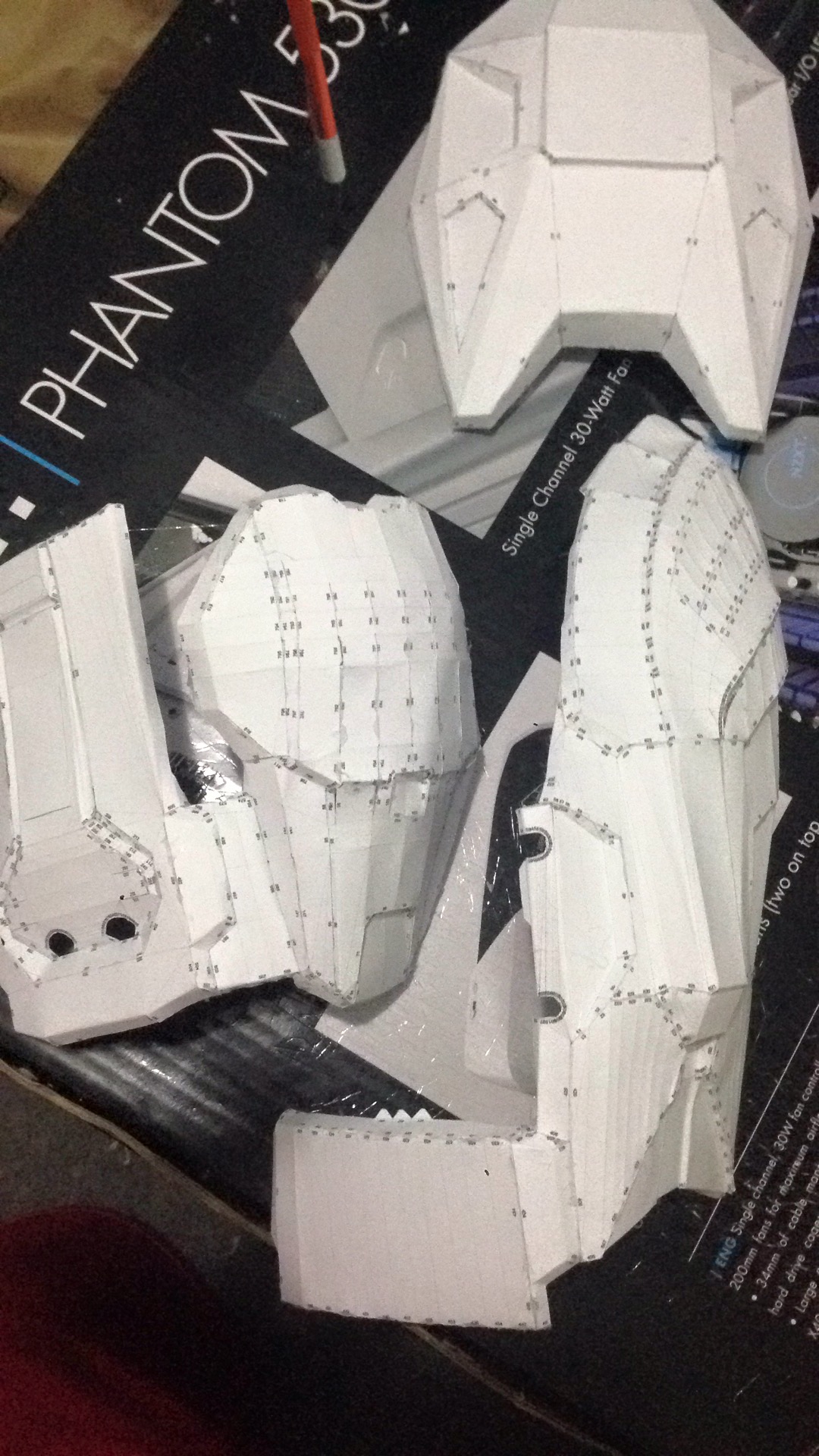

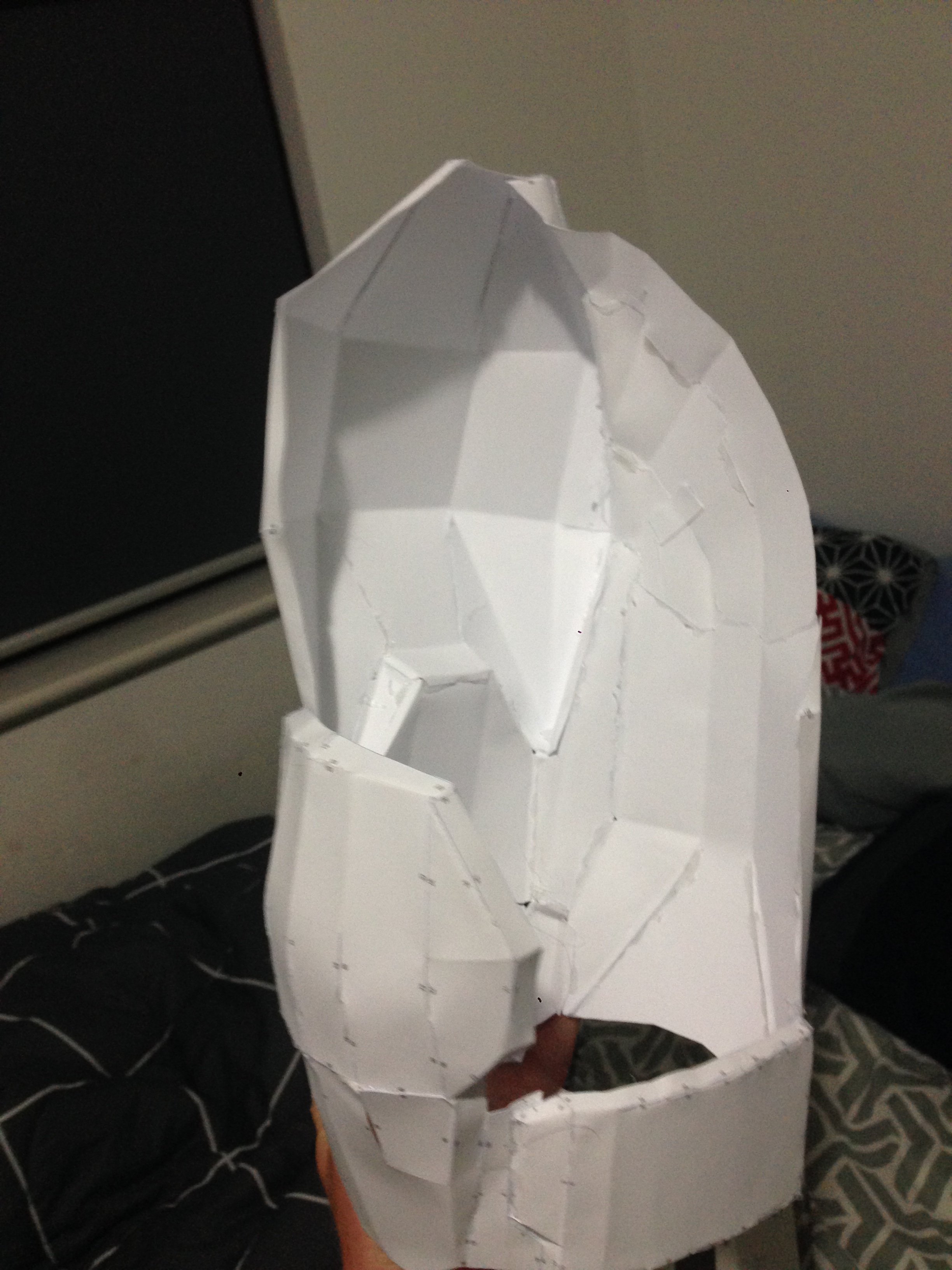

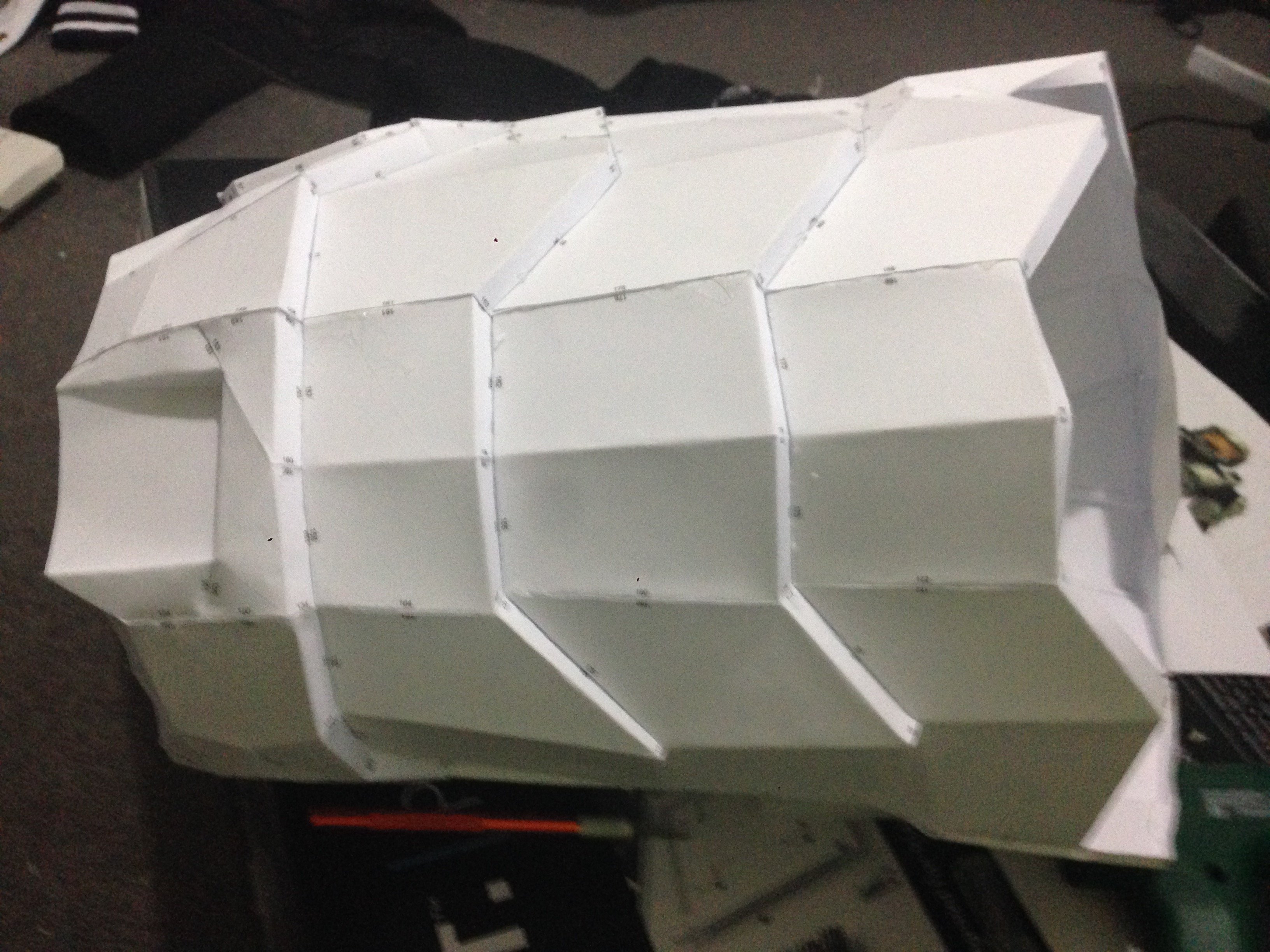

These pics where of some of the original pieces I built before I changed my mind. They right bicep and shoulder pieces were nicely scaled but they thigh piece was too large and had to be scrapped. :/


Attachments

  • IMG_1628.JPG
    775.7 KB · Views: 312
  • IMG_1640.JPG
    468.6 KB · Views: 318
  • IMG_1638.JPG
    484.6 KB · Views: 310
  • IMG_1651.JPG
    1.9 MB · Views: 342
  • IMG_1653.JPG
    1.1 MB · Views: 323

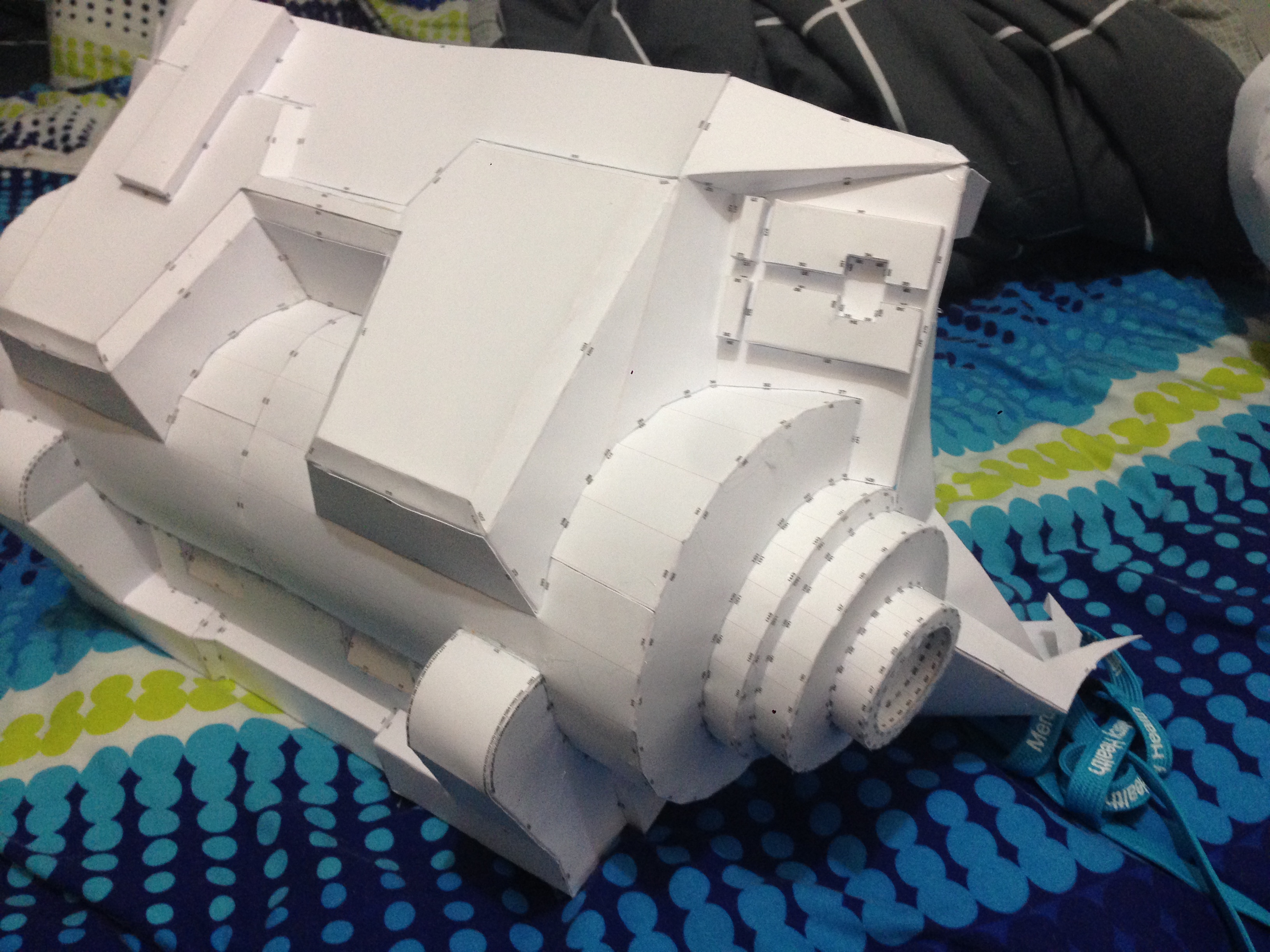

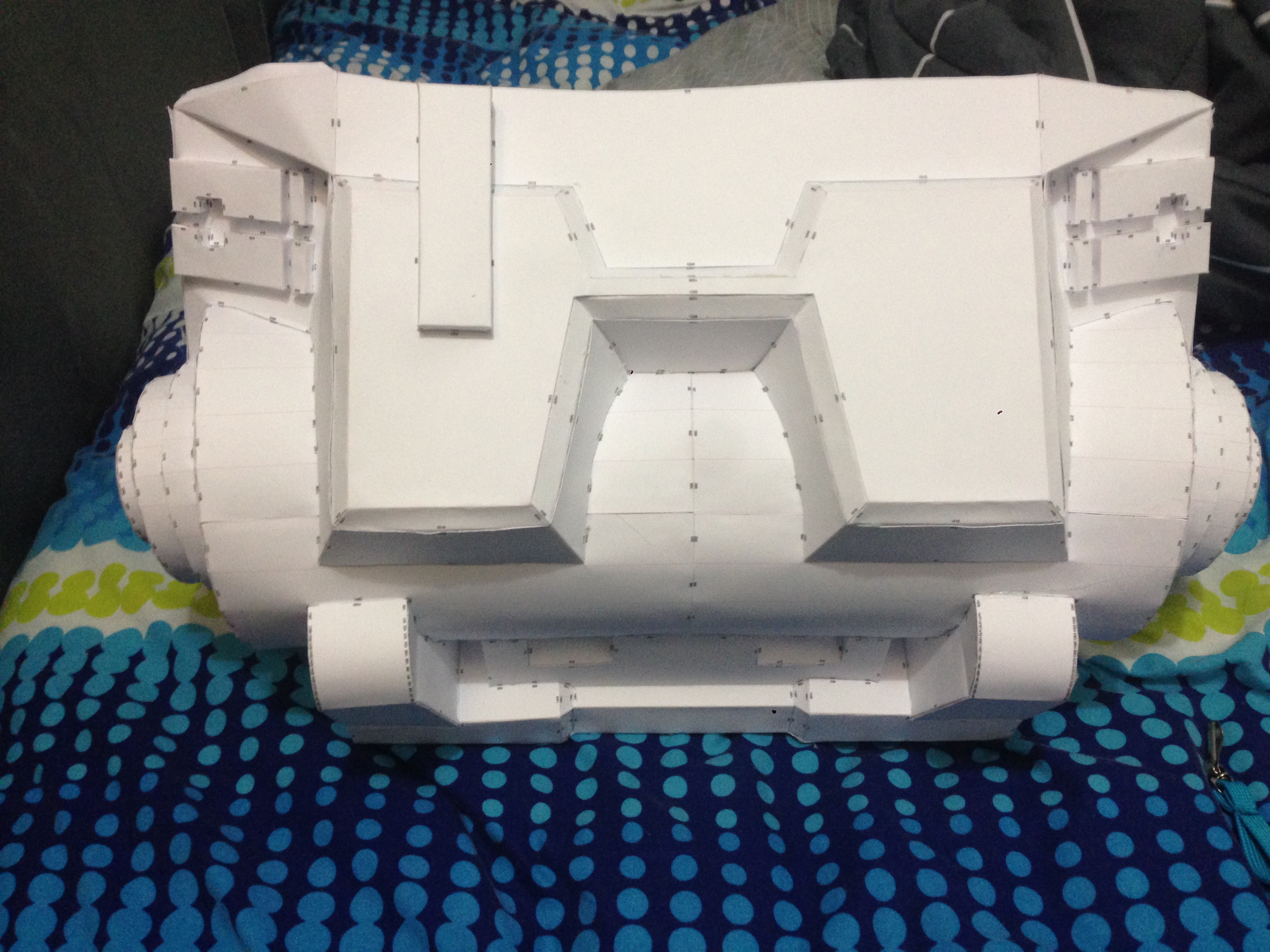

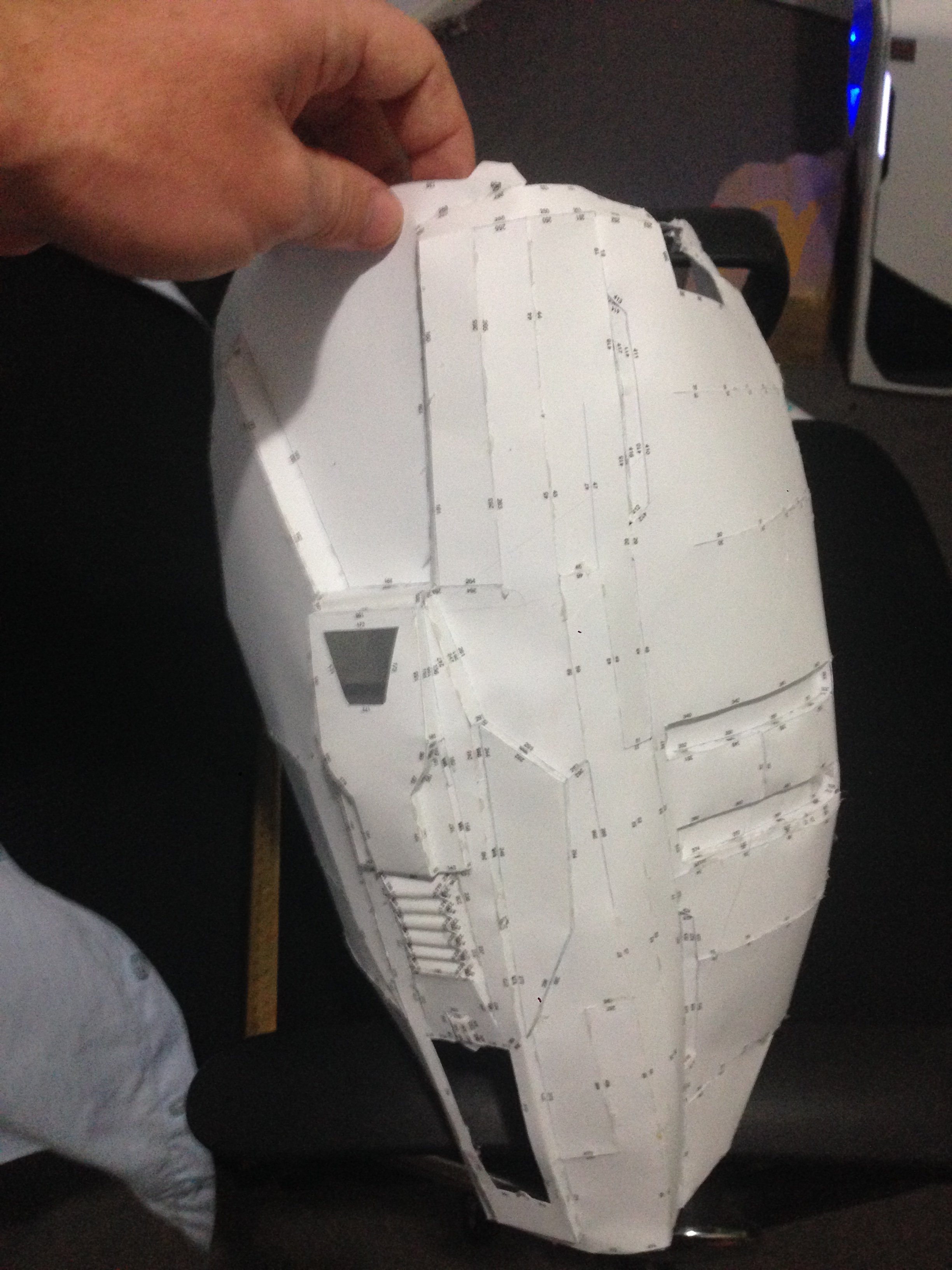

These were some pics of the thigh and Jorge chest piece I had started, the thigh piece was about 5mm-10mm too small and had to be discarded, the Jorge chest piece was too large


Attachments

  • IMG_1682.JPG
    875.9 KB · Views: 289
  • IMG_1935.JPG
    2 MB · Views: 286
  • IMG_1936.JPG
    2 MB · Views: 277

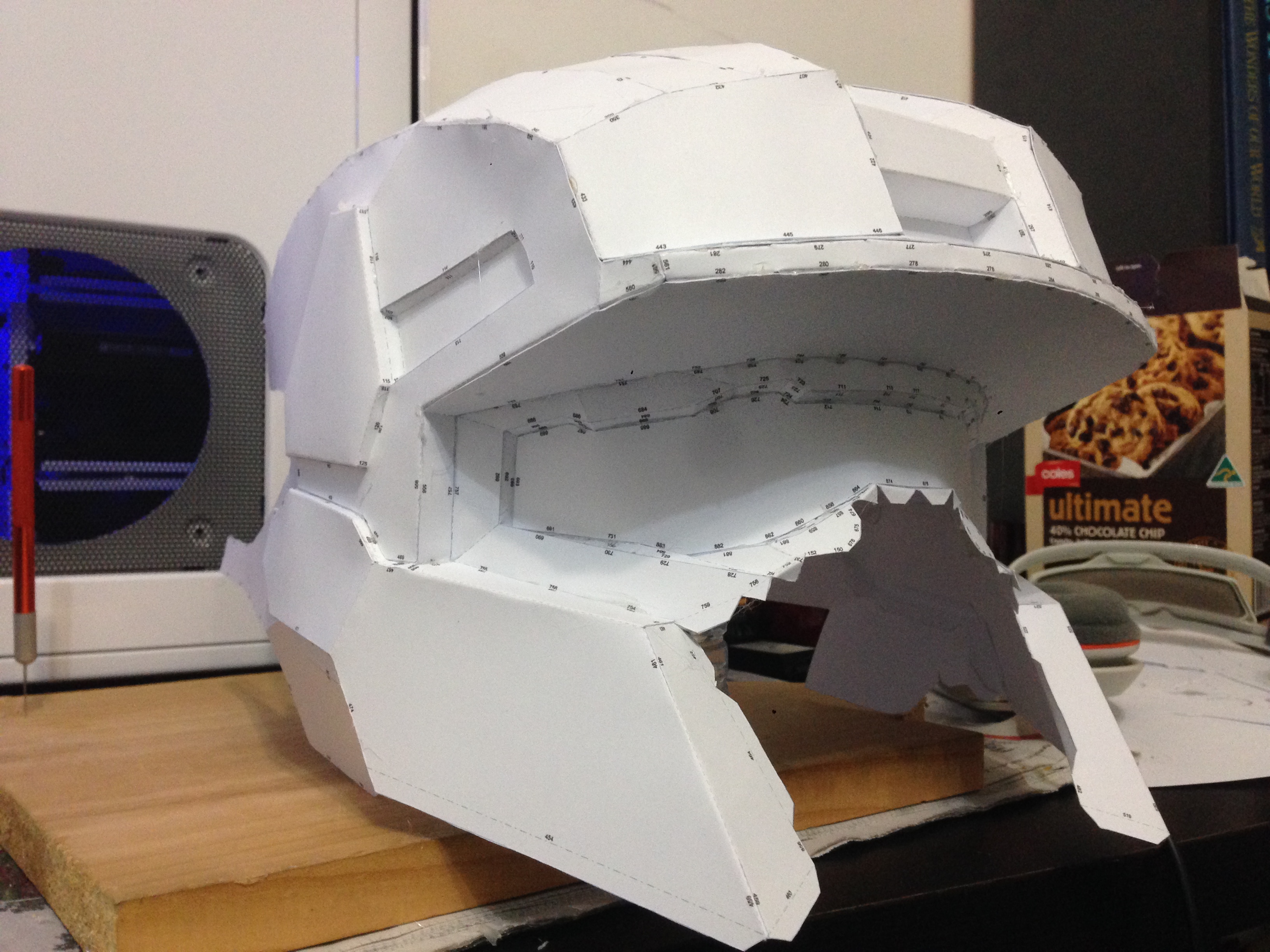

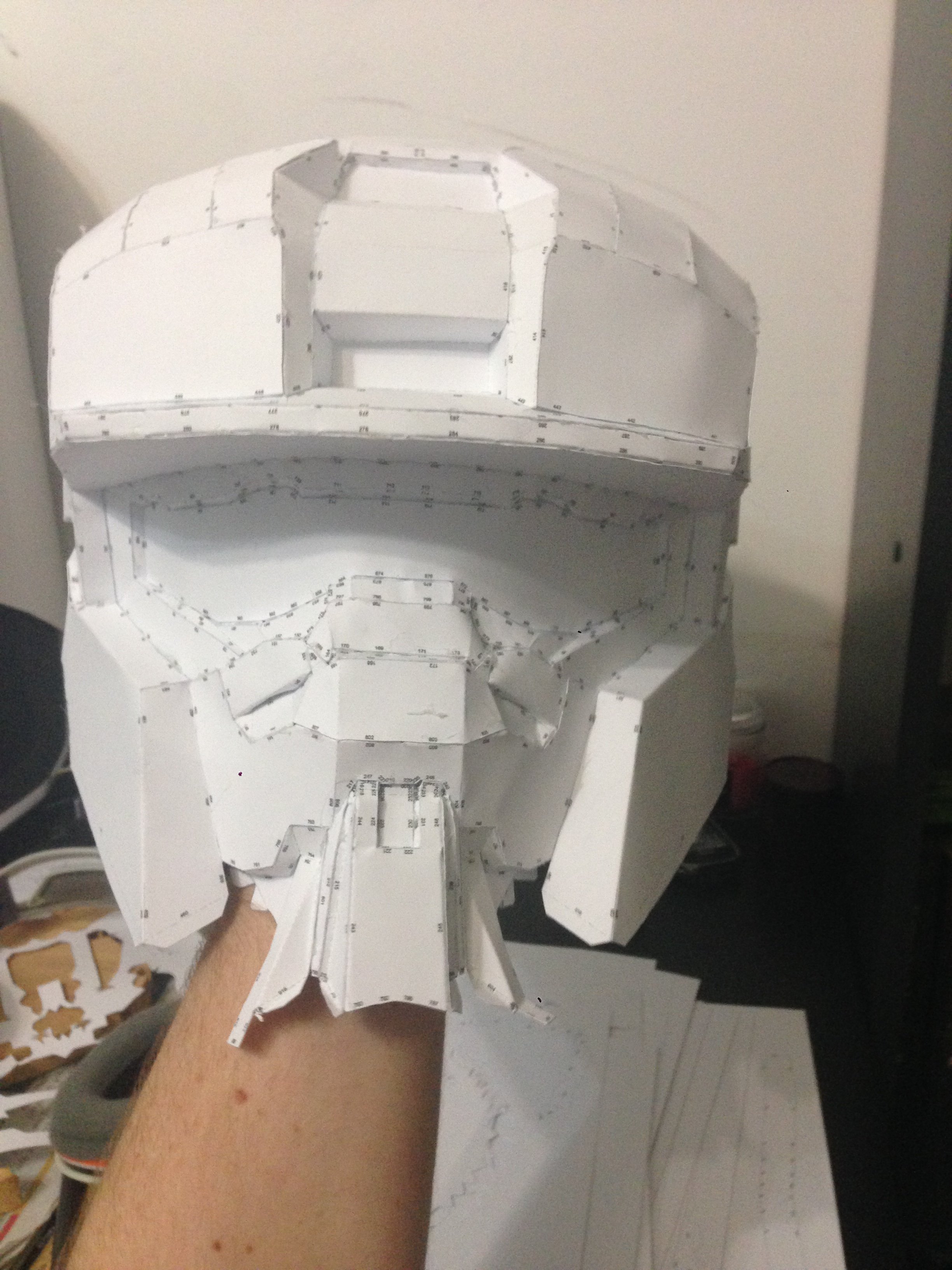

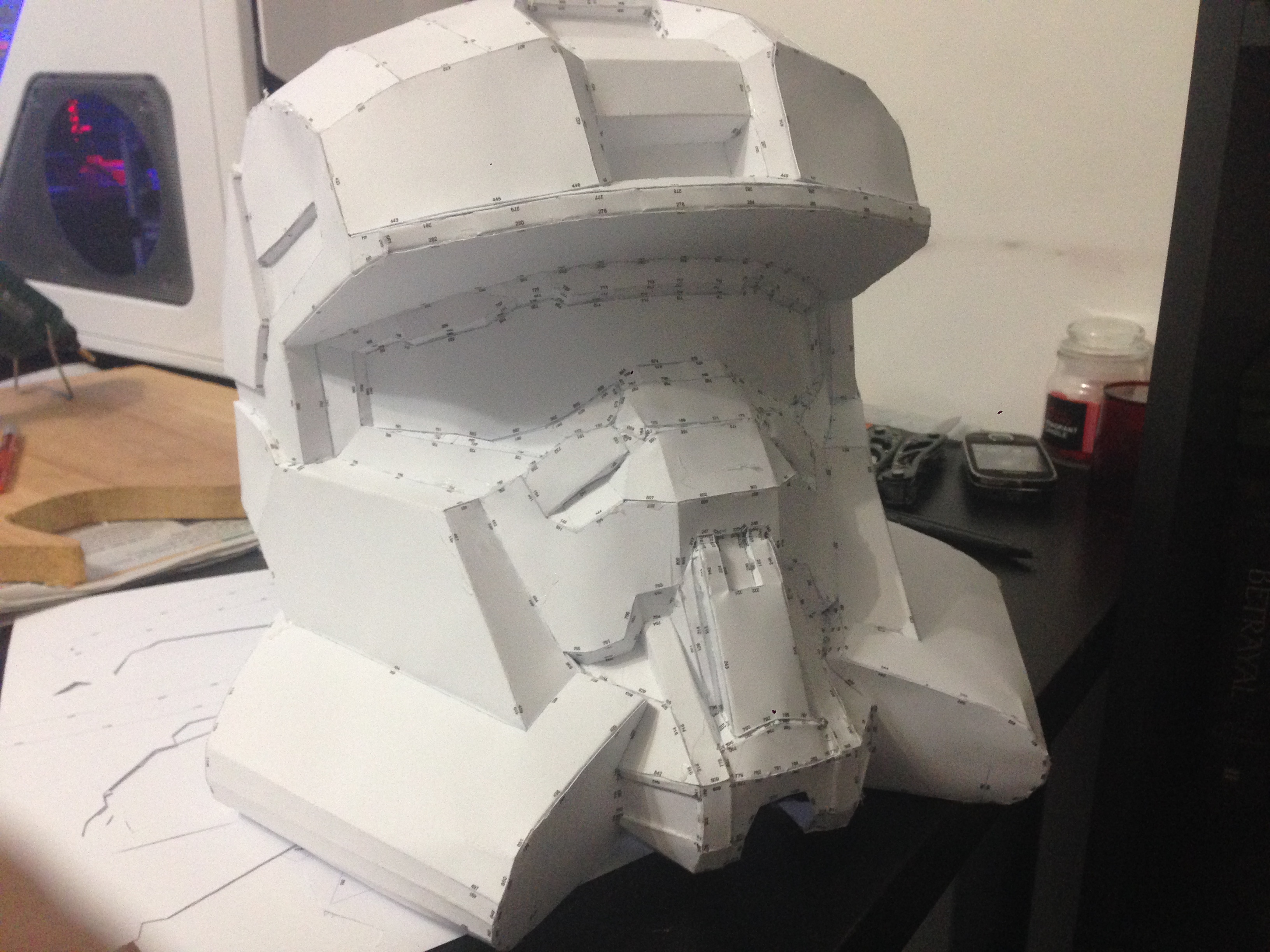

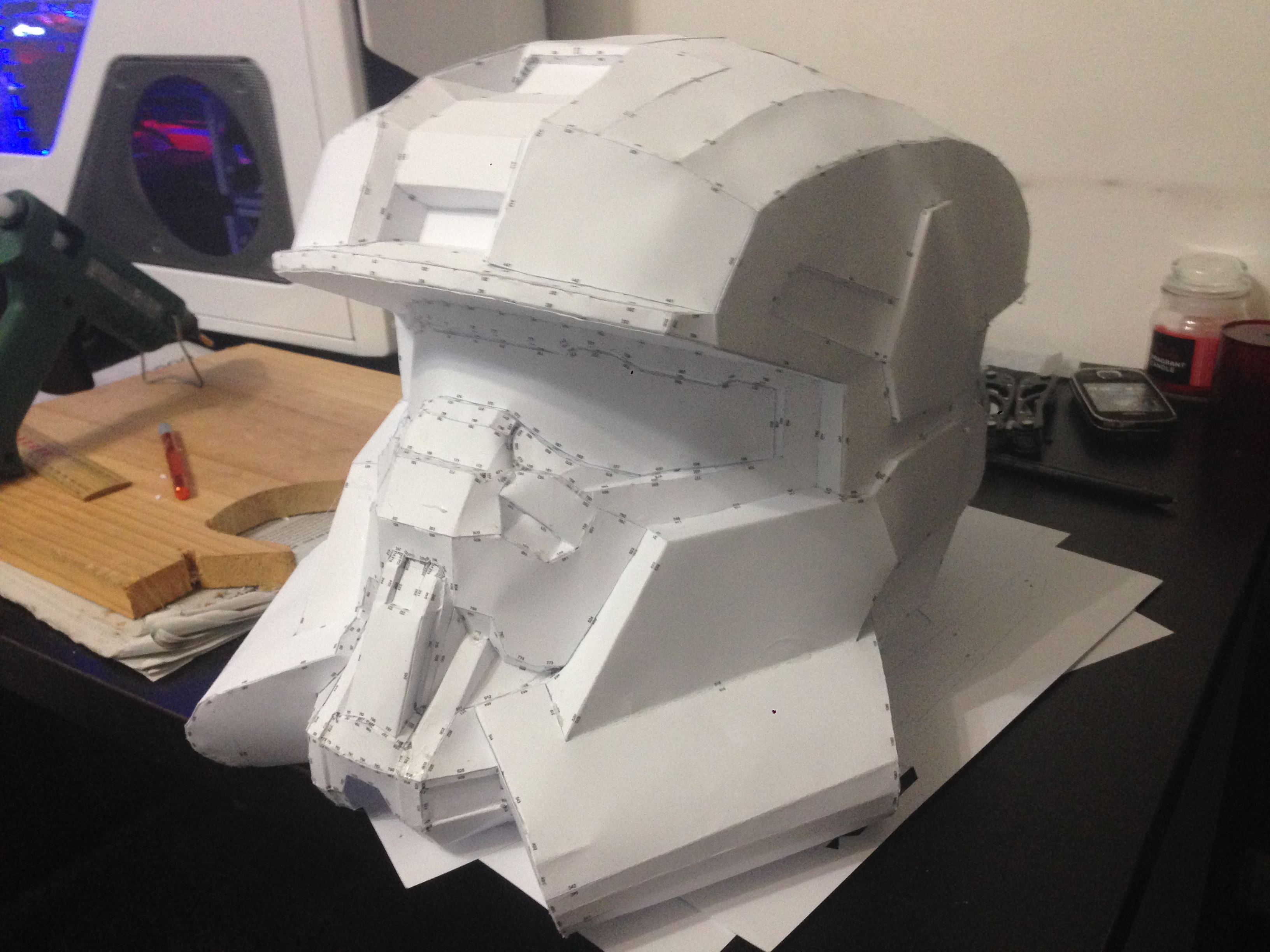

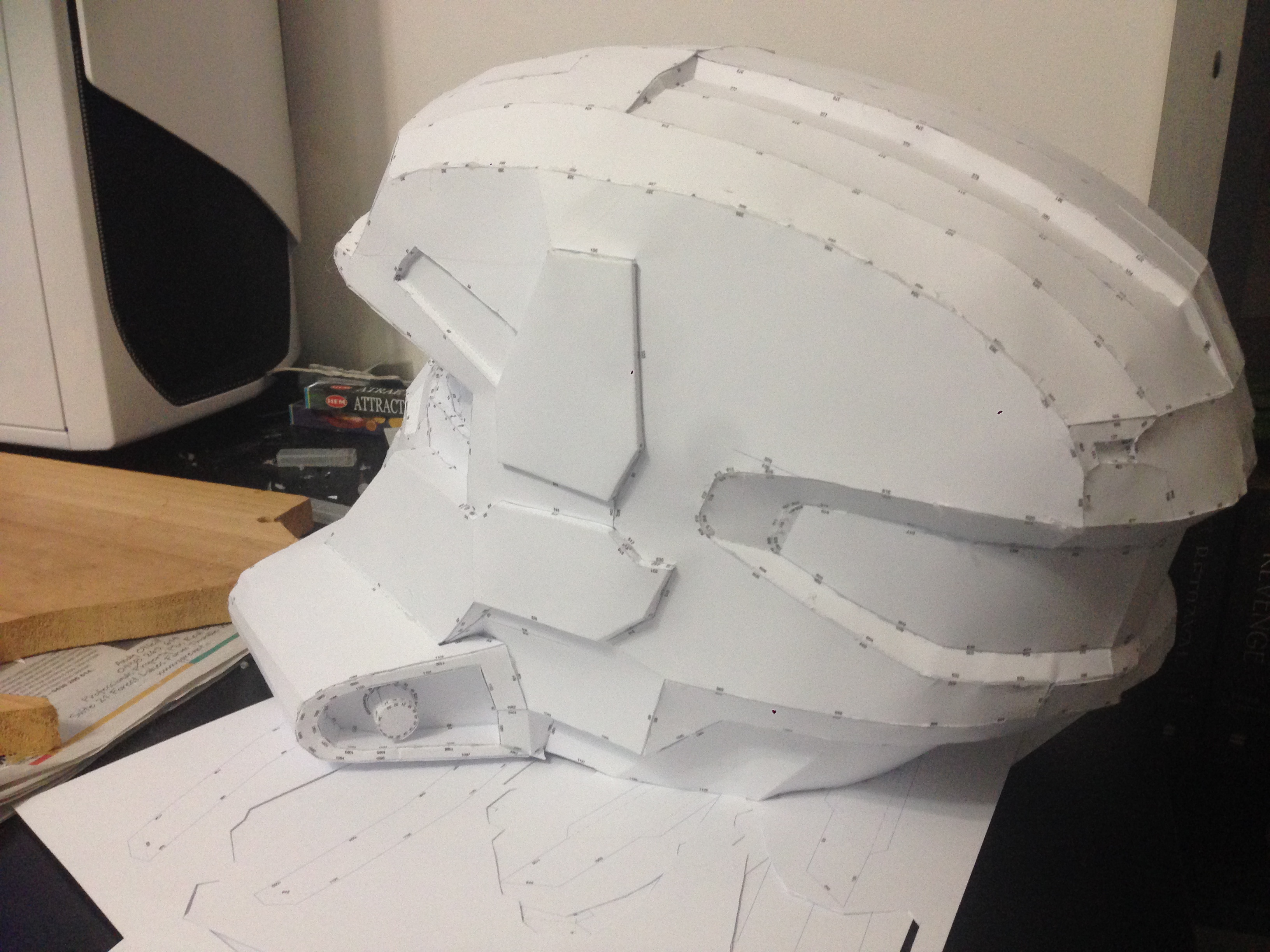

I finally decided on creating an E.O.D suit after I came across the file for the helmet and fell in love with it, I have so far finished pepping it and have just added the first layer of resin to the outside


Attachments

  • IMG_1709.JPG
    1.9 MB · Views: 251
  • IMG_1714.JPG
    930.5 KB · Views: 337
  • IMG_1717.JPG
    1.9 MB · Views: 327
  • IMG_1718.JPG
    1.9 MB · Views: 242
  • IMG_1720.JPG
    1.9 MB · Views: 310

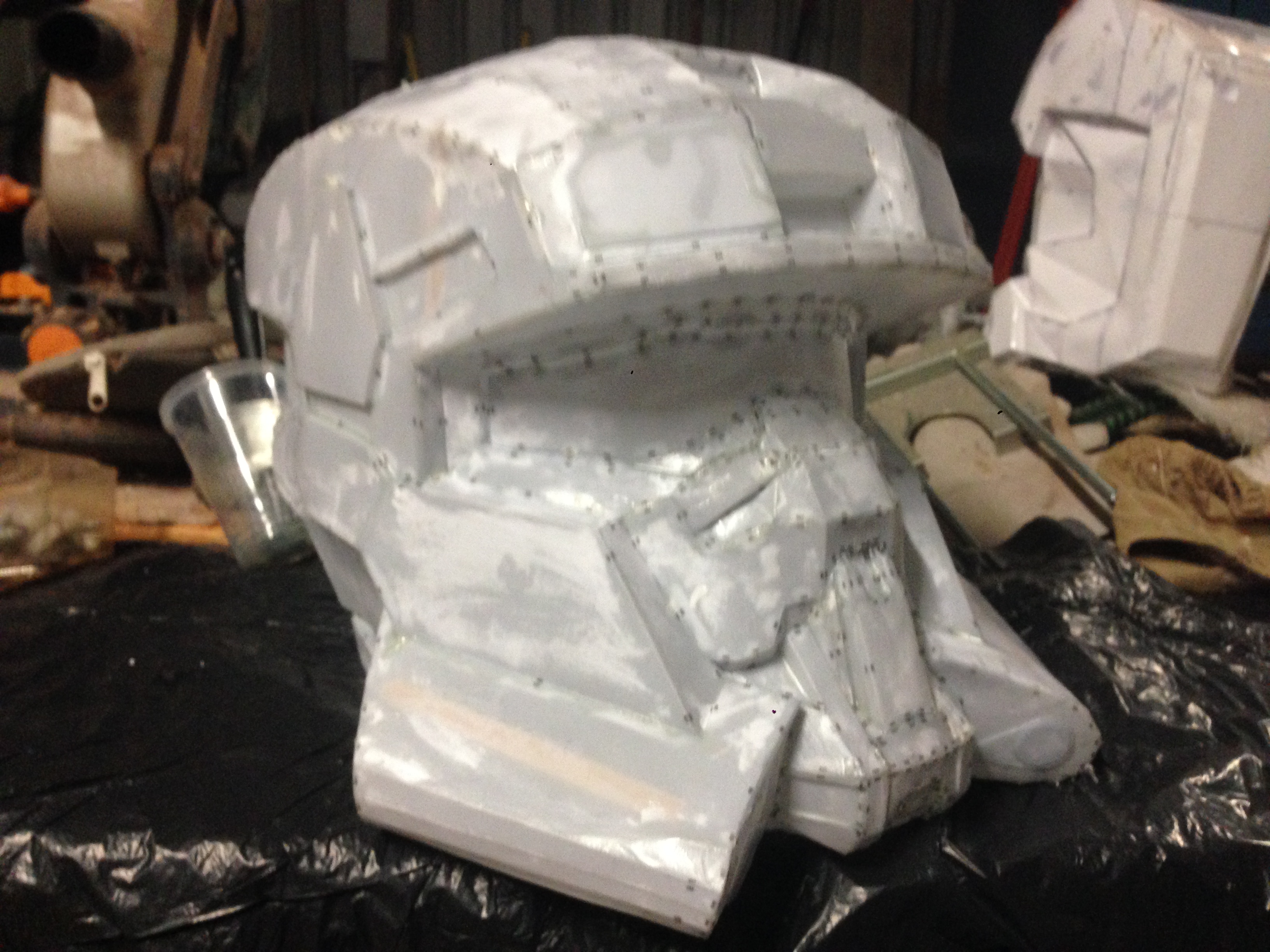

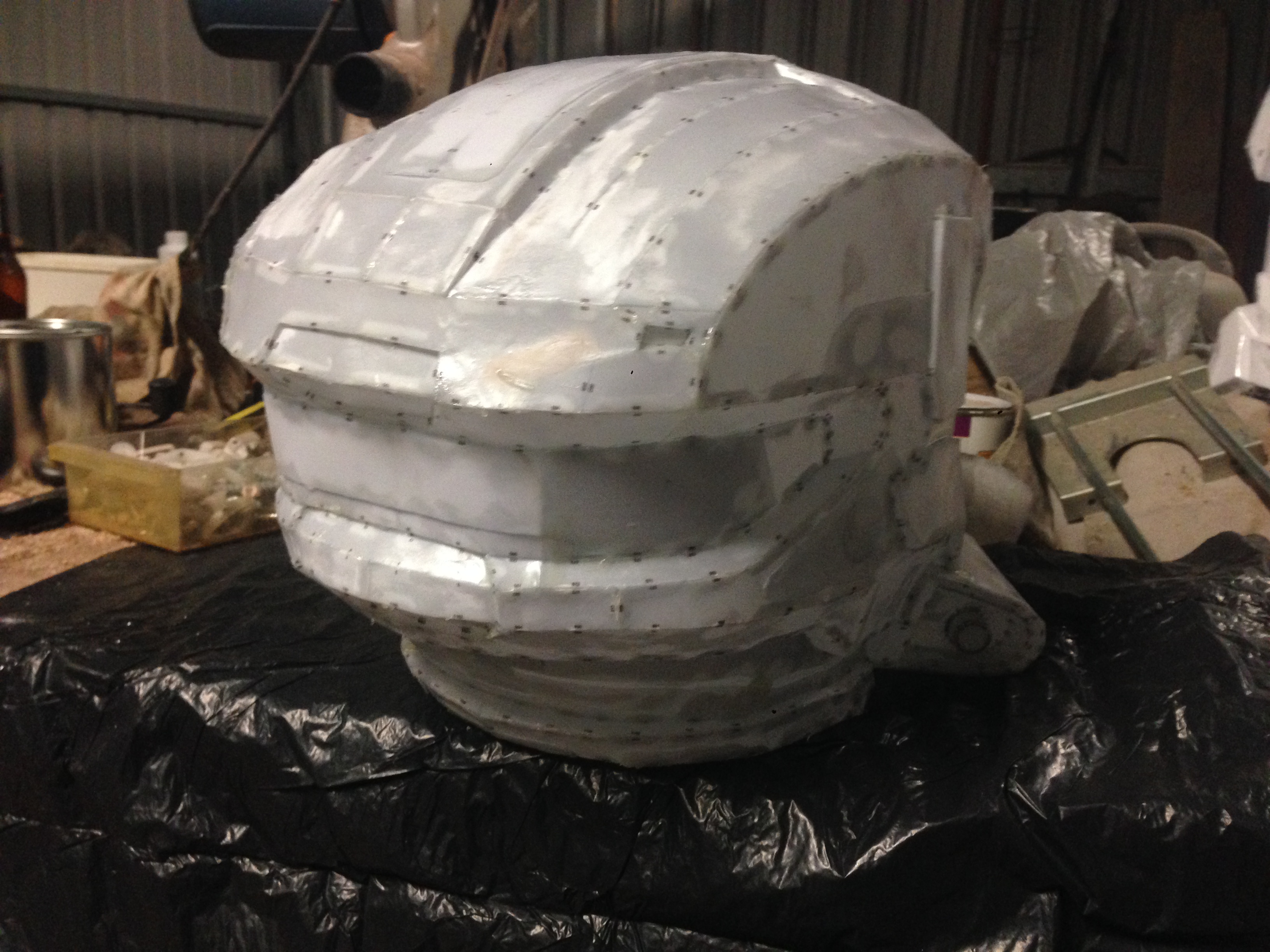

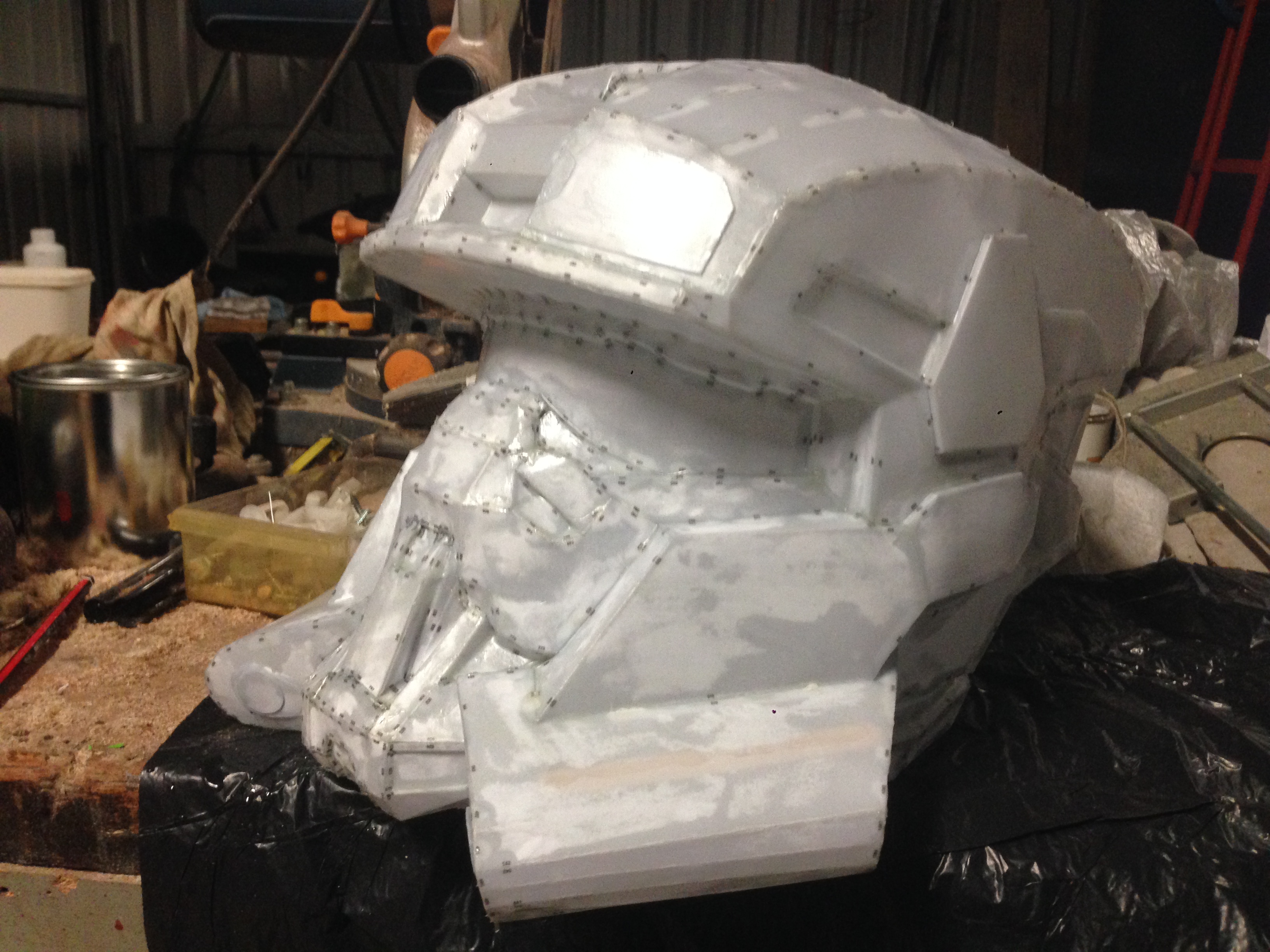

Pics of the helmet with resin


Attachments

  • IMG_1888.JPG
    1.9 MB · Views: 285
  • IMG_1889.JPG
    1.8 MB · Views: 351
  • IMG_1890.JPG
    1.7 MB · Views: 307

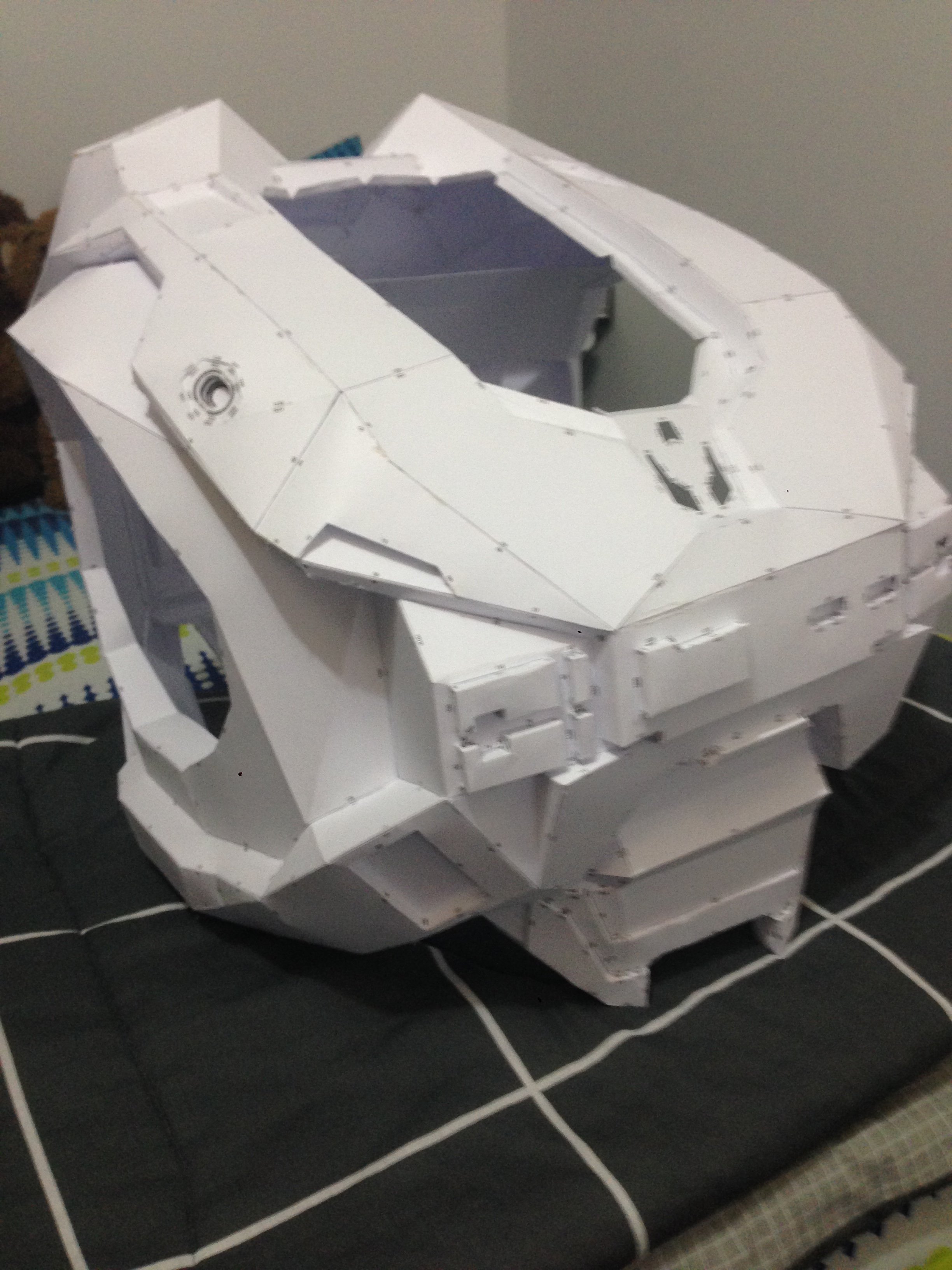

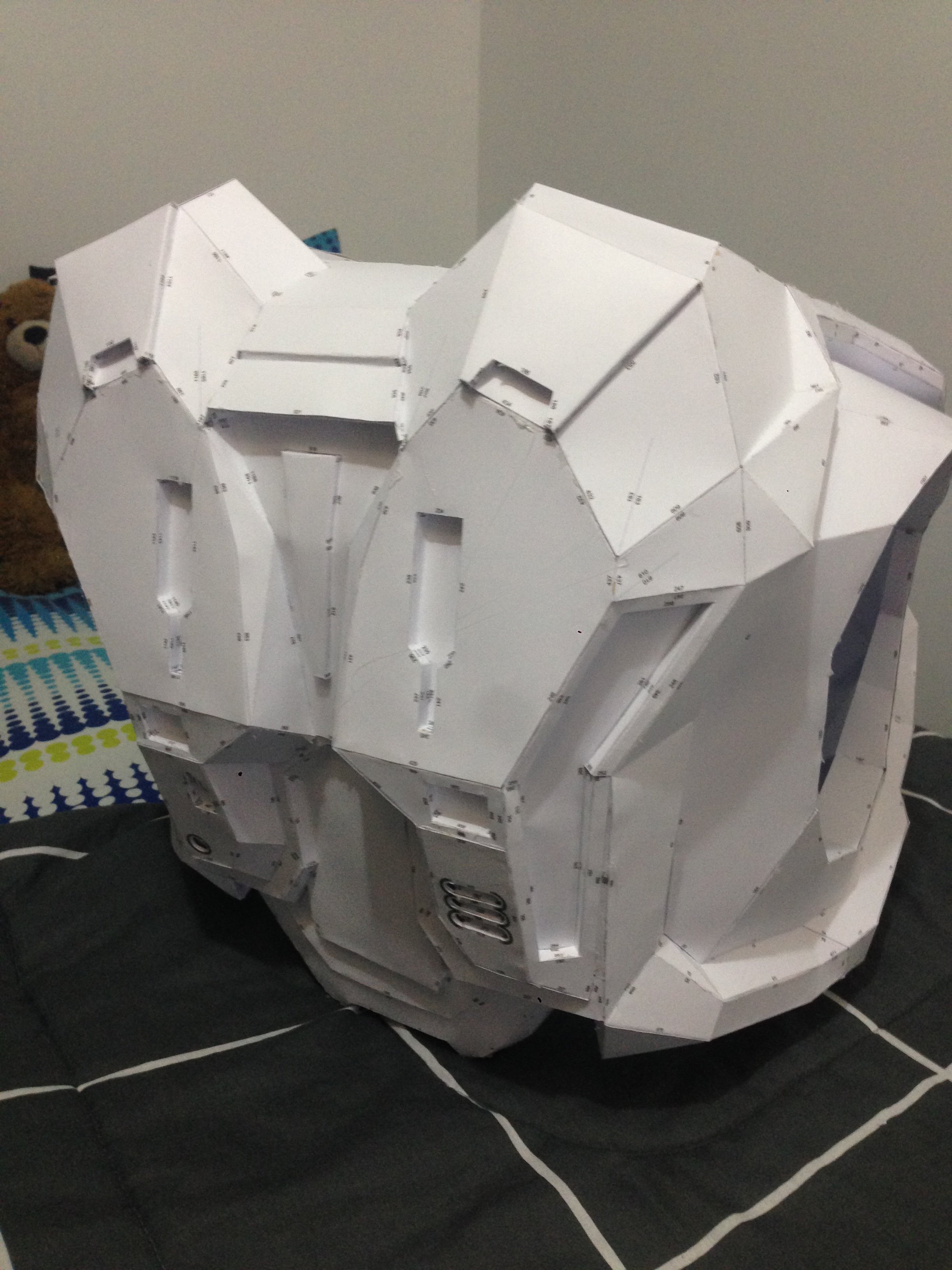

The chest piece took a couple tries to get right but its finally finished and ready to resin


Attachments

  • IMG_1829.JPG
    837.3 KB · Views: 313
  • IMG_1830.JPG
    857.3 KB · Views: 339

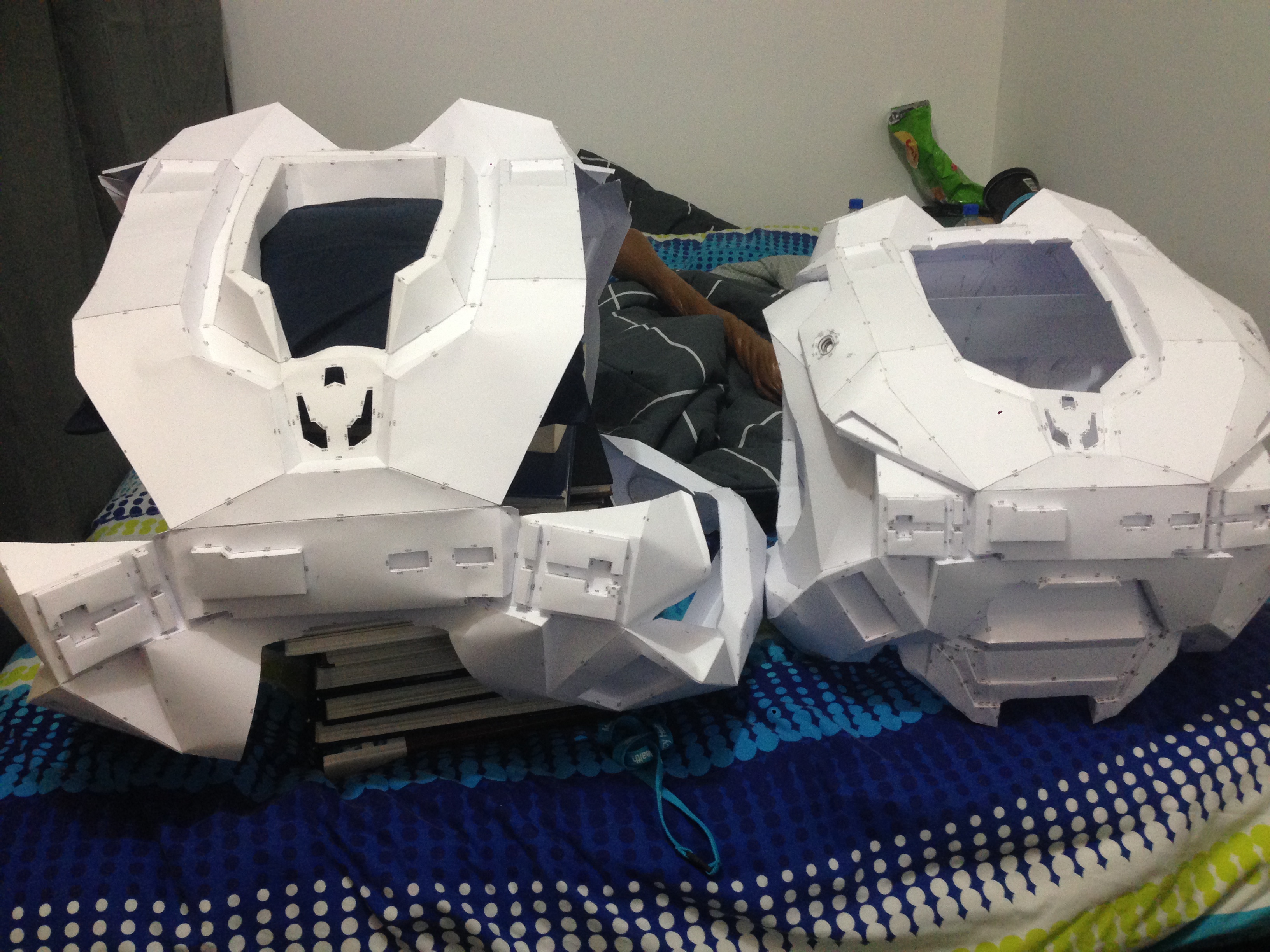

size comparison between my first attempt and the final one, it had been going fine but I did have the sinking feeling from the beginning but hoped that maybe I was just imagining it being to big but once it got to the stage in the photo I knew that it was waaayyy to large :(


Attachments

  • IMG_1937.JPG
    2 MB · Views: 300

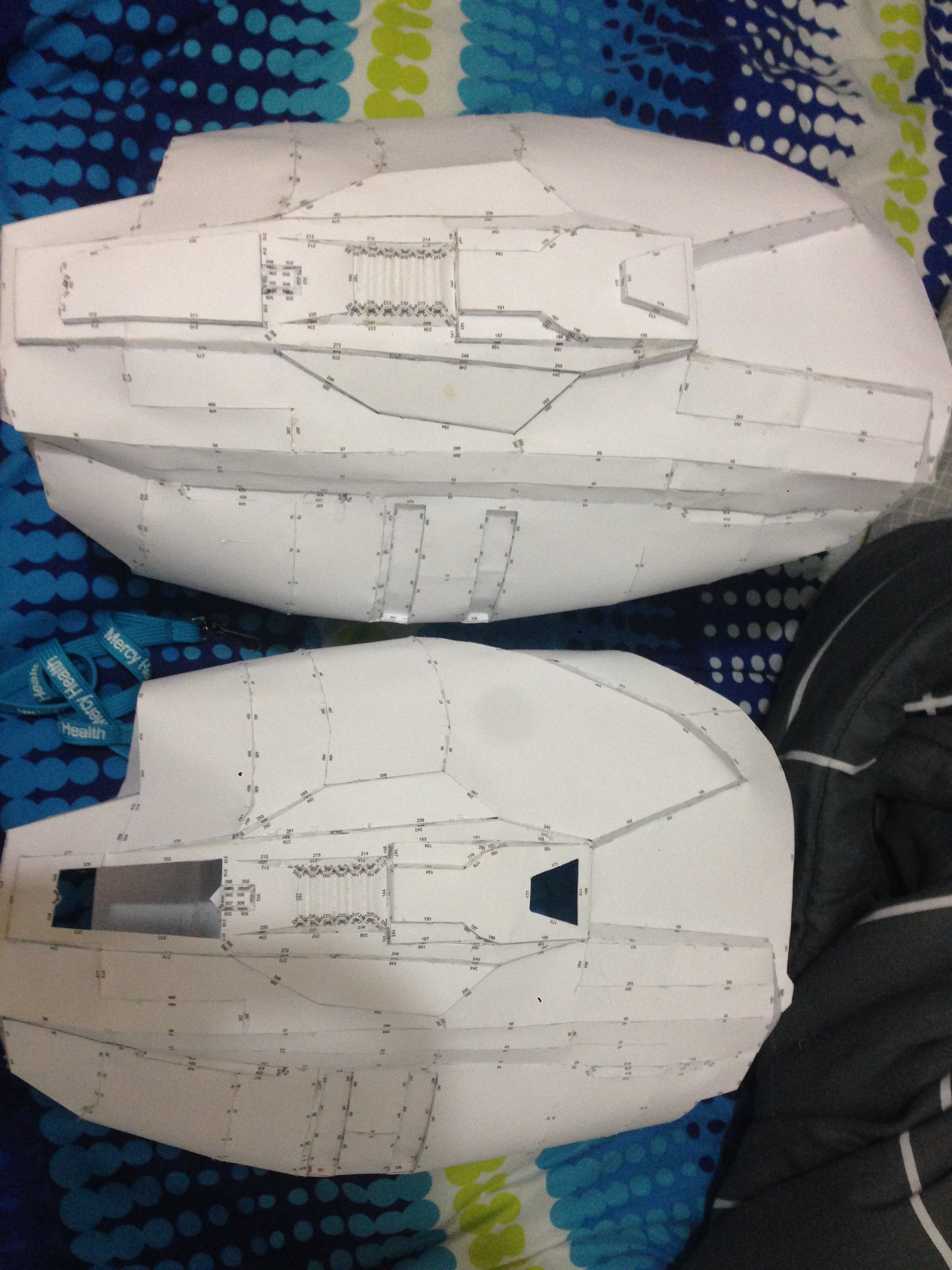

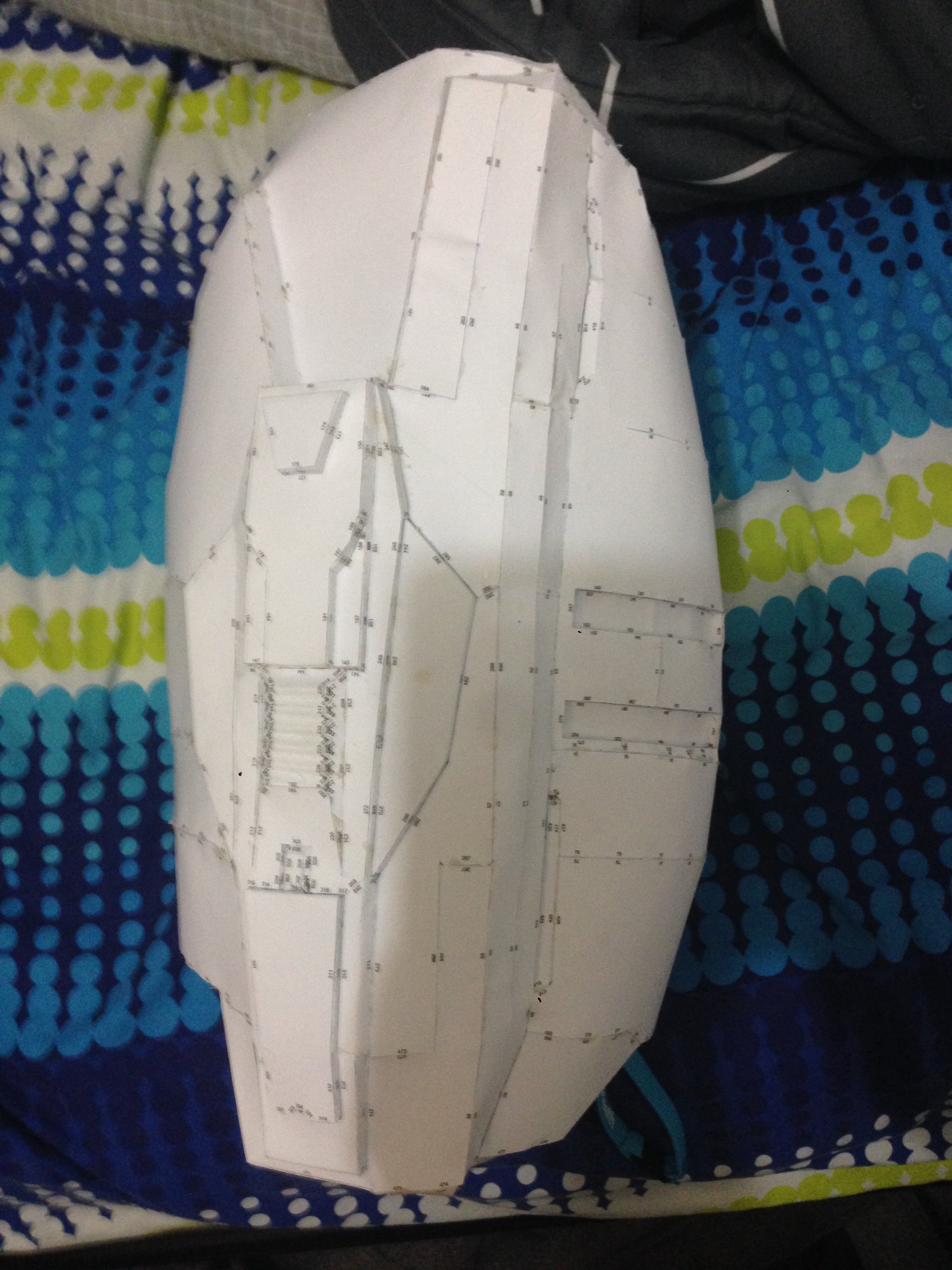

Here are two right thigh pieces, the smaller of the two was the first attempt but ended up to small, the larger seems to be the perfect size, have just finished it and will hopefully begin to resin it soon


Attachments

  • IMG_1932.JPG
    963.7 KB · Views: 255
  • IMG_1933.JPG
    887.8 KB · Views: 262
  • IMG_1934.JPG
    919.7 KB · Views: 283

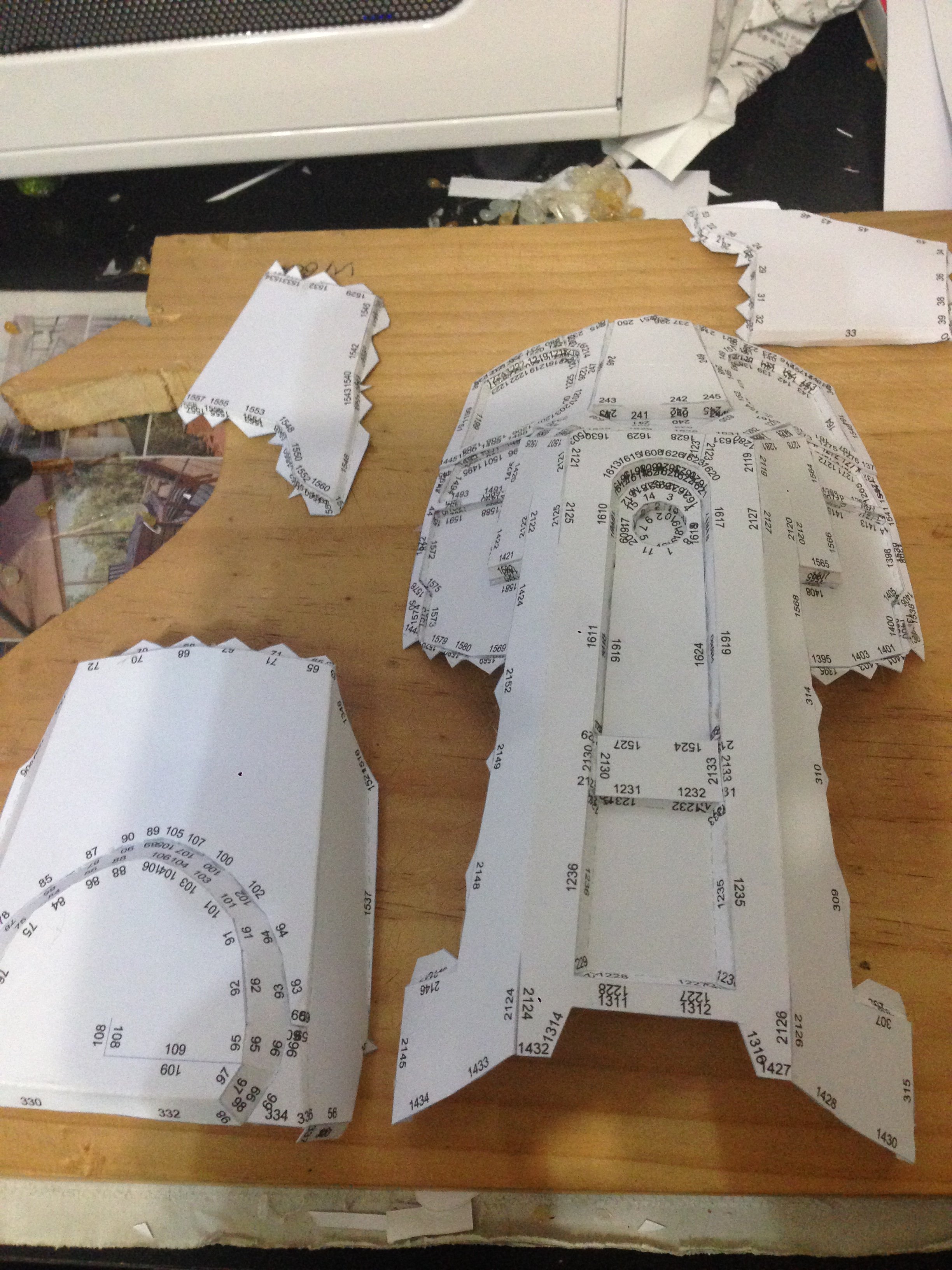

Have just started on the right forearm and should be finished within a day or so :)


Attachments

  • IMG_1940.JPG
    1.2 MB · Views: 299

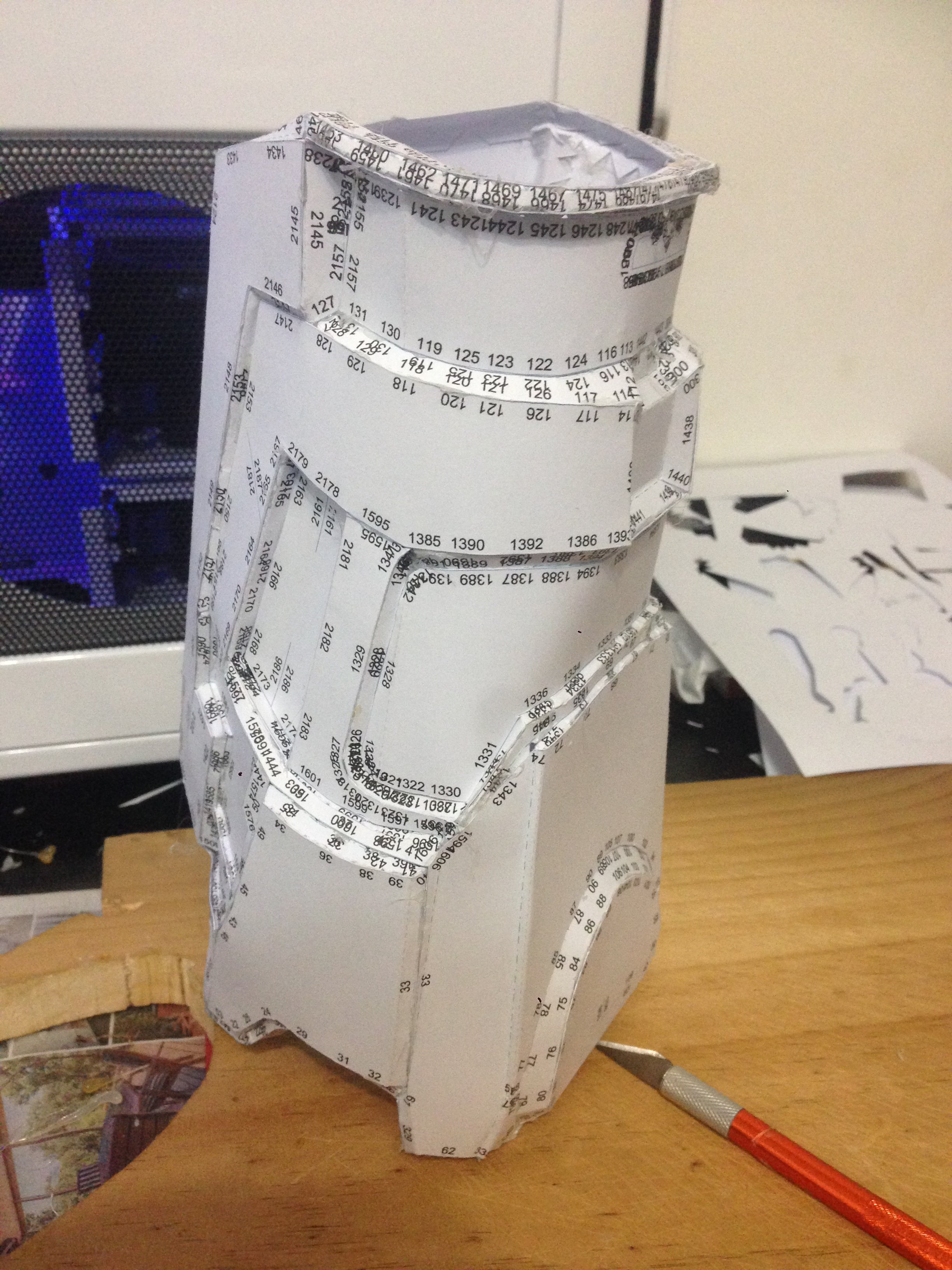

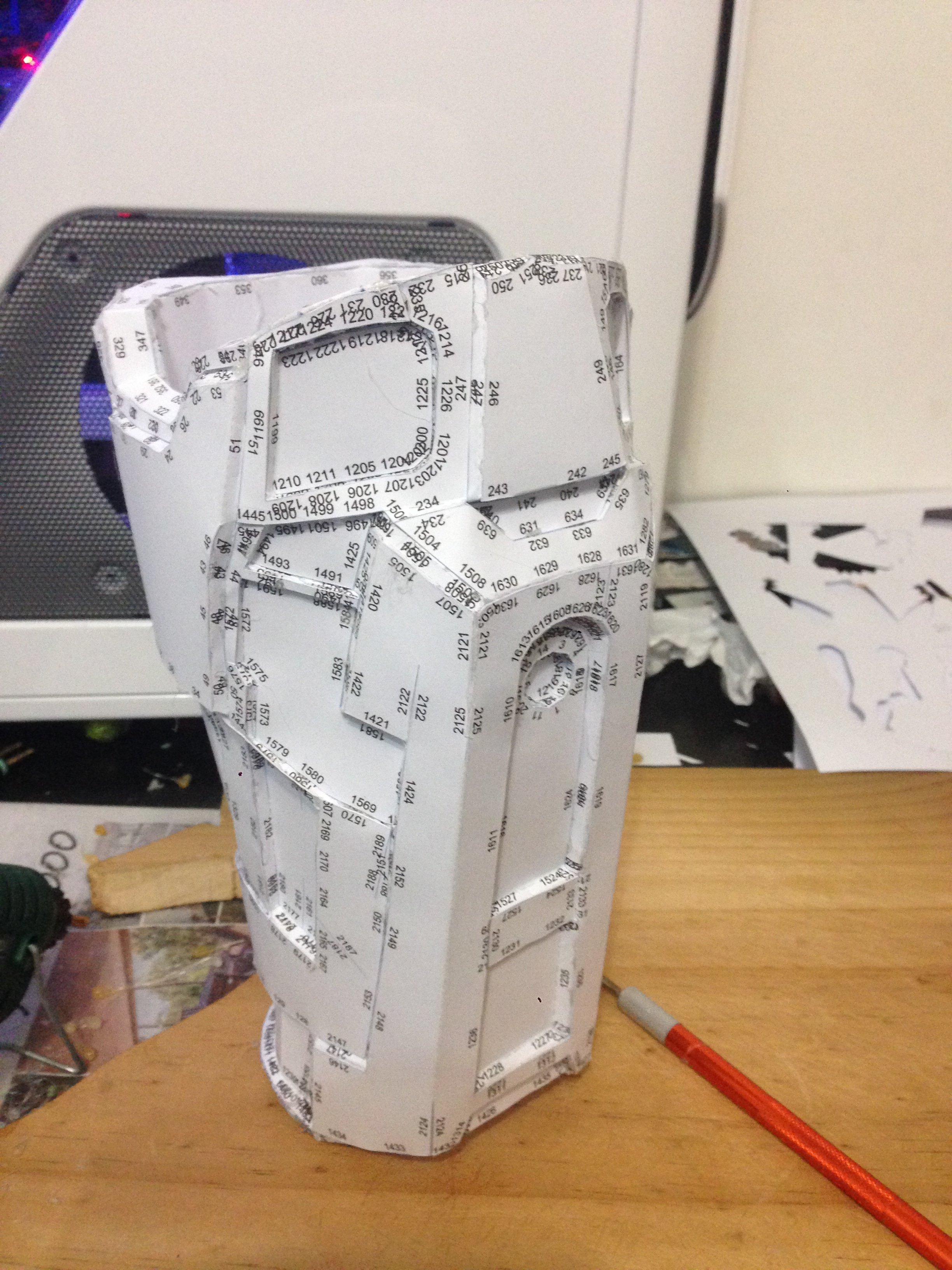

As promised, the finished forearm which seems to be the perfect size XD

- - - Updated - - -

Any creative criticism or suggestions on the build so far would be really appreciated :)


Attachments

  • IMG_1943.JPG
    1.1 MB · Views: 320
  • IMG_1944.JPG
    1.2 MB · Views: 256
Nicely done. Clean smooth line. What adhesive did you use?

Thank you :) so far I'm just using hot glue :p
The forearm ended up being harder than I had first thought due to all the tiny indentations :O :p

that's what I was thinking.....but it's not unheard of. Trying to adjust after it cools is a pain though. Holding while its hot ain't no bed of roses either....

Very Cleanly done sir! As such you have my Reach Decal set complete with EOD decals. once completed Head over to the Exploding Fist Detachment page on FB and post it up!

Thanks everyone! I really appreciate your comments :) The hot glue has been quite a hot process as the many tiny burns on my fingers show :p
Thankyou Asgardianhammer, the moment I finish I will definitely be posting it, I hope the EOD suit will be up to the same level as some of those amazing EOD suits out there :)
At the moment I'm starting on the right bicep and should hopefully finish inside a day or two :)

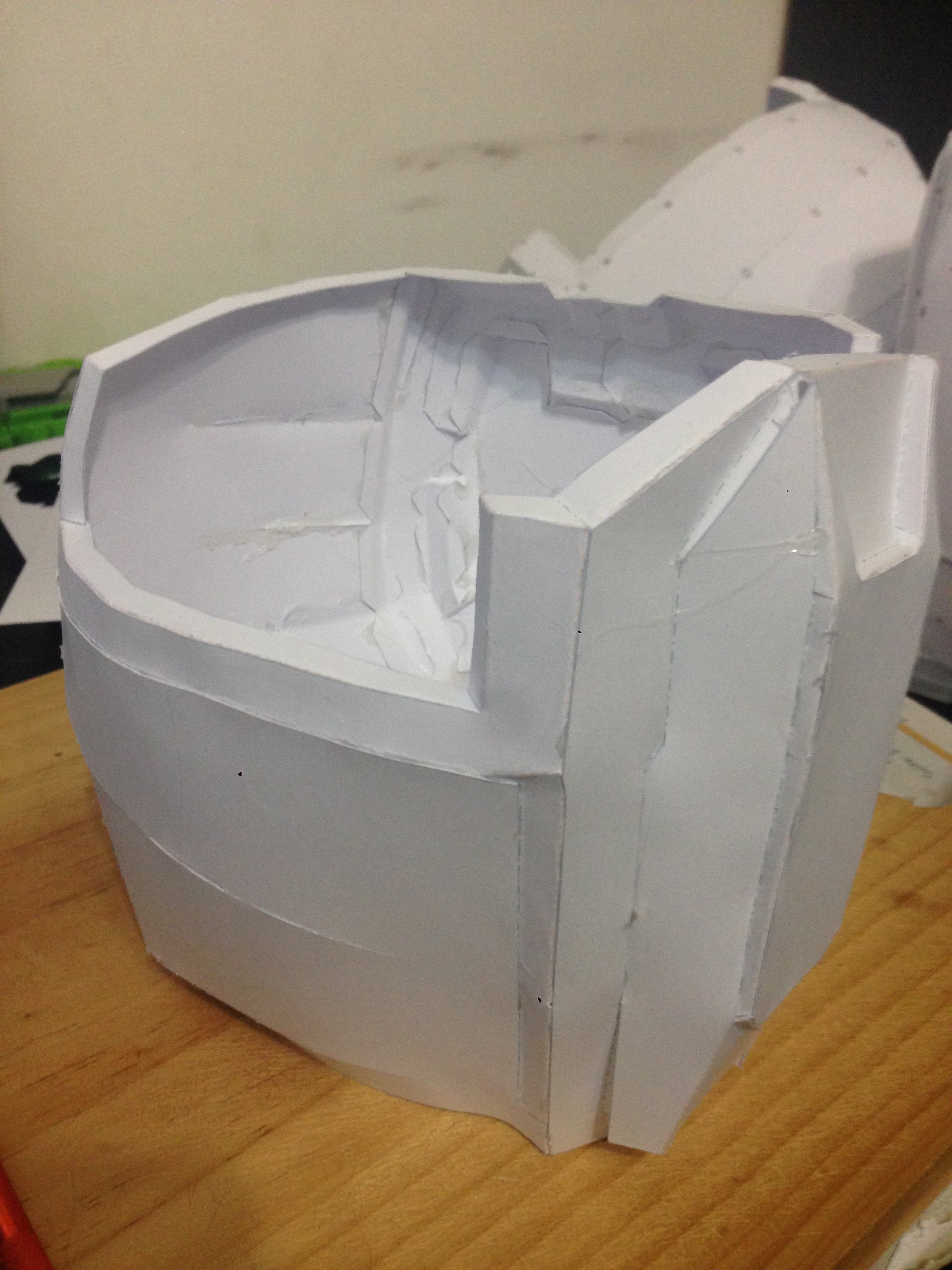

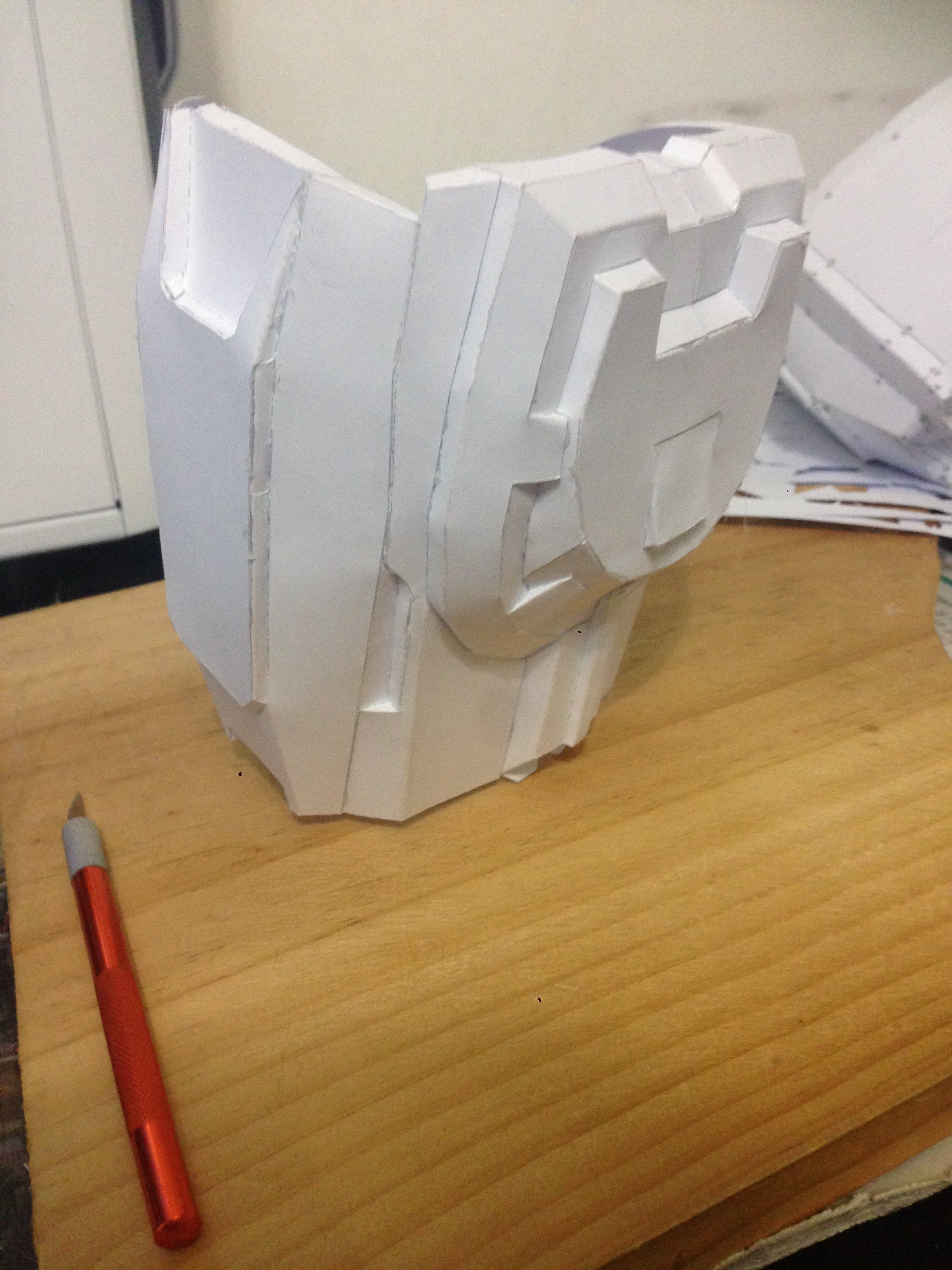

Hey guys, sorry for the lack of posting over the last week or so, ended up having to make multiple attempts at the bicep, here is the first attempt, I had intended for it to be the right bicep but accidentally flipped the file, the lack of edge IDs wasn't by choice but because I had run out of black ink :p It had to be scrapped because even though the sizing was very nice the bottom of the piece has a much smaller opening than anticipated and was much to small to make it around my arm.


Attachments

  • IMG_1999.JPG
    978.4 KB · Views: 260
  • IMG_2001.JPG
    886.6 KB · Views: 295

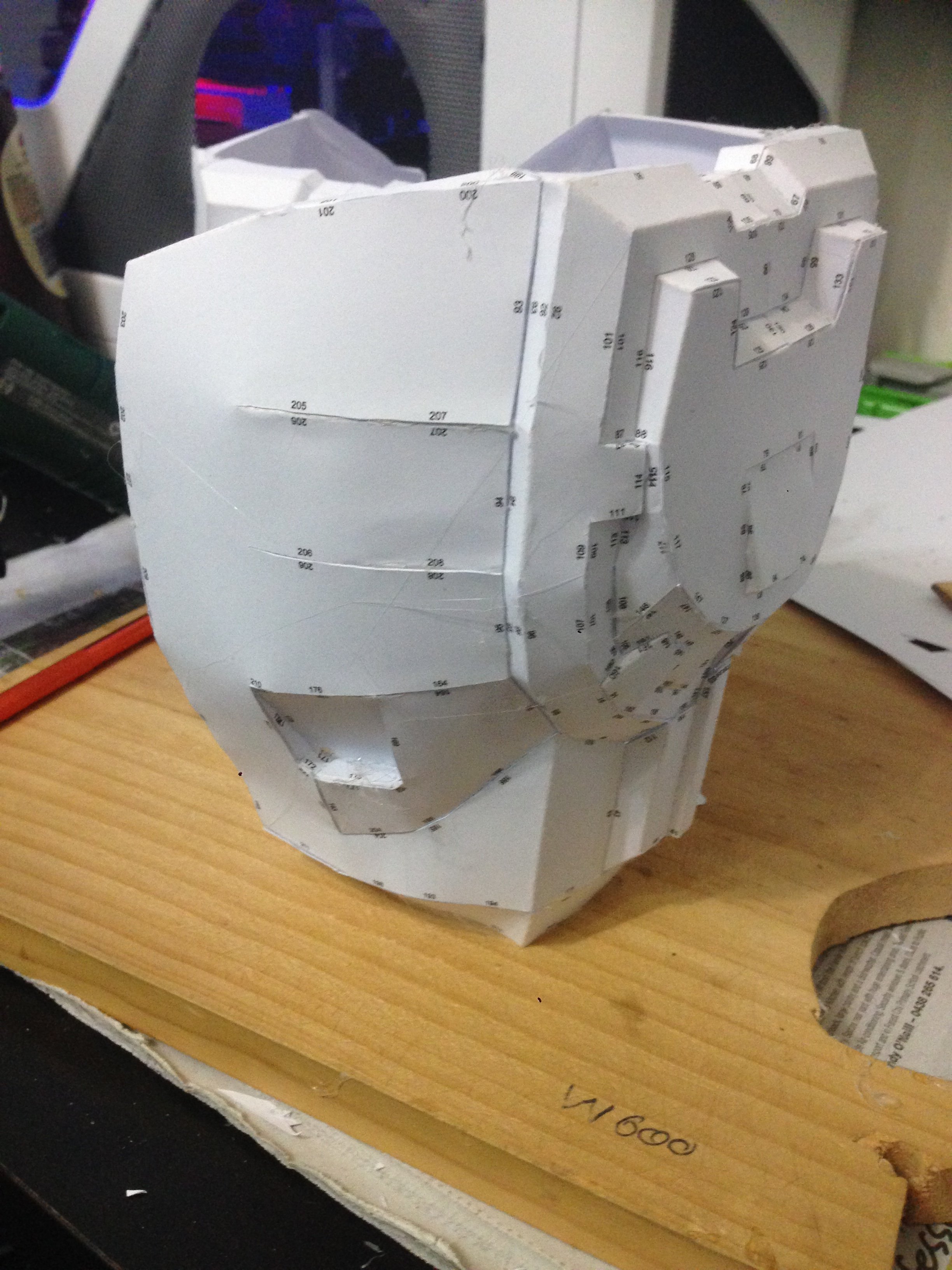

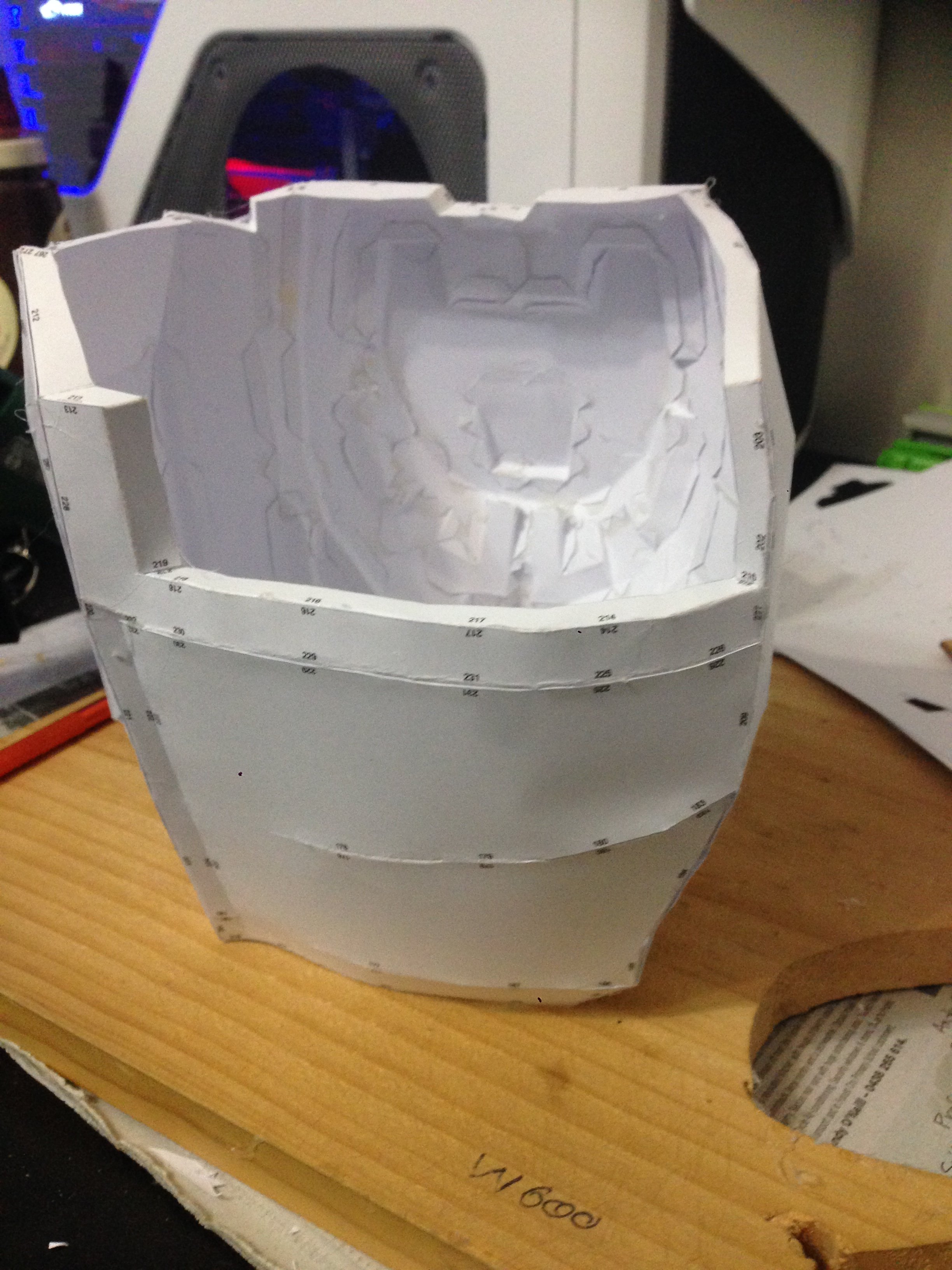

This was my second attempt at the bicep, this time the file was the right way around :p I had decided that because the last attempt was not nearly wide enough I would increase the width by 3 cm, I hadn't however realised how much this would increase the overall size of the bicep and ultimately was waayyy to large


Attachments

  • IMG_1998.JPG
    1,011.8 KB · Views: 292
  • IMG_1997.JPG
    992.4 KB · Views: 353

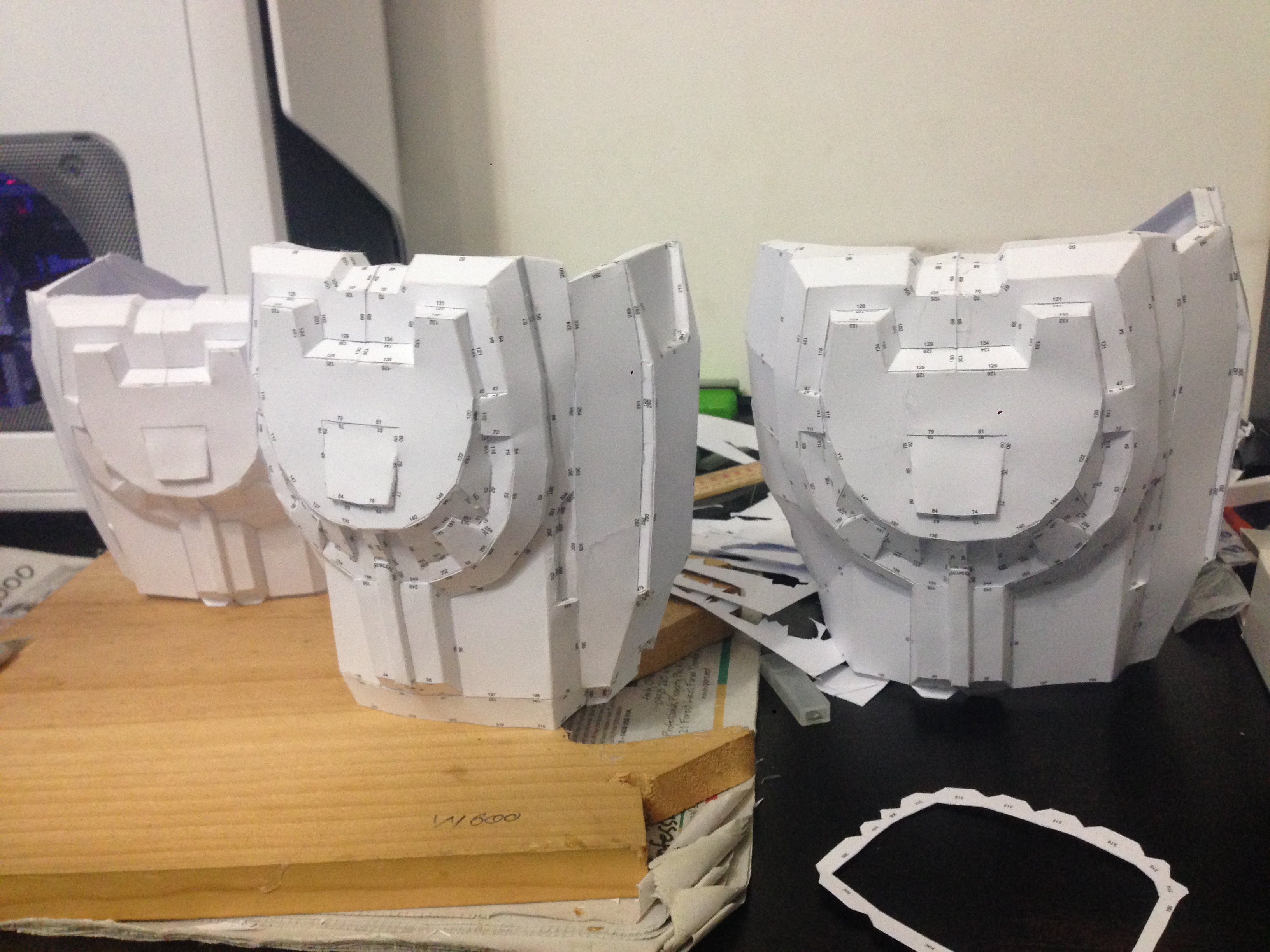

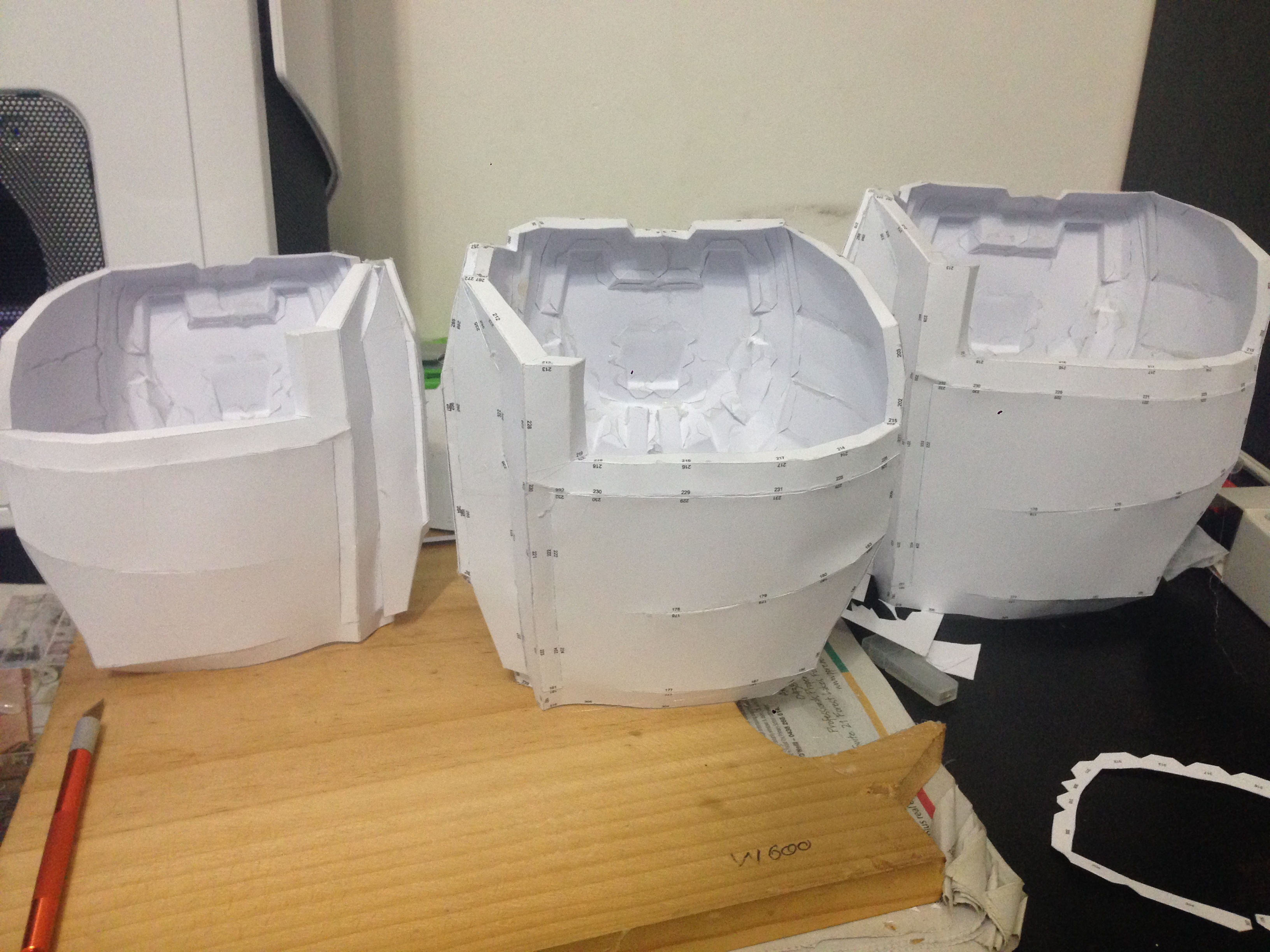

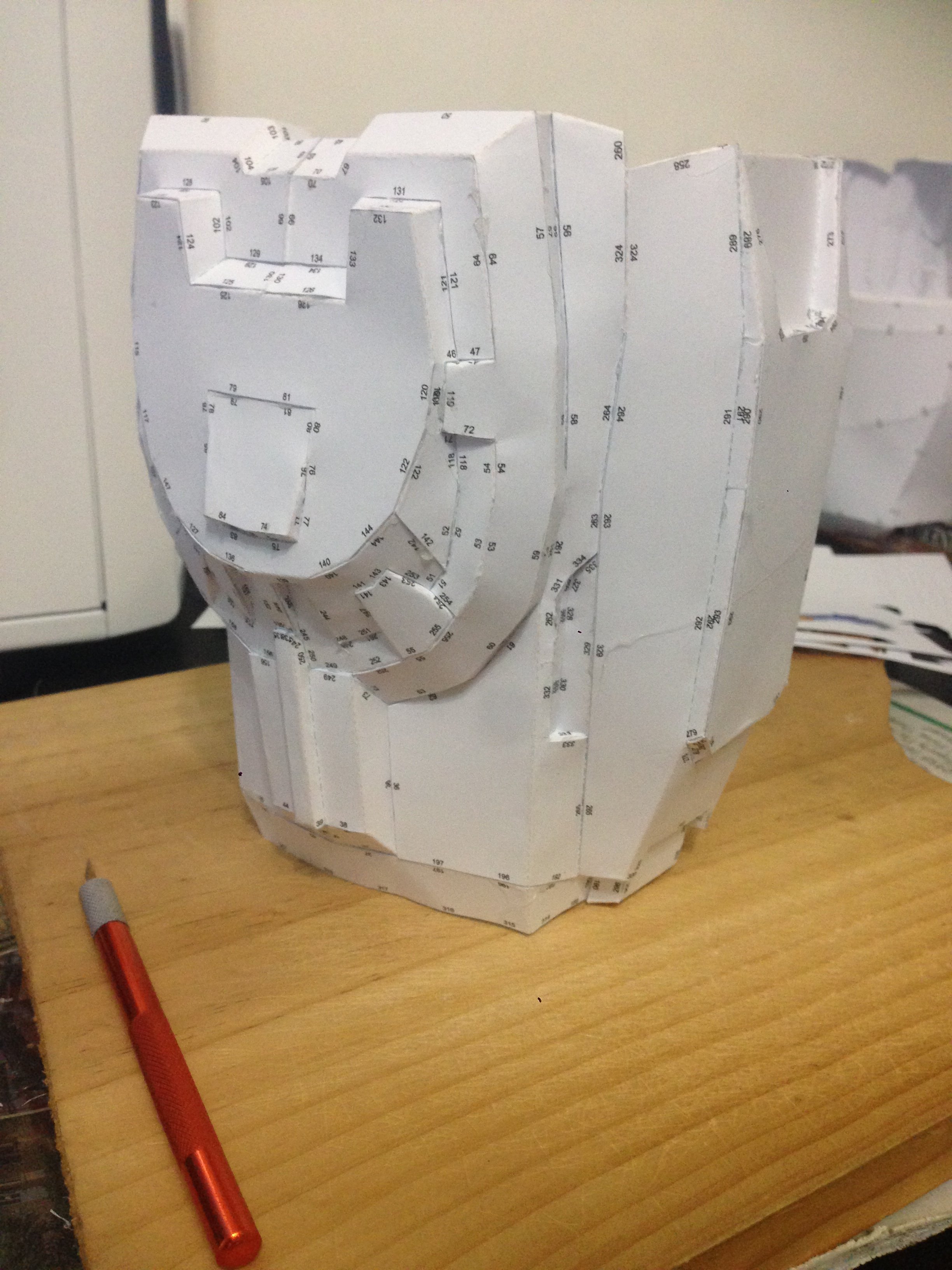

I finally got the size right on my third try #thirdtimesthecharm :p heres some pics of the final bicep and it compared to the other attempts, I think that I will hopefully start on one of the shins next, I also just started Rondo on my thigh piece and will post a pic of it when I get the chance, it warped a bit but I should be able to fix it.


Attachments

  • IMG_2005.JPG
    988.7 KB · Views: 259
  • IMG_2006.JPG
    970 KB · Views: 293
  • IMG_2008.JPG
    2.1 MB · Views: 276
  • IMG_2009.JPG
    2.1 MB · Views: 267
