Alright guys, I searched around and realized there isn't much in the way of blueprints for the Halo Reach Magnum. So I worked on this today. Its life size in the file. I don't think I'll make the other views, mostly because I made this for myself and I know roughly how everything else goes in the gun.
But anyway I figured I'd share it for all of you here on the 405th.
Hope you enjoy!
Below is the LIFESIZE image file. BUT BE WARNED, its at 300 DPI, so if you are printing in MSPaint, go to page setup and choose fit to: 1 x 1 page.
Now here is the file.

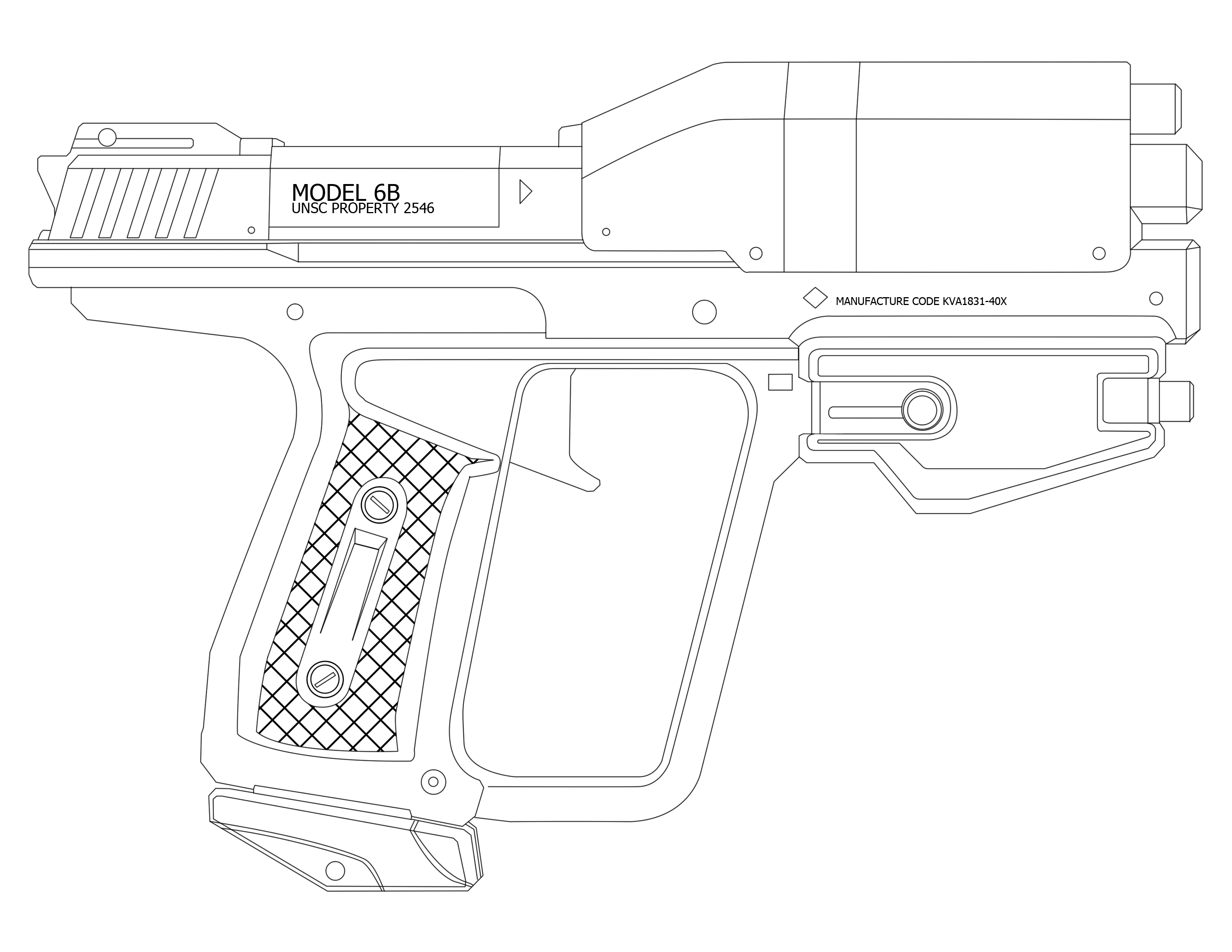

Lifesize Image:
