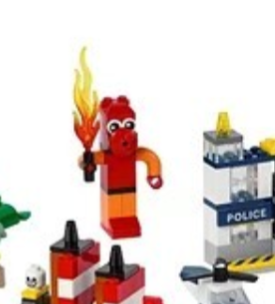

For those who are out of the loop and stumbling upon this, here's some context. Lego's 90th anniversary is coming up and one of the sets they are releasing is a Lego Classic set with instructions and pieces to build miniature versions of significant Lego sets throughout the company's history. Bionicle got include in this with a small Tahu, which I instantly loved because look at how adorable this is!
One of the creators for Bionicle, Christian Faber, posted this image about it on his Instagram (@fabframes) and posted a comment about how the matoran (villagers in Bionicle's story) could have carried around hand crafted artifacts for protection before the toa arrived to their island.

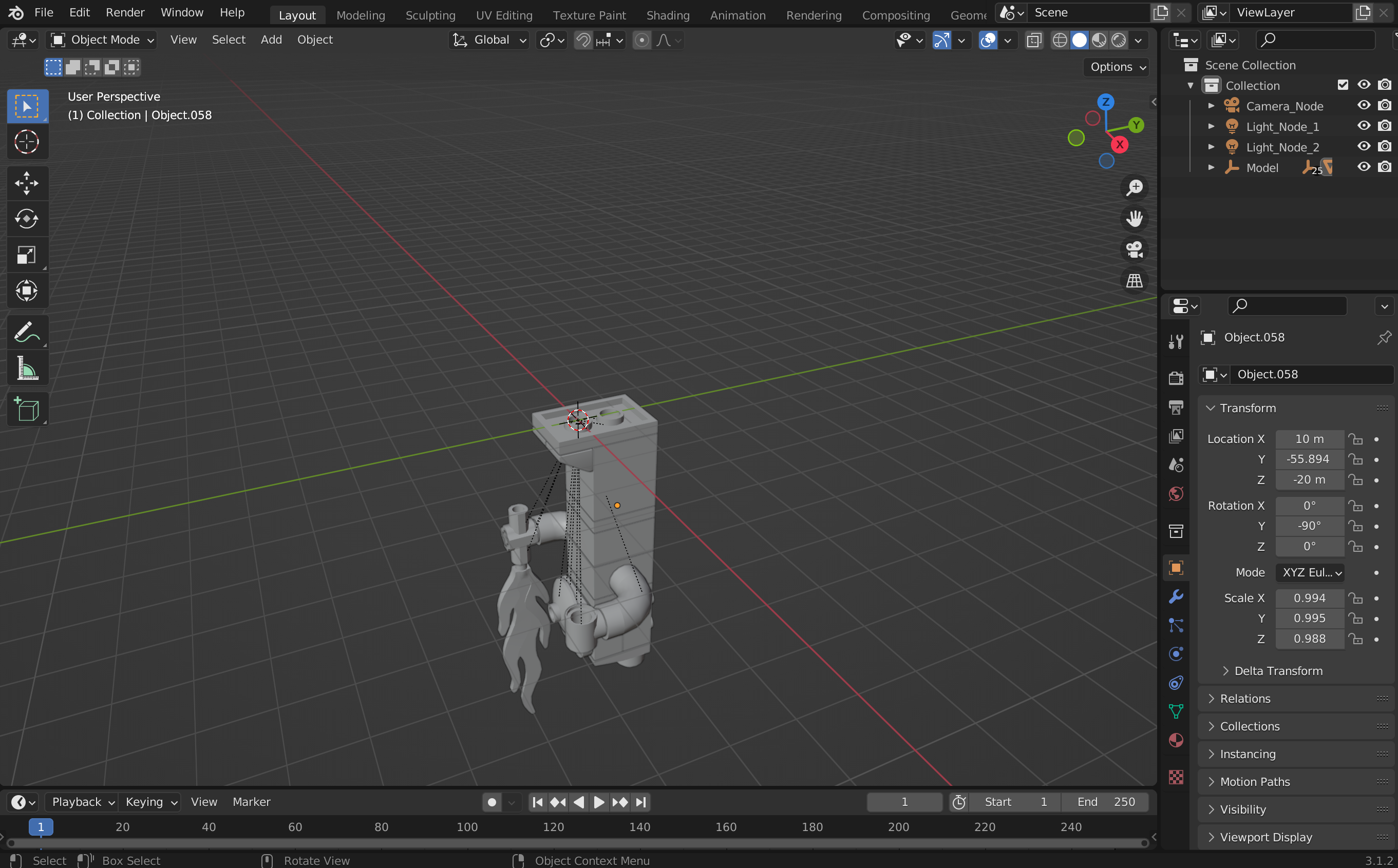

I thought that was a really cool concept and gave me the idea of "what if the matoran also carved statues of the toa around the island?" Knowing that I have marble PLA that I haven't really used yet, my plan was to use that to 3D print a marble statue of small Tahu! This means I had to make a 3D model of small Tahu for printing. Wanting the model to be as accurate as possible, I used Stud.io to recreate small Tahu. The Technic 90 degree tube piece needed for small Tahu's arms is not currently in the Stud.io parts library, so instead I used a system 90 degree round brick. This piece should be about the same size, however the Technic pins in the hands do not fit in them. To get around this I had to turn off collision and snap then manually move the hands into the position they should be in. Unfortunately, the .io file I had somehow went missing after I exported the part so I can not show what it looked like in Stud.io, but I did export it as a DAE file since in Stud.io STL exports are not an option. To convert the file from DAE to STL, I imported the DAE into Blender and then exported it as a STL from there.

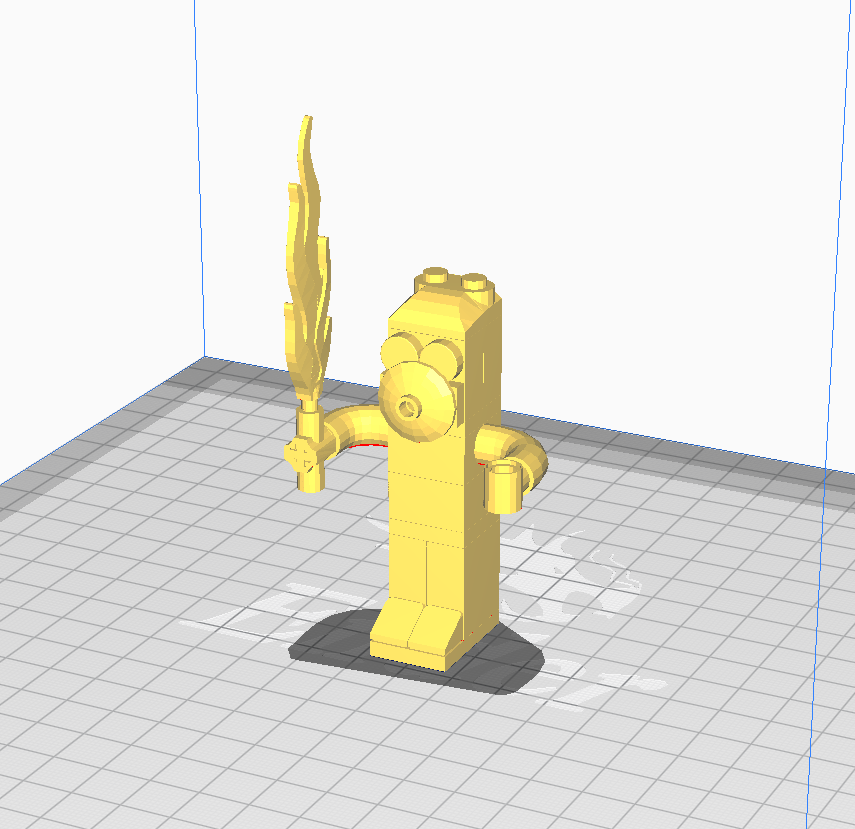

The STL had some errors in it so I loaded it into Microsoft 3D builder and let it auto correct it. I then saved the corrected STL and uploaded it into Cura. Tomorrow I'm going to start the print.
