UNSC Army Trooper Costume Build

[Sgt Forge]

I had a sort of revelation a few days ago about how to make the UNSC Army Trooper suit from Halo:Reach. I noticed that the suit was practically just layers of armor in different shapes. SO, with my Trooper action figure in hand, I recreated the armor pieces in Photoshop. I then printed these templates at actual size and cut and assembled them. I then bought a camping mat made of foam and transfered the designs onto it.

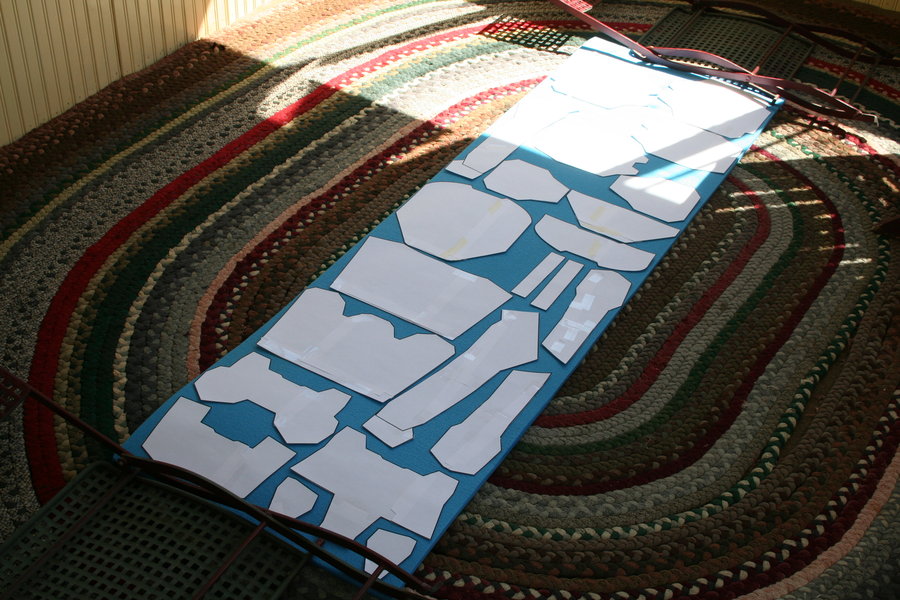

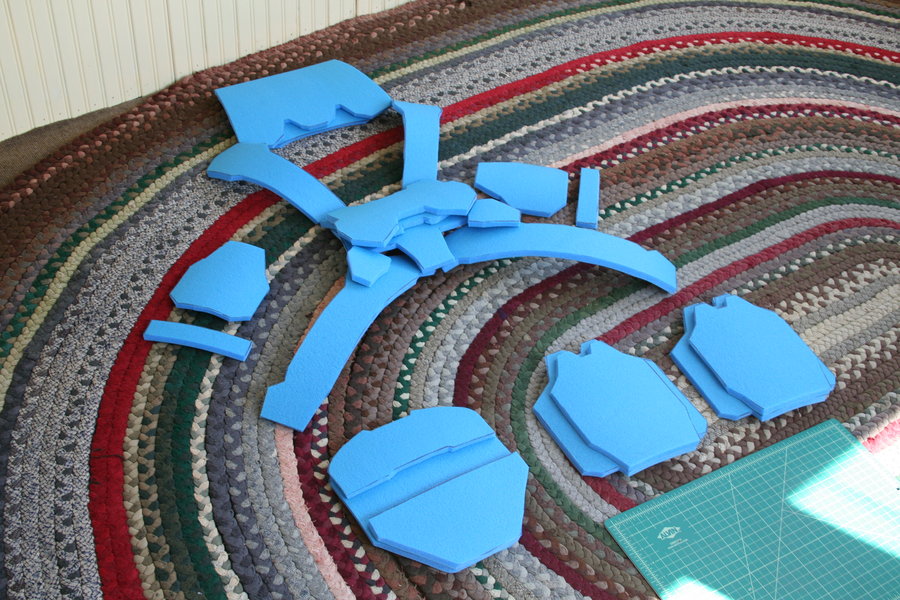

This is how it ended up looking:

That was on a 30in by 72in mat with a thickness of .5 inches. I then put them into their groups to see how it would look:

I think it looks great so far, and I plan to glue the layers together, add some detail with thinner foam, then spray paint it brown.

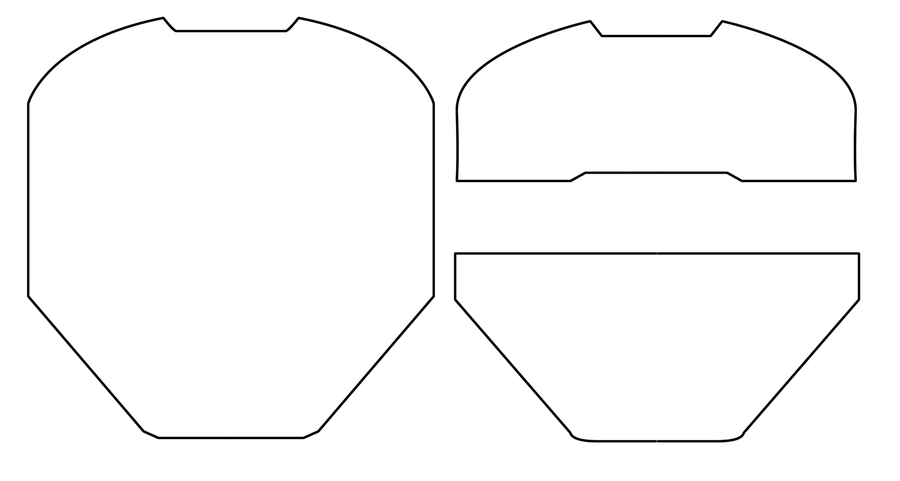

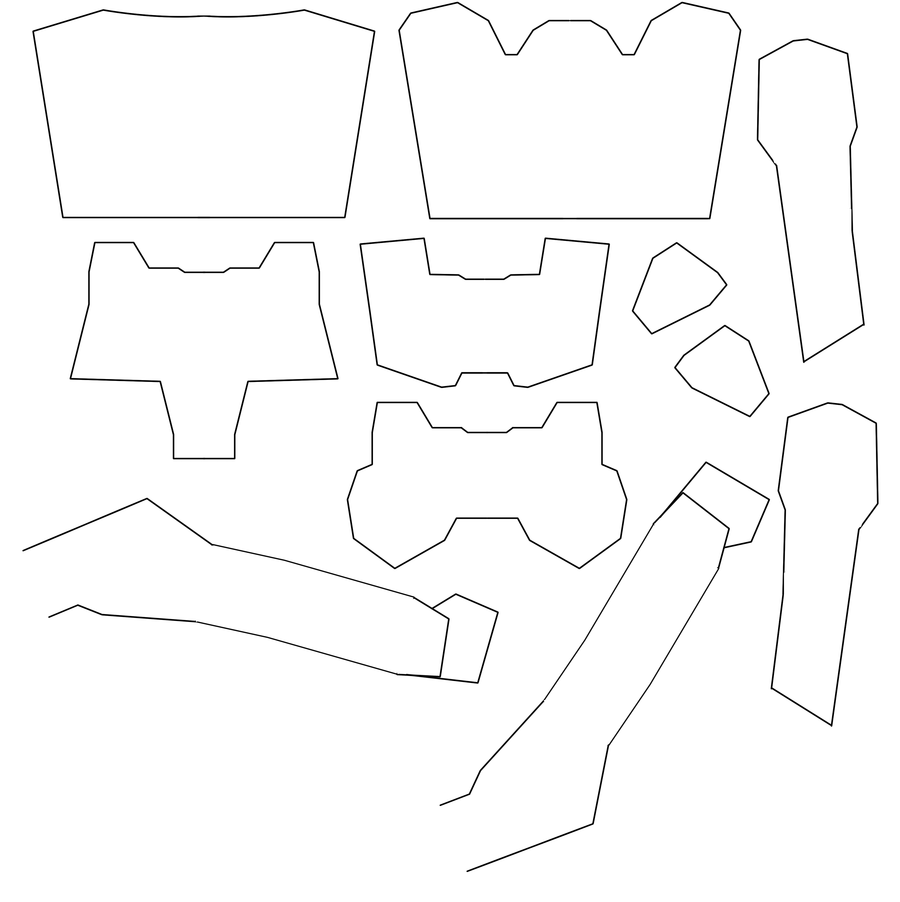

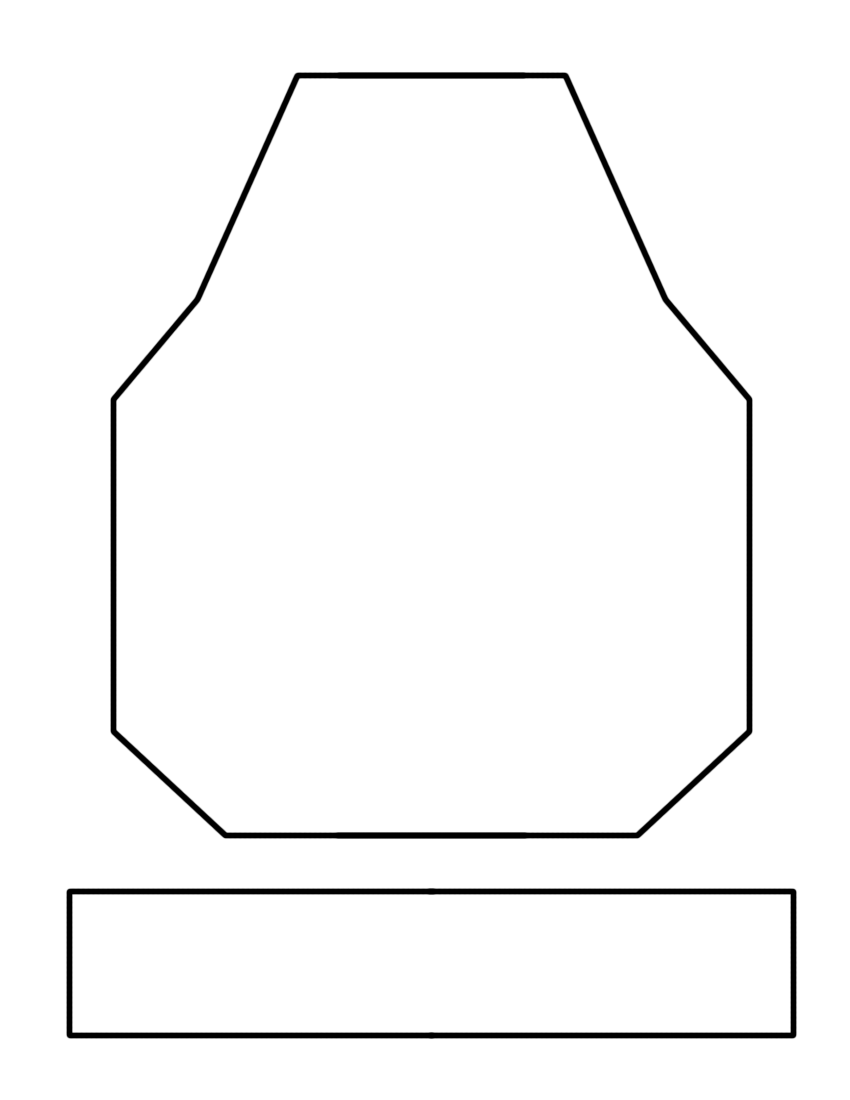

If anyone is interested in the templates here they are:

Now all of these are scaled to my size, which is like 10 inch wide chest plate and im 5 11 maybe?

Anyway, I should have more eventually after I experiment with different kinds of glue to see which works best.



[Cjsuner]

looks great so far! thank you so much for the templates!



[Sutekhian]

This looks like it's gonna be pretty awesome!



[Roadkiller]

Thanks for sharing this! Can't wait to see how it all looks, as this strikes me as a relatively quick and simple way to put together a costume for my son.



[Sgt Forge]

looks great so far! thank you so much for the templates!

THANKS! and no problem! Just thought they might be useful for others wanting to try the same thing.



[Sgt Forge]

This looks like it's gonna be pretty awesome!

THANKS!

Thanks for sharing this! Can't wait to see how it all looks, as this strikes me as a relatively quick and simple way to put together a costume for my son.

Yea, Ive got all this done in a matter of a day! Its pretty quick and then all I have to do is glue it together instead of taking the time to do pepakura.



[Jico]

Nice Looking forward to see more^_^



[Sgt Forge]

Nice Looking forward to see more^_^

Thanks, Ive got some updates already, Ill post some new pics later tonight!



[Sgt Forge]

More updates!

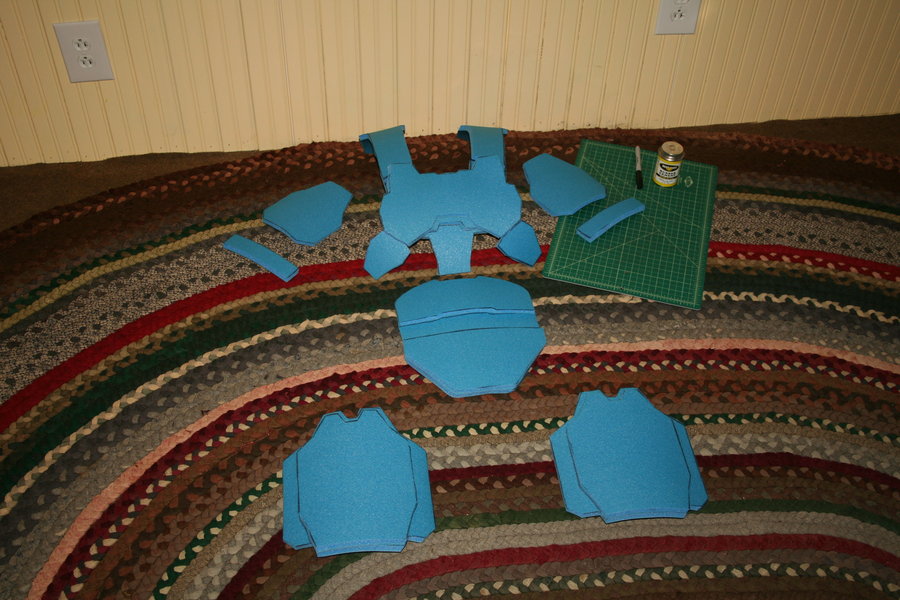

Okay, so I figured out that Rubber Cement works wonders when binding together the foam layers. So I went about gluing them together. The back is still drying so it isnt in the photo, but this is how it looks now:

I still have a few parts to glue, but I can only do that after the back is dry, so that will have to wait until tomorrow. So for the rest of the night Ill be making the templates for the armor details.



[TD2253]

Sweet! Don't know if there are other Reach UNSC Troopers out there but I can't wait to see yours finished. Hope you can make it to Comic Con 2011 so there can be two of us there.

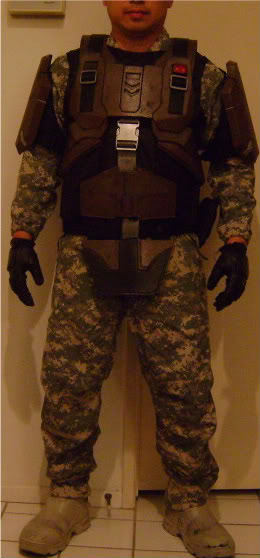

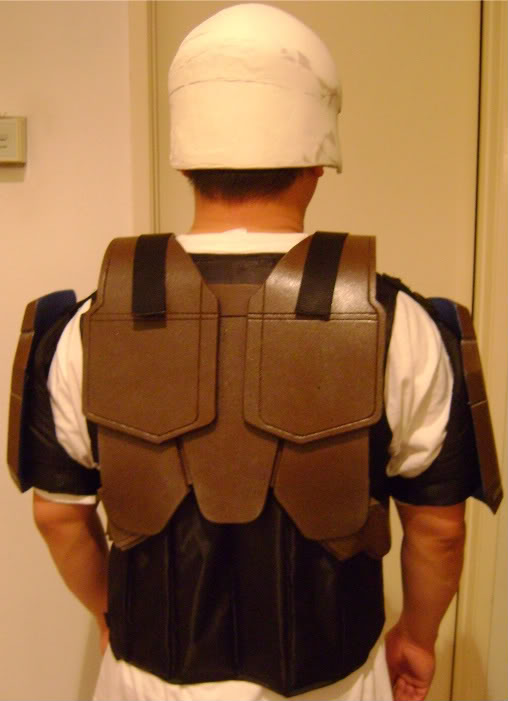

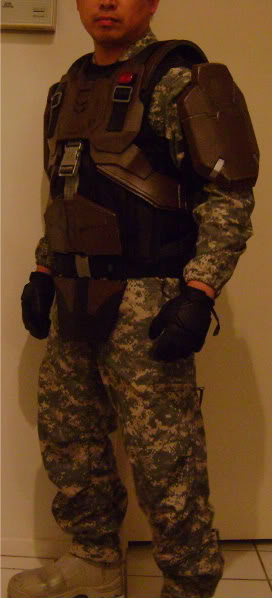

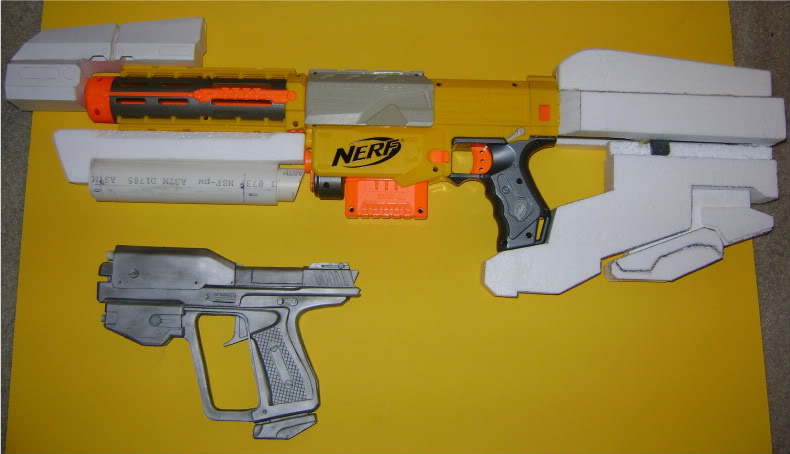

Here is mine so far. Still lots of work to do on the helmet and modded Nerf Recon assault rifle.



[Sgt Forge]

Sweet! Don't know if there are other Reach UNSC Troopers out there but I can't wait to see yours finished. Hope you can make it to Comic Con 2011 so there can be two of us there.

Here is mine so far. Still lots of work to do on the helmet and modded Nerf Recon assault rifle.

I saw your build while I was looking up to see if anyone else was doing what I was doing! LOL. Yours is way better than mine. Lots more details and the shape is perfect. Unfortunately I doubt ill be at Comic Con, I live in Michigan and cant really get anywhere far.



[TD2253]

Thanks man! I'm sure yours will turn out great. It was really tough getting the Comic Con tickets for this year for a lot of people. Hopefully I can be of help to you if needed.



[Sgt Forge]

Thanks man! I'm sure yours will turn out great. It was really tough getting the Comic Con tickets for this year for a lot of people. Hopefully I can be of help to you if needed.

You're welcome! Me and my brother were thinking of finding a way to Comic Con sometime. Maybe this year Ill have to convince him that we are going! LOL



[TD2253]

Yeah, you guys should definitely try to go for the next one. This will be my first year going as a Halo character, it should be an interesting experience.



[WrathPrime]

Okay, so I figured out that Rubber Cement works wonders when binding together the foam layers. So I went about gluing them together. The back is still drying so it isnt in the photo, but this is how it looks now:

I still have a few parts to glue, but I can only do that after the back is dry, so that will have to wait until tomorrow. So for the rest of the night Ill be making the templates for the armor details.

Try hot glue! Hot glue works great with foam and it dries in less than a minute.



[Sgt Forge]

Try hot glue! Hot glue works great with foam and it dries in less than a minute.

The rubber cement dries really quick if u let it set for a minute apart. but if u just slap it on and put it together it takes 4 EVER! I had accidentally forgot a section to glue, so I did just that and now im waiting for tomorrow, just to be safe.



[Cjsuner]

hm... with these templates... i might go to SDCC as a trooper instead of a spratan... xD



[Sgt Forge]

hm... with these templates... i might go to SDCC as a trooper instead of a spratan... xD

LOL nice dude! Itll be easier to make too, except the helmet still would have to pep that or something.

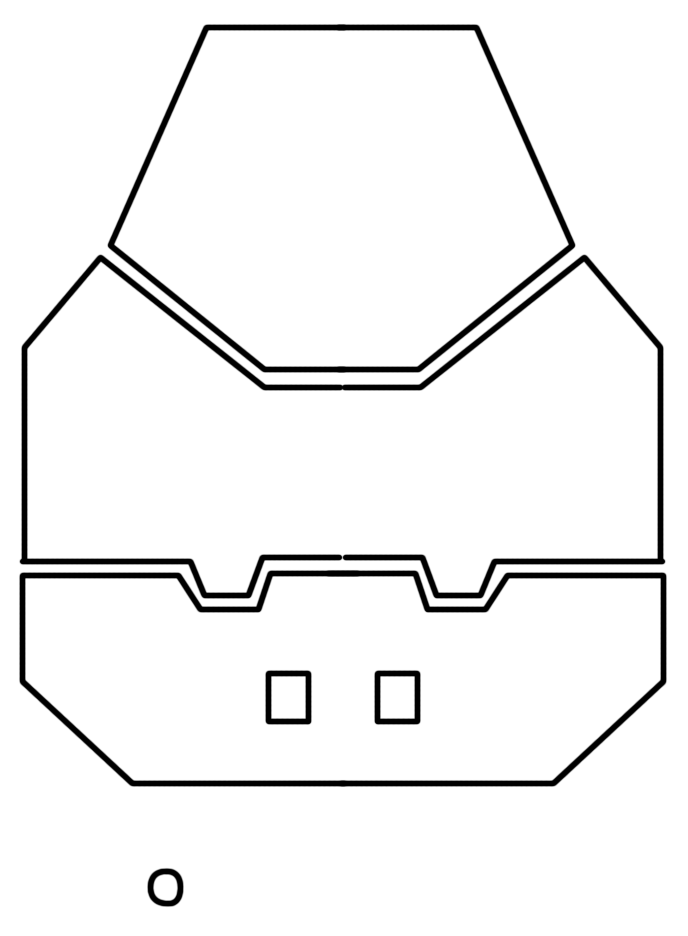

OH! Speaking of templates, I have some of the detail parts for use with thinner foam. All of these have to be scaled the same % as the other templates. Oh and one note I forgot to say before. THE THIGH TEMPLATES SHOULD BE SHRUNK TO 70%



[TD2253]

hm... with these templates... i might go to SDCC as a trooper instead of a spratan... xD

The more the merrier! Nice templates Forge!



[Sgt Forge]

The more the merrier! Nice templates Forge!

THANKS! I hope they get put to good use boy someone other than me!
