GMer56
Sr Member
Hi!
I've been doing some work on Billy Bug, but winter has finally hit so I've been hiding indoors from the cold. Before the freezing temperatures hit I managed to get Billybug kinda walking:
However a motors are strong enough to bend the frame without proper support (that's why he is tilting in the above vid). However, putting 2 motors on the leg means each motor is exposed to different weights and will move at different speeds, so I have to synchronize them via computer.

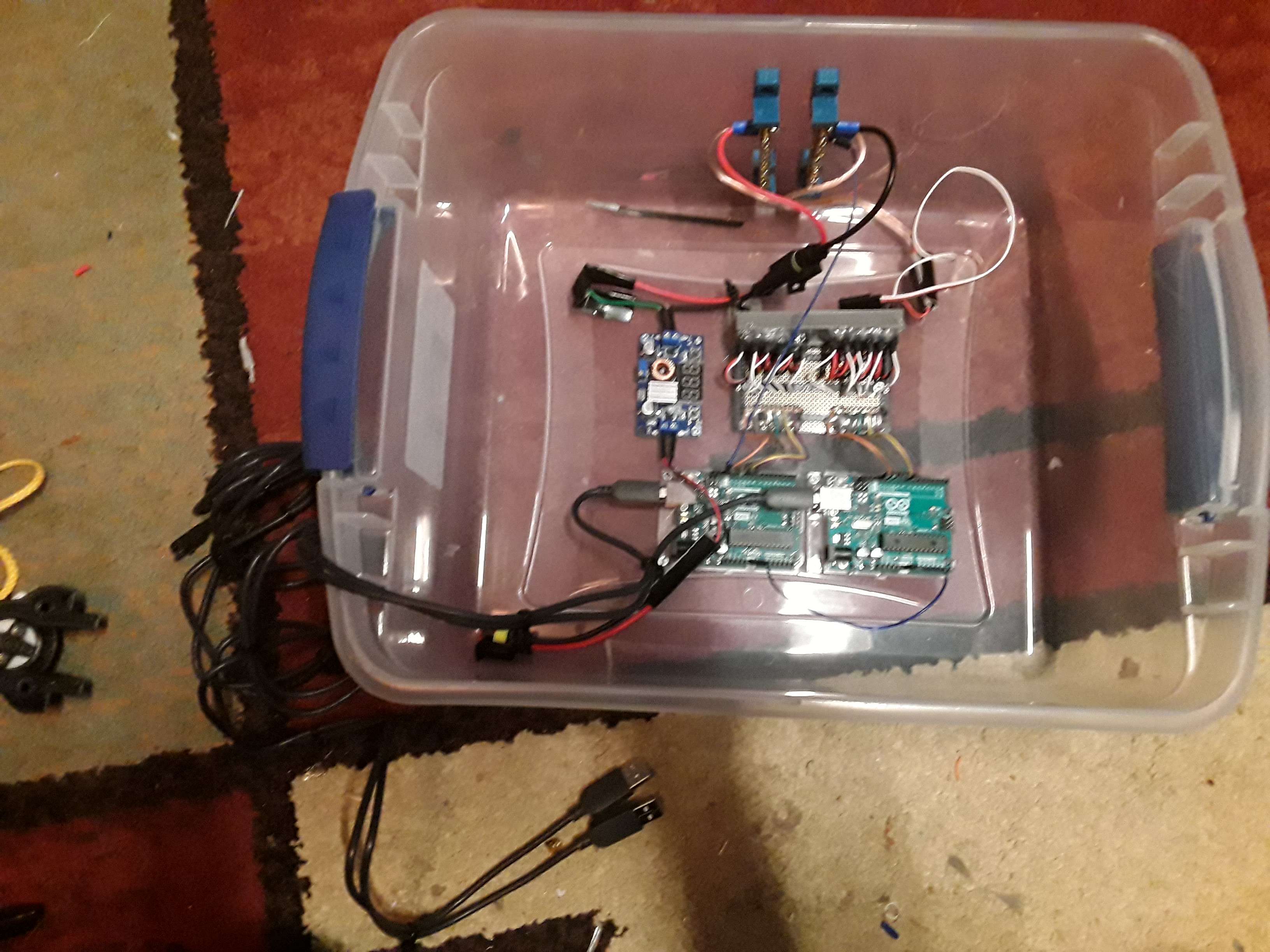

Behold, the 2 arduino control system (to later interface with the raspberry pi)

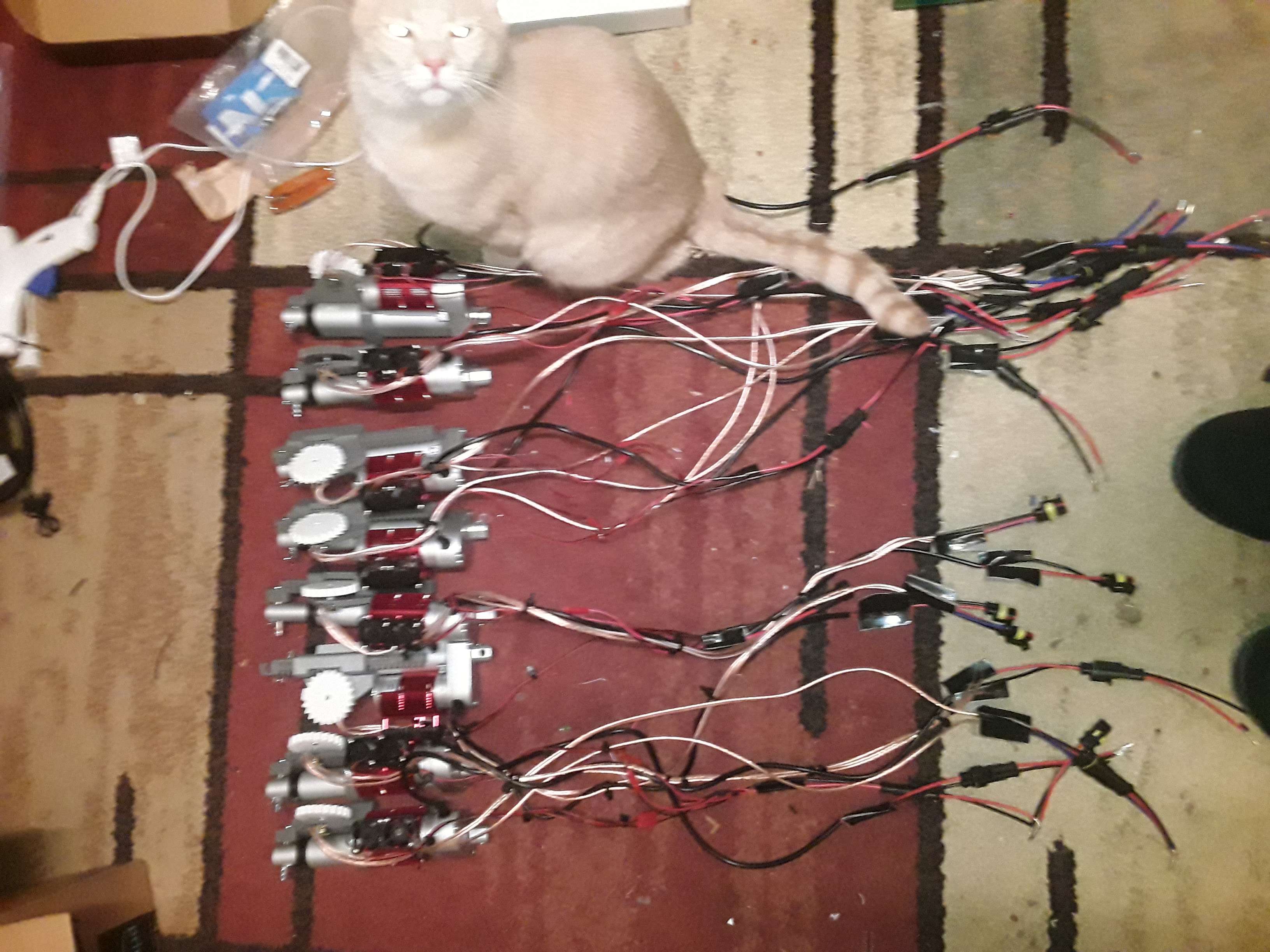

And all the transverse motors I will ever need with my cat Ralph's seal of approval (3d printed bits are encodes so I know how far they extend)
Naturally, I need to figure out some of the code to control these, but its too cold to work outside, so what do?
Workshop Waifu 2.0!
By practicing with voice commands and servo controls, I could make my large mech computer-controlled, voice activated, or even control with a game controller and press "X" to punch! Plus everyone goes *hubba hubba ding ding* over animu gals so I figure workshop waifu 2.0 will be a good promo tool.
I've been doing some work on Billy Bug, but winter has finally hit so I've been hiding indoors from the cold. Before the freezing temperatures hit I managed to get Billybug kinda walking:
However a motors are strong enough to bend the frame without proper support (that's why he is tilting in the above vid). However, putting 2 motors on the leg means each motor is exposed to different weights and will move at different speeds, so I have to synchronize them via computer.
Behold, the 2 arduino control system (to later interface with the raspberry pi)
And all the transverse motors I will ever need with my cat Ralph's seal of approval (3d printed bits are encodes so I know how far they extend)
Naturally, I need to figure out some of the code to control these, but its too cold to work outside, so what do?
Workshop Waifu 2.0!
By practicing with voice commands and servo controls, I could make my large mech computer-controlled, voice activated, or even control with a game controller and press "X" to punch! Plus everyone goes *hubba hubba ding ding* over animu gals so I figure workshop waifu 2.0 will be a good promo tool.
Invidiax4fan
Jr Member
- Member DIN
- S935
Very talented work!
GMer56
Sr Member

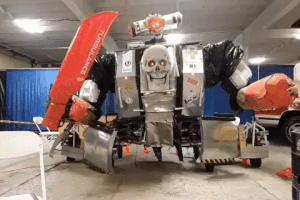

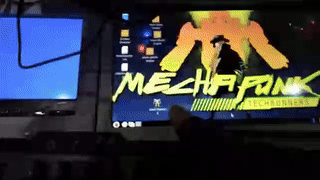

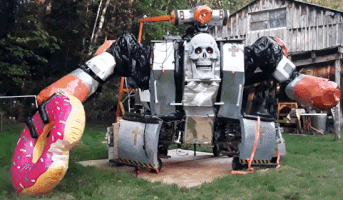

Oh hey that necro-post warning is new (or at least something I haven't encountered). I've been too busy to post: making the mek relatively functional, controlled with a wireless usb controller. Exhibited it for 10 days at a local fair (where I am effectively being invited back every year) . Currently working on making it less wobbly and added an evangelion-style countdown for when it is unplugged (gotta make a video on it once I get the battery packs back in).
HydrationPatrol
Member
- Member DIN
- S360
That thing looks crazy.
GMer56
Sr Member

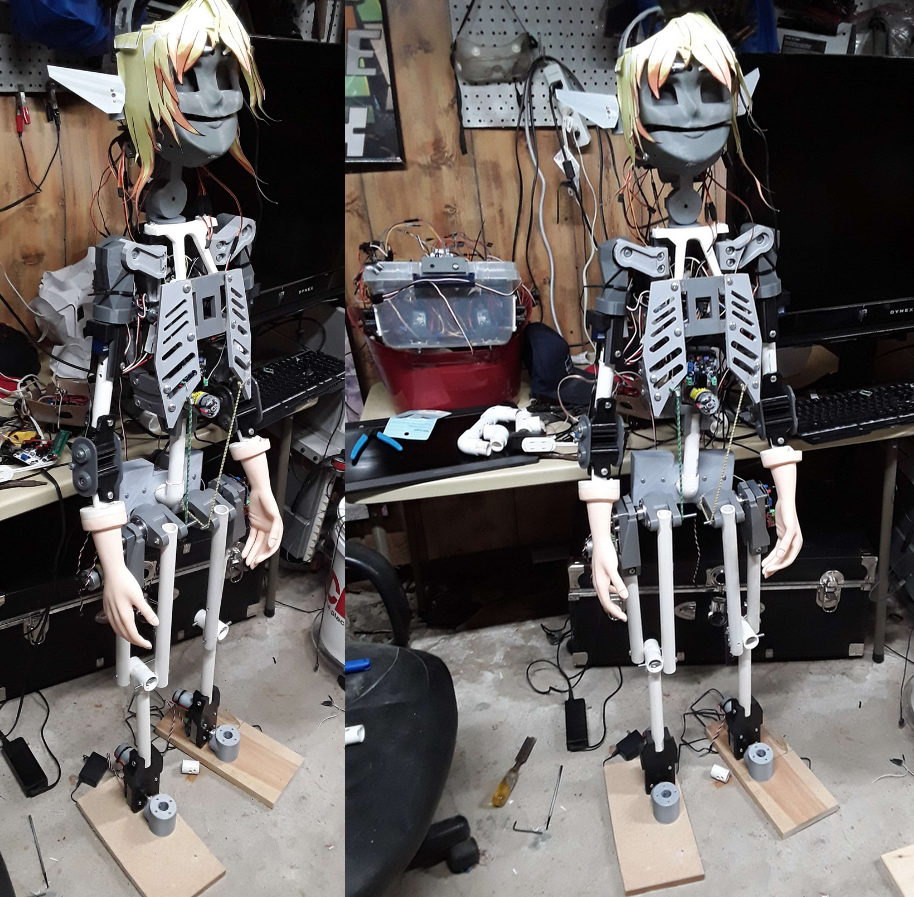

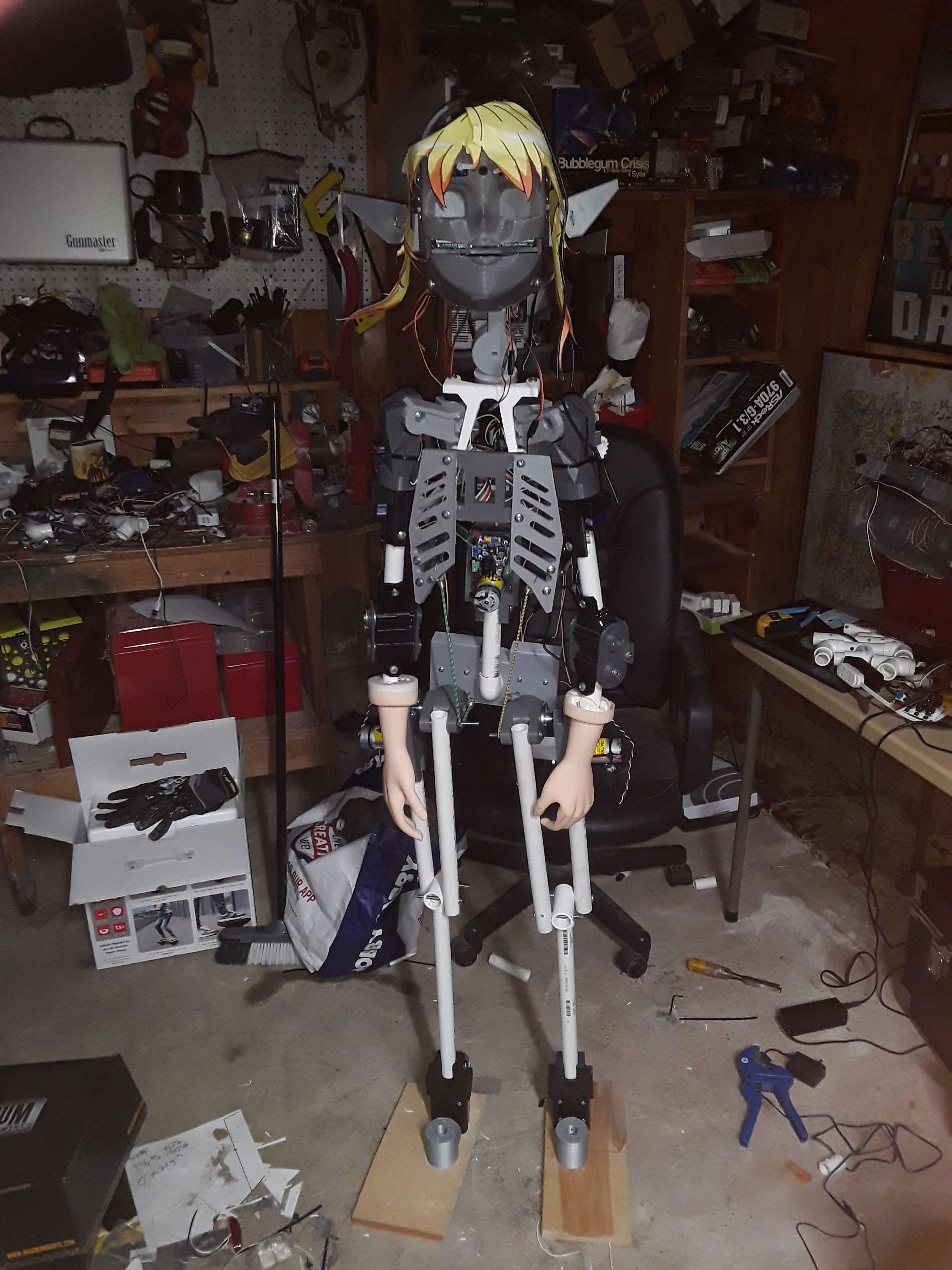

Working on adding bipedal walking legs to the robowaifu. This is good practice for coding workflow and figuring out a mechanism for powerarmor with powered, walking legs and gyroscopic balance (revist my yggrasil armor perhaps!).
You can see I made the legs too stubby and had to extend them XD

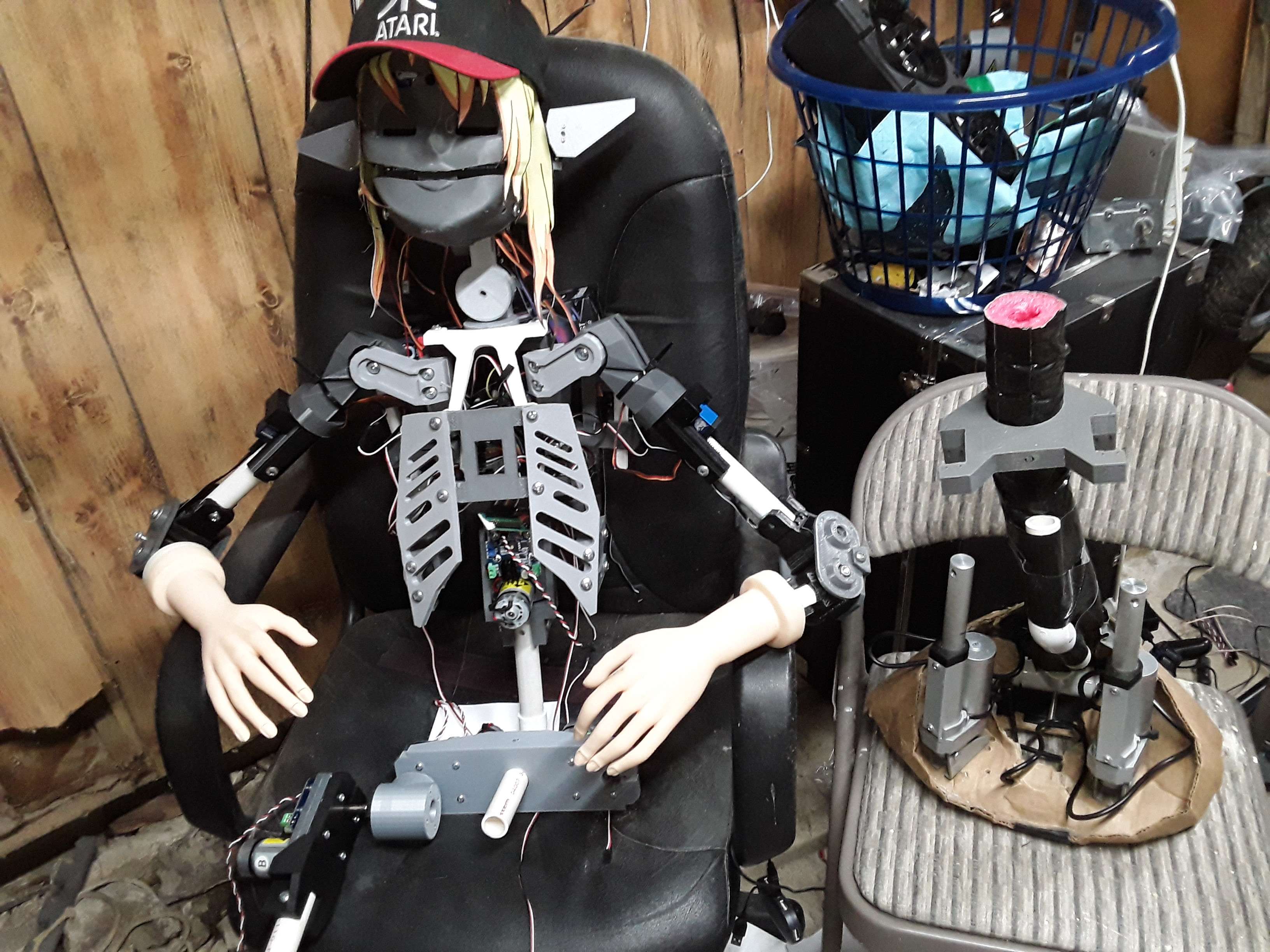

I ended up doing a spine transplant, replacing the fun noodle spine and actuators with chonky servo and pvc. Process felt like the beginning of "Battle Angel Alita" lol. Probably will replace the wiggly elf-ears with chobit-style ones so I can put a usb hub and hdmi cable in there.

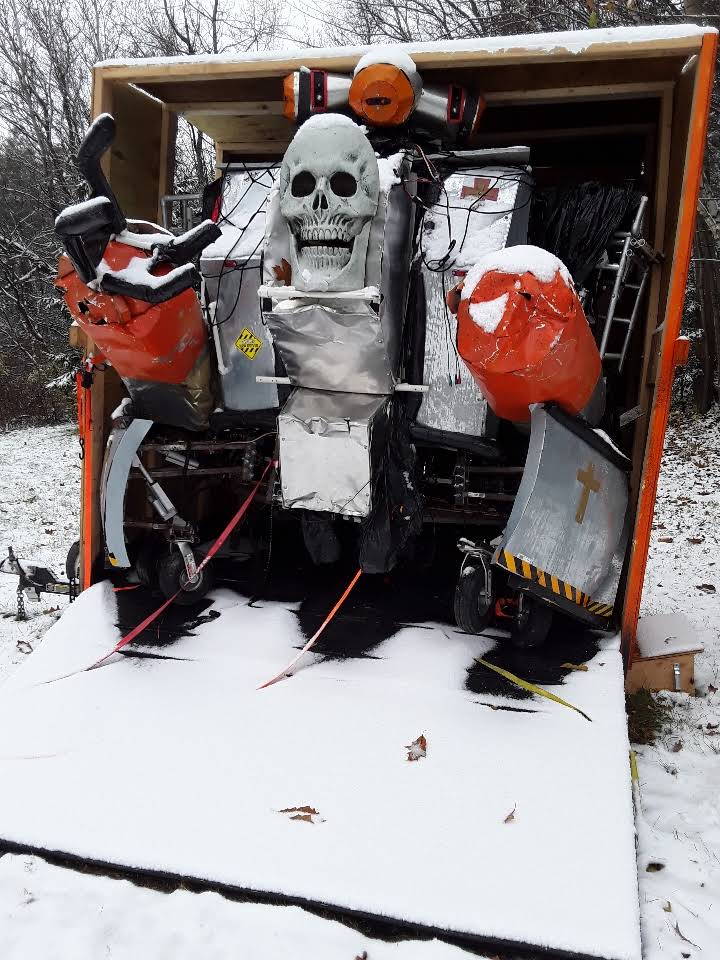

Also working on a fully-enclosed trailer to store/transport the mek. Waiting on a shipment of 17" caterpillar tracks so the mek can drive off-road, and re-building the leg actuator control box so its easier to swap out broken parts.
You can see I made the legs too stubby and had to extend them XD
I ended up doing a spine transplant, replacing the fun noodle spine and actuators with chonky servo and pvc. Process felt like the beginning of "Battle Angel Alita" lol. Probably will replace the wiggly elf-ears with chobit-style ones so I can put a usb hub and hdmi cable in there.
Also working on a fully-enclosed trailer to store/transport the mek. Waiting on a shipment of 17" caterpillar tracks so the mek can drive off-road, and re-building the leg actuator control box so its easier to swap out broken parts.
GMer56
Sr Member

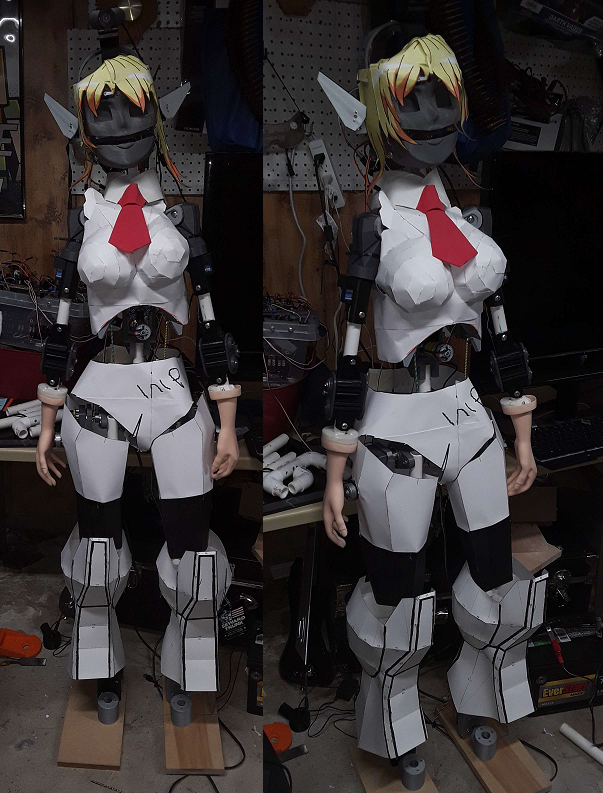

Phase 1 of the chobits treatment. (also a more modest chest panel) I'll be re-doing the entire face to make the eyes less odd (there is a big gap between the faceplate and the eyelids), but at least the cloth covering seems to be working out ok and all the python libraries are good to go.
3DVagabond
Active Member
Neat! You can make the elf talk.
GMer56
Sr Member

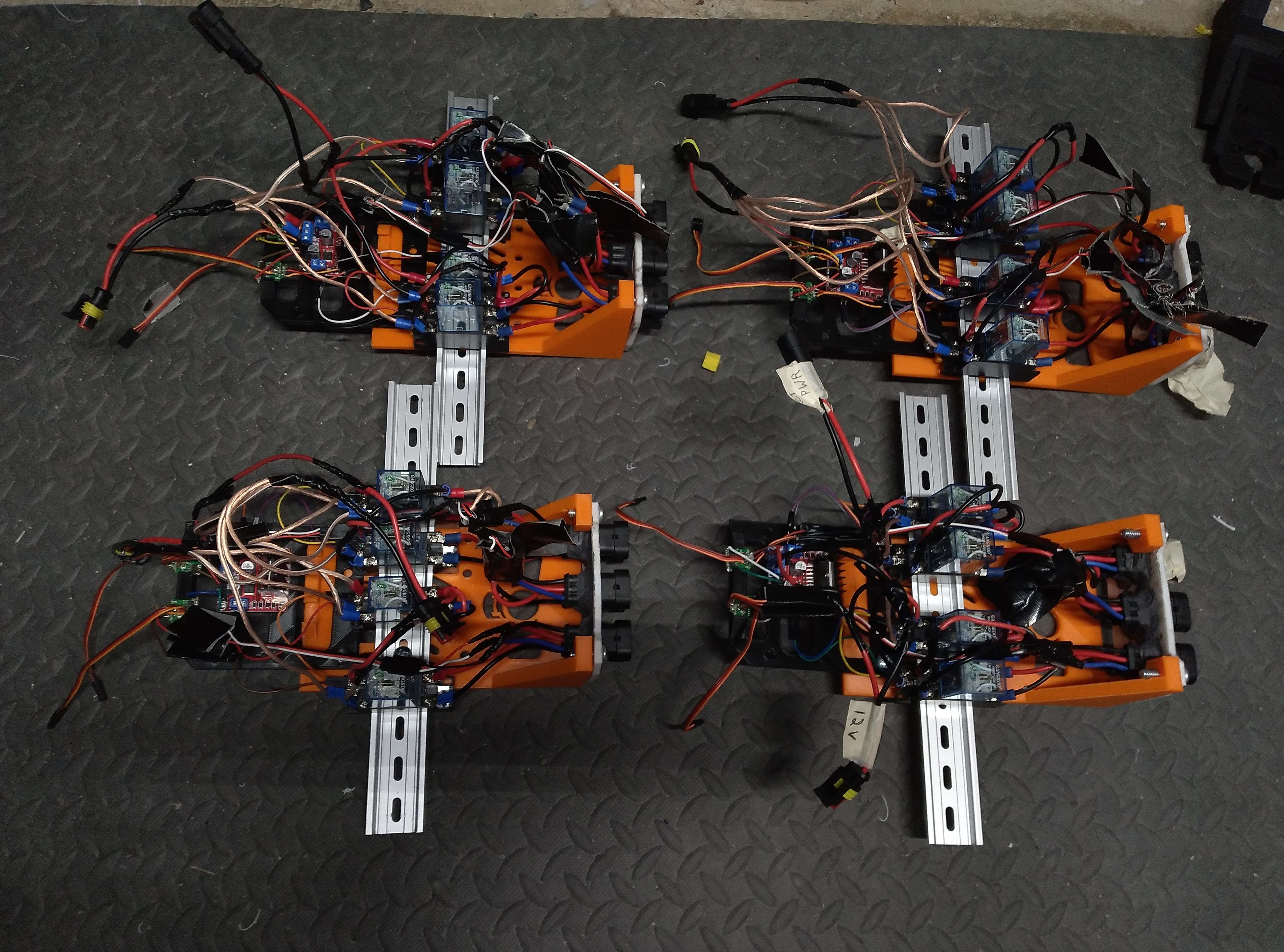

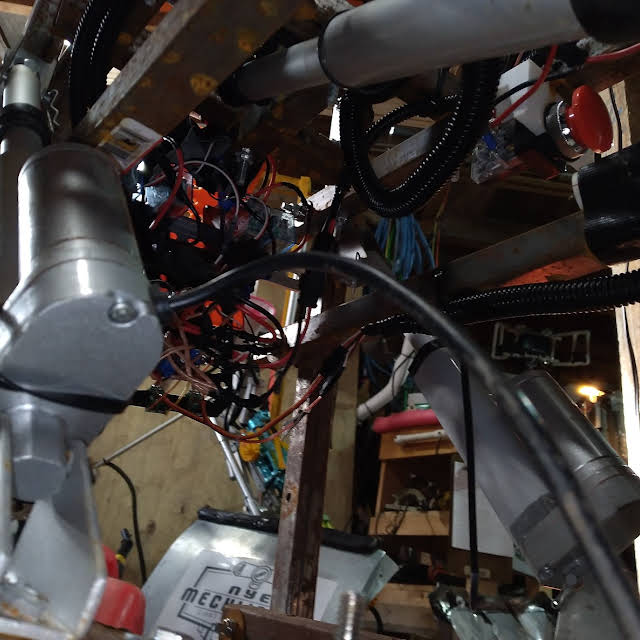

Finished all the leg motor control boards. They are essentially the brains for 1350lb servos (they amplify servo signals to drive the larger motors), which means making the mech walk should be about as easy as making a smol robot walk.

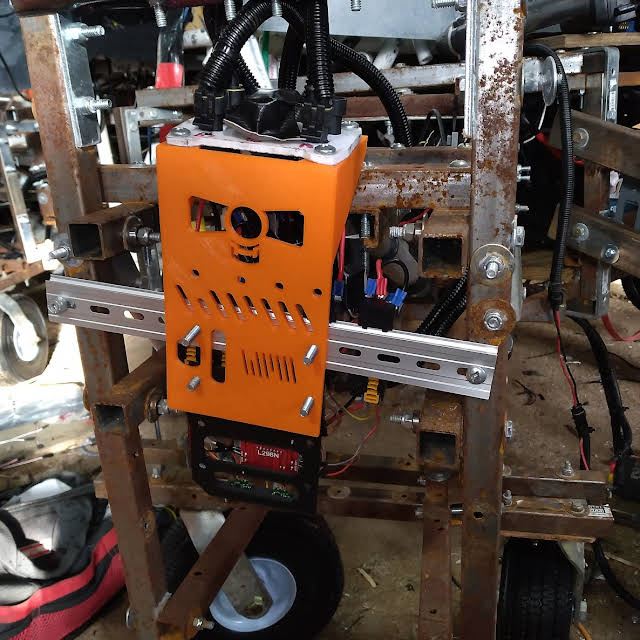

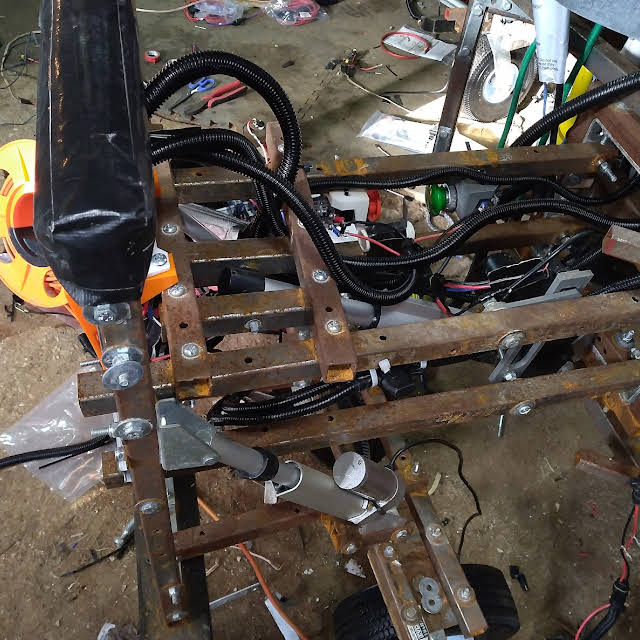

Installed on the leg:
Mech has the theoretical lifting capacity of more than 3 tons! I just need to find a way to downsize these circuits if I want to use it in powerarmor.
Installed on the leg:
Mech has the theoretical lifting capacity of more than 3 tons! I just need to find a way to downsize these circuits if I want to use it in powerarmor.
