Airsoft ODST SMG and Pistol

[7thBattalionODST]

dude, this is jaw dropping. amazing job
i have a question though, where did you get that Mp7?
can't wait to see what you're gonna do next



[Renac]

It's readily available, as I understand it, in the US. Check out Airsoft Megastore or Redwolf Airsoft. They should have it, extra clips, the works. I think it also comes in gas, but my suggestion is to get the AEG.



[SpartanT117]

I checked that pistol out, it's pretty pricey, but I'm sure it outdoes itself in functionality.. nice though, I can't wait to see it finished!!!!



[Scar405th]

same here cant wait to se it in action



[Renac]

Well then Children it's time for another story, so have a seat and get comfortable. This is a little story about a pistol...

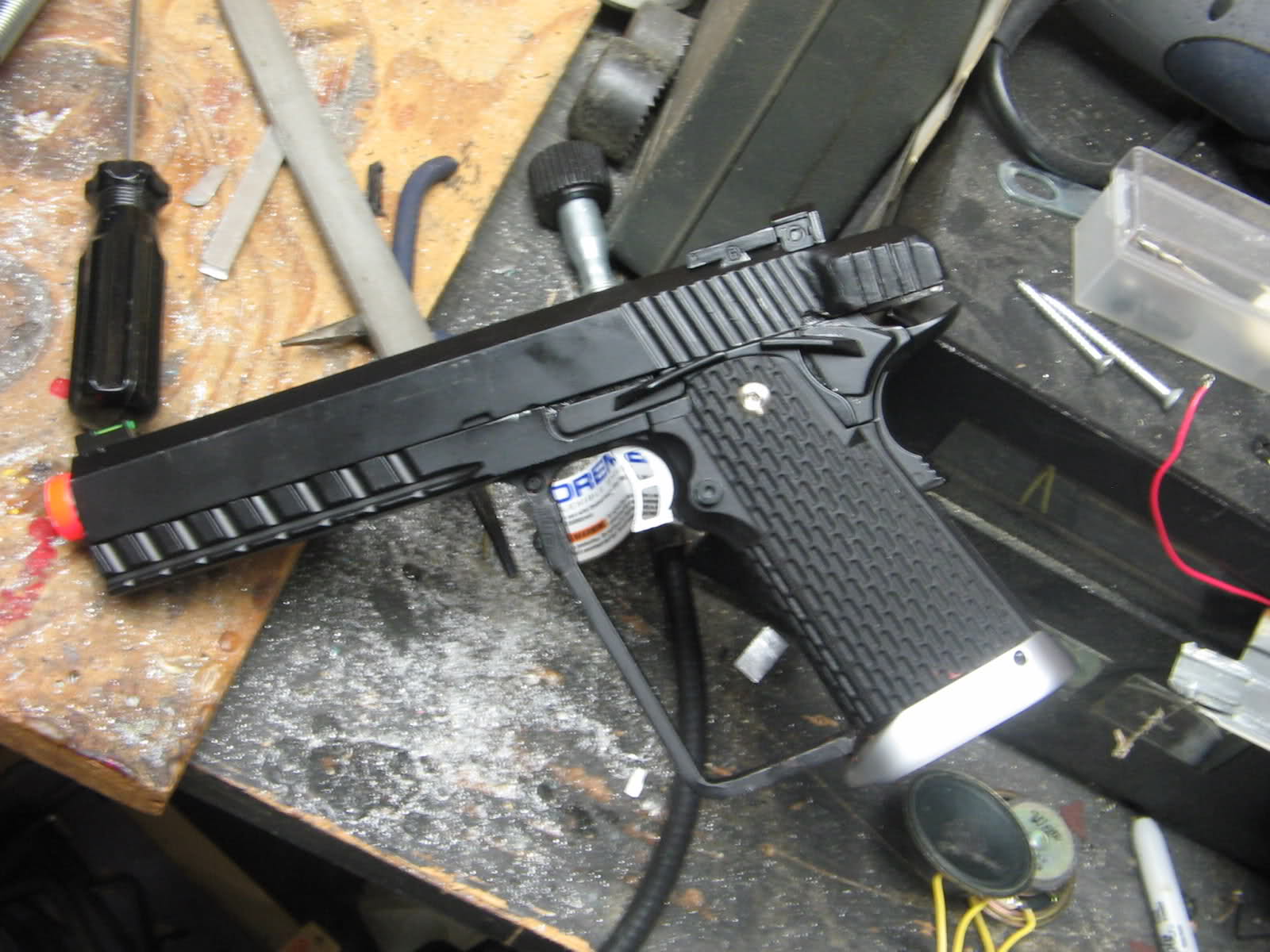

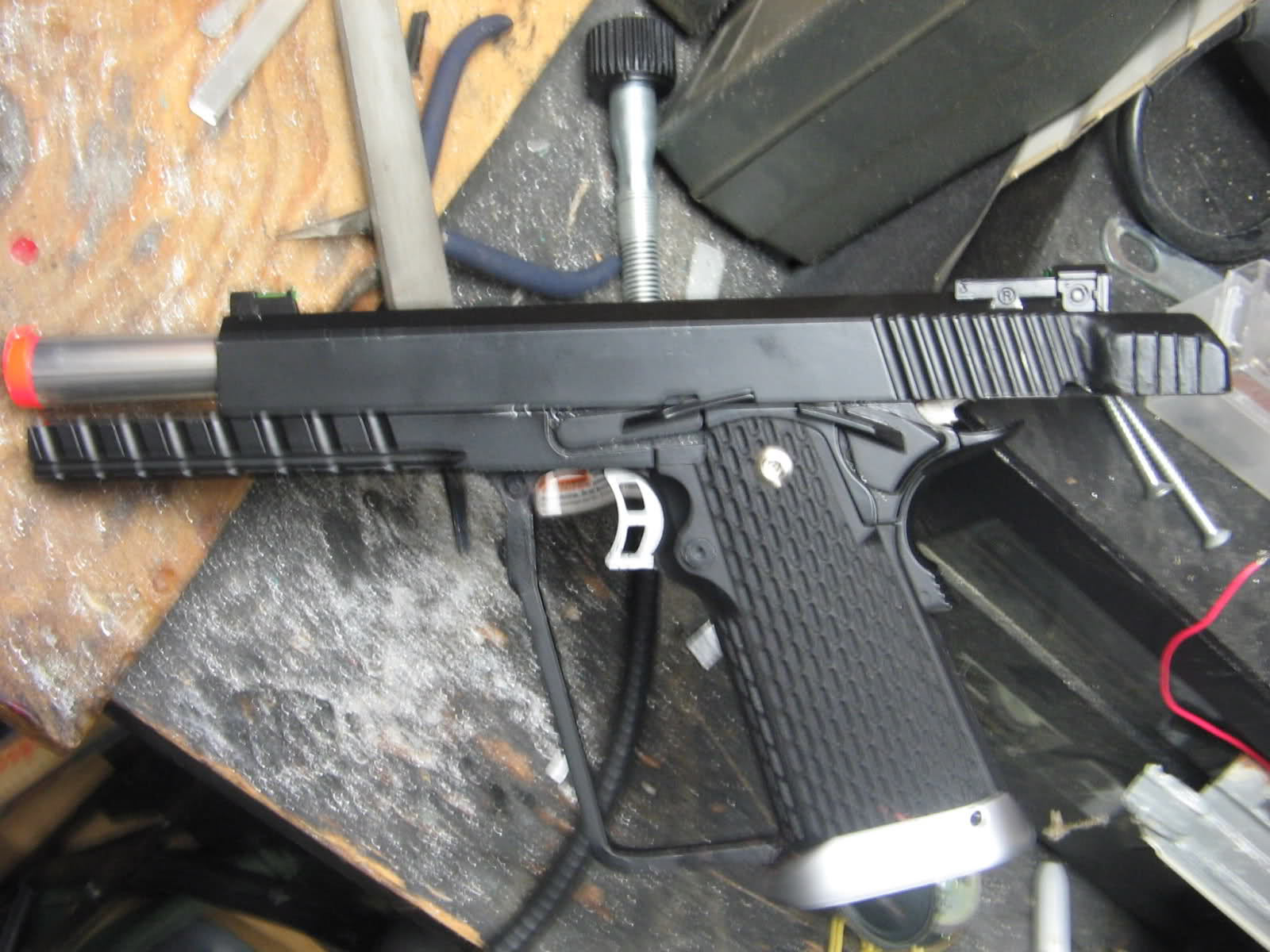

But serious it's time to continue. Here is the aluminum back piece to hide the hammer and extend the back of the pistol's frame. It's made a little bit wider then the width of the rest of the pistol, since in pictures you can see a swelling at the back.

The aluminum piece is welded on, and blackened. I sent it to a machine shop to be welded, but apparently my instructions weren't clear enough, and they welded the back piece on while the handgun was fully assembled. The result was some warping in the pistol's plastic cylinder, which affects it's recoil a little. Just a bit sticky. But still functional, thankfully!

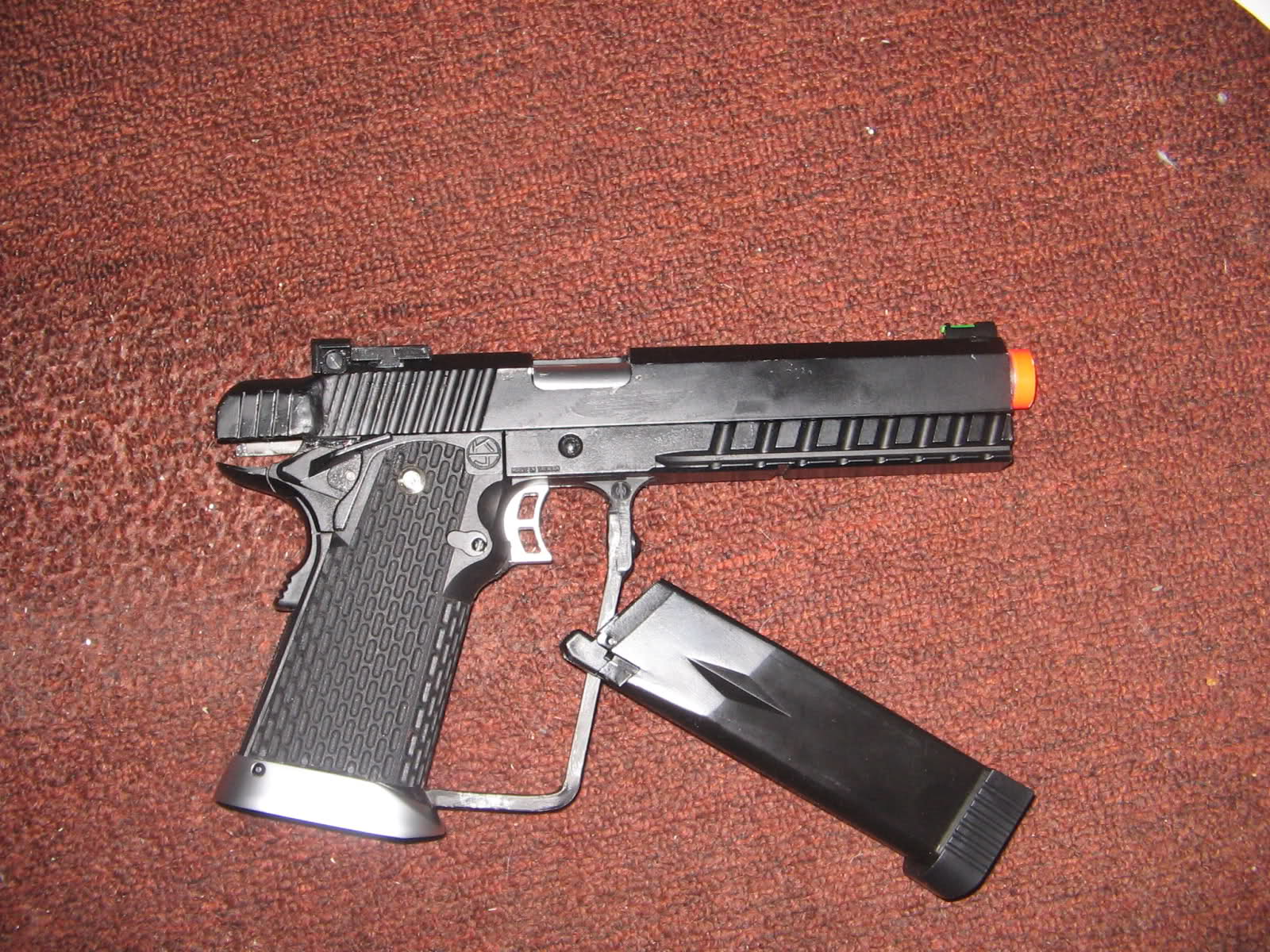

The magazine for the handgun should extend beyond the base, but that will be for later. Here's a picture with the current gas magazine.

And a picture with it in my hand as a visual reference to how large it is.

Next will be the laser sight and flashlight. As always, please leave comments and questions!



[Renac]

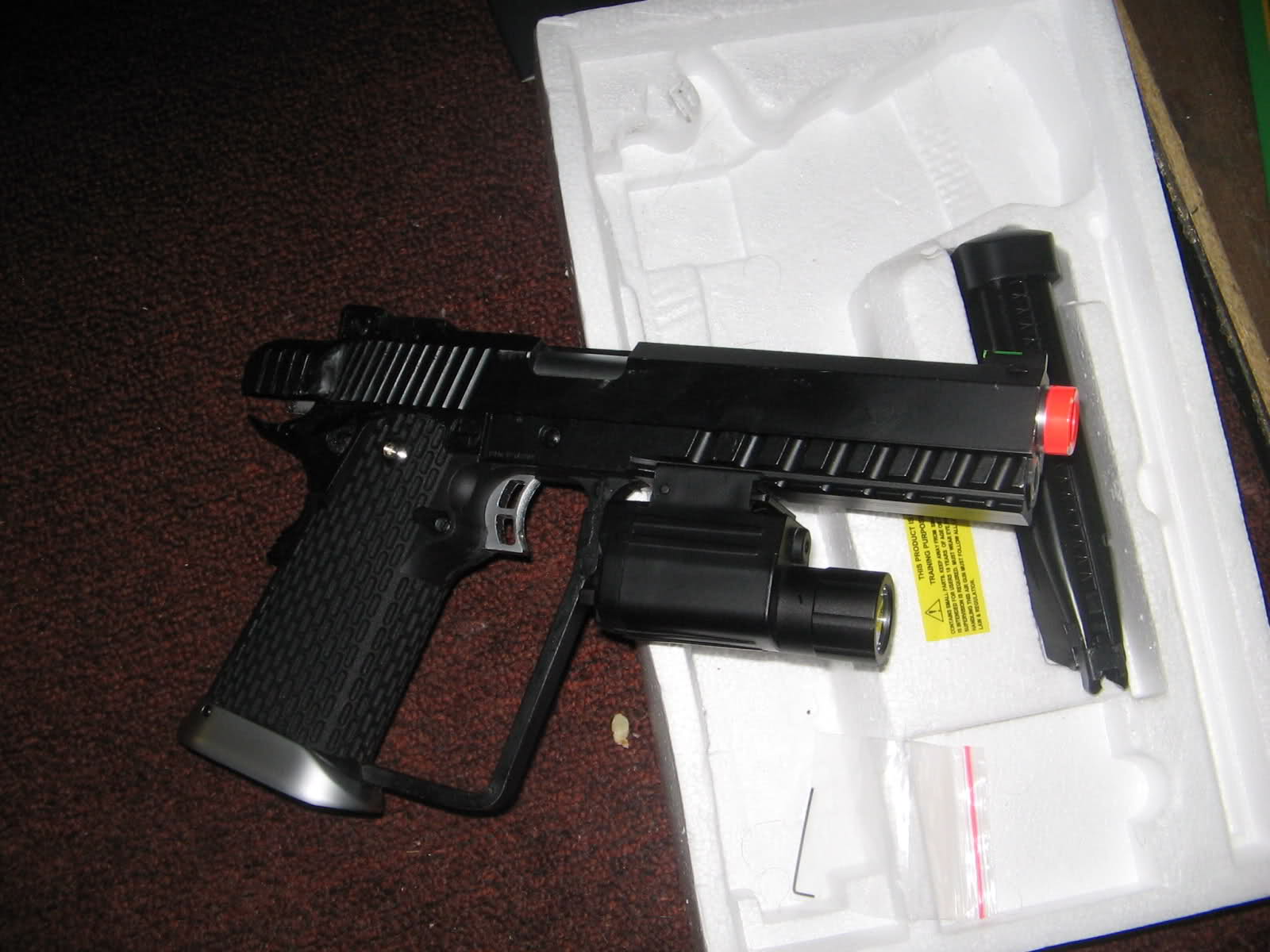

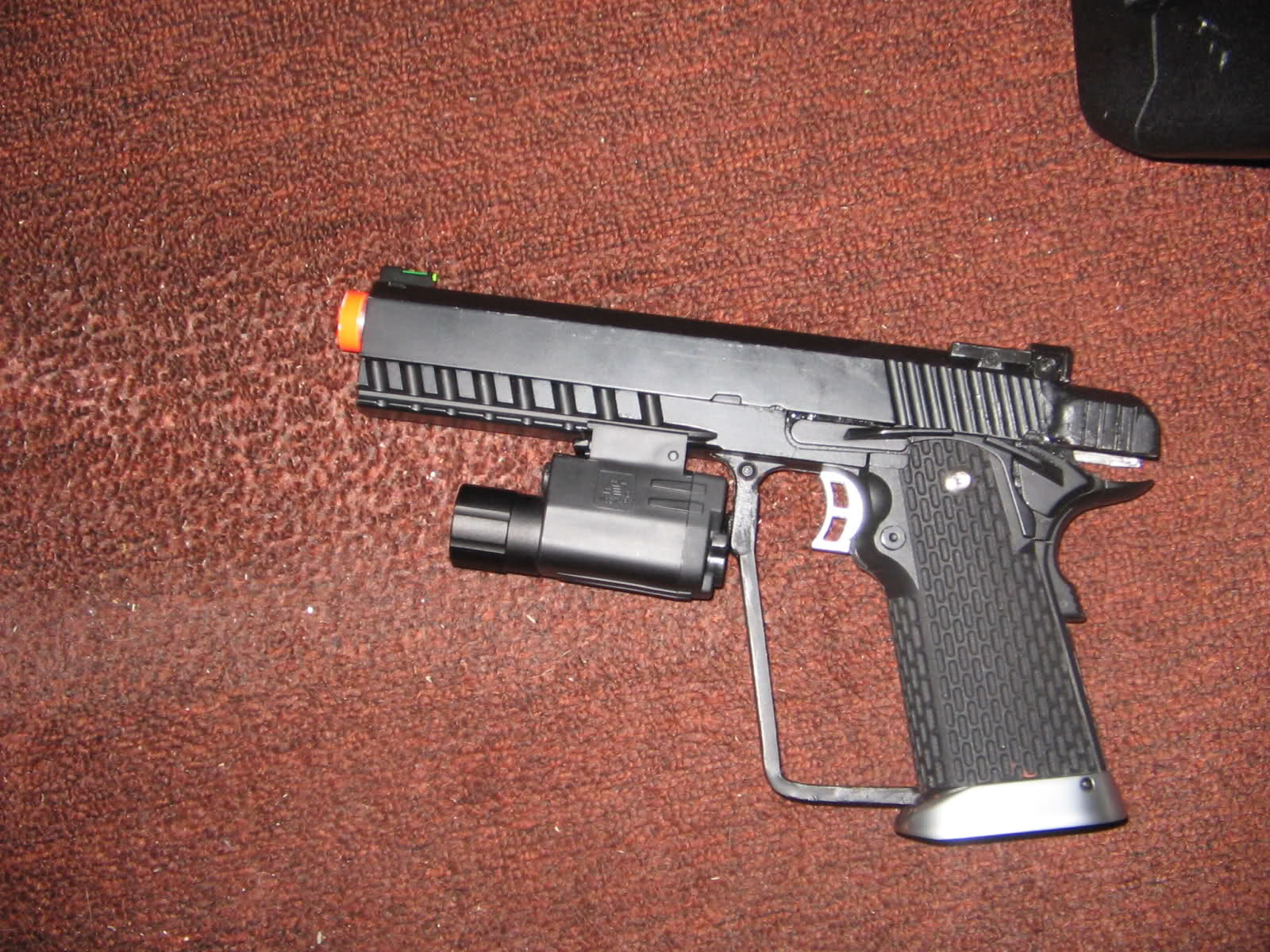

Small update this time, as the laser and flashlight has just come in.

As always, Please leave comments and questions!



[Renac]

Ok, haven't heard many responses of late. This is the last bit for the pistol, so I'll have lots of pictures for you (might even have to do it in two posts).

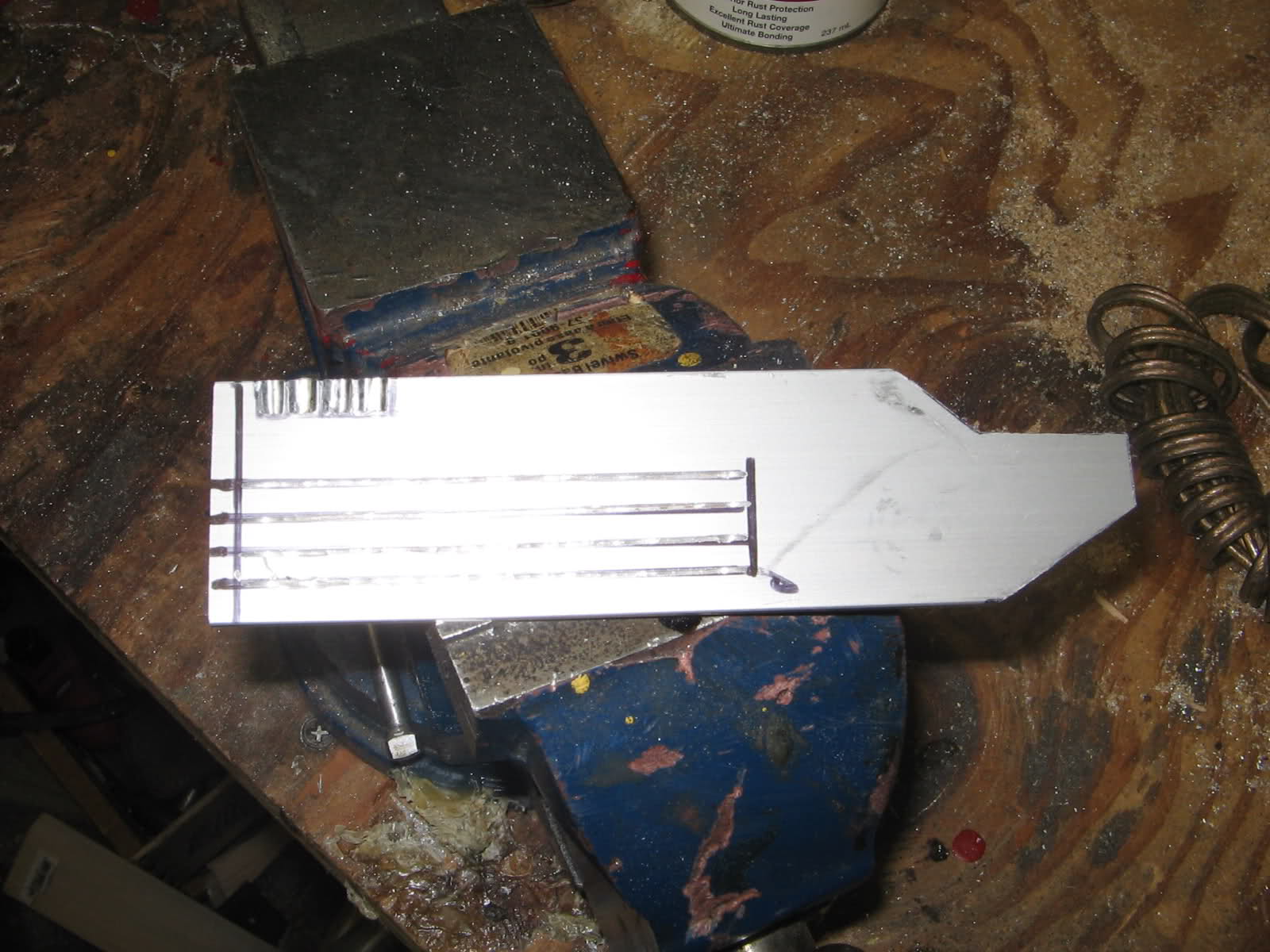

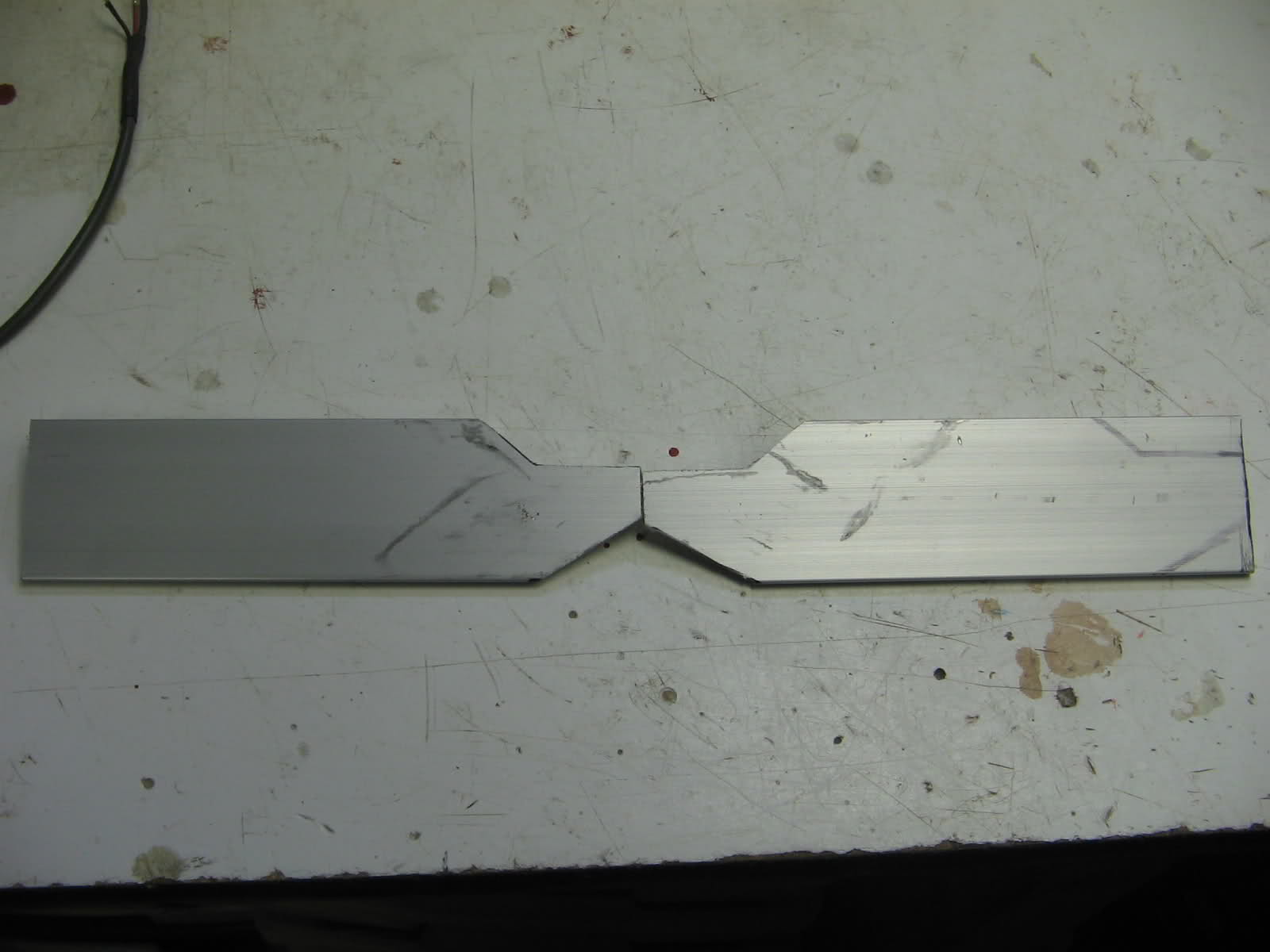

Next up is the extension onto the barrel of the suppressor. This is a little tricky, as it has to not interfere with the slide of the recoil, the gunsight at the top, or the rail for the laser and flashlight at the bottom. So I've decided on using two panels of aluminum, cut to rough shape. Here's the two panels now!

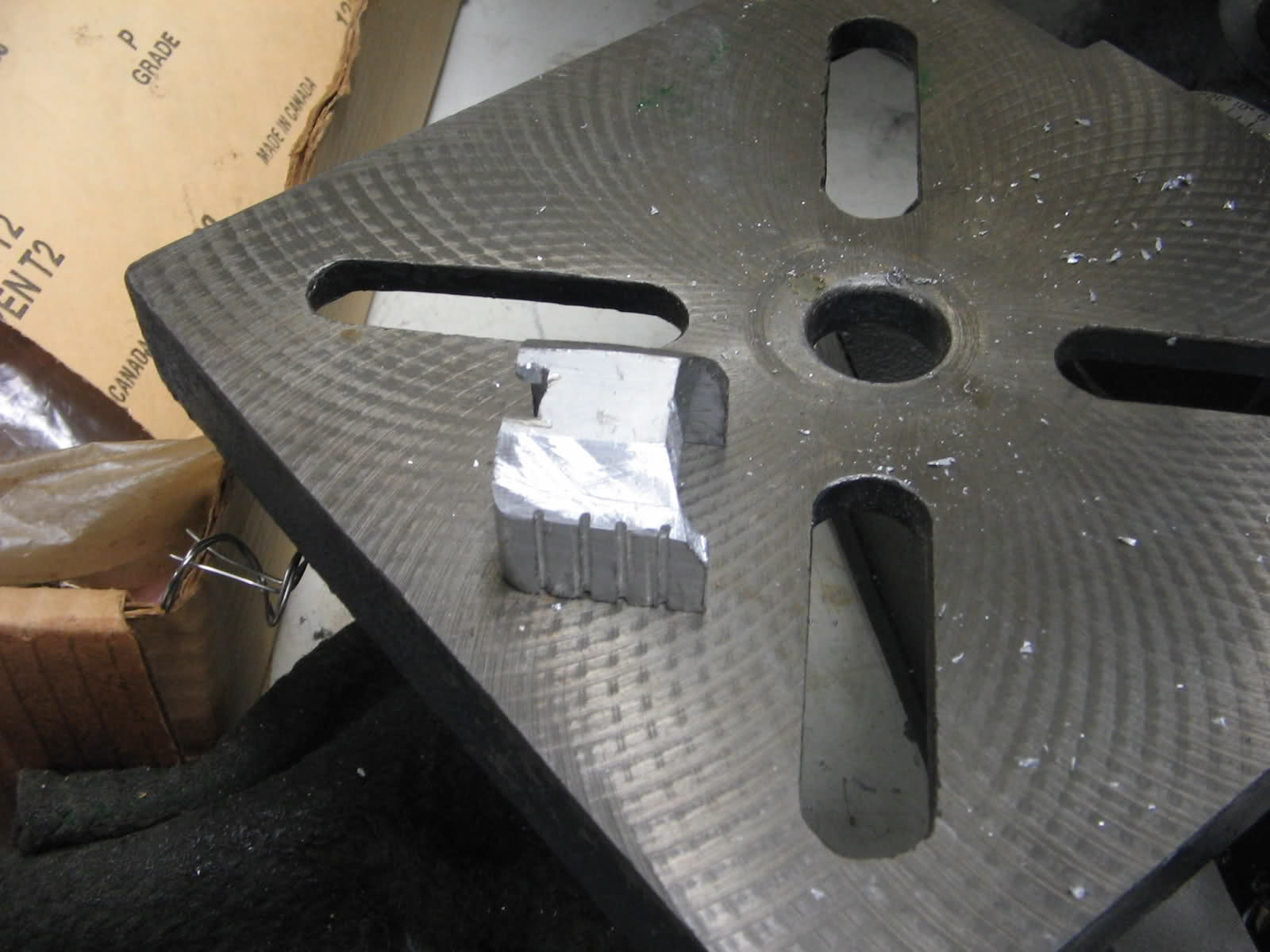

The gun's front has several lines, stamps, and other markings on it. I knew from the start I wouldn't be able to get all of them on there, not with my current skill set and tools. And while I could have taken the pieces to a machine shop, that'd have cost a decent penny more. So, I limited myself to the horizontal markings, and the 4 vertical grooves on top.

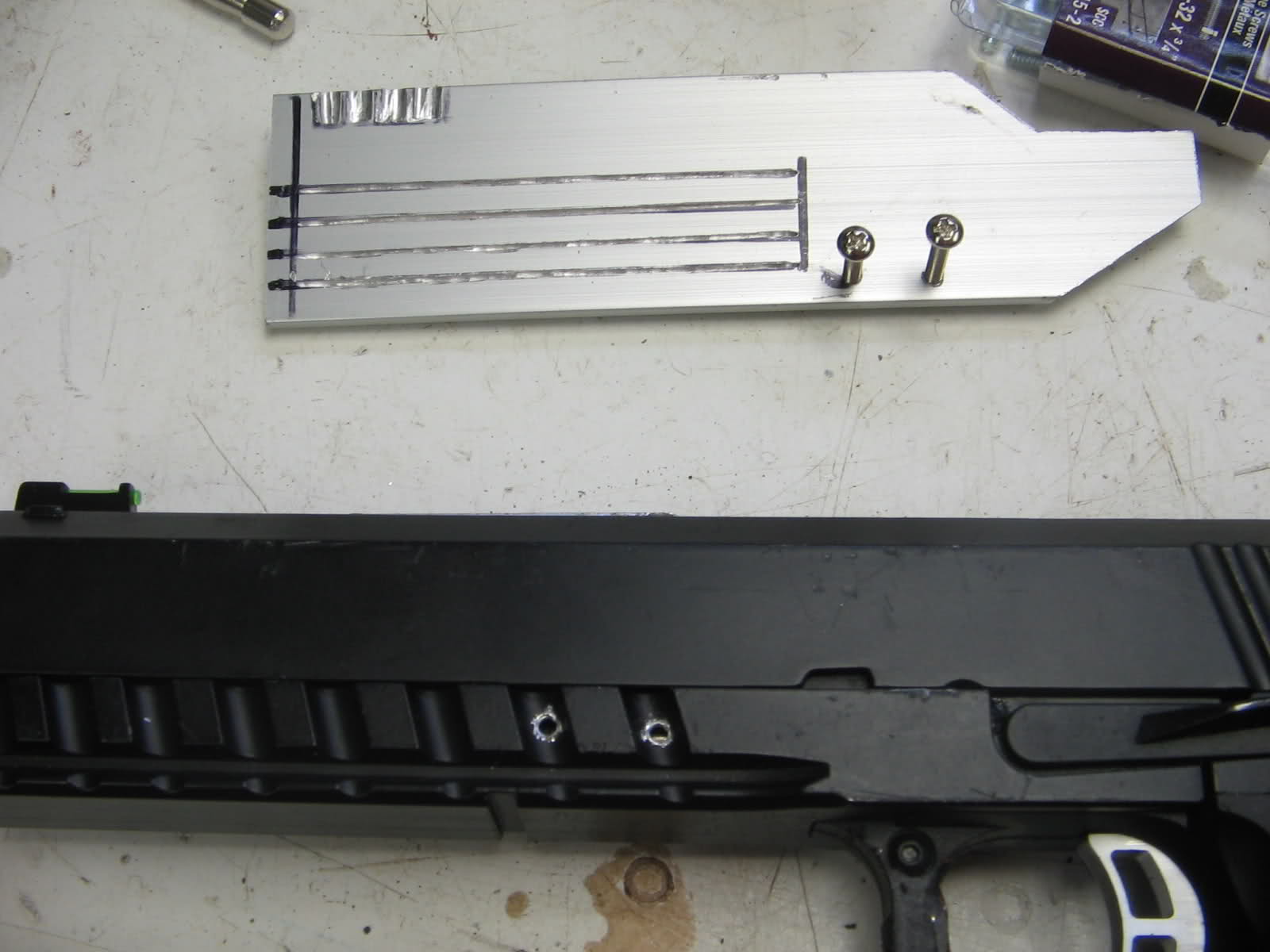

Now we come to the hard part. Drilling the holes in both the gun, and the plates. These have to be exact, not only to fit onto the sides of the pistol, but to be equal both on top and bottom. Measuring is so very important. After drilling the holes I tapped them.

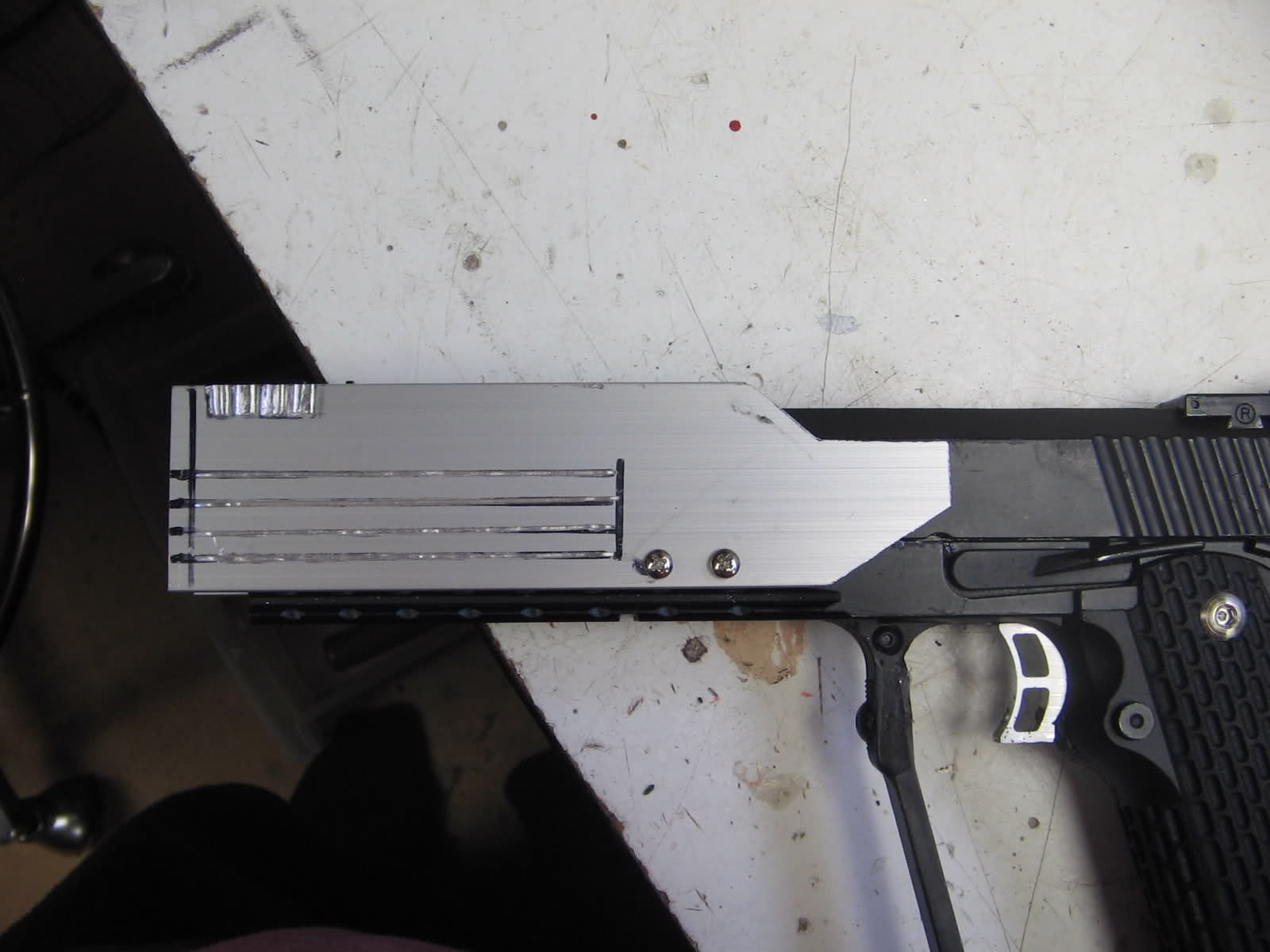

And here's it attached on.



[Renac]

Afterwards, it needs to be blackened, much like the end piece. So here's the pistol all put together.

And here's a few pretty glamour shots of it out in the wild.

(I like how the med ref patch looks in this one)

That's it for the pistol! Still works and fires well, too. Up coming work might be to add a side clip to the SMG or extend the grip to make it look more angular.

So how do they look?



[SchlagerNinja]

Me gusta these guns, big time! I have had for a long time to buy a airsoft gun, disassemble it, make own gun that's really REALLY just like in the game, insert airsoft gun insides into halo gun, voilá But your seems kind of simpler, but still looks as great as it could ever become I sure do like the work of metal, because it is difficult to damage it :3 Nice build again



[Renac]

Thanks for the comment! I really appreciate it. I'm super proud of the pistol and how it came out.



[Scar405th]

o my god sexy ass gun bro hey doesnt the clip extend a little bit more?? just saying but other than that me soo jelous how much would it cost to get you to make me an ODST smg and pistol I AM WILLING TO PAY $$$ seriously



[Scar405th]

and just wondering is that a real working com unit cuz i am working on one i am using an frs radio



[halokillskat]

Pistol looks good, Evike has an exended mag for the hicapa which would look cool



[Scar405th]

just wondering how much mobility do you have in the suit?



[Renac]

Ha! Yes, the mag should be extended. If they'res and extended mag for sale (and halokillskat says there is) I might grab that and try it! But that's what came with it, and it's hard to extend one way or another due to it needing to take a gas charge.
I'd be very well willing to make them for others, if I could find a way to get the basic gun over the border to Canada easier. If anyone has suggestions, hints, or tricks to help that, I'm willing to hear them out! Otherwise, contact me in a PM and we can discuss other details about it.
Yes, that's a real comm unit. I have a bluetooth chip in there, and speakers and a mic set up in the helmet.



[Renac]

A fair amount! The forearms might need some scaling back. Bending my arms to scratch my back takes a bit of practice. But I cannot say enough good things about Sean Bradley's armour pieces. I'm somewhat used to wearing real armour (I used to make it), and in comparison it's highly mobile.



[Scar405th]

good cuz i am making the buck armor from ODST and i also plan on making it fit and strong enough to play paintball in and a suggestion for the mag extention just build a temporary extention that would attatch to the end of the clip lol it is a good temporary idea that might work lol



[Scar405th]

and i see you already accepted my friend request thank you lolz and BTW welcome to the 405th



[halokillskat]

good cuz i am making the buck armor from ODST and i also plan on making it fit and strong enough to play paintball in and a suggestion for the mag extention just build a temporary extention that would attatch to the end of the clip lol it is a good temporary idea that might work lol

If it was a springer he may be able to do that, but it is a gbb meaning it will need an exention on the gas valve too, and the would be a pain in the butt. oh and for renac the extended mag is here http://www.evike.com/product_info.php?products_id=31592 and if you were to sell guns, you could just mold the add ons and call them a "kit"



[Road Kill]

awesome job man =D to me i wouldn't be able to put a bunch or bondo on a real gun like what if you mess up or something
well great job man it looks great
