Ok guys I need help in designing the mechanics to make this work. I want the front handle's movement to control the up/down movement of the Laser's cover. Ideas??? Comments??
Props BenStreeper's Halo Reach Spartan Laser Build
- Thread starter BenStreeper
- Start date
- Status
BenStreeper
Well-Known Member
More updates today. Started doing some of the detail work
See if you can guess my oops here
See if you can guess my oops here
Have a rod to the handle, so when the handle is moved the rod moves. On another rod marked as point A you have two egg shaped leavers made of plastic. Now when the handle is moved they both move. Have another rod to another plastic leaver at point B that will transfer the motion to two more leavers on the same shaft placed closer to the outside of the body. They in turn push two robs which lift the housing for the barrel.
BenStreeper
Well-Known Member
Bob the Giant
Well-Known Member

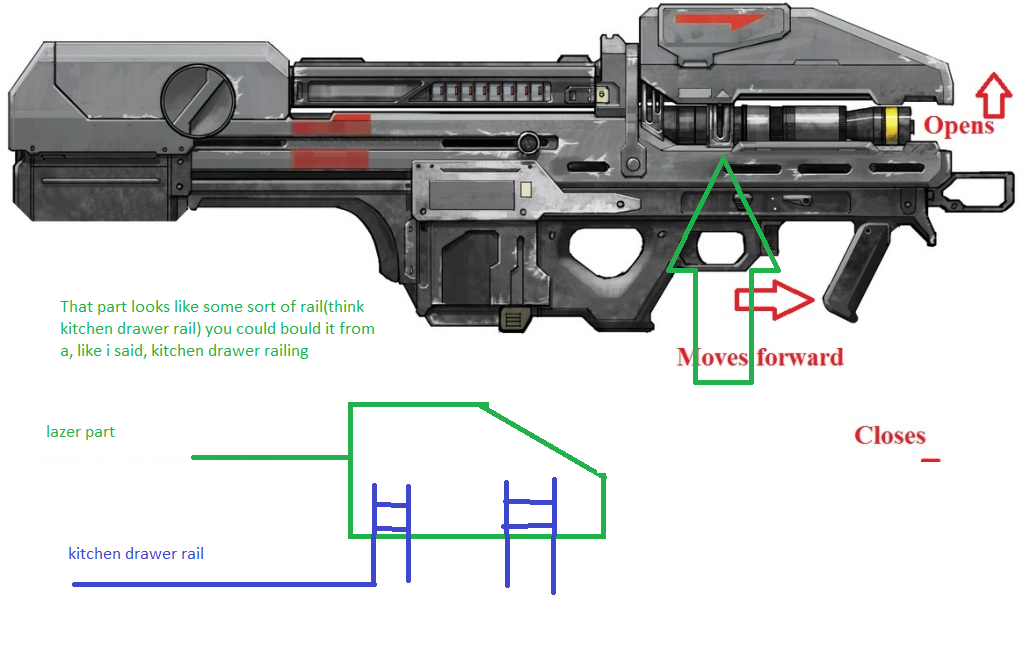

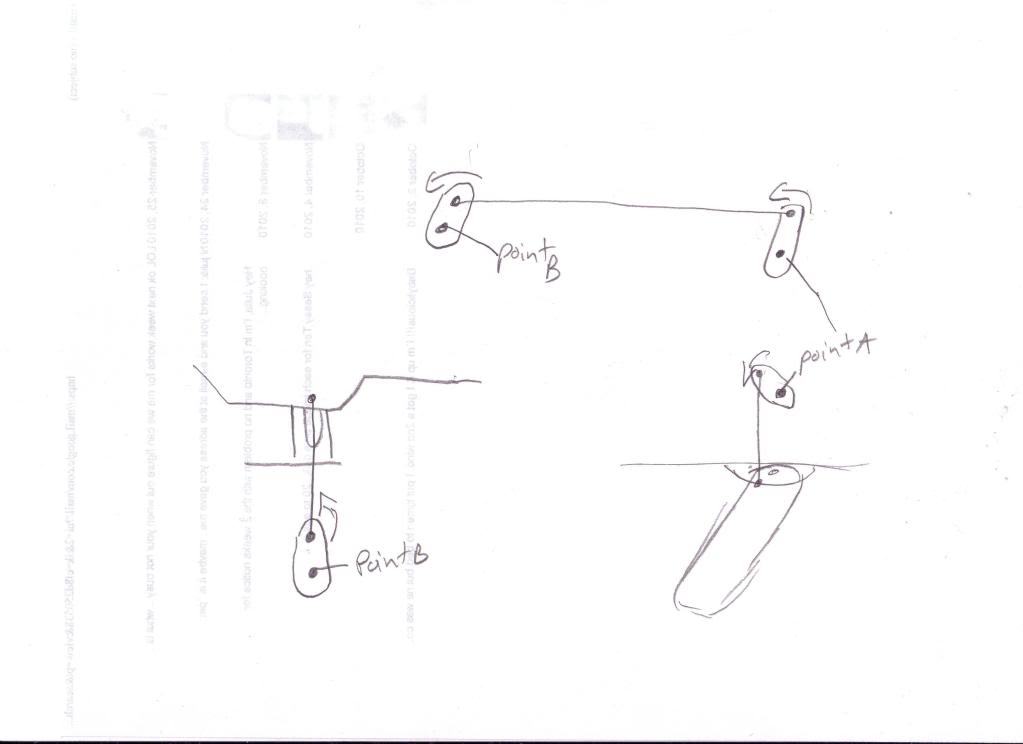

since i can't describe at all. i drew something out:
ShotgundZombie
Member
a few yaers ago i did a science project concerning magnetic levitation. After looking at this i realized that the idea i used was similar but in this case vertical. Heres what you do.
1. attach a spring inside each of the rail looking things torward the back of the cover.
2. Place a series of magnets in the under part of the cover where the two silver cylander lookin things are.
3. place magnets in the handel so that when the handel is closed the magnets attract and hold the cover shut.
4. to open, just push the lever forward . This terminates the magnetic attraction and allows the springs to push the cover into the open position.
hopes this helps.
1. attach a spring inside each of the rail looking things torward the back of the cover.
2. Place a series of magnets in the under part of the cover where the two silver cylander lookin things are.
3. place magnets in the handel so that when the handel is closed the magnets attract and hold the cover shut.
4. to open, just push the lever forward . This terminates the magnetic attraction and allows the springs to push the cover into the open position.
hopes this helps.
ShotgundZombie
Member
could you also send me some instructions on how to build this? Id like to try and modify it so that it shoots small oblects via compressed air.
BenStreeper
Well-Known Member
not to sound like a complete jerk but did you read this thread at all?? or did you just look at the pictures?? I fully explained how I built this throughout this very thread. I will answer any questions you have (pertaining to steps I have already completed) about the laser that I have not already answered in this thread.
On to updates:
Did some more detail work today, and gorilla glued several pieces together. Before I fully glue the detail layers to the base layers though I still have cleanup work to do on both the base parts, and the details. Here's some shots of today's work on the main body
ShotgundZombie
Member
oops, my bad. What i had meant were dimensions. I dont have a big printer so i cant really do what you did. its cool if you dont have dimensions though.
sk8almostbay
Member
Hey ben nice build. Do you think that you could use one of these for the build:
http://www.airsoftpost.com/product_info.php?cPath=28_140&products_id=28973
you can probably find one sheaper somewhere else, but i thought it was cool because you can see the laser in the air. Anyways, fantastic job so far!! Btw, you are my idol on 405th haha
Oh also idk if it helps, but here is a folding handle:
http://www.airsoftpost.com/product_info.php?cPath=25_115&products_id=25058
http://www.airsoftpost.com/product_info.php?cPath=28_140&products_id=28973
you can probably find one sheaper somewhere else, but i thought it was cool because you can see the laser in the air. Anyways, fantastic job so far!! Btw, you are my idol on 405th haha
Oh also idk if it helps, but here is a folding handle:
http://www.airsoftpost.com/product_info.php?cPath=25_115&products_id=25058
BenStreeper
Well-Known Member
oops, my bad. What i had meant were dimensions. I dont have a big printer so i cant really do what you did. its cool if you dont have dimensions though.
I printed this on multiple 8.5 x 11 sheets of card-stock. then I taped them together. The laser is 989mm long from the tip of the front handle thingy to the back, it is 313mm high, and 113mm wide. In inches that's 38.9370079 inches long x 12.3228346 inches high x 4.4488189 inches wide.
ShotgundZombie
Member
ok, thanks!
ShotgundZombie
Member
also, how did u scale it? I read the post where you siad you used some sort of laser but i didnt understand it.
sorry for the multiple posts.
sorry for the multiple posts.
BenStreeper
Well-Known Member
That's the scale of the laser in gamealso, how did u scale it? I read the post where you siad you used some sort of laser but i didnt understand it.
sorry for the multiple posts.
More detail work done today, and lots of gluing
Spartan Will 043
Member
Keep up the excellent work man !!!
I want also to make a spartan lazer with plastic card and I hope it will be as great as yours
!!!I want also to make a spartan lazer with plastic card and I hope it will be as great as yours
Spartan Will 043
Member
Keep up the amazing job man!
I want to do a spartan laser too and I hope it will ba as great as yours
EDIT
Excuse me for this double post, I have a lot of bugs this moment -_-"
I want to do a spartan laser too and I hope it will ba as great as yours
EDIT
Excuse me for this double post, I have a lot of bugs this moment -_-"
ShotgundZombie
Member
that actually looks pretty good.
