Builds By Baz - Full scale MKII Colonial Viper
- Thread starter BuildsByBaz
- Start date
BuildsByBaz
Sr Member
Tearing the lot down to build an extension of two rooms on the end of the house.
Because there's a wall in front of it.
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
Well then that makes sense.
FatherDamien CO
Member
Now that is the sign of a dedicated builder.
There is a wall in the way of my project. Move wall continue to build amazing project.
I know you were going to add on anyway. But, I like to think of it as above.
There is a wall in the way of my project. Move wall continue to build amazing project.
I know you were going to add on anyway. But, I like to think of it as above.
BuildsByBaz
Sr Member
I like to live under the delusion that I have at least a couple of live brain cells to operate with....
BuildsByBaz
Sr Member

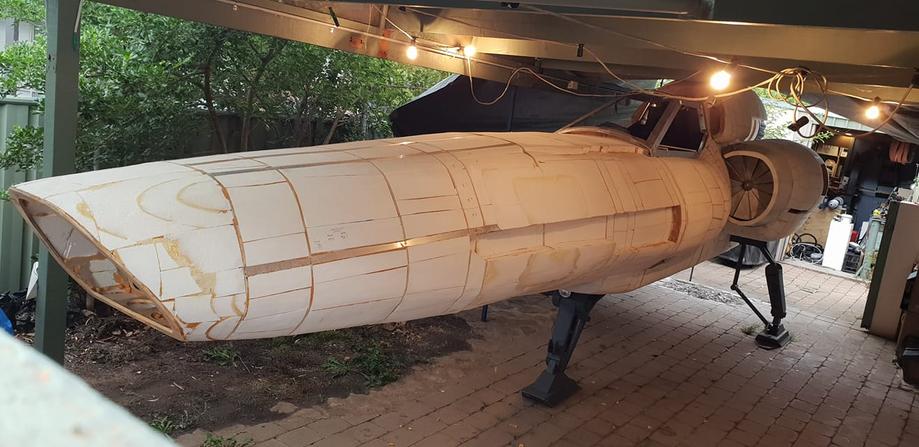

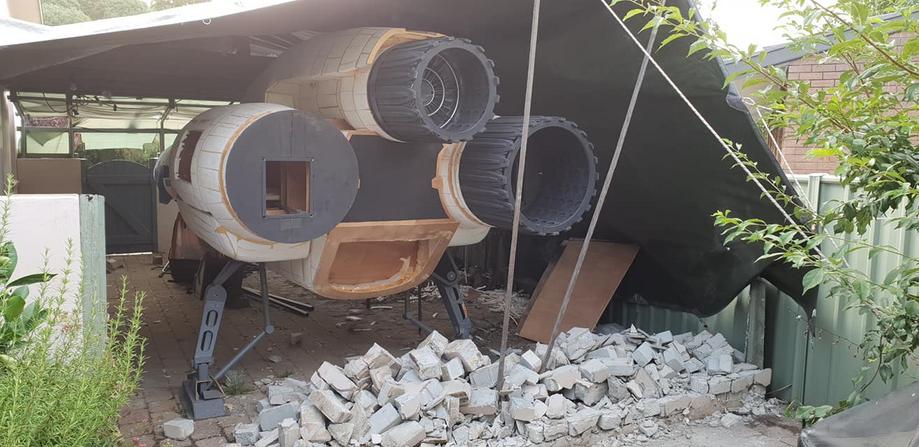

Demolitions complete, (of one wall at least). Area all cleaned up and rubble removed. I have a lot more room to continue the build now. Smoothing and detailing along with the engine exhausts to finish and clad the legs in steel housing.
A mate dropped off an air filter/water trap/ It's not exactly the same as the screen-used prop, but it's pretty close.
A mate dropped off an air filter/water trap/ It's not exactly the same as the screen-used prop, but it's pretty close.
BuildsByBaz
Sr Member
I managed so steal a bit of time here and there, then pulled an all-nighter last night. Had a beer and went to bed around 2:30am. Tired, but got a lot done.

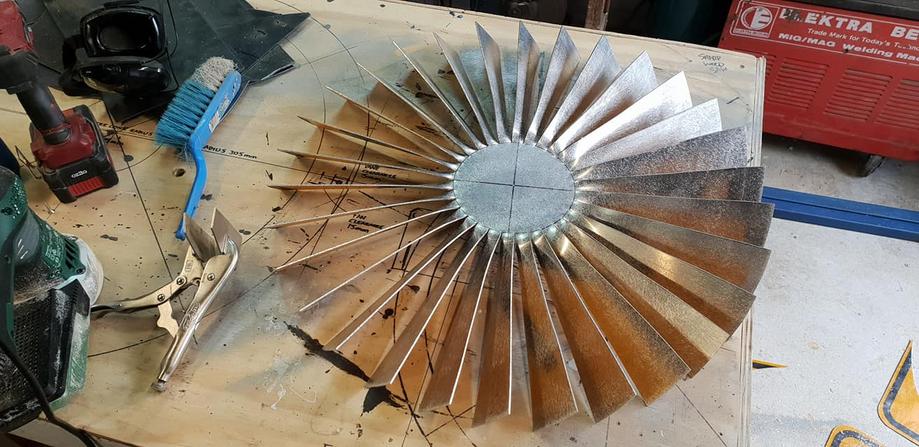

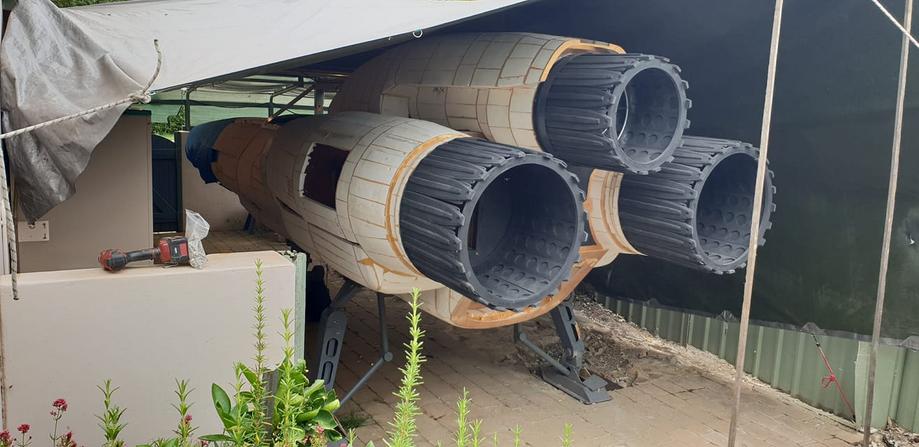

Assembled, painted and mounted the last engine exhaust module, then started cutting the second of the three turbine exhaust fans.
Assembled, painted and mounted the last engine exhaust module, then started cutting the second of the three turbine exhaust fans.
BuildsByBaz
Sr Member
This time I made sure the fan can be passed through the module exit without having to disassemble it.
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
Just when I thought it couldn't look any cooler........You just keep upping the ante.
BuildsByBaz
Sr Member
^^^ Thanks mate.

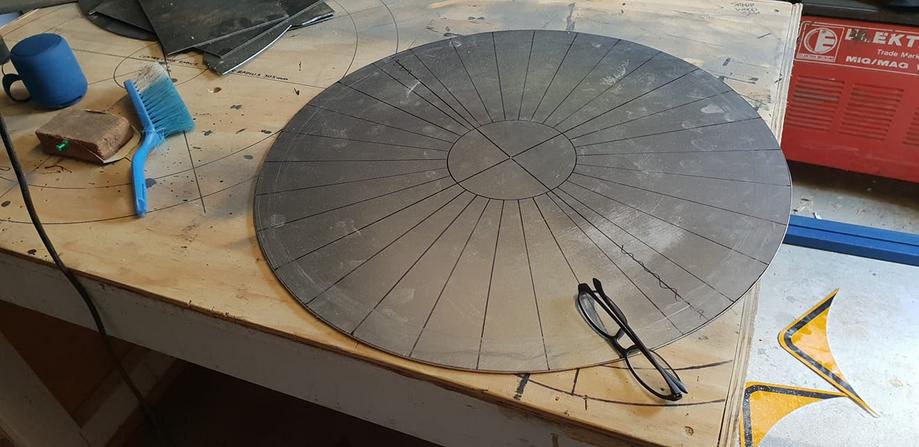

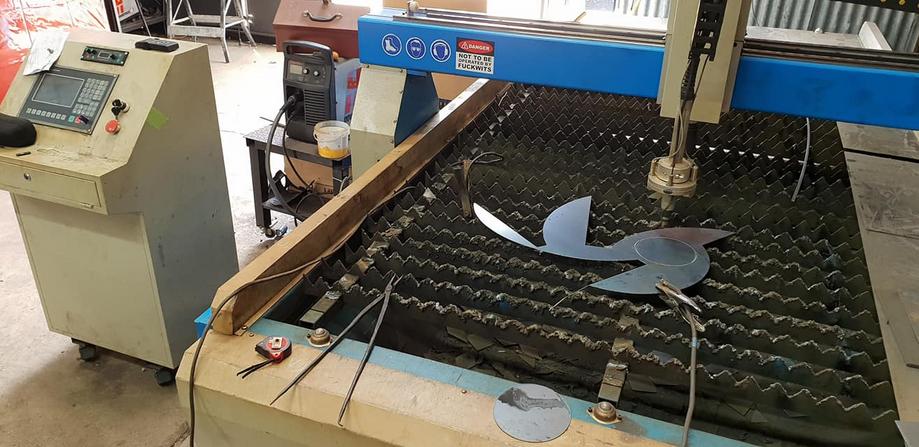

I started getting the engine circles cut with a CNC plasma cutter yesterday, out of scrap metal sheet, thanks to the kindness of my boss at work.
He's going to cut all the spider vanes for me as well, saving me hours of work.
I started getting the engine circles cut with a CNC plasma cutter yesterday, out of scrap metal sheet, thanks to the kindness of my boss at work.
He's going to cut all the spider vanes for me as well, saving me hours of work.
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
Dam...that's a nice boss......Is he hiring?
BuildsByBaz
Sr Member

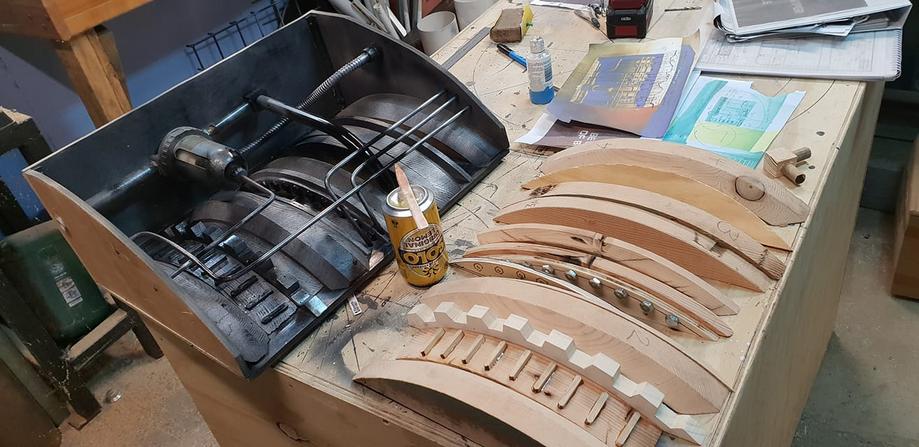

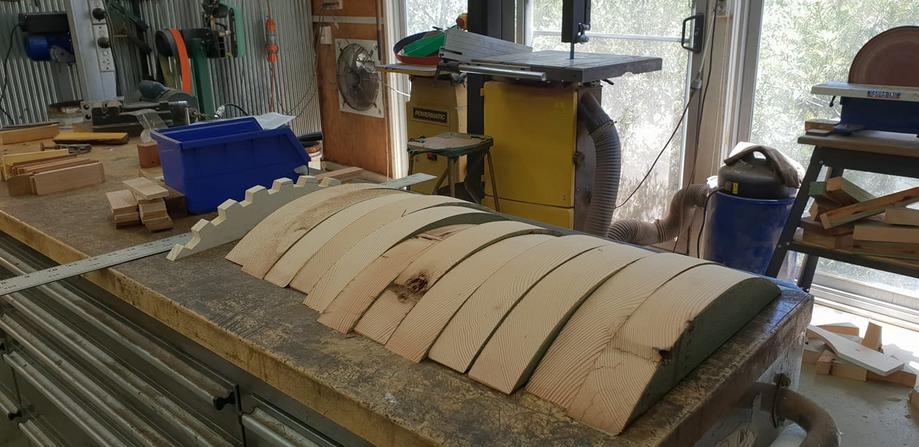

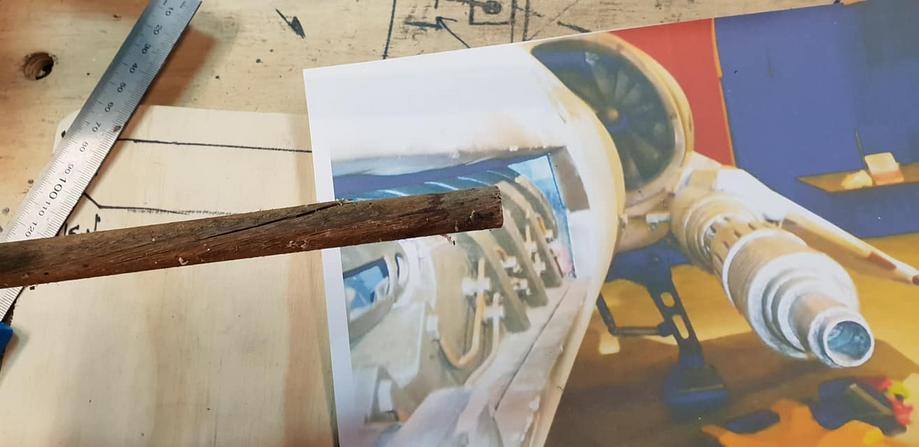

Take two. I'm approaching the engine maintenance panels a different way. The plastic barrel idea didn't work. Trying wooden arcs of different diameters, shaped and carved then sandwiched together.

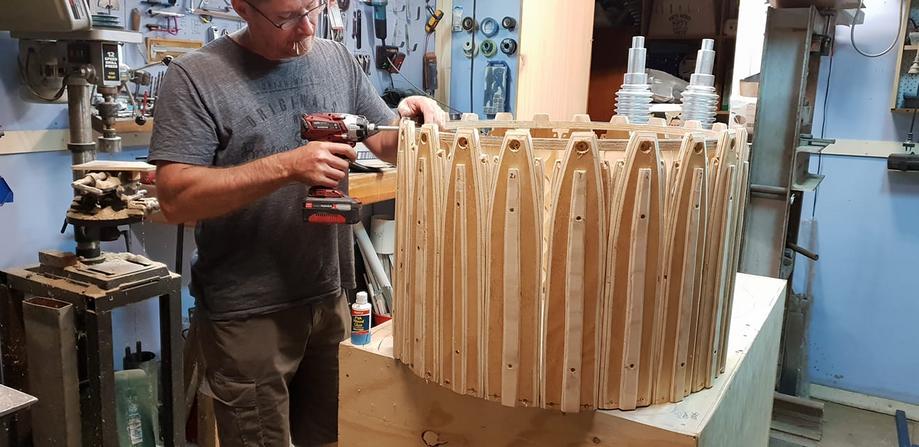

Using pieces of timber of the demolished pergola to make engine forms.
Here's a shot of the production prop, the part I'm trying to replicate from my scraps.

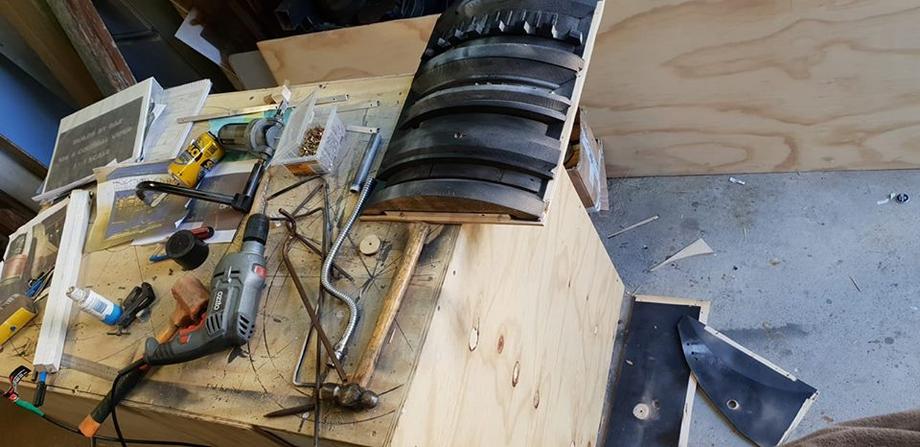

Here's the workflow over the last couple of days.
Working out the location of the cannons.
Using pieces of timber of the demolished pergola to make engine forms.

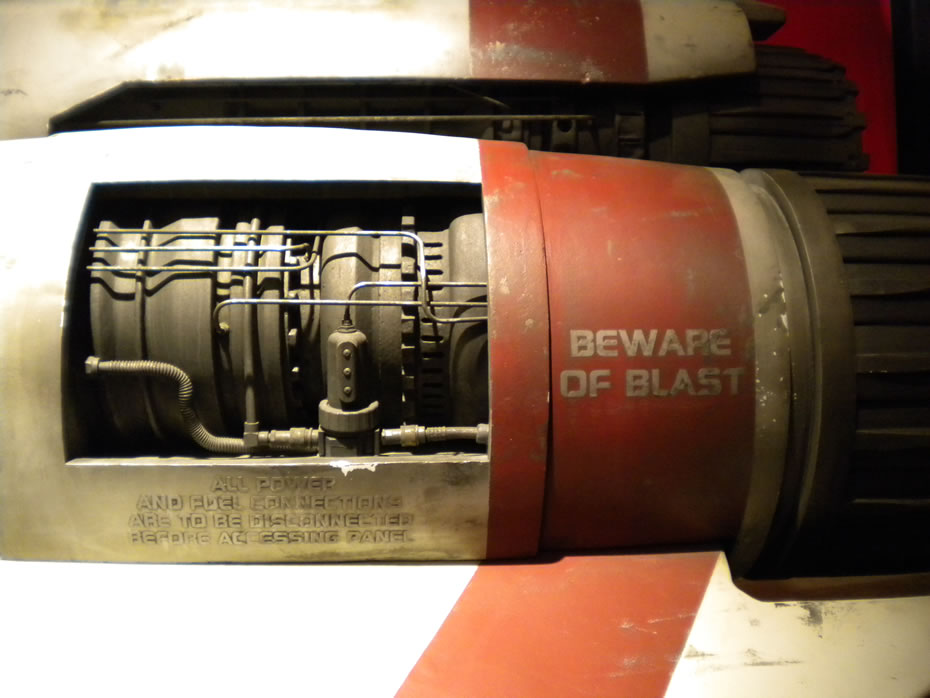

Here's a shot of the production prop, the part I'm trying to replicate from my scraps.
Here's the workflow over the last couple of days.
Working out the location of the cannons.
BuildsByBaz
Sr Member

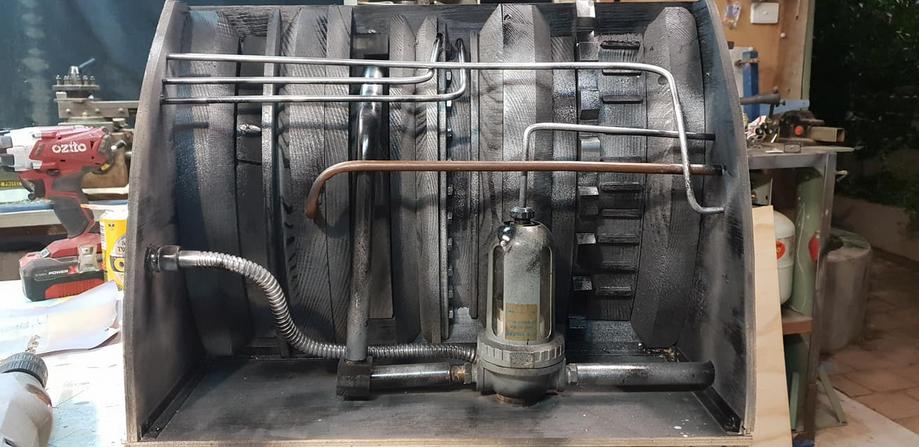

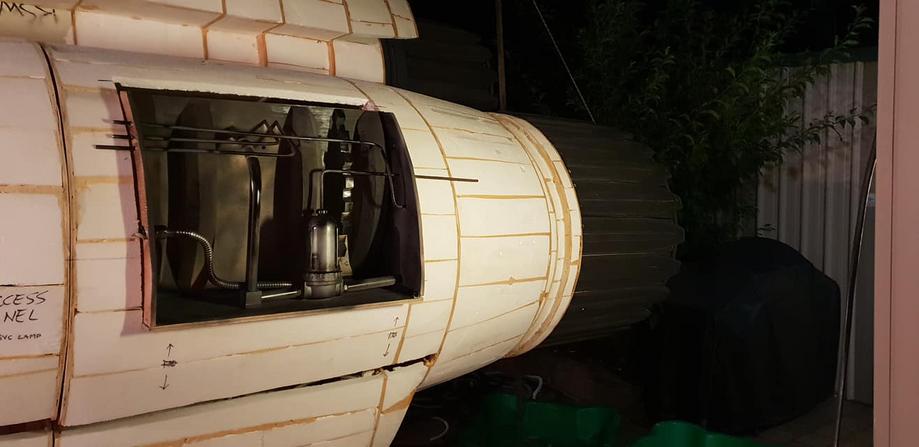

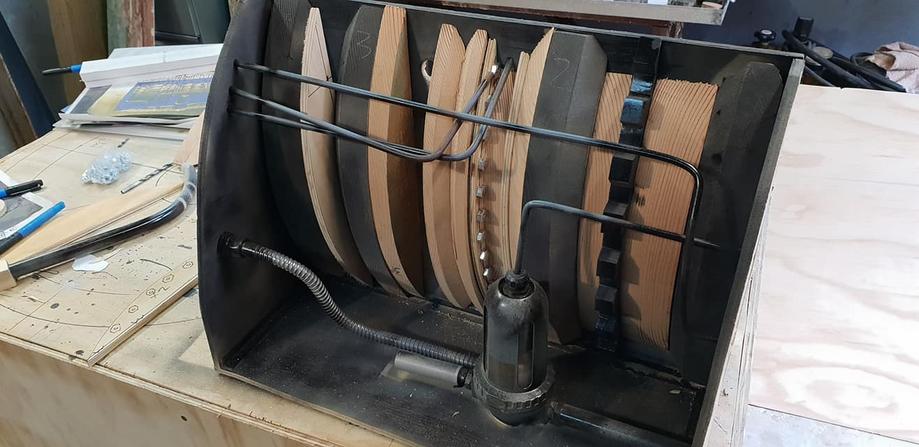

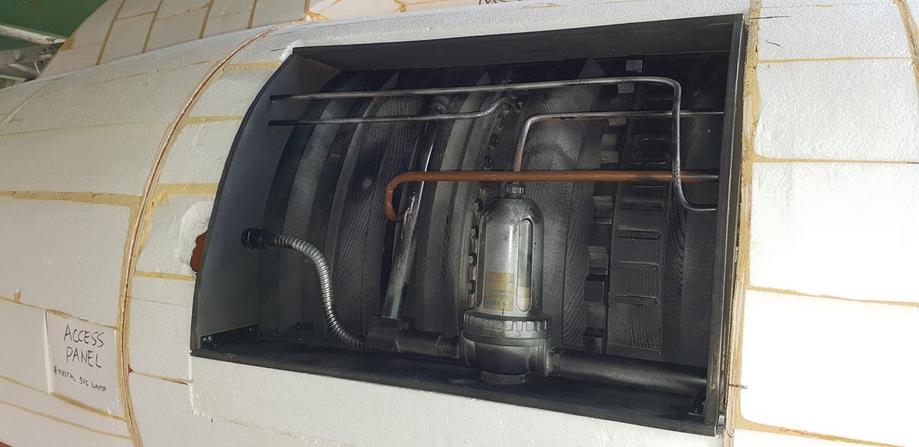

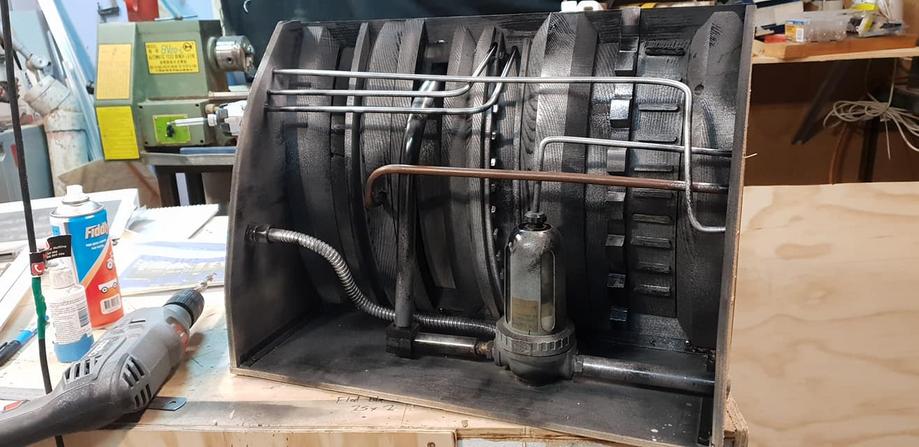

One completed inspection panel on the port side of the Viper's engine nacelles, made out of scrap ply and some timbers from my demolished pergola. The thing that strikes me humorous is the air filter/water trap that is not only installed upside down, but probably wouldn't work in zero G anyway. Still, it looks cool. I think I've got it pretty close, considering the limited materials and detailed photos I have at my disposal.
Sean Anwalt
Sr Member
- Member DIN
- S530
Sandbagger that panel looks legit! A lot of detail, man. Great job.
Lieutenant Jaku
Sr Member
looking really nice! the only thing i notice is that the smaller model had an oval with some bumps on the cylinder thing
BuildsByBaz
Sr Member
Thank you sir.
Yes, Different type. I had to use what was available. I was thinking of carving that oblong shape out of wood as nd glueing it on.
BuildsByBaz
Sr Member

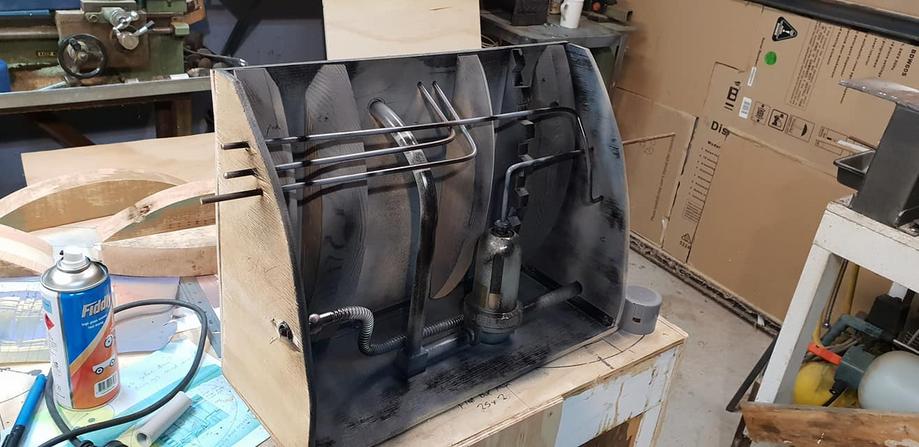

Today's work. Take three on the engine inspection panel. I don't like the angle it is sitting on at the specified height so I've smashed it off. If it was a complete barrel, the top would be outside the nacelle housing. Keeping the details, but changing the sides and base to adjust the angle once installed.
That's looking better. I put a lean-back on it, so now the representation of the whole, by seeing only a part, is more effective and convincing.

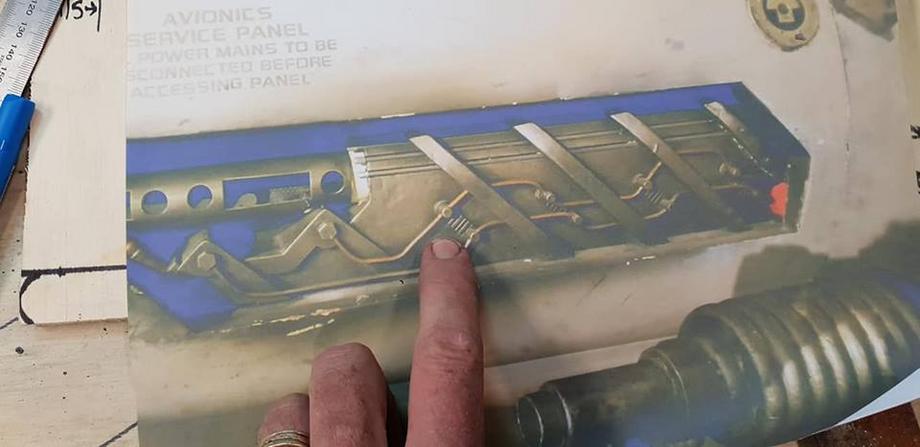

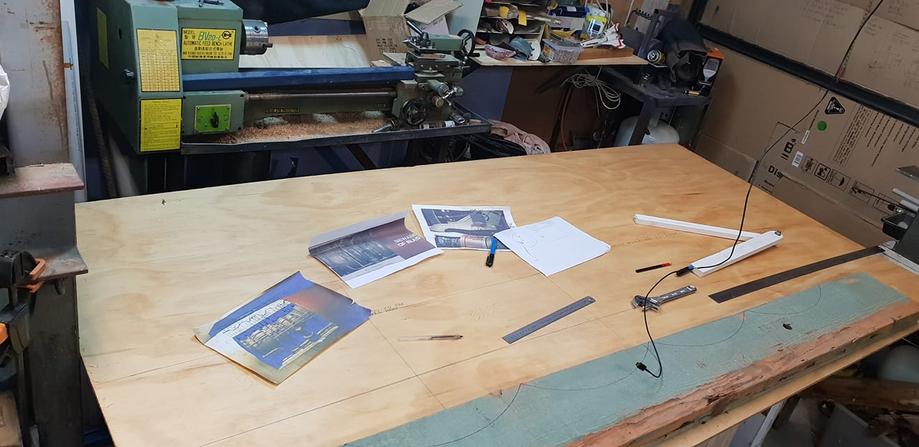

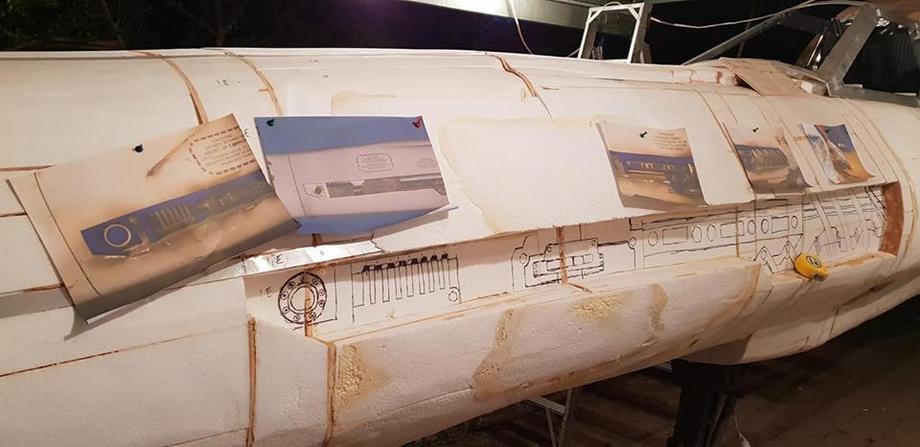

Avionics access panel. For lack of detailed dimensions, I'm doing this by eye from photo references. Plotting it all out first, then I'll fabricate in wood and plastic.
That's looking better. I put a lean-back on it, so now the representation of the whole, by seeing only a part, is more effective and convincing.
Avionics access panel. For lack of detailed dimensions, I'm doing this by eye from photo references. Plotting it all out first, then I'll fabricate in wood and plastic.
BuildsByBaz
Sr Member

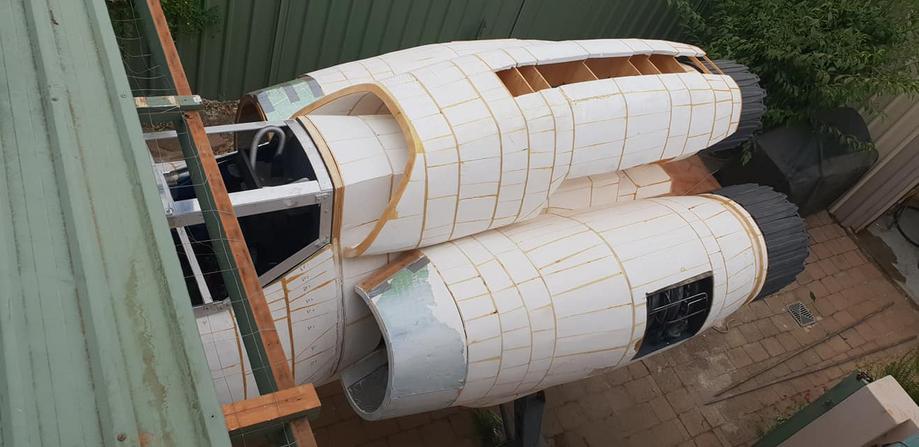

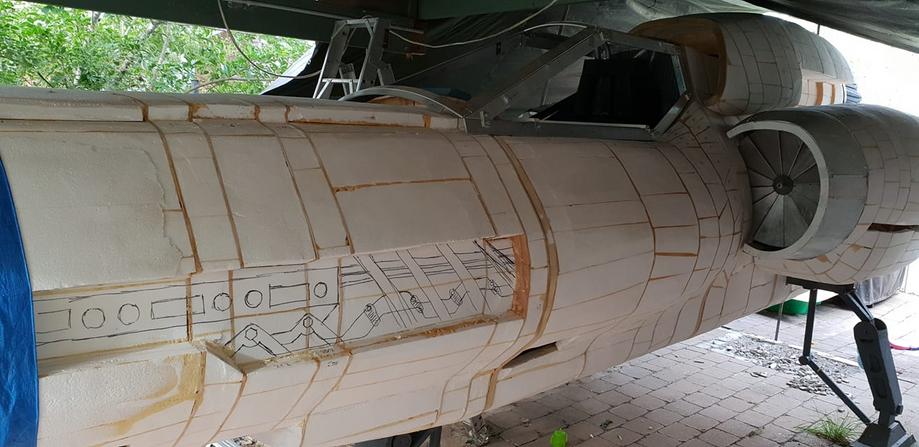

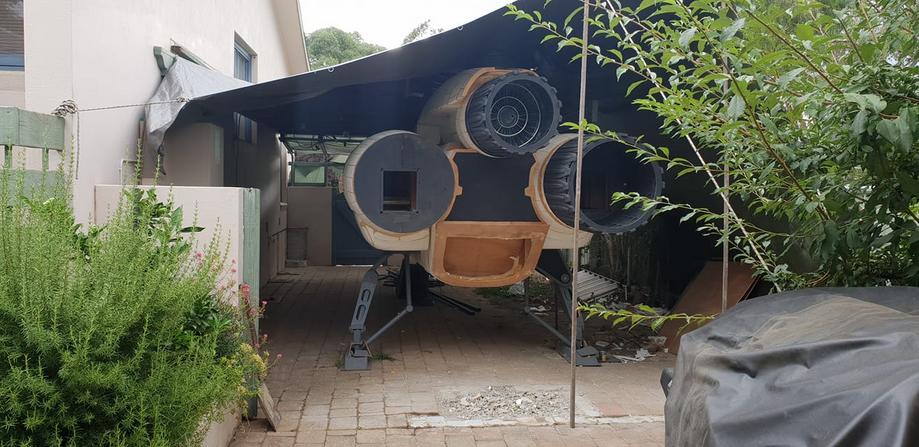

I came home to find the tarp is getting old and the d-rings are starting to perish and let go. With an impending thunderstorm approaching, it was a good opportunity to re-set the tarp and change the orientation of it to better cover the Viper. I took a shot from the roof while I was up there.
I'm trying to find the origins of the central box and the fan in the picture below. What model was the fan? It is considerably larger and different in appearance than your standard PC cooling fan. Was the box a cast aluminium transformer box, telephone connection box or wifi? Image credit Tony Celliers.
I have a 3D STL file of it, but if I could find the real thing it would save a lot of hassle.
In the mean time, I've started work on other greeblies around the ship, using up all the scrap wood in my shed.
I'm trying to find the origins of the central box and the fan in the picture below. What model was the fan? It is considerably larger and different in appearance than your standard PC cooling fan. Was the box a cast aluminium transformer box, telephone connection box or wifi? Image credit Tony Celliers.
I have a 3D STL file of it, but if I could find the real thing it would save a lot of hassle.
In the mean time, I've started work on other greeblies around the ship, using up all the scrap wood in my shed.
BuildsByBaz
Sr Member
I found all the info I needed on the bits on the aft panels. Looks like Galactiguise has been updated since last I looked there. Looks like a lot of people who have been digging for answers for me also found the same links. Thanks everyone!
Aft Engine Panels
In the meantime, it's been interesting trying to find all the useful bits of scrap wood and coming up with a way to use it all to make the avionics details.

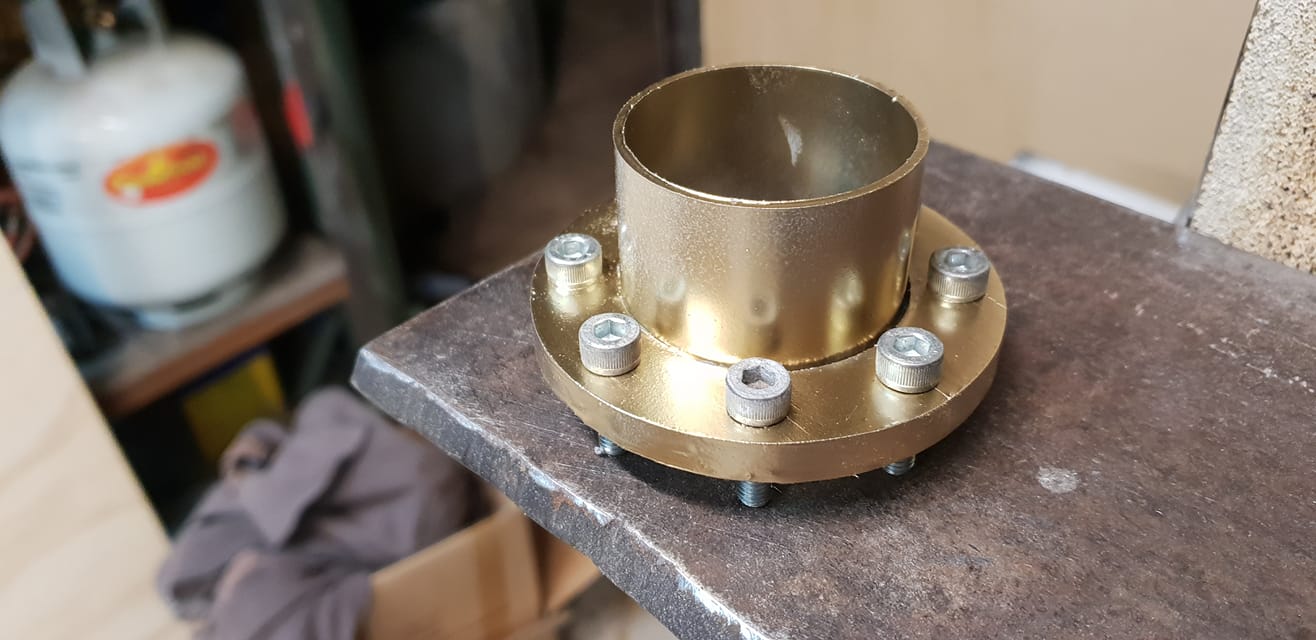

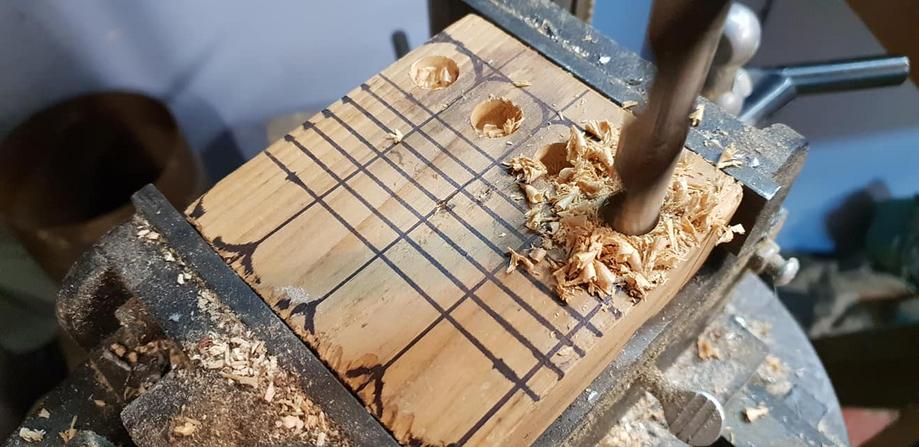

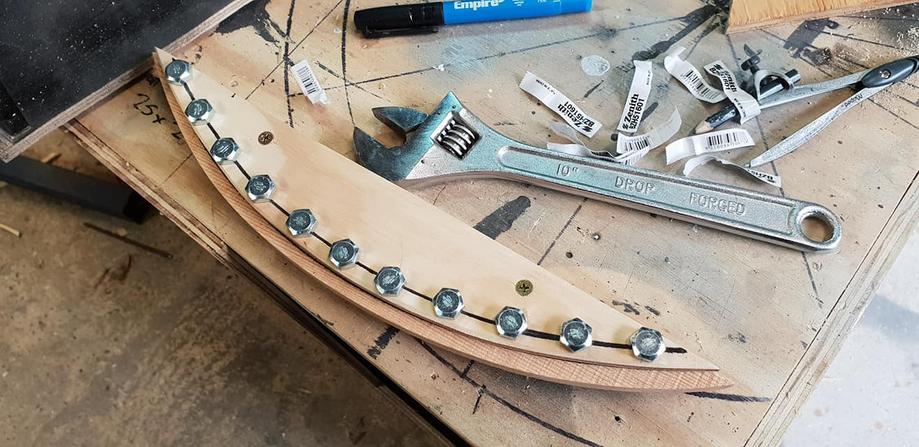

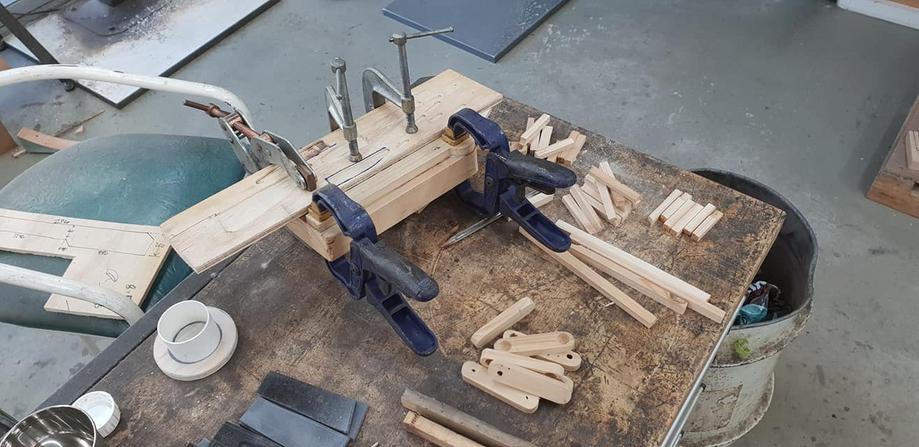

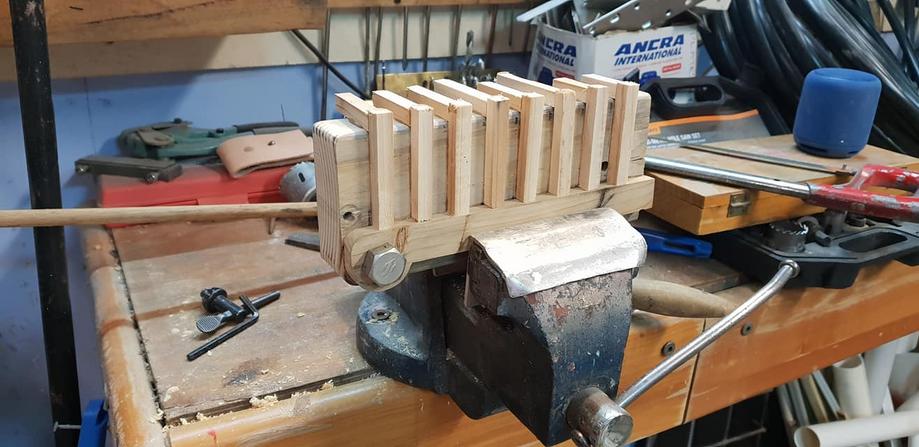

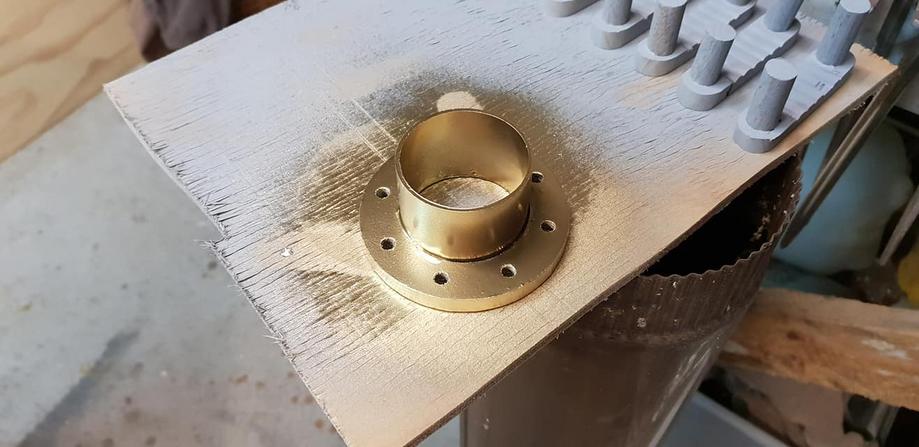

I've made a good start, using PVC pipe, some bolts and blocks of wood.
Thanks everyone!Aft Engine Panels
In the meantime, it's been interesting trying to find all the useful bits of scrap wood and coming up with a way to use it all to make the avionics details.
I've made a good start, using PVC pipe, some bolts and blocks of wood.
BuildsByBaz
Sr Member
Today's update:

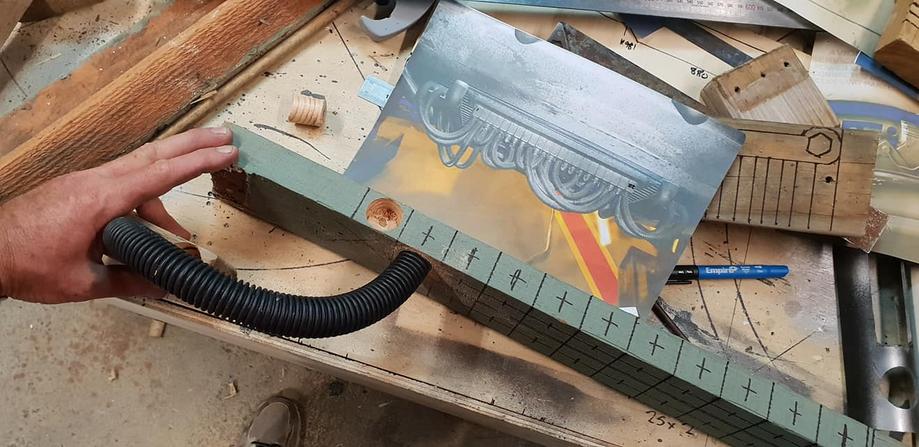

All of the details that make up the aft engine access panels are off-the-shelf products, many of which are still available today in your average hardware store. The rest, is easily reproduced using wood and some imagination. Below are some photographs from internet image searches, of the original prop uses for the series.

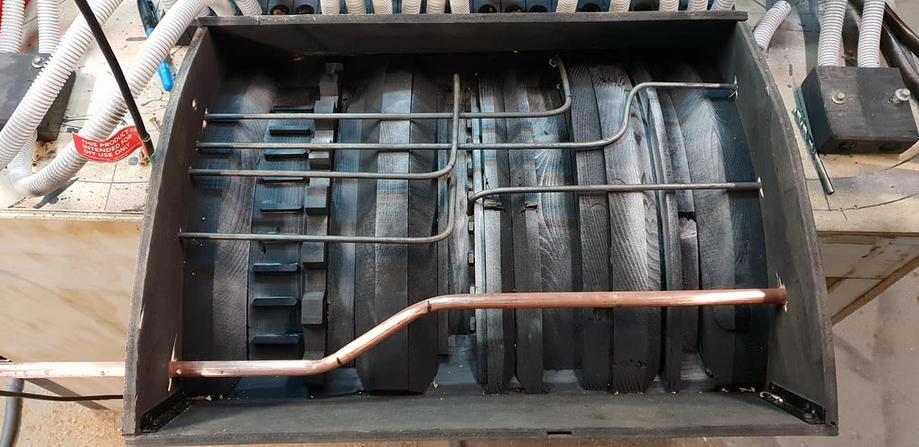

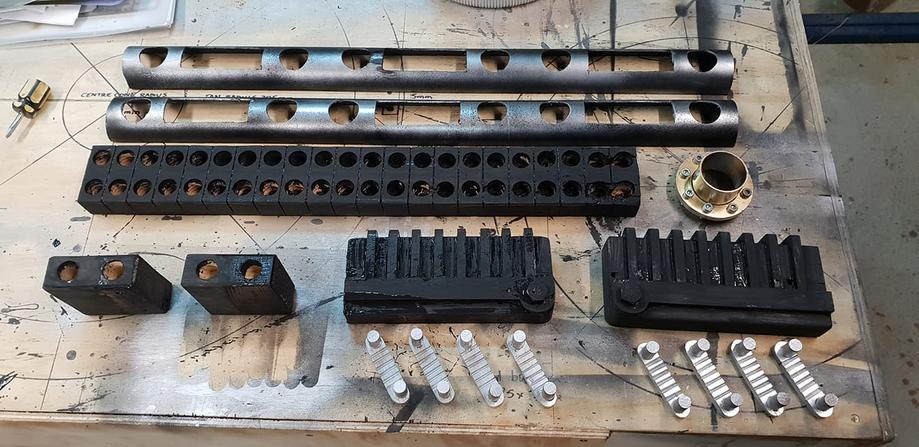

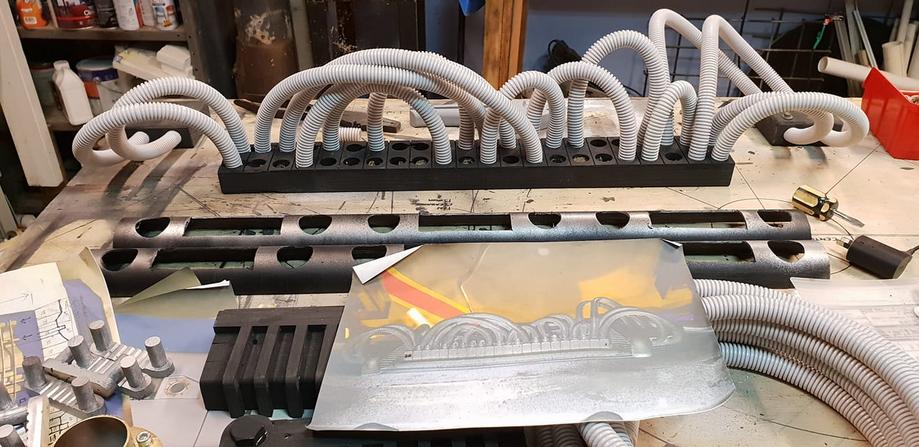

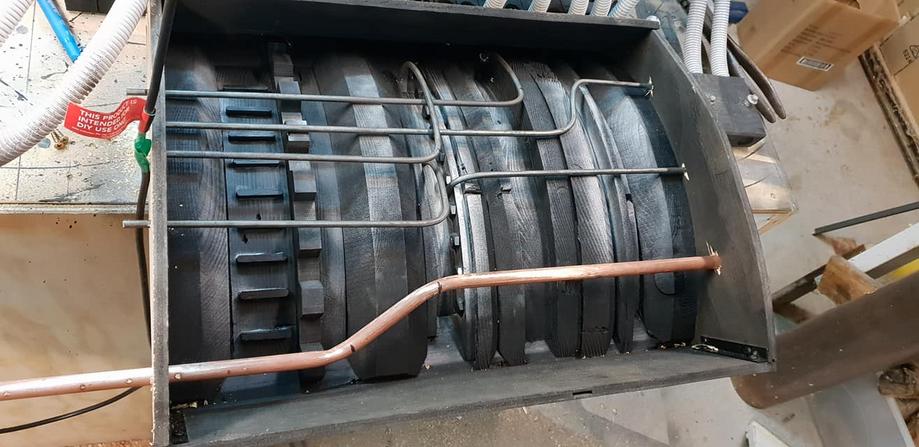

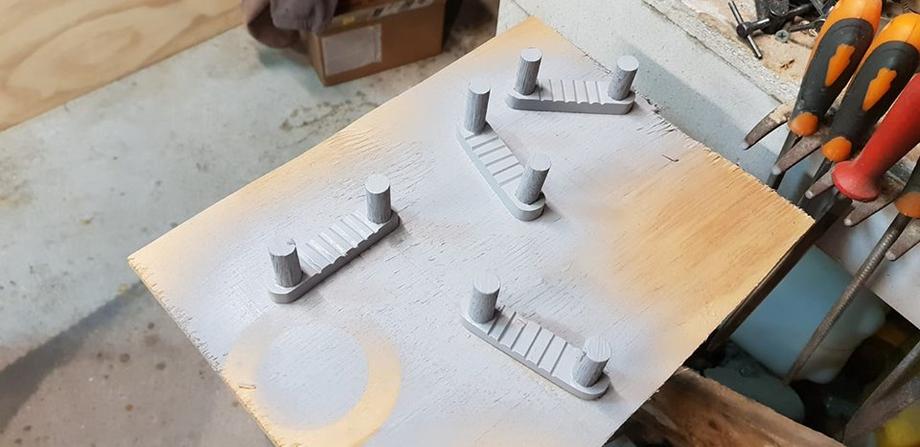

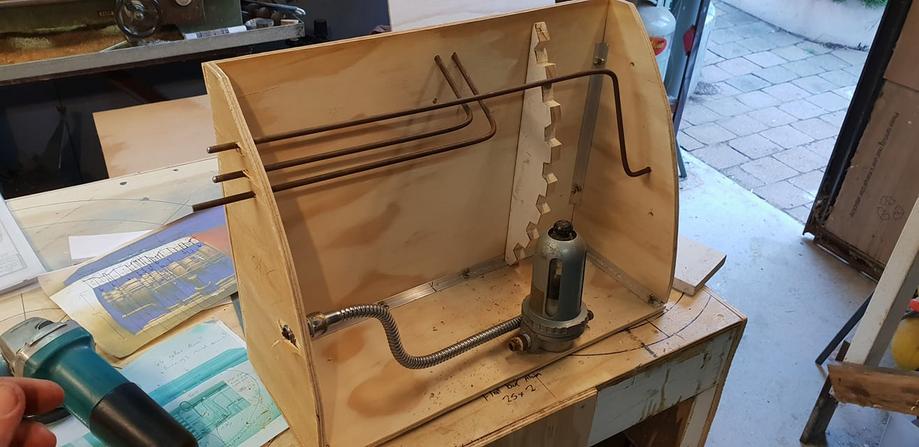

Starboard engine access panel fuel lines complete. I'll tidy up the ends and re-paint. One of the props had an extra pipe so I put it in.
Continuing with the main fuselage avionics panel details.
All of the details that make up the aft engine access panels are off-the-shelf products, many of which are still available today in your average hardware store. The rest, is easily reproduced using wood and some imagination. Below are some photographs from internet image searches, of the original prop uses for the series.
Starboard engine access panel fuel lines complete. I'll tidy up the ends and re-paint. One of the props had an extra pipe so I put it in.

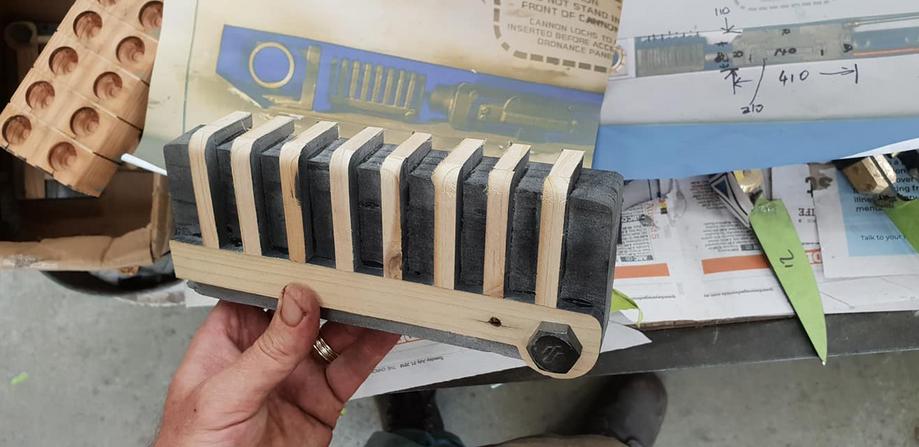

Continuing with the main fuselage avionics panel details.
