First {Halo} build - Spartan (TV series)
- Thread starter SgtSaint
- Start date
- Status
SgtSaint
Well-Known Member
- Member DIN
- S027

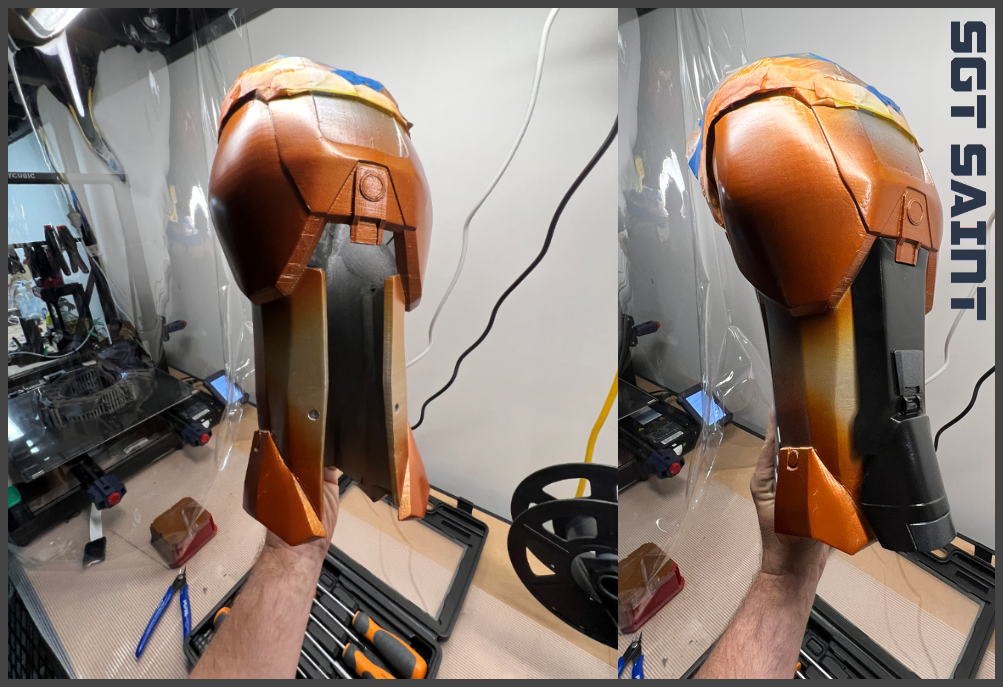

Next... The thighs. I have short legs with thick thighs. First thigh came off the printer.

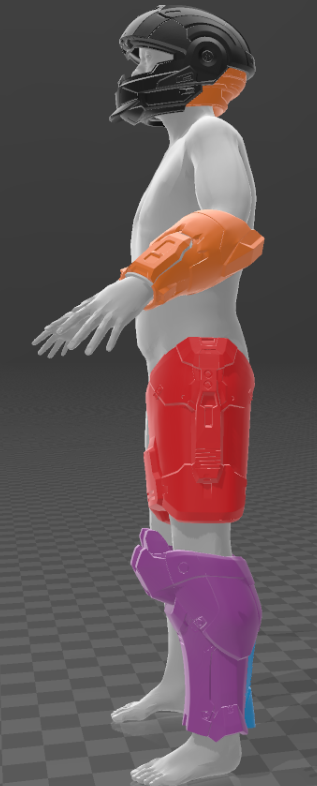

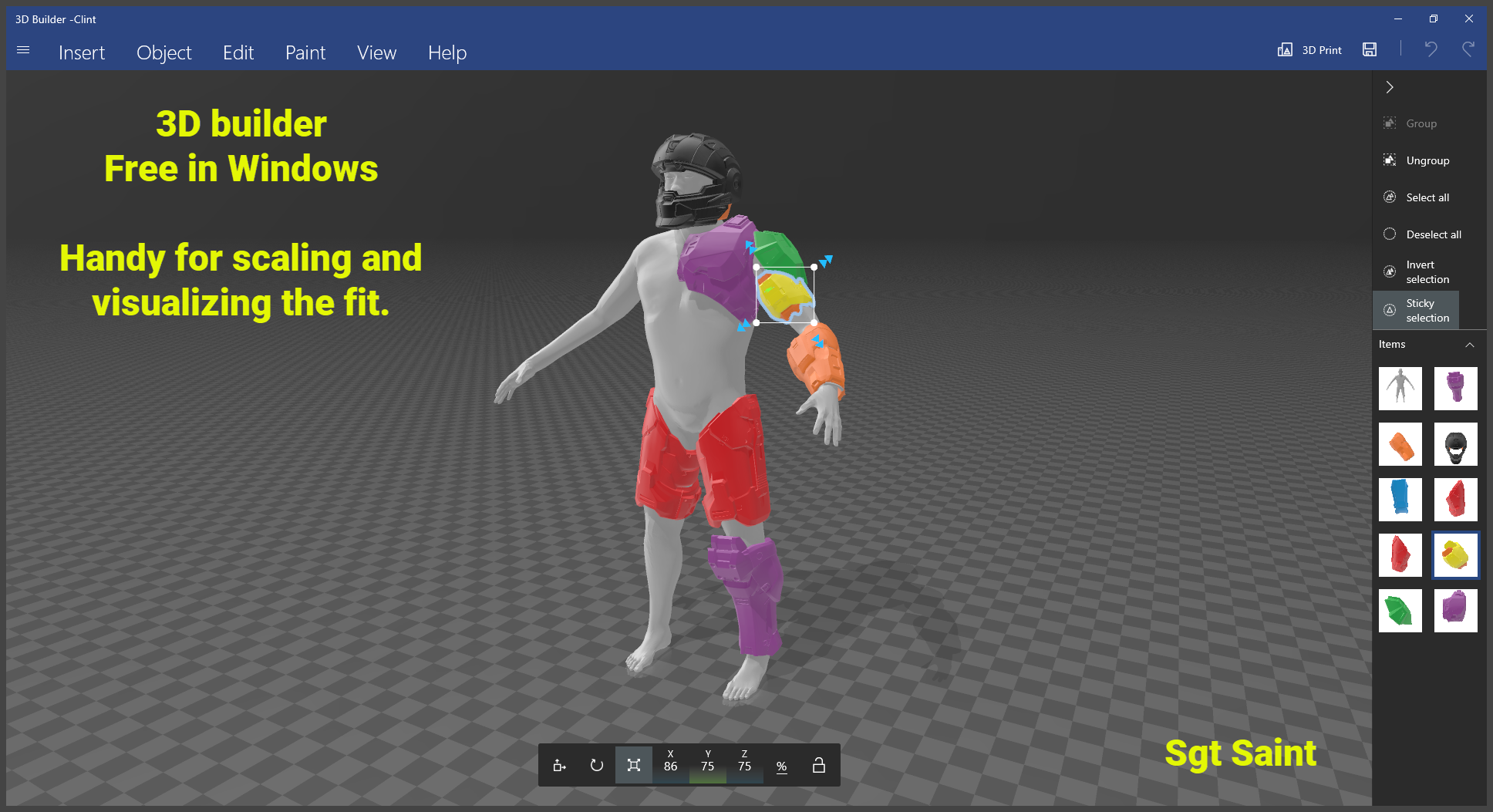

At my regular 88% and measured against my virtual avatar it seemed good. Well... the avatar has more normalish legs.
I can get the thigh over my knee, but not near high enough to wear. At one point I managed to get it and the calf on, but they were locked together and it was like walking with a cast from ankle to hip. Hahahaha
So... For the other thigh increased the diameter (XY) by 5% and decreased the length (Z) by 5%. Make it a little shorter and a bit thicker. Will see how that fits.

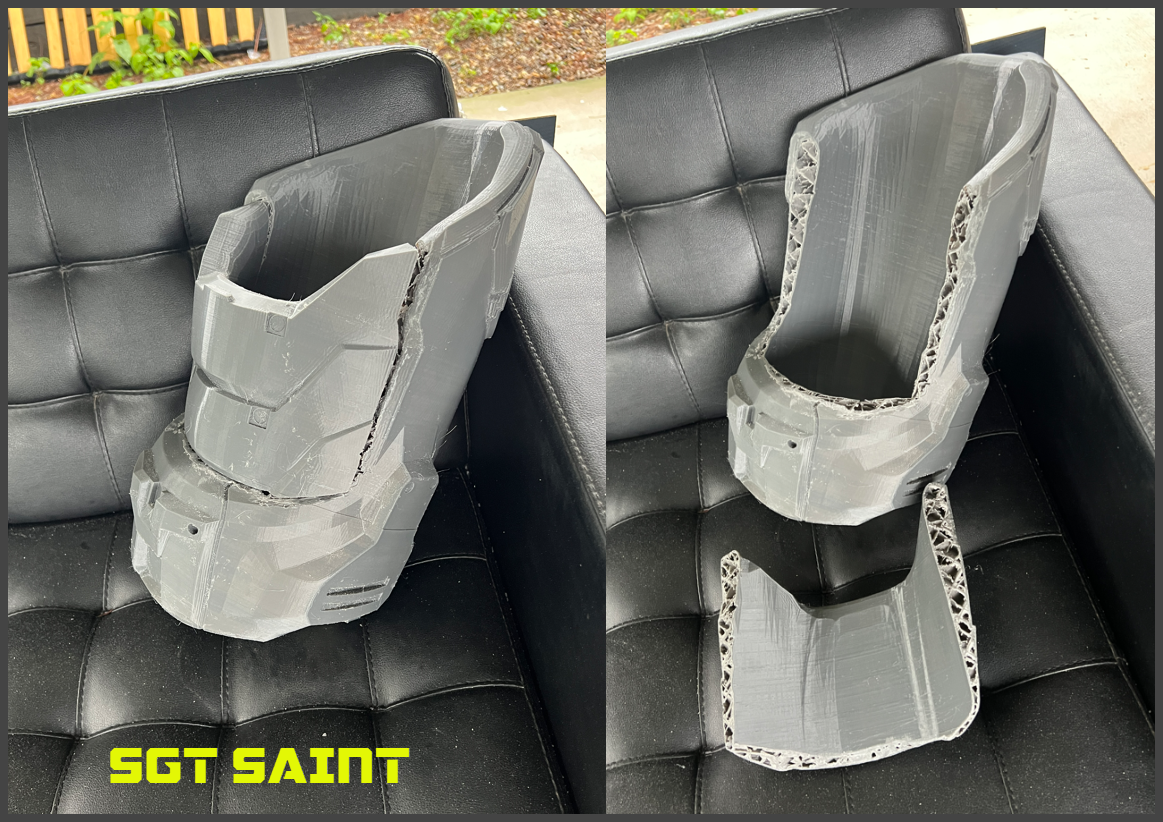

In the mean time, I don't want to throw away 70hrs and 2.5 spools so cutting the interior area of the thigh from the main body. Will clean up and edge it and attach with elastic. That's the plan anyway. And we all know a good plan only lasts until contact with the enemy. Worst case if it doesn't fit any better, it won't be any worse and I'll do the same modification.
Update:
Got some PM's asking 'How did you cut it?"
A: Dremel tool with a spiral saw bit. They look a lot like a drill bit, but cut sideways. With a part like this were there is lots of penetration depth its a lot better than a cutting disk.
www.dremel.com
At my regular 88% and measured against my virtual avatar it seemed good. Well... the avatar has more normalish legs.
I can get the thigh over my knee, but not near high enough to wear. At one point I managed to get it and the calf on, but they were locked together and it was like walking with a cast from ankle to hip. Hahahaha
So... For the other thigh increased the diameter (XY) by 5% and decreased the length (Z) by 5%. Make it a little shorter and a bit thicker. Will see how that fits.
In the mean time, I don't want to throw away 70hrs and 2.5 spools so cutting the interior area of the thigh from the main body. Will clean up and edge it and attach with elastic. That's the plan anyway. And we all know a good plan only lasts until contact with the enemy. Worst case if it doesn't fit any better, it won't be any worse and I'll do the same modification.
Update:
Got some PM's asking 'How did you cut it?"
A: Dremel tool with a spiral saw bit. They look a lot like a drill bit, but cut sideways. With a part like this were there is lots of penetration depth its a lot better than a cutting disk.
Spiral Cutting Bits Multipurpose Cutting | Dremel
What can you do with it?|Best for cutting and drilling in soft materials such as soft woods (less than 12mm thick) and plastics. Great to go freehand to create
www.dremel.com
Last edited:
FalseShepherd
Well-Known Member
It's BEAUTIFUL!
SgtSaint
Well-Known Member
- Member DIN
- S027
Thanks {blush}
Rock Lobbster
Sr Member
- Member DIN
- S098
I am DEFINITELY digging that copper, having that really pop out compared to the other muted tones really adds a lot of character to the build.
SgtSaint
Well-Known Member
- Member DIN
- S027
64hrs per thigh - At 1.2mm walls, 15% infil, .2 layer
Well... I've been told... "You're a character, alright"... So I guess it's a good choice. Hahaa.. Serious, thanks for that. I'm glad people are liking it.
Just have to keep the machine cranking and not idle. Learned from my freight forwarder that my freight with additional machines will be 3 weeks later than planned. Meaning I will not have an army of reinforcement robots at the back end of this build, in time for the convention. So its all up to one FDM machine and one resin machine. Gonna be very very tight.
PlanetAlexander
Sr Member
- Member DIN
- S018
IT'S UNDER 50 NOW!?
[heavy breathing]
[heavy breathing]
SgtSaint
Well-Known Member
- Member DIN
- S027

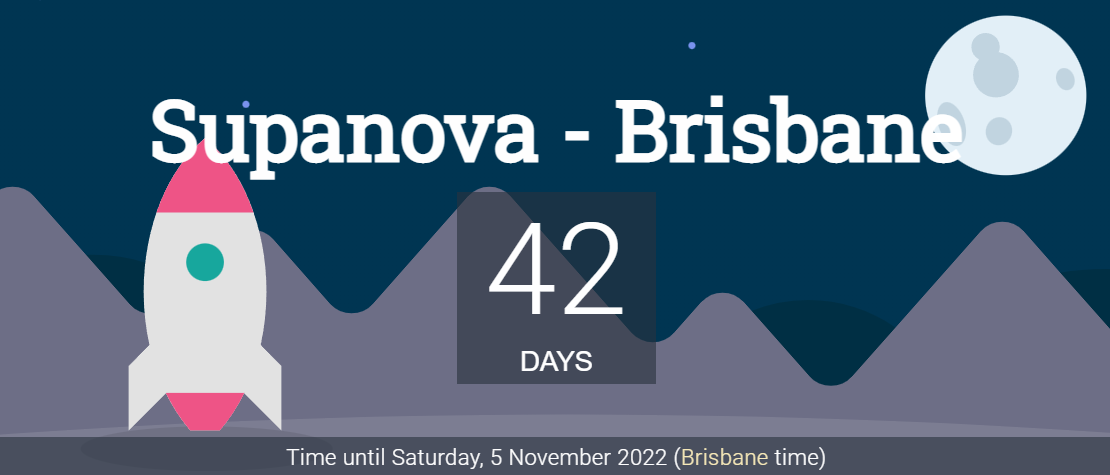

Panicked breathing is more like it. 42 days until the con means 40 *build* days, MAX
WhiskeyHammer
New Member
Great progress report to read through and follow. Great prints.
SgtSaint
Well-Known Member
- Member DIN
- S027
Thanks. Much appreciated.
FalseShepherd
Well-Known Member
Good lord those prints are so clean!
SgtSaint
Well-Known Member
- Member DIN
- S027

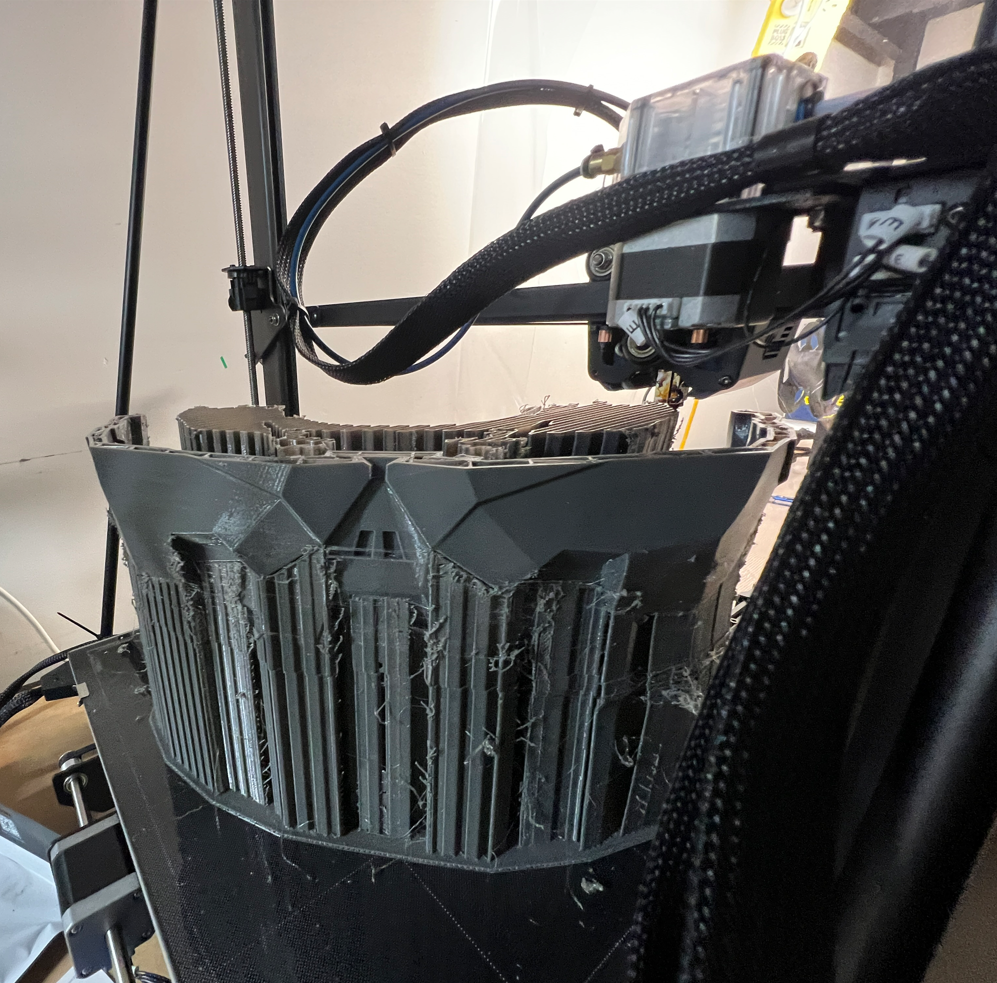

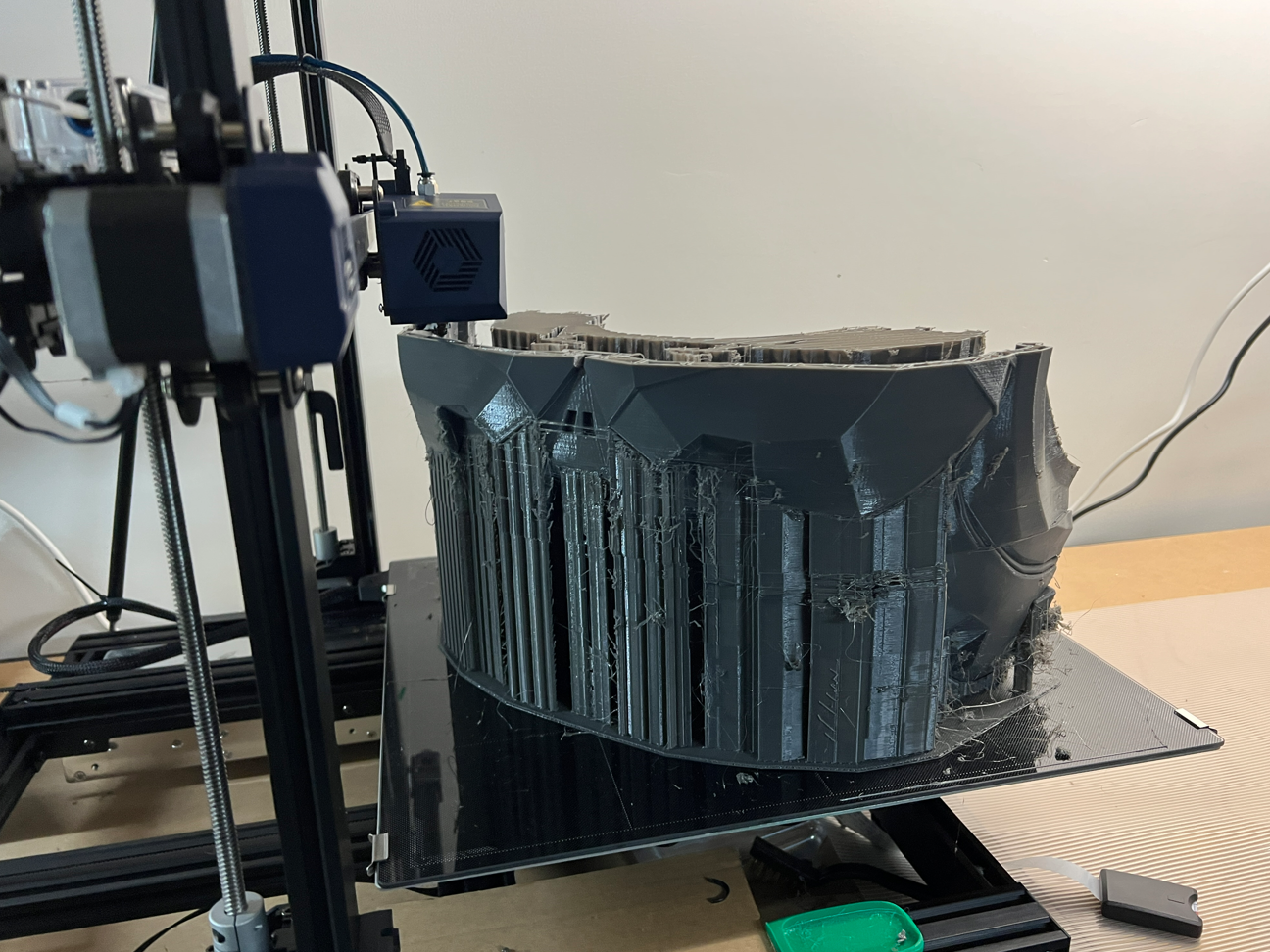

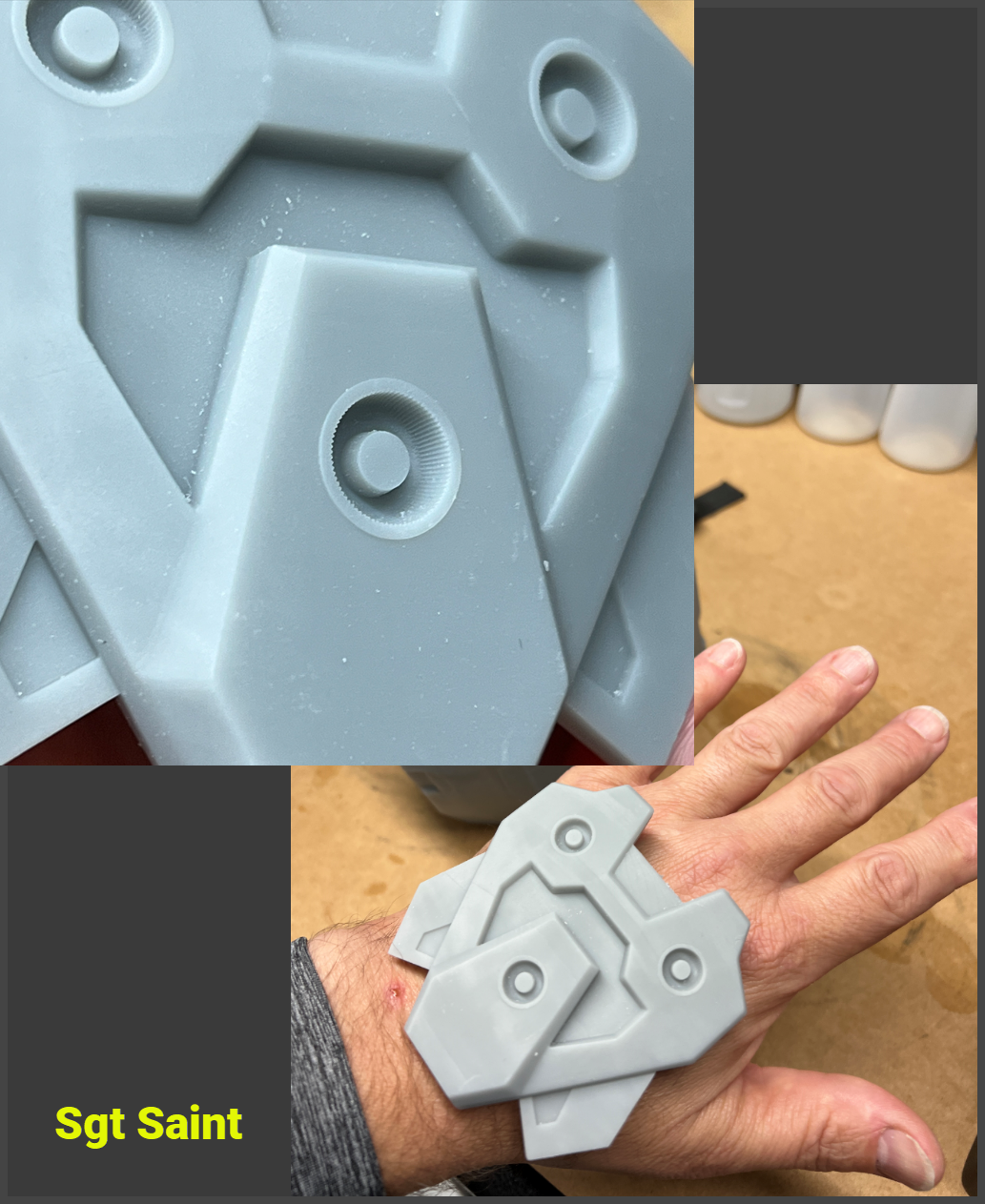

Yeah... Resin printer. First time doing armor bits in resin. But just learned my freighted cargo with other 10 FDM machines won't be arriving until end of month. That means they don't help me for Brisnova at all. So instead of a dozen FDM machines for this build, I have 1. And one resin printer.

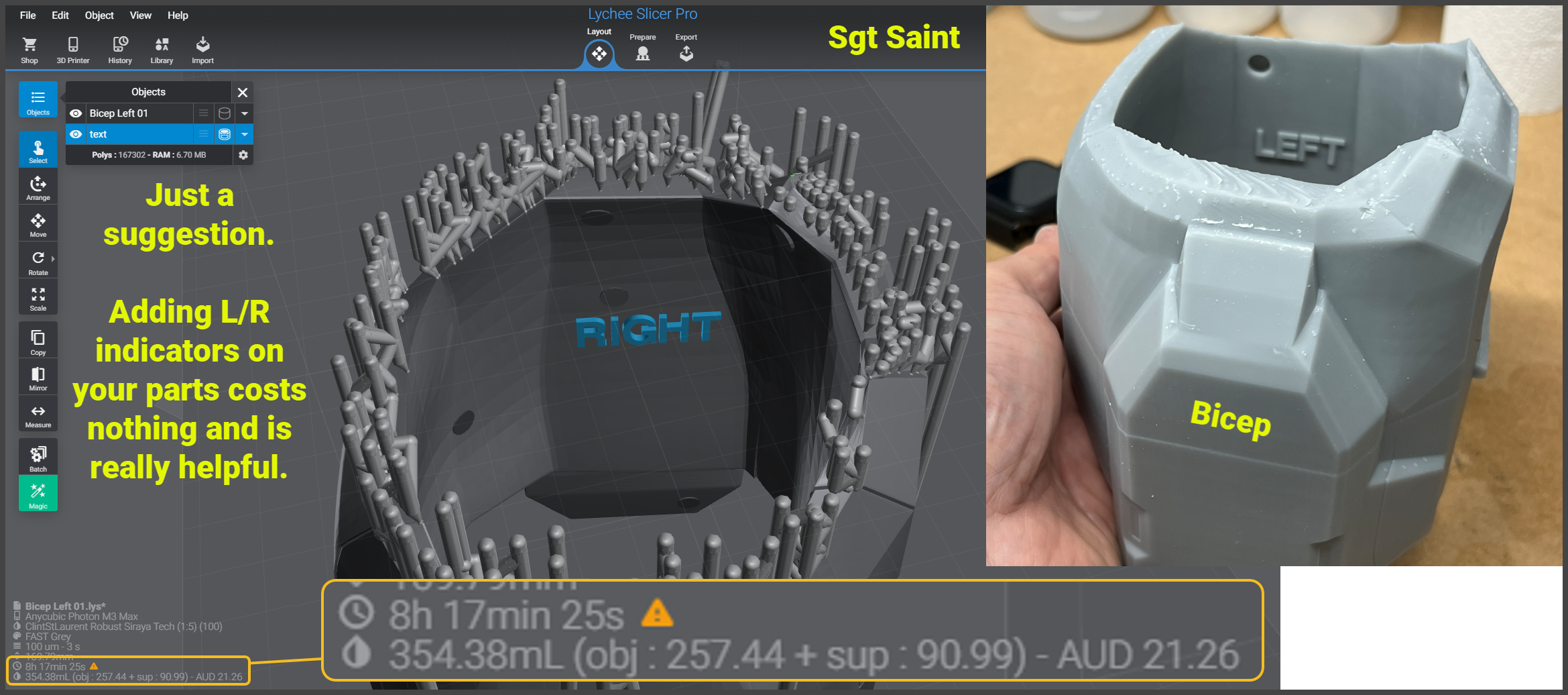

Resin is generally 5x heavier than PETG. But... Doing them hollow with 2.5mm walls. Seem pretty sturdy and not really so much heavier than an FDM print with 15% infil.
Once the convention is over I'll be able to turn on print services for my store again. And the new MASSIVE resin printer ships today so that's going to be amazing!
Bloxxer
Member
Dang, 10 more machines?? I wish I had that many! You'll be able to make it through with just one though! Sure it was painfully slow, but I managed to print everything for my build on an Ender 3 Pro haha
SgtSaint
Well-Known Member
- Member DIN
- S027
Oh yeah, I'll get it done. But the trick is getting it done by deadline of 04nov in time for the convention.

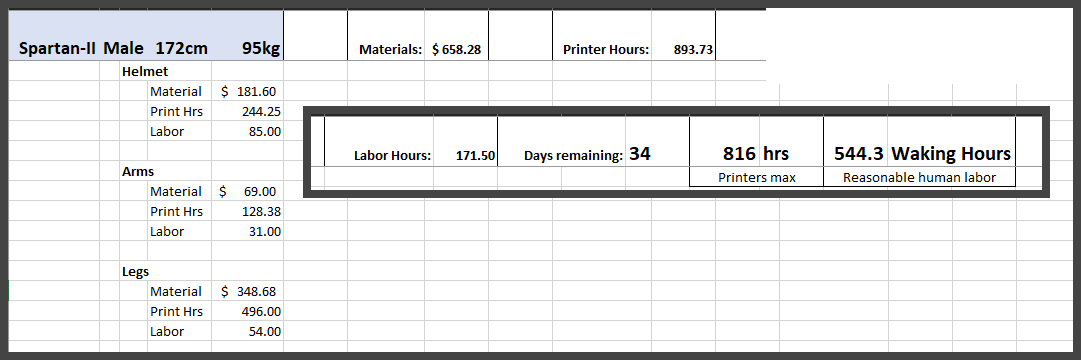

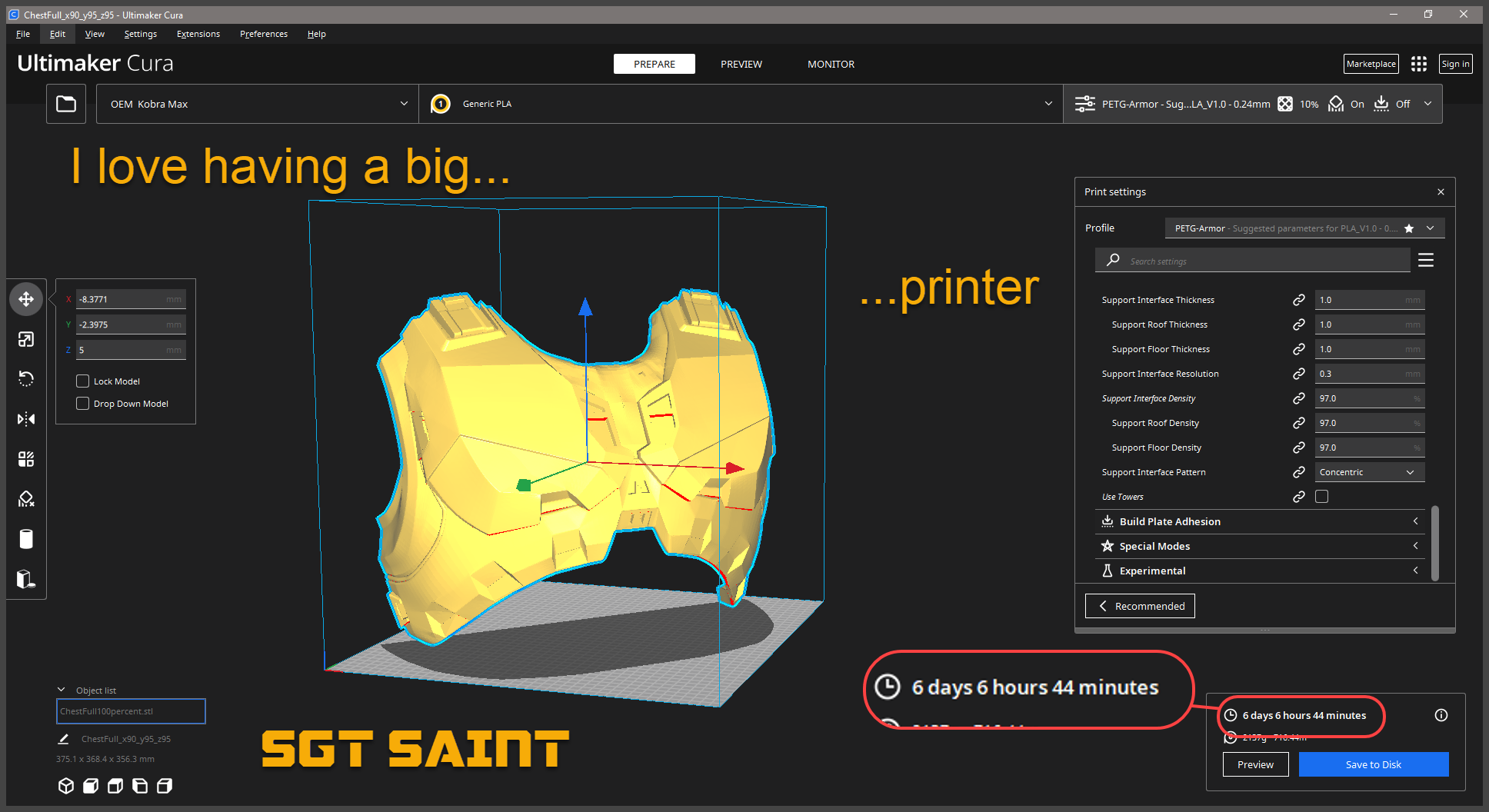

It doesn't take much math skills to see 800 hours remaining until the convention, and see that big parts are 100 hours each. So... That means 8 more parts can be made before the convention.
- Chest left
- Chest right
- Back left
- Back right
- Shoulders
- Reprint helmet
- Reprint helmet (its 200 hours)
- Reprint left forearm
