Halo Infinite VK78 Commando - July 23rd Game Trailer Demo Version

[TurboCharizard]

Back at it again with another Infinite prop based off what we've seen in the reveal trailer and now oddly enough, Monster Energy Drink promotions. This thread will serve three purposes.

1. Be a repository and reference for others who are also searching for images to use for their own Commando builds.
2. Act as a permanent link for free printable files for what I've designed.
3. Showcase the build process as any other build thread.

This first post is reserved as an index for the rest of the thread and will be updated as the build progresses.

Reference Images (343 Industries sources)
CAD References Images (Self made)
Build Pack Files
Materials Used
Finished Photos



[TurboCharizard]

The model for the VK78 Commando was built using a series of stills from the Infinite Playable Demo Trailer to produce the highest detail model possible. On an initial attempt I had done some janky geometry to estimate the angle at which the most "in frame" VK78 Commando was laying and then used that as a baseline for other things, it was time consuming, messy and was put aside. Luckily Monster Energy Drink showed off their black and green skin version earlier this week in full side profile. Combining these two reference sets I could then get exact measurements on key features and add in detail as necessary that was visible within the trailer that wasn't discernible within the black and green colour scheme.

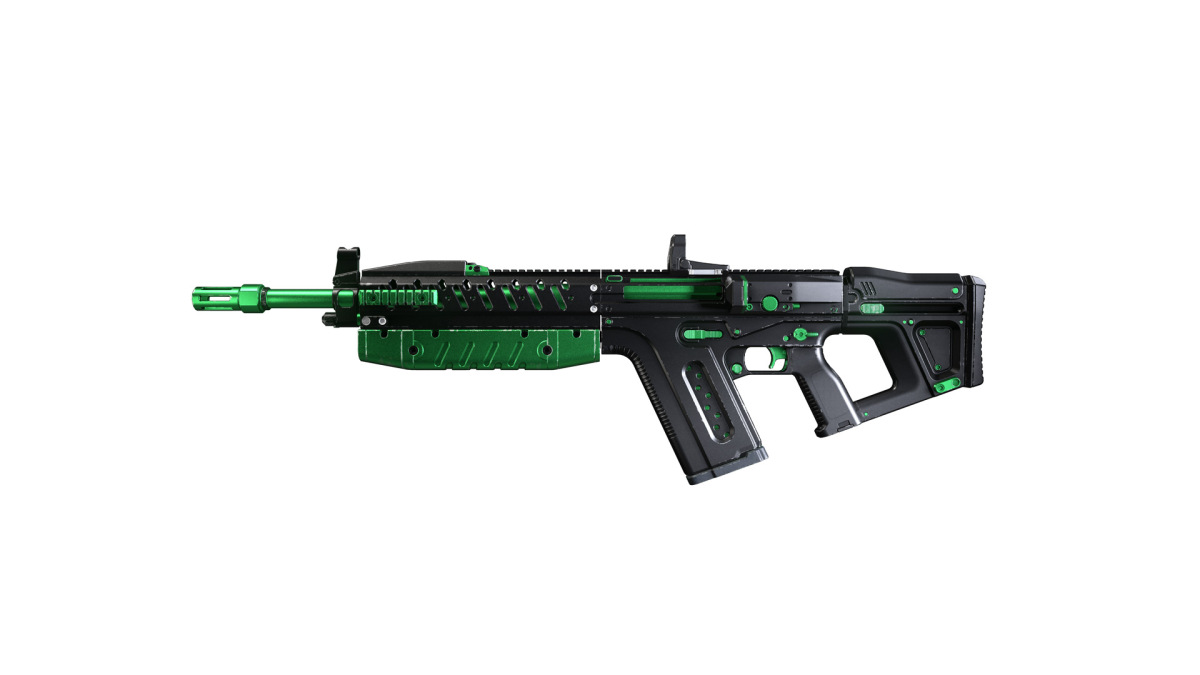

Monster Energy Drink Skin Reference

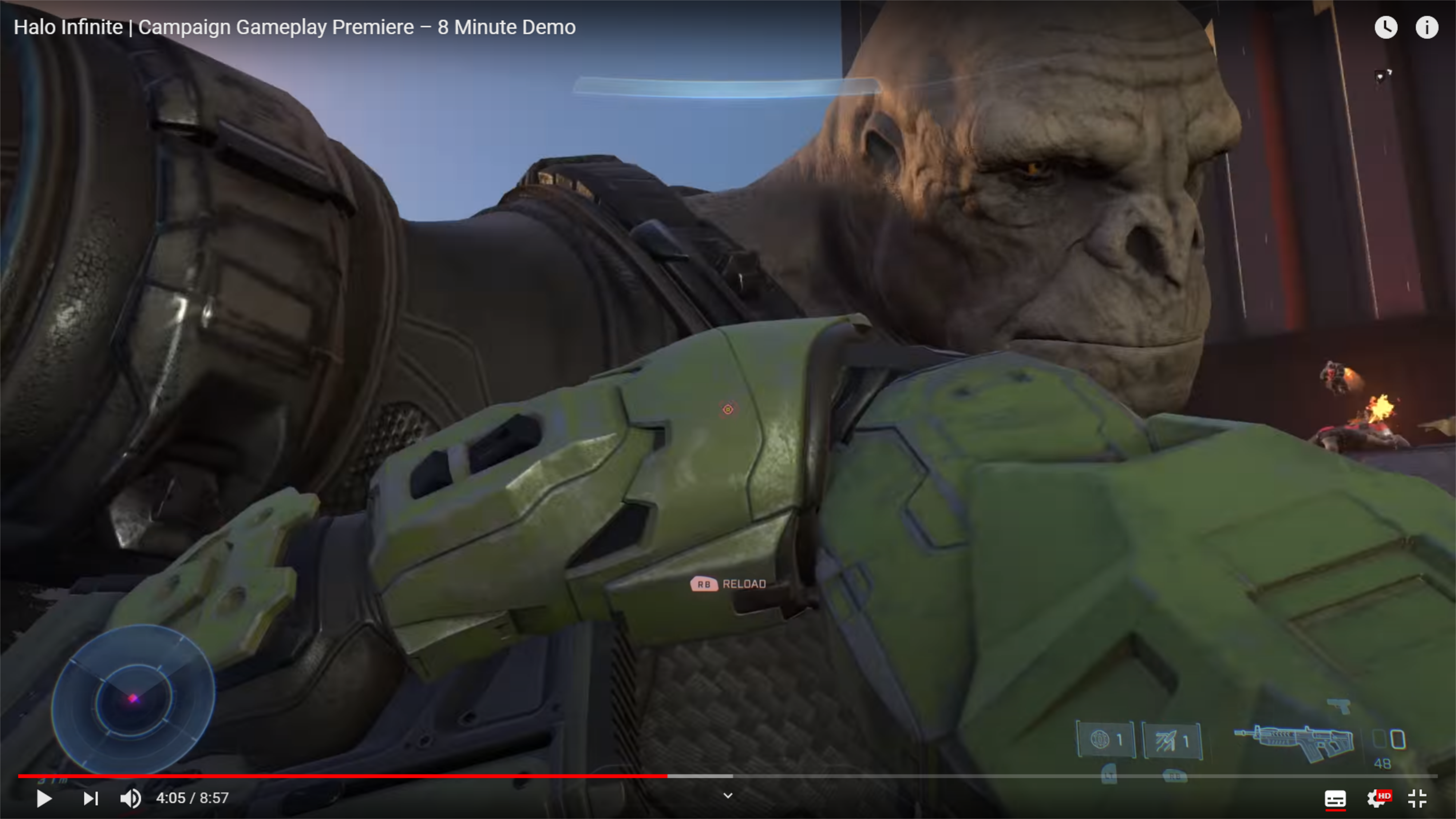

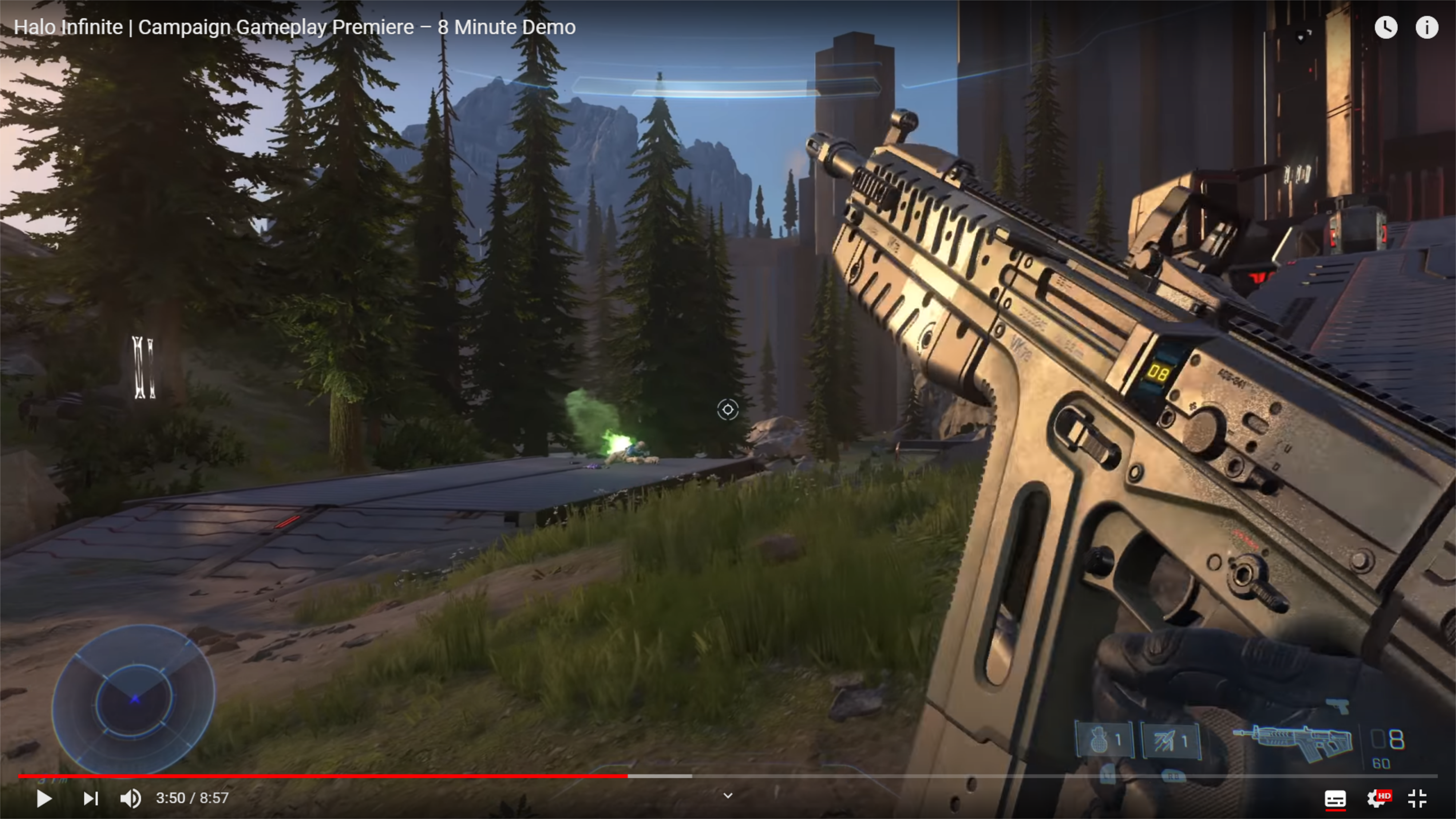

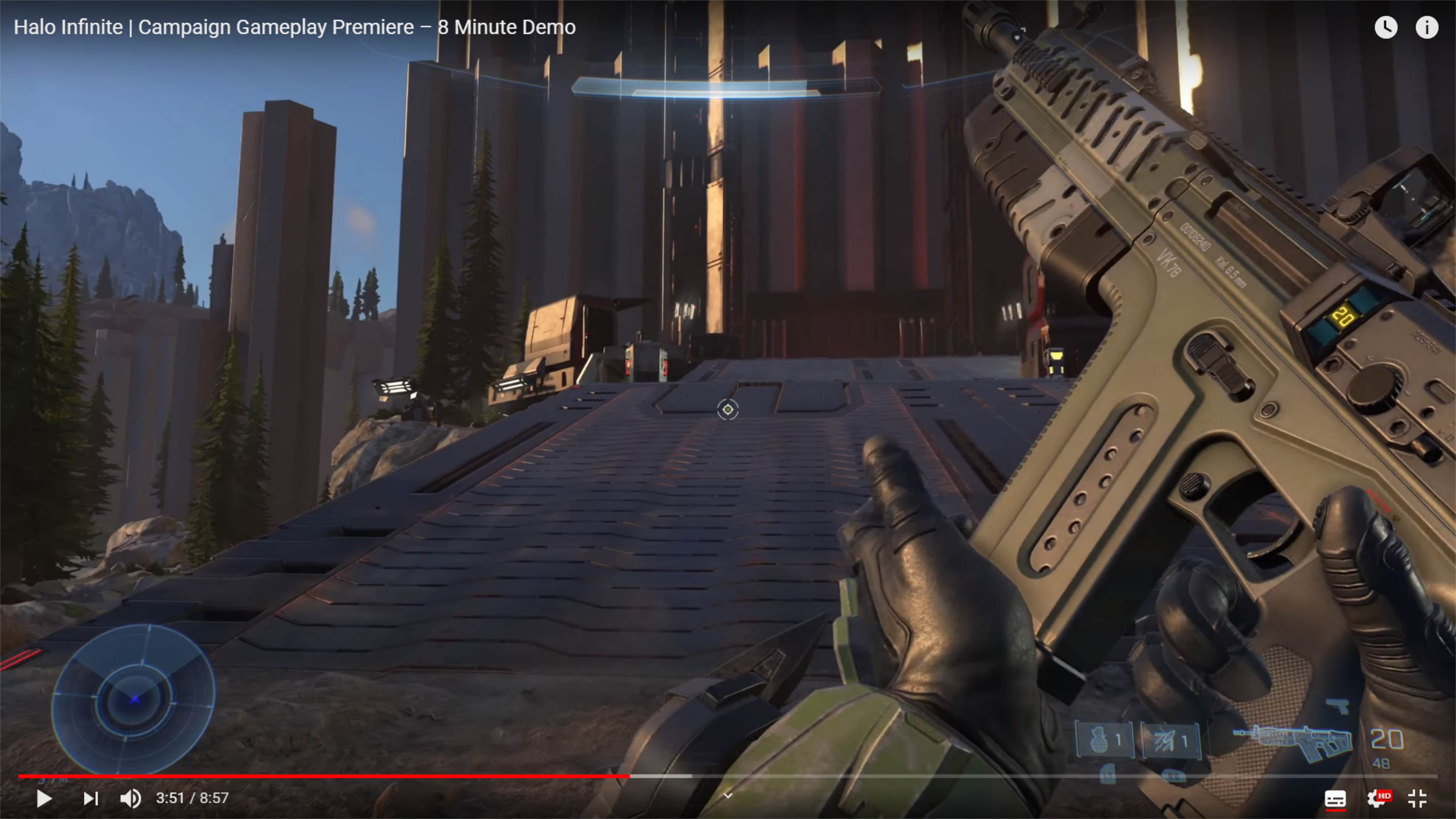

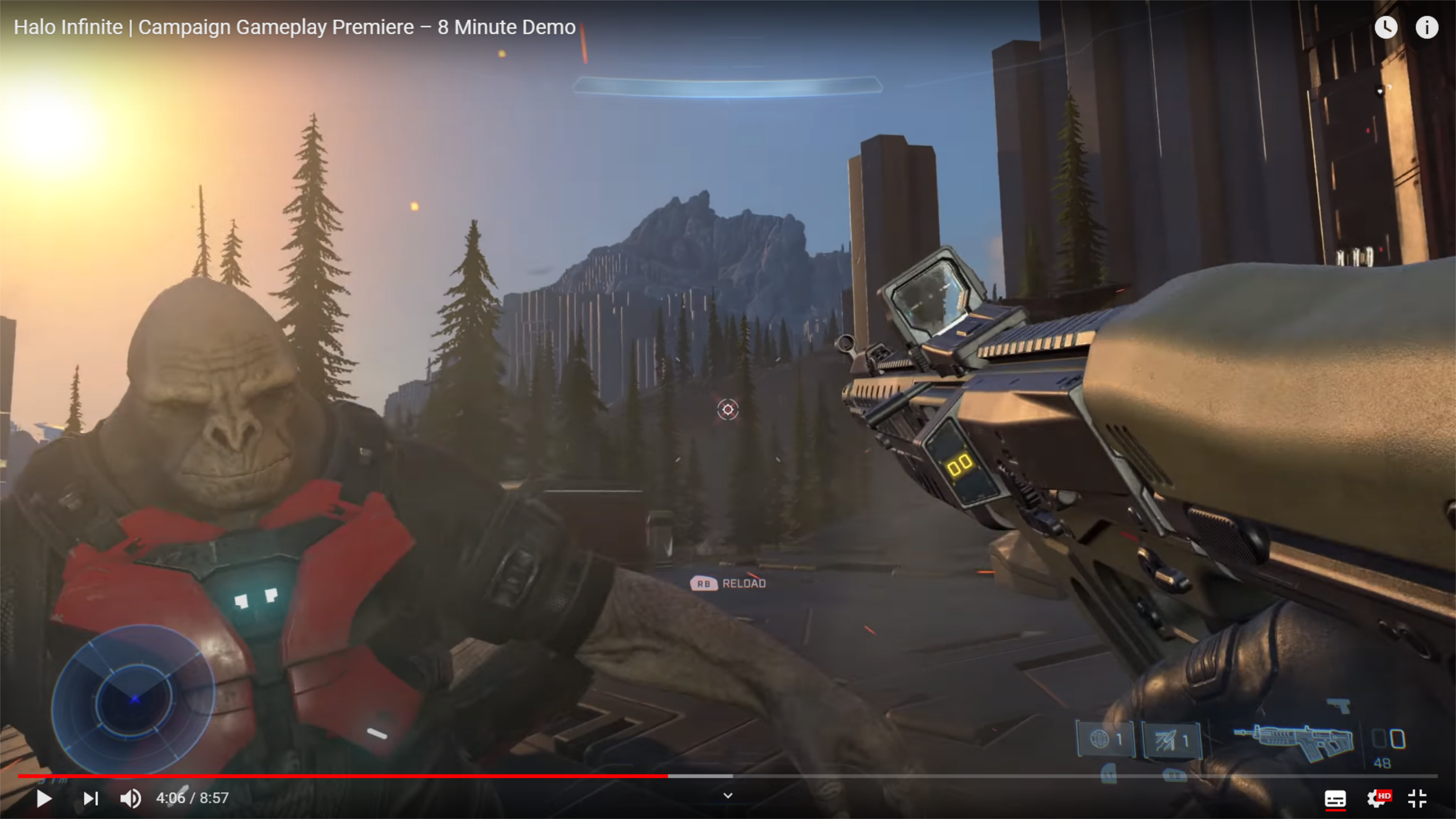

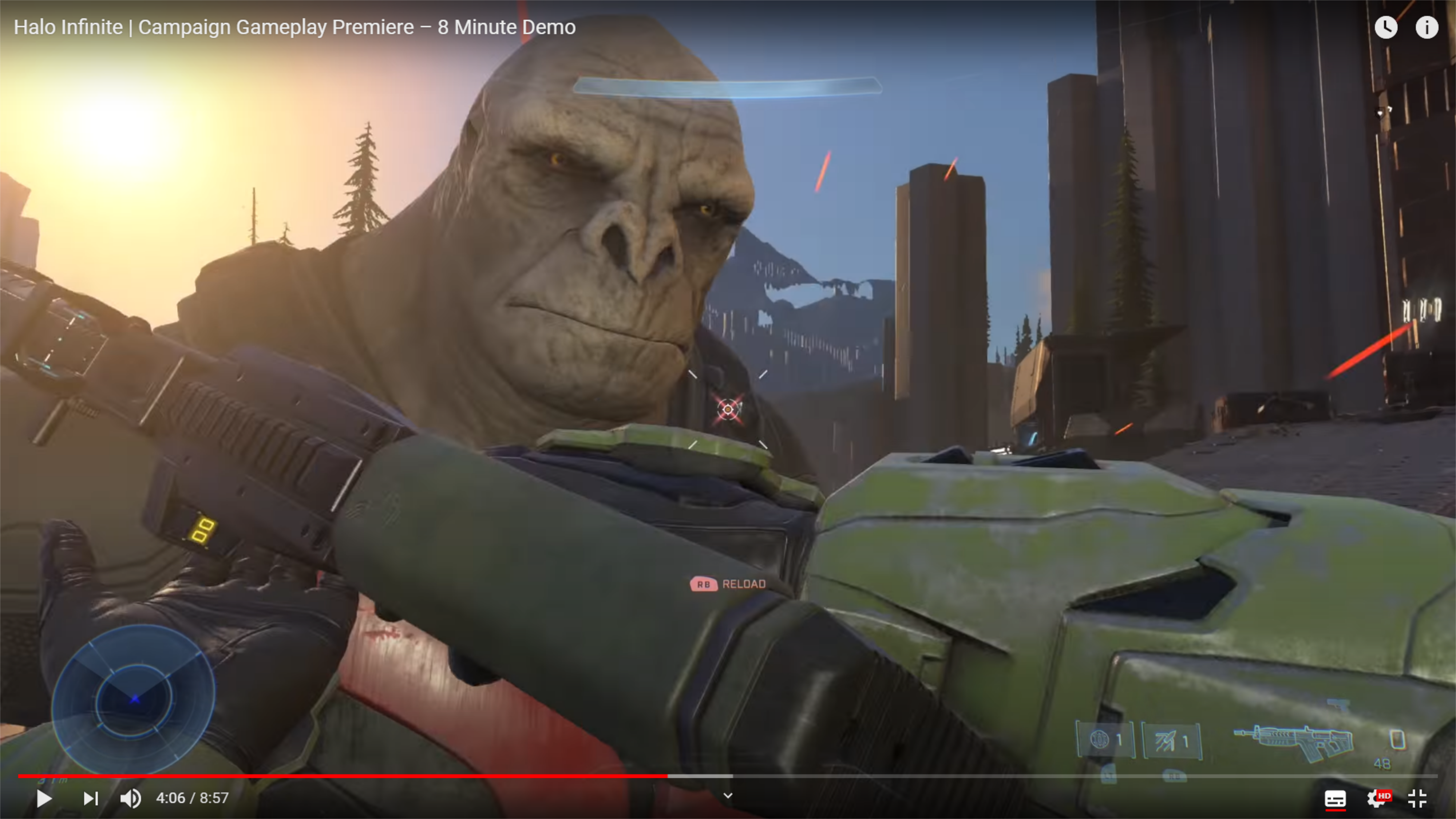

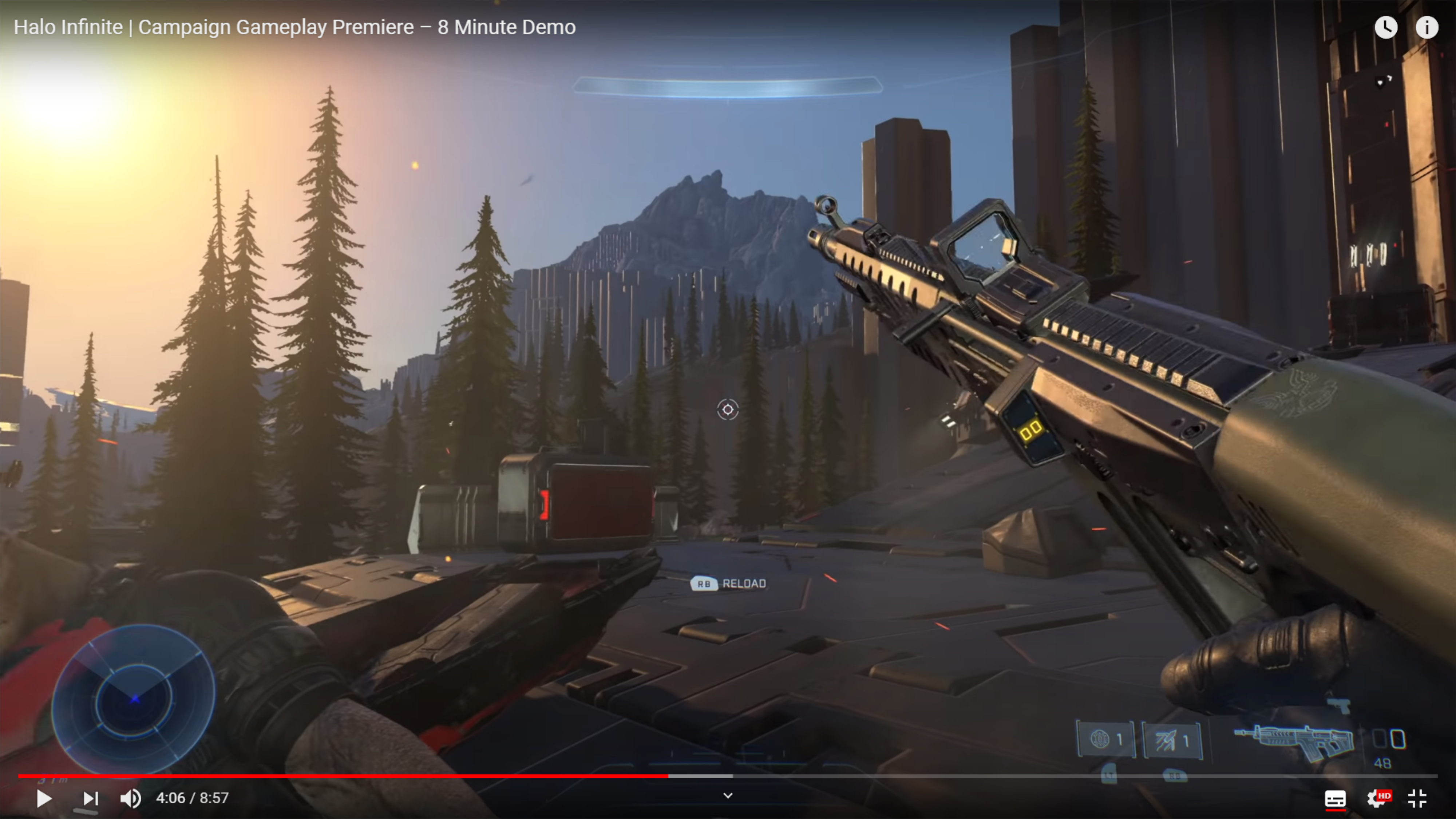

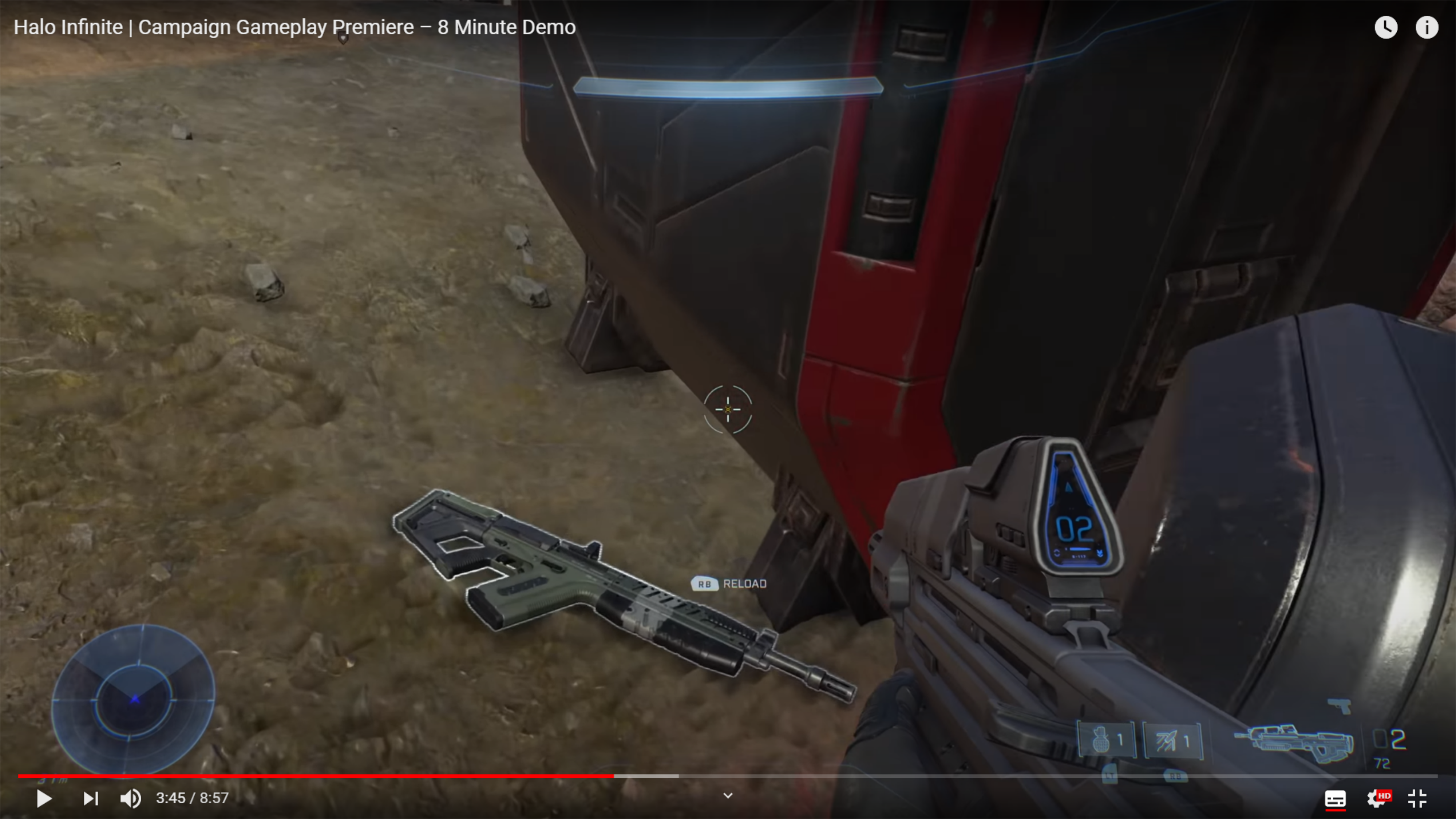

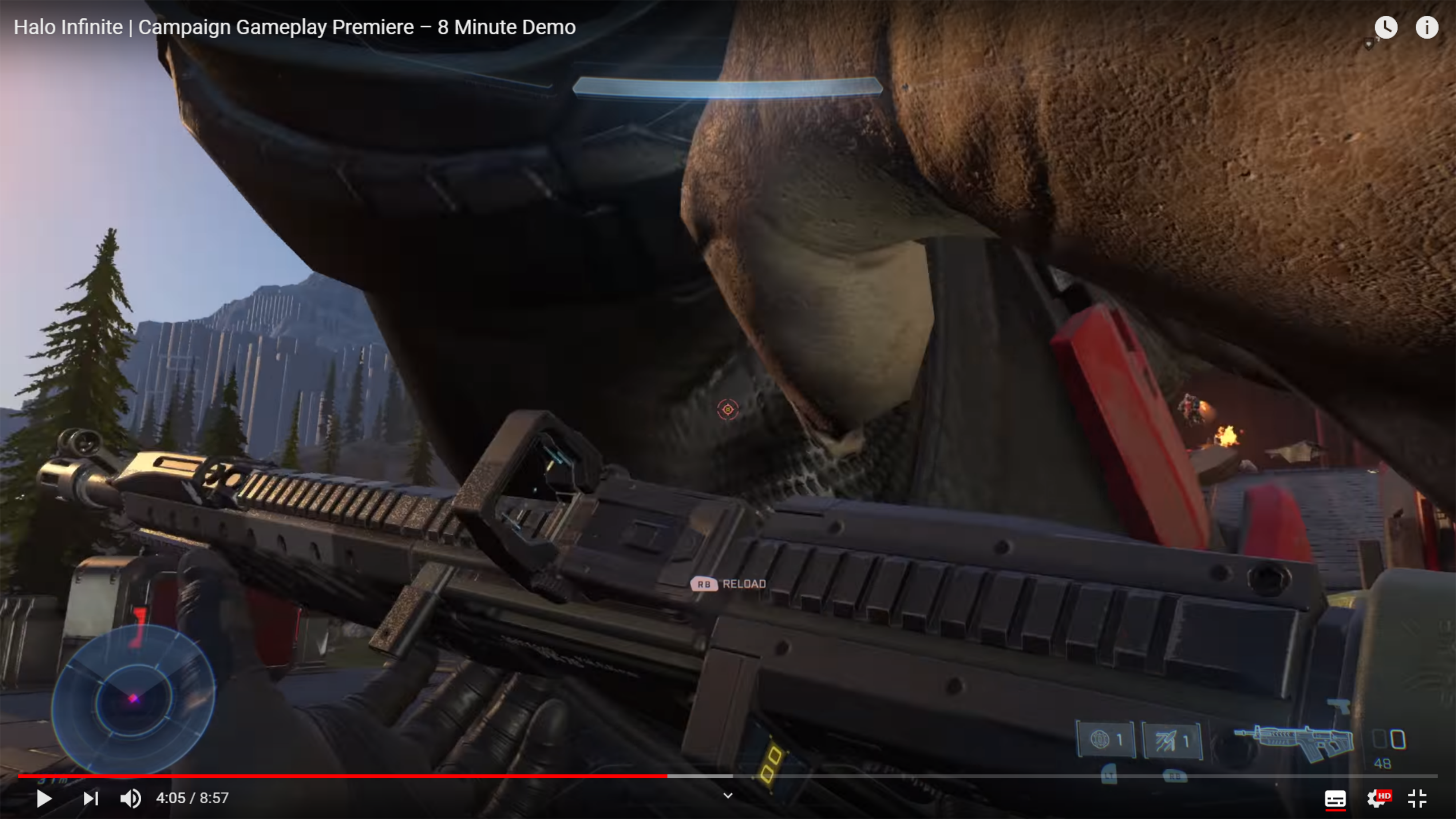

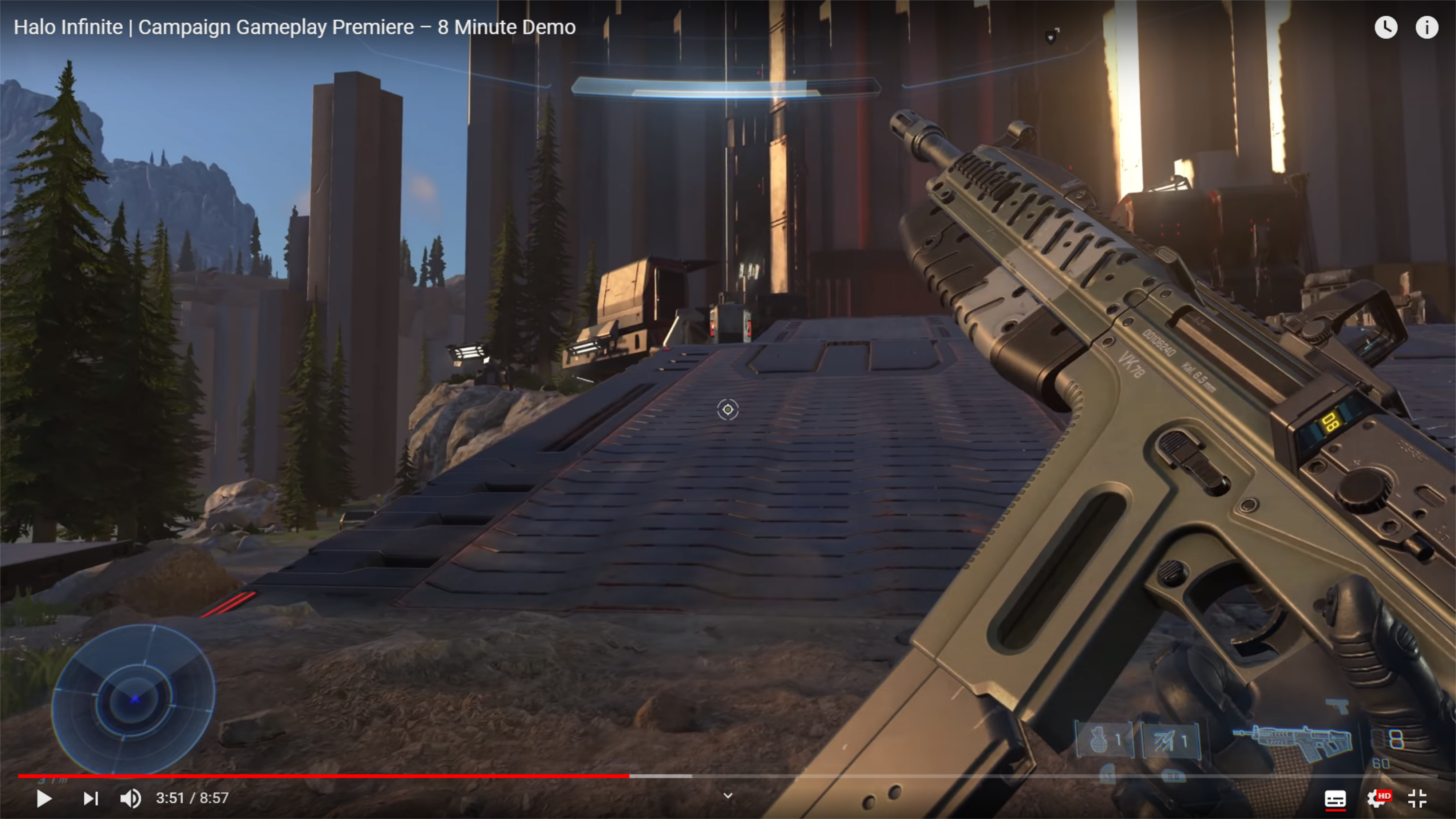

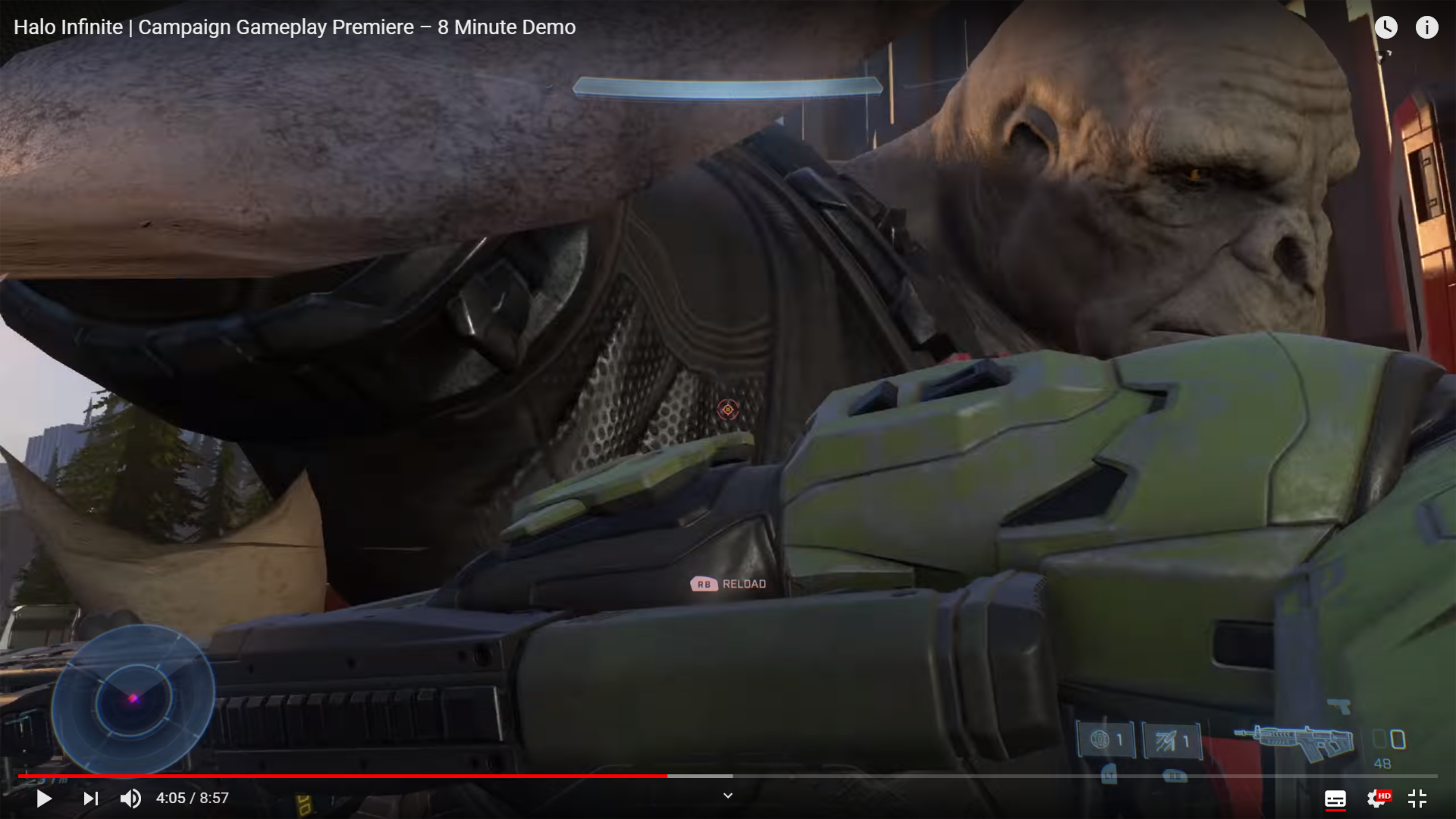

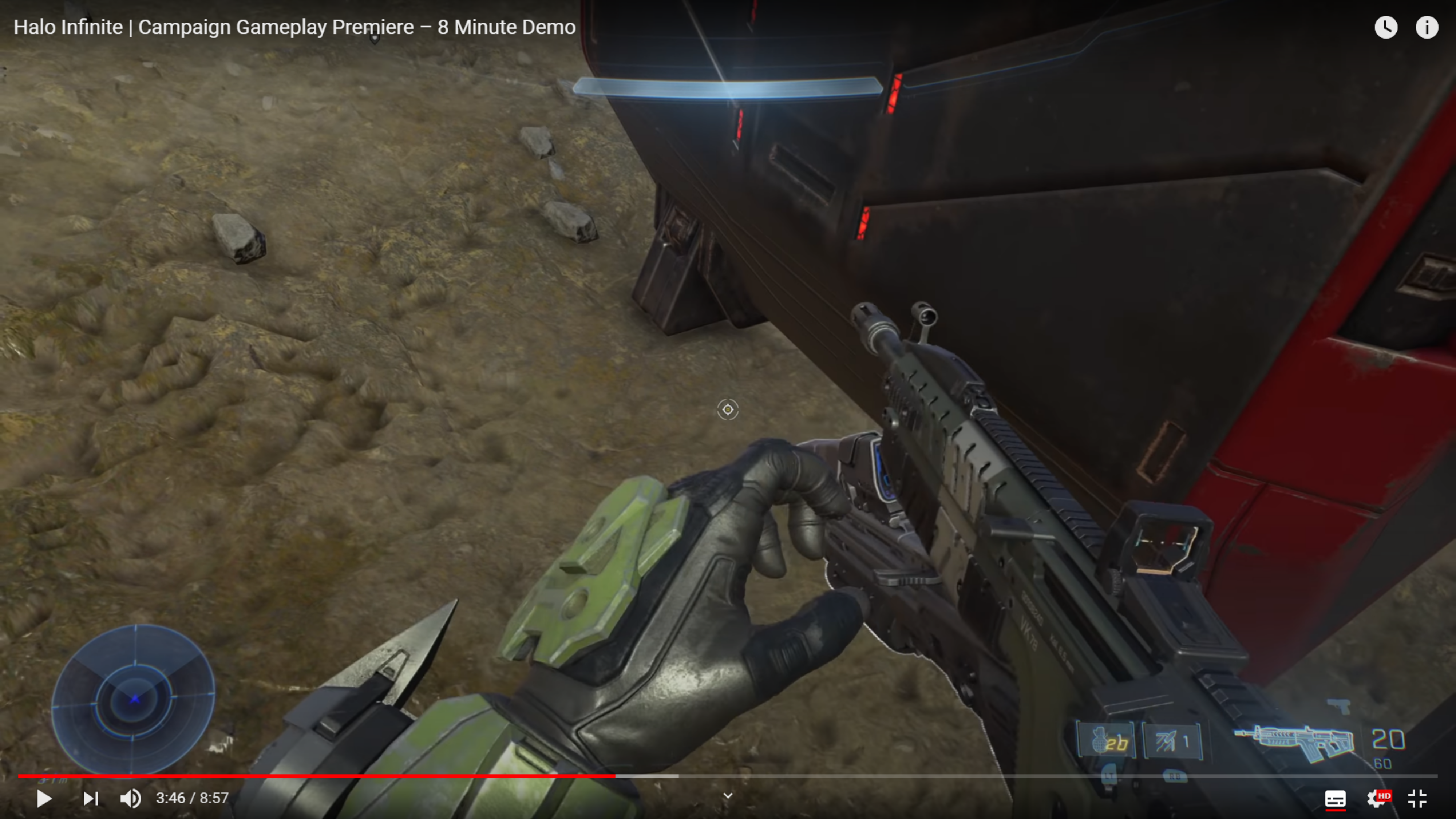

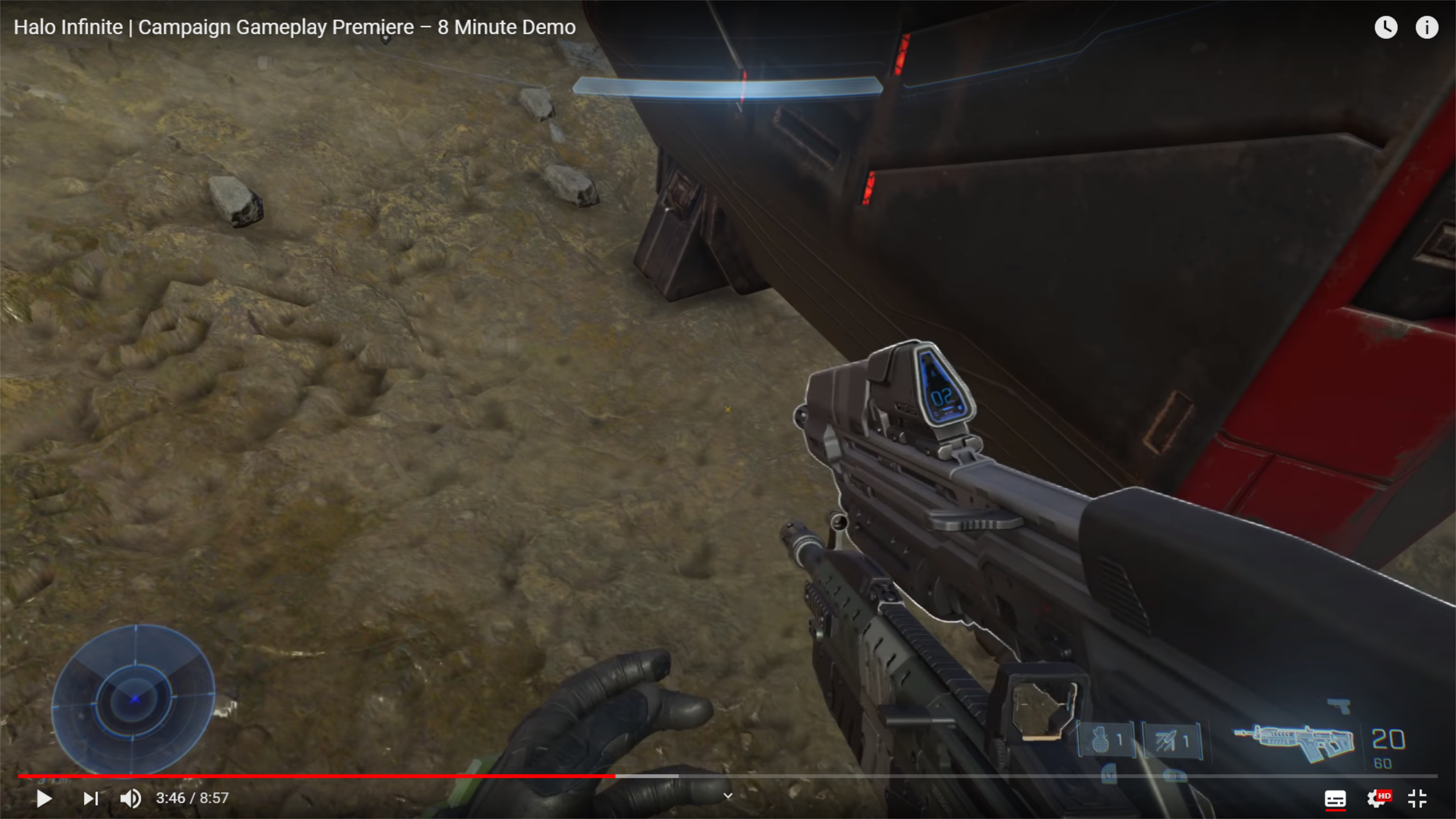

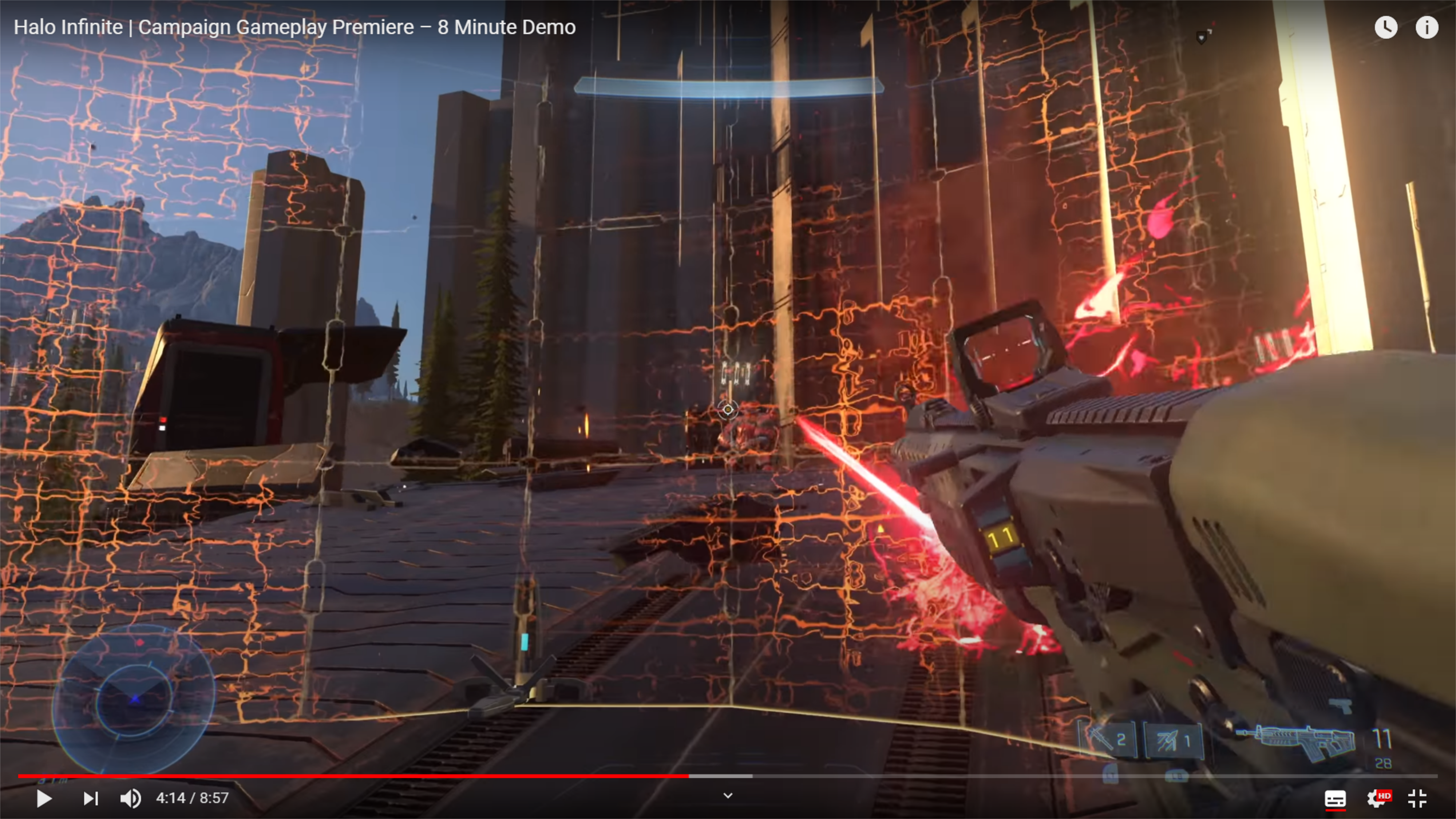

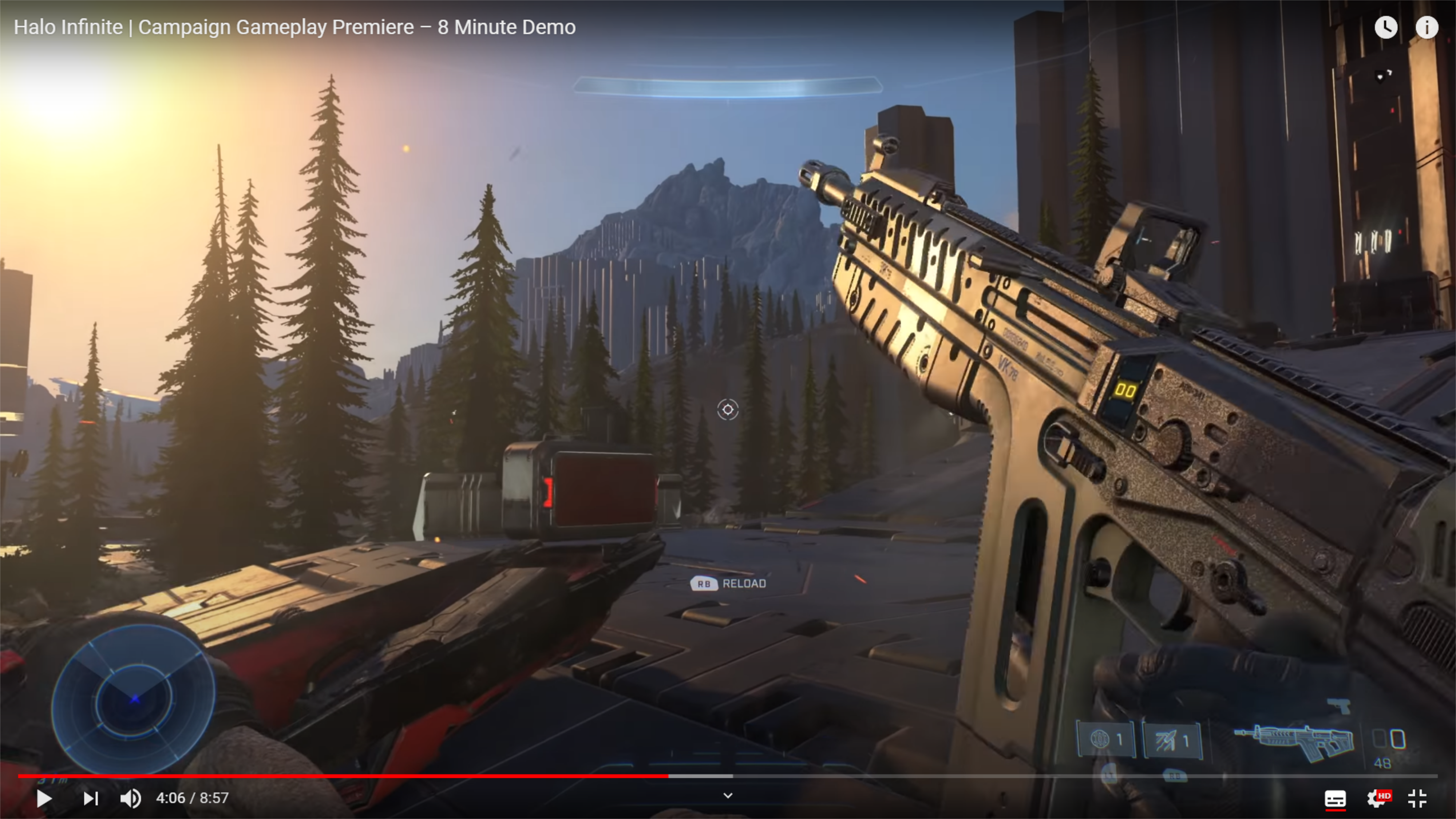

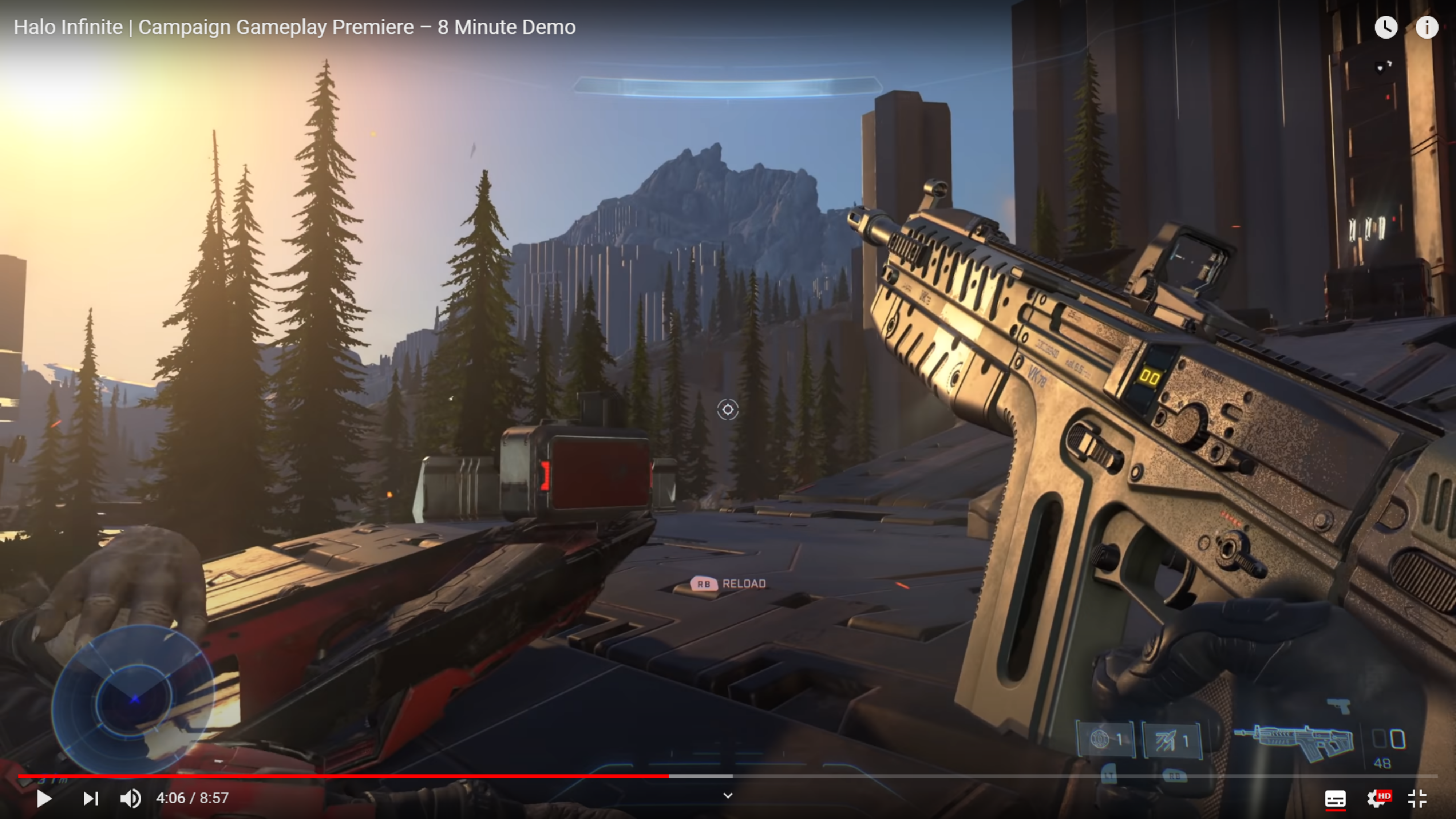

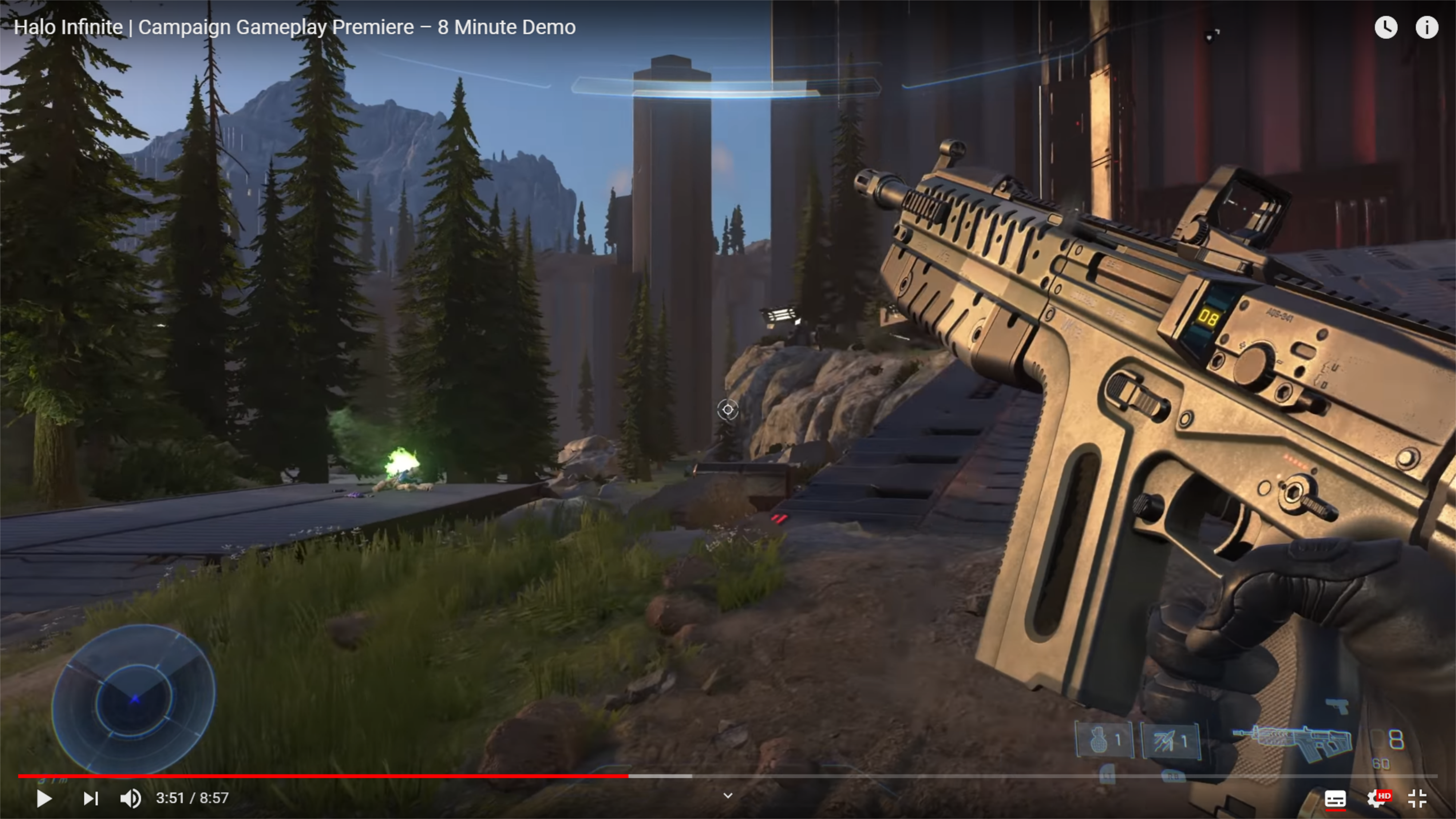

Trailer Stills

New UNSC Aquila for Etching



[PlanetAlexander]

At least we don't need to rely on toys anymore for new game info, now we have drinks to help



[MrJamin]

New Challenge - How many Infinite weapons can TurboCharizard model and make before the game comes out :-D



[TurboCharizard]

New Challenge - How many Infinite weapons can TurboCharizard model and make before the game comes out :-D

Probably lots.



[MrJamin]

Probably lots.

I can challenge myself to keep making them after you too... :-D



[Rock Lobbster]

side weapon preview
Turbo: Weapon time



[TurboCharizard]

side weapon preview
Turbo: Weapon time

It was actually just a kick since I was most of the way through a profile sketch almost a month ago using some janky geometry to estimate angles. This way I have "exact" angles for things on one side and can estimate others based on thickness relative to other known object values like a barrel diameter.



[TurboCharizard]

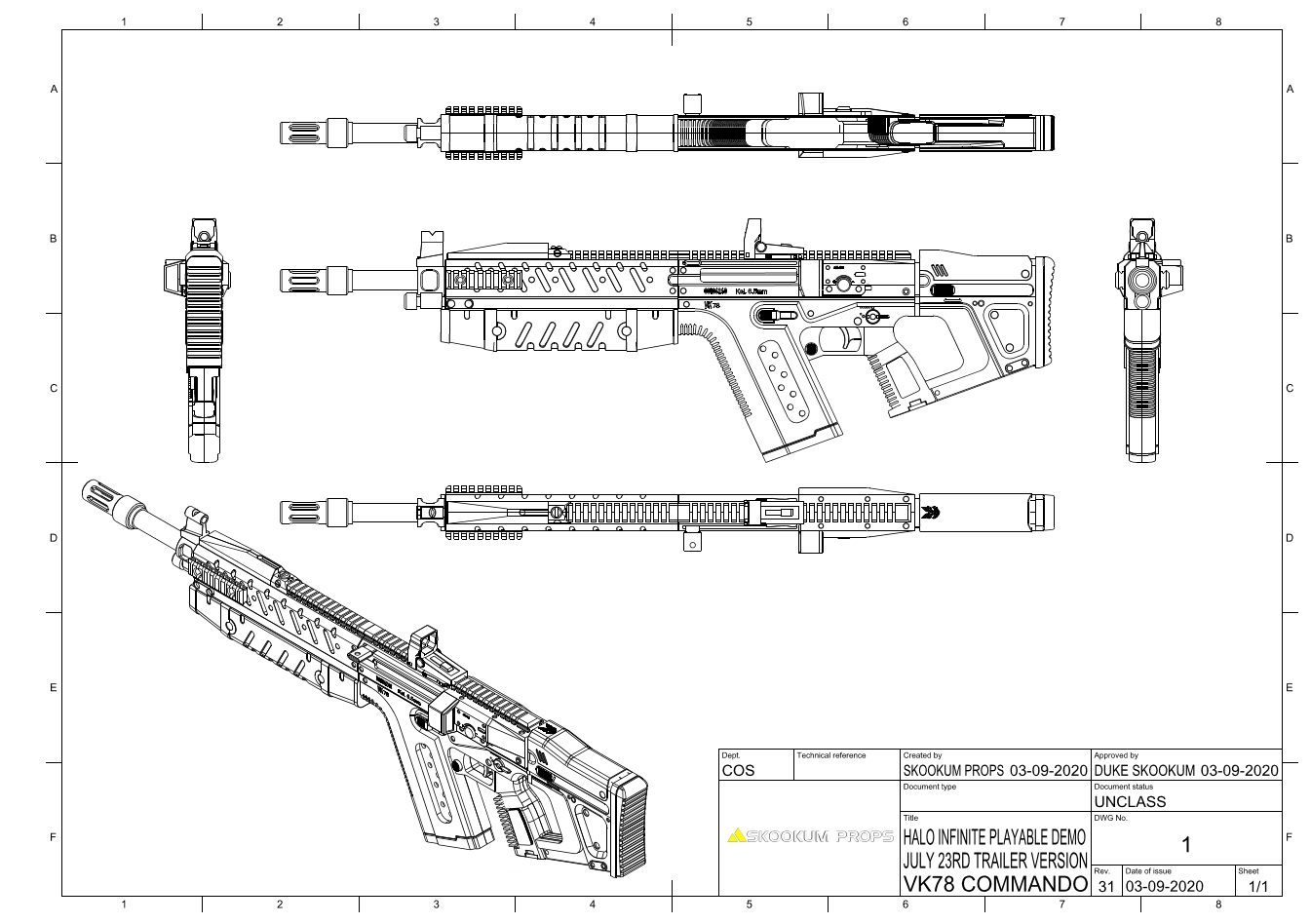

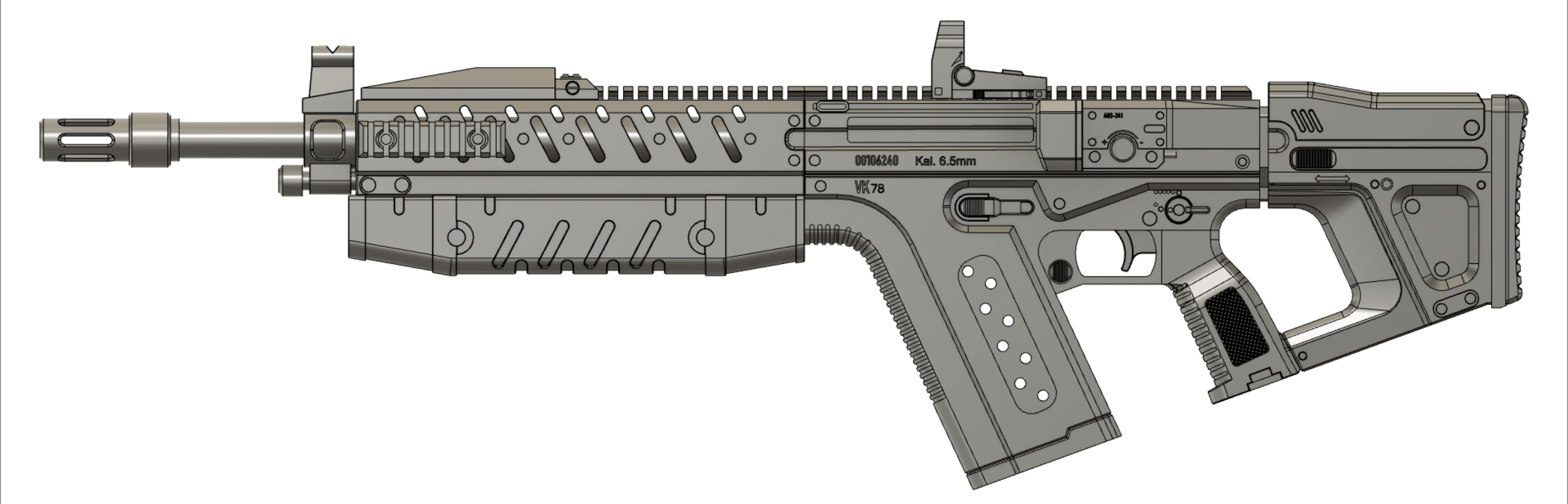

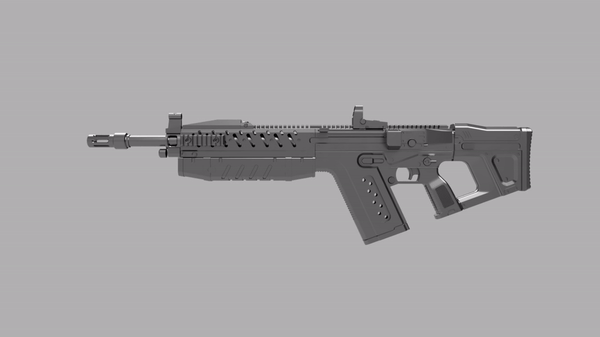

Here we are again with an update to how things went in Fusion360. I'm not going to say that I had the most fun time (the Text tool and Extrude tool weren't playing nice) but I pushed through the fourteen or so hours working on this over two nights and have a printable prototype that's going onto the machines.

This time I went for a more comfortable human scale as opposed to the monstrosity that was the Mangler. Everything is based off the etching of 6.5mm matching the barrel size on this model to 1/2" Schedule 40 PVC for ease of assembly for everyone. As with most of my props, there's also 5mm steel rods running through the majority of it for strength and alignment assistance during assembly.

Once I've got the parts printed and test fit I'll be including a zip file of parts so everyone can play with a thing that has had some semblance of QC.

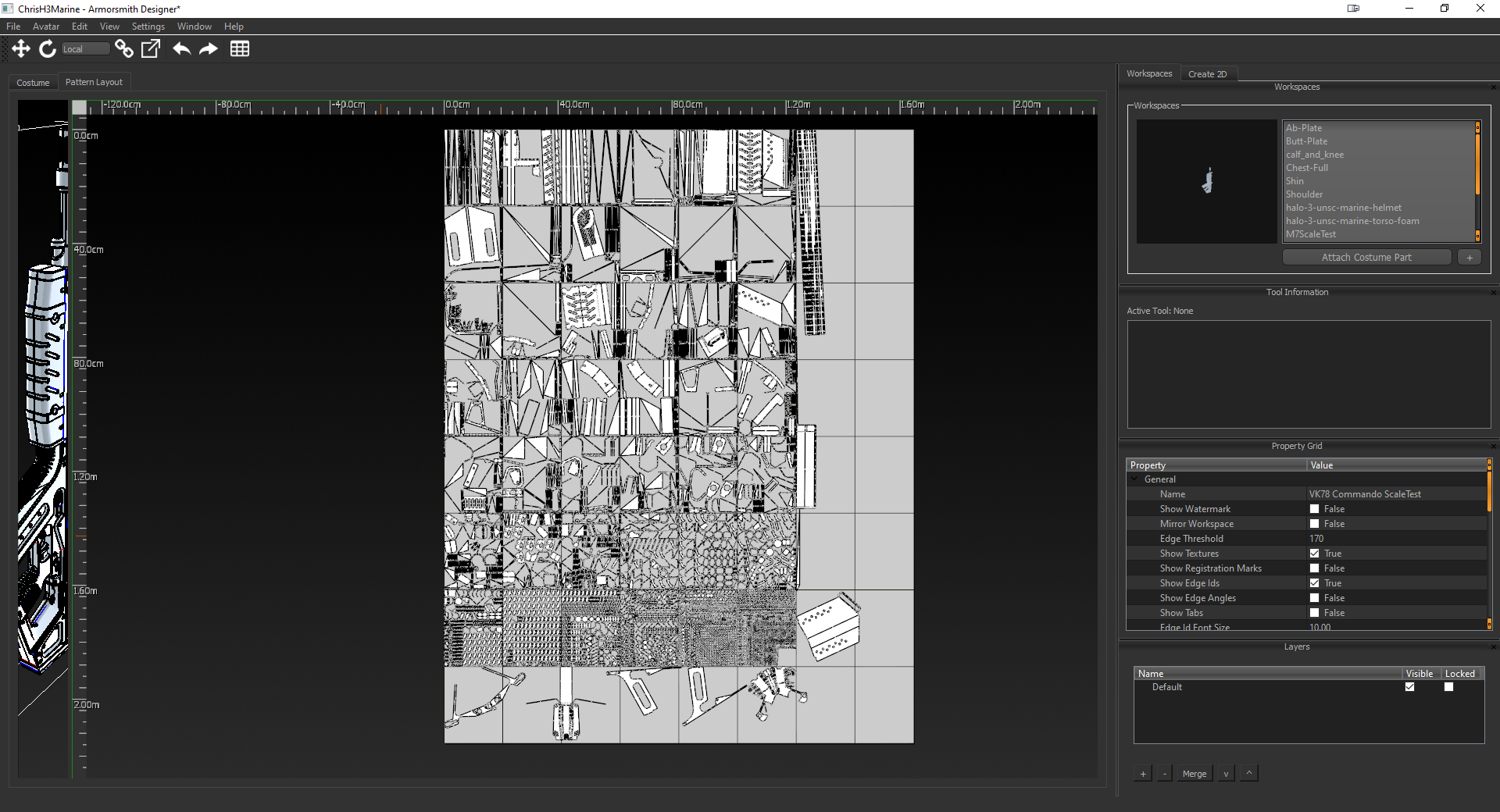

On Facebook I was asked if I was going to do a foam unfold and clocking in at 254k polygons, Armorsmith did this. Maybe? Frankly, I'm terrified.



[MrJamin]

Holy Wow TurboCharizard

254k polygon

That looks so sick and I can't wait to see your progress on it



[ODCA]

View attachment 295671

View attachment 295672

On Facebook I was asked if I was going to do a foam unfold and clocking in at 254k polygons, Armorsmith did this. Maybe? Frankly, I'm terrified.

I think the blueprint with the orthographic views of the rifle will already work wonders for foam building
And if they're editable as a vector file, maybe even laser cutting



[TurboCharizard]

I think the blueprint with the orthographic views of the rifle will already work wonders for foam building
And if they're editable as a vector file, maybe even laser cutting

I usually export drawings to PDF for usability by others but Fusion can also output DWG and DXF. Depending on your laser suite DXF is perfect.



[Dire]

Looking forward to the "Sidekick" pistol build when you get to it, its gonna be a sexy piece.



[TurboCharizard]

Test prints successful, printers, START YOUR ENGINES.

Everything is prepped for builders with 200mm square printbeds and 300mm square printbeds. For the center support rod and barrel you will need a 1/2" Schedule 40 PVC pipe that is approximately 800mm long. To make life easier there's also channels for steel support rods through the majority of the length of the rifle to add some extra strength and make assembly simple.

All said and done you'll need

• ~1.2kg filament of choice
• 800mm 1/2" Schedule 40 PVC
• 1.5m of 5mm steel rods
• 20mm x 10mm of PETG for HUD insert

Any file that ends with a "2" needs to be duplicated.

Below is the thing that you guys want though. Please respect the Creative Commons licensing stamped inside, I designed these files for the 405th folks to have fun with and help everyone get excited for Infinite, I don't want to see people selling these as kits or castings.

Good luck, have fun.

EDIT
Since I didn't have the vinyl I wanted to use for the HUD ammo counter I went and made an easier to use one that doesn't require electronics. I've attached a scaled PDF of the printable HUD I ended up using.

VK78 Commando Trailer Version Filepack



[Felipe06]

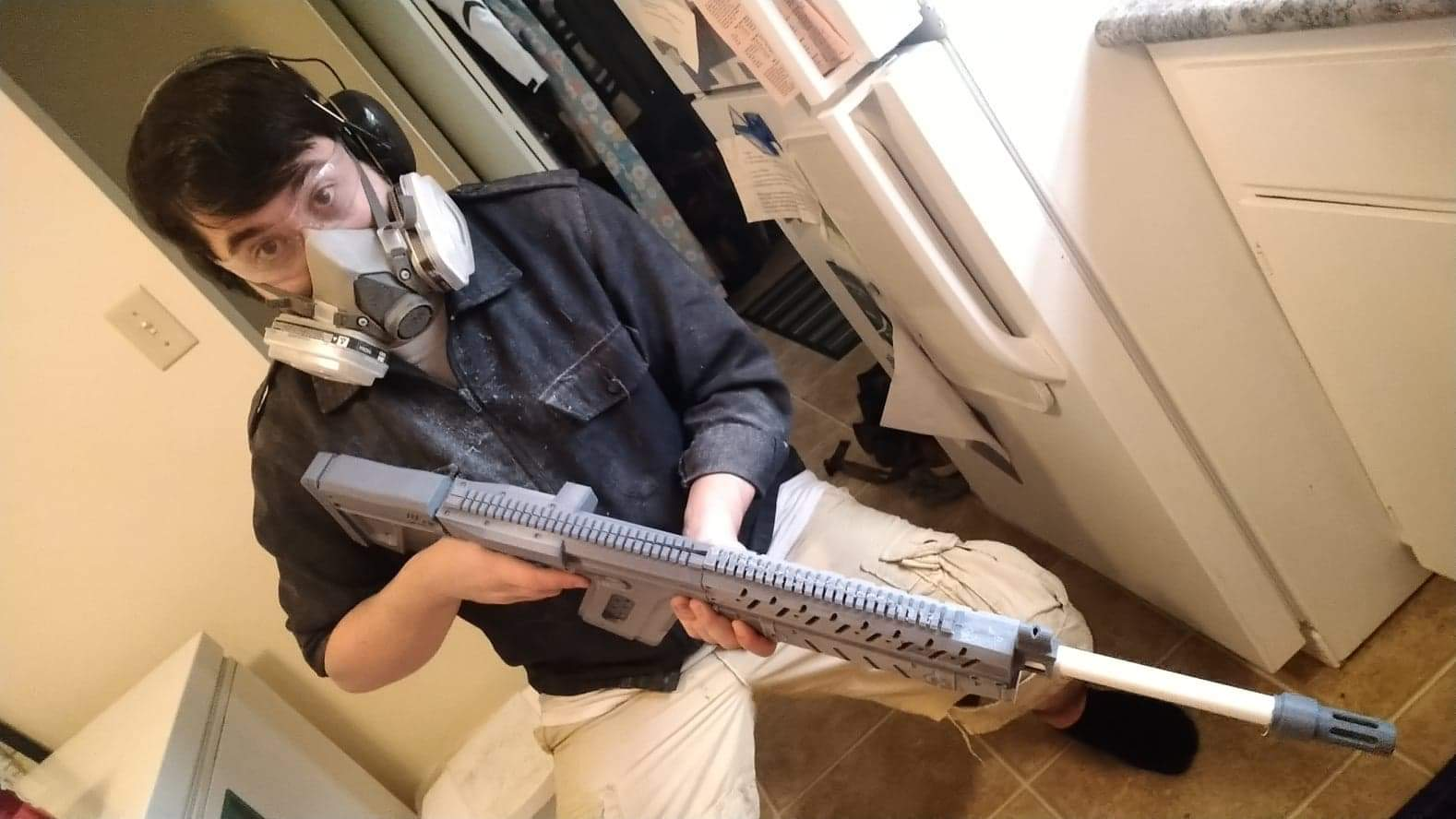

Test prints successful, printers, START YOUR ENGINES.
View attachment 296155

Everything is prepped for builders with 200mm square printbeds and 300mm square printbeds. For the center support rod and barrel you will need a 1/2" Schedule 40 PVC pipe that is approximately 800mm long. To make life easier there's also channels for steel support rods through the majority of the length of the rifle to add some extra strength and make assembly simple.

All said and done you'll need

• ~1.2kg filament of choice
• 800mm 1/2" Schedule 40 PVC
• 1.5m of 5mm steel rods
• 20mm x 10mm of PETG for HUD insert

Any file that ends with a "2" needs to be duplicated.

Good luck, have fun.

BY THE RINGS
I'll see if I can fit it in my two weeks prop vacation making time



[TurboCharizard]

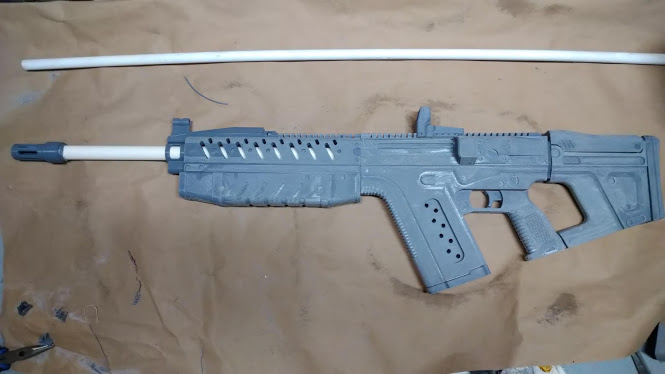

I've gone a bit further in sanding and assembly and basically gone through the parts bin to guarantee fit of everything. Due to local air quality (west coat fires) I can't really progress much further with fillers and primers safely so I might be stopping here for a bit until the air is less chunky.



[Felipe06]

I've gone a bit further in sanding and assembly and basically gone through the parts bin to guarantee fit of everything. Due to local air quality (west coat fires) I can't really progress much further with fillers and primers safely so I might be stopping here for a bit until the air is less chunky.

View attachment 296387



[MrJamin]

Commando gang checking in!

P.S. - We need to come up with a catchy name like #MangGang



[Felipe06]

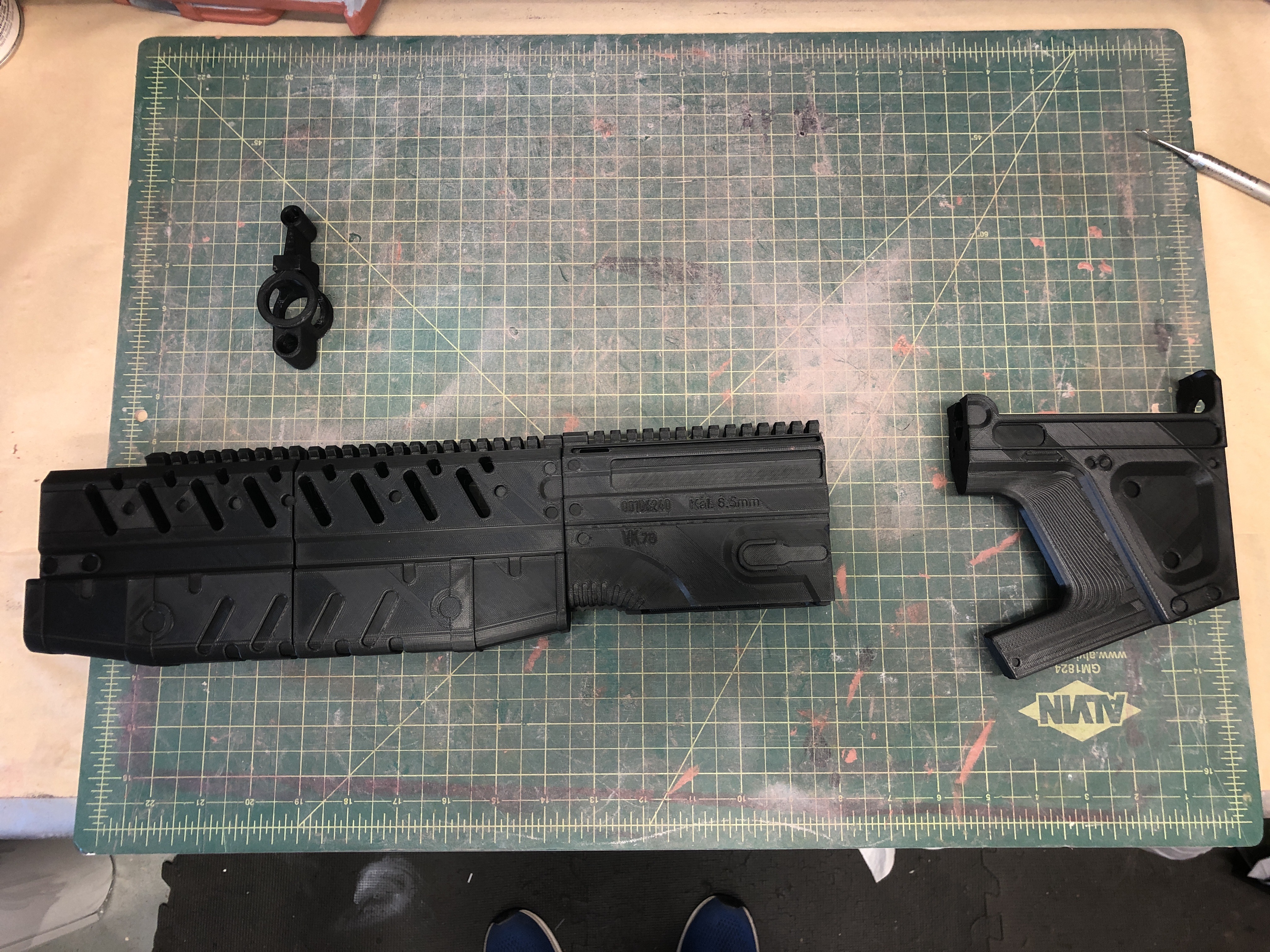

Commando gang checking in!

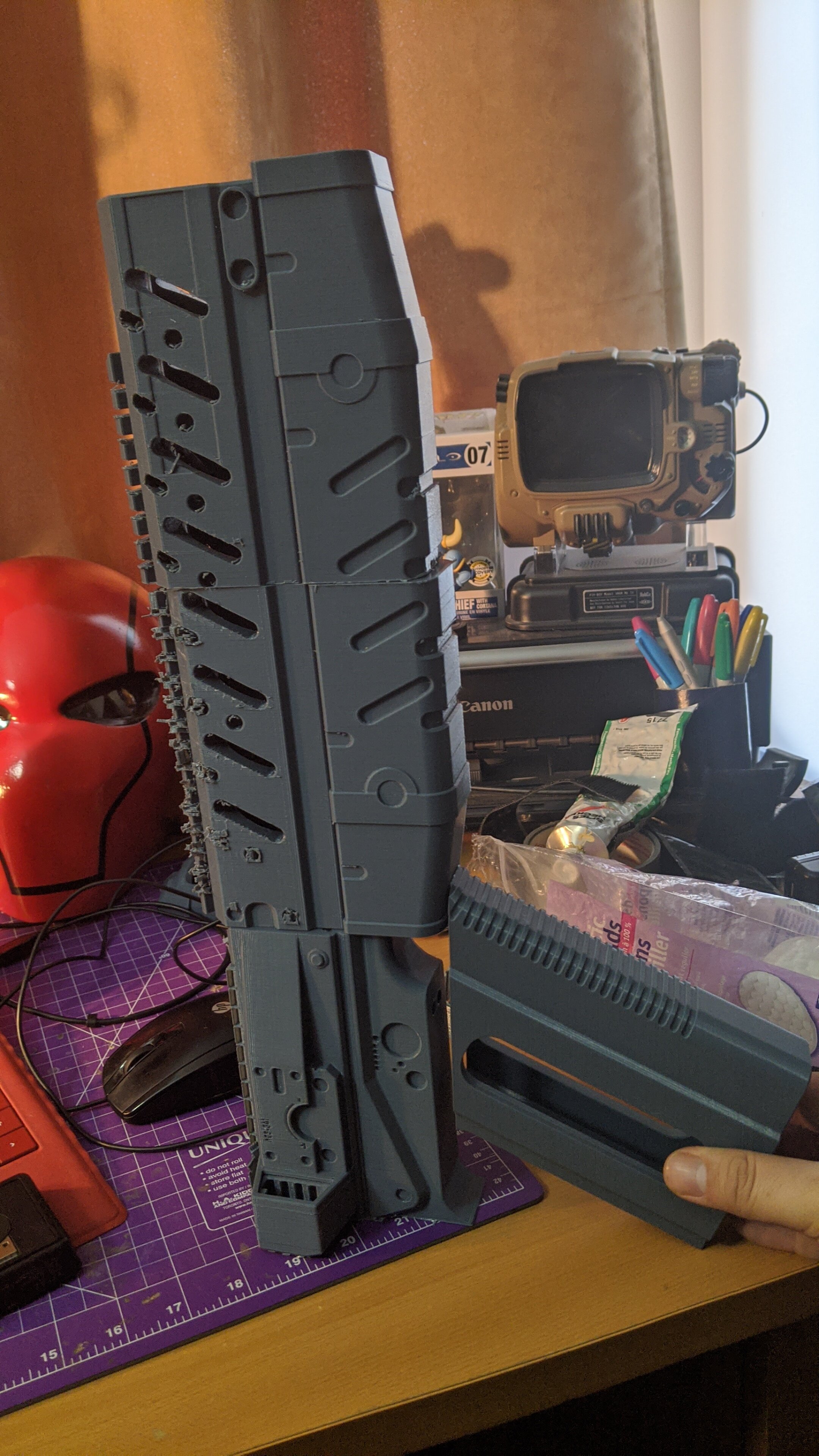

View attachment 296420

P.S. - We need to come up with a catchy name like #MangGang

#VKgang ?



[PaiganBoi]

#commandobando?
