Halo Marine helmet

[peterthethinker]

As Ive got a UNSC Meerkat to zip about on. I need a "casual' cosplay for fun.

I picked up a rather simple bike helm from goodwill to mod in to a Marine inspired lid.

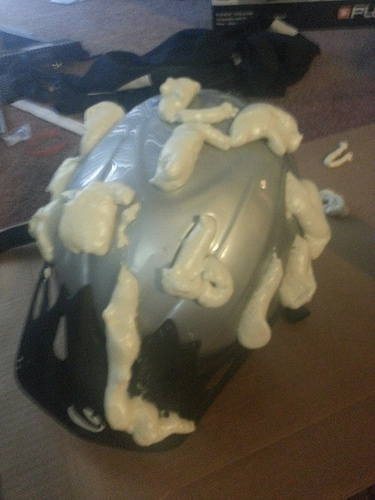

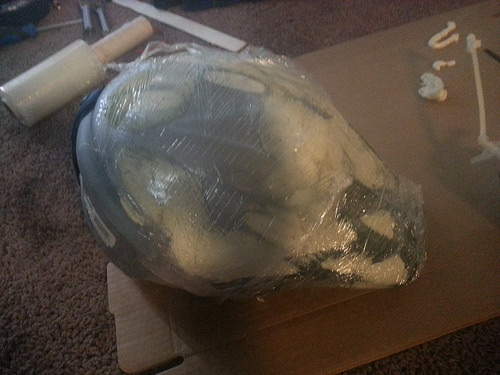

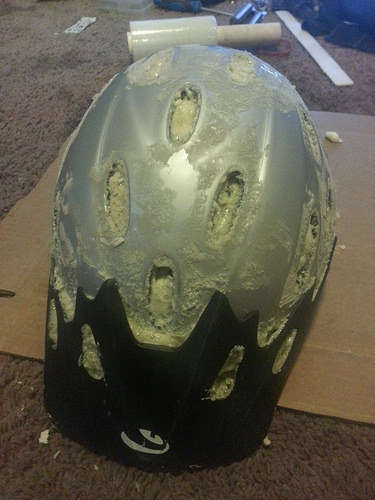

The Wrap keeps the foam in check as it cures .

Its funny as there are allreaddy vent plugs in the holes from the inside that are held in by velcro.
they extend up 3/4 of the way.



EDIT : updated pics for the day.

A little sanding and bondo.

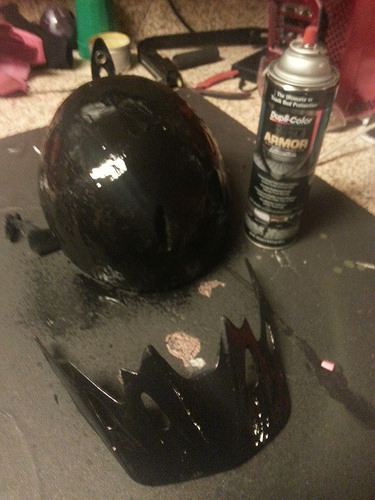

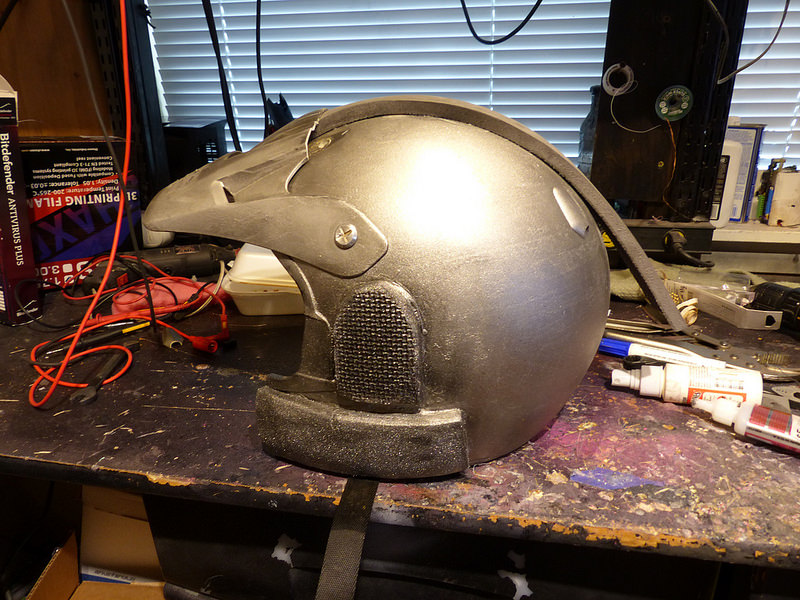

Now some bed liner!
Oh how the texture makes me giddy!

Peter...



[peterthethinker]

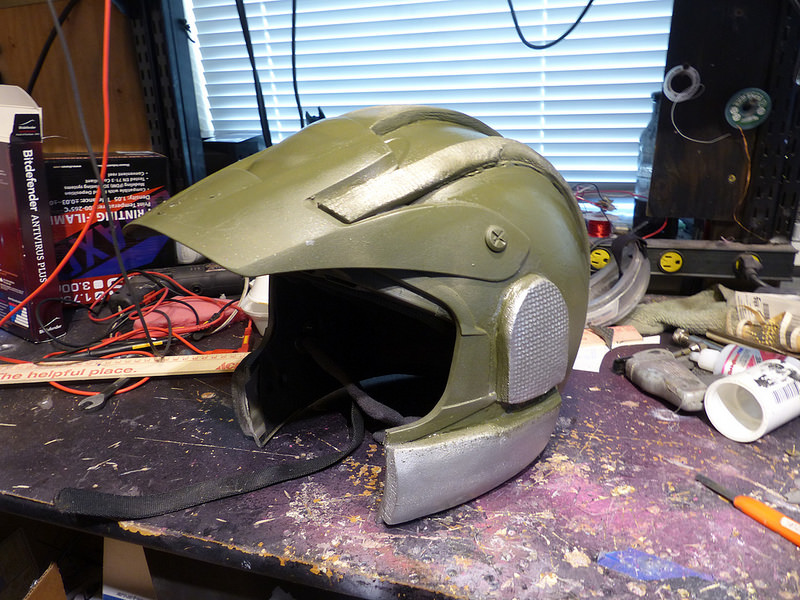

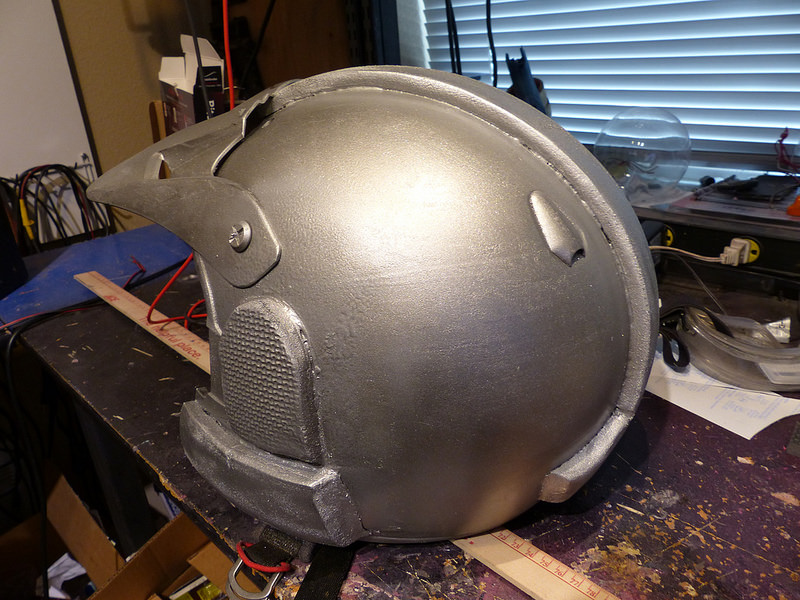

So far On track. I need to get the brim filled and let the paint dryyyy.

That bed liner gives a really dinged up look .

Ive got a idea use a mini LCD screen and a plastic semi mirror to make a real HMD
Ill pop on over to sparkfun to find one. Who knows . we can add a shot counter and a compass ect .


Holy Hello world batman! https://www.sparkfun.com/products/11377 Ya just need more backlight lumens to make it work . hmm



[peterthethinker]

OK so its CAD time tonight .
EDIT:

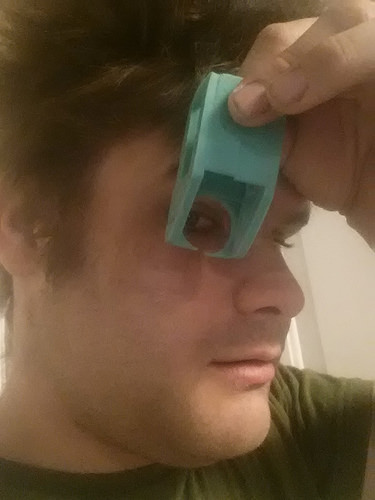

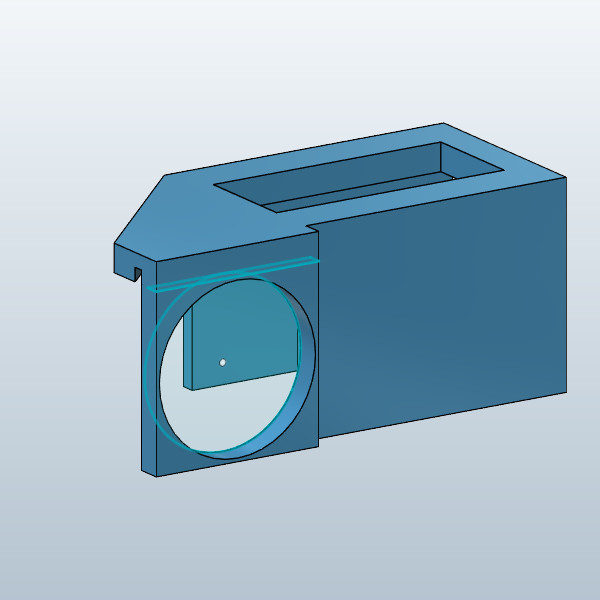

Its a HUD for the helmet. The idea is to use this prelim tester to use a screen and a semi transparent mirror to
Its on the printer right now. I need to shove in some imaging optics to pipe in a LCD screen .
compass any one? In a pinch I could use a smart watch as a display but I dont think they have the lumens to pump light that far . ANd I dont wanna blow 300 USD on a prop * yet *

Step one is to get the physics right . then update the elec hardware.

http://www.123dapp.com/123D_Design/HUD-for-Halo-marine/4325787



[Jacgren]

Neat idea for the HUD, I might have to try something like that for my marine helmet. For the chinstrap maybe buy an ACH or similar military chin strap just to give it more of that military helmet look.



[Mstruvmgc]

not a bad idea looking good



[peterthethinker]



[peterthethinker]

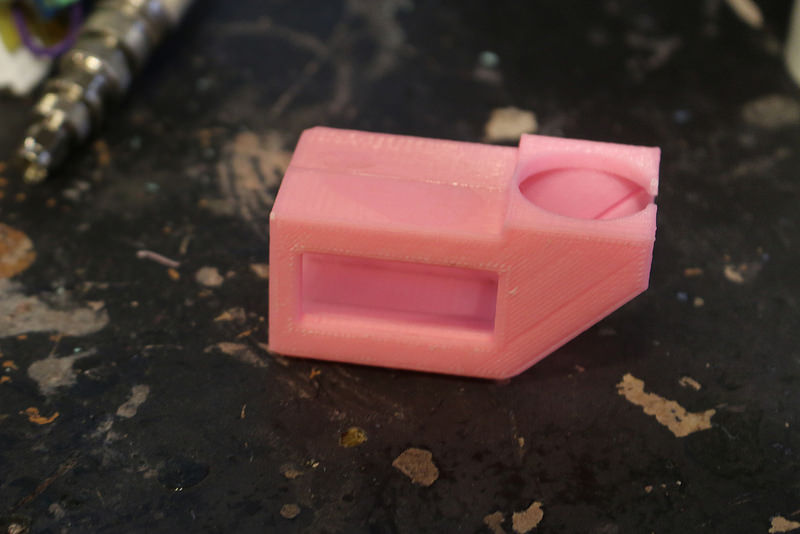

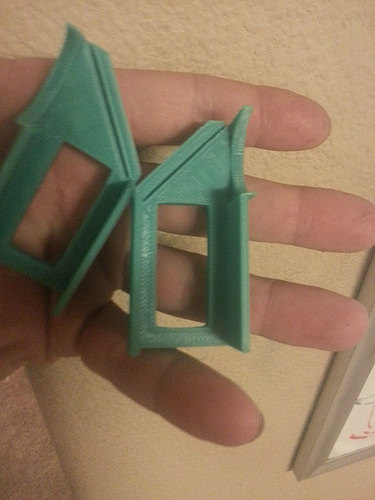

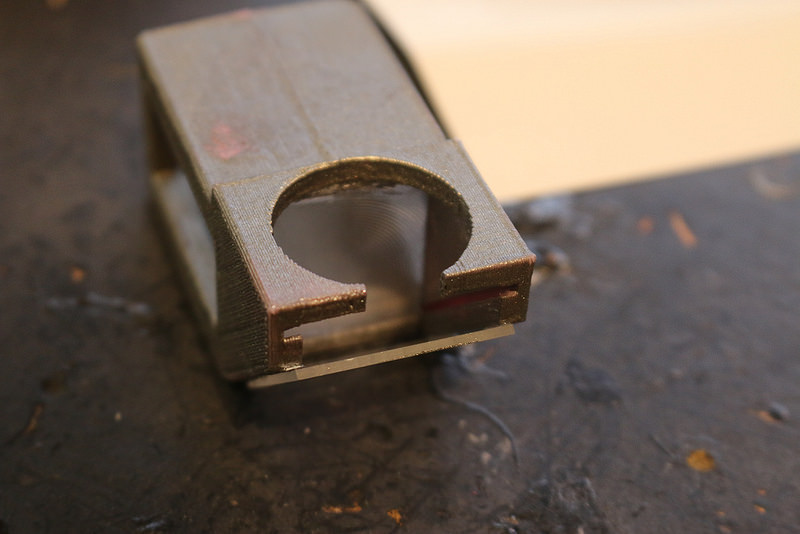

I made a new one!

The guide for the sheet is too narrow . Il need to up that a touch.
and drop the round opening

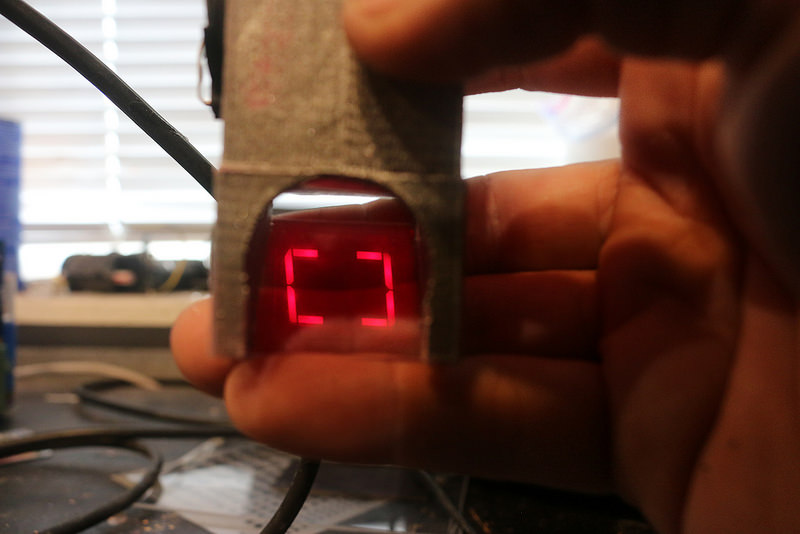

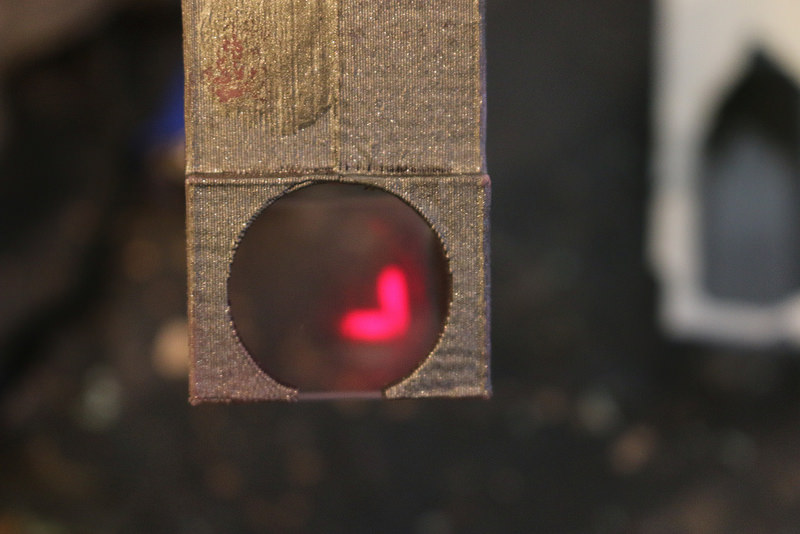

TADA! with a 7 seg display as a tester ......



[peterthethinker]

I made a new one!

The guide for the sheet is too narrow . Il need to up that a touch.
and drop the round opening

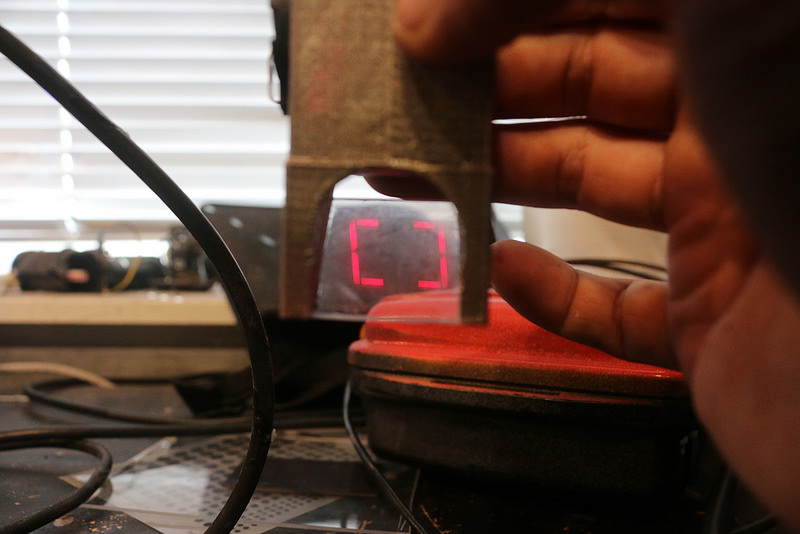

TADA! with a 7 seg display as a tester ......

V1.0 is done....... now I need to budget a few small OLED display parts and a micontroller...



[NaasadTal]

That is awesome!



[peterthethinker]

Thanks!

Iam recovering from Kumo con at the folks base..
As soon as I get home Ill Draft up a bracket to hold the display to the lid,



[peterthethinker]

Something is a brewing on the bench. New Lid to mod ..
I took a risk and I am playing with EVA mats..

Curse you 405th ! :love I may have to get a pallet of this magical material !
Step One!

Step two

more foam fun to come !

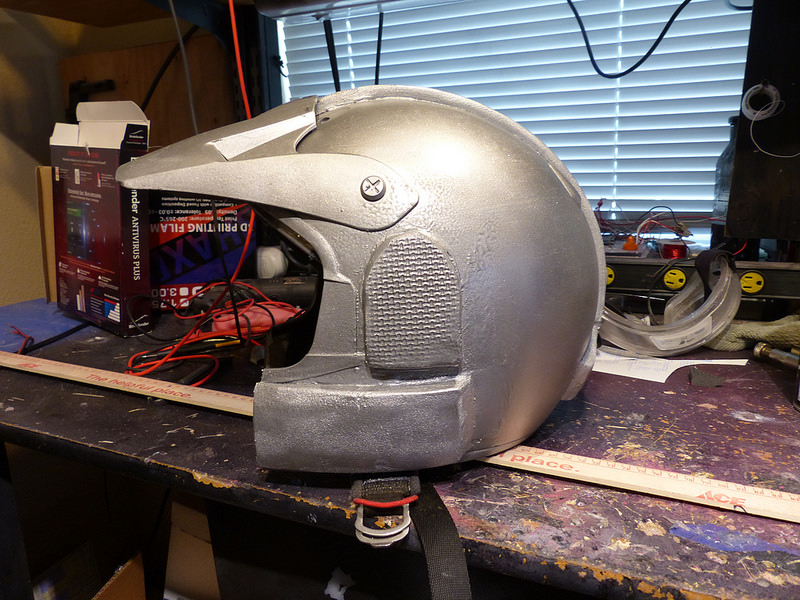

Stage three

Peter..



[TheJrACE]

Thanks for the post! Got an invite to NYCC today and think that i'll try my hand at a marine for it. Keep us updated and thanks again!



[Harri51]

digging it man. Looks great Pete



[peterthethinker]

TADA! the wind breaker is coming along .
.



I need to pick up some ribbon tape for the logos OR just sew more on the sides.



[peterthethinker]

Ive picked up a sweet little sony action cam that is gonna be mounted on the side as a cam pod.

Sony HDR-AZ1..



[peterthethinker]

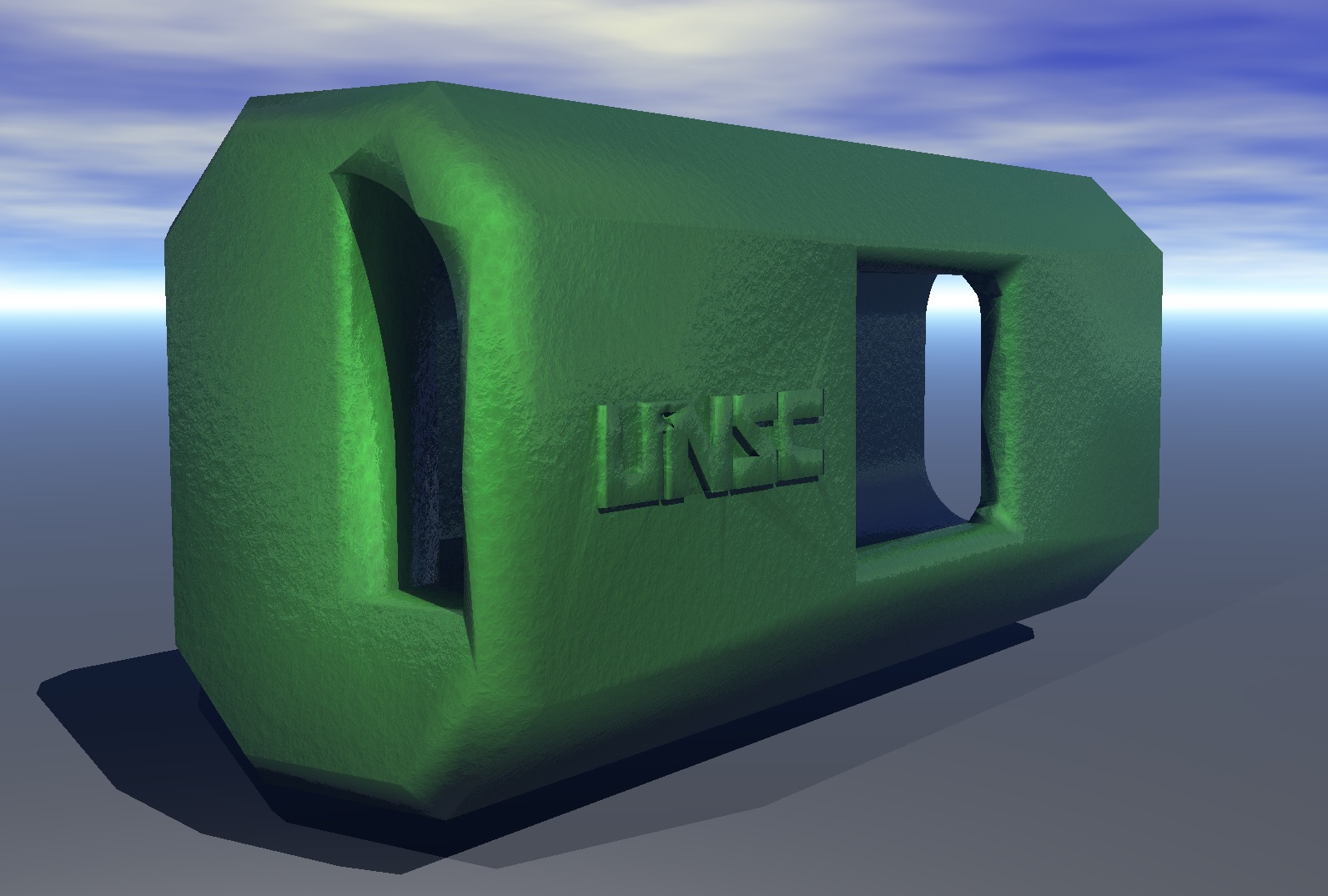

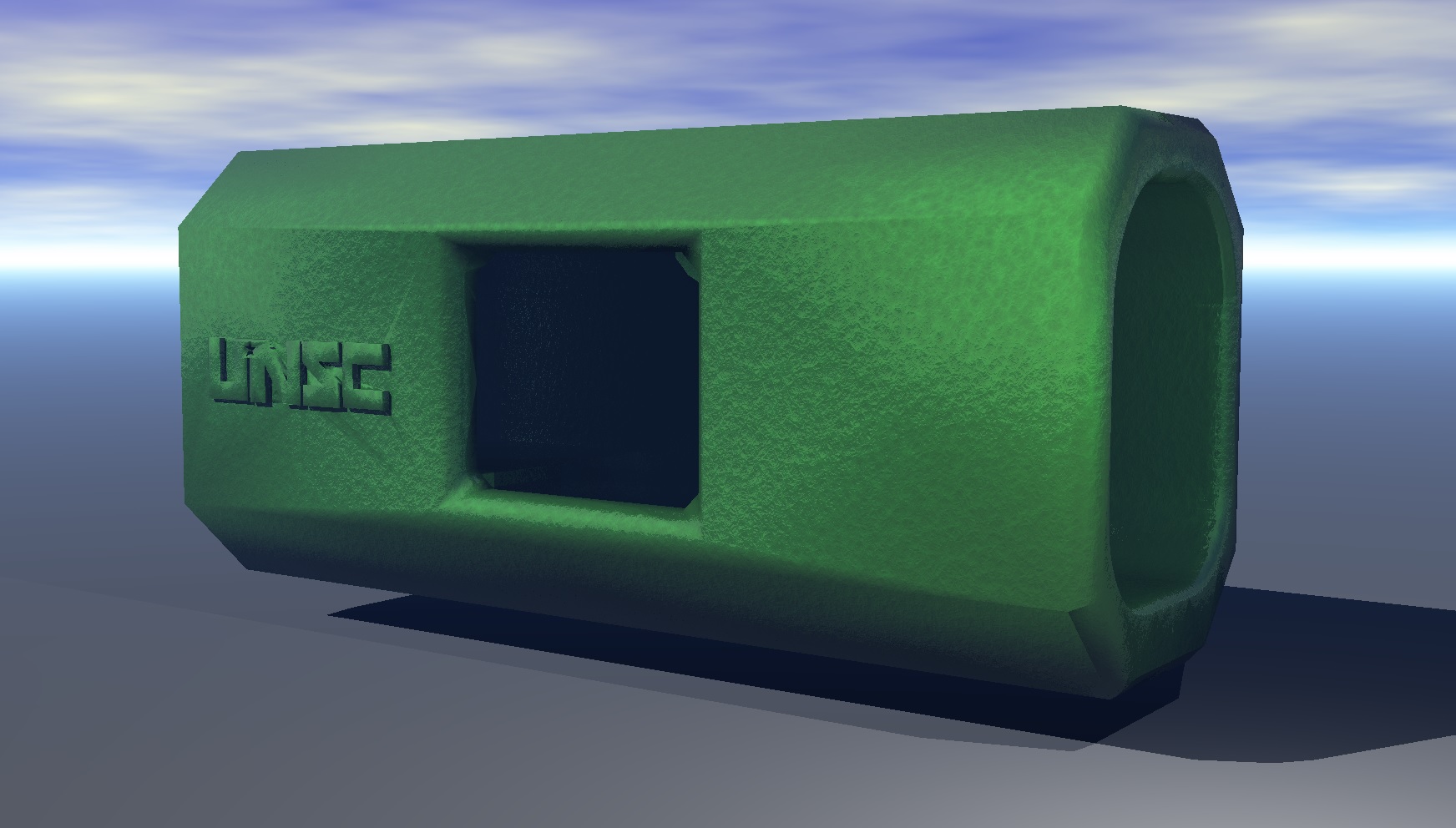

OK Here is the Cam pod!

mmm gotta love CAD.

http://www.123dapp.com/123D_Design/Cam-shell-with-USB-and-fancy-edges/4530630





PeterD



[peterthethinker]

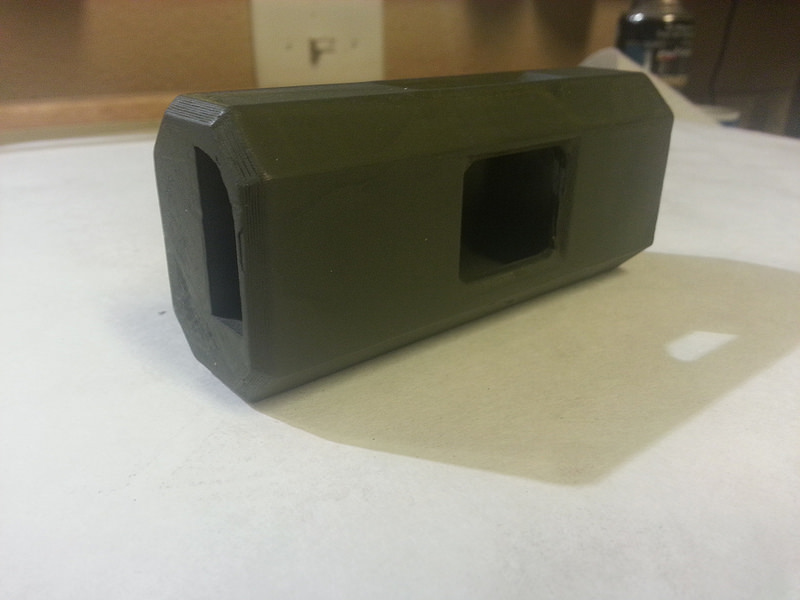

Tada!


Iam gonna make one to hold a nice Lith batt pack so It can have 3 H run time not 1.
Peter

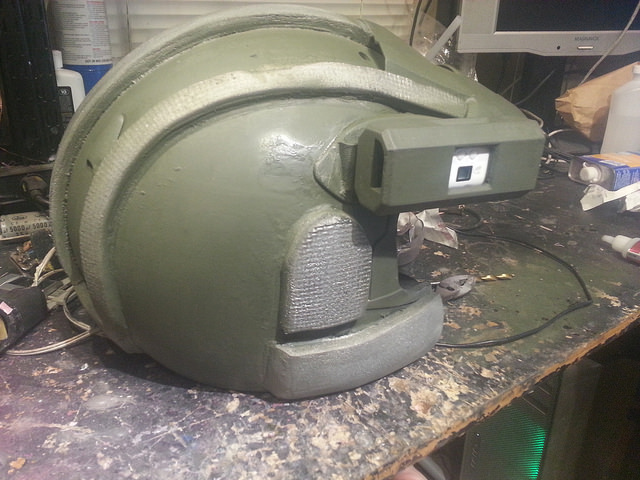

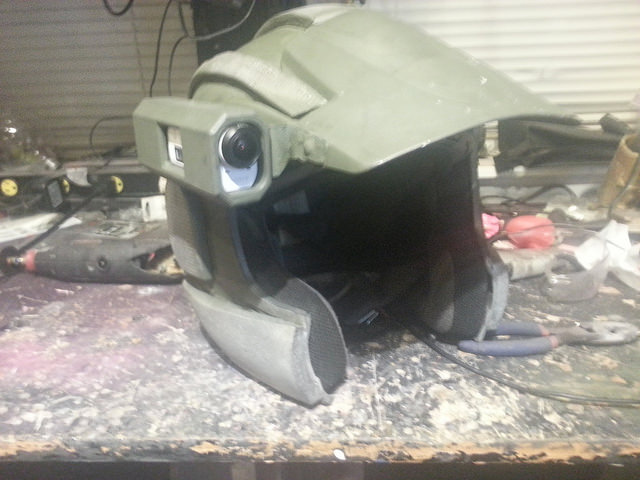

EDIT I mounted the pod to my helmet .



[ScarletOkami169]

"....................................." -Yortstorm on Marine helmet

@_@ PETER.... this is why we are friends @_@

if you were to print out the hardware parts again, how much would you ask?

please show how you did the electrical components PLEASE

-Yort



[peterthethinker]

The Housing is only for that one Sony cam..... If you just wanna faux Cam pod that I can do too.


As for the batt .. its just a bog standard Phone recharge brick.



[ScarletOkami169]

ai'ght.. a foux one will be good enough for me untill i decide to change... but i will definately do one of these
