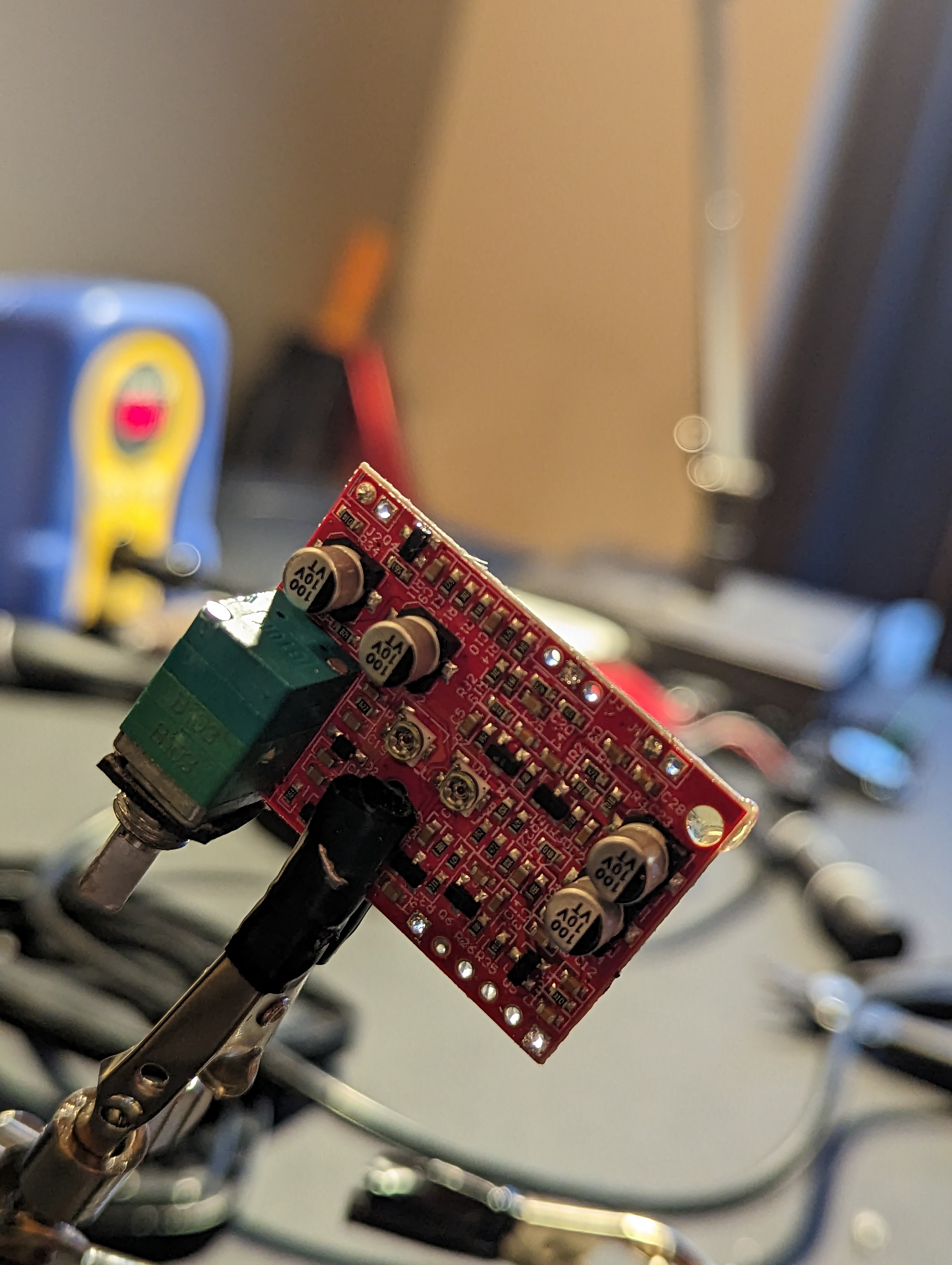

Step 2: Cleaning up the PCB

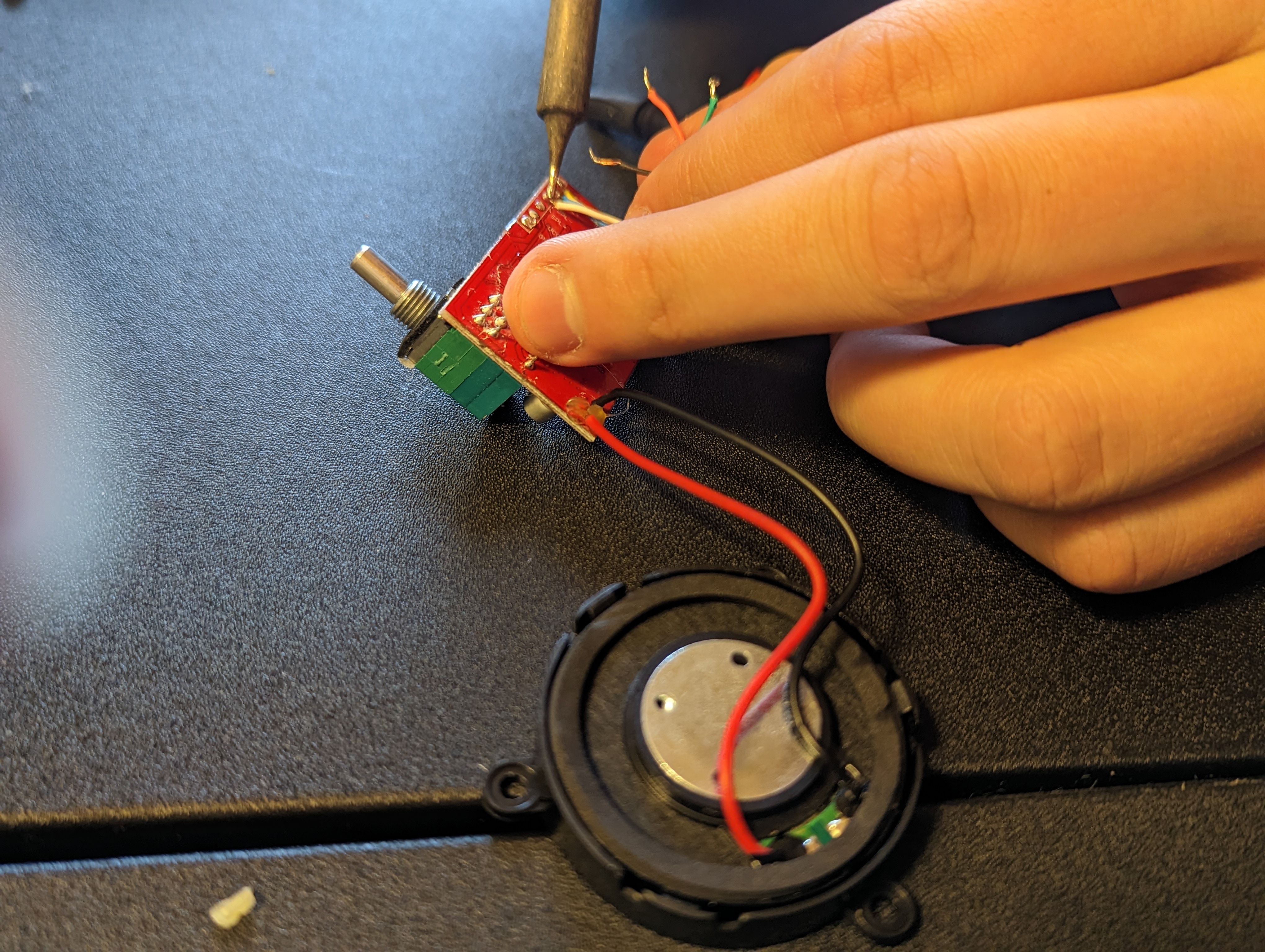

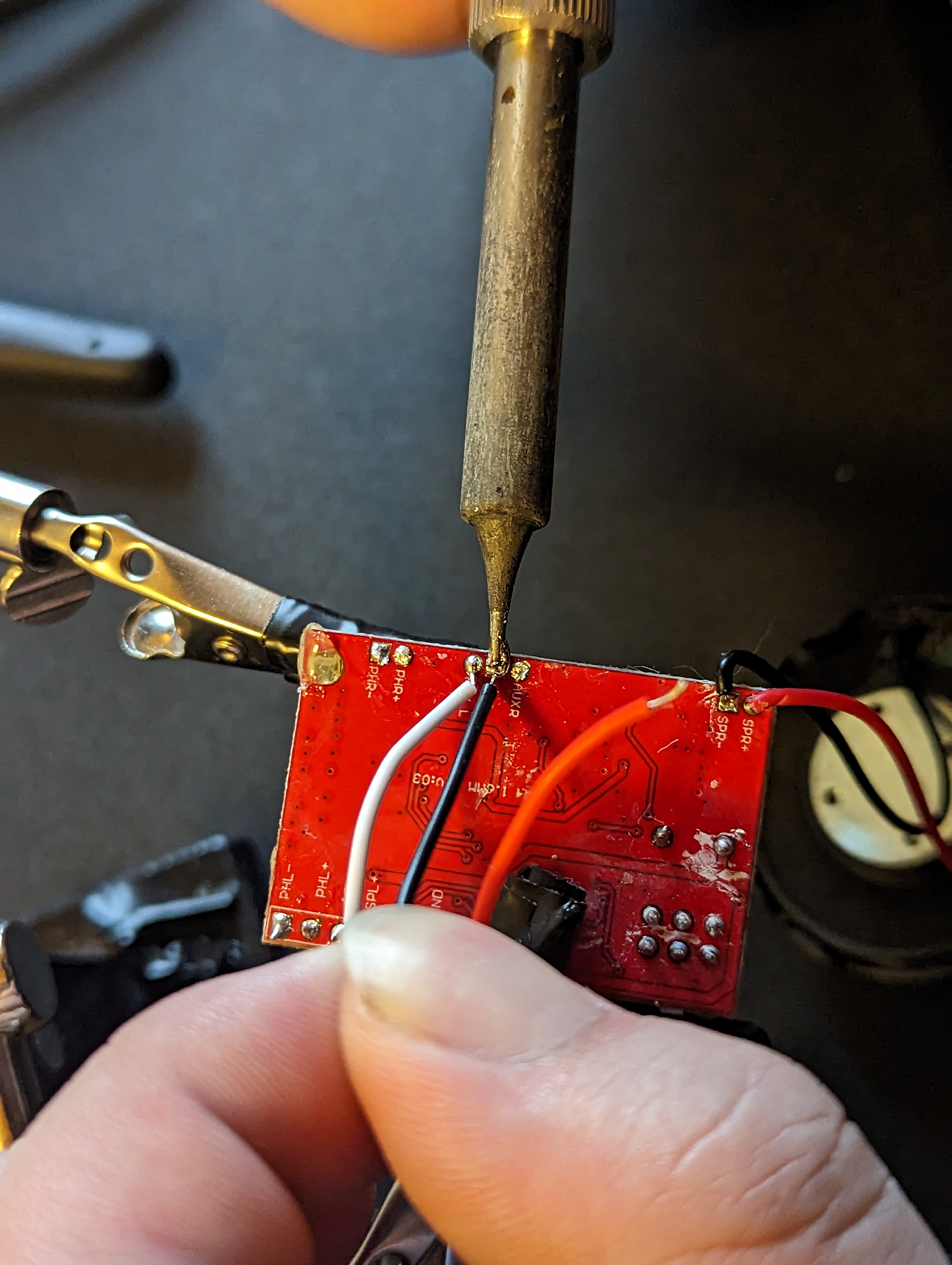

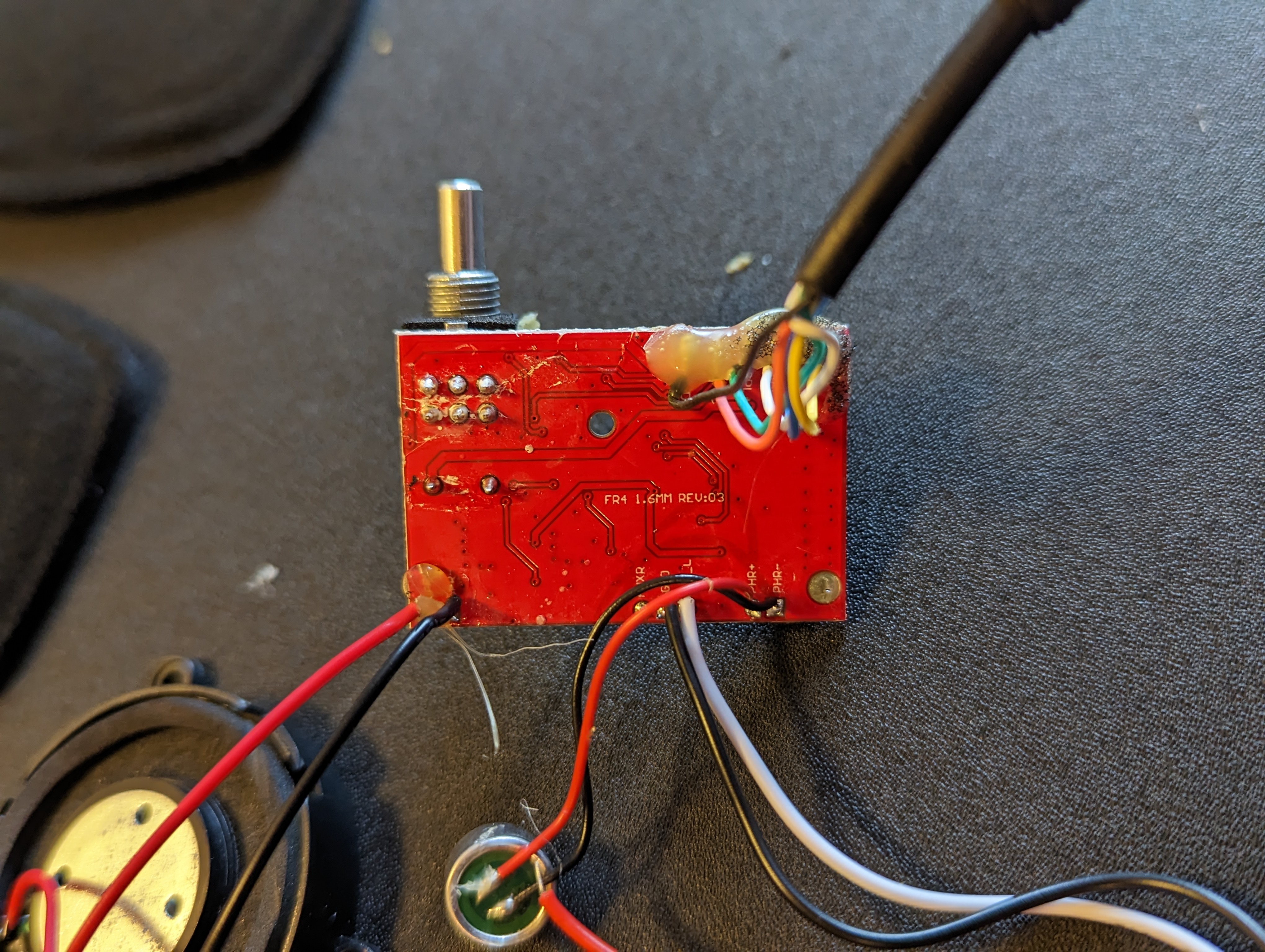

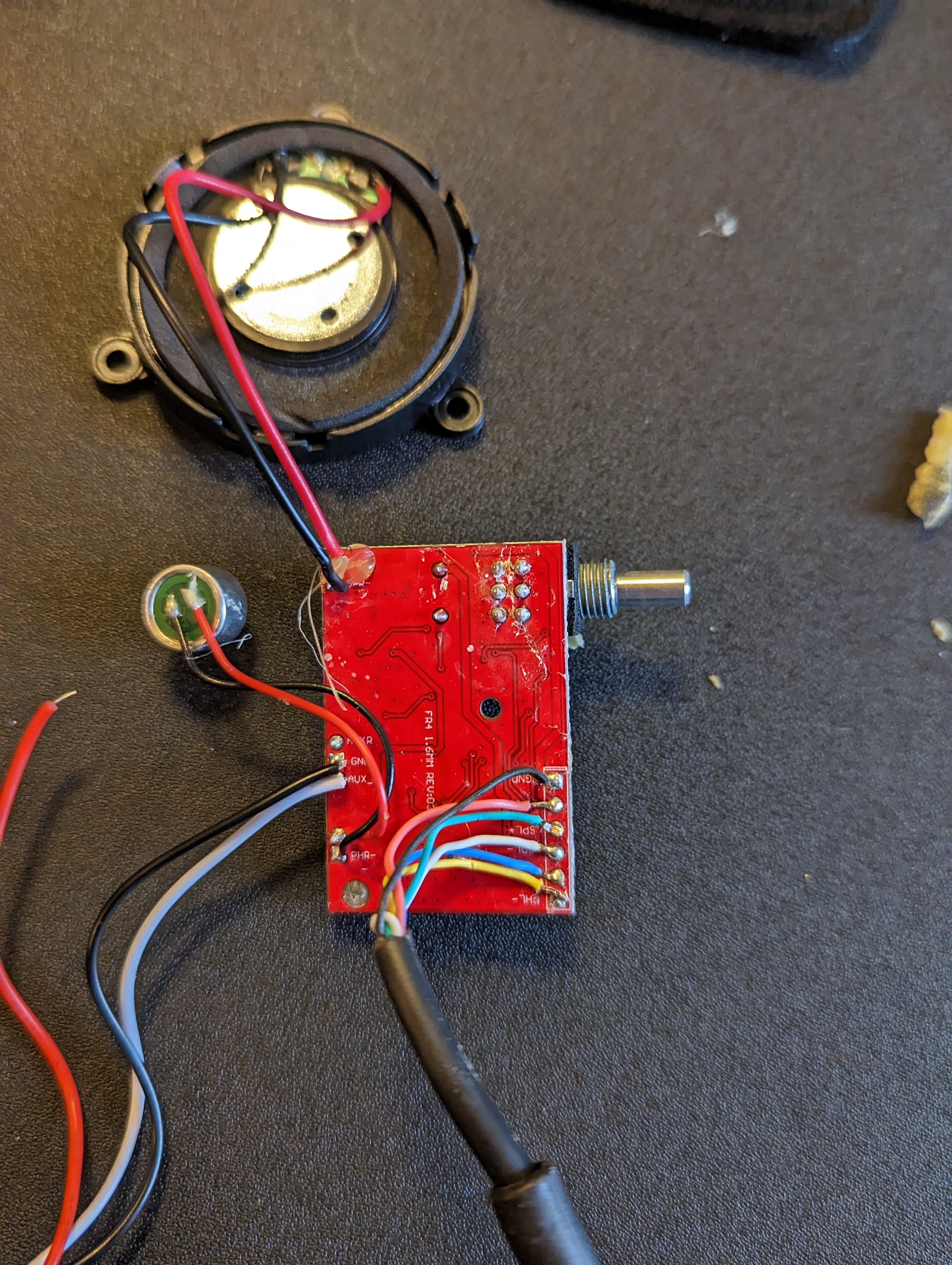

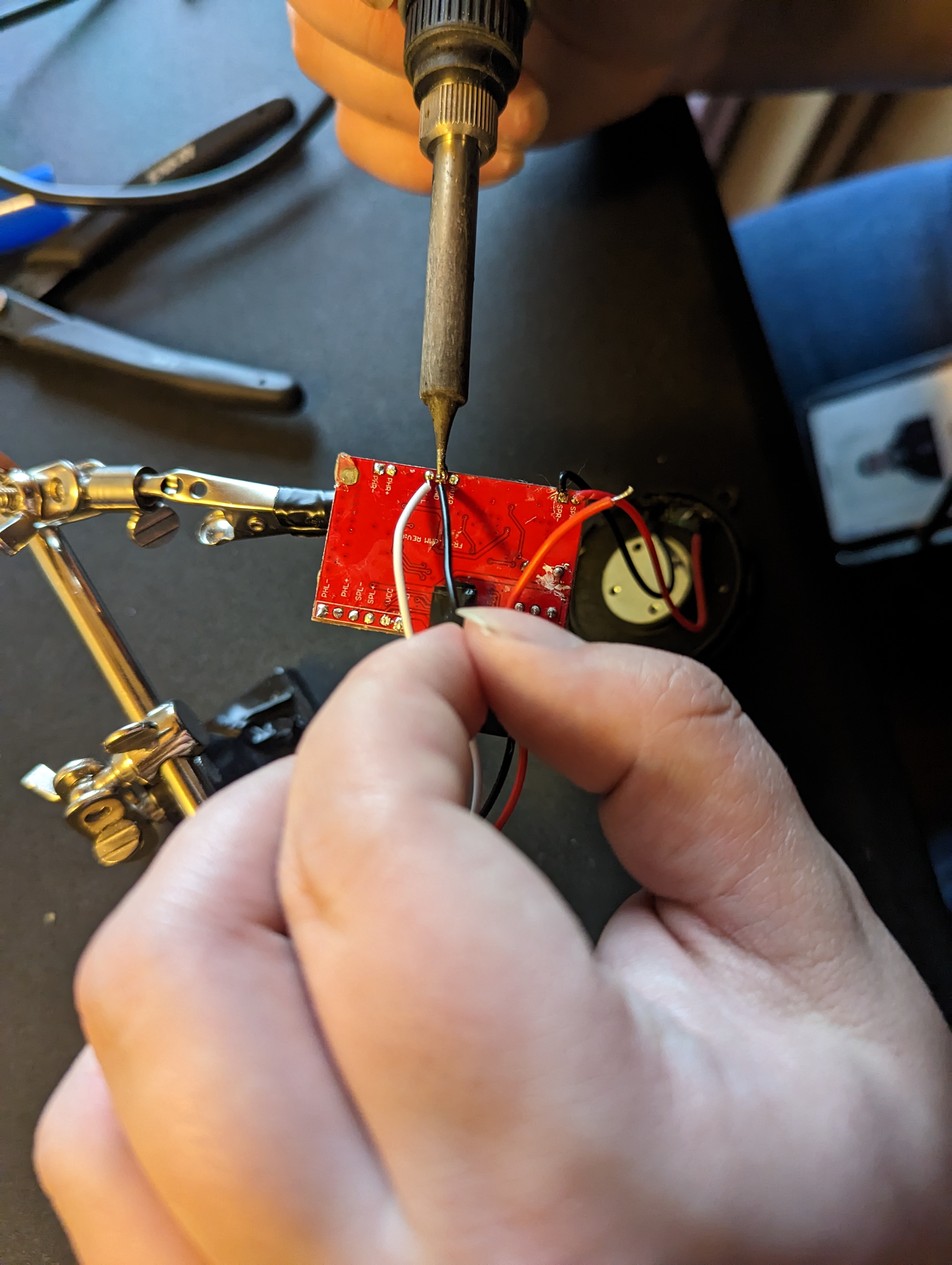

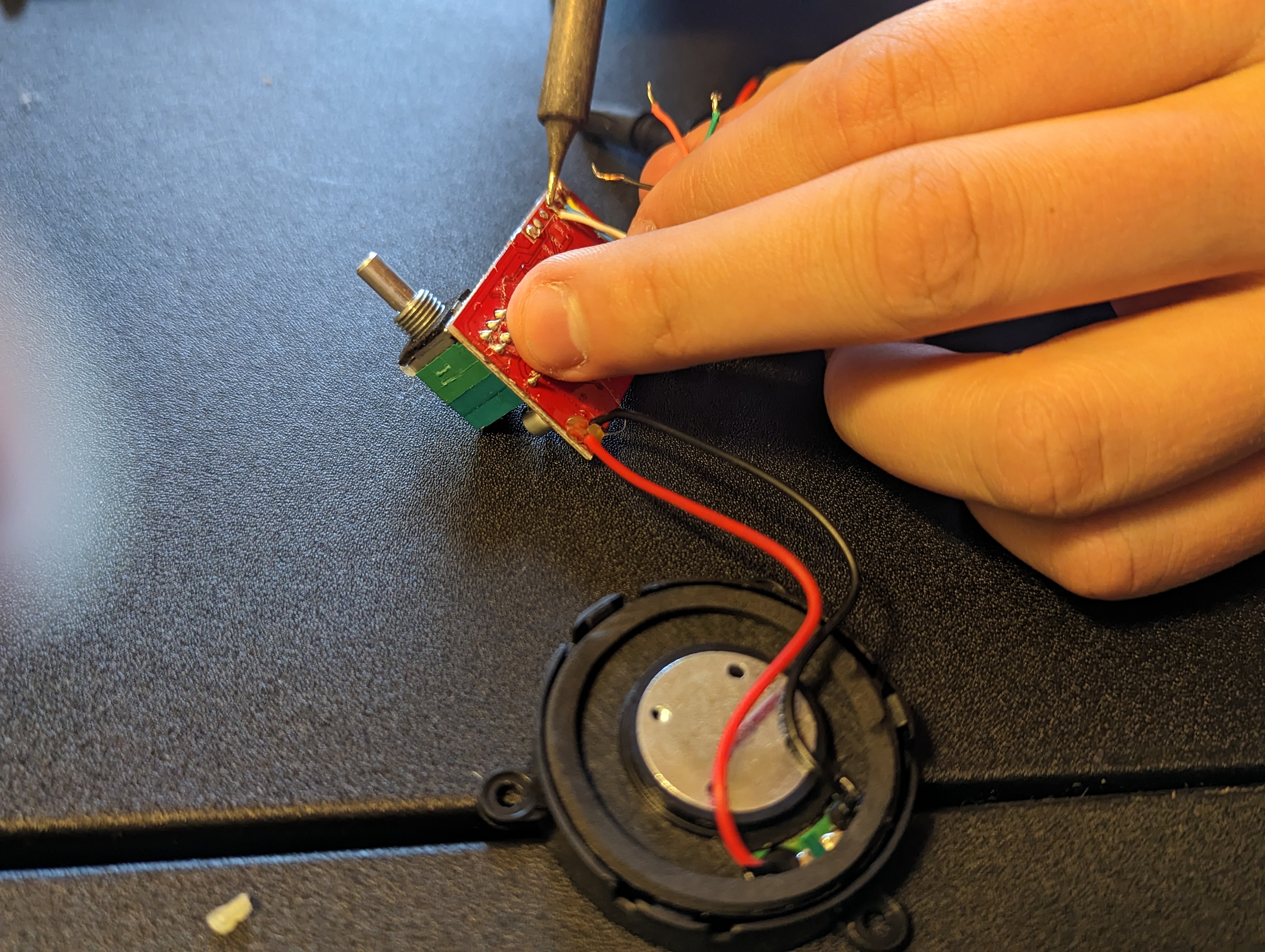

Remove the hot glue covering the solder connections on the PCB. While pulling gently on the cabling, heat the solder joints one-by-one with a tinned soldering iron until they pull loose. Remove the speakers from their plastic holders. Desolder the speakers and the microphones loose from their wiring.
View attachment 330079View attachment 330080View attachment 330081View attachment 330084View attachment 330085View attachment 330086View attachment 330092View attachment 330093View attachment 330087View attachment 330088View attachment 330089View attachment 330090View attachment 330096View attachment 330097View attachment 330098

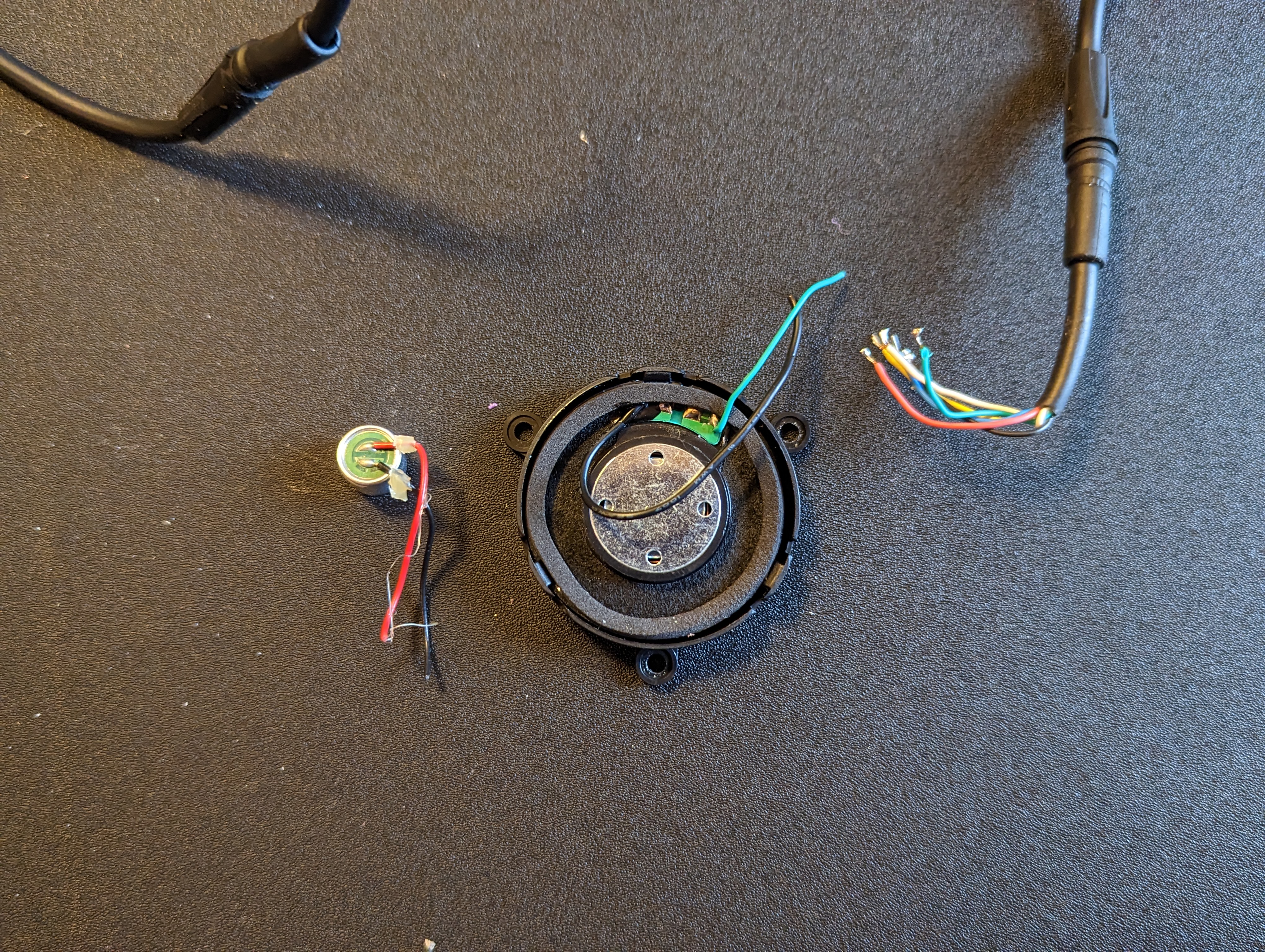

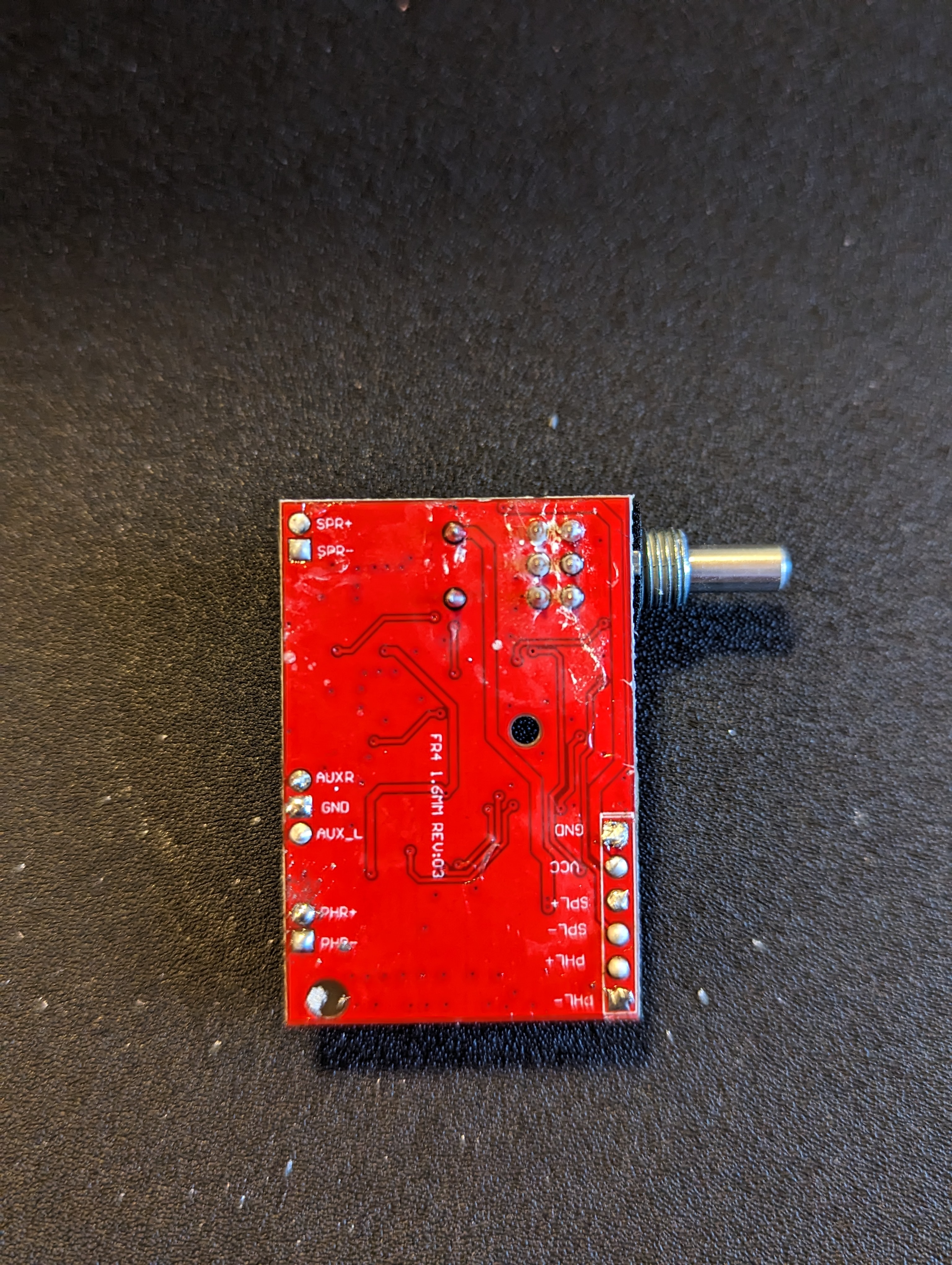

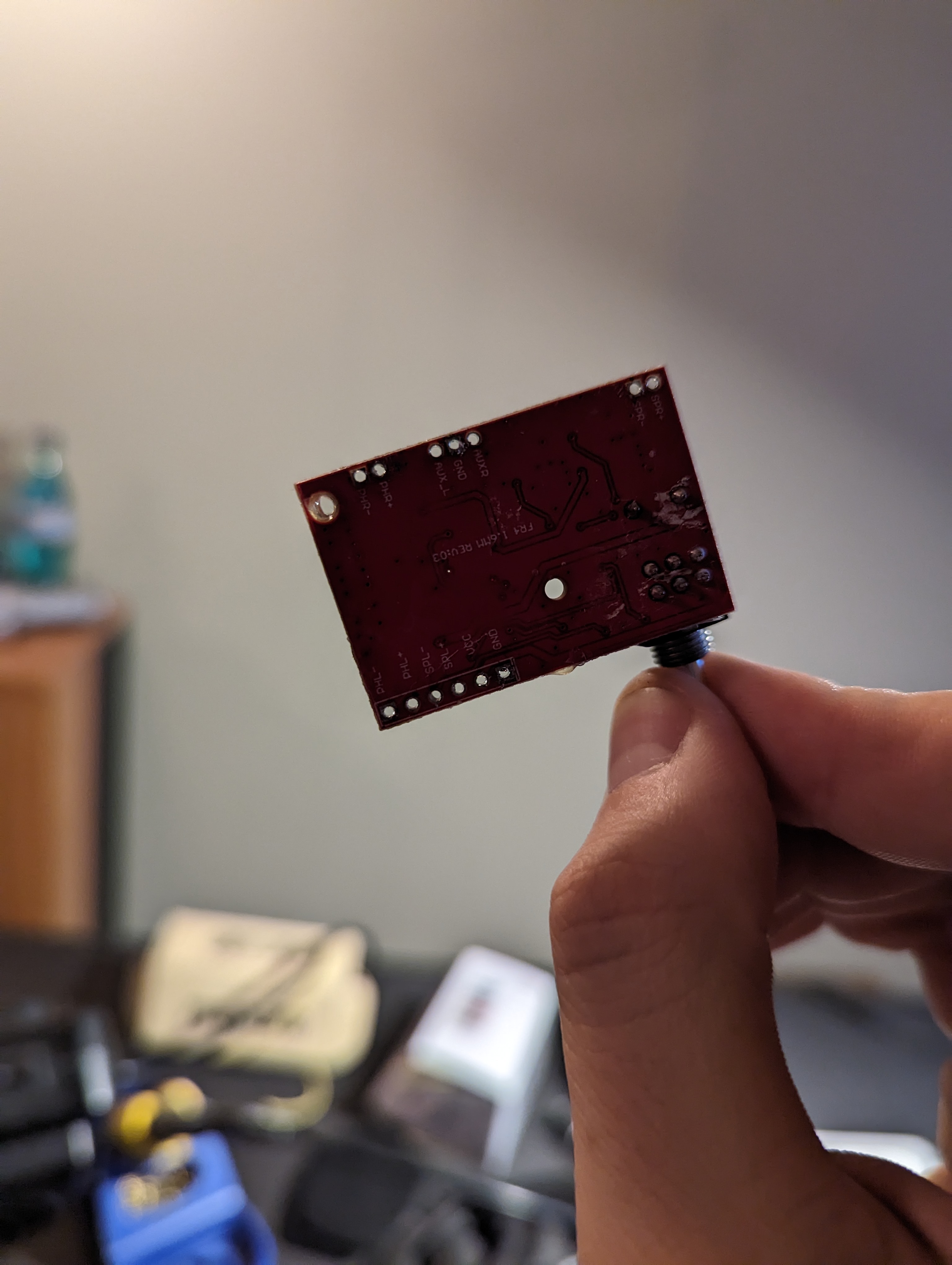

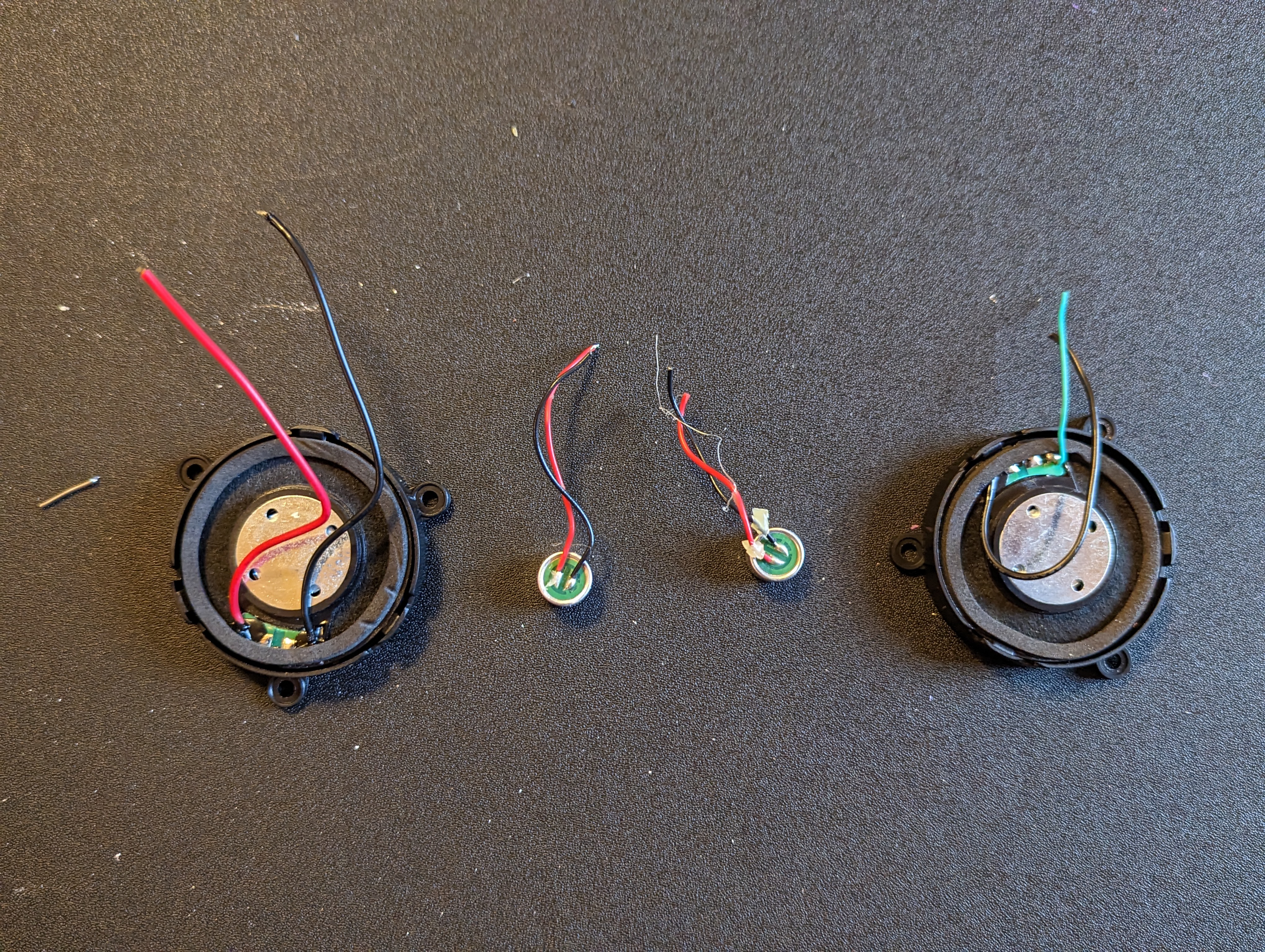

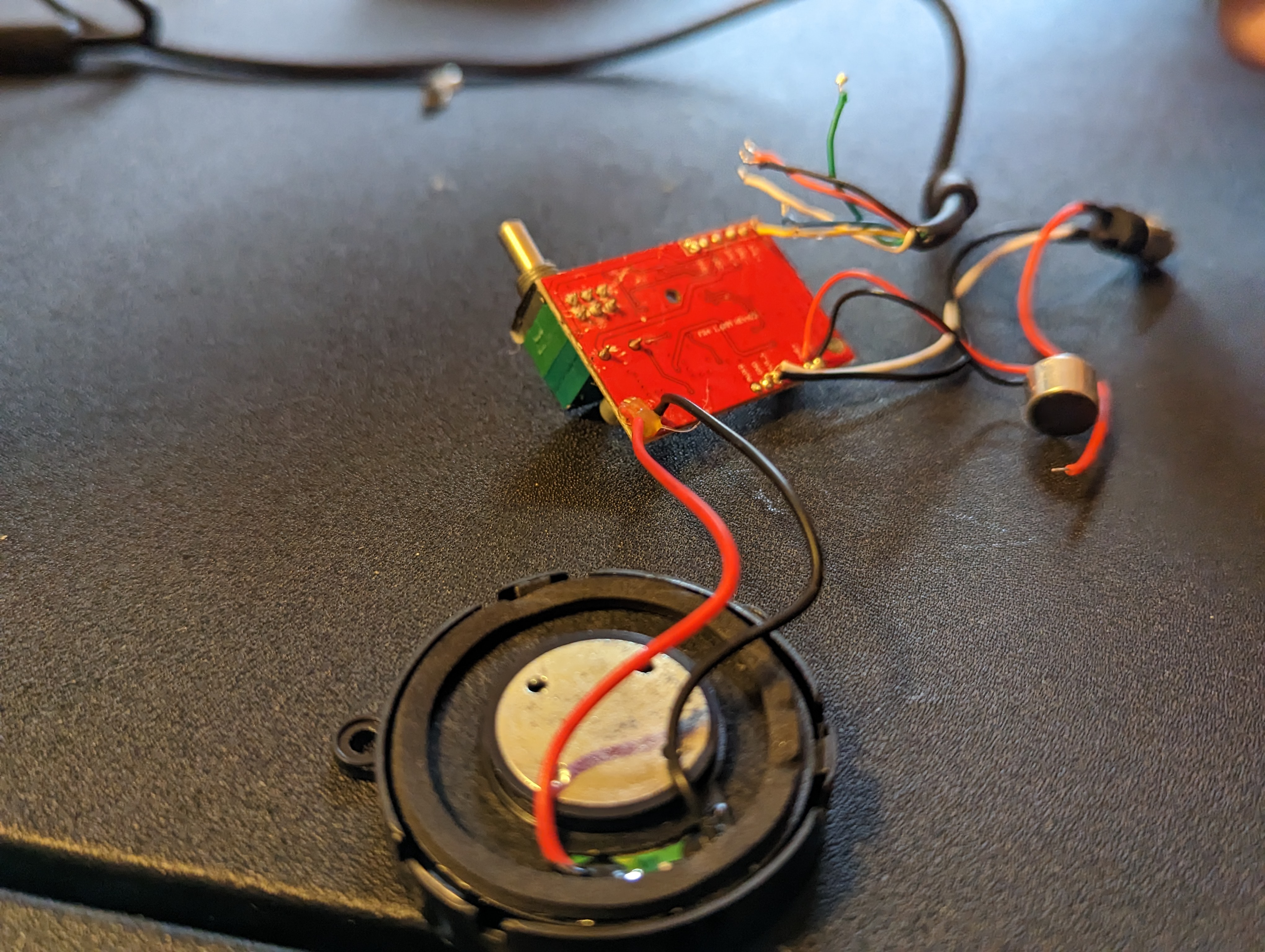

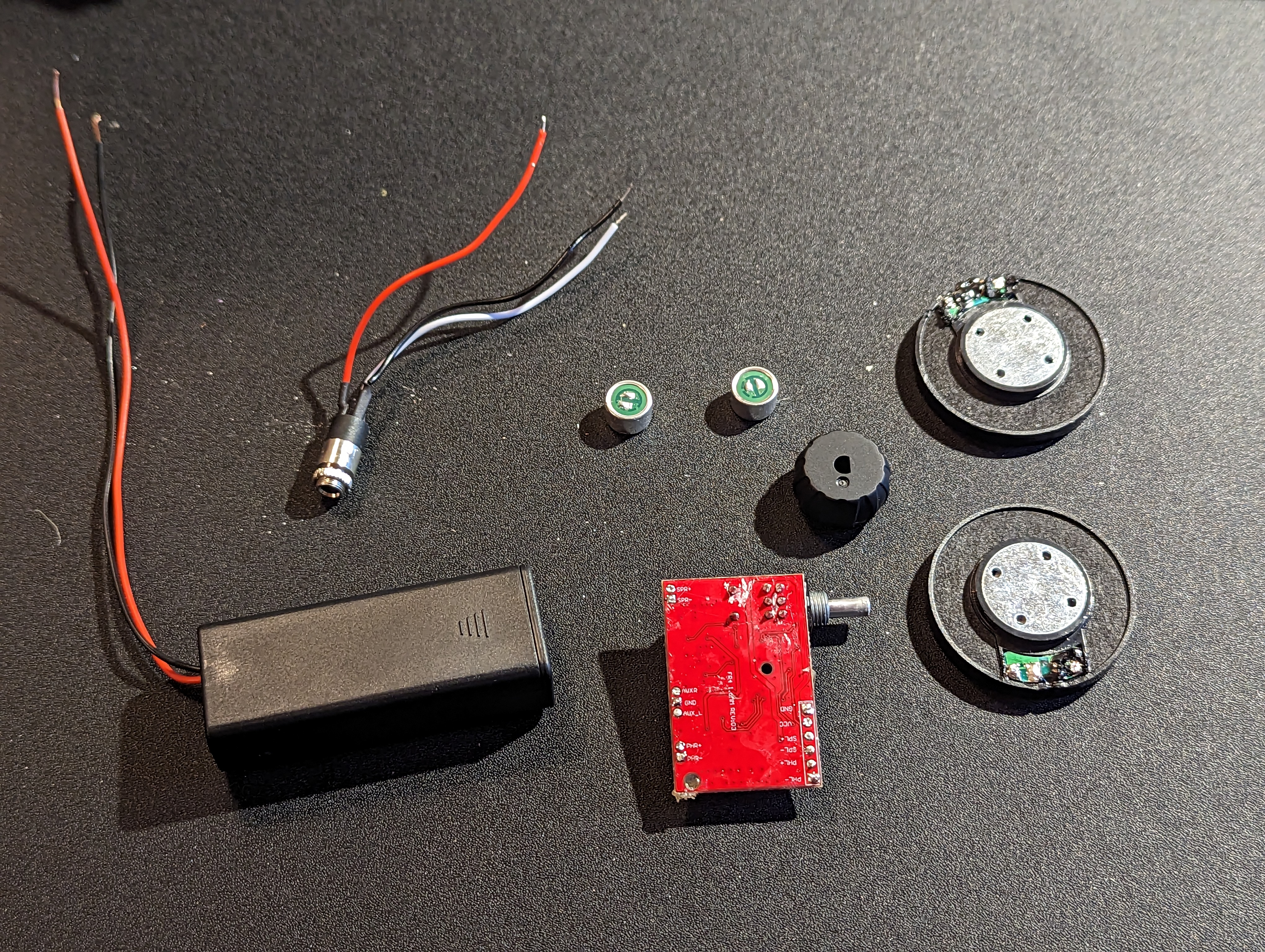

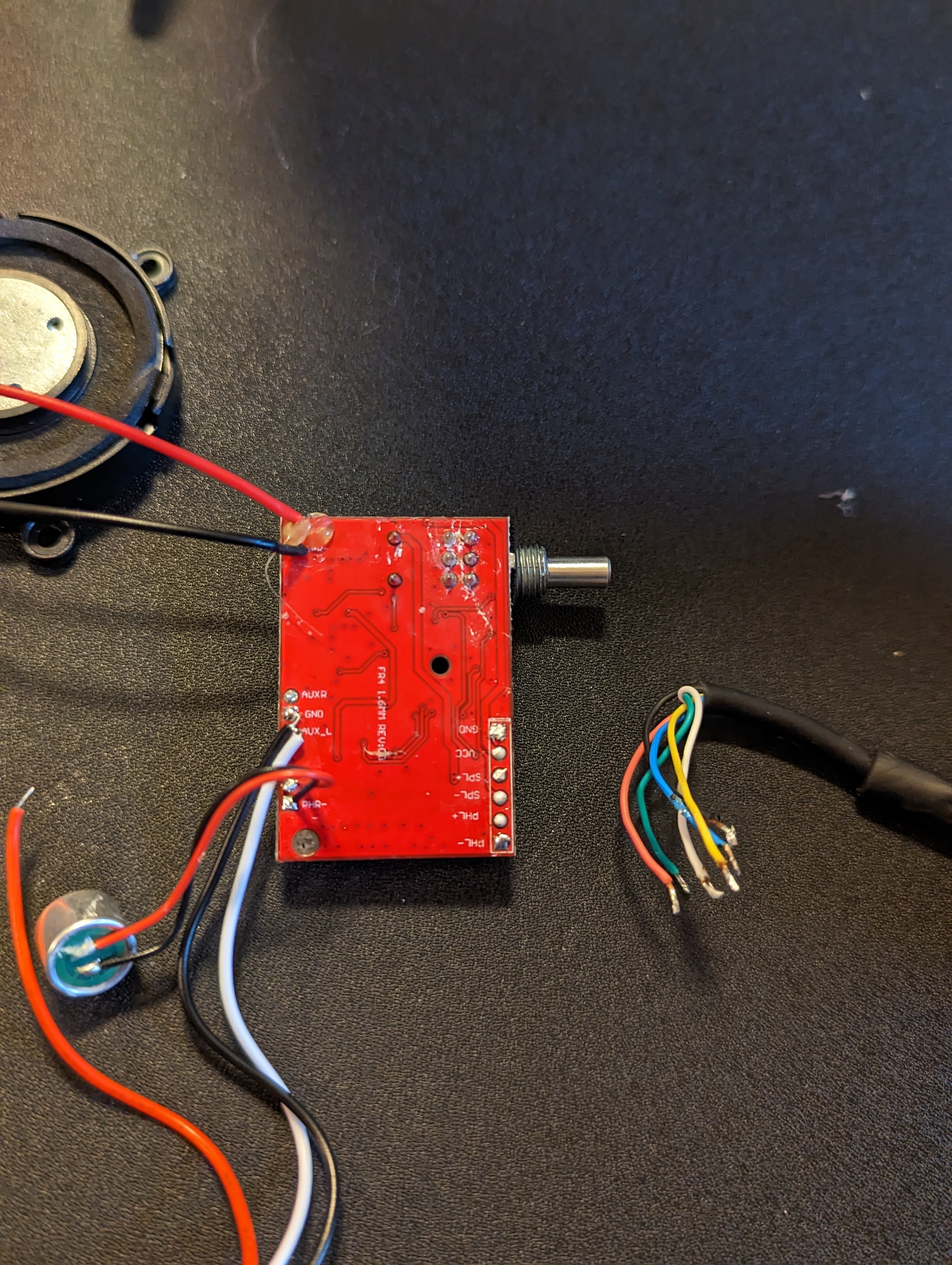

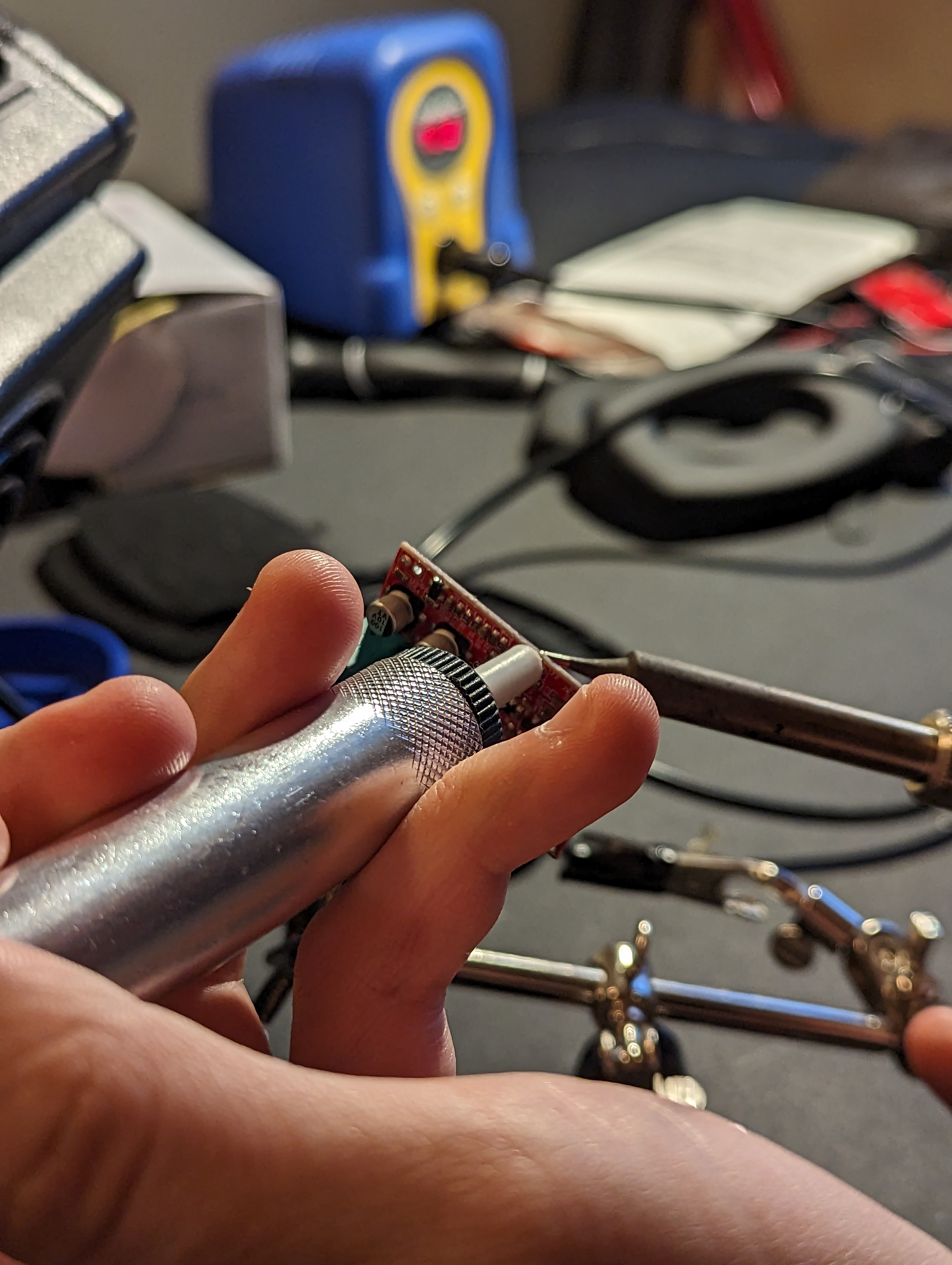

You should now have the following components: PCB, battery holder, 3.5mm jack, 2 microphones, and two speakers. Using a soldering iron and solder sucker (and soldering wick or whatever desoldering tools you prefer, clear out the holes in the PCB where the wiring was attached. This will allow you to pass the wire through before soldering, giving you a sturdier connection than the factory wiring.
View attachment 330099View attachment 330100View attachment 330101View attachment 330102View attachment 330103

Step 3: Preparing the microphones and Speakers

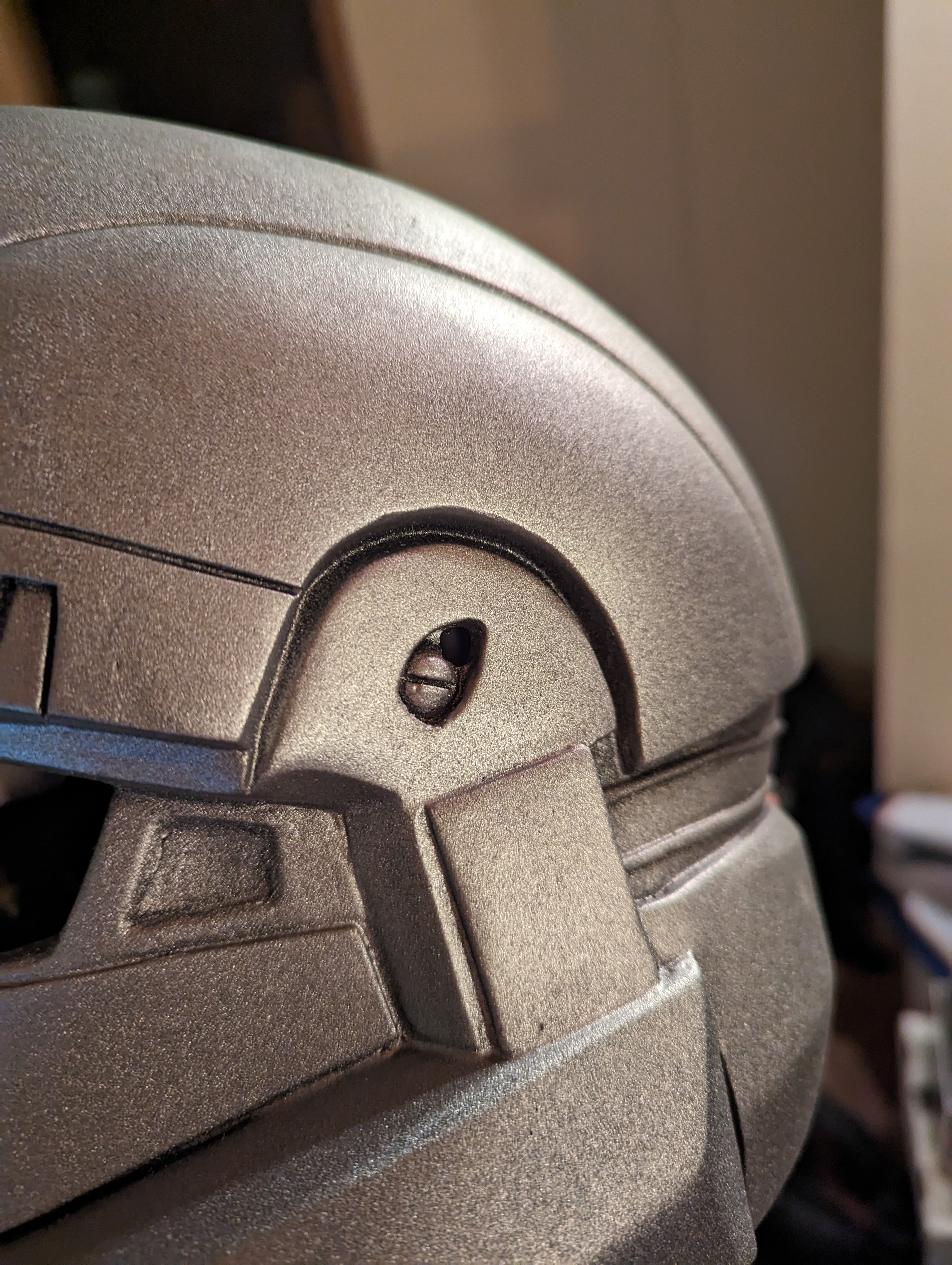

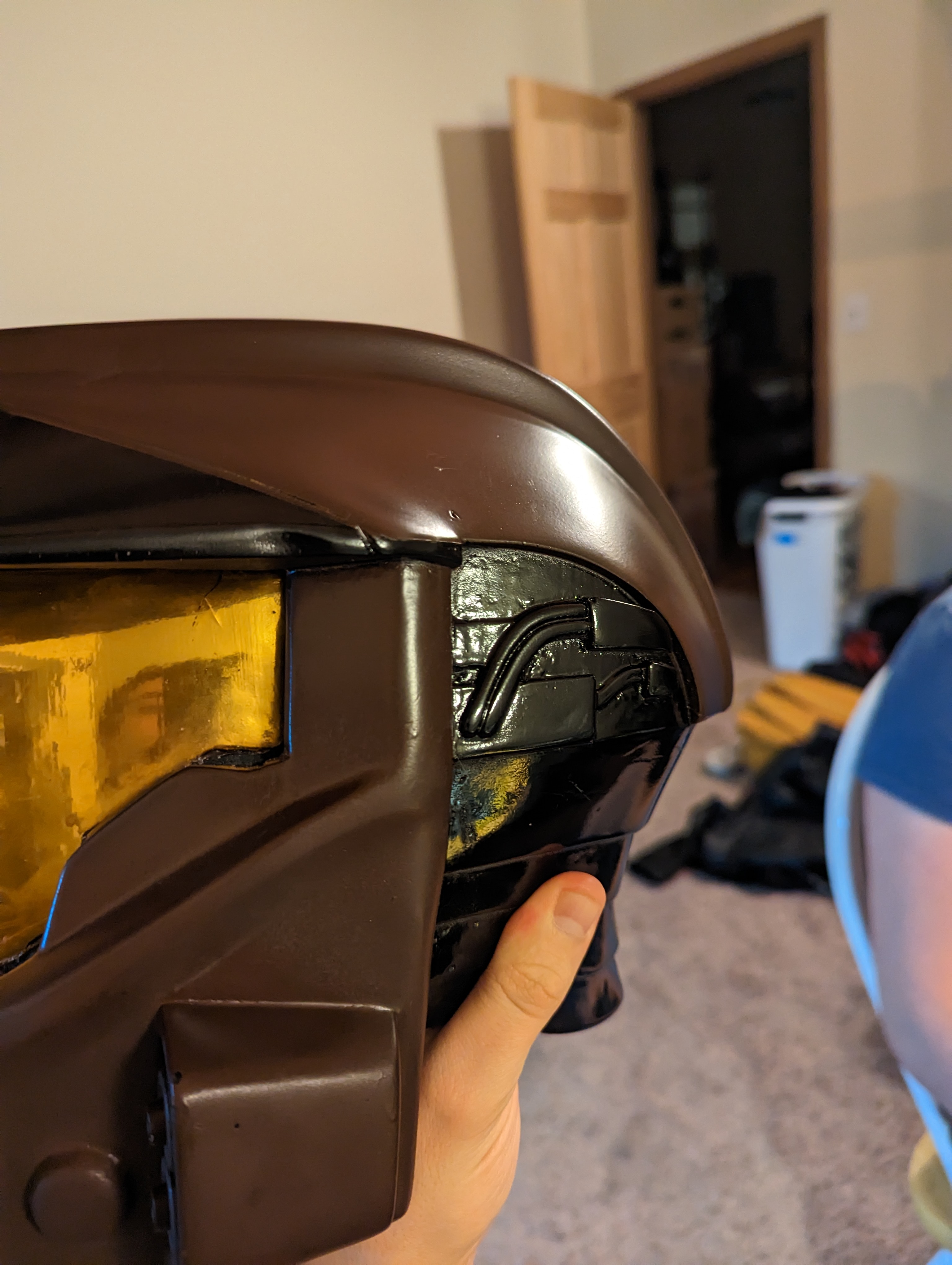

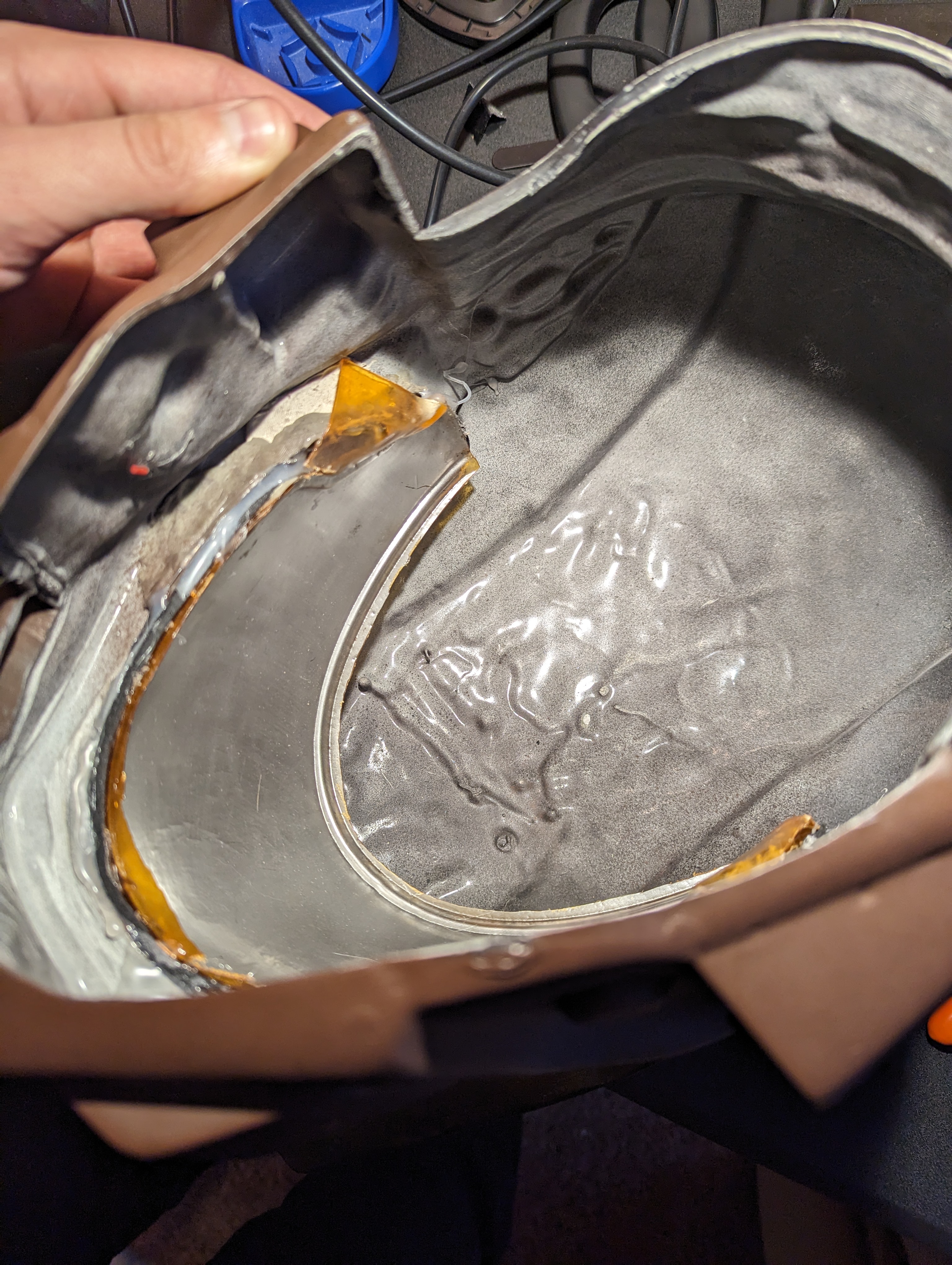

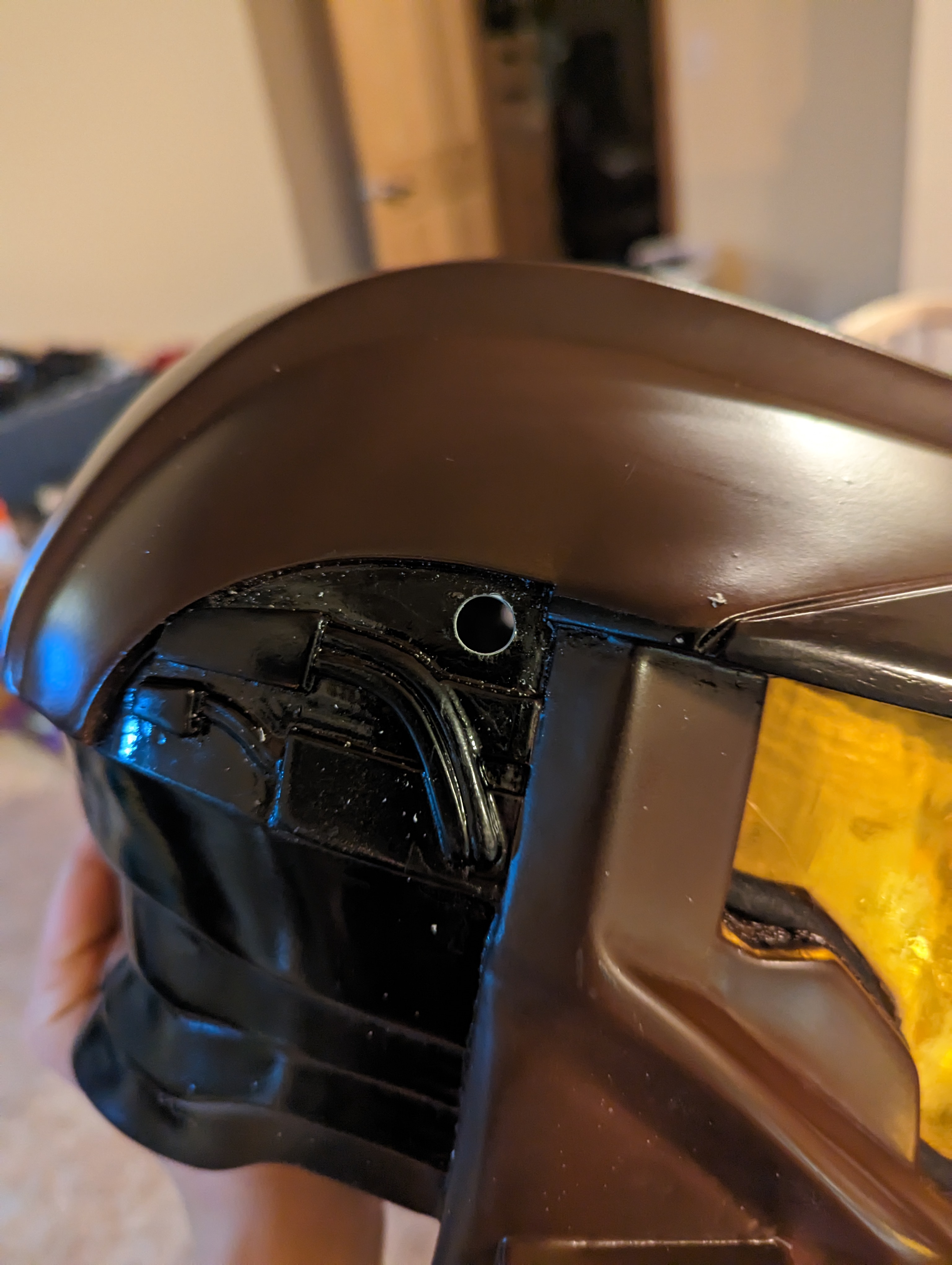

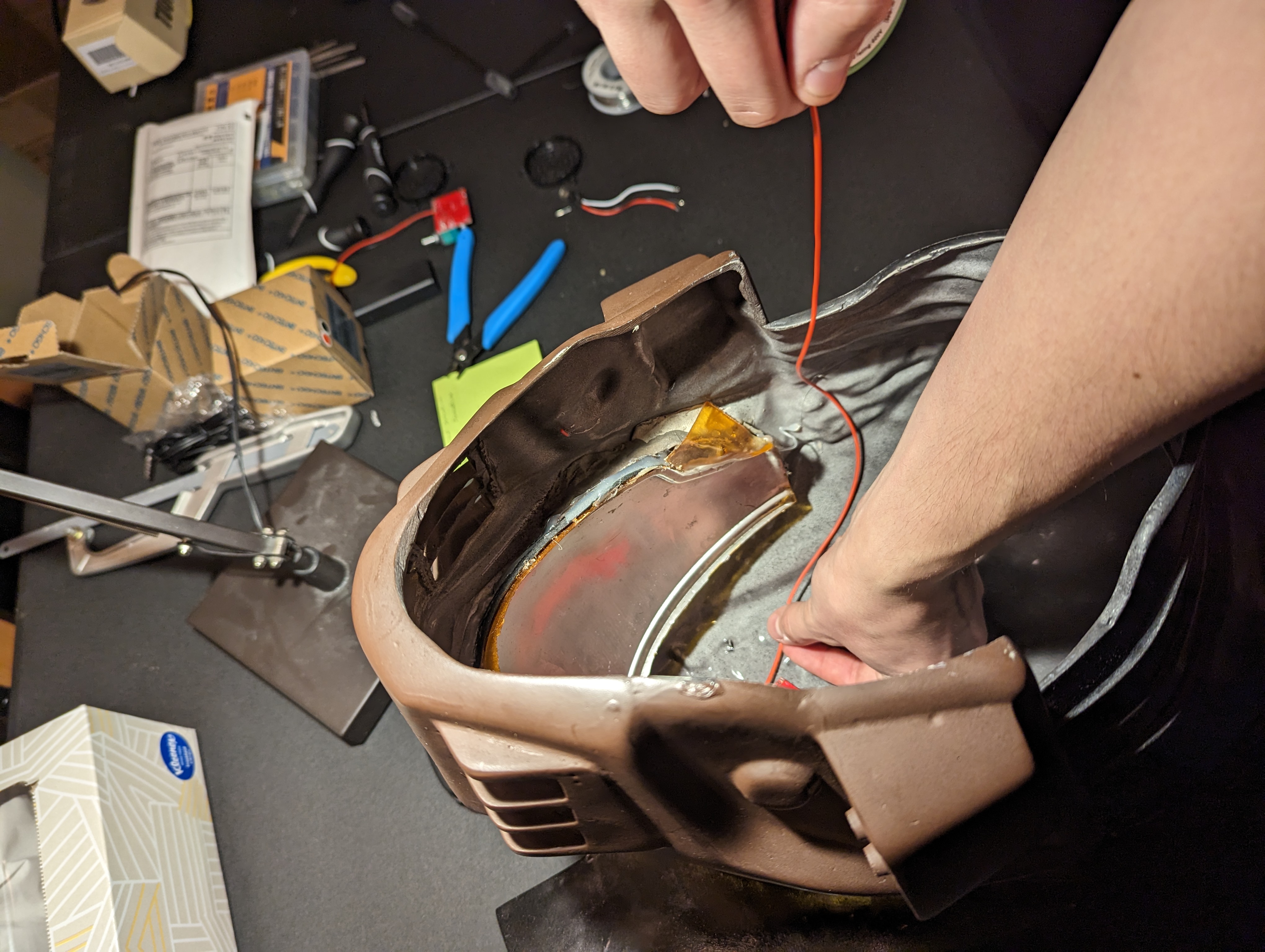

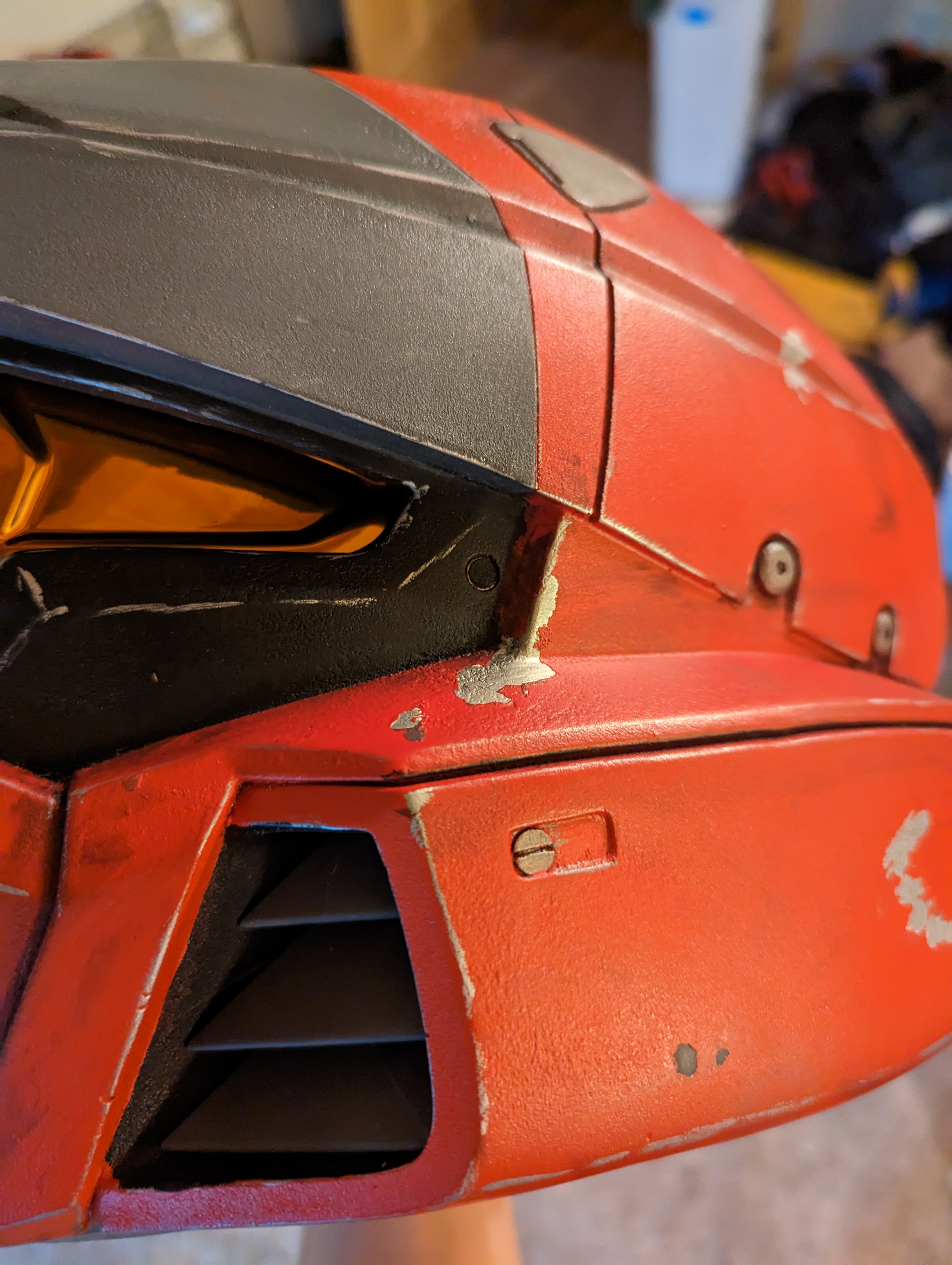

Now that we have the PCB cleaned up we’re going to estimate the length of our wiring. The first thing we’re going to do is decide on a location for our microphones. You want one on either side of the helmet in a location where it won’t be too obvious. On my MK VII (produced by EVAKura if you are looking to source the same helmet), I chose a spot right behind the visor where the helmet was going to be painted black. Take into consideration that you will need to access this location from inside the helmet to insert the microphone. Carefully drill a hole matching the diameter of the microphone.
View attachment 330209View attachment 330212View attachment 330210View attachment 330211

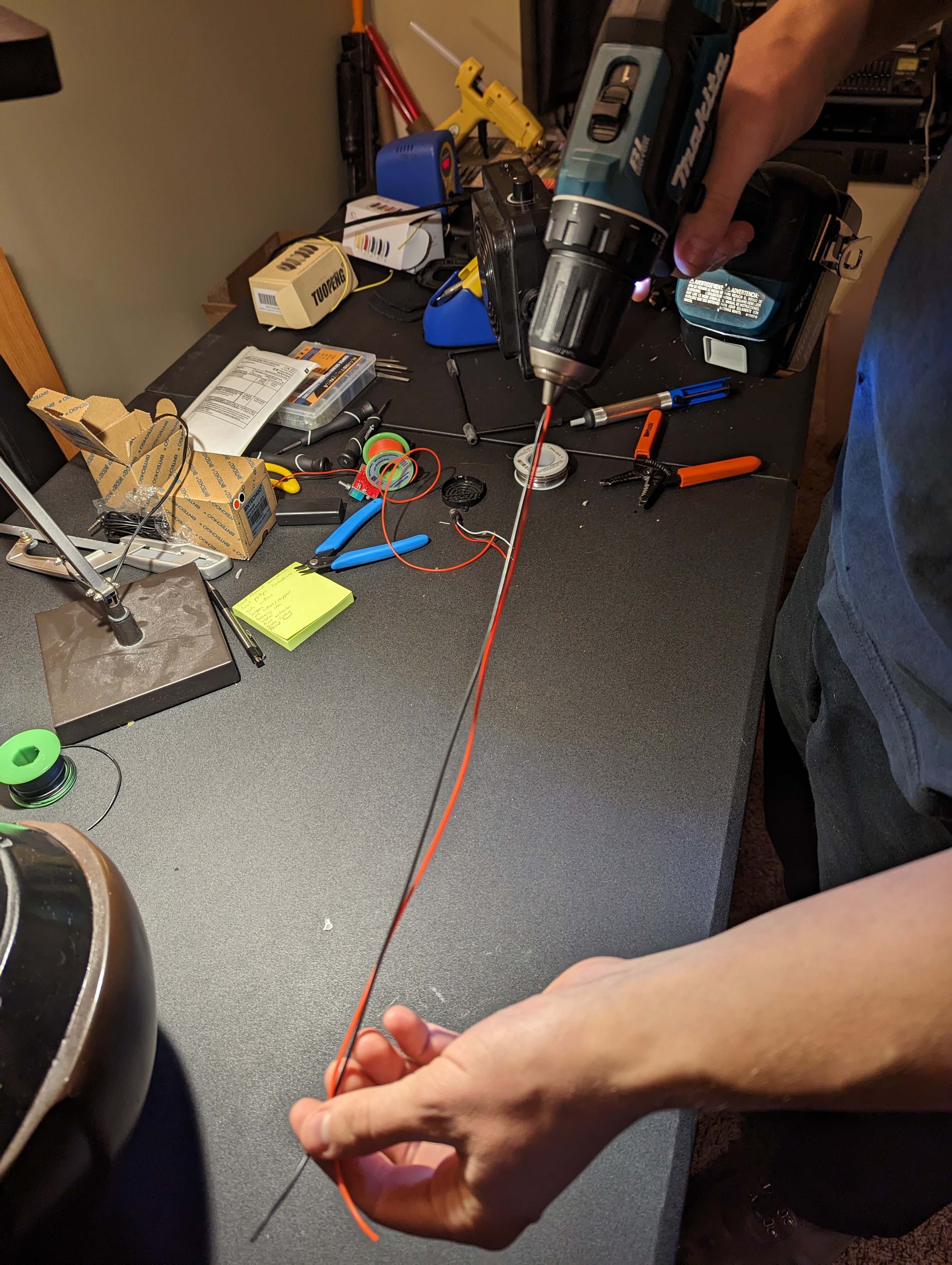

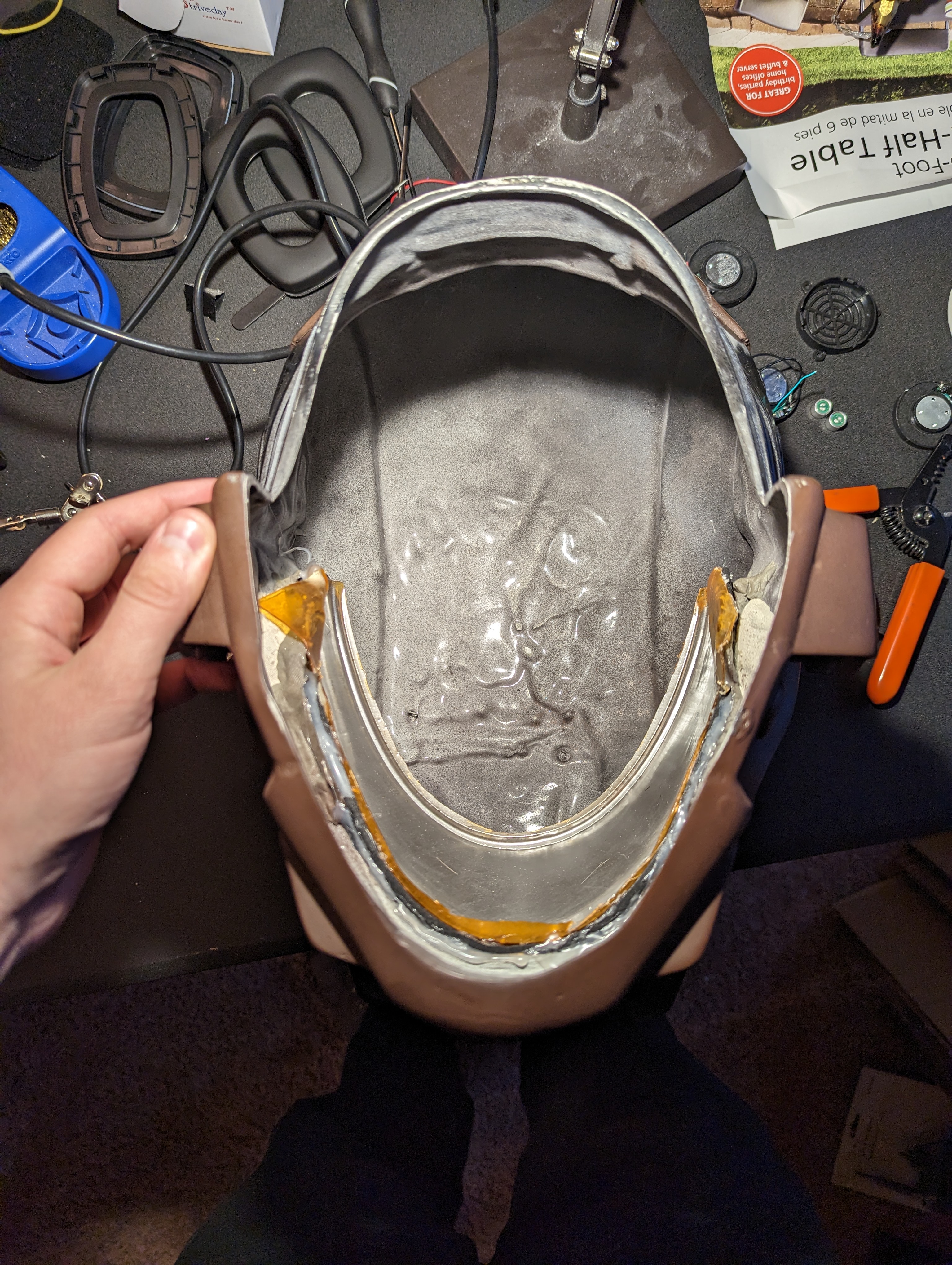

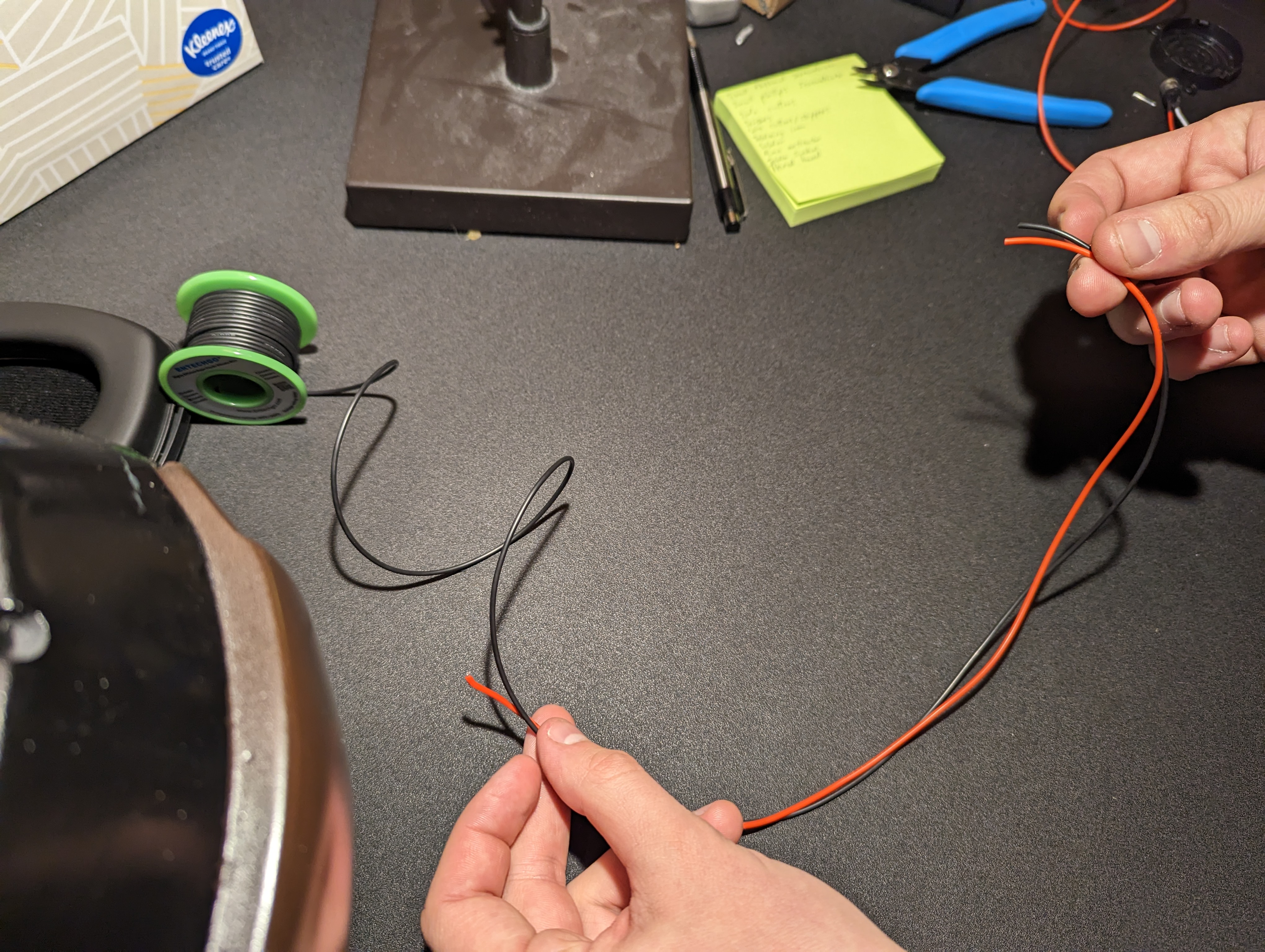

Next, decide where you would like to mount the PCB. From this location, unroll some wire and run it to one of your mic locations, leaving a little extra, and cut. Measure some wire of a different color to the same length and cut. We used red for positive and black for negative, but the idea here is to differentiate positive and negative, so any two colors will do. For a clean look, chuck these wires into a drill and twist them together. If you do so, leave some additional length as the wires will shorten as they twist together.
View attachment 330107View attachment 330108View attachment 330109
View attachment 330111View attachment 330113View attachment 330114

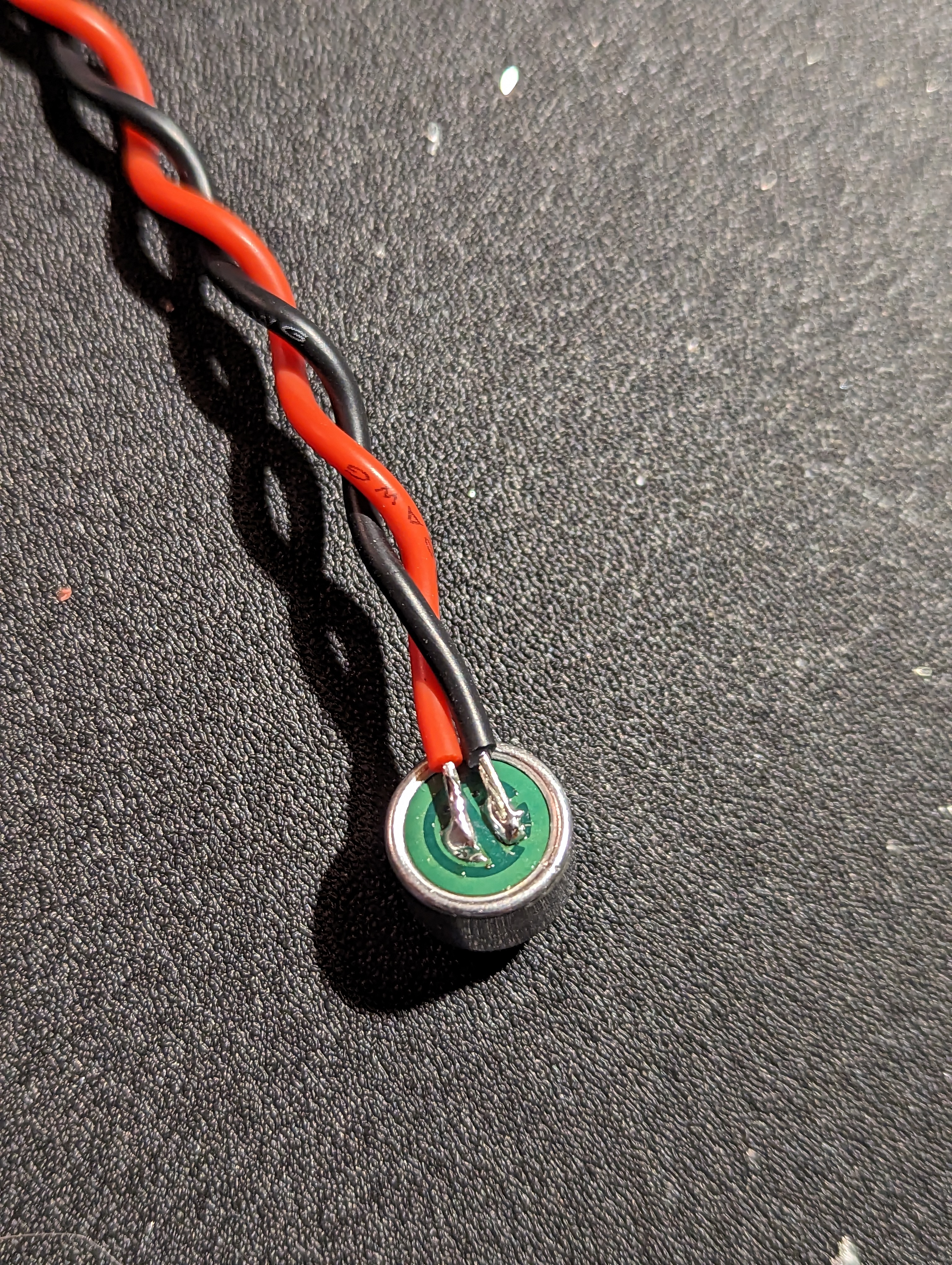

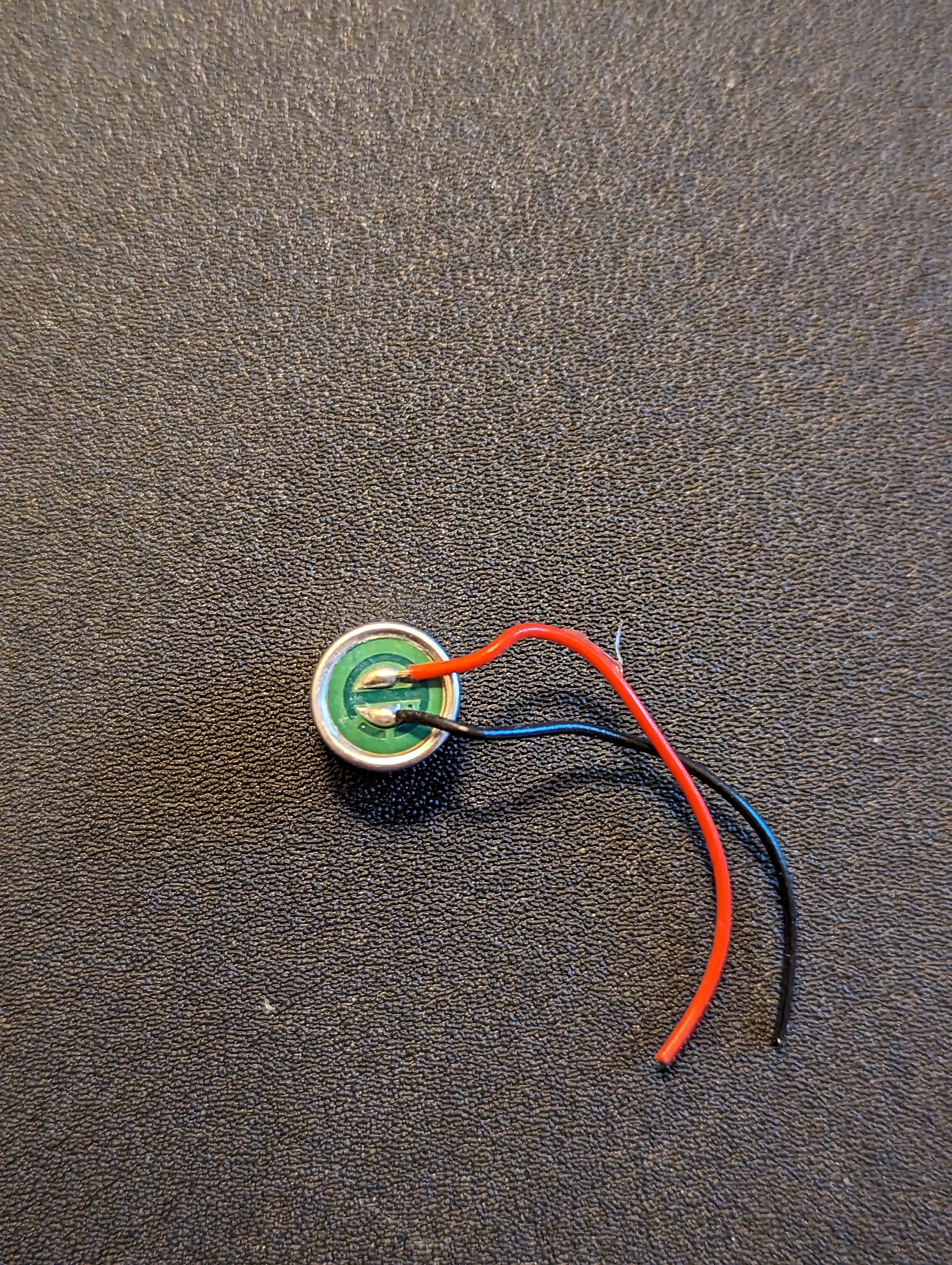

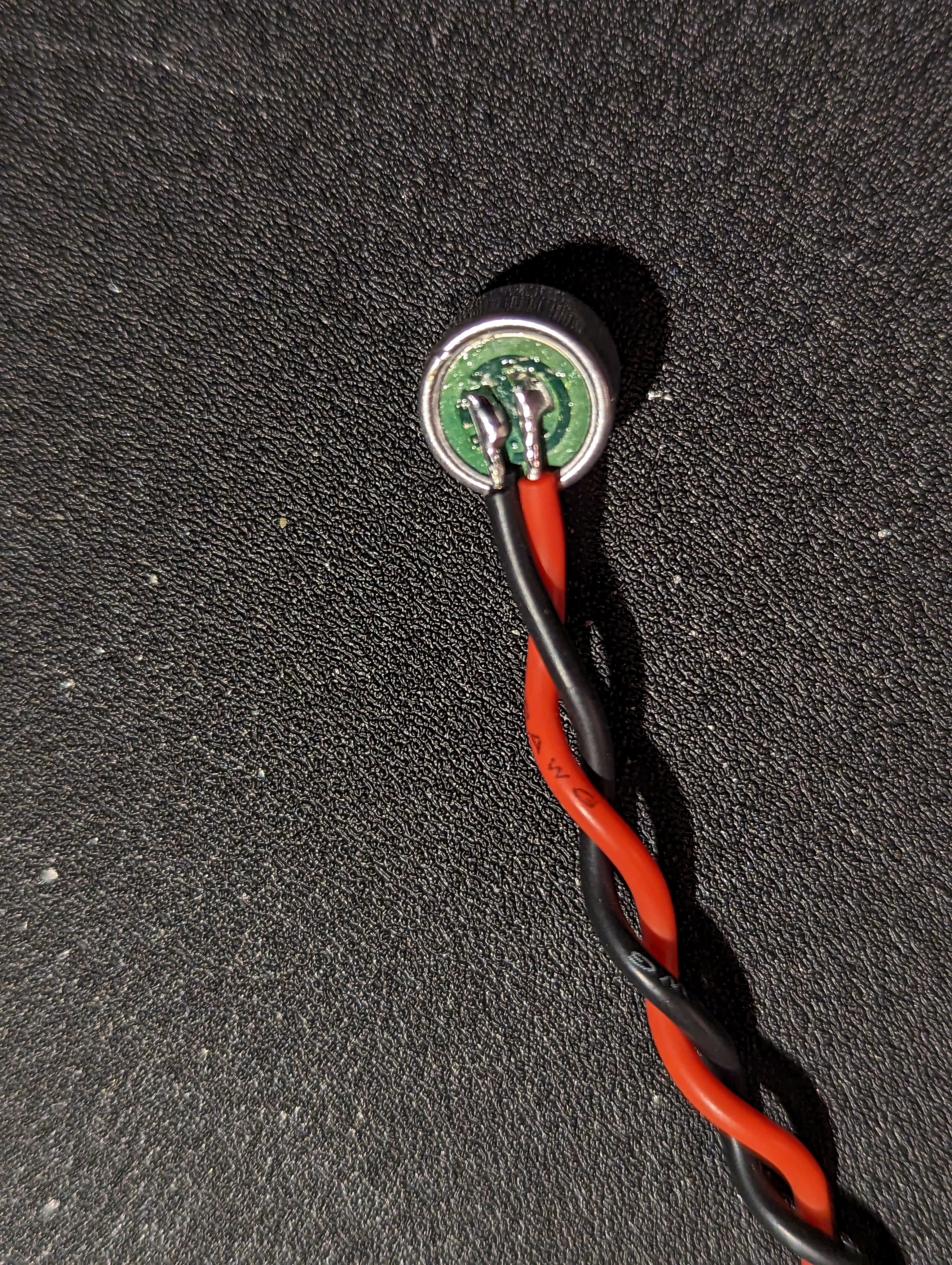

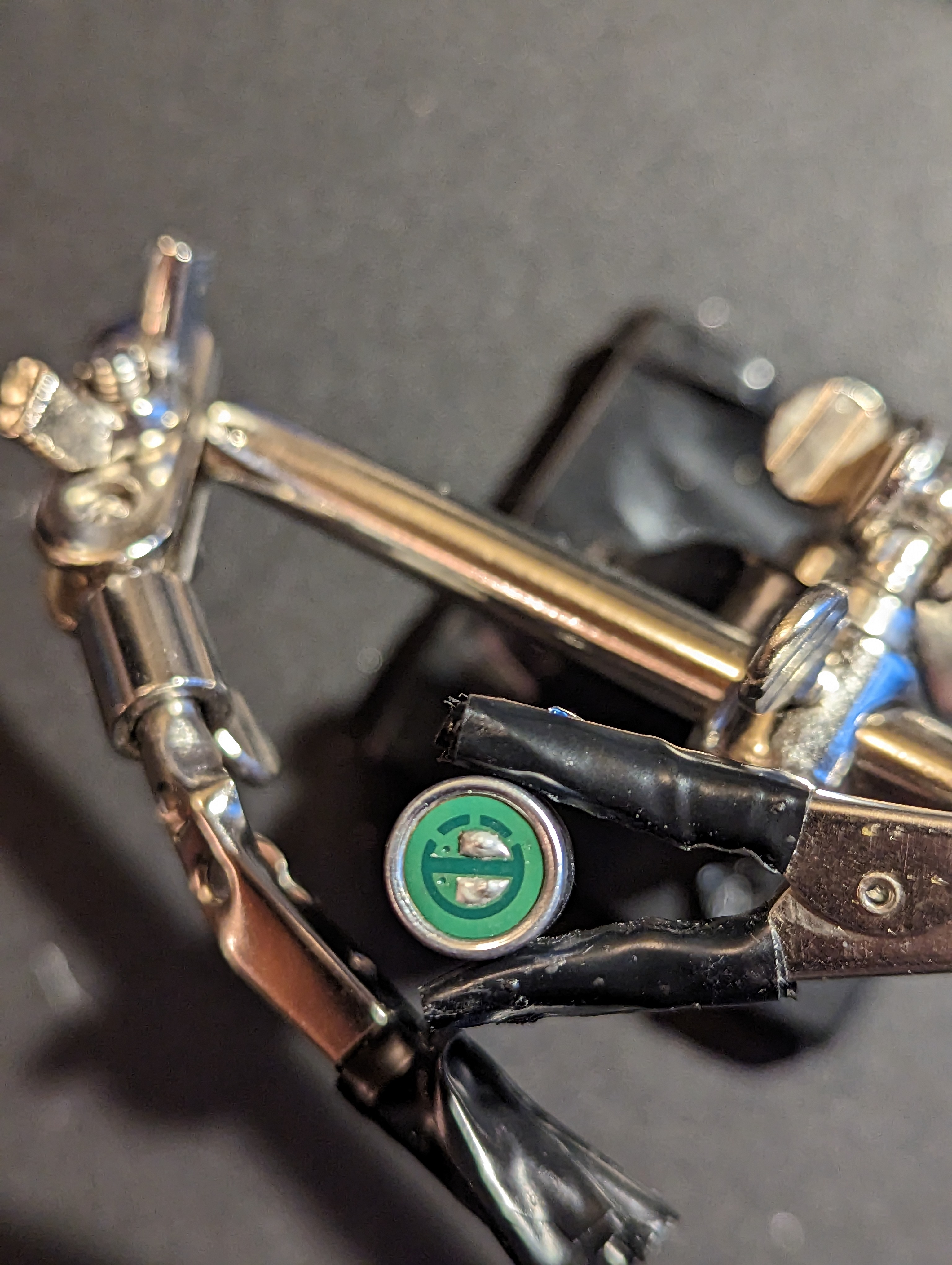

On the back of one electret microphone, solder your negative wire to the pad with traces running to the outer ring and your positive wire to the semicircular pad beside it.
View attachment 330115View attachment 330116

Repeat this process for the second microphone.

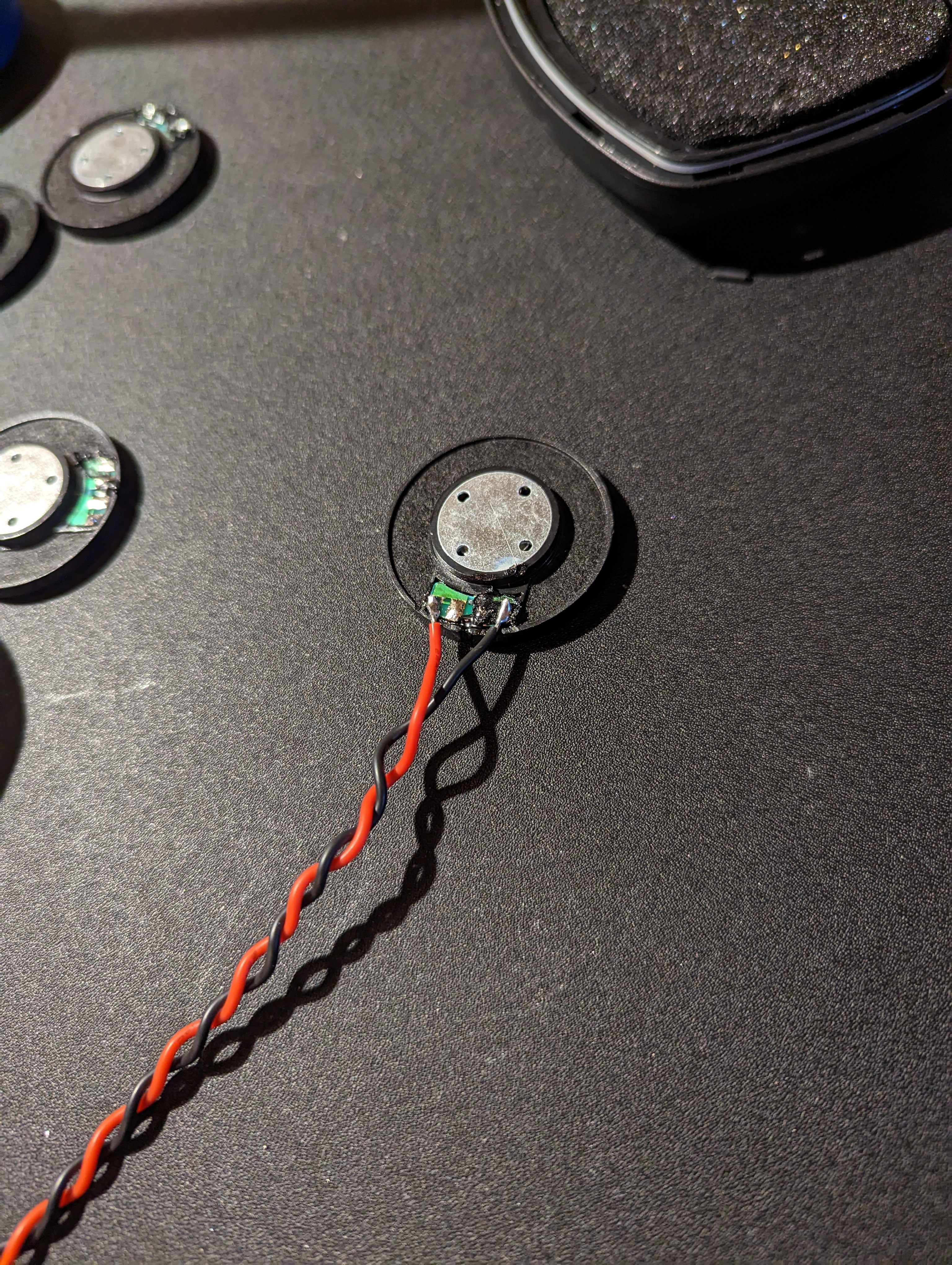

In the same manner as the microphones, cut one set of wire for each speaker. It doesn’t matter which pads you use for positive and negative, so long as you are consistent from speaker to speaker. Otherwise, they will be out of phase (it’ll sound weird, trust me).
View attachment 330135

Cont.

I am so unbelievably glad that I found this thread, thanks a ton for the tutorial!
