Mjolnir Armour Safe/Storage vessel

[U513]

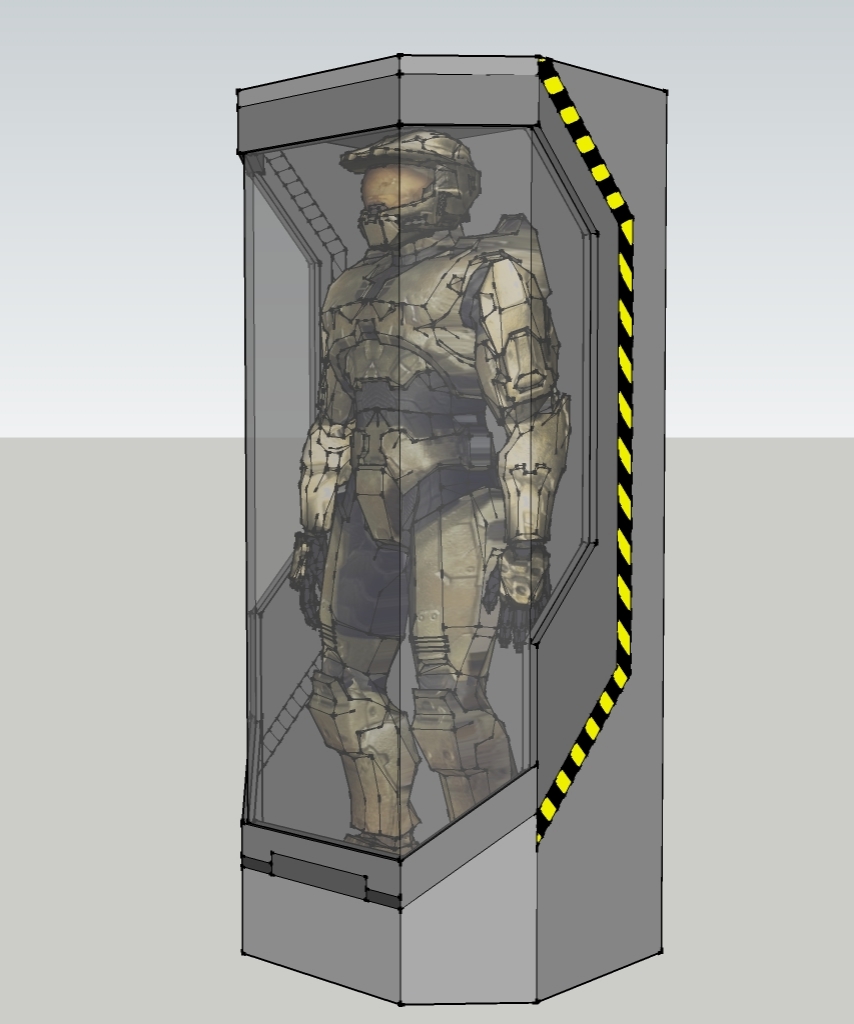

So I have been working on a few desogns and building stuff up in my head. I have started to draw it out on CAD and add a few details. Still a lot of detailing to do but this is what I have so far

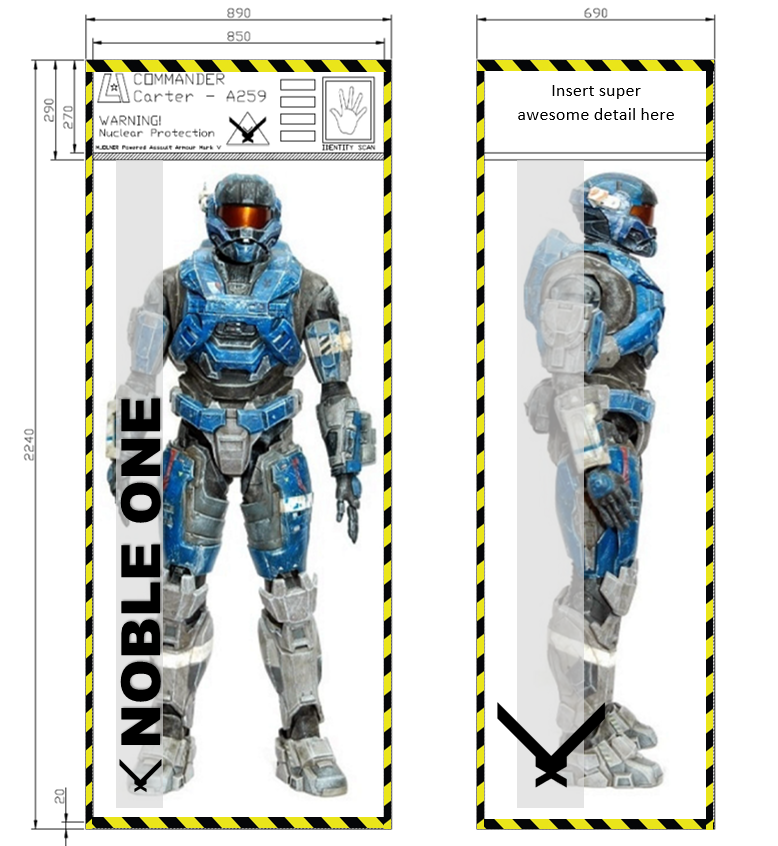

this is all to scale but I am thinking of having bulkier wood to give the skeleton a chunkier look.

The three sides will be Perspex with the back being solid wood

Ill also have some sort of thing at the top from which pipes will come out and attach to the suit when it is in storage ..im thinking its a nuclear reactor!!! so it can be used to power maybe a small base?

still a lot of work to do but this should give you guys a bit of an idea in terms of what I am going for. Input will be awesome!



[U513]

Reserved for future posts



[U513]

Reserved for future photos etc



[Demogorgon]

I really like this idea. I was trying to think of interesting ways to store and display my armor (once it's finally completed) in a more satisfying way than just a pile in my closet or on a dummy. One thing I think would be really awesome is where you have the details on the acrylic (or perspex I think it is the same thing) you could laser engrave the details (so the Spartan's information on the front face and the vertical bar with the reach graphics) and then install L.E.D's at the top and bottom so that the case kind of glows the color and the laser engraving would actually light-up with the rest of the perspex remaining colorless (sort of like fiber-optics), something like this:

As for the back side, it would be pretty cool to print out a large graphic for it (maybe going along with the whole nuclear reactor theme).

Anyways that's just some ideas I had for you haha. I'm looking forward to seeing more!



[U513]

Thanks mate

The image i am using for getting most of my thoughts / inpiration / reference is this



I plan on having the inside very similar in terms of the pipes attached to the suit etc

I would lover to laser etc details on the perspex but i dont have any idea how i would even start or where i would go to have this done. The other option i am thinking of is if i use frost paint which may have a similar effect.

The back will have the sword, ammo, DMR and other weapons mounted to it. I also plan on having 4 hooks on each corner so the vessel can be lifted. I will have to look at the electrics as i would want the LED's to run from the mains and how i would go on about doing this. It would be awesome if i could do that More to follow.



[U513]

ok, been updating and refining the designs. Also been looking for some reach/halo decals and came across some from Crimson and Tabris89. I have amended them a little and redrawn some to suit my needs.

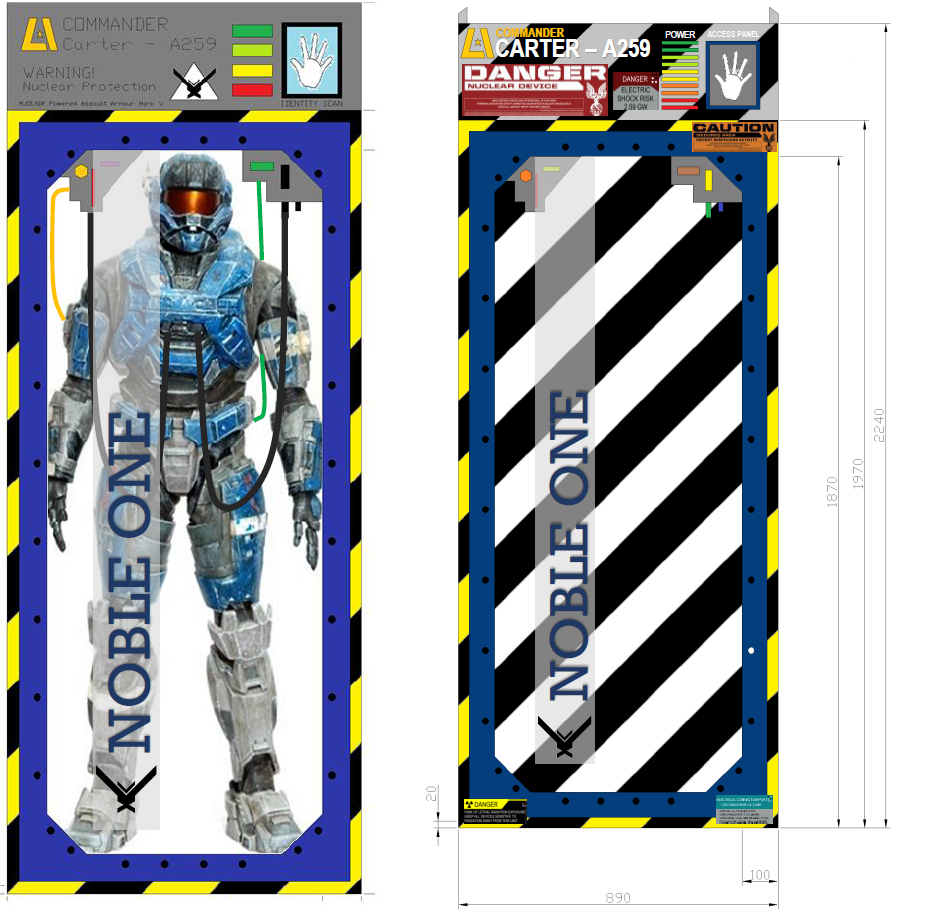

so, to the left is what the suit will look like when its all hooked up with different coloured pipes to the storage vessel. to the right is the background I am going for. I wanted the storage vessel colour scheme to be similar to the armour so I have taken my inspiration from there. Just need to add some red strips here and there.

I think its coming along nicely.

These are the labels I have made/borrowed/will be using.





as always feedback please. I have not seen a storage vessel attempted before but then I don't really troll the internet too hard.
