Update with photos!

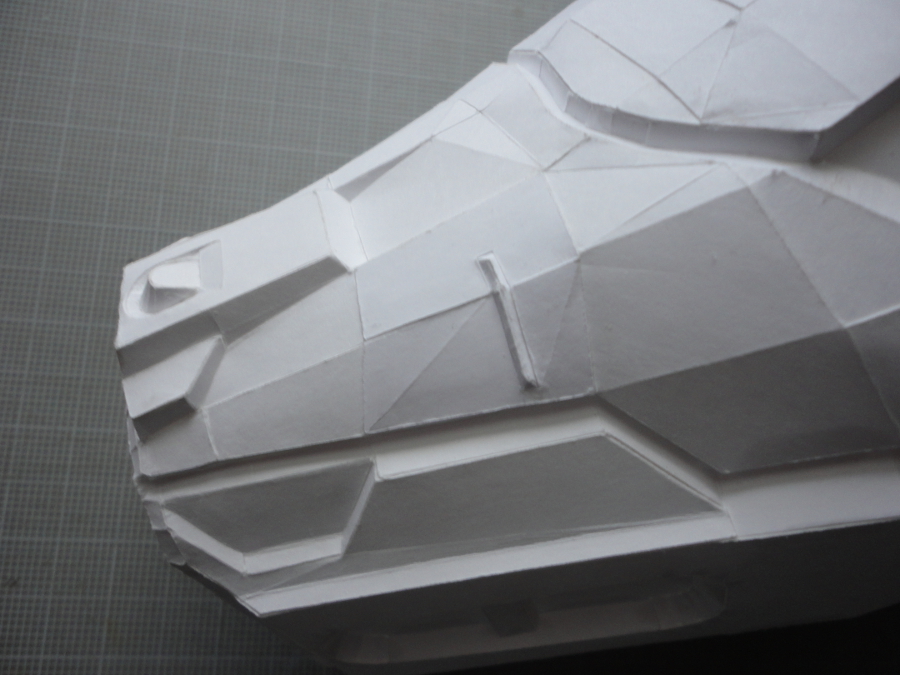

Like I mentioned earlier, the unfold was revised for antecubital details resulting in smoother curves on the front, better alignment with the forearm faces, and quicker assembly due to fewer parts:

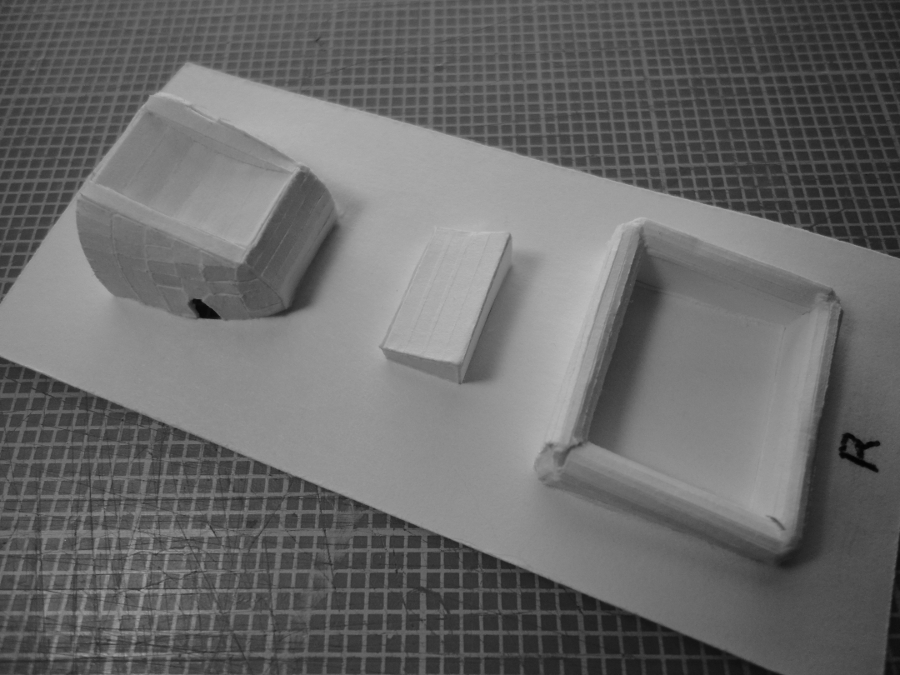

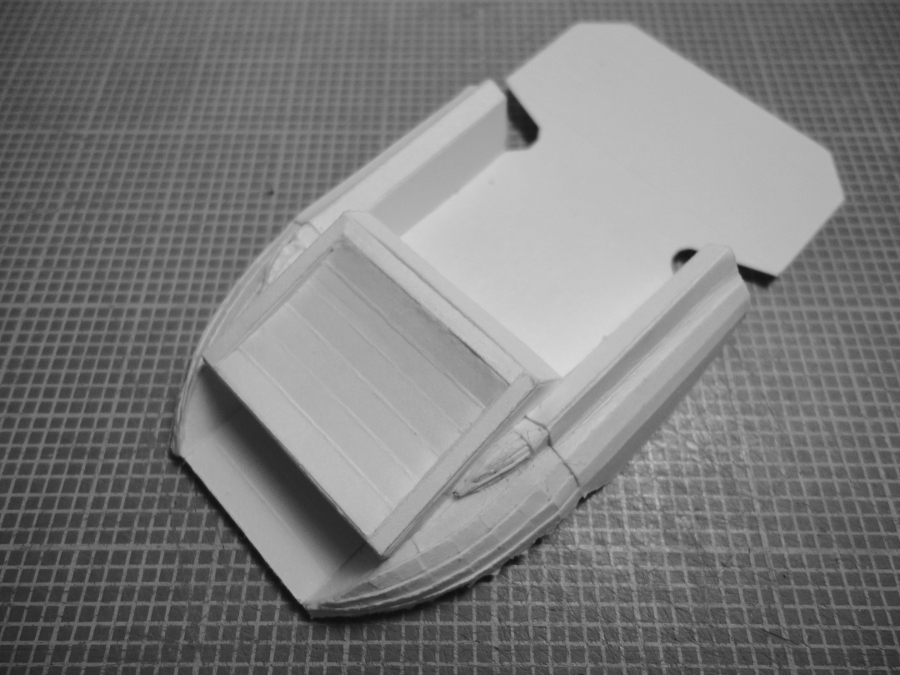

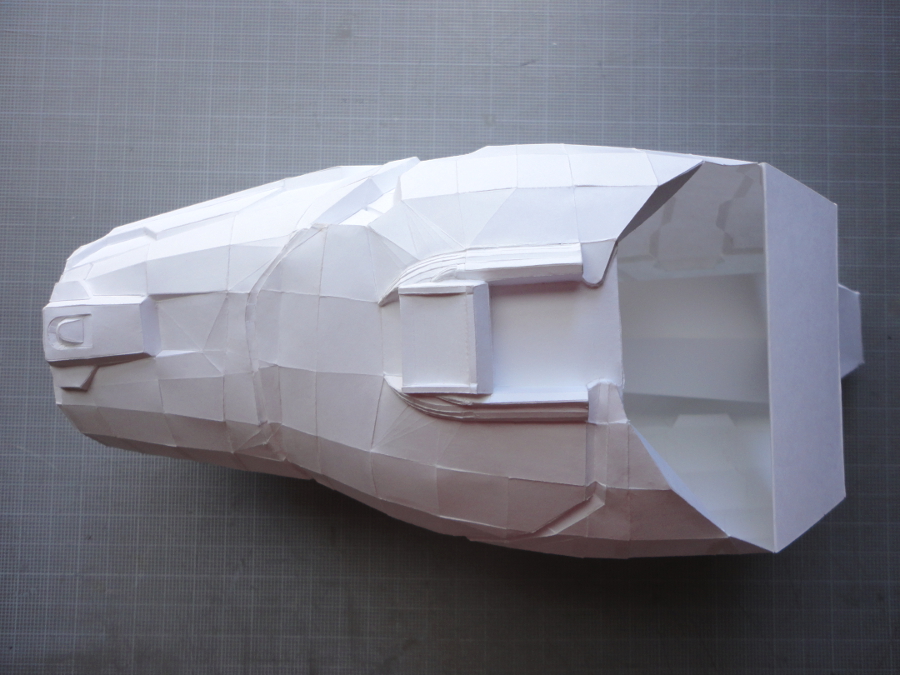

The interior details of the antecubital area are pepped onto a separate holding frame for easier hardening and finishing:

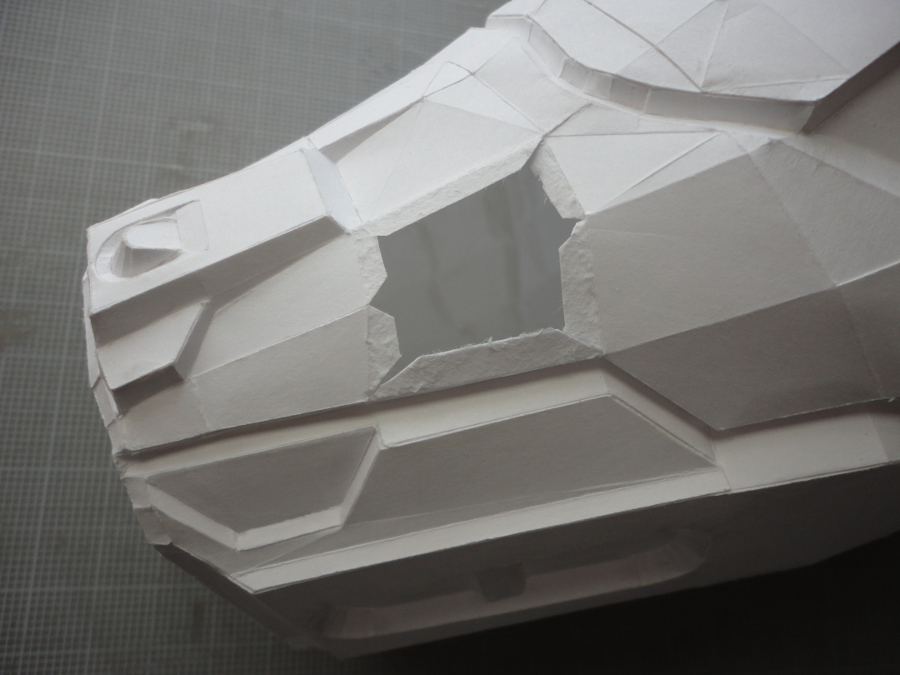

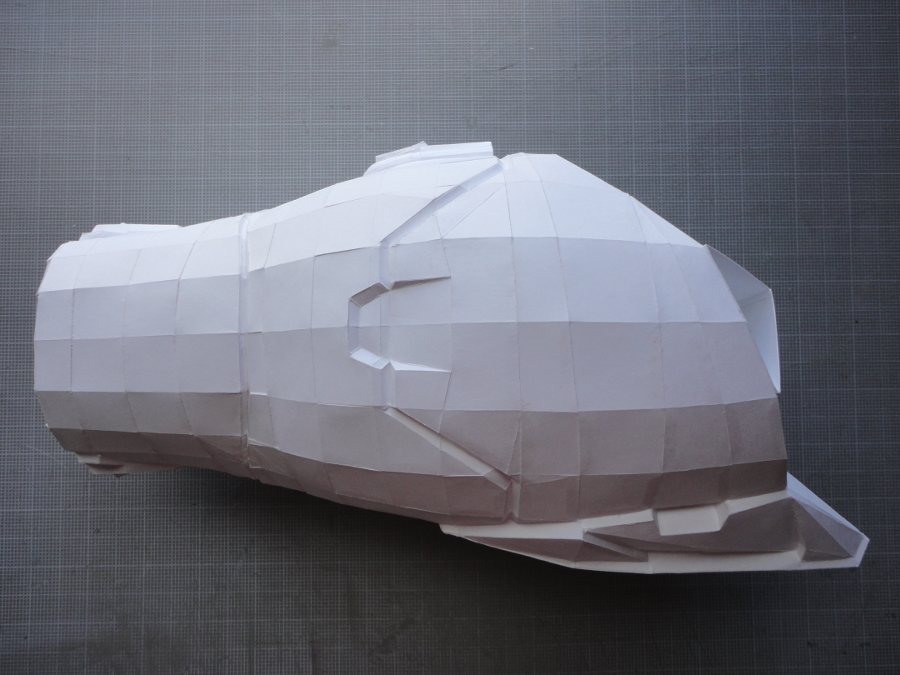

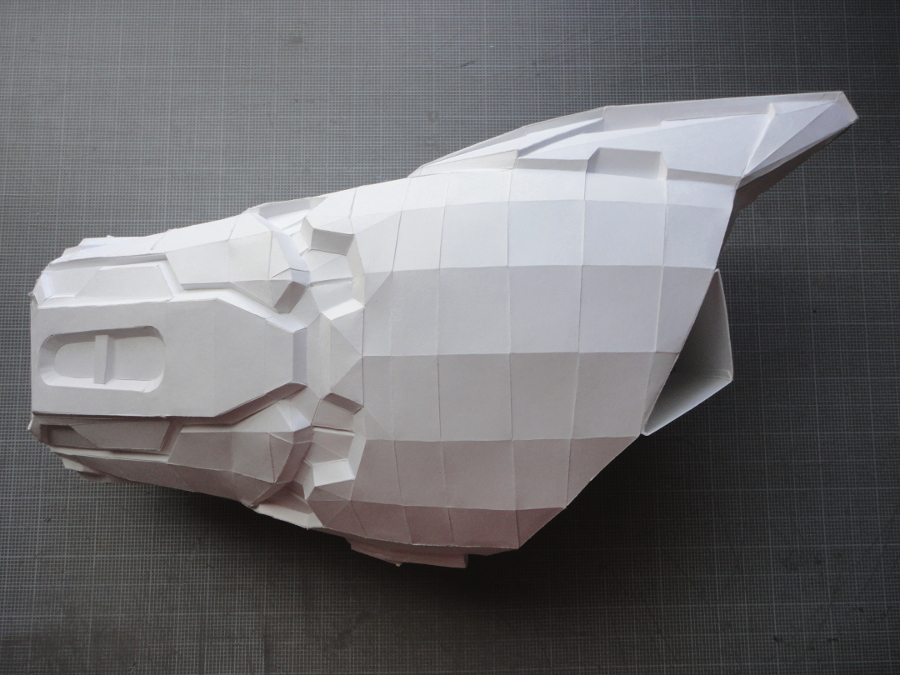

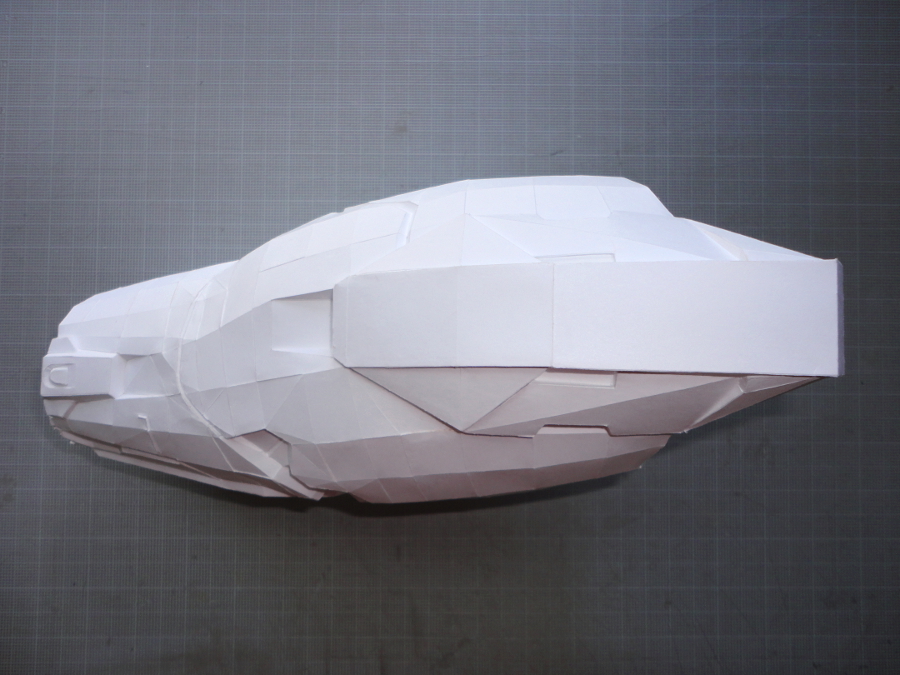

The right forearm is completed and in storage until warmer weather for hardening. Here's how it turned out:












Several more photos are also added to my antecubital detail build thread showing their assembly up close. The left forearm is currently getting its antecubital detail added and the elbow cap is nearly ready for attaching. Then the project gets paused while the upper-arm model is finished up and an Ultra-High Detail Hunter shield model is created.

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

what scale is the forearm?

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

It looks good. I'm glad to see one finally completed. Hopefully you have the scale on this large enough, because I'm sure you don't want to build another set of forearms after this.

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

No, it would not be cool if it ends up being too small after everything's completed.

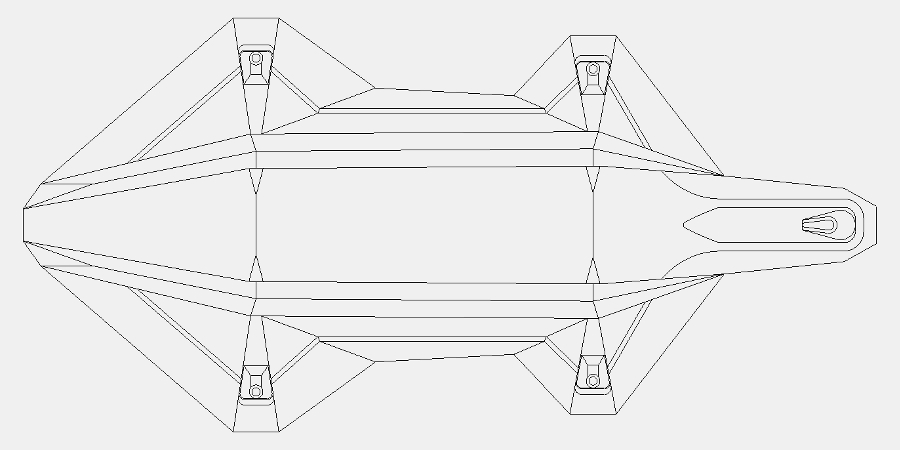

It's too early yet to start a new thread for this, but here's something I drew up for modeling...


Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

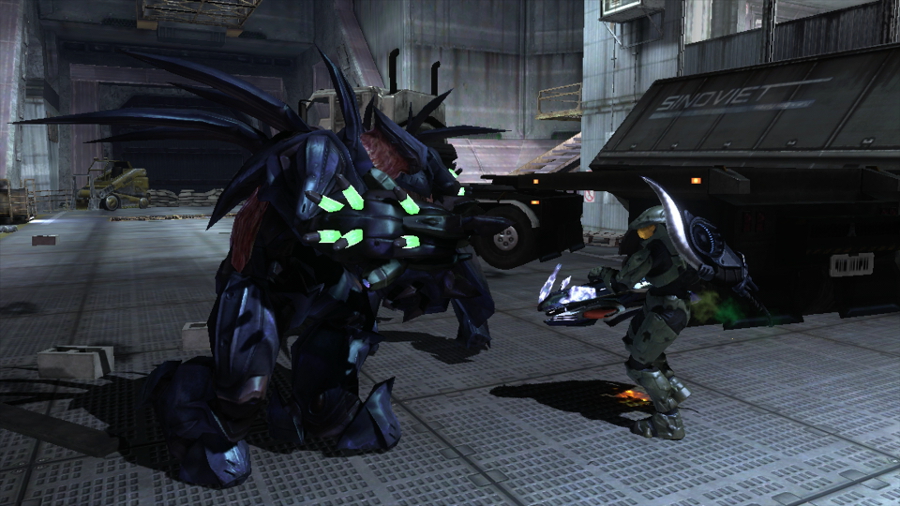

Embarrassing moments during combat - breakfast burrito effects when seeing Hunters....


Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

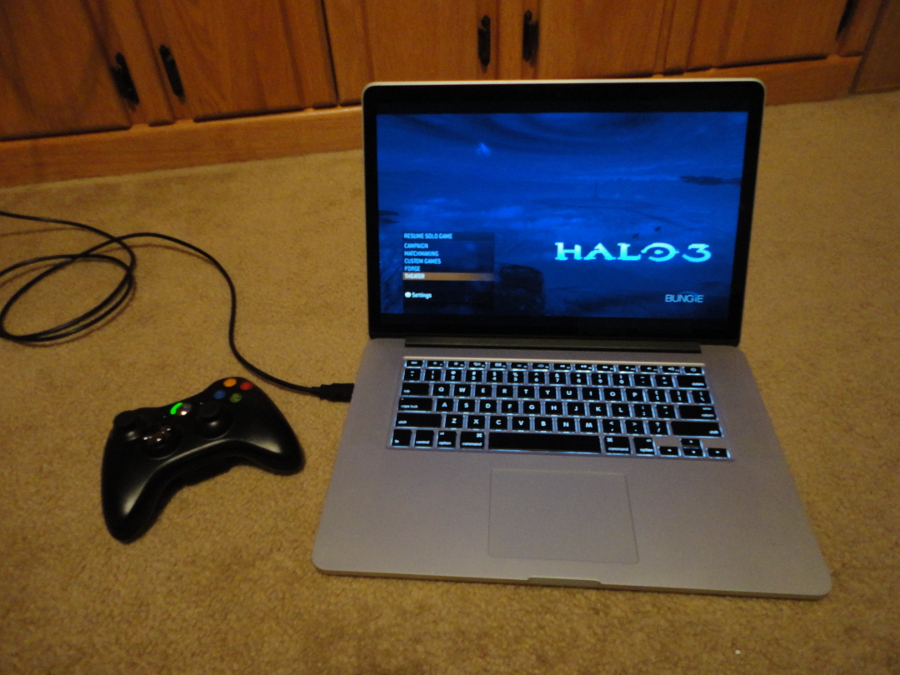

So, I finally broke down and bought some equipment for capturing High-Definition photos and video from Halo 3 onto my MacBook Pro...

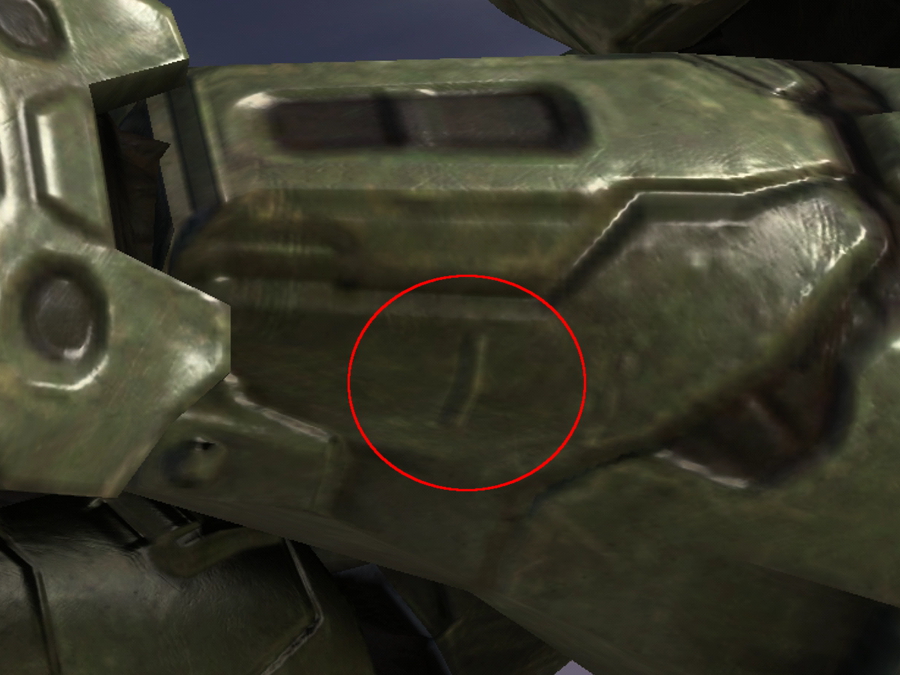

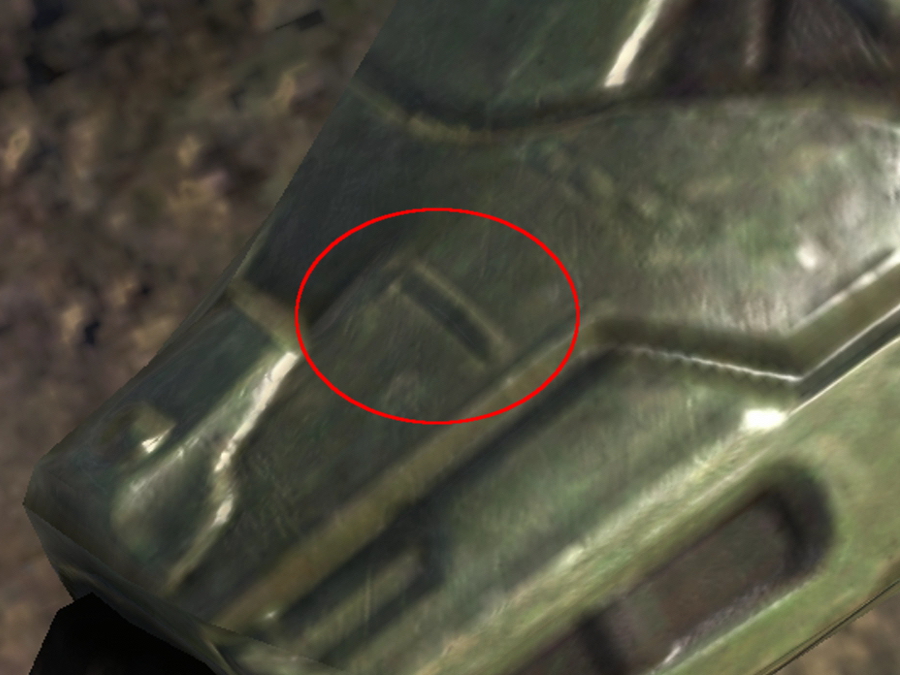

...and this is what I discover: A raised line which was already known and included with the UD forearm models:



...and another raised line on the other side of the arm which was not noticed before:




Gagh! Well, you know that will never do, having only half of the raised line details included in the model! So, the File Archive was updated this morning with new files which include this detail.

"What!? But I already pepped them!" Not a problem, so did I. If you haven't started the pep yet, or haven't glued these parts yet - simply cut out the updated parts from the archive and use them in place of the previous parts. However, if the parts have already been glued then surgery is required to add in the new detail.

First, of course, you'll need the updated parts. Separate the faces in Pepakura Designer so that you have only the faces needed for adding the detail. (This means disjoining the faces which are not needed for the refit.)

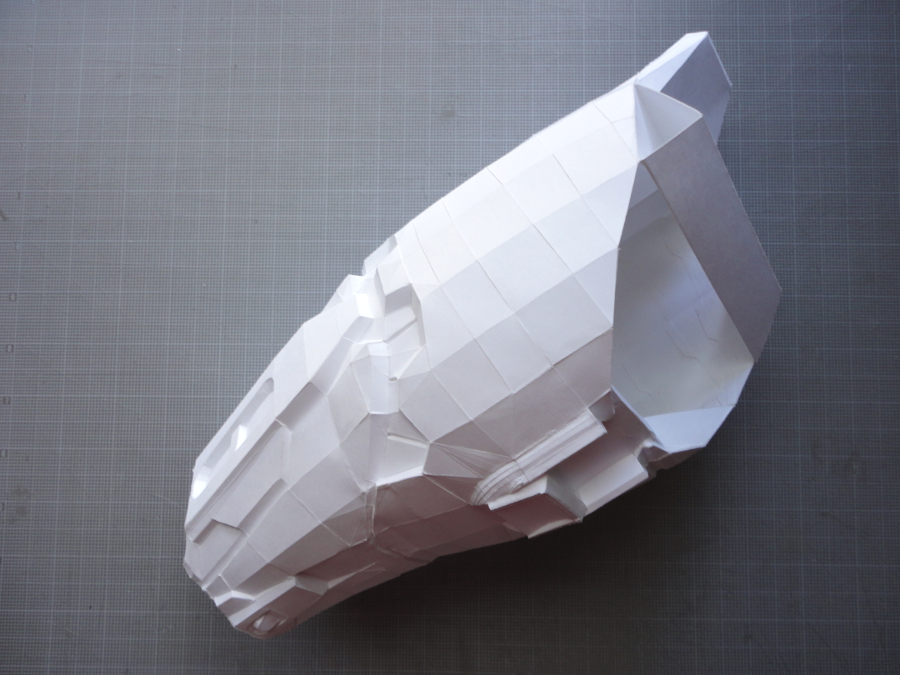

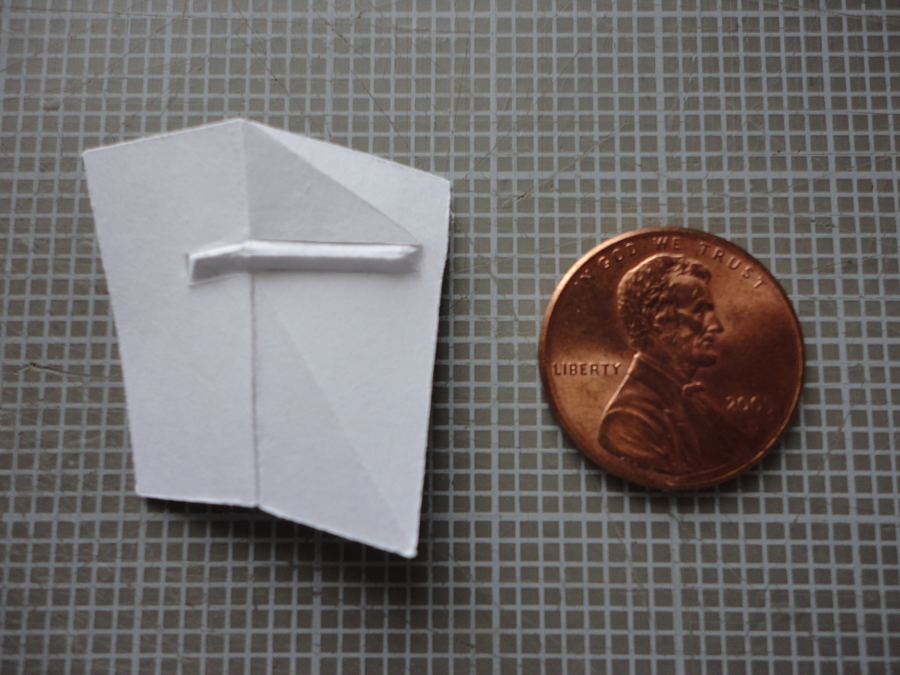

Assemble them separately as a replacement part:

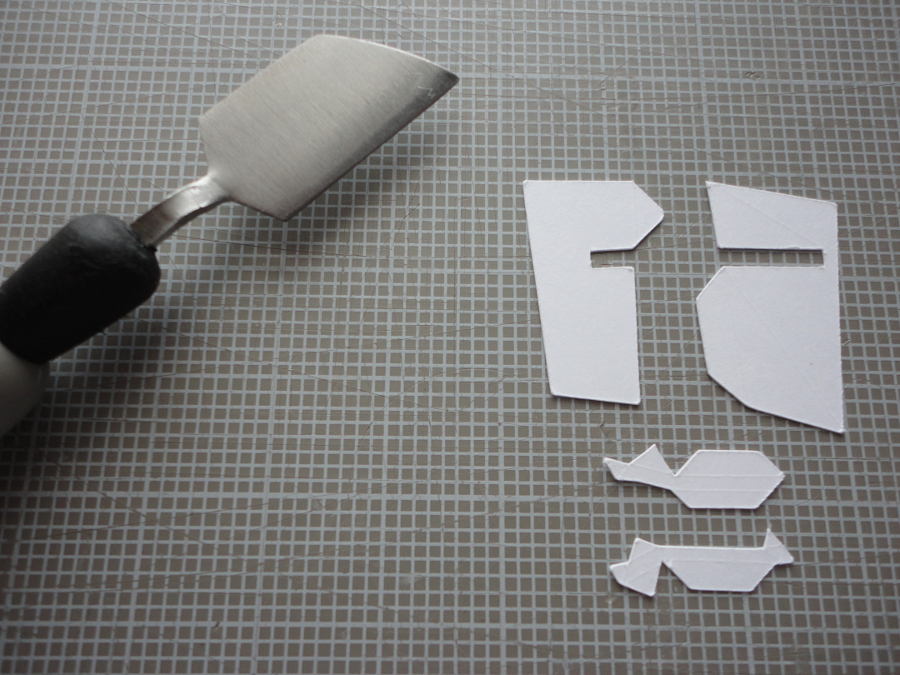

Next, carefully remove the existing faces from the pepped model. Only remove the faces which are being replaced. It's easiest for adding the new parts if all the flaps are on the pepped forearm side of the edges instead of on the replacement parts, so remove the faces such that flaps are left behind from the existing faces. You can also peel away some of the cardstock's top layers to thin down these flaps so the replacement parts aren't lifted up as high when glued in:



Lastly, glue in the replacement part and now you've got the missing detail added without rebuilding the whole model:




Next update: New upper-arm/shoulder model!

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

Dude your work is such an inspiration, I can't wait to see all this work finished

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

Thanks. I get inspired by all the amazing work other people here are doing. I get pretty envious when looking at projects in the bondo stage (especially when it's looking really good). I got the actual game assets from Halo 3 for the Hunter (both armor and skin) so I should be able to get some nice models done up for my own costume. The kid's growing so fast I'm wondering now if I'll need stilts inside my boots.

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

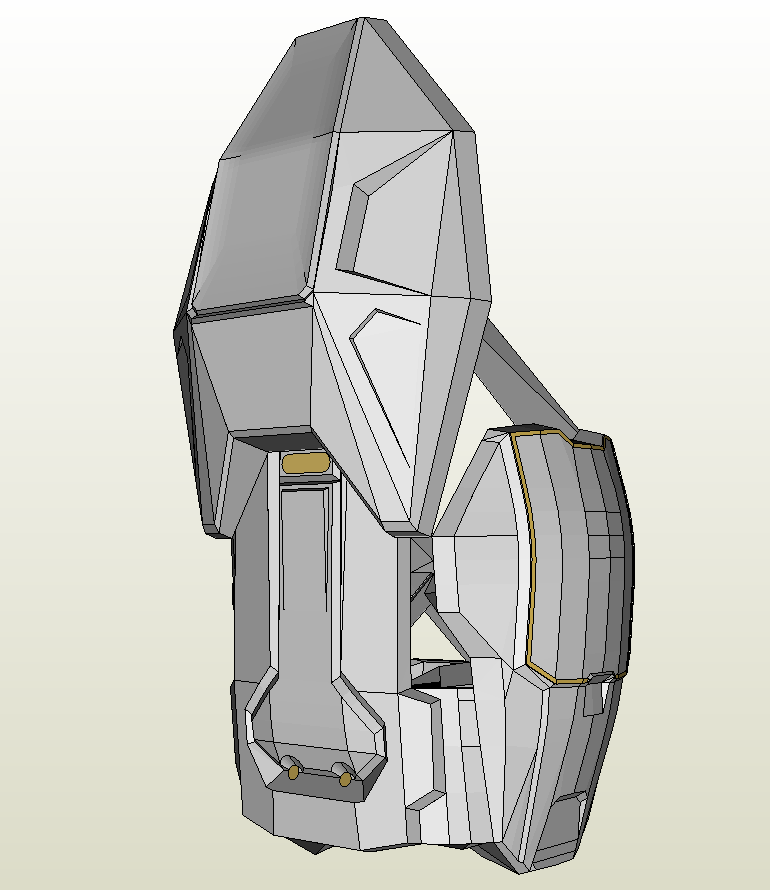

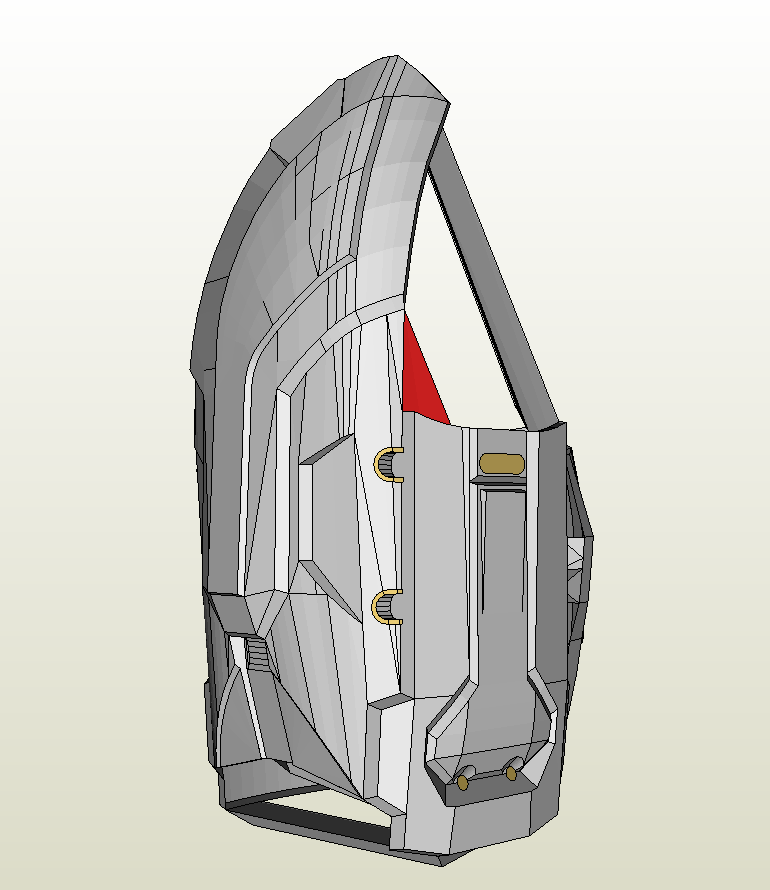

Here's a preview of the next Mk VI model from SirPalesAlot and I that's currently being unfolded and will be added to the archive (again in 4 different levels of detail) when the files are ready:




And the shoulder pad is removable for easier finishing of the upper-arm and to facilitate variant armor types:




An upgraded hand plate model is also currently under development.

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic

Nice! I love the model, especially the removable shoulder pad! That will come in nicely for armor variants!

Re: RobotChicken's Halo 3 Mk VI Master Chief, Ultra Detail, First Build WIP (many pic



Halo 3 Mk VI Upper-Arm files are added to the File Archive. The models feature a separated shoulder pad for easier hardening and finishing of the upper-arm, and to accommodate armor variants having no shoulder pad.

Low Detail: http://www.405th.com/file-archive.php?do=download&downloadid=750

Medium Detail: http://www.405th.com/file-archive.php?do=download&downloadid=754

High Detail: http://www.405th.com/file-archive.php?do=download&downloadid=757

Ultra-High Detail: http://www.405th.com/file-archive.php?do=download&downloadid=760
