Props Sliced Halo Reach Sniper Rifle W.I.P.

[Jeddychan]

Sliced Halo Reach Sniper - Files are released!!

Yeah! my first WIP outside of the noob forum!

Okay, because I hate closed shapes when working in pepakura, I went learned how to slice models and sliced L3X BLU3R1V3R's model of the reach sniper rifle, because I wanted it that badly.

---------------------------
**L3X BLU3R1V3R has given me permission to release these files!!**
---------------------------

NOTE: all slices are 1/8 inch thick

Reach_Sniper_Barrel_Support.pdo
Reach_Sniper_Clip.pdo
Reach_Sniper_Grip.pdo - **make sure pepakura is set to print alignment marks**
Reach_Sniper_Grip_(part 2).pdo
Reach_Sniper_Receiver.pdo - **make sure pepakura is set to print alignment marks**
Reach_Sniper_Muzzle.pdo **Needs to be re-done, I will release it when its fixed**
Reach_Sniper_Rifle_Shoulder_Rest.pdo - **make sure pepakura is set to print alignment marks** **The layout i s set to landscape, someone please let me know if it prints correctly**


---------------------------

Here is my progress so far:

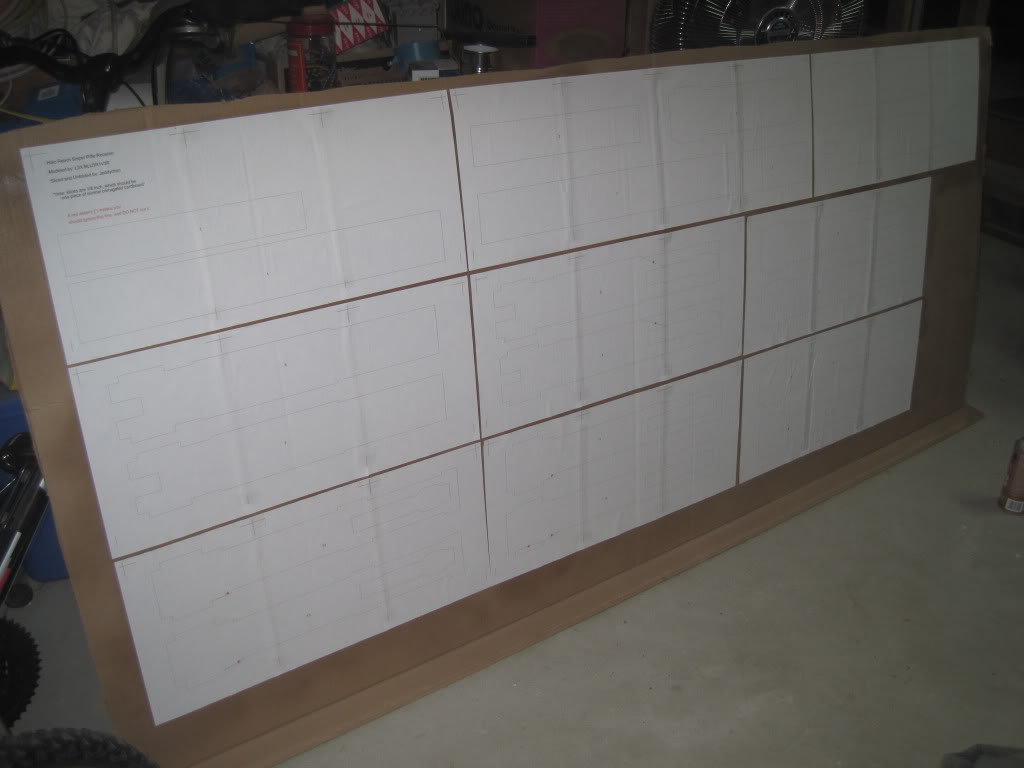

Heres most of the receiver ready to be cut out:

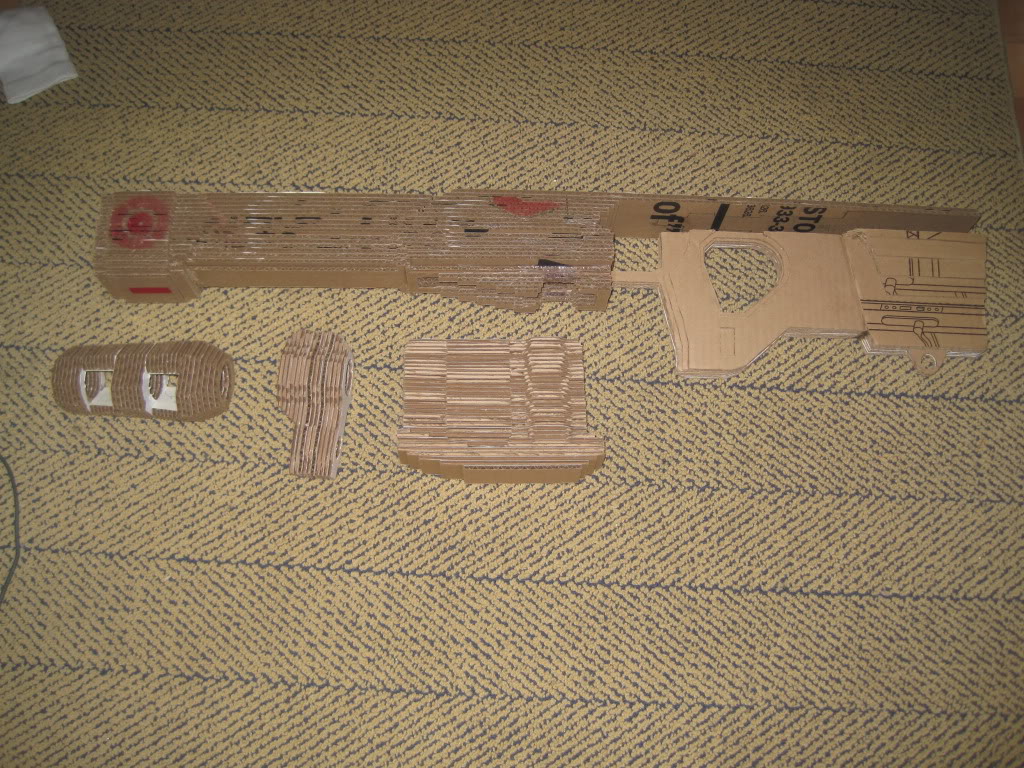

All the pieces I have sliced and built so far:

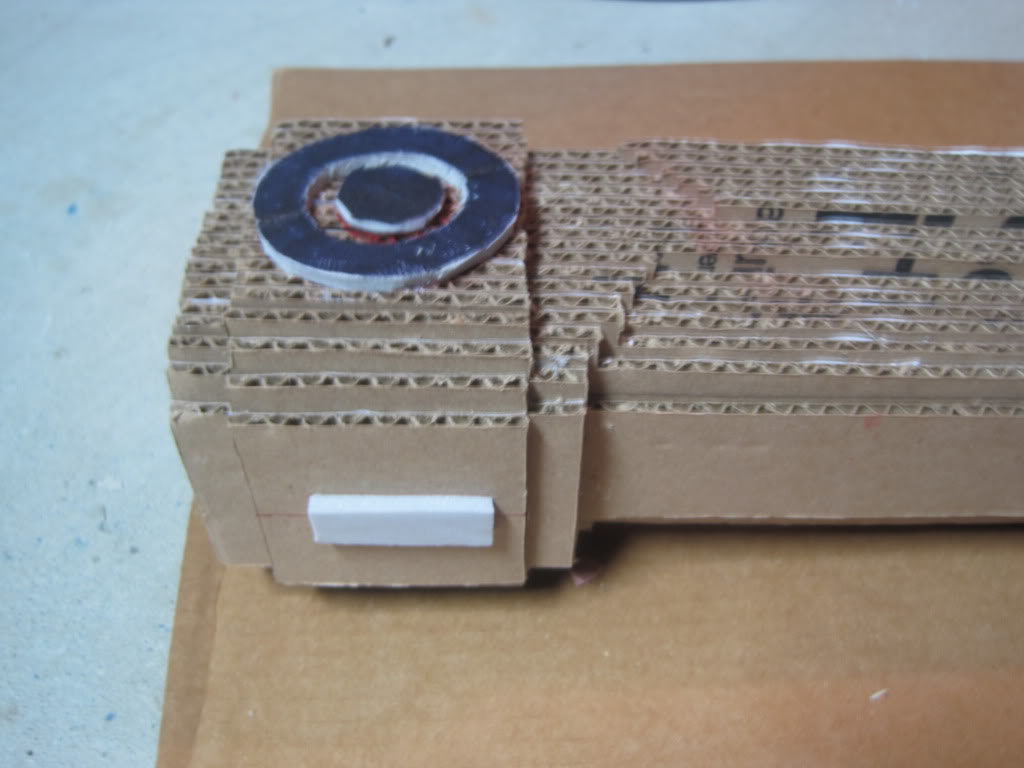

Covering parts where bondo shouldn't go with foam tape:

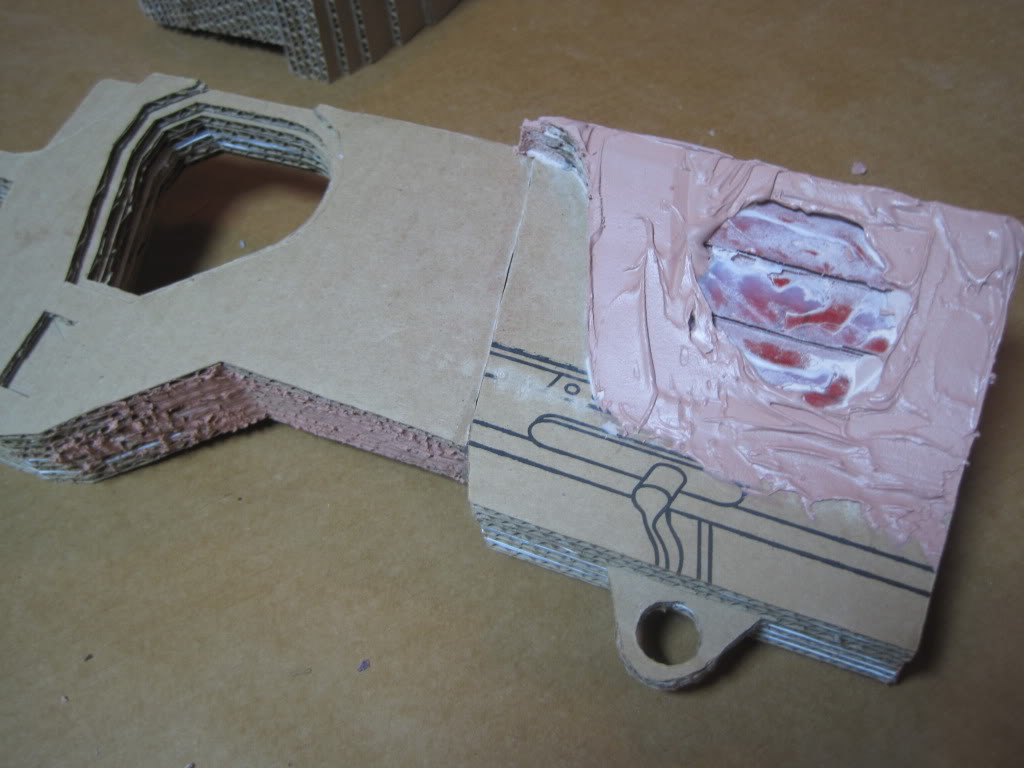

Starting to flesh out some of the parts with bondo:



[AlexSpartan177]

Awesome Bro
this is looking great, If you finish this, I demand you to try the DMR!!!



[DylanMarx]

Doing really good. Look awsome.



[Jeddychan]

Awesome Bro
this is looking great, If you finish this, I demand you to try the DMR!!!

well if I finish this, I'm hoping to get a Jun costume to go with it for the Reach release... I just wish I had some people on cape cod to help... very few people are into this to start with, nevermind on a tiny peninsula...


and isnt there already a sliced version of the DMR? Im not quite sure if there is, but maybe I could get my younger brother to make a DMR if there is one...



[deactivyoke]

There is a sliced DMR and where did you get the file for the beauty!



[Jeddychan]

There is a sliced DMR and where did you get the file for the beauty!

Funny enough, I pulled up a picture of the DMR, the new AR, the pro pipe, and the shotgun... and my brother said he liked the look of the DMR the most, so it looks like I can get him to make it after all...

as for the file, I took L3X BLU3R1V3R's model that he made, and opened it in pepakura, exported it as a .obj, seperated parts out of it, and sliced the parts...

THEN, I built it...



[deactivyoke]

That sounds compex



[Jeddychan]

That sounds compex

it can be complex, but its only when I run into problems... when it runs smooth, I can get a piece modeled and assembled in like a day or two...



[deactivyoke]

I am good at sliced stuff i just need the files amd im ready to go.



[Jeddychan]

I am good at sliced stuff i just need the files amd im ready to go.

well, if someone could get ahold of L3X BLU3R1V3R, and get his permission, then I could release what files Ive sliced so far...

I tried emailing him, but I haven't gotten a response yet...



[deactivyoke]

I sent him a email asking if he will allow it.



[Jeddychan]

I sent him a email asking if he will allow it.

thanks, although I would appreciate it if he could send me a pm also or something... or if he replied in this thread saying he would be fine with it...

nothing against you, I'd just feel better safe than sorry...



[deactivyoke]

Sorry man he replied and i sent you a email sayign what he said.



[Jeddychan]

Sorry man he replied and i sent you a email sayign what he said.

no need to be sorry... Im just glad that its brought to his attention now, and that I shouldnt pester him untill sometime next monday... hopefully he will look at what I've built so far, and the models and be fine with it!



[bevbor]

Bravo!
Very nice work on slicing!



[Jeddychan]

Bravo!
Very nice work on slicing!

thanks bevbor... Im just glad you taught me how to use solidworks to slice models... sliced weapons are so much easier than pepakura weapons...

and I bet its nice seeing the semi-finished product too...



[Jeddychan]

Okay, L3X BLU3R1V3R has given me permission to release the files! Check out the first post for links.



[deactivyoke]

Im gonna be busy now



[Jeddychan]

Im gonna be busy now

have fun with it, lol

feel free to tell me where you're at, so maybe I can keep models coming for all you guys... Ive been busy with the armor, and I have been putting the rifle to the side...



[Gaming Geek]

Oh, nice idea using pep like that to make a layered cardboard model. I really need to remember that for future use!

And then you bondo over the top? Nice.
