After finishing the codpiece this morning, I mostly took the day off from armor building. However, I did take some time to build the "thing I'm going to add later" I mentioned in my last post. :cool

Basically, I was wondering how I was going to carry around cash, ID, phone, camera, etc when I'm wearing the suit. I decided I needed some pouches that I could attach to the belt to carry all that stuff in. However, after looking around and doing some research, I couldn't find anything that I liked.

Then I realized how much extra black vinyl and foam I had, and decided to make them myself!

I don't really have an WIP pics of the pouches themselves, as it was a pretty quick process. I just cut out pieces of vinyl to shape and hot glued them together. Lined with some craft foam on the inside to add some support, then added some velcro to secure the flap. I might add some more detail to them, and I also need to add a loop on the back to attach to the utility belt.

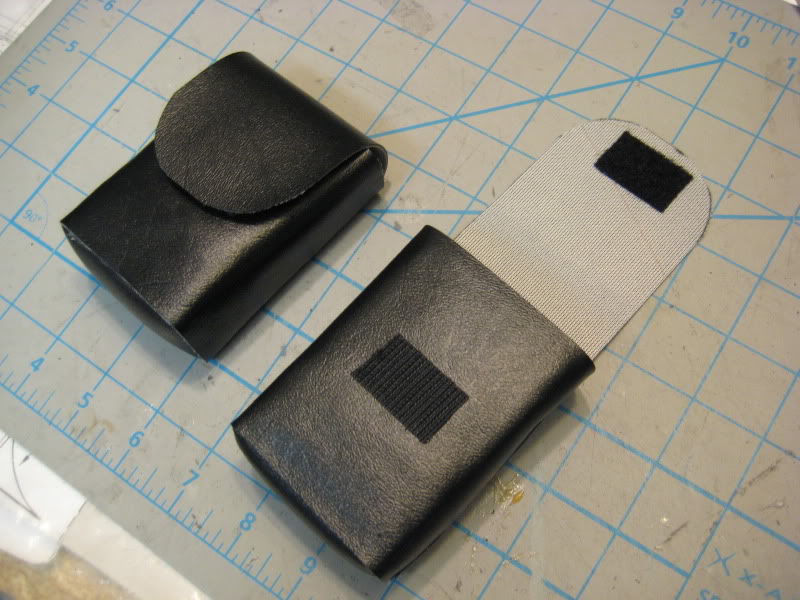

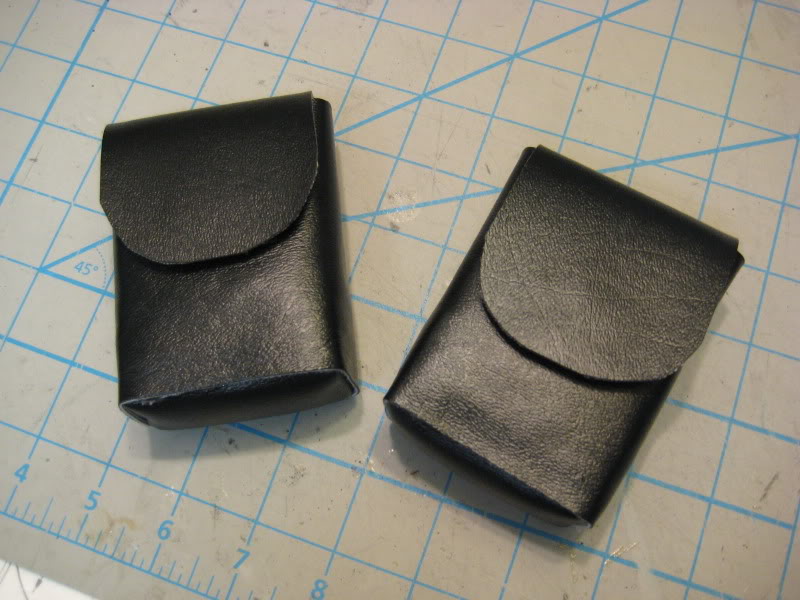

Two completed pouches!

Flap open.

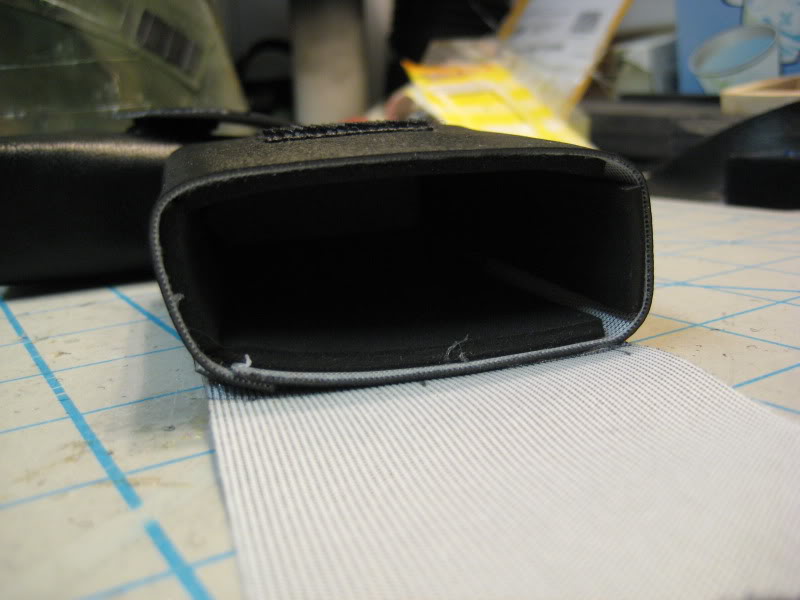

View of the inside, showing the craft foam lining.

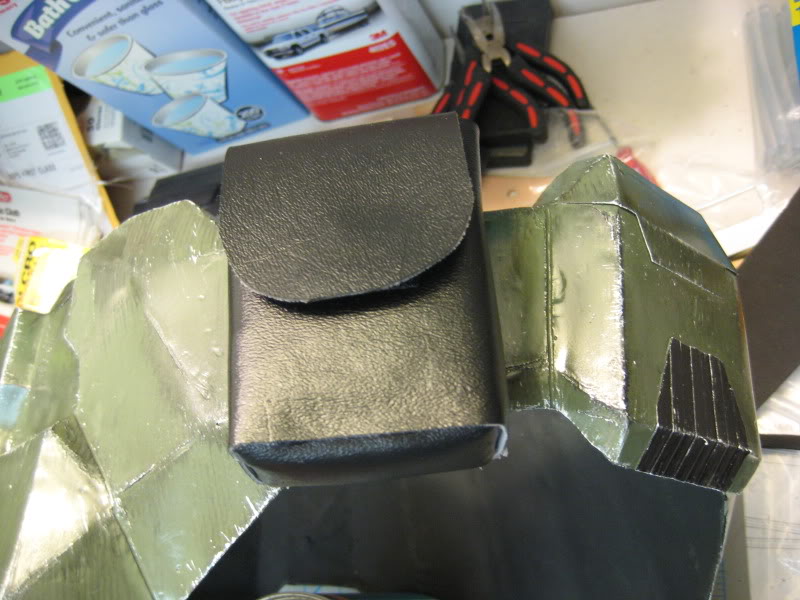

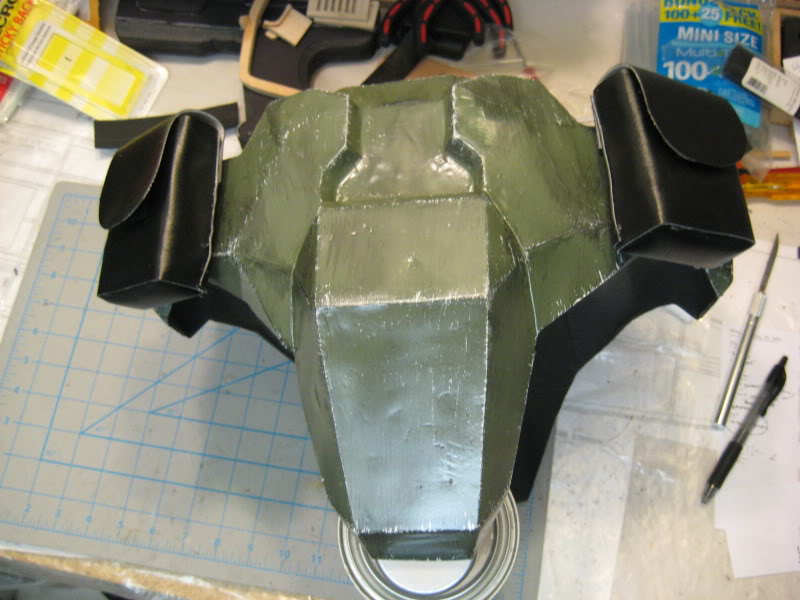

Temporarily affixed to the codpiece to show where they will be placed.

One on each side; they will fit perfectly in a gap between the 2 pieces of the codpiece.

Again, thank you all for stopping by and checking out my build! I always look forward to sharing more progress with you guys!



[Hyperballistik]

Thats a really good idea,they Look good on the belt too, like ammo pouches, just make sure they are secure so you don't loose your cash and other goodies, I think im going to have to sign on a personal assistant to carry my stuff around



[thorn696]

Nice concept with the pouches. Wounder if that will work with canvas.
As for the comment, thanks for the info. I'm going to use the older shine on mine I already know how to fit that one, its allot bigger. Besides with watching you're EPIC build I now know how to add those small little lines in the detail work
Thanks again for the info.



[Spitfire22V]

Thats a really good idea,they Look good on the belt too, like ammo pouches, just make sure they are secure so you don't loose your cash and other goodies, I think im going to have to sign on a personal assistant to carry my stuff around

Thanks, ammo pouches is exactly what I was going for. Hopefully they blend in with the rest of the suit. It probably would have been better to sew the edges, but hot glue was at hand. They seem strong enough, bu I also plan on having at least one person around with me (primarily as a photographer) when wearing the suit to help out, and maybe even have a small emergency repair kit with super glue, etc.

Nice concept with the pouches. Wounder if that will work with canvas.
As for the comment, thanks for the info. I'm going to use the older shine on mine I already know how to fit that one, its allot bigger. Besides with watching you're EPIC build I now know how to add those small little lines in the detail work
Thanks again for the info.

Sounds good! Yes, fitting a shin by cutting it up into several pieces seems quite tedious if it's required. I'll be checking out your WIP thread for updates. Also, if you do plan to add grinded in details, be sure to use the lowest speed setting on the Dremel, and apply only very light pressure. Those cutting wheels do quick work of cardboard/Bondo!



[JUSTINIAN 117]

The pouches came out great, but the only problem is the hot glue. Over time it will eventually get sticky, and fall apart. I made a really nice Splinter Cell vest a few years back and it came out great, but a few years later it was ruined. Sewing is the way to go with the vinyl leather stuff. Keep up the great and creative work.



[Spitfire22V]

The pouches came out great, but the only problem is the hot glue. Over time it will eventually get sticky, and fall apart. I made a really nice Splinter Cell vest a few years back and it came out great, but a few years later it was ruined. Sewing is the way to go with the vinyl leather stuff. Keep up the great and creative work.

Thanks for the info Justinian. I would have liked to sewn them, but hot glue was more readily available and quicker. To be honest, if these pouches last a few years, that should be good enough.

Some progress on the suit has been made. However, I was away for most of last week at the University of Maryland, College Park (my alma mater) for some history making! On Thursday, a team of students (many of them close friends of mine) successfully flew a human powered helicopter!
http://www.washingtonpost.com/blogs...opter-takes-off/2011/05/12/AFxjPV1G_blog.html

When I got back home, the weather turned bad and it's been raining. I honestly can not remember ever having a Spring with such poor weather.

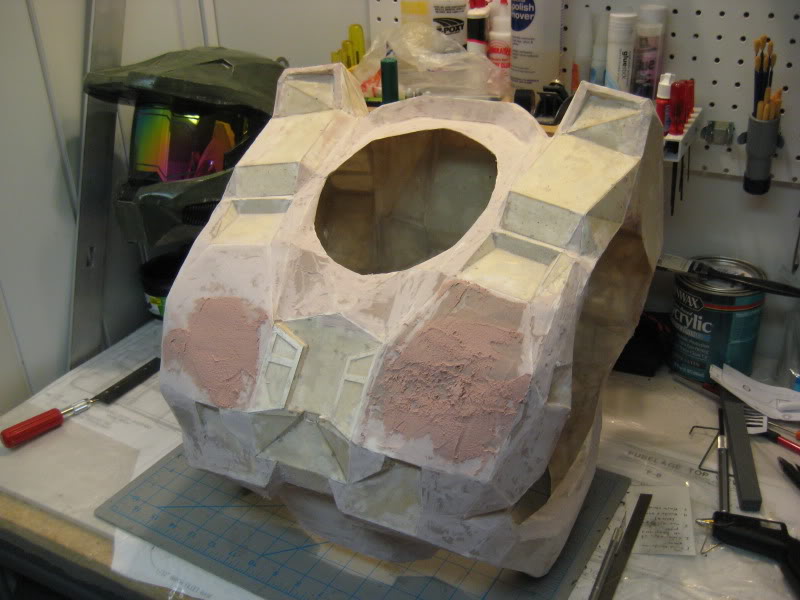

Here's the chest piece with the first round of sanding done. I use the Dremel to get rid of any high spots (my Bondo work is still not that good), then use the mouse sander to really smooth it out. I decided to add some more Bondo on the peck areas to raise and round them even more. Today might dry up enough to continue/finish the sanding.

Moving on to work I can still do indoors, strapping + padding has begun! I figured I'd better start with the codpiece, since all of the leg pieces depend on it.

I purchased some suspenders from Wal-Mart that work wonderfully with the utility belt. They just have plastic hooks that attach and support the belt from the bottom.

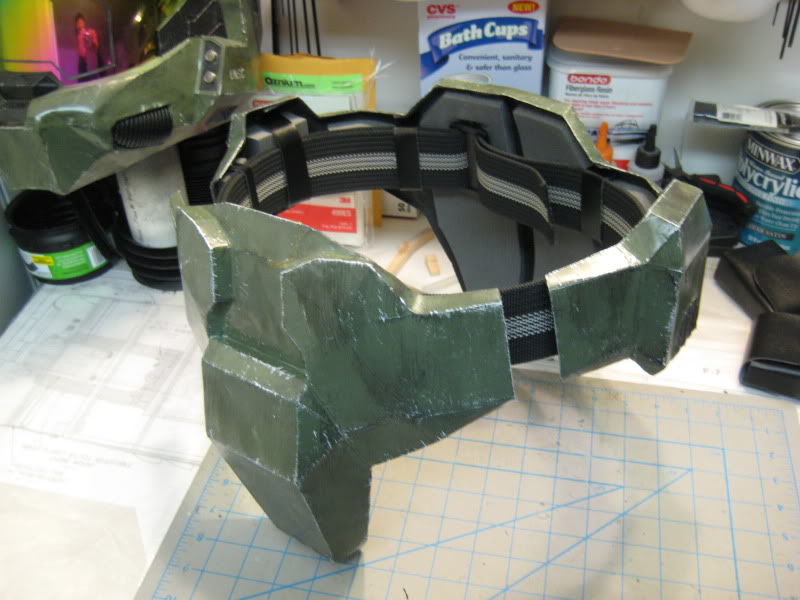

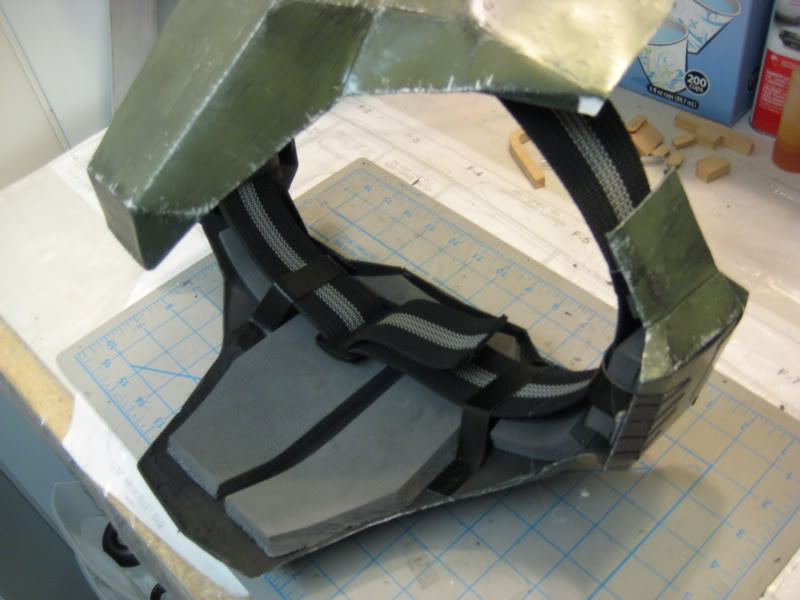

I added some EVA foam padding around the belt, then used vinyl straps to secure the belt. It all seems strong and secure, but we'll see how well it holds when I wear the full suit for extended periods of time.

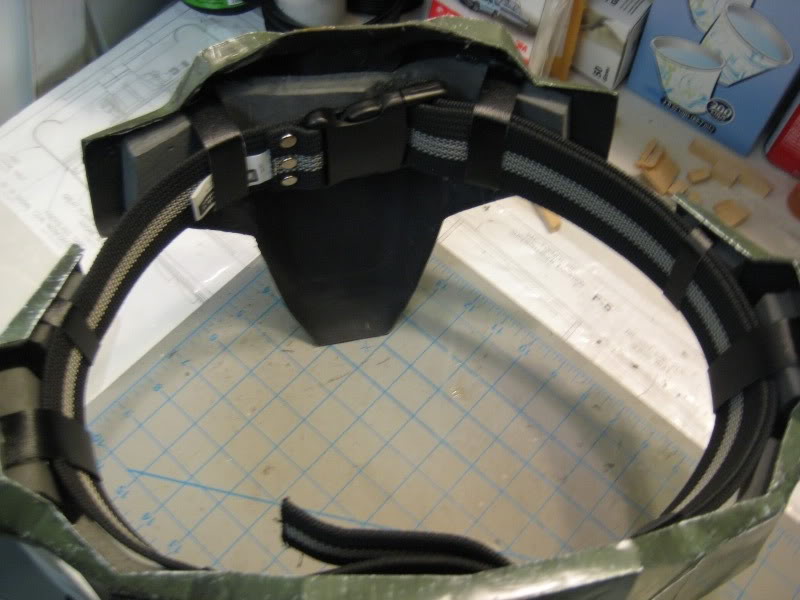

View of the rear.

View of the front. One side of of the belt stays attached, while the left side buckle is removed to slip on the codpiece. Then it's simply a matter of sliding the buckle back into it's strap and clicking it closed.

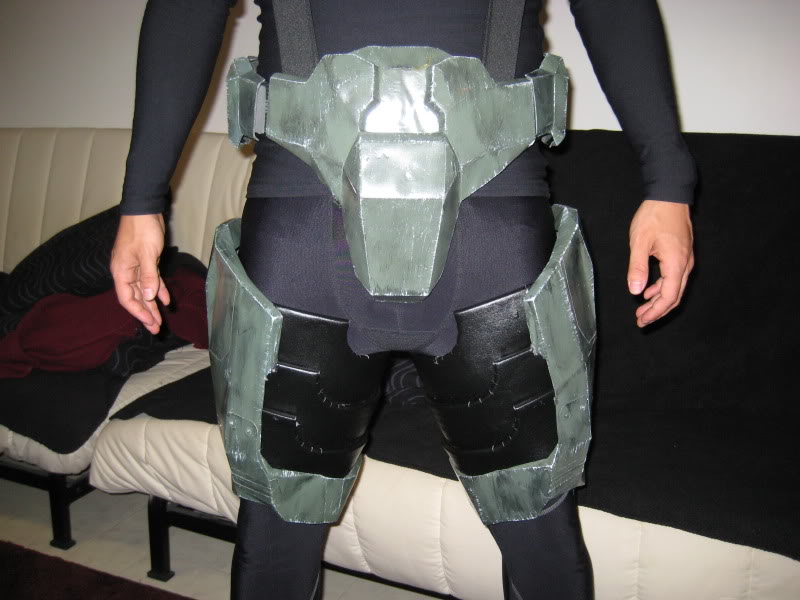

I decided to try one the thigh pieces to check the clearance. Everything is fine, though I will need to lower the codpiece I think. It seems to sit too high at the moment.

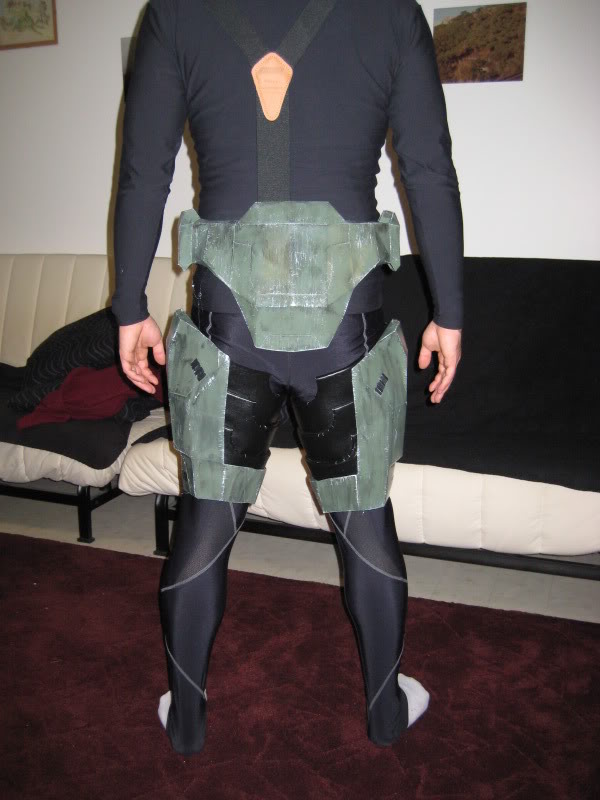

View of the back.
