blackout11c
Jr Member
The undersuit is looking... Really impressive! I'm actually at a loss for words to describe how good it looks! Oh, and the video is private.
Aztlan's Halo 4 Rogue + Binary Rifle + M6H + Exo-suit WIP, PIC HEAVY!
- Thread starter EVAkura
- Start date
- Status
EVAkura
Well-Known Member
No problem! I will put a link to the video on my first post so it will be easier to find.

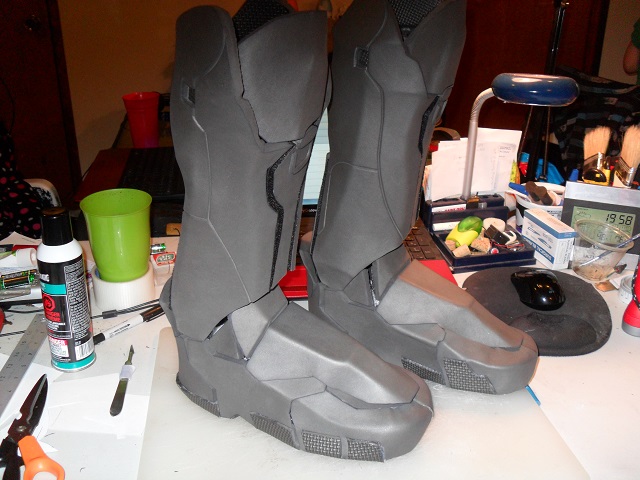

For the most part, the shoes are completed. I added the padding, and connected the lower legs permanently. There are a few details pieces to finish, and to apply a solution to the soles, but I must admit that they are very comfortable, provide full range of movement (even with the legs attached), and are easy to put on and take off.
Here they be:
Now to start working up!
For the most part, the shoes are completed. I added the padding, and connected the lower legs permanently. There are a few details pieces to finish, and to apply a solution to the soles, but I must admit that they are very comfortable, provide full range of movement (even with the legs attached), and are easy to put on and take off.
Here they be:
Now to start working up!
Attachments
Duckster18
Jr Member
Really like the build. I'm just getting back into building and I'm looking for inspiration on a foam Halo 4 suit. Yours has definitely given me some!
EVAkura
Well-Known Member
Wish granted! Also, I have created two other quick vids on; Dremel use for EVA; and Basic Electronics tips. They will be available shortly and once they are, can be found on my YouTube channel
Dremel video is live and can be found here.
Basic LED Electronics tips can be found here.
If there are any other videos you would like, I will be more than happy to create them if they are within my abilities
Last edited by a moderator:
EVAkura
Well-Known Member
LOL Foxleader
I think tomorrow, while waiting for FedEx to deliver my new supply of EVA (18 brand spankin' new sheets!), I will do a video on drawing templates... and more importantly, how to figure out where to draw in contour lines from looking at a 2d image. This will require a bit more finesse since I will have to download and install some sort of screen capture software (FRAPS?) so that I can demonstrate properly.
Any other suggestions on possibly better screen capture software (freeware) would be greatly appreciated!
I think tomorrow, while waiting for FedEx to deliver my new supply of EVA (18 brand spankin' new sheets!), I will do a video on drawing templates... and more importantly, how to figure out where to draw in contour lines from looking at a 2d image. This will require a bit more finesse since I will have to download and install some sort of screen capture software (FRAPS?) so that I can demonstrate properly.
Any other suggestions on possibly better screen capture software (freeware) would be greatly appreciated!
Zoogami Snowfox
Active Member
One word:
SWEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEET!
SWEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEET!
vshore100
Well-Known Member
- Member DIN
- S091
Pretty awesome vids man! I subbed to your Youtube channel so I don't miss any of these awesome tutorials! As far as taking screen caps goes, if you're using Windows 7 premium or higher, it comes with a very handy tool called the "Snipping Tool". I hope this is what you're looking for, and I look forward to more on this super cool build.
EVAkura
Well-Known Member
Thanks everyone! I am extremely happy to know that you all are liking the videos. It's funny though... I was so hesitant at making them because of how difficult I thought it would be... boy was I wrong. With all the tools available now, it is very painless.
Yes In a pinch, others have used hair dryers. I can not vouch for that myself, but don't see any reason why not. It may take a bit longer, but it should work. My theory is and always has been... do a test! Also, I have seen this done before, but also have not tried it, but using a small propane torch works. Now, obviously, there is extreme safety steps to be adhered to if you go that route... after all, EVA is flammable and you could also burn yourself if you get it to it's melting point, which is not really that high.
Just a bit of info though... Heat guns are very inexpensive (I opted for the more expensive one here, but you can get them as cheap as $10-15 at places like Harbor Freight or Wal-Mart.
To form the EVA though, heat must be used to relax the material and close the cells.
So, I downloaded and did a test run with Screencast-O-Matic (found on CNet's Download.com site... the only place I trust!), and I think it will work great. It allows me to record both what is happening on my screen, as well as my web cam with sound. I should have the next video finished and published today.
Now, off to making some sort of script for the next one... "How I create templates from looking at a 2 dimensional representation of a 3 dimensional object so that I may form a 3 dimensional object from a 2 dimensional surface, which is actually 3 dimensional because it has depth" - I may want to shorten that title though!
Yes
In a pinch, others have used hair dryers. I can not vouch for that myself, but don't see any reason why not. It may take a bit longer, but it should work. My theory is and always has been... do a test! Also, I have seen this done before, but also have not tried it, but using a small propane torch works. Now, obviously, there is extreme safety steps to be adhered to if you go that route... after all, EVA is flammable and you could also burn yourself if you get it to it's melting point, which is not really that high. Just a bit of info though... Heat guns are very inexpensive (I opted for the more expensive one here, but you can get them as cheap as $10-15 at places like Harbor Freight or Wal-Mart.
To form the EVA though, heat must be used to relax the material and close the cells.
So, I downloaded and did a test run with Screencast-O-Matic (found on CNet's Download.com site... the only place I trust!), and I think it will work great. It allows me to record both what is happening on my screen, as well as my web cam with sound. I should have the next video finished and published today.
Now, off to making some sort of script for the next one... "How I create templates from looking at a 2 dimensional representation of a 3 dimensional object so that I may form a 3 dimensional object from a 2 dimensional surface, which is actually 3 dimensional because it has depth" - I may want to shorten that title though!
EVAkura
Well-Known Member
New video on how I make templates is completed and uploaded to my YouTube channel!
I will now use that template and create the piece, as well as form the other piece shown in the video. Updates on that progress will be up shortly... most likely as an edit to this post
Yup, I finished them in time

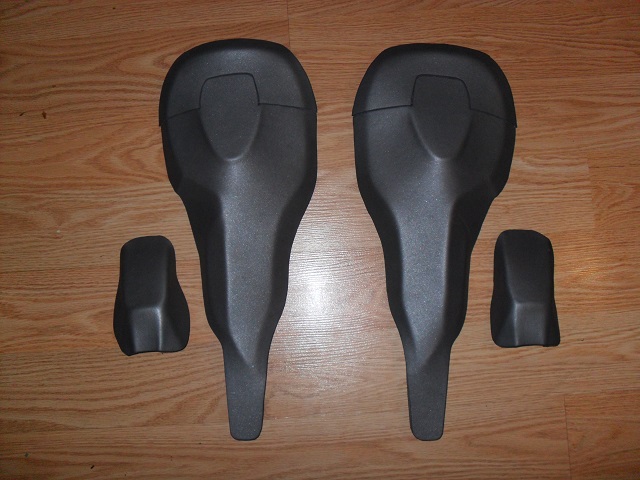

Both pieces formed and ready for details and assembly (just waiting for my new shipment of EVA to arrive)
I will now use that template and create the piece, as well as form the other piece shown in the video. Updates on that progress will be up shortly... most likely as an edit to this post
Yup, I finished them in time
Both pieces formed and ready for details and assembly (just waiting for my new shipment of EVA to arrive)
Attachments
Last edited by a moderator:
TomcatHeavy
New Member
Much accolades for your willingness to share your experiences in such depth; that takes time away from your family, friends, and building, and we're all better for it. Keep up the good work! By the by, are you attending any cons in 2014?
