Aztlan's Halo 4 Rogue + Binary Rifle + M6H + Exo-suit WIP, PIC HEAVY!

Status
Not open for further replies.
Thanks to all who commented! :)

Its so good. Are the LEDs always on or do they fade in and out?

They are constant. I checked them out in-game and they don't appear to pulse, so either I am not looking at them correctly, or the name comes from the action they do when they are set off.

So, my painting attempt failed today... but luckily, it simply rubbed right off... (Just say "no" to acrylic on bondo!!!) Now I Have to wait until tomorrow until I can pick up some enamel model paint to do it properly.

Lesson learned!

the pulse is the second stage of the active grenade it's the part that will kill you in game which is the thud you hear before it's gone and i know this with out digging.

Well, it is finally finished!

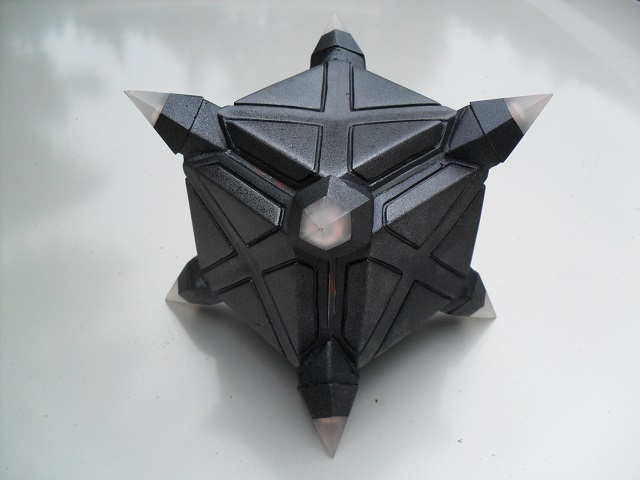

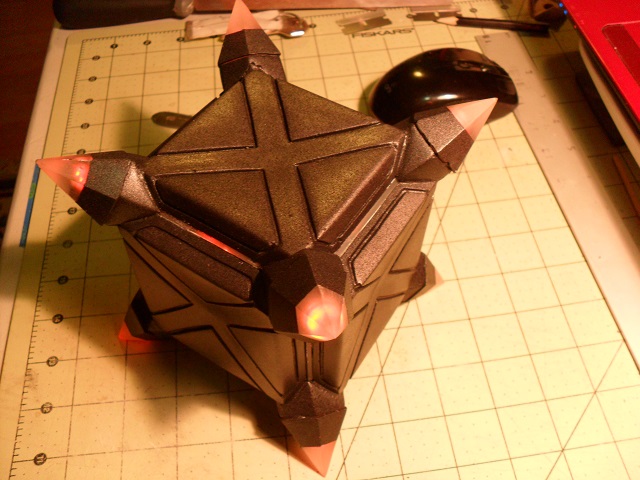

I present: Z-040 Attenuation Field Generator/Localized (Pulse Grenade)

Indoor lighting:


Outdoor Lighting:


As a wrap-up:

All 6 sides cast out of Rondo, then filed and wet sanded.
All 8 spikes cast with crystal clear epoxy, then filed and wet sanded
12 edges made from 3/32" acrylic
20 Orange LEDs
15 custom circuit boards
Powered by 3 1.2v AA batteries

Three major failures (attempts to make it out of balsa and then foam... then the interior metal box) and one minor failure (tried using acrylic paint)

I am SO glad I decided to only make one of these... I would have lost my mind trying to make two or more!


Attachments

  • SAM_1321_zpsd8d0be76.jpg
    179.9 KB · Views: 184
  • SAM_1322_zps124ddcc1.jpg
    128.1 KB · Views: 181
OH MAH GOODNESS!!! i never knew the Pulse grenade was a cube!!?? all this time it looks like a hexagonal looking thing to me... wow just wow.... Anyway splendid job on the grenade, hope to see more soon!!

That looks AMAZING! Keep up the awesome work, EVAkura, I love following your build progress.

Thanks so much y'all!!

i never knew the Pulse grenade was a cube!!?? all this time it looks like a hexagonal looking thing to me...

Had I not had the file to view it, I would have thought the same! There are a few discrepancies with mine to the original (like the orange side lines are supposed to go around the base of the spike and the "X" is more recessed), but I am fine with that :)

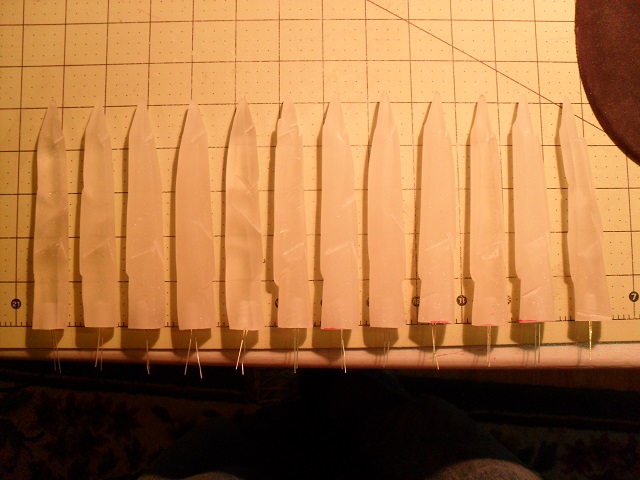

Quick update: I have been kickin' serious rear-end on the chest piece and will have something to show soon. Also, I finally finished all the needles for the Needle Rifle!!!



Attachments

  • SAM_1326_zps1be1693f.jpg
    157.6 KB · Views: 182
now you will lose you mind with this gun if you want to make the round pop in and out of the gun when reloading or firing. I tried It and less just say every time I see it I look like this.


Thanks y'all!

As far as the Needle Rifle's mechanisms go, I have a really good idea of how they will work. If I manage to put my thoughts onto paper, then transpose that to a real working design, I should be good to go. The ultimate plan is to have each pull of the trigger recess the needles in series. Then, either it will "run out of ammo" (which requires a reload), or the user will reload before... either way, when the scope is lifted and the reload chamber is exposed, that motion will bring all of the needles to their most recessed position. After it has been reloaded, and as the cover is being closed, the needles will return to their fully extended position. I am really good with mechanical stuff like that, and my biggest challenge will be to get the electronic sensors to coincide with the actions... well, that and programming the RP to perform all the functions I want it to!

Anyways... back to the Rogue set. Like I mentioned before... I am barreling along with the chest. Today's challenge was to create the detail piece on the center part. Now that I have a few good reference pictures, I can see what was missing out of the pep file (Thanks Arcanine!!)

Here is a part of the reference picture. The bottom two arrows were my focus for today.

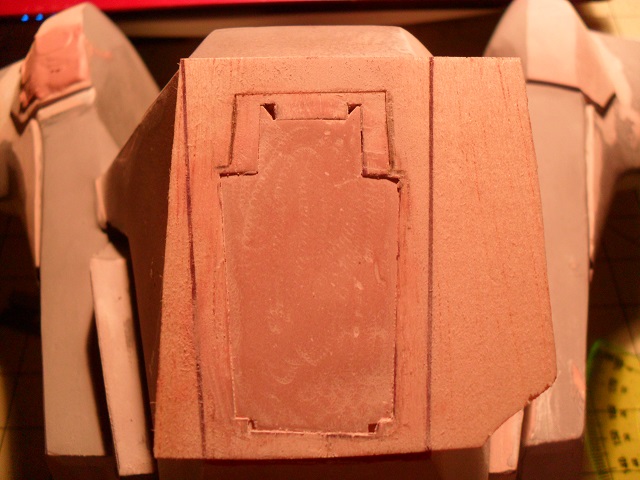

This picture shows the template I cut out of balsa.


Then, after that, I cut a thin border around the newly finished center piece.

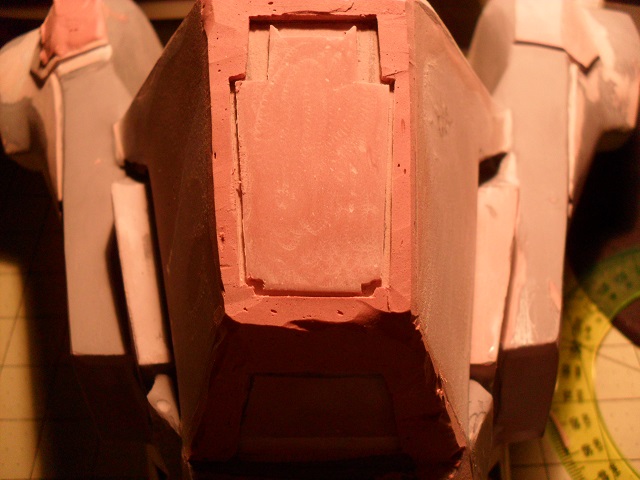

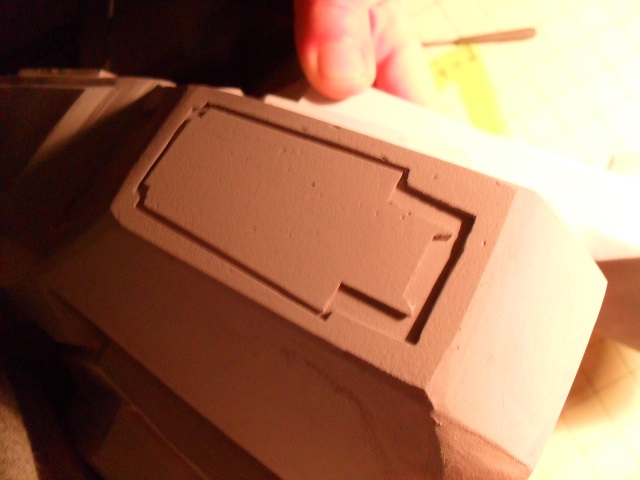

Here I have layered an ample amount of bondo on it, then cut away the excess while it was in the rubbery stage.

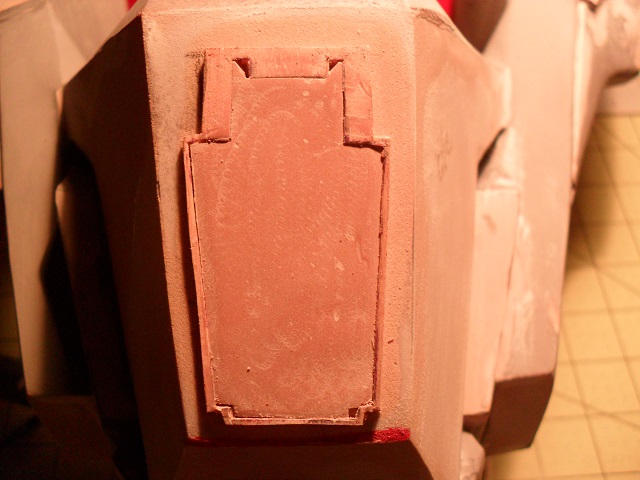

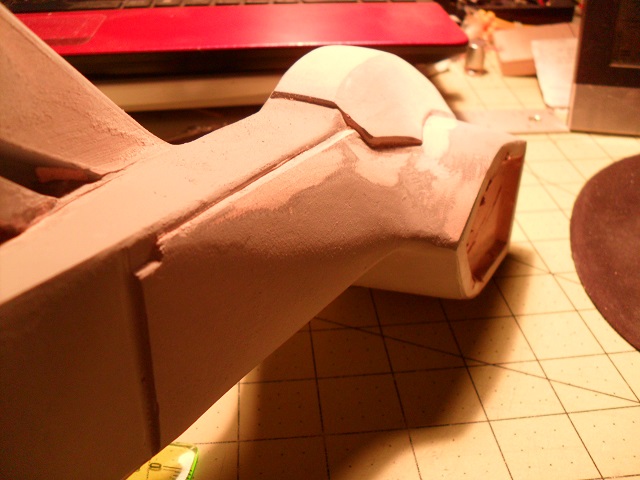

Semi-finished from one angle


... and another

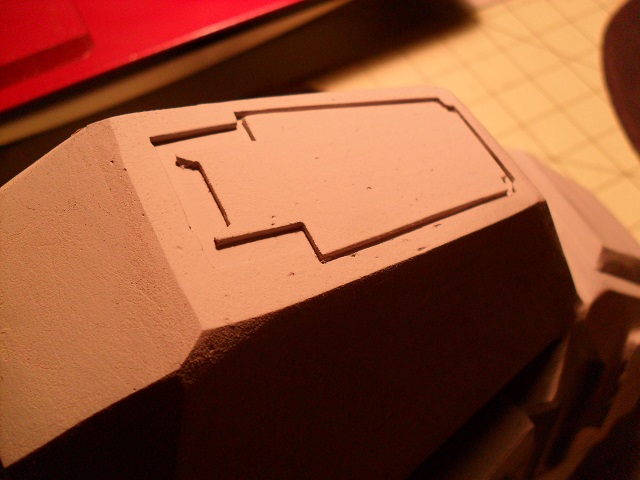

And here is the upper arrow on the reference picture. I did all this freehand... and will probably never do again after seeing how easy it is with a template!!!


'till next time!!!


Attachments

  • SAM_1328_zps636d088e.jpg
    156.4 KB · Views: 180
  • SAM_1327_zps42b3a364.jpg
    165.4 KB · Views: 173
  • cpwip1_zpsac79071b.jpg
    28.9 KB · Views: 168
  • SAM_1332_zps1976d905.jpg
    155.6 KB · Views: 172
  • SAM_1331_zps5ee99bfc.jpg
    146.8 KB · Views: 181
  • SAM_1330_zps30906657.jpg
    134.6 KB · Views: 162
  • SAM_1329_zps8c7ac4e9.jpg
    155.7 KB · Views: 238
Anyways... back to the Rogue set. Like I mentioned before... I am barreling along with the chest. Today's challenge was to create the detail piece on the center part. Now that I have a few good reference pictures, I can see what was missing out of the pep file (Thanks Arcanine!!)

's quite alright. You're doing a stellar job so far. And, I'm happy to have helped in some way - the textured files I gave you might prove useful if you aren't able to access your Spartan's preferred loadout on Halo 4 yet.

Your idea for the rifle sounds amazing and i look forward to seeing it come to be a reality :)

The detail part on the chest looks great :)

Still working on the mechanics for the Needle Rifle... have to make a trip to Home Depot because my local small hardware store just does not have what I need.

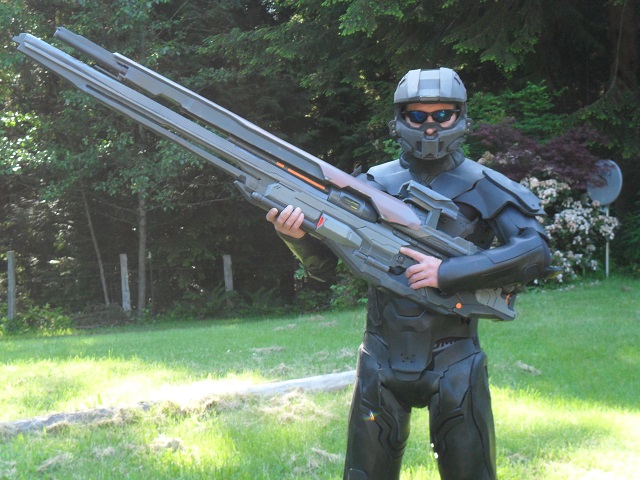

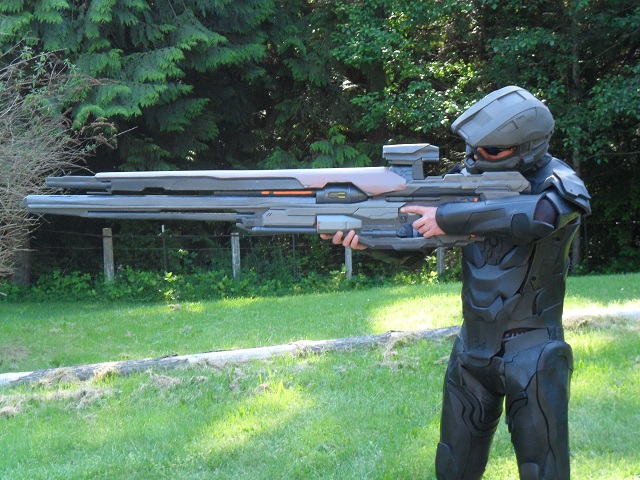

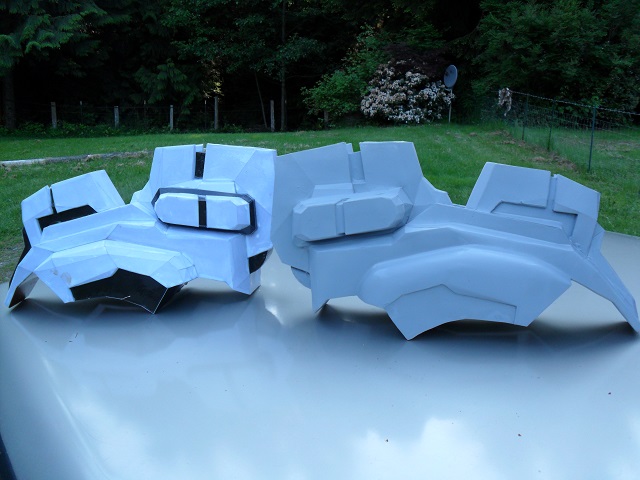

Got a chance today to get outside with the Exo-suit, MC helmet, and Binary Rifle for a couple of quick shots :)




I still have a couple of tiny parts on the Exo-suit to adjust, but am overall very happy with how well it is holding up. The MC helmet is still a WIP, and the Binary Rifle goes right back into its hidey hole until it gets called back into service again :)

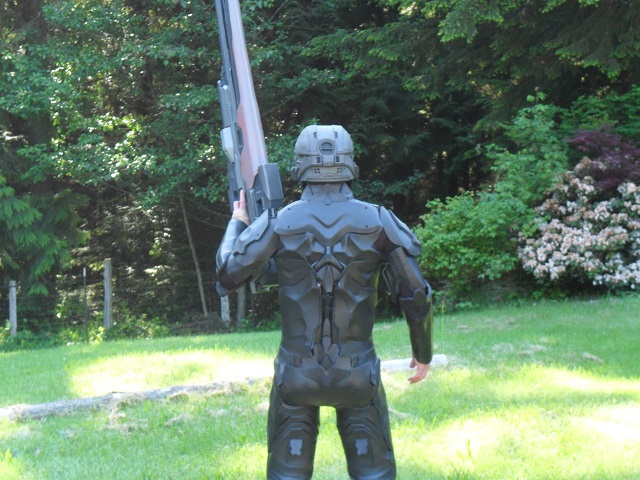

Also, I have started working on the two rear sides of the back.


With the weather holding up, I should be getting some good progress going.


Attachments

  • SAM_1335_zpsf0fe28ae.jpg
    209.3 KB · Views: 173
  • SAM_1337_zps738d3ea3.jpg
    157.8 KB · Views: 176
  • SAM_1336_zpsc510b11b.jpg
    200.1 KB · Views: 164
  • SAM_1334_zps306de5fb.jpg
    229 KB · Views: 167
