Seriously awesome work man! I especially like the creativity you used for the accent lighting!
CyberBen Spartan 019 Mark VI wip -FINISHED!-
- Thread starter CyberBen
- Start date
- Status
Hyperballistik
Well-Known Member
Very nice work, I agree with thorn, this is Elite worthy work you have going on here, Your attention to detail looks to be spot on, nice job on the helmet, can't wait to see it all together it will be epic, Great job so far
CyberBen
Active Member
The progress on my shin guards

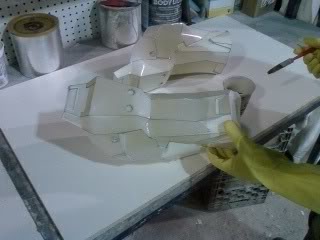

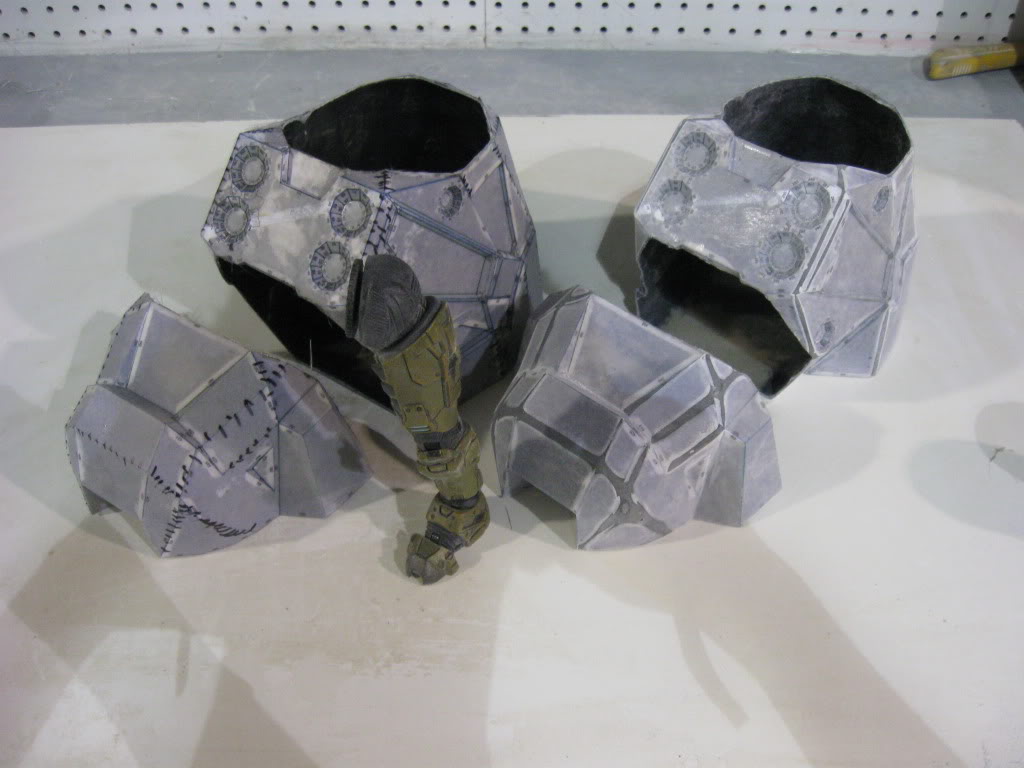

Peped being resined.

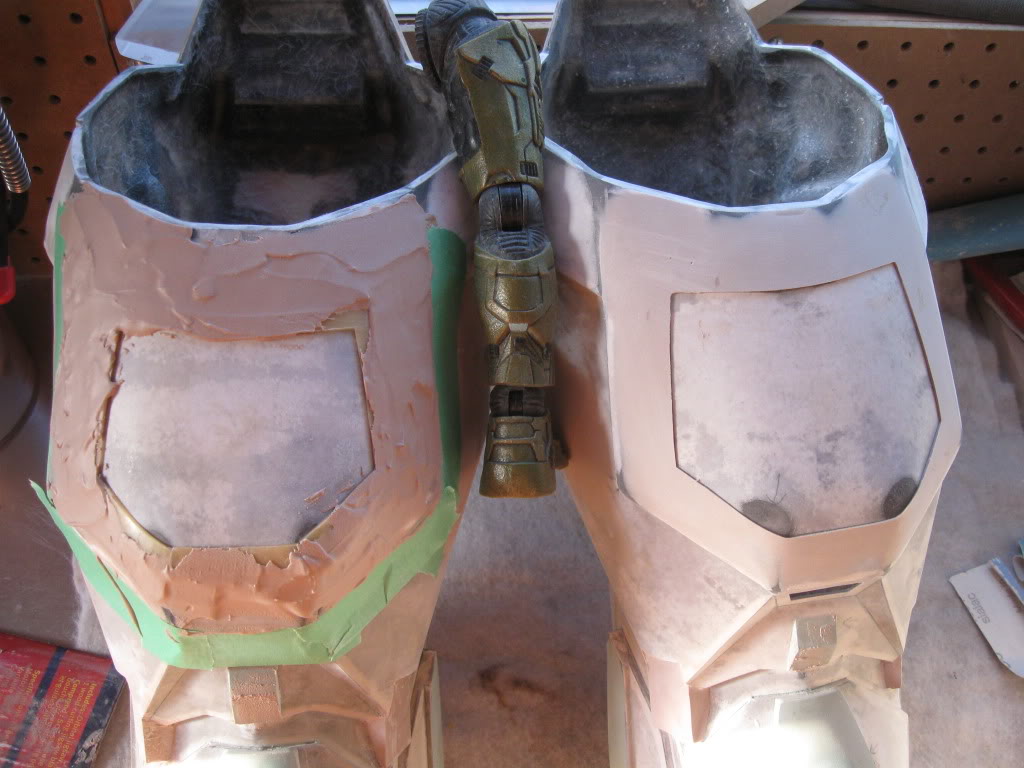

After the fiberglass step, some sanding and Bondo to straight things up. I'm adding some details.

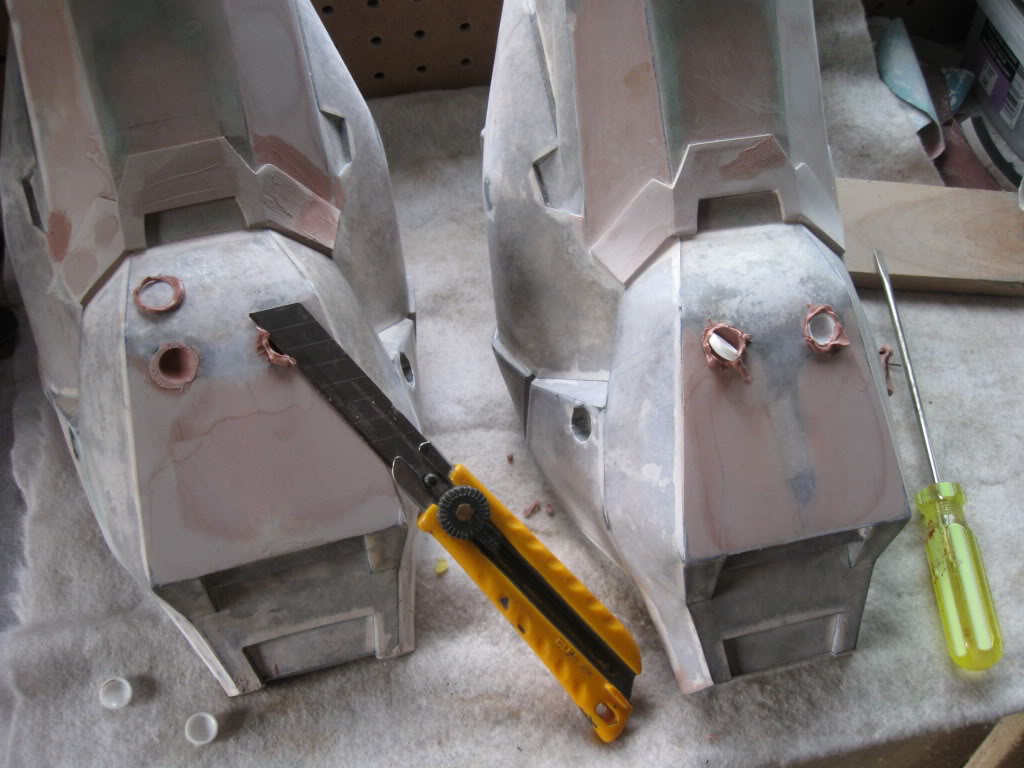

Dont like the "square holes" no problemo

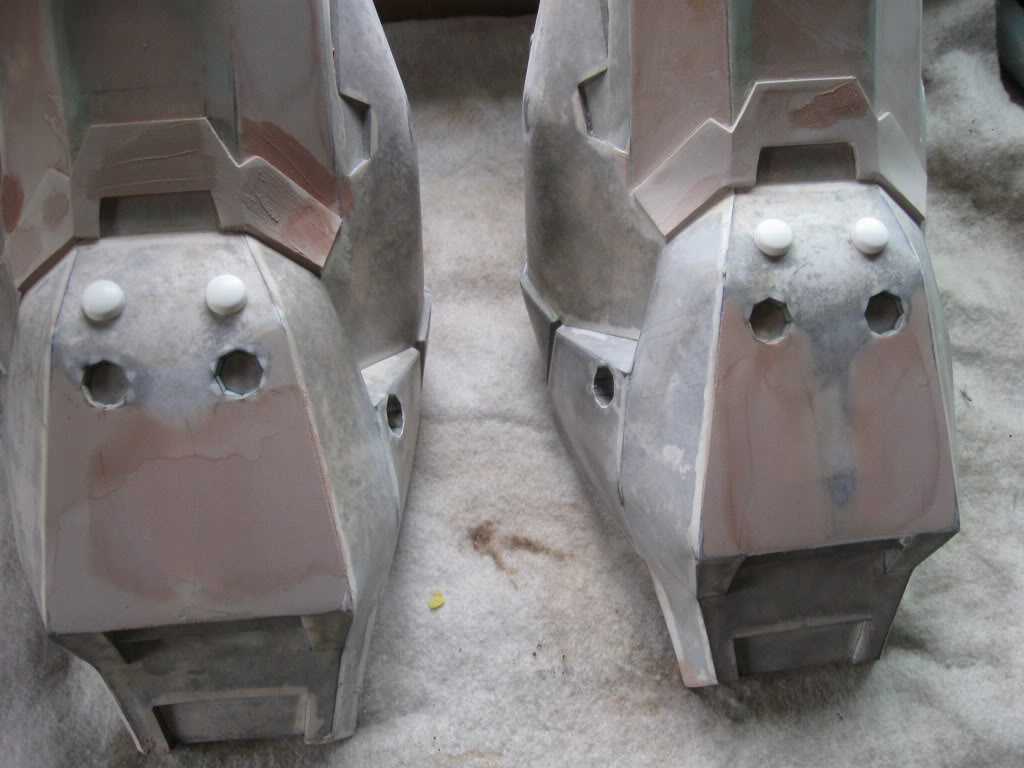

Much better after some bondo and a screw cap squish in it.

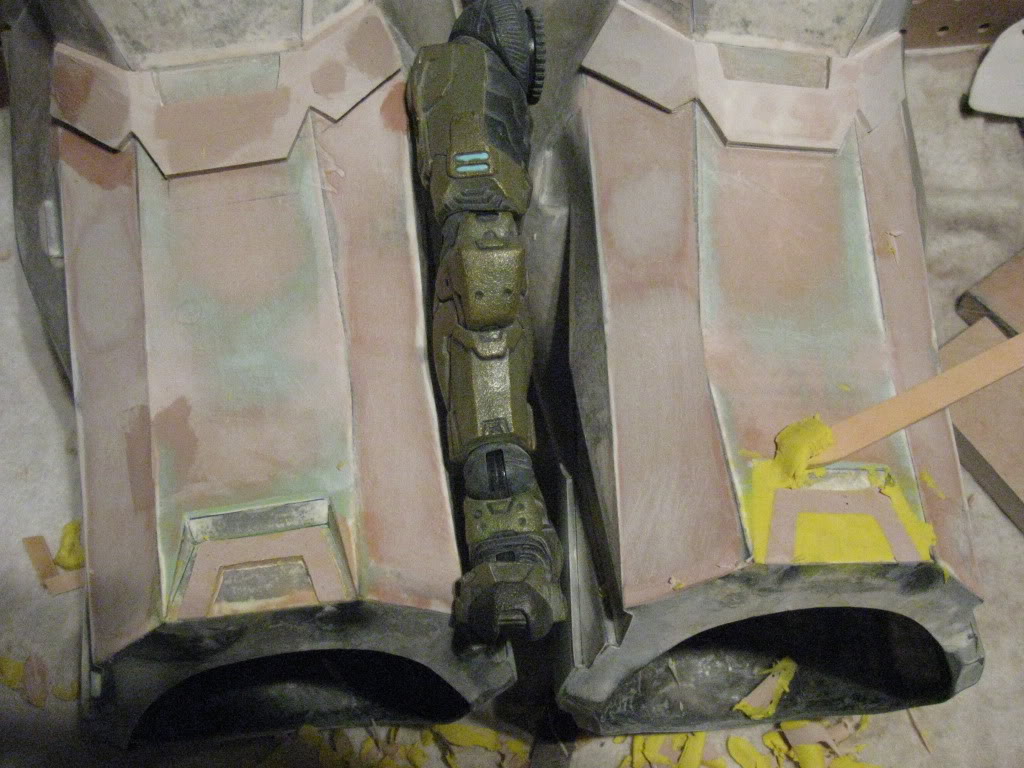

More details, this time made with plasticine.

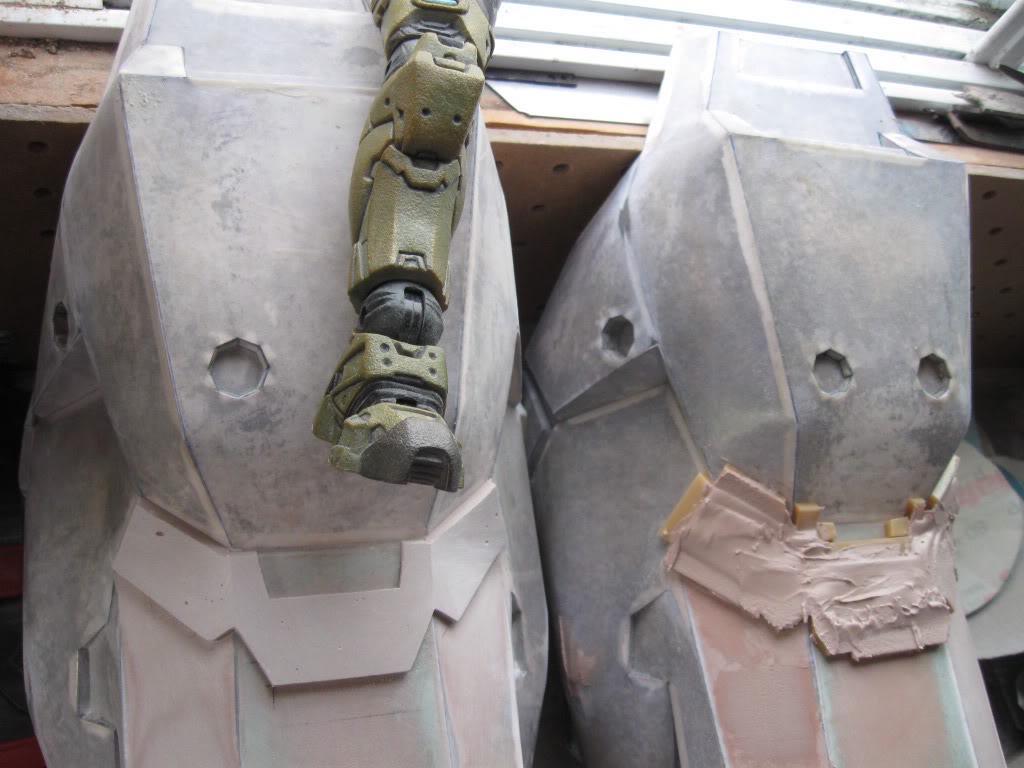

The back side to needed a "facelift".

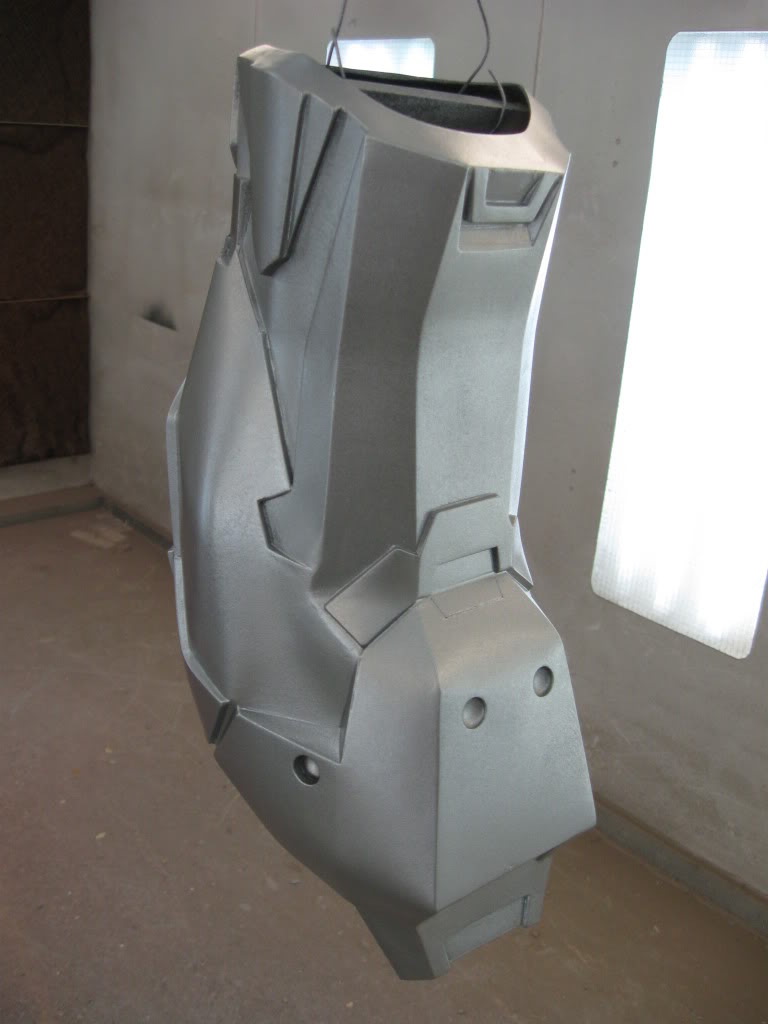

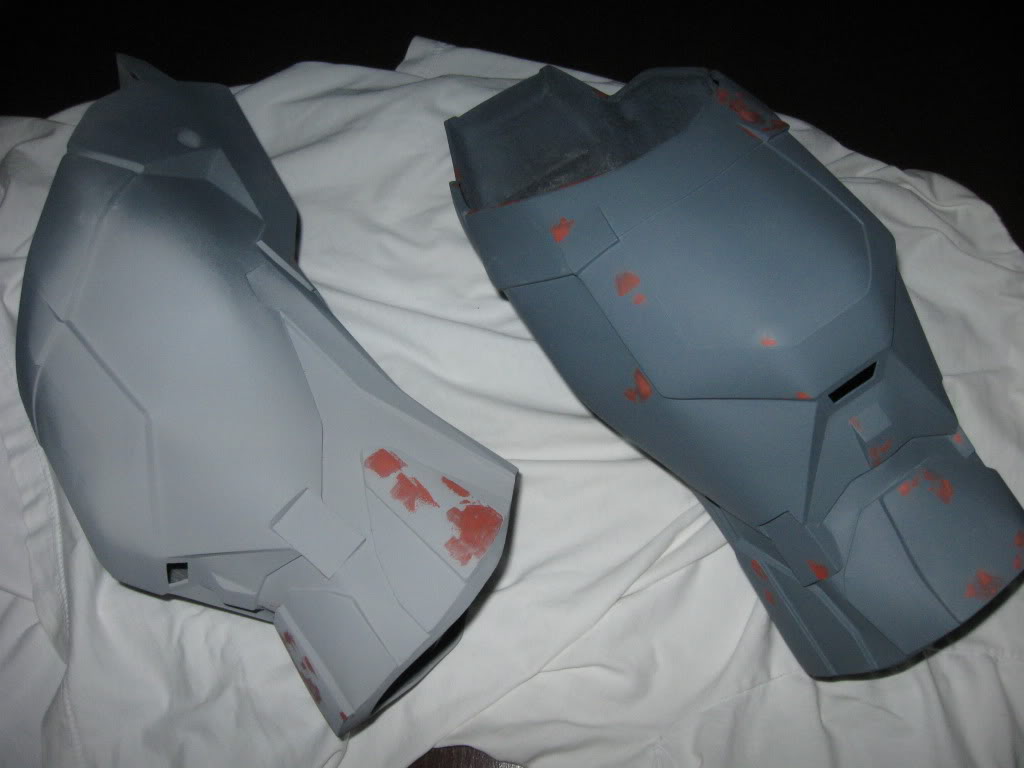

Primed and with spot putty.

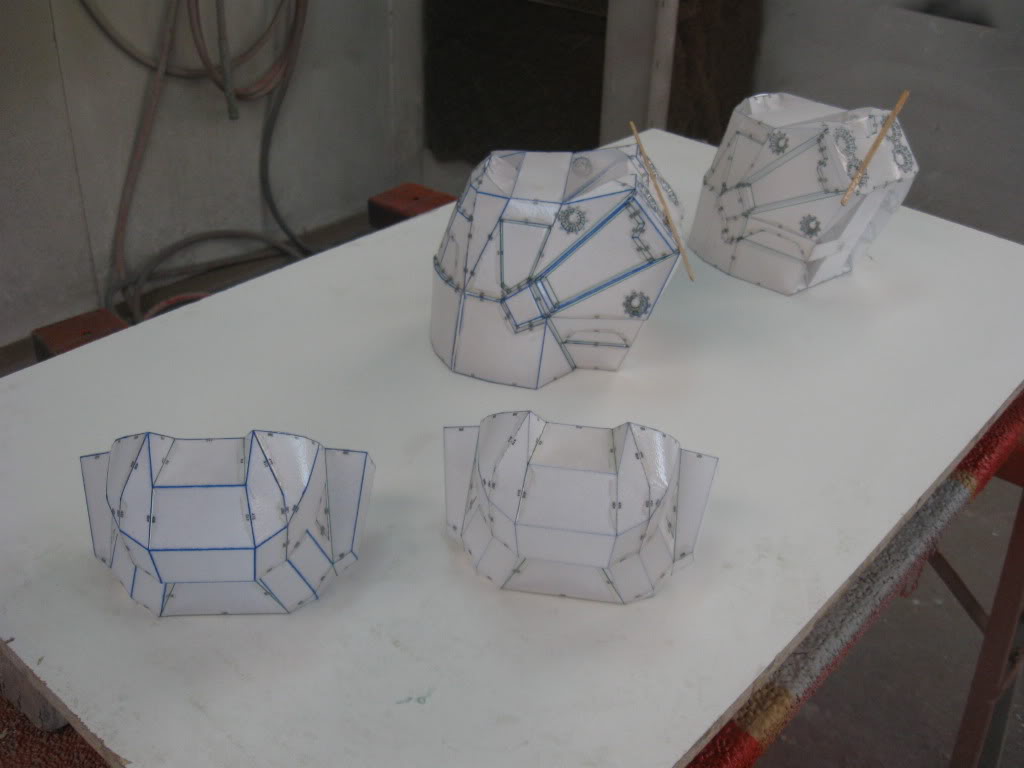

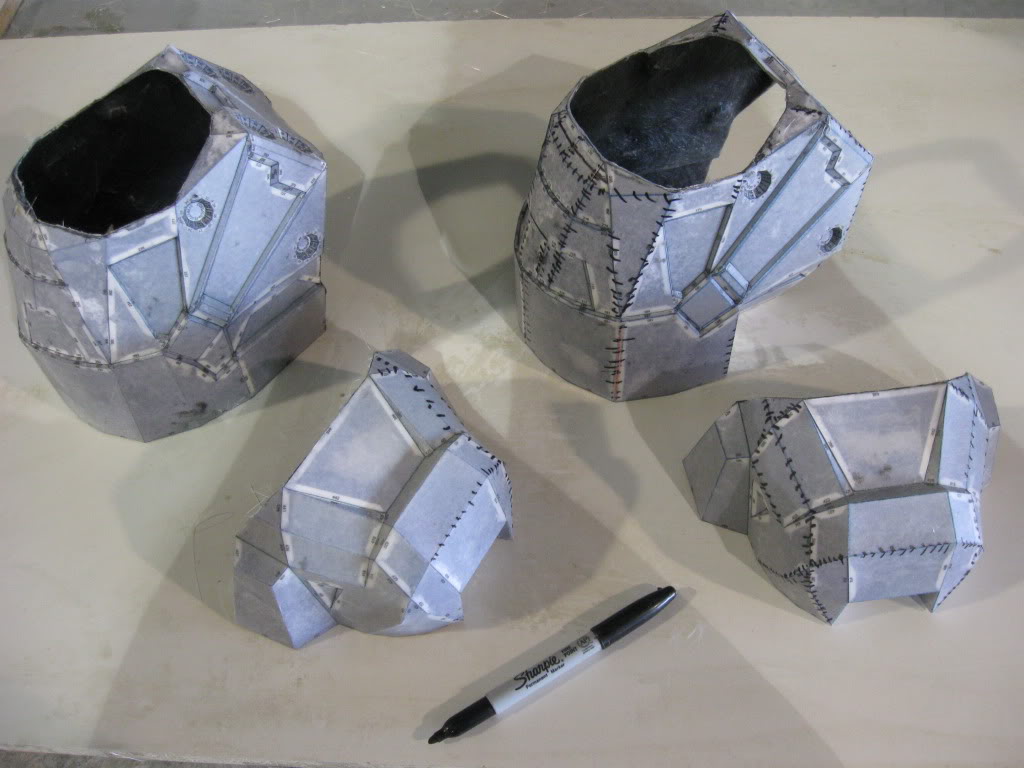

I'm starting the Boots, Peped and resined.
more on the way. :$

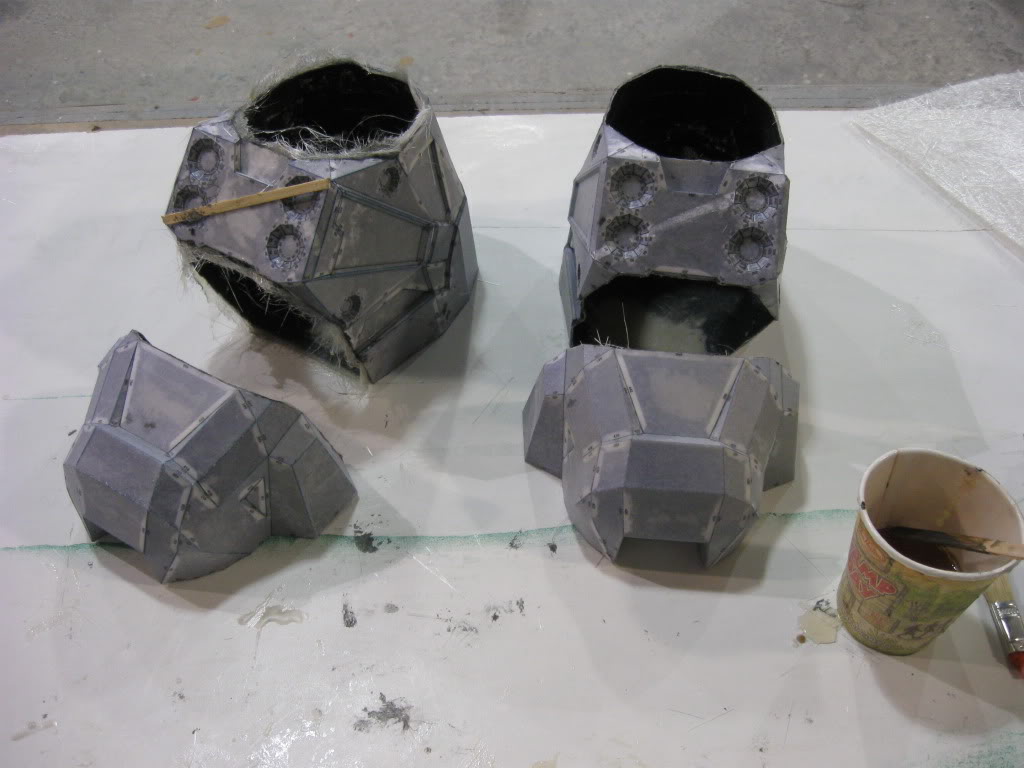

Peped being resined.
After the fiberglass step, some sanding and Bondo to straight things up. I'm adding some details.
Dont like the "square holes" no problemo
Much better after some bondo and a screw cap squish in it.
More details, this time made with plasticine.
The back side to needed a "facelift".
Primed and with spot putty.
I'm starting the Boots, Peped and resined.
more on the way. :$
soul products
Well-Known Member
is the pistol an original from you?
Macattack64
Well-Known Member
What is the little strips you are using to get a clean edge?
CyberBen
Active Member
@ soul products : Yes and no, I bought it on eBay last year but didin't like it, it was cast in resine but the mold was not line properly, so I redone all the handle section and change the screws on each side, from big ugly phillips wood screws to the more accurate slot computer type one. Then Ive done a rubber mold on my new gun and rotocast 2 guns, 1 for each side

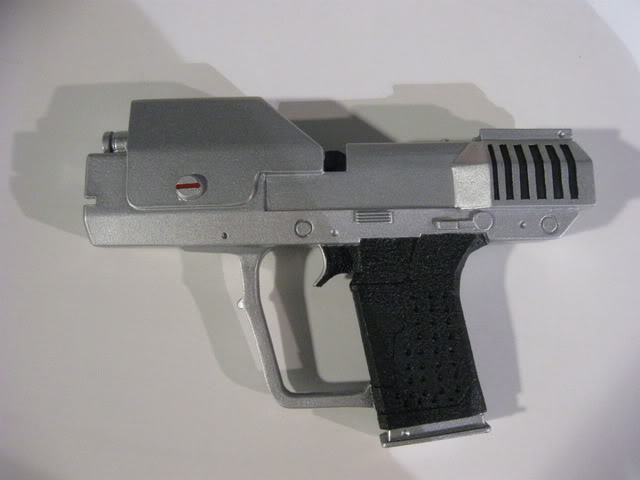

This is the gun bought on ebay and modified.
@ Macattack64 : Its freeman casting sheet wax, I got some various thickness at work, its not something you can find at your hardware store. But you could use wheather-striping foam tape, it work well, just be careful to put it straight.
This is the gun bought on ebay and modified.
@ Macattack64 : Its freeman casting sheet wax, I got some various thickness at work, its not something you can find at your hardware store. But you could use wheather-striping foam tape, it work well, just be careful to put it straight.
Adenn Velek
Jr Member
Honestly the best work I have seen on this site. Great job and keep it up!
CyberBen
Active Member
Really really pic heavy
Thanks for the comments thorn696 and Adenn Velek.

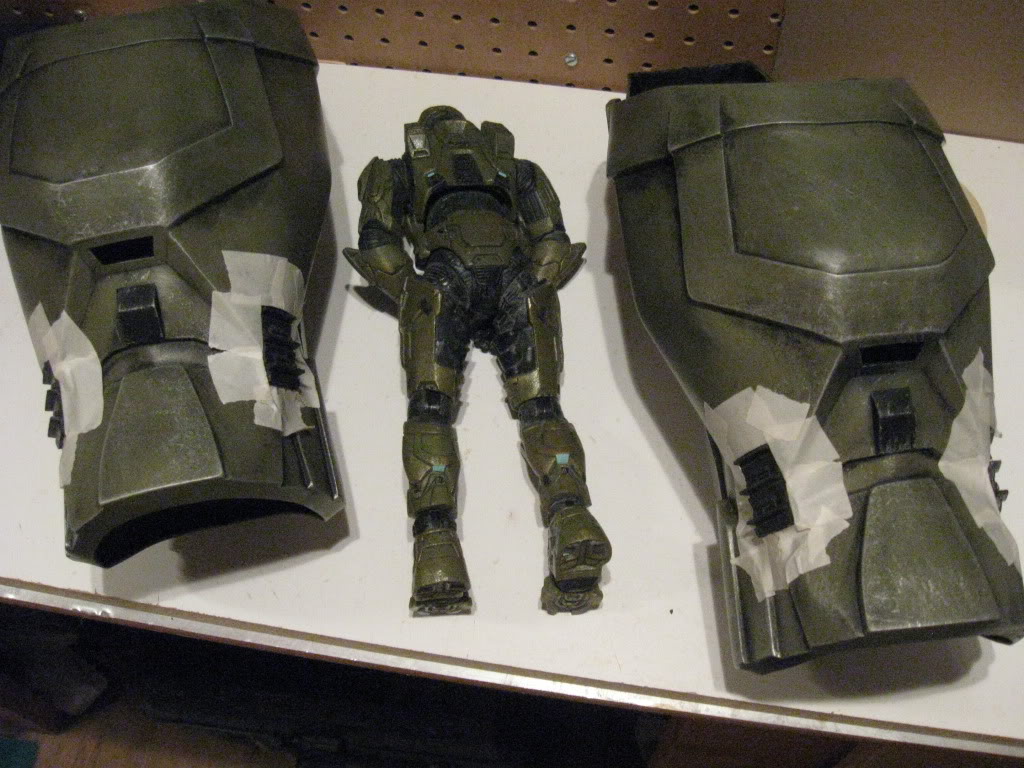

I've worked on my boots and painted my shin guards, lets see them I hear you say ;p

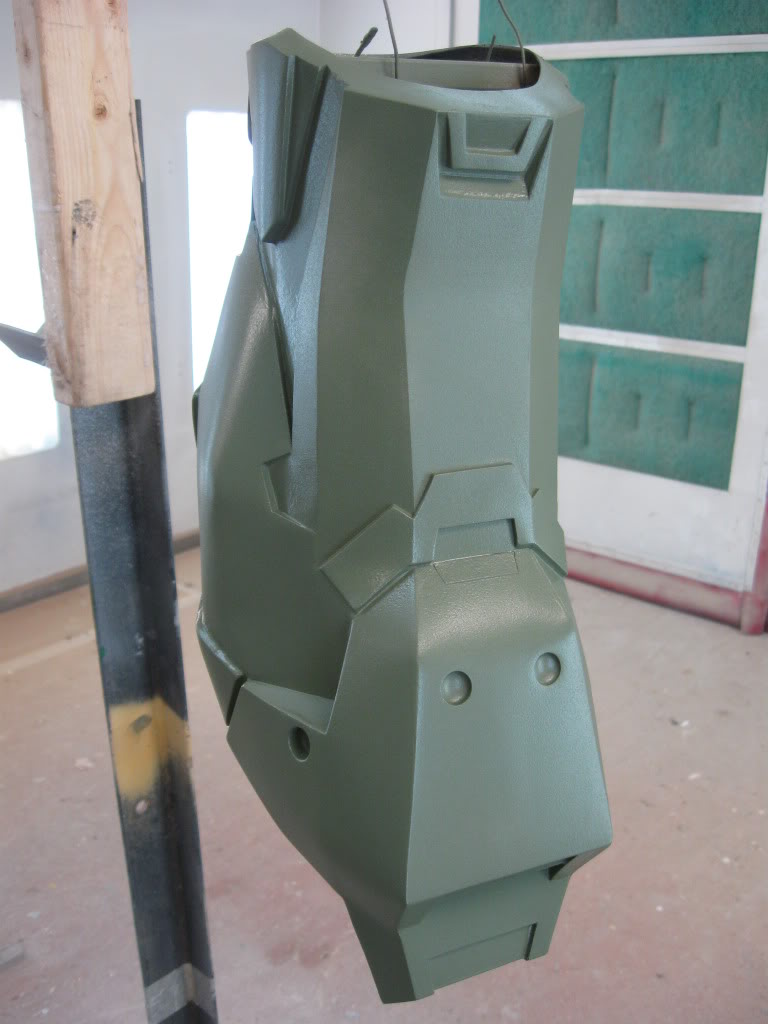

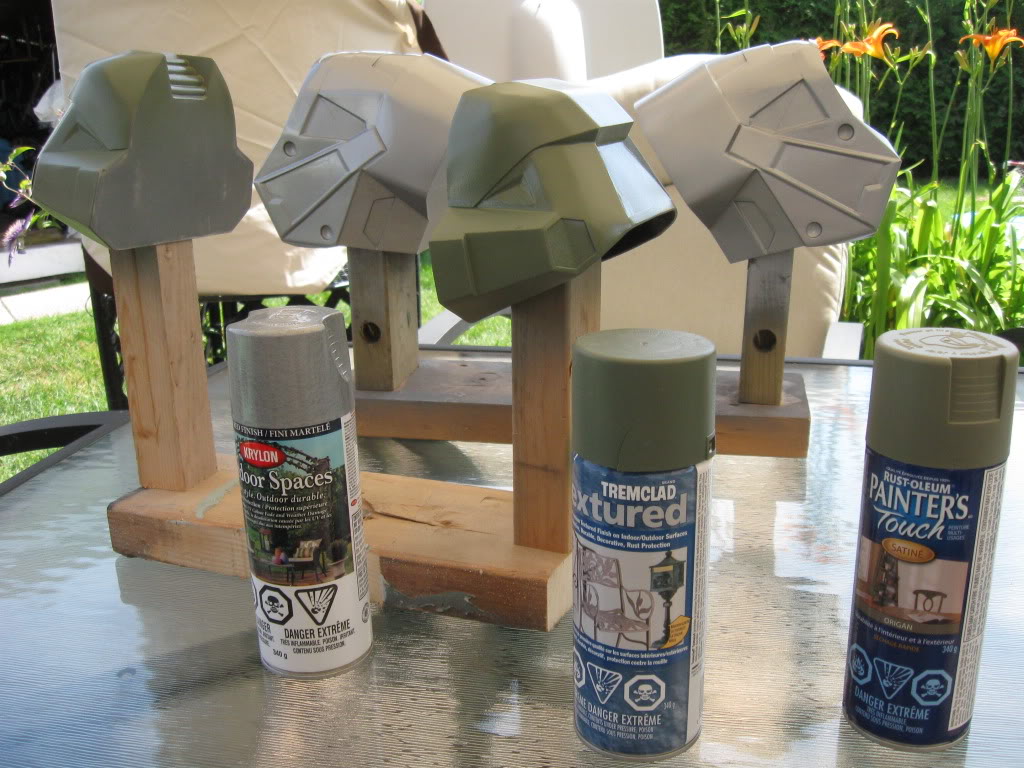

First coat, hammered silver paint
Second coat, textured green paint

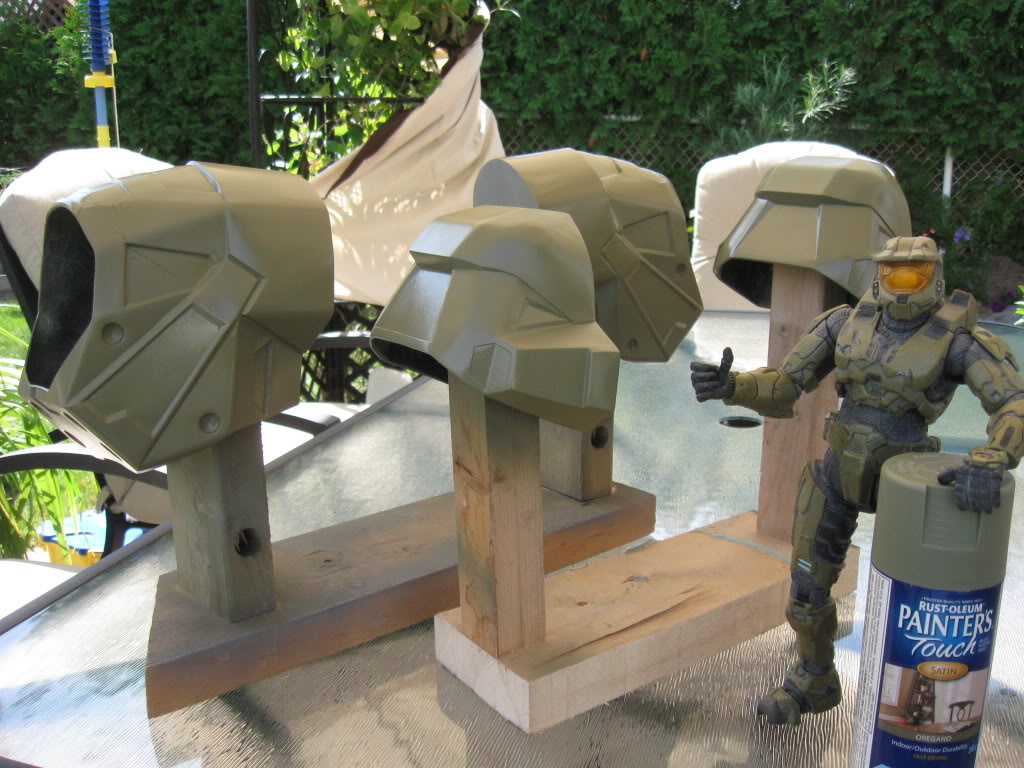

Third coat, painter's touch satin oregano
Then its matt lacquer black inside because it dry quickly. and rust paint outside wiped with a clean cotton rag to give that dirty and used look. + the silver paint on a brush technique for the scratches.

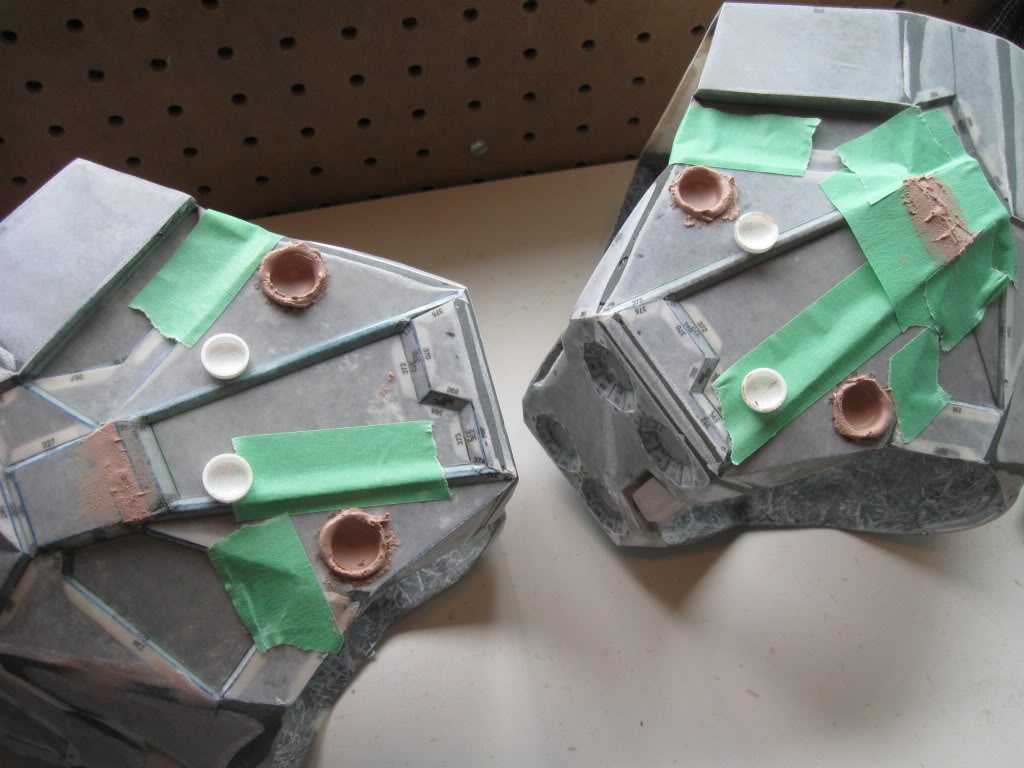

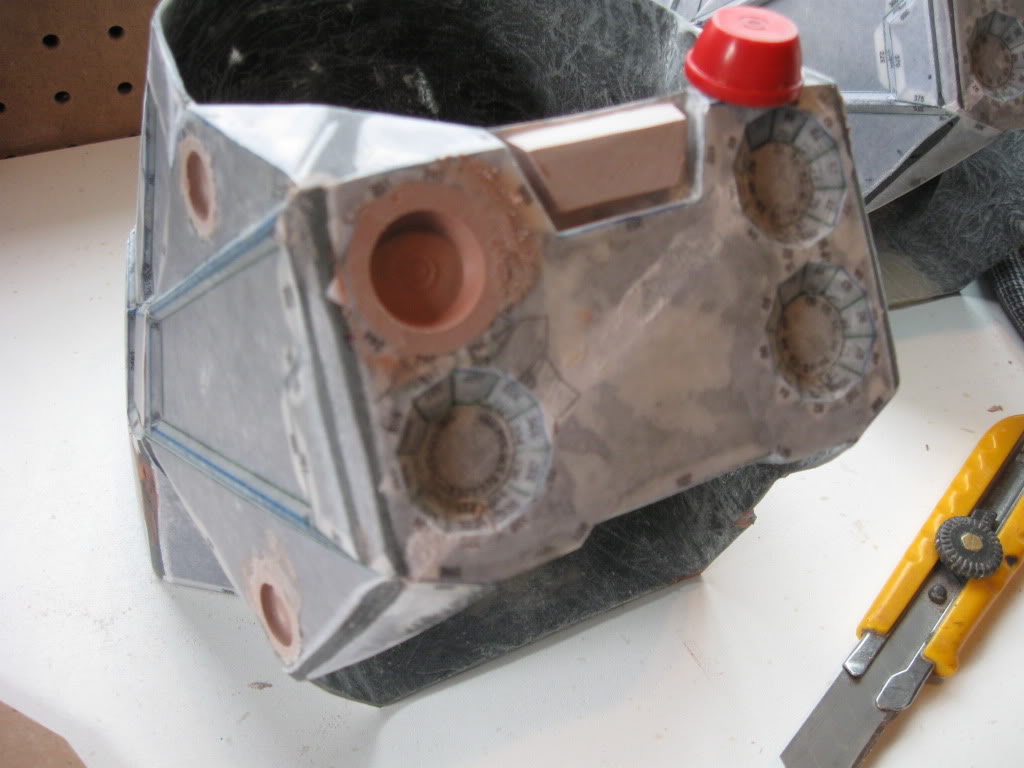

The boots, I put rondo inside where there are sharp corners inside all my piece before the fiberglass.
In this pic you see where the sharpie marks are, this what i need to sand down, its easy to sand its rondo remember. After that there is less bondo to put on, so the piece is lighter.
After some sanding.
Details details

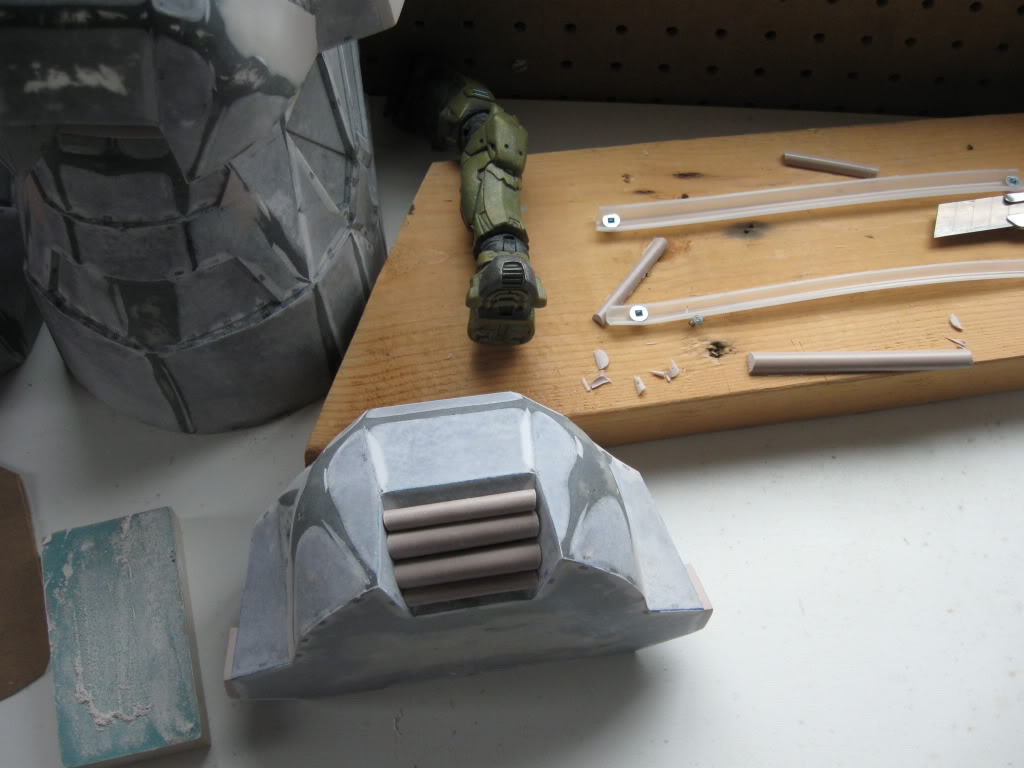

In the last one if you look on the right you can see what I used to do the bumps in the front of the boots and the details on the lower part of the "pouches" of my cod piece. <--- this part is for ShadoKat on page 2 --- its ½@ plastique tubing cut in halfs, I fill those with bondo. when it harden i demold them, cut them to the lengts I need and stick them on the boots with a bit of bondo.

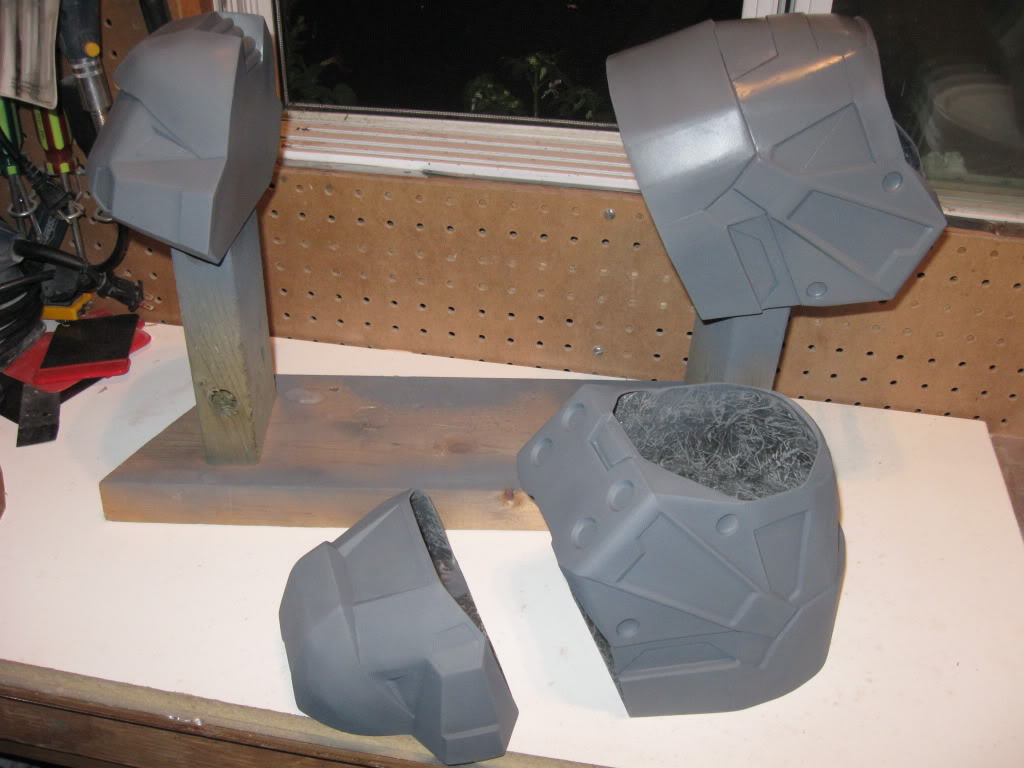

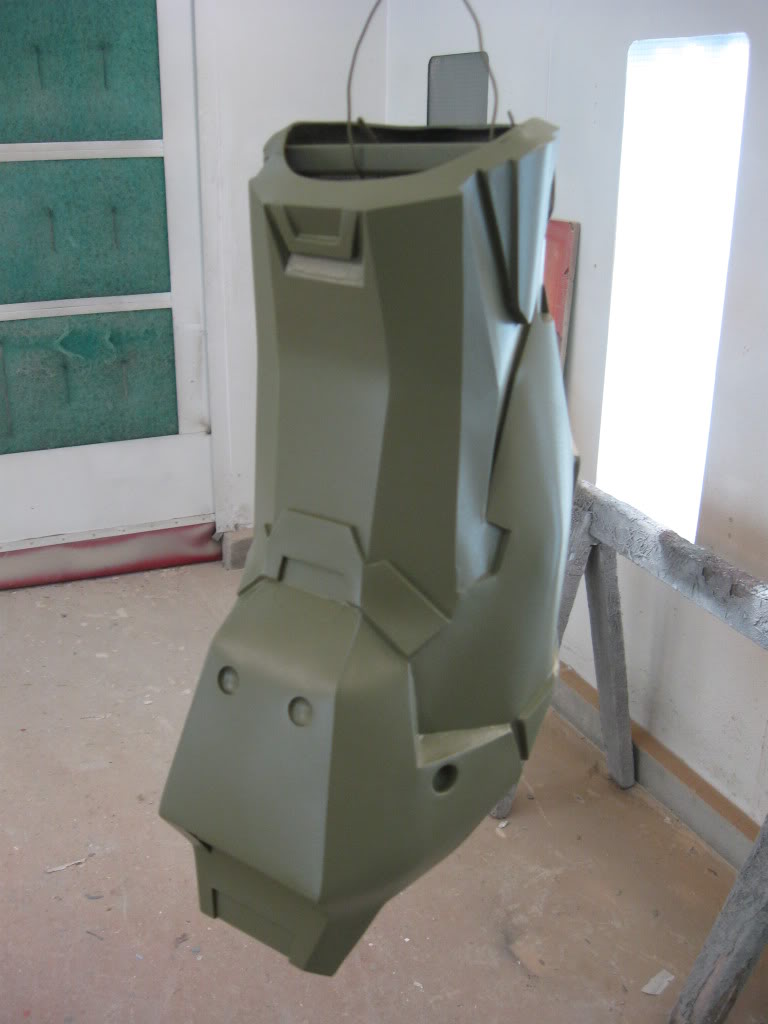

Sanded and primed

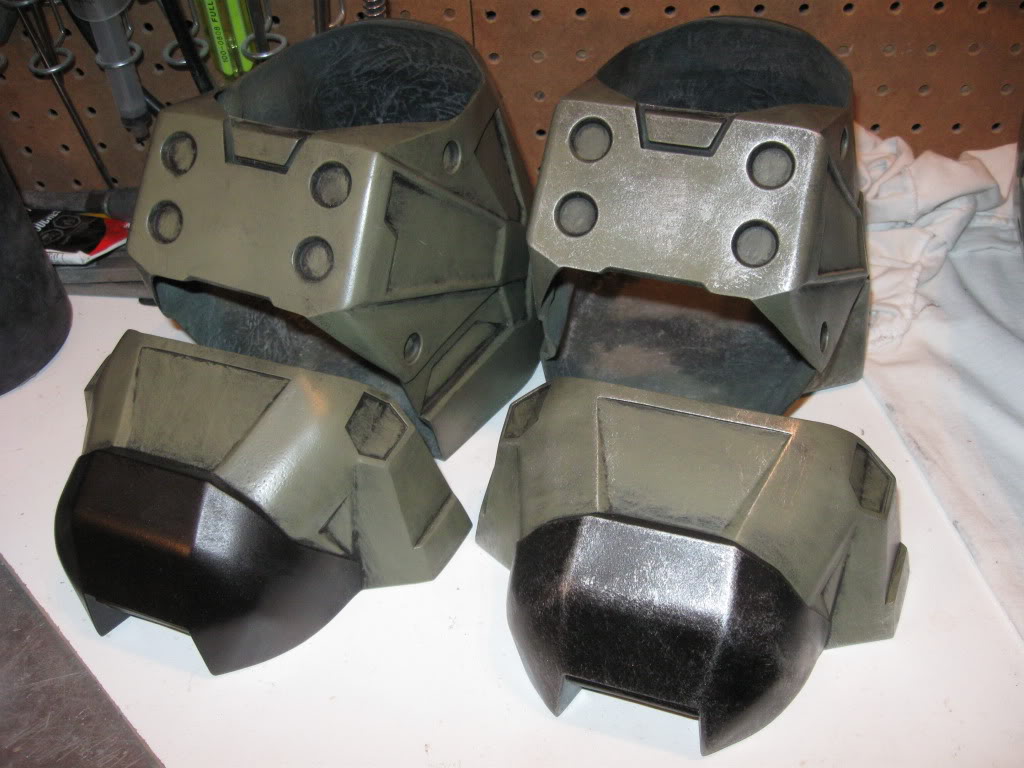

Same 3 layers process as all my pieces.
Thanks for the comments thorn696 and Adenn Velek.
I've worked on my boots and painted my shin guards, lets see them I hear you say ;p
First coat, hammered silver paint
Second coat, textured green paint
Third coat, painter's touch satin oregano
Then its matt lacquer black inside because it dry quickly. and rust paint outside wiped with a clean cotton rag to give that dirty and used look. + the silver paint on a brush technique for the scratches.
The boots, I put rondo inside where there are sharp corners inside all my piece before the fiberglass.
In this pic you see where the sharpie marks are, this what i need to sand down, its easy to sand its rondo remember. After that there is less bondo to put on, so the piece is lighter.
After some sanding.
Details details
In the last one if you look on the right you can see what I used to do the bumps in the front of the boots and the details on the lower part of the "pouches" of my cod piece. <--- this part is for ShadoKat on page 2
--- its ½@ plastique tubing cut in halfs, I fill those with bondo. when it harden i demold them, cut them to the lengts I need and stick them on the boots with a bit of bondo.Sanded and primed
Same 3 layers process as all my pieces.
CyberBen
Active Member
Update to big ad to cut it in half

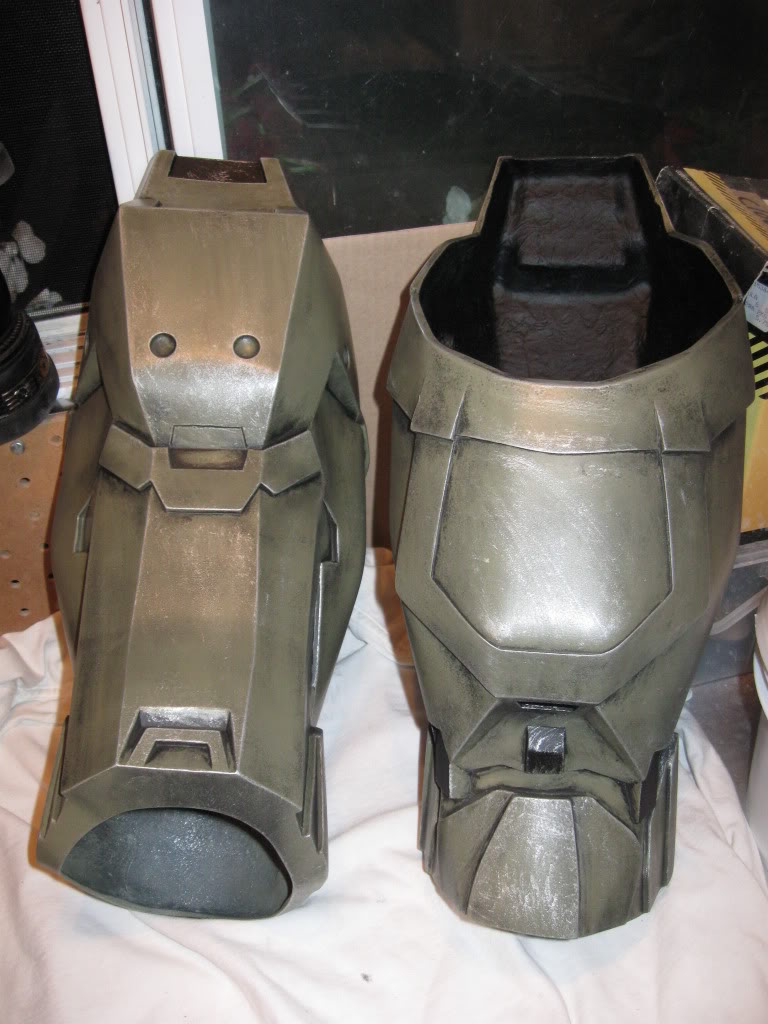

Spartan approved paint job.
Almost finish
Gluing my secret parts to add a more realistic look
On the shin guards too

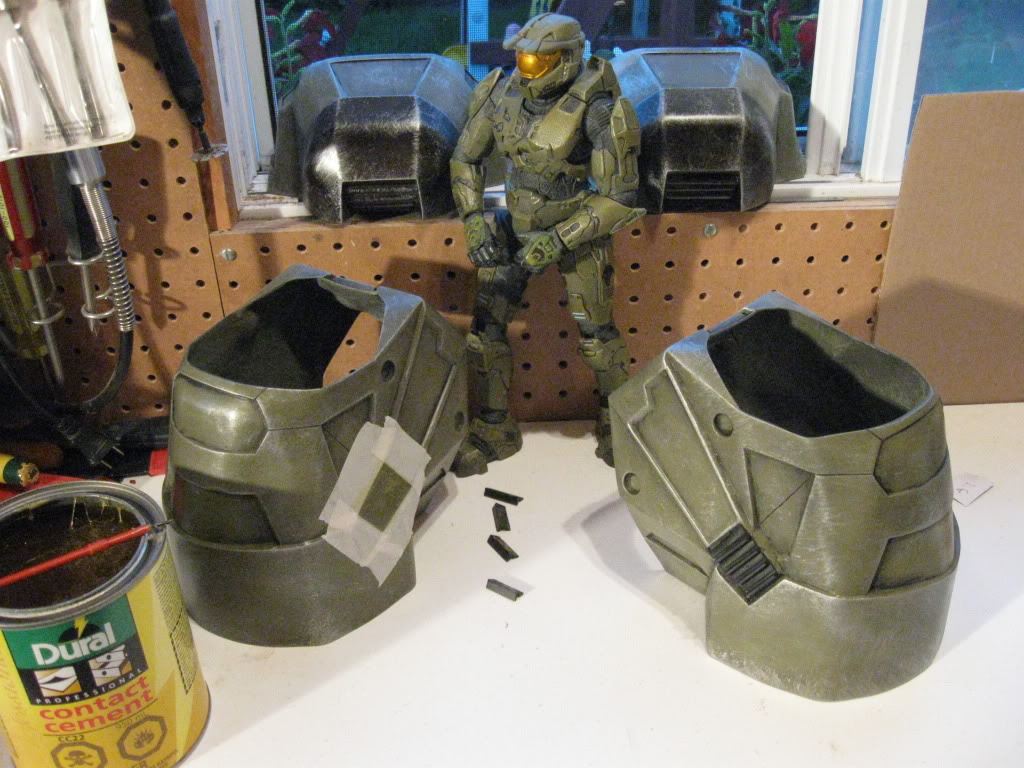

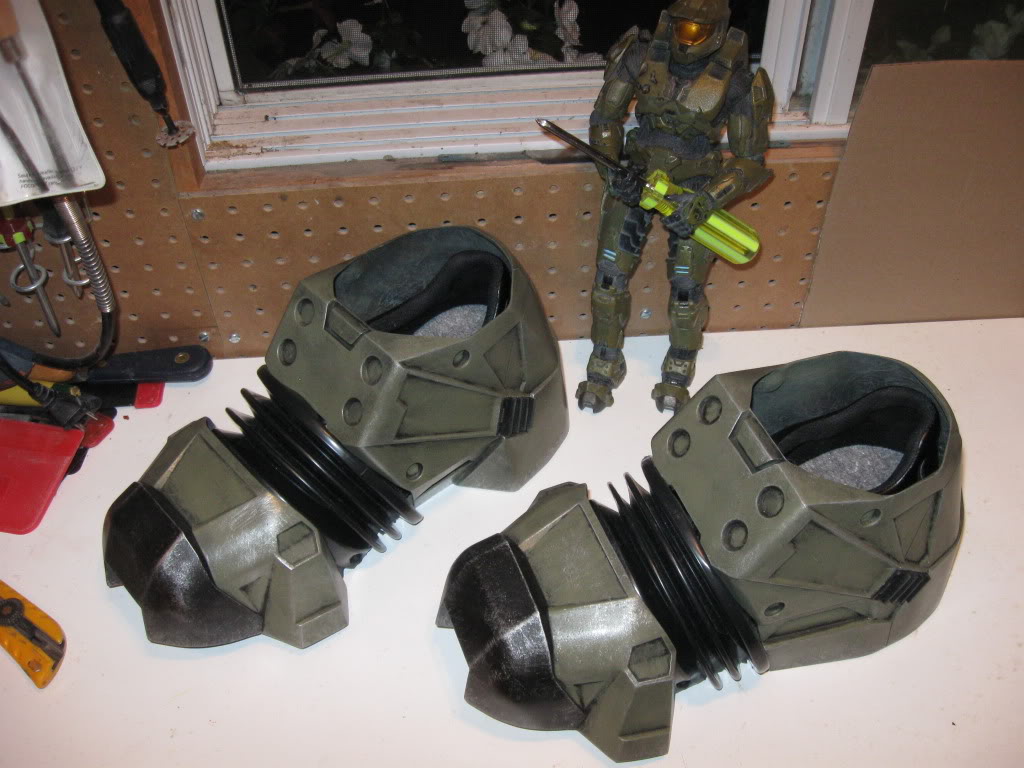

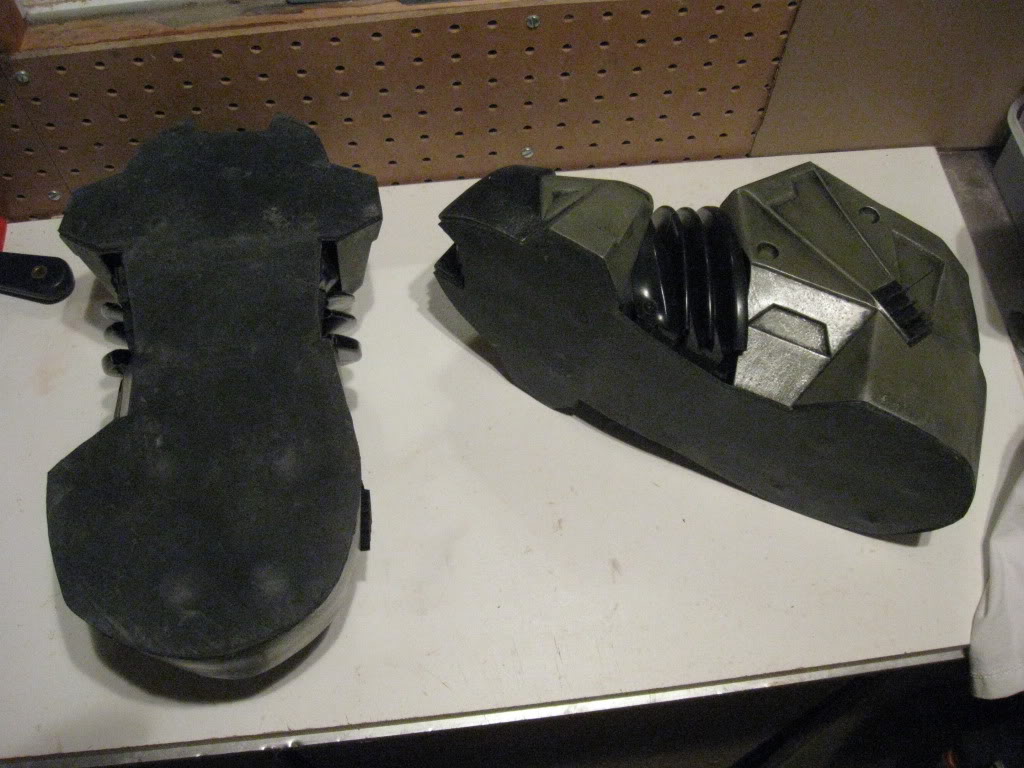

Boots finished, shoes in its place, the plungers fits well after a lot of tweaking.

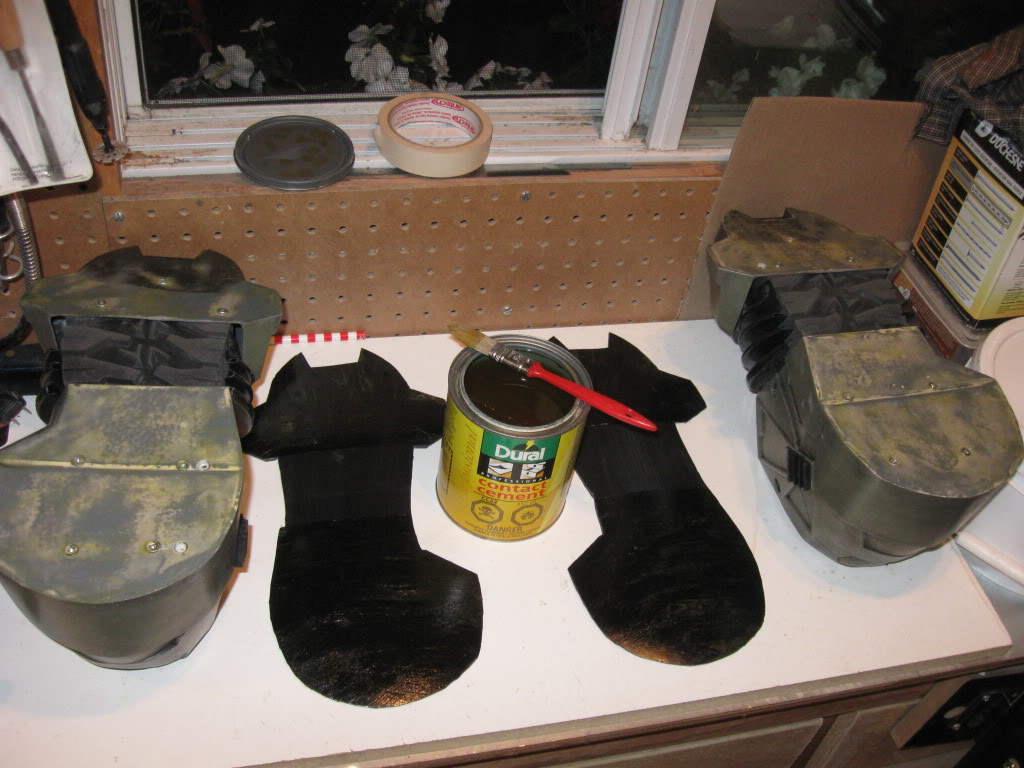

I glued a 1/8" rubber under it so I don't scracth any floor with the screws and it will be less slippery.
I'll go work the chest now :eek
Spartan approved paint job.
Almost finish
Gluing my secret parts to add a more realistic look
On the shin guards too
Boots finished, shoes in its place, the plungers fits well after a lot of tweaking.
I glued a 1/8" rubber under it so I don't scracth any floor with the screws and it will be less slippery.
I'll go work the chest now :eek
CaptainAnt
New Member
See, what you did there, is what I want to make happen in my armor making attempt. That's amazing!
SkullBoy13
Active Member
well for the MKVI, YOUR's sir, is THE BEST I've EVER seen! keep up the FANTASTIC job my friend ^_^
CaptainAnt
New Member
which pep file did you use for your chestpiece? I like the look of it quite a bit
CyberBen
Active Member
Thanks for all the great comments
@ CaptainAnt : the pep file I used is name orig_torso_Letter, but I think its not in the pep index anymore.

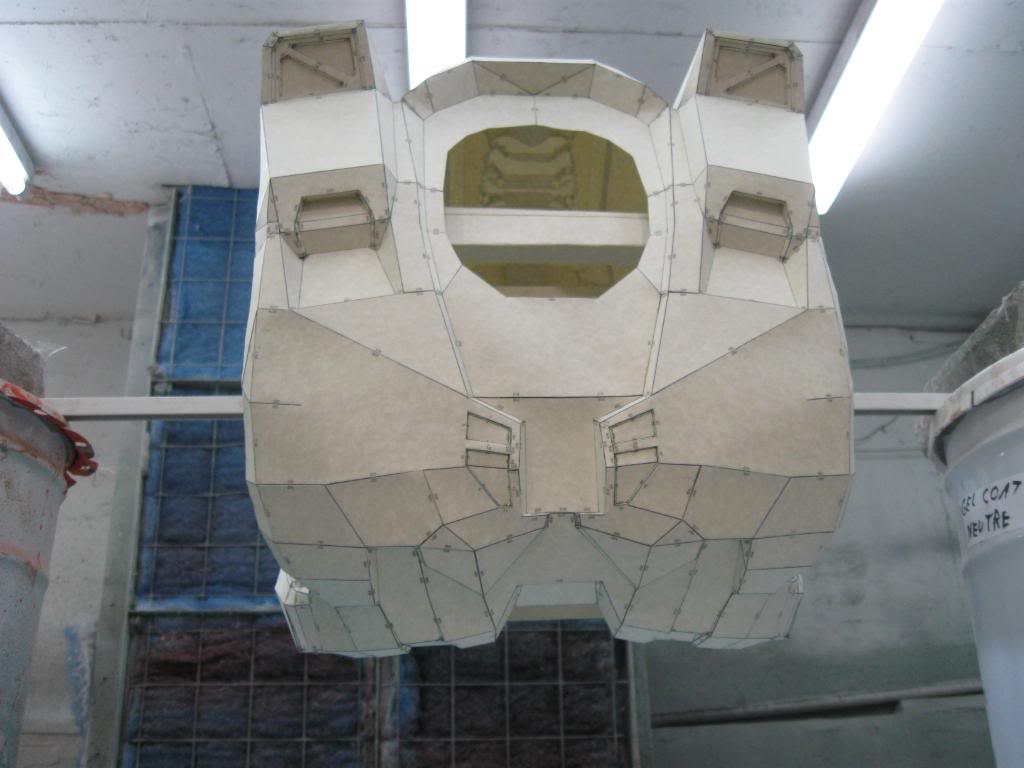

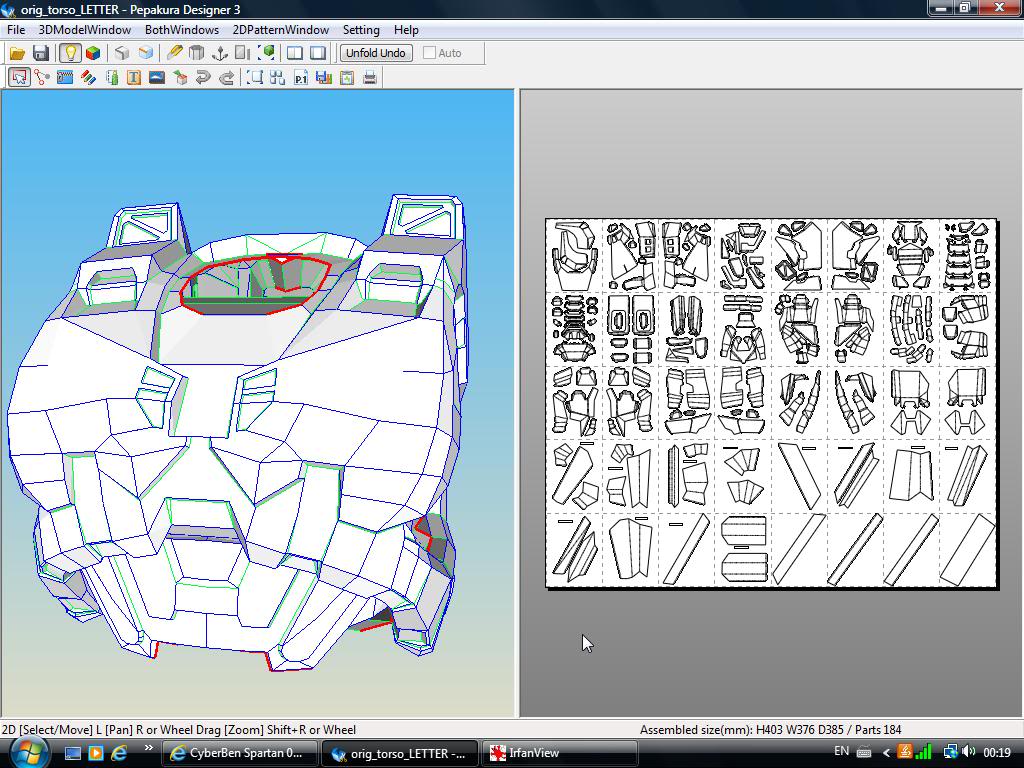

Here is a screen cap of it, if you don't find it, let my know I'll send it to you.
But keep in mind I did a lot of modification on my chest piece. The pep file don't give you all the details, just a base to work on.

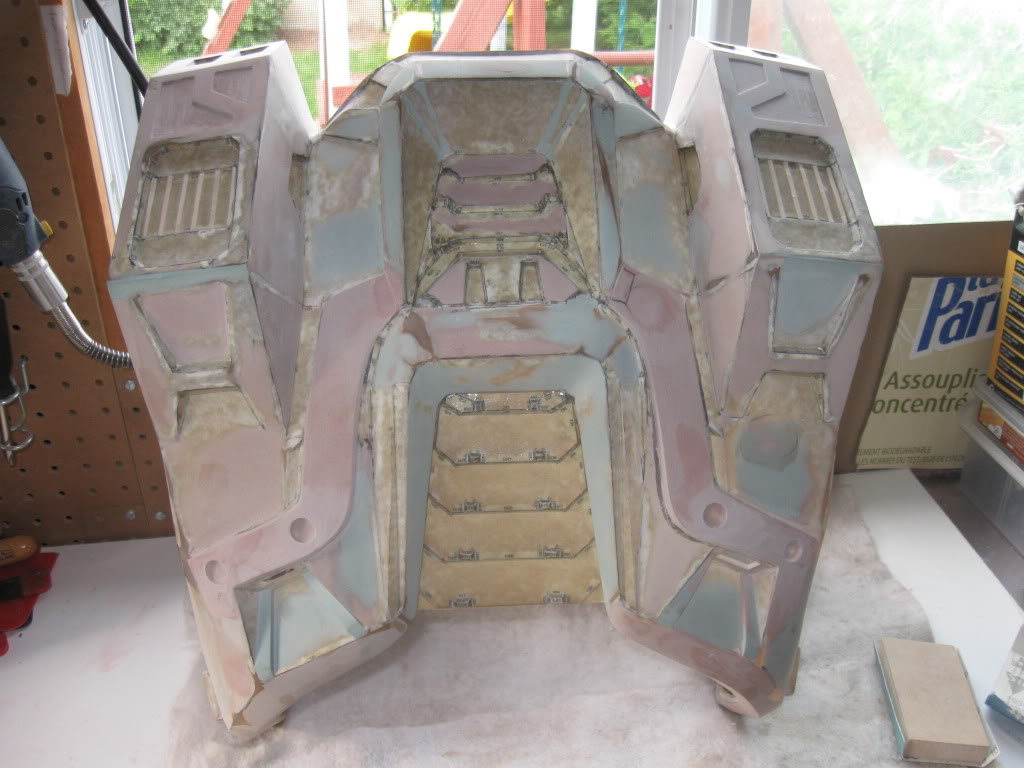

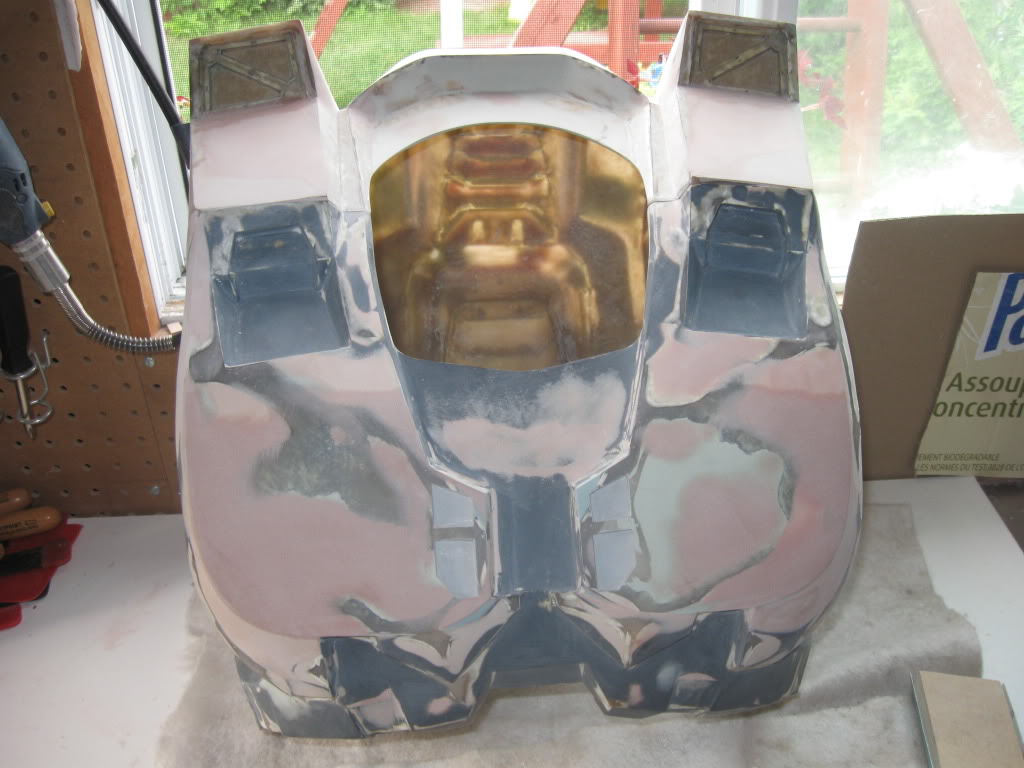

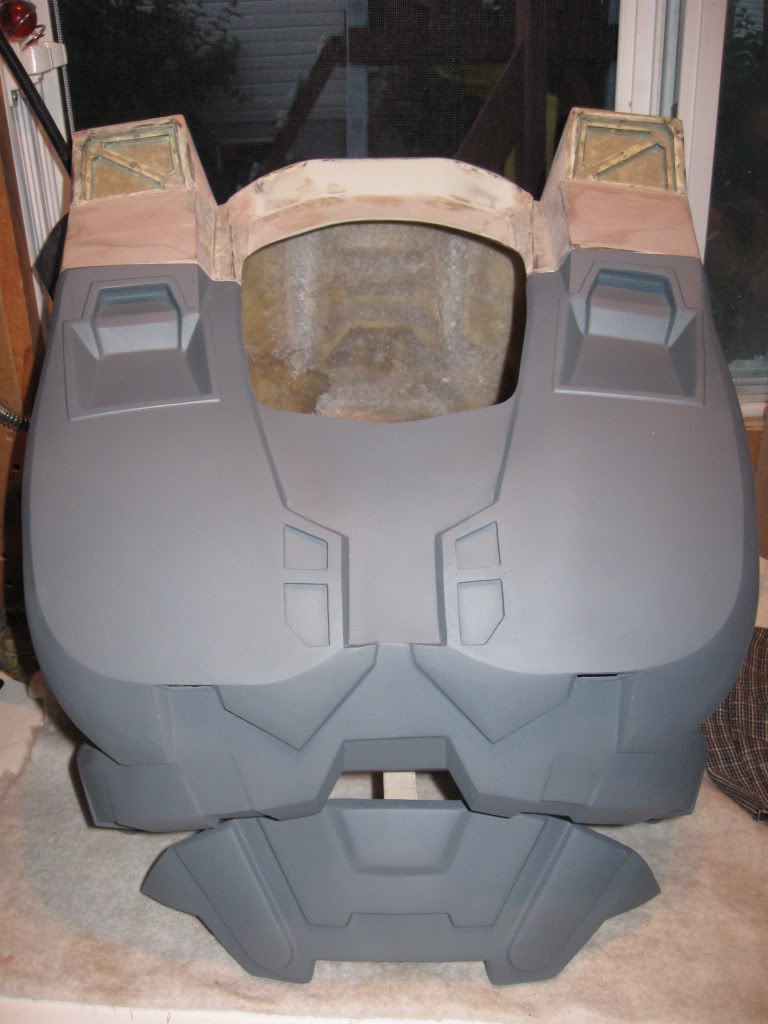

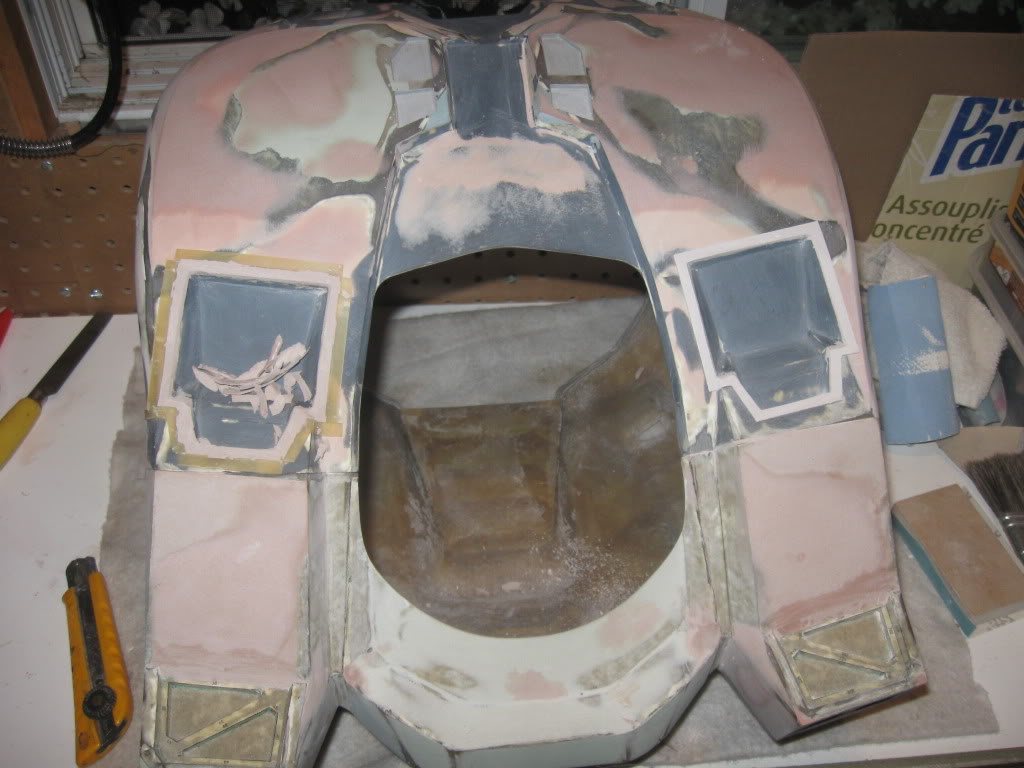

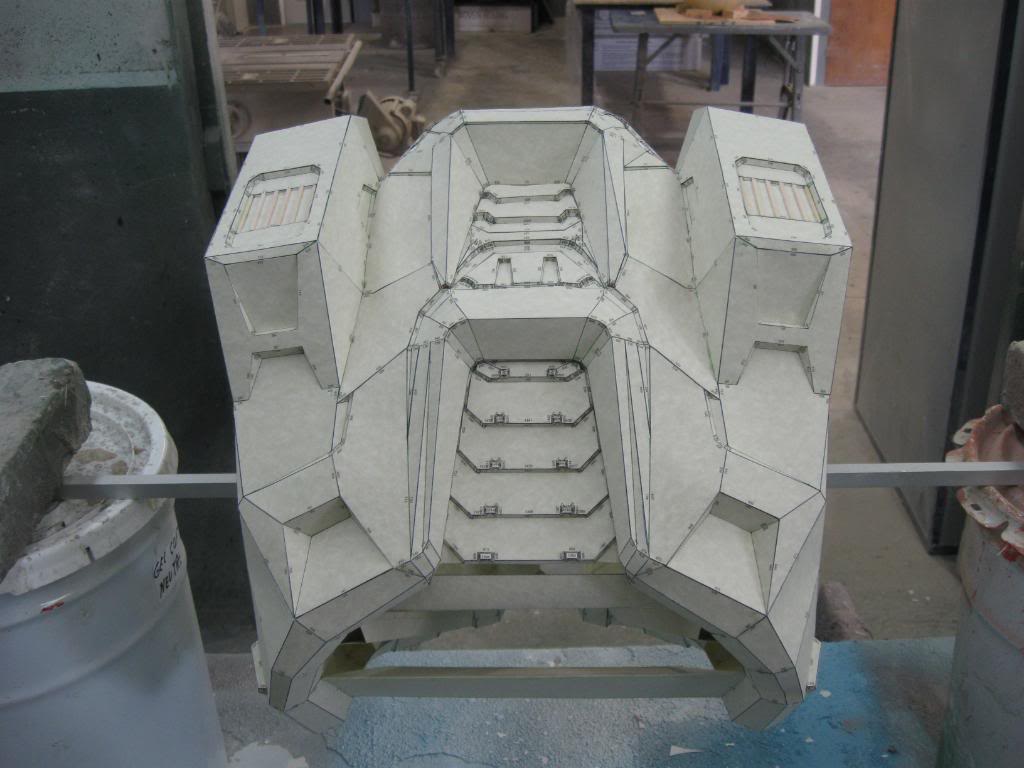

Look at the original pep piece and the almost finish higher in this page.
@ CaptainAnt : the pep file I used is name orig_torso_Letter, but I think its not in the pep index anymore.
Here is a screen cap of it, if you don't find it, let my know I'll send it to you.
But keep in mind I did a lot of modification on my chest piece. The pep file don't give you all the details, just a base to work on.
Look at the original pep piece and the almost finish higher in this page.
