Guys! I'm back! It's apparently been 2 years since my last update. Makes sense. A lot has happened (to the whole world), I didn't have a crafting space, my husband and I bought a house in December of 2019 and spent most of 2020 fixing it up, moved in September 2020 and finally I finished painting and setting up my craft room early this year. Once I had a work space again I pretty quickly got back to work on this project! I think I'll do a few separate posts to help myself sort through what all I've done this year.
Lets start with some freehanded robot arm action

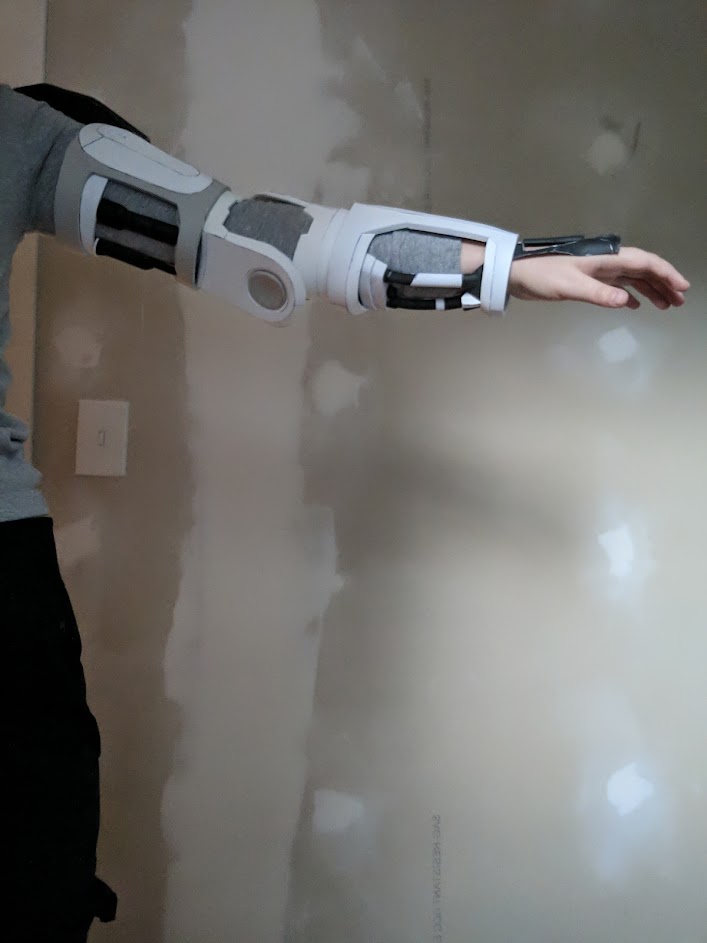

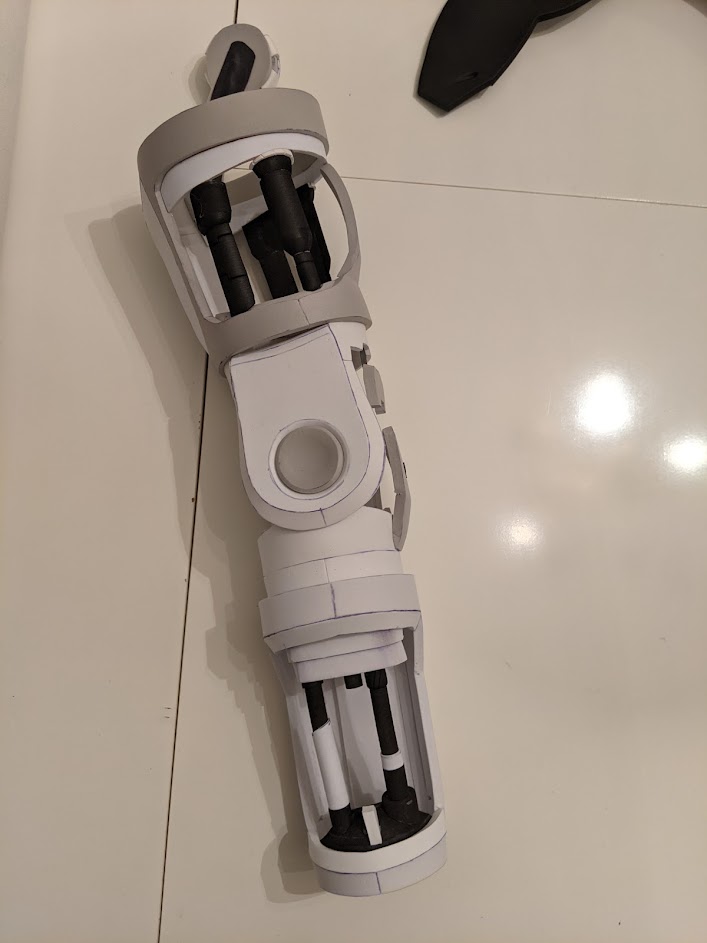

I fully freehanded this arm, referencing mostly Halo:Reach theater mode, as well as other cosplayers versions, statues of Kat, and anything I could find. I use a variety of foam thicknesses in my builds, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 10mm. This piece made use of some foam dowels I believe I got from tntcosplay supplies. I also started using sksprops foam during this after trying out a blaster build with it, and I LOVE IT. I've never seen foam that sands this well, it's a game changer. I also wanna mention I tried SO hard to incorporate electronics into this, I wanted to make part of the elbow plate spin like in the game, but I searched for days online and could not find a small enough motor that didn't go insanely fast. I'm not super upset about it but I think it would've been cool.
Scattered and possibly unhelpful progress pics.
Top of the forearm basic shape.
Basic shape of underneath of forearm.

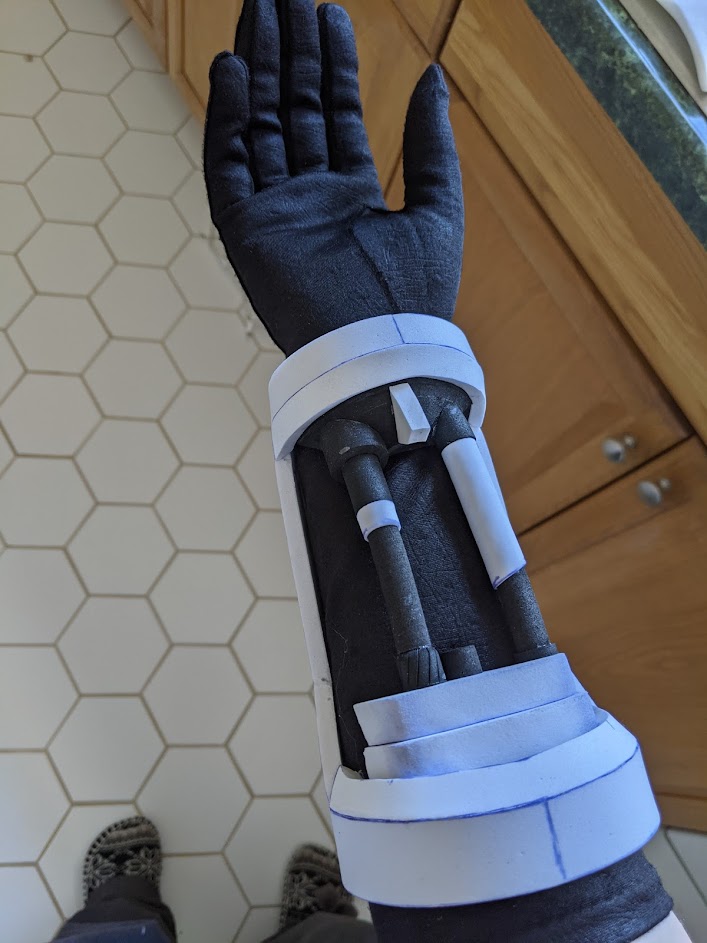

Underside of forearm, detailed with foam dowels.

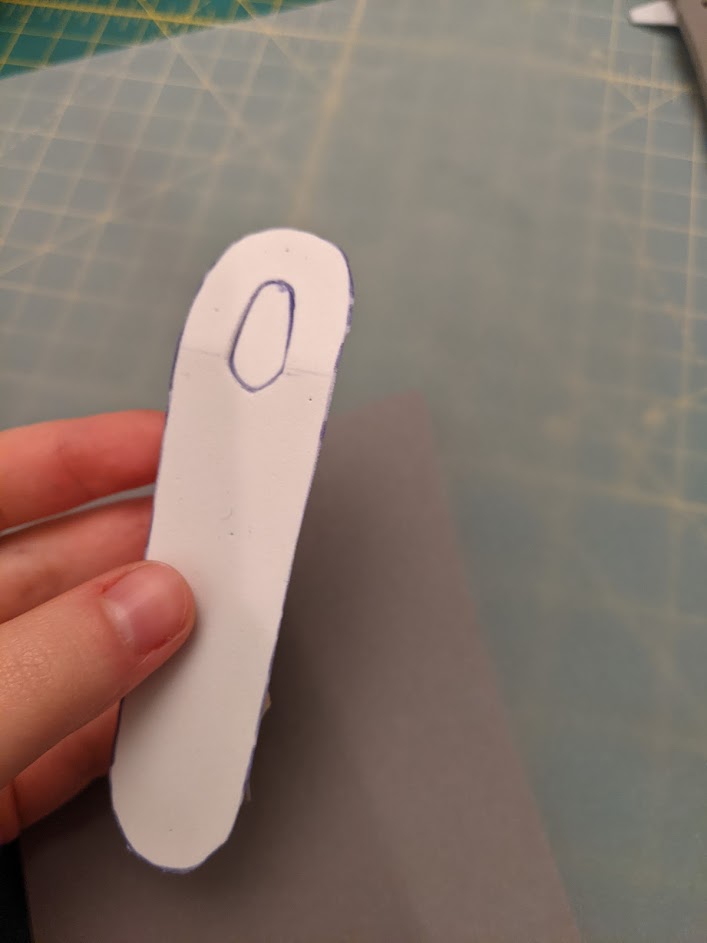

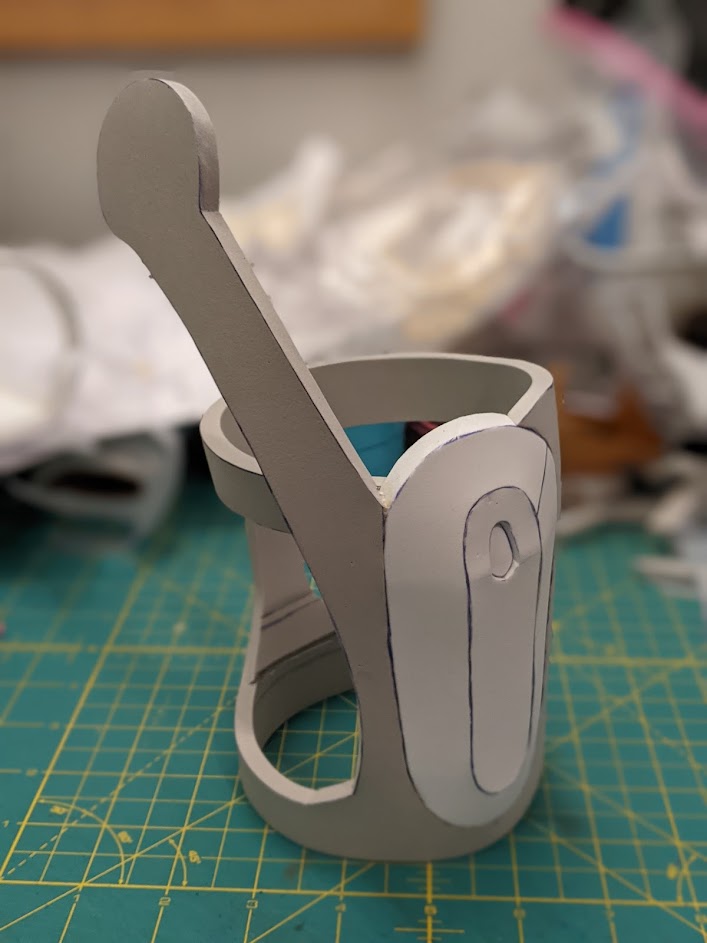

This is the first piece of the upper arm, a small simple shape I could get my head around and build off of.
Taped to a scrap piece for thickness, so I can use tracing paper draped along the edges for an angled pattern.

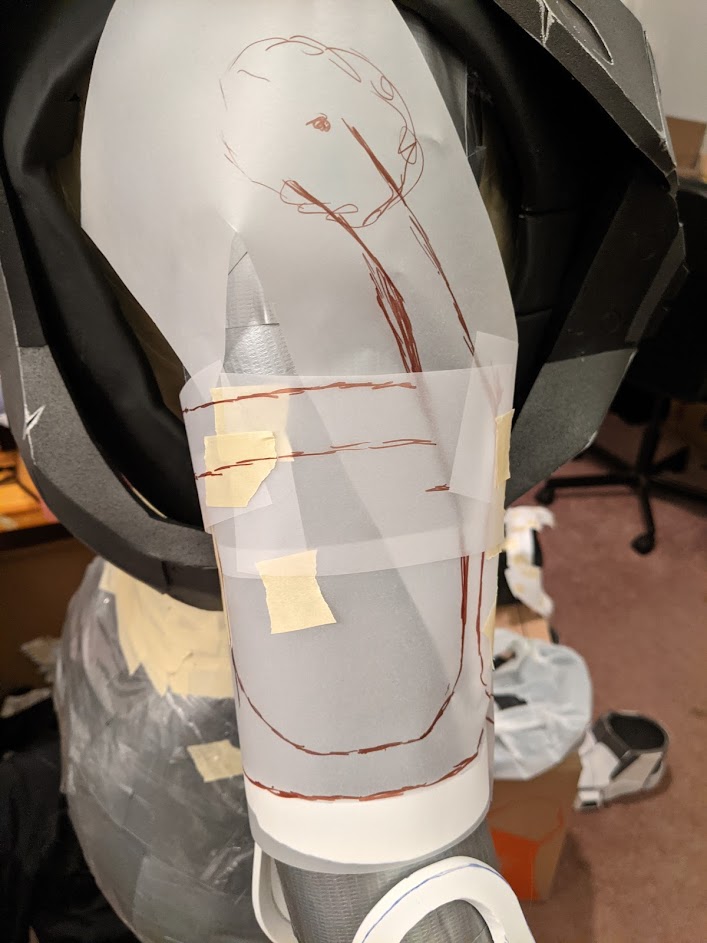

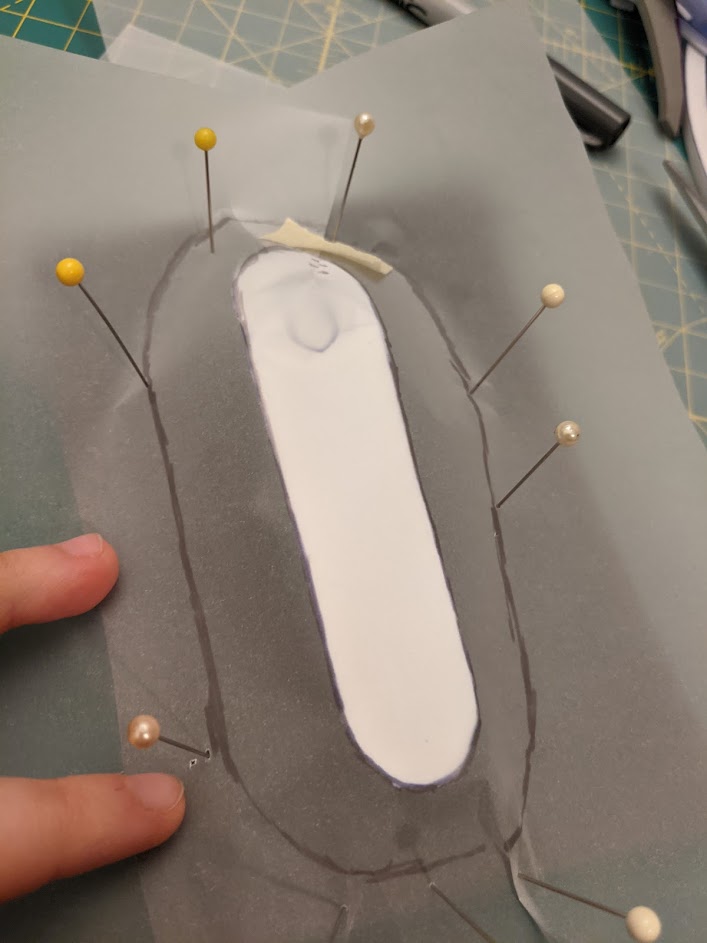

Tracing paper pinned at an angle, with a dart cut in it towards the top. Then I roughly drew out the pattern.

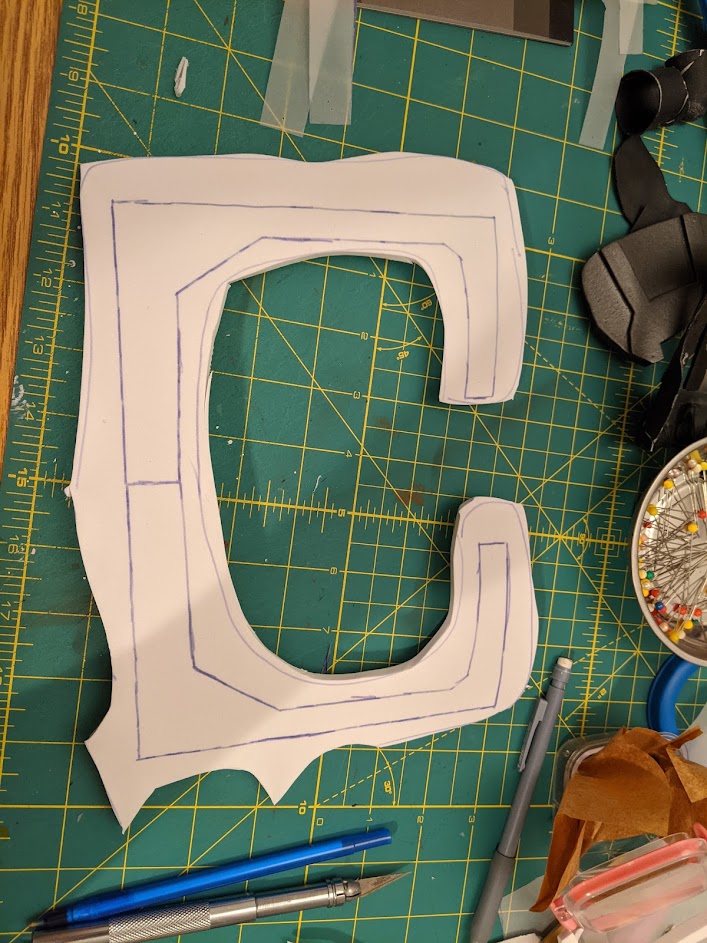

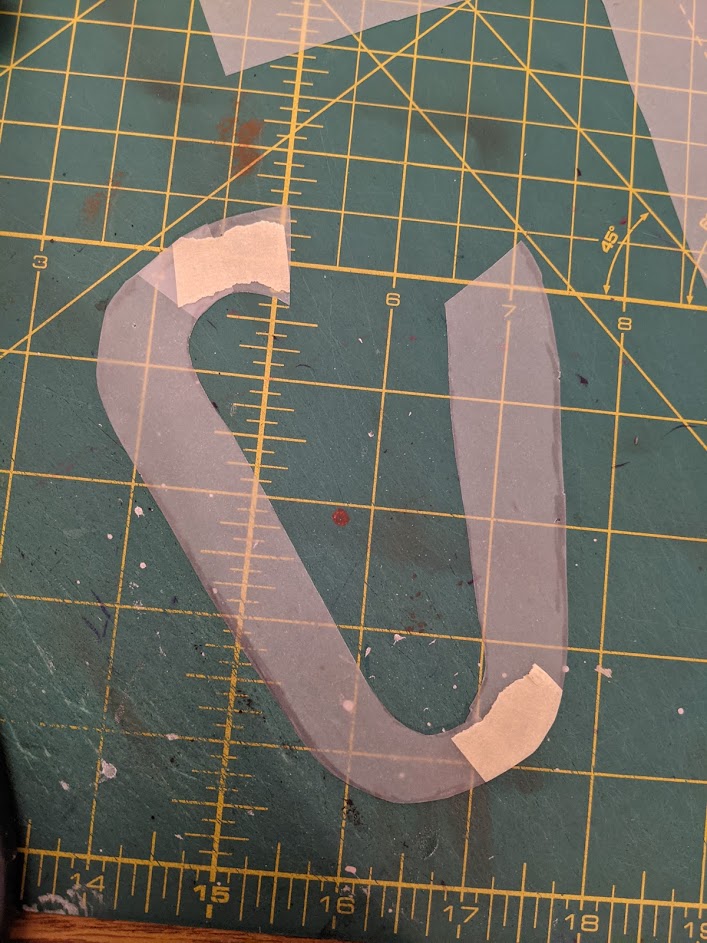

The final pattern piece.

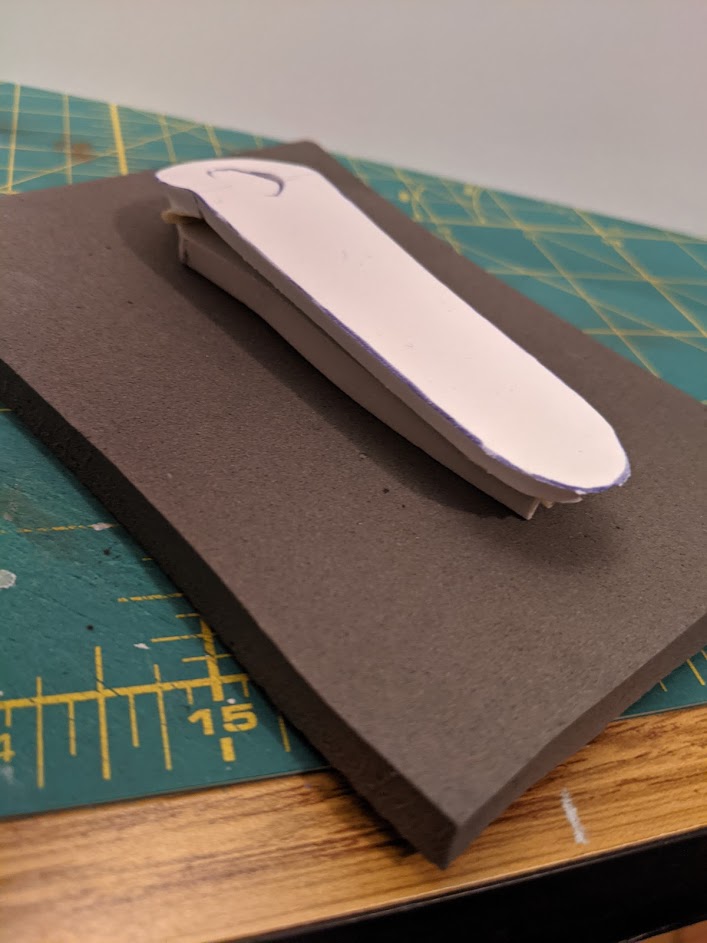

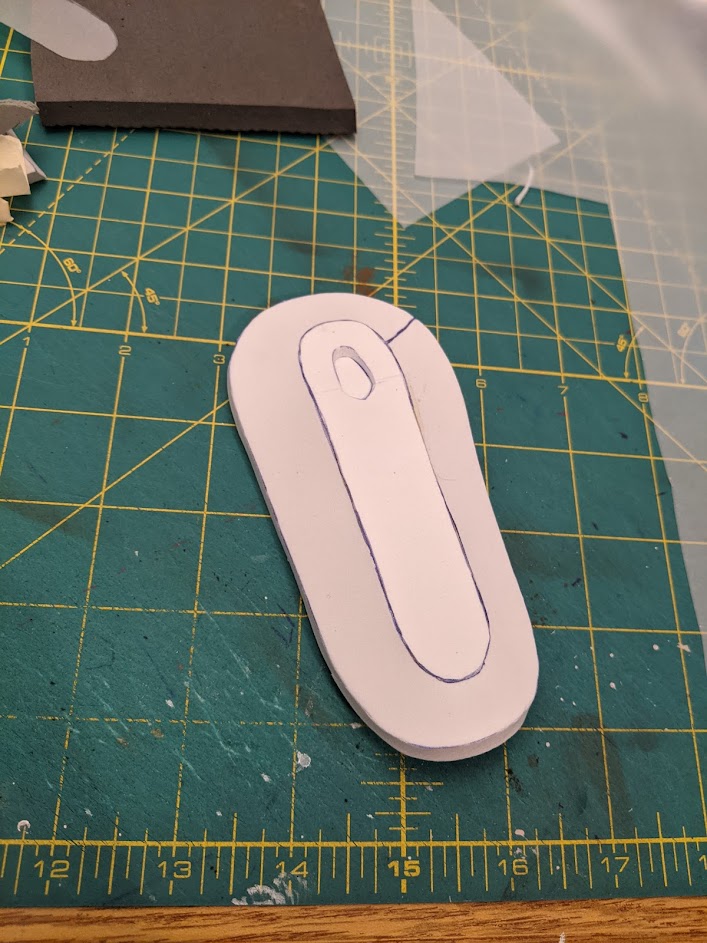

I think I used 5 or 6 mm foam for this, and beveled the outer edge so that it would be more of a straight cut/edge once the whole piece was curved. Hopefully that makes sense to anyone else.

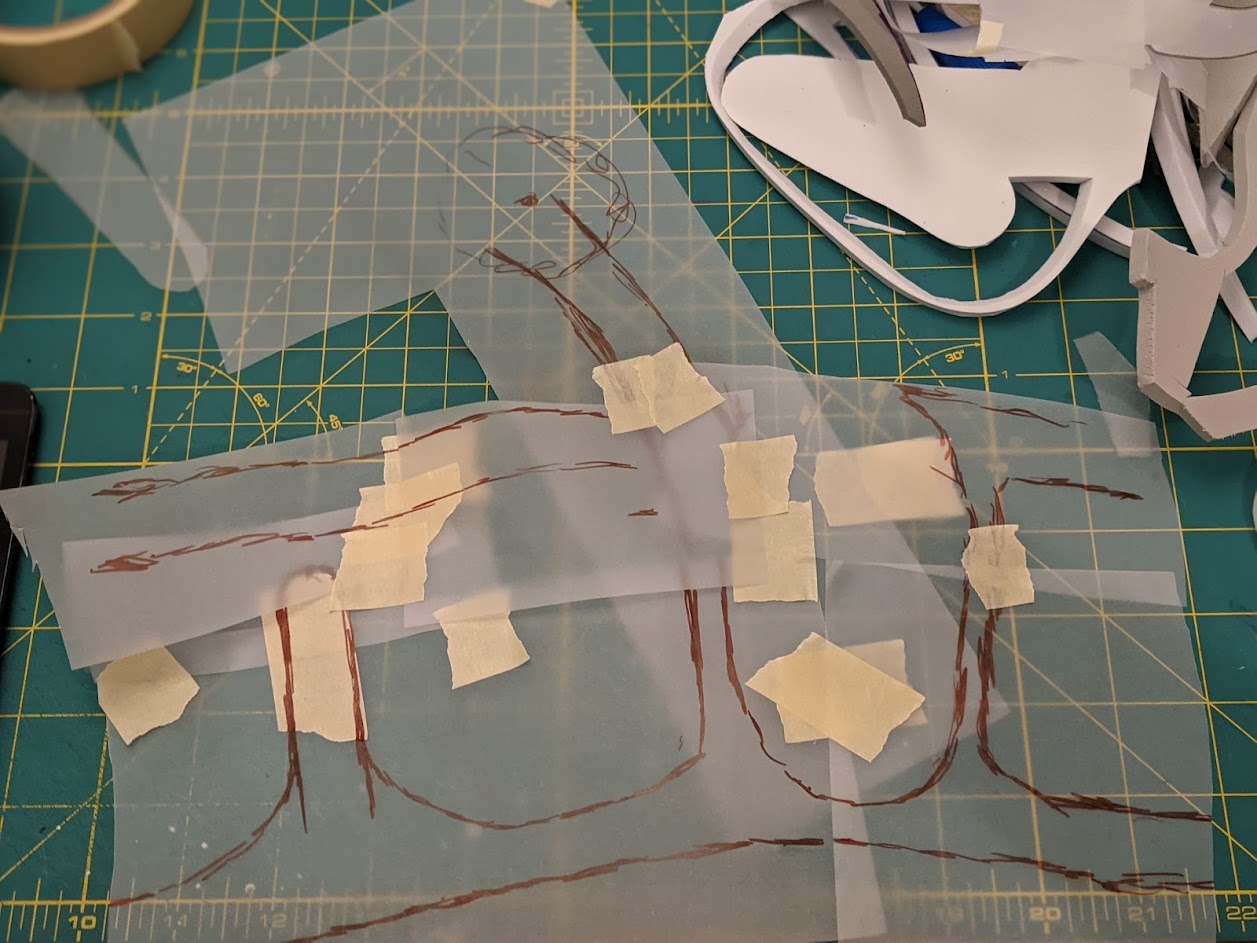

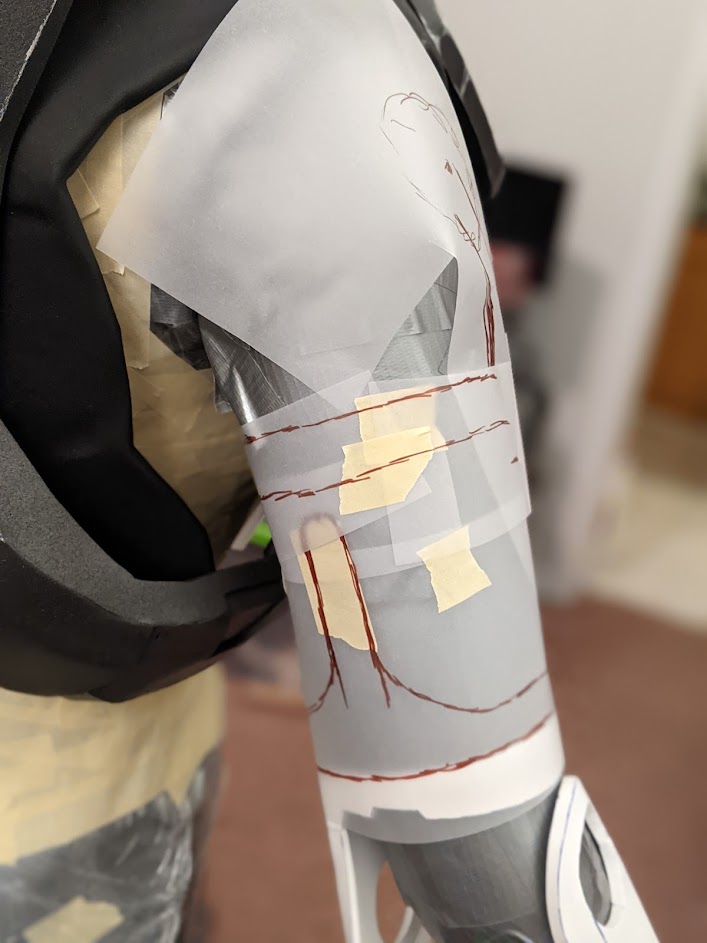

Tracing paper draped and taped into position on my (new) duct tape mannequin.

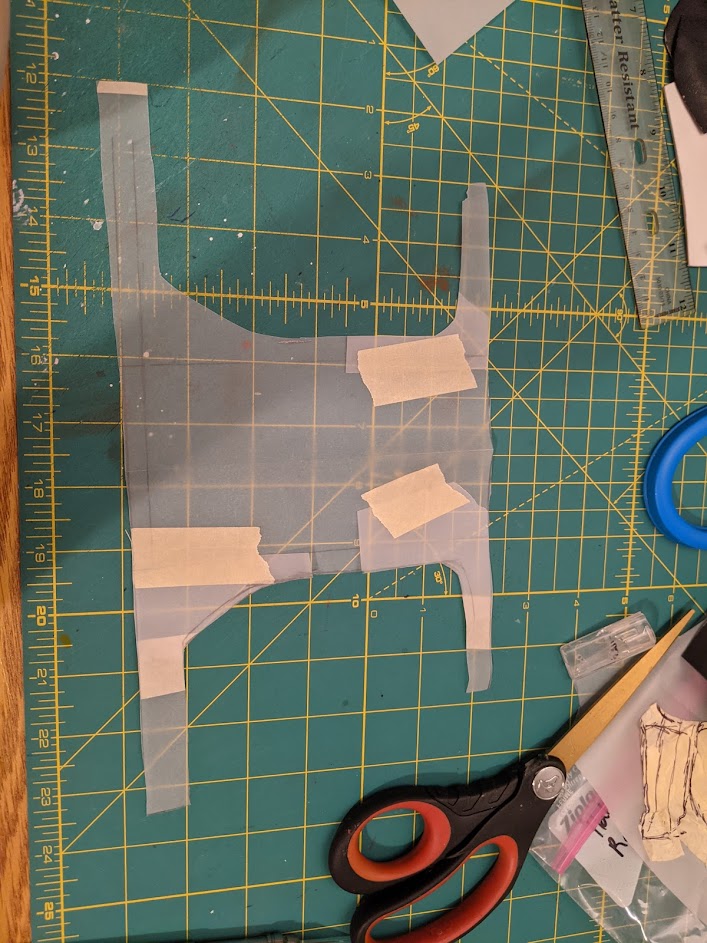

Very rough idea of the shapes I needed

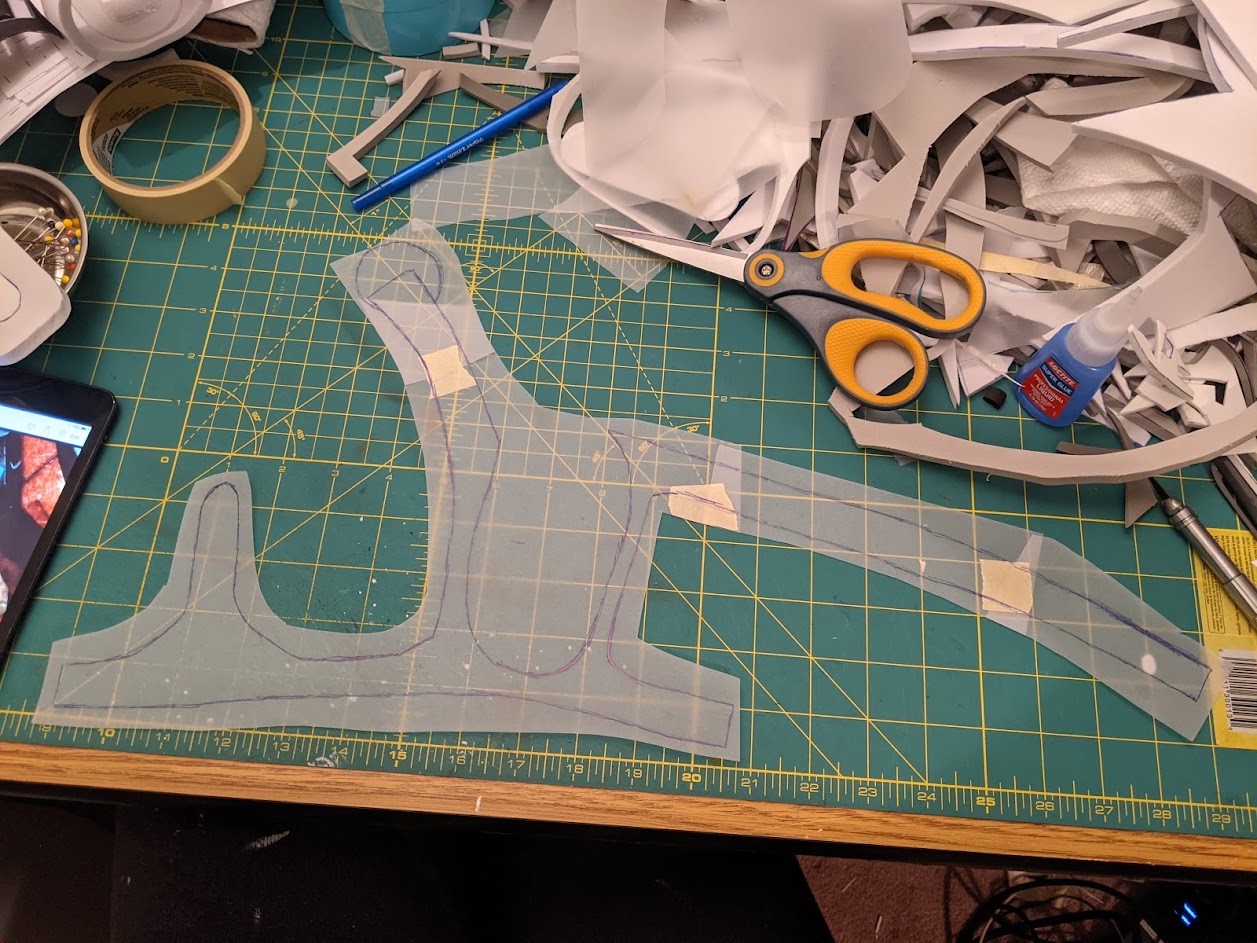

This is the raw pattern right off the mannequin.
The refined pattern, with some things moved around to organize future foam seams where I want them.
Now cut from sksprops 6mm foam.

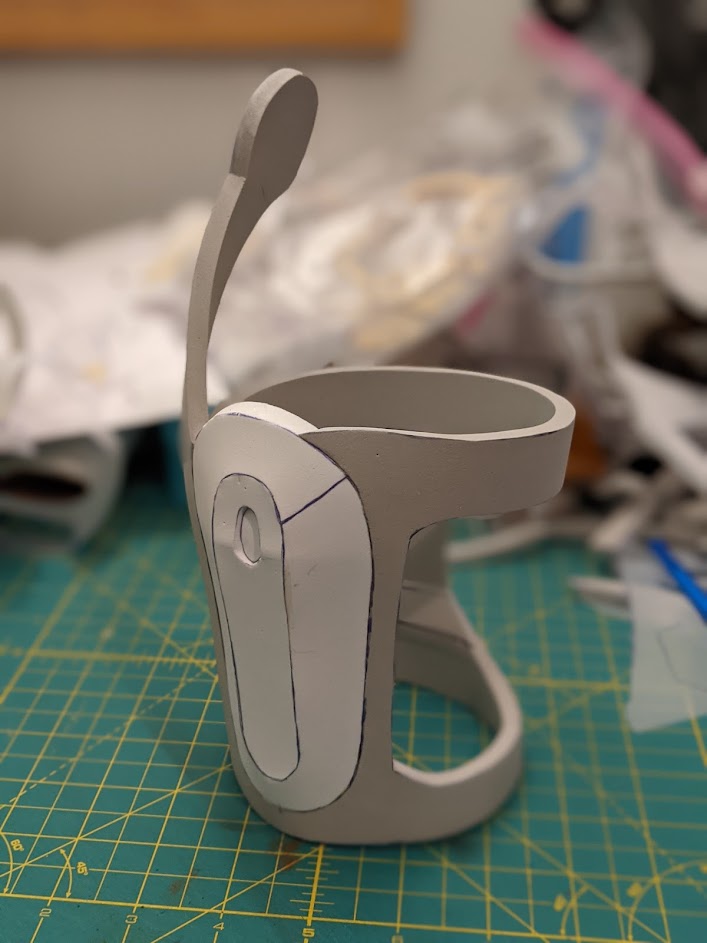

The finished product after detailing, with a black worbla hand piece I made a while ago (not sure if final). I reinforced the shoulder mount area with a wire and black worbla, and may do more to add strength in the future.
I may go in and shave off some foam in the inside of the forearm, its a little too tight. I'm very very happy with how this turned out and I'm excited to add some relevant undersuit detailing around it and see how I can mount different pieces of it to hold shape while moving my arm.
That's it for this post! Hopefully I don't get punished for posting on a dead thread, but it's not dead! I just needed time, lol! As always, thank you all for your kind words and support. I felt a little weird trying to reply to 2 year old comments on here, seems a little late to show up on my part, so I might not. But please please comment if you have any questions or comments. I absolutely love this community and will do whatever I can to help. I'm very excited to have things going again, I have more I'll be posting soon that I did a couple months back. I've been at a stand still for a little over a month due to health stuff, but trust me when I say I will not be done with this build until it's DONE, no matter what time passes I will always come back to it.
Thanks for checking out this ancient build thread!
Lets start with some freehanded robot arm action
I fully freehanded this arm, referencing mostly Halo:Reach theater mode, as well as other cosplayers versions, statues of Kat, and anything I could find. I use a variety of foam thicknesses in my builds, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 10mm. This piece made use of some foam dowels I believe I got from tntcosplay supplies. I also started using sksprops foam during this after trying out a blaster build with it, and I LOVE IT. I've never seen foam that sands this well, it's a game changer. I also wanna mention I tried SO hard to incorporate electronics into this, I wanted to make part of the elbow plate spin like in the game, but I searched for days online and could not find a small enough motor that didn't go insanely fast. I'm not super upset about it but I think it would've been cool.
Scattered and possibly unhelpful progress pics.
Top of the forearm basic shape.
Basic shape of underneath of forearm.
Underside of forearm, detailed with foam dowels.
This is the first piece of the upper arm, a small simple shape I could get my head around and build off of.
Taped to a scrap piece for thickness, so I can use tracing paper draped along the edges for an angled pattern.
Tracing paper pinned at an angle, with a dart cut in it towards the top. Then I roughly drew out the pattern.
The final pattern piece.
I think I used 5 or 6 mm foam for this, and beveled the outer edge so that it would be more of a straight cut/edge once the whole piece was curved. Hopefully that makes sense to anyone else.
Tracing paper draped and taped into position on my (new) duct tape mannequin.
Very rough idea of the shapes I needed
This is the raw pattern right off the mannequin.
The refined pattern, with some things moved around to organize future foam seams where I want them.
Now cut from sksprops 6mm foam.

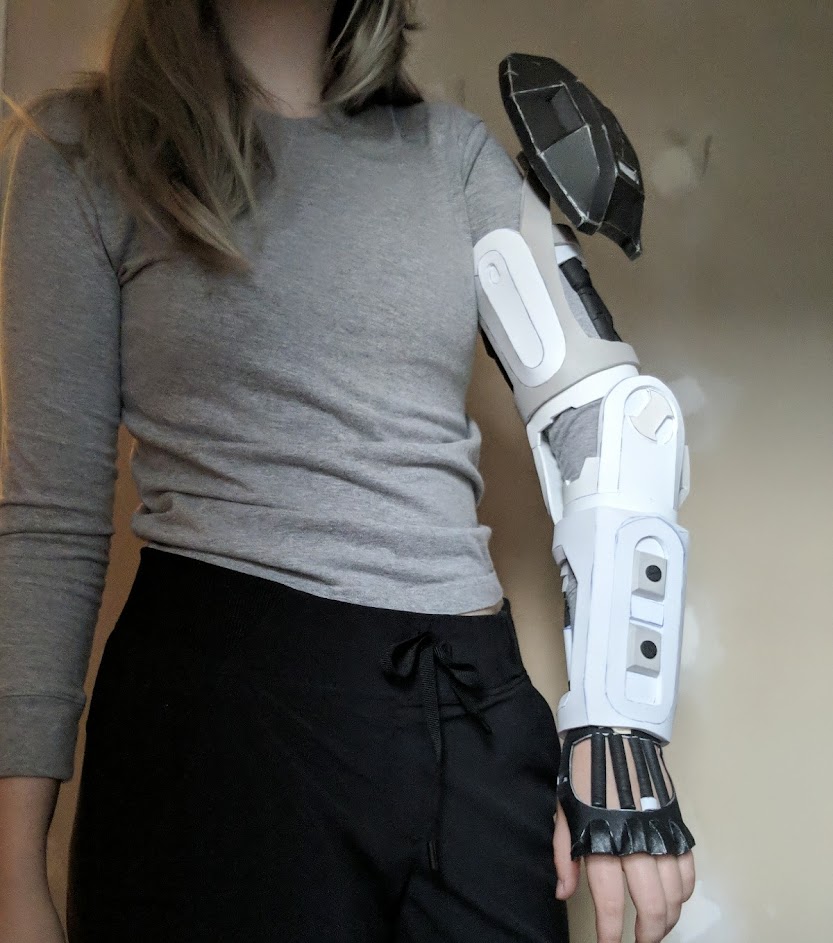

The finished product after detailing, with a black worbla hand piece I made a while ago (not sure if final). I reinforced the shoulder mount area with a wire and black worbla, and may do more to add strength in the future.
I may go in and shave off some foam in the inside of the forearm, its a little too tight. I'm very very happy with how this turned out
and I'm excited to add some relevant undersuit detailing around it and see how I can mount different pieces of it to hold shape while moving my arm. That's it for this post! Hopefully I don't get punished for posting on a dead thread, but it's not dead! I just needed time, lol! As always, thank you all for your kind words and support. I felt a little weird trying to reply to 2 year old comments on here, seems a little late to show up on my part
, so I might not. But please please comment if you have any questions or comments. I absolutely love this community and will do whatever I can to help. I'm very excited to have things going again, I have more I'll be posting soon that I did a couple months back. I've been at a stand still for a little over a month due to health stuff, but trust me when I say I will not be done with this build until it's DONE, no matter what time passes I will always come back to it.Thanks for checking out this ancient build thread!
- Member DIN
- S127
Thank you so much!!! I personally love using an exacto knife, I use z-series blades (which used to be much sharper before they changed makers ), and I go slowly and think about each cut that needs made and what angle I want it at. And now that I've tried sks foam I love having the option of sanding if a cut doesn't go so smoothly
- Member DIN
- S113
You are killing it KitKat! Love your work and even more so cause you share your progress! Glad to have you in the South. Can't wait to see this live!
- Member DIN
- S127
So glad to be here! Thank you!!! Looking forward to the day this whole thing is wearable, even though it'll be unbearably hot and I will need a team of people to keep me alive
- Member DIN
- S127
Time to get more up to date on what I've been working on!!
Here's some tacpad progress. This is an older photo, and since then I've repainted the tacpad at least 3 times to see what color scheme I like.
I used some sturdy chipboard on the underneath to help the foam keep the right shape, and I glued foil to the inside to possibly enhance some of the glow overall.

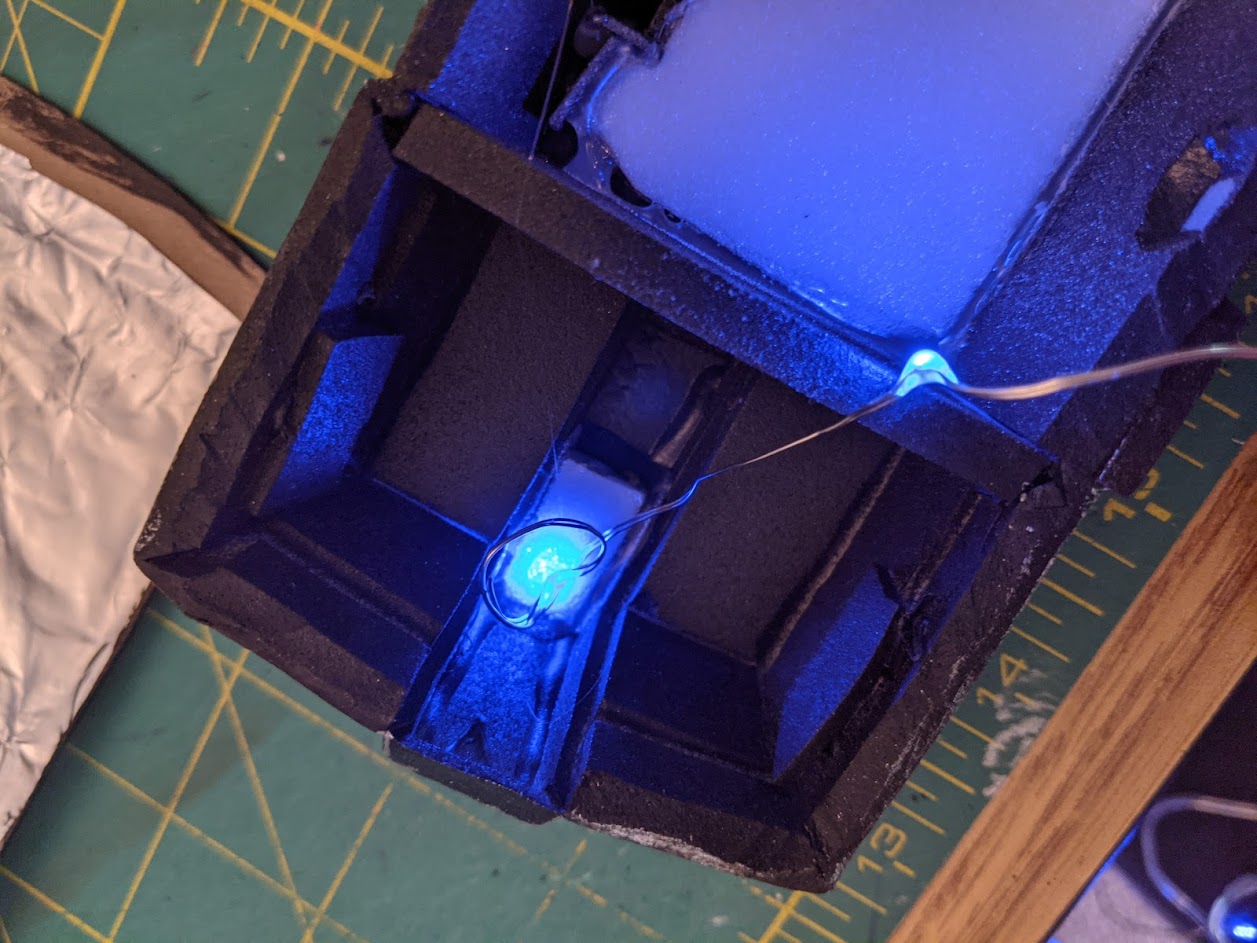

I used hot glue to place the lights in the correct areas.

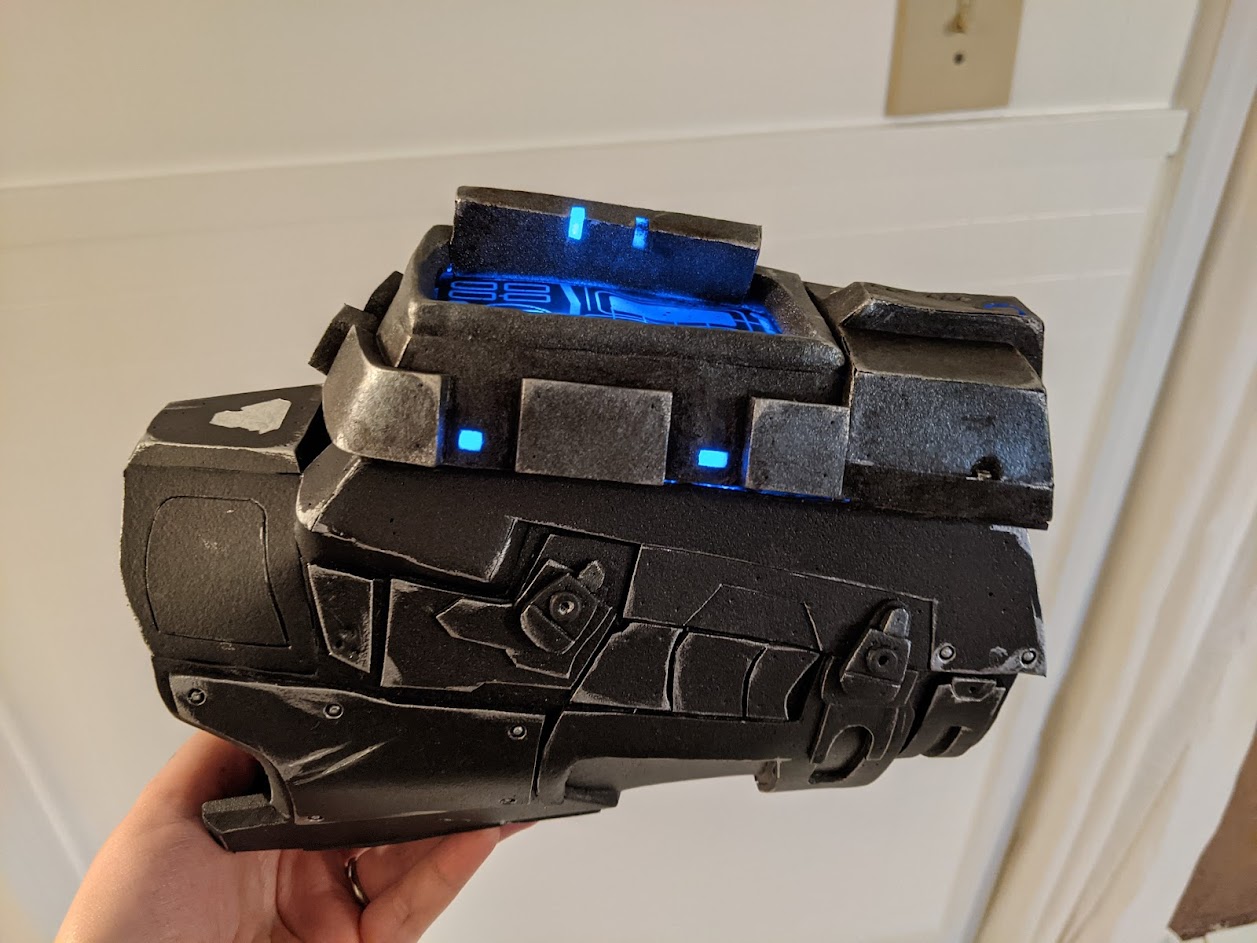

This tacpad may be remade in the future, it's a little wonky in some places, but it's not bad enough to scrap yet lol.
This is not the final paint job for either of these pieces.

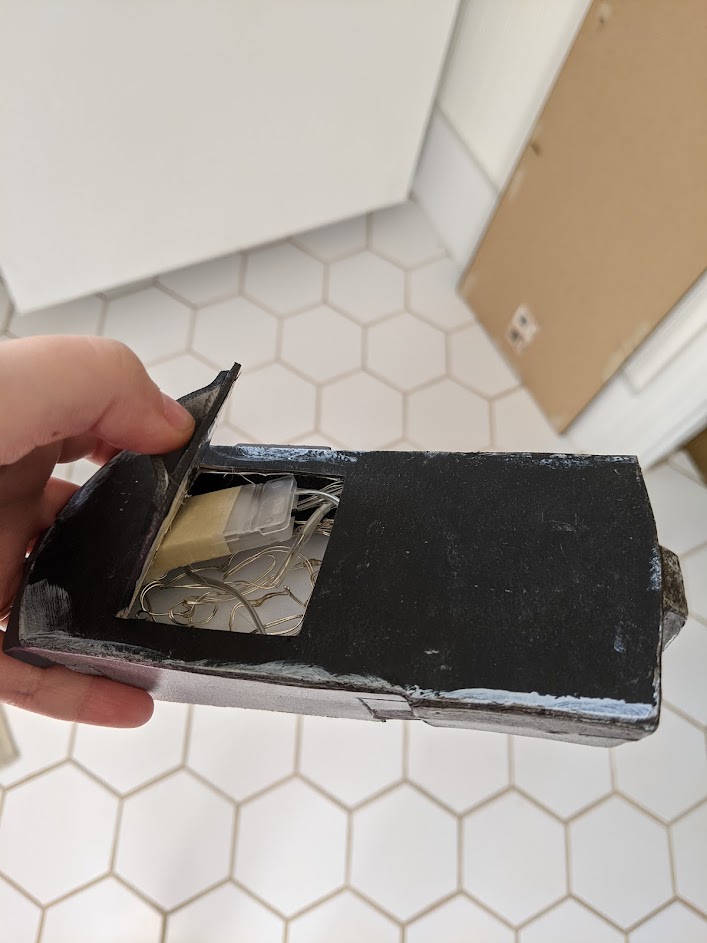

On the underneath I cut out a little door, scored where it bends, and added a little foam handle so I can get inside to turn the lights on and off.
Now for some helmet progress!
I used armorsmith to size a pep file, made a paper mockup (not pictured), and once it looked like the right size I got to work. I used the pep file as a base pattern, and altered and freehanded it where needed while converting it to foam.
Showing the ridiculous size of some pieces.
I used many different thicknesses of foam, and I wanna be clear that I'm almost fully switching over to sks props foam when I run out of older stuff. I've yet to use something else I like as much. I don't think they carry every size I need, but I'll definitely be getting what I can from them.
So for the backside and neck hole of the helmet, I used eva foam, barge cement, and my undersuit fabric. My first plan was to have the back side detachable, but it seems like I can get my head in just fine if I only make the under chin area detachable. I praaayyy that this helmet will be the right size once everything is done, but it's hard to fully tell right now. Also fun fact, I didn't realize the base helmet has a different little visor area when used with the UA attachment, so I'll either be ignoring that or altering it sometime in the future when I care enough.
A back piece on the backside of the fabric so I can know where to cut.
My tools of choice: silicone brushes to spread barge cement, silver marker to mark fabric, scissors to trim fabric, barge in a bottle to spread easily and somewhat minimize fumes (definitely still wear a respirator in a well ventilated area please), and a couple dental tools to get fabric glued into tiny detail areas.

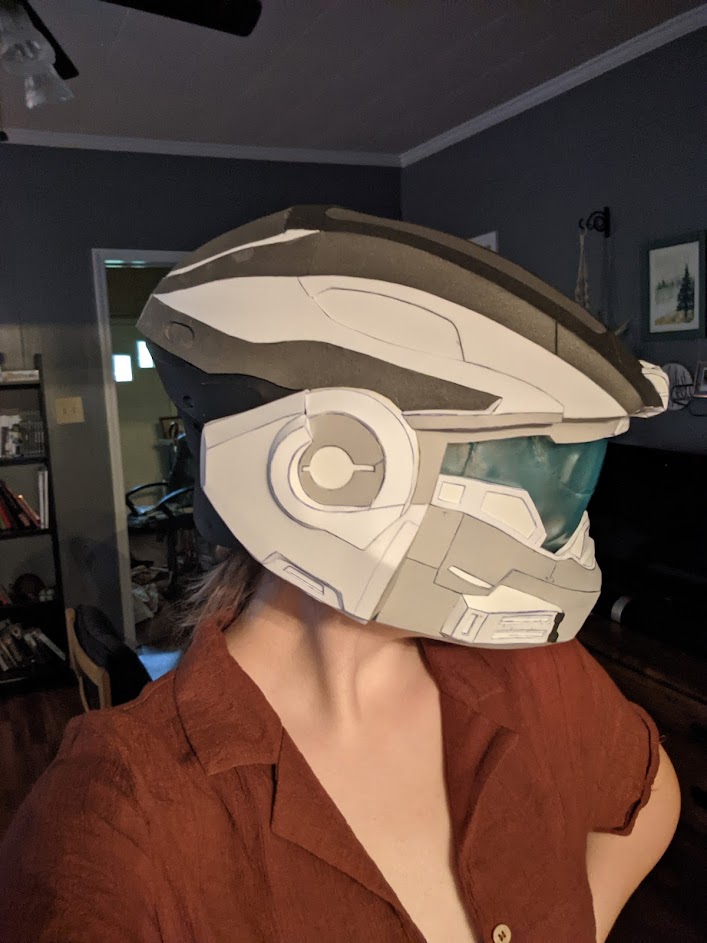

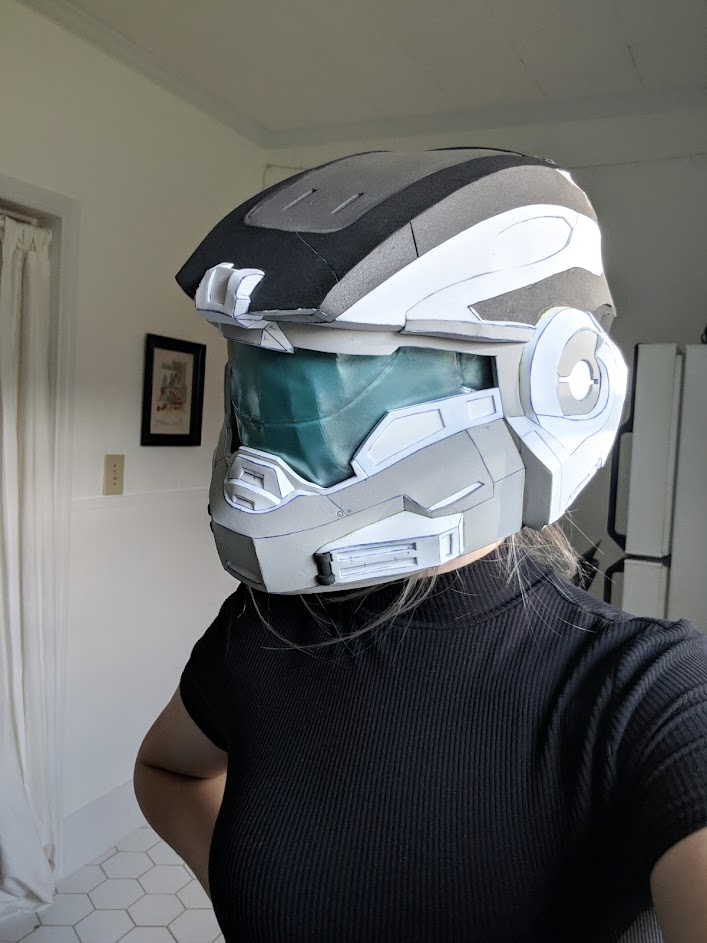

And the mostly finished helmet! This is an old old visor color test from a Kat helmet, not the final visor.
The backside won't be attached until I get around to sealing and painting the rest of it, so it's just roughly taped in there. I also need to paint a couple areas for detailing on the back, and maybe touch up with some black paint to cover any tiny exposed foam areas.
That's it for now! I do have some undersuit progress to share soon, but I'd like to get a little further on it before writing it up. Happy building everyone
Here's some tacpad progress. This is an older photo, and since then I've repainted the tacpad at least 3 times to see what color scheme I like.
I used some sturdy chipboard on the underneath to help the foam keep the right shape, and I glued foil to the inside to possibly enhance some of the glow overall.
I used hot glue to place the lights in the correct areas.
This tacpad may be remade in the future, it's a little wonky in some places, but it's not bad enough to scrap yet lol.
This is not the final paint job for either of these pieces.
On the underneath I cut out a little door, scored where it bends, and added a little foam handle so I can get inside to turn the lights on and off.
Now for some helmet progress!
I used armorsmith to size a pep file, made a paper mockup (not pictured), and once it looked like the right size I got to work. I used the pep file as a base pattern, and altered and freehanded it where needed while converting it to foam.
Showing the ridiculous size of some pieces.
I used many different thicknesses of foam, and I wanna be clear that I'm almost fully switching over to sks props foam when I run out of older stuff. I've yet to use something else I like as much. I don't think they carry every size I need, but I'll definitely be getting what I can from them.
So for the backside and neck hole of the helmet, I used eva foam, barge cement, and my undersuit fabric. My first plan was to have the back side detachable, but it seems like I can get my head in just fine if I only make the under chin area detachable. I praaayyy that this helmet will be the right size once everything is done, but it's hard to fully tell right now. Also fun fact, I didn't realize the base helmet has a different little visor area when used with the UA attachment, so I'll either be ignoring that or altering it sometime in the future when I care enough.
A back piece on the backside of the fabric so I can know where to cut.
My tools of choice: silicone brushes to spread barge cement, silver marker to mark fabric, scissors to trim fabric, barge in a bottle to spread easily and somewhat minimize fumes (definitely still wear a respirator in a well ventilated area please), and a couple dental tools to get fabric glued into tiny detail areas.
And the mostly finished helmet! This is an old old visor color test from a Kat helmet, not the final visor.
The backside won't be attached until I get around to sealing and painting the rest of it, so it's just roughly taped in there. I also need to paint a couple areas for detailing on the back, and maybe touch up with some black paint to cover any tiny exposed foam areas.
That's it for now! I do have some undersuit progress to share soon, but I'd like to get a little further on it before writing it up. Happy building everyone
marinesniper
Sr Member
- Member DIN
- S118
i have been watching this build and think it is awesome you inspired me to want to build my own reach armorTime to get more up to date on what I've been working on!!

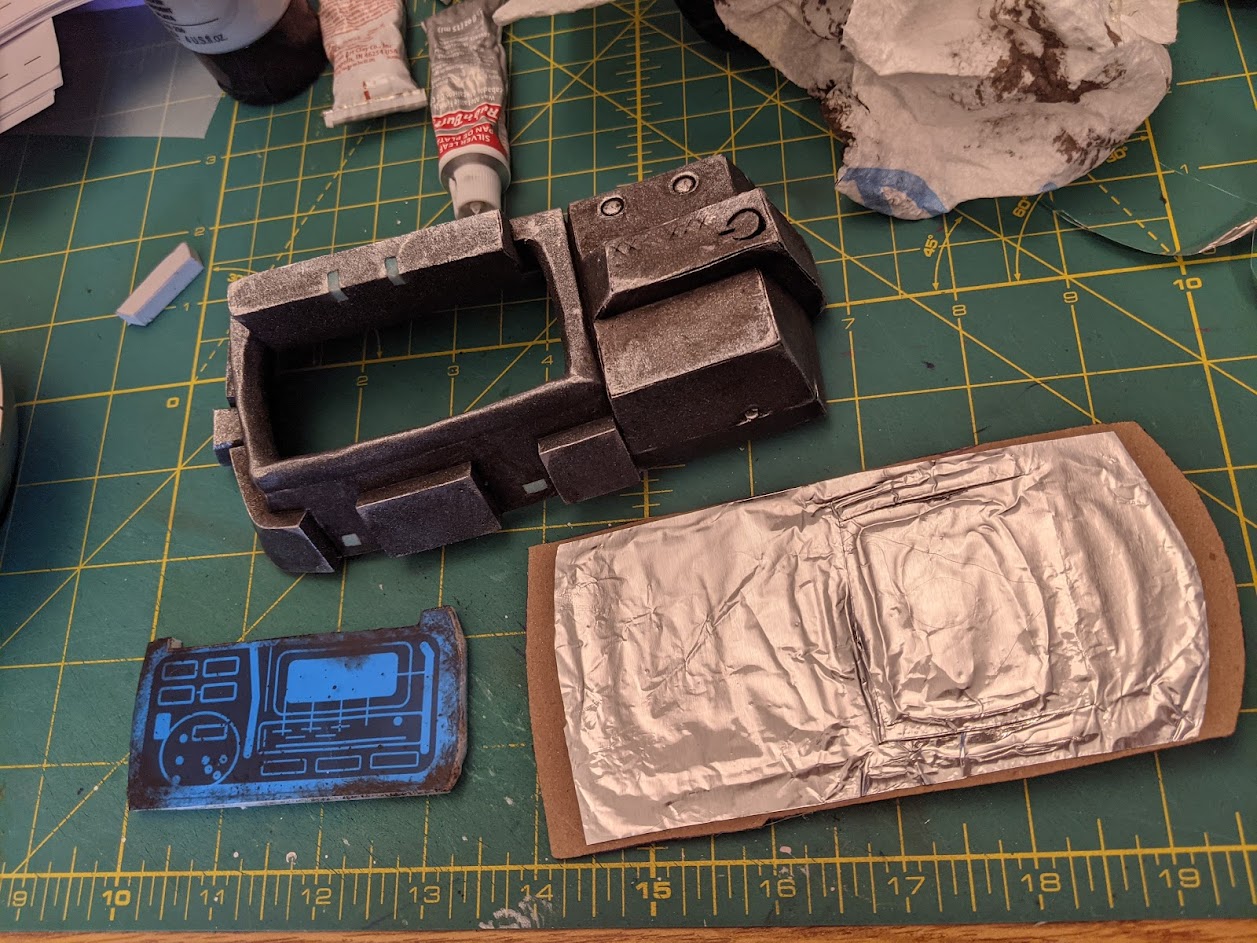

Here's some tacpad progress. This is an older photo, and since then I've repainted the tacpad at least 3 times to see what color scheme I like.
I used some sturdy chipboard on the underneath to help the foam keep the right shape, and I glued foil to the inside to possibly enhance some of the glow overall.
View attachment 310575
I used hot glue to place the lights in the correct areas.
View attachment 310576
This tacpad may be remade in the future, it's a little wonky in some places, but it's not bad enough to scrap yet lol.
This is not the final paint job for either of these pieces.
View attachment 310577
On the underneath I cut out a little door, scored where it bends, and added a little foam handle so I can get inside to turn the lights on and off.
View attachment 310578
Now for some helmet progress!
I used armorsmith to size a pep file, made a paper mockup (not pictured), and once it looked like the right size I got to work. I used the pep file as a base pattern, and altered and freehanded it where needed while converting it to foam.
View attachment 310579

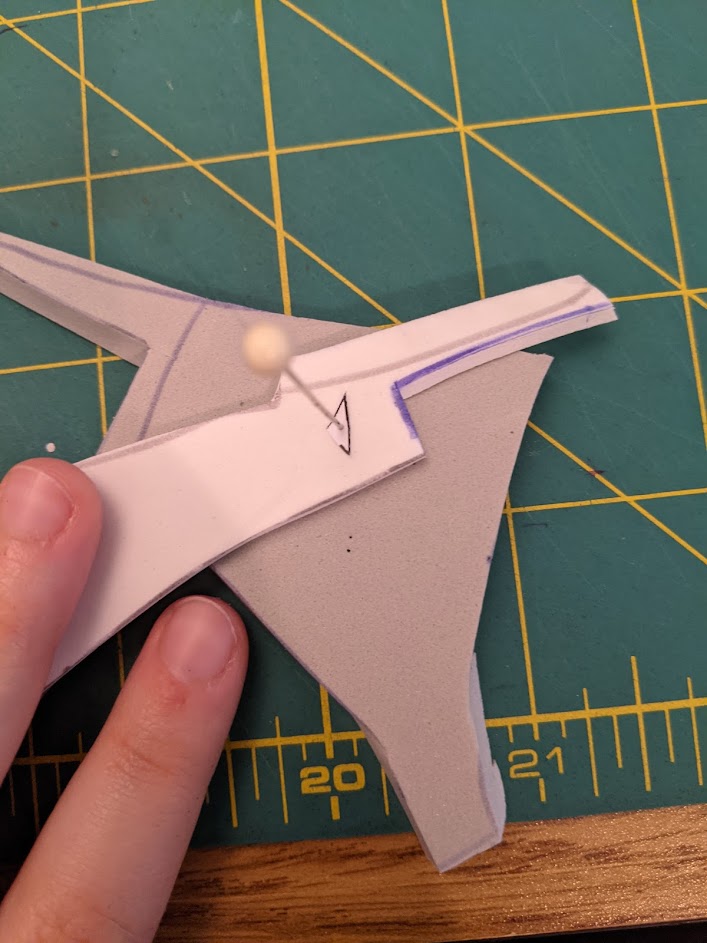

Showing the ridiculous size of some pieces.
View attachment 310580

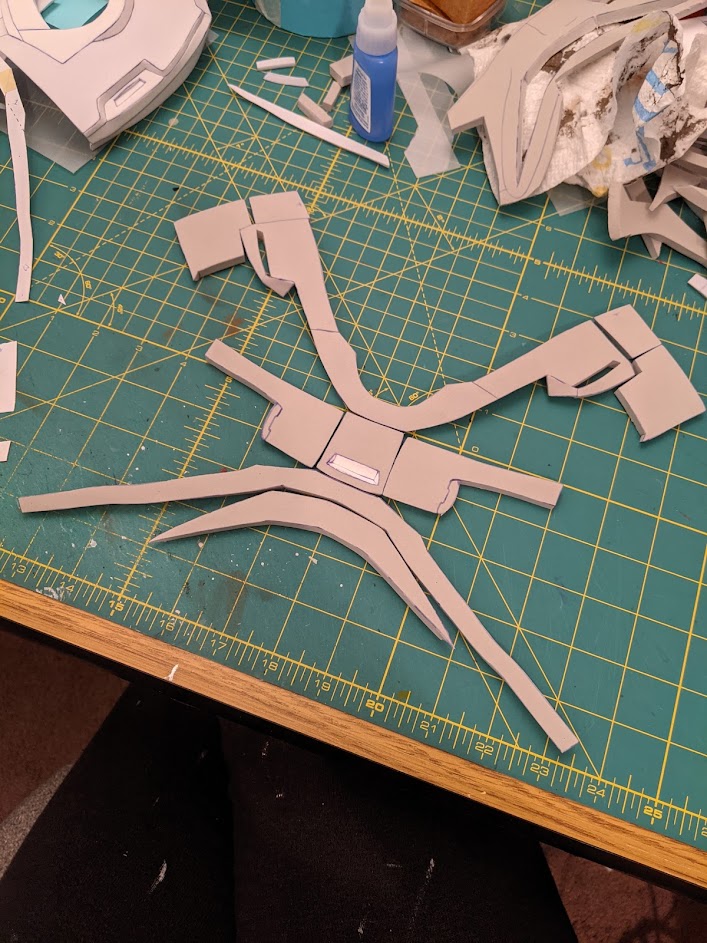

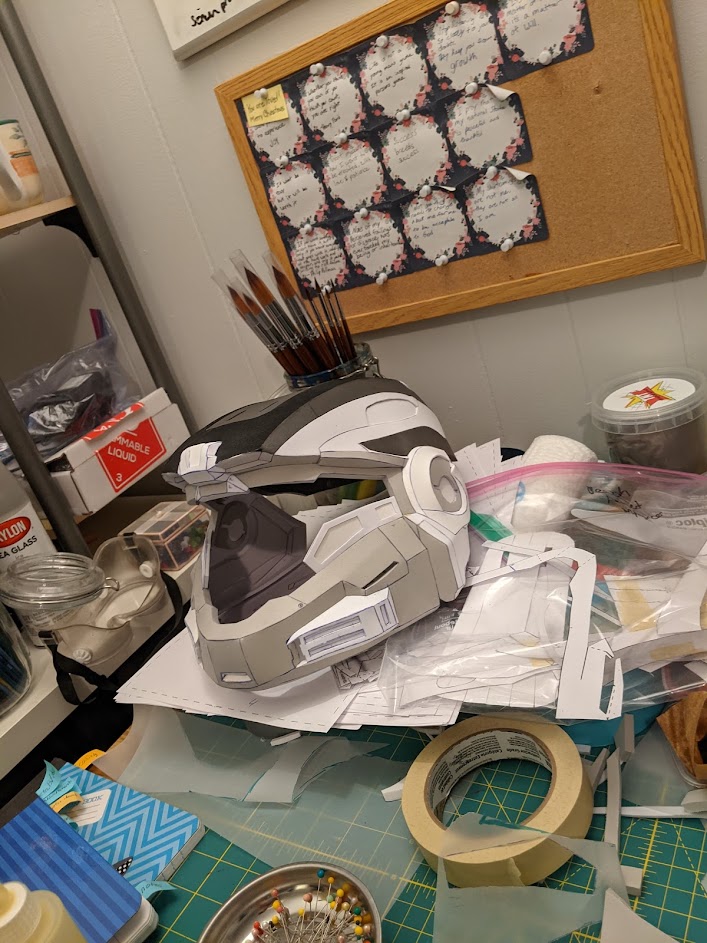

I used many different thicknesses of foam, and I wanna be clear that I'm almost fully switching over to sks props foam when I run out of older stuff. I've yet to use something else I like as much. I don't think they carry every size I need, but I'll definitely be getting what I can from them.
View attachment 310581
So for the backside and neck hole of the helmet, I used eva foam, barge cement, and my undersuit fabric. My first plan was to have the back side detachable, but it seems like I can get my head in just fine if I only make the under chin area detachable. I praaayyy that this helmet will be the right size once everything is done, but it's hard to fully tell right now. Also fun fact, I didn't realize the base helmet has a different little visor area when used with the UA attachment, so I'll either be ignoring that or altering it sometime in the future when I care enough.

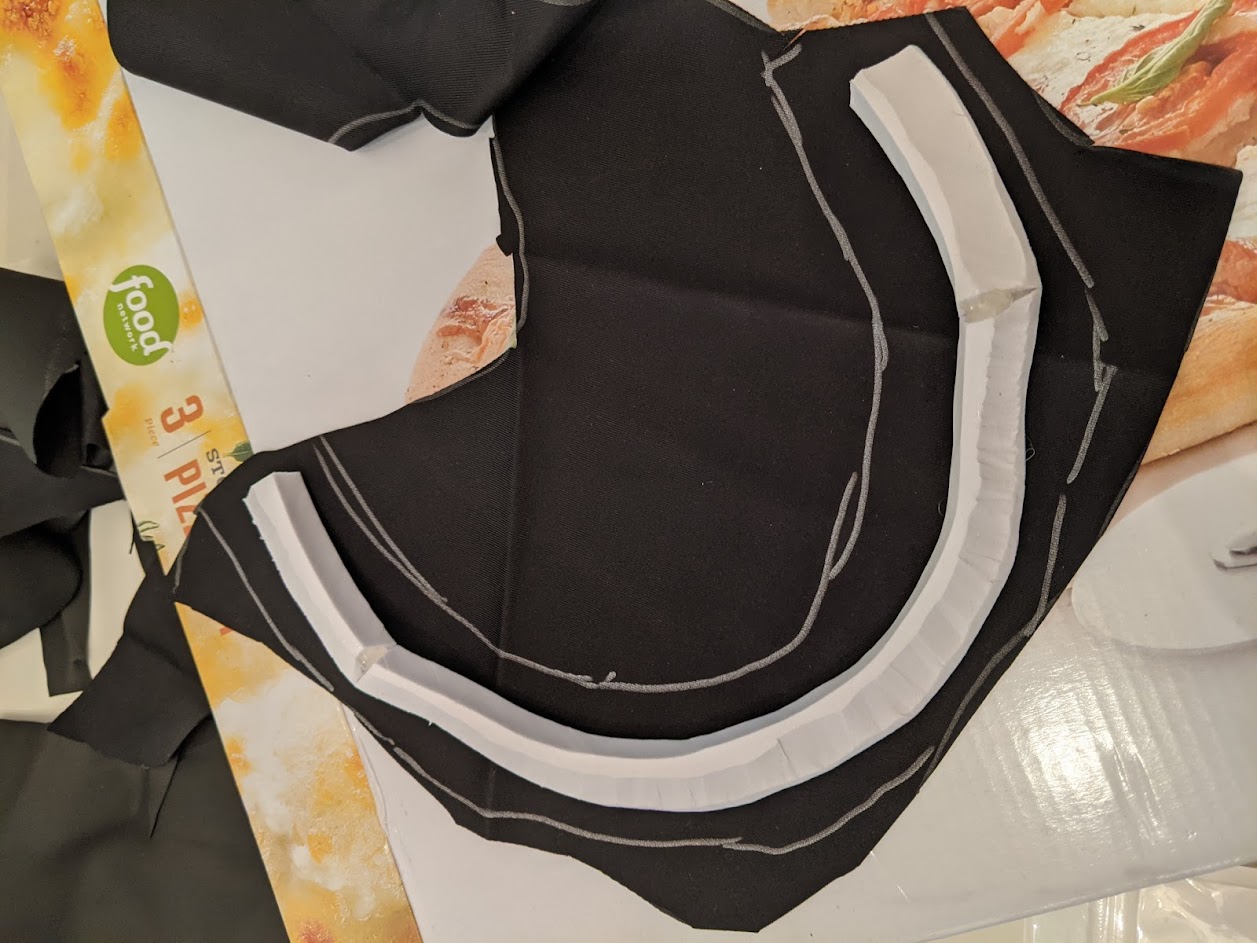

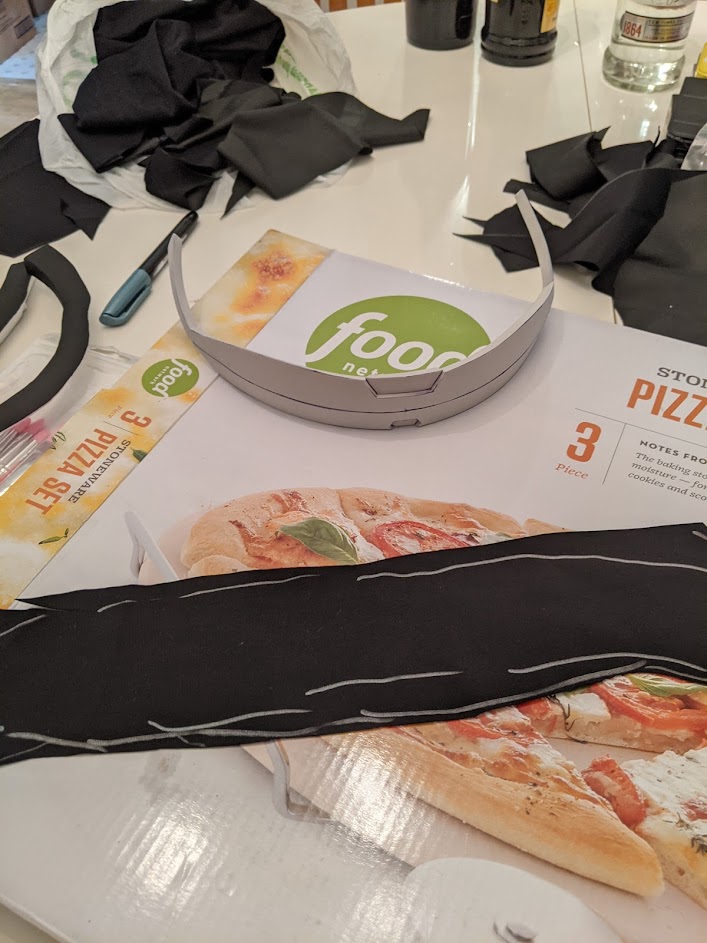

A back piece on the backside of the fabric so I can know where to cut.
View attachment 310582
View attachment 310583

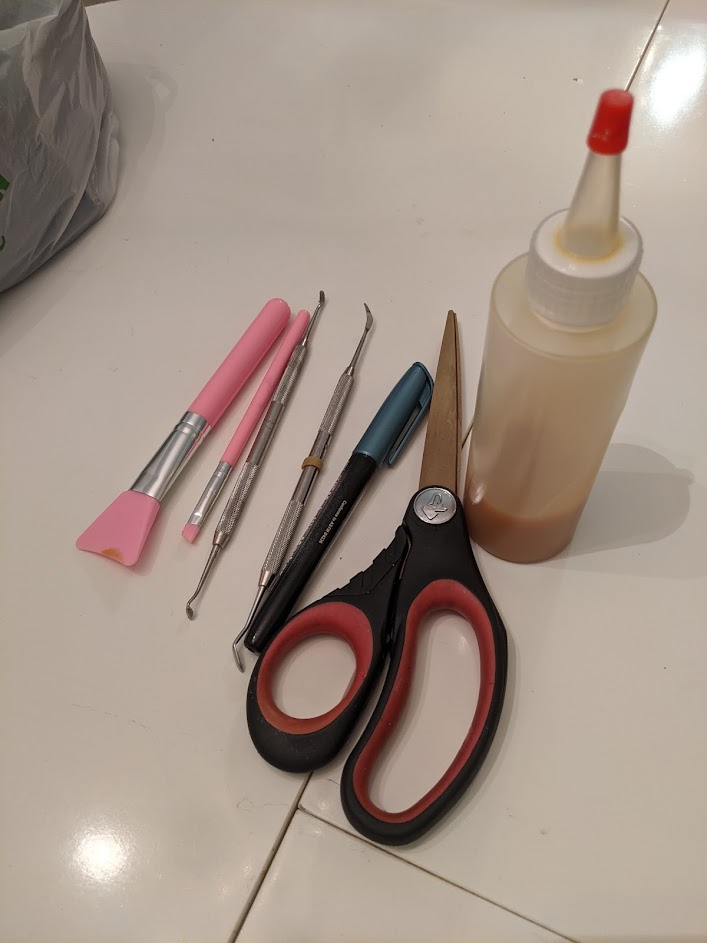

My tools of choice: silicone brushes to spread barge cement, silver marker to mark fabric, scissors to trim fabric, barge in a bottle to spread easily and somewhat minimize fumes (definitely still wear a respirator in a well ventilated area please), and a couple dental tools to get fabric glued into tiny detail areas.
View attachment 310584
And the mostly finished helmet! This is an old old visor color test from a Kat helmet, not the final visor.
View attachment 310585
View attachment 310586

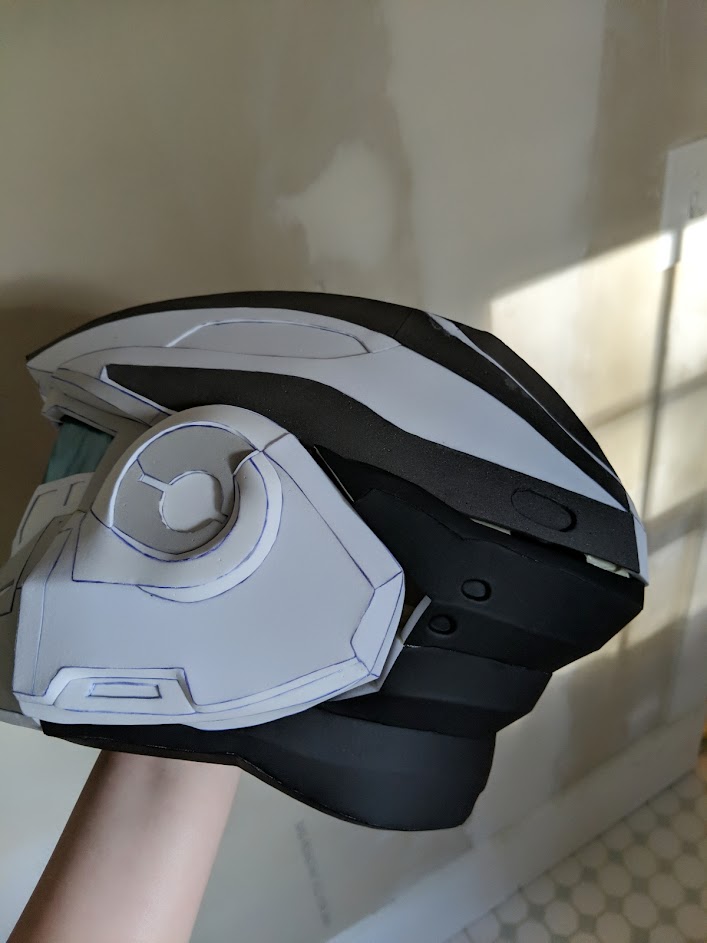

The backside won't be attached until I get around to sealing and painting the rest of it, so it's just roughly taped in there. I also need to paint a couple areas for detailing on the back, and maybe touch up with some black paint to cover any tiny exposed foam areas.
