Spartan 4 foam armor build (PIC HEAVY)

[fsracer]

Hey guys I've been following the 3d building thread for a while now and now that I have enough reference photos from the videos and screen shots I figured it's time to get started. I'm taking the same approach and starting with the smaller pieces while I slowly start working on the bigger/detailed pieces. I've already started on working on some pieces last night ! Wish me luck!
(I would just like to state Im not using any templates of any sort just reference photos that I have gathered)
Front/Back biceps*

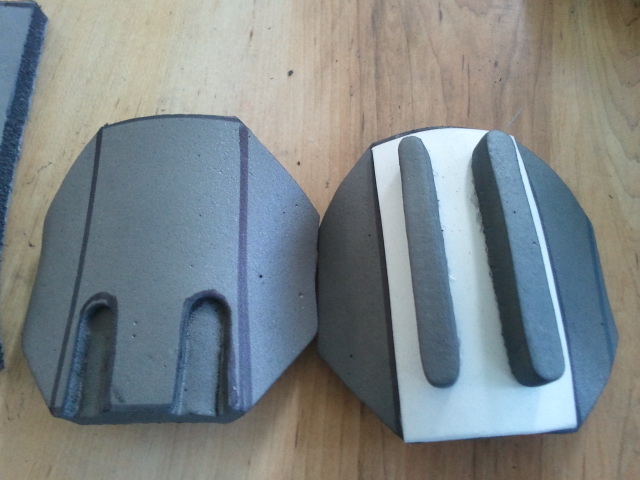

Hand plate (no detail yet)

Inner shoulder detail (no detail yet)

I'm working on getting the knee done as well. Hope you guys like it!



[fsracer]

*Update* *DOUBLE POST*lol

umm ok so hear is what all I got done last night.

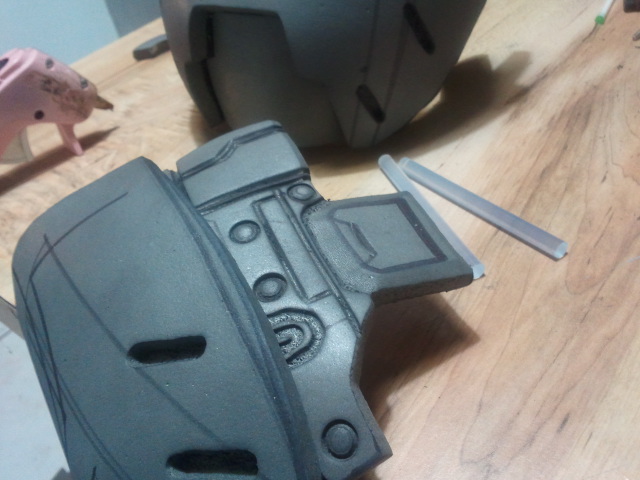

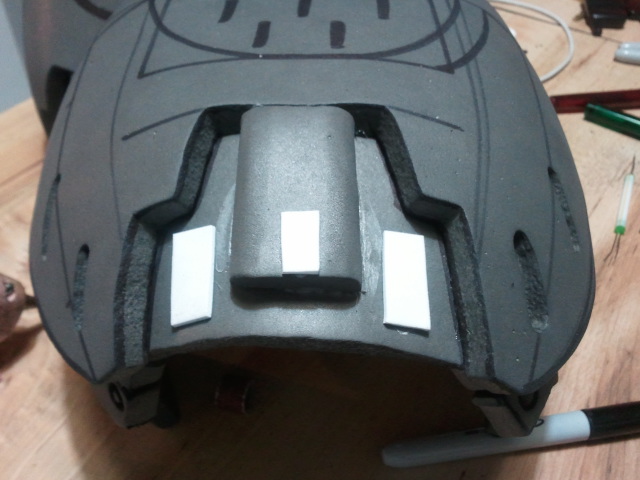

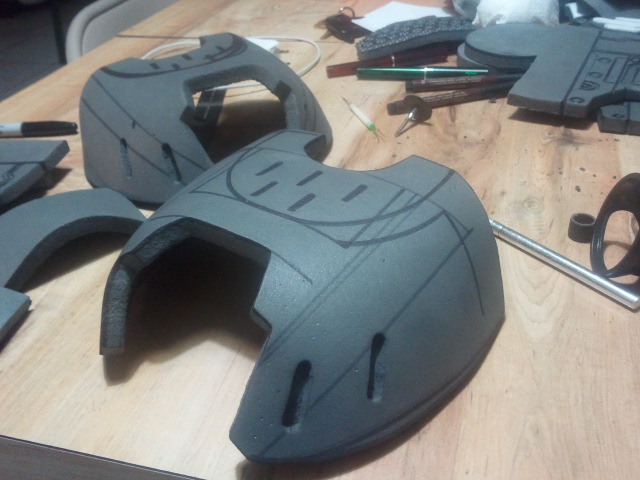

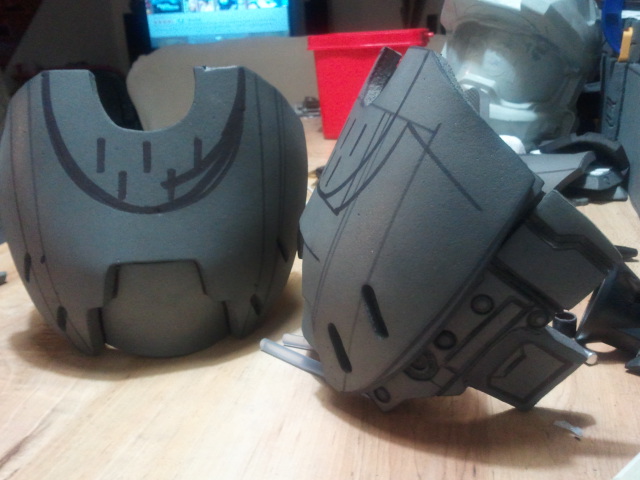

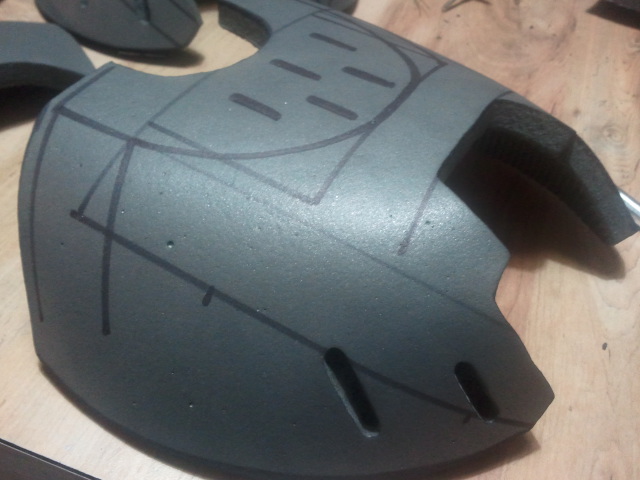

shoulder progression:

Reference shot:

Ok so on the spartan 4 armor the under suit has millions of theses bubble looking things

Reference shot:

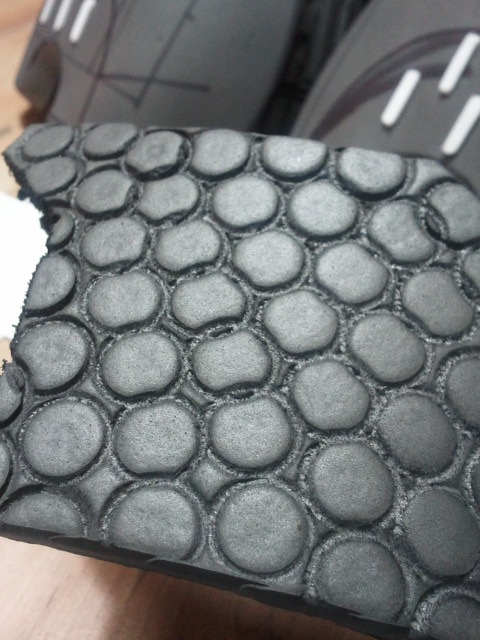

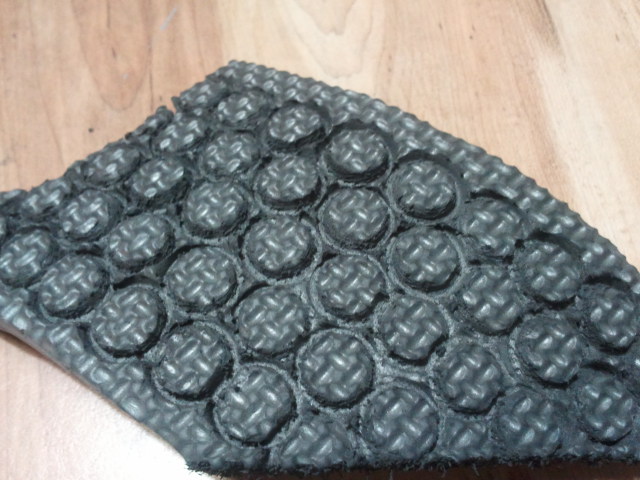

so I had two ideas I used my Dremal and made a ton of circles on a piece of scrap foam them I flipped it to see what texture gives the suit better detail

first:

Second:

after heating the foam the second test is what I decided to go with because of how its almost beveled like the suit.
on the larger pieces ill make my cuts a little deeper so you can see the detail from far away.

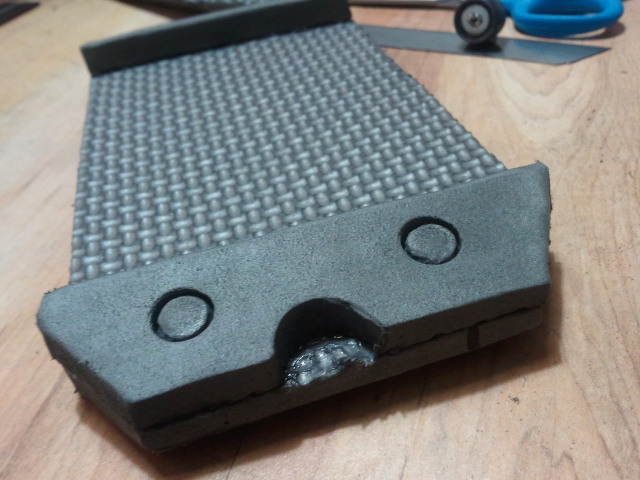

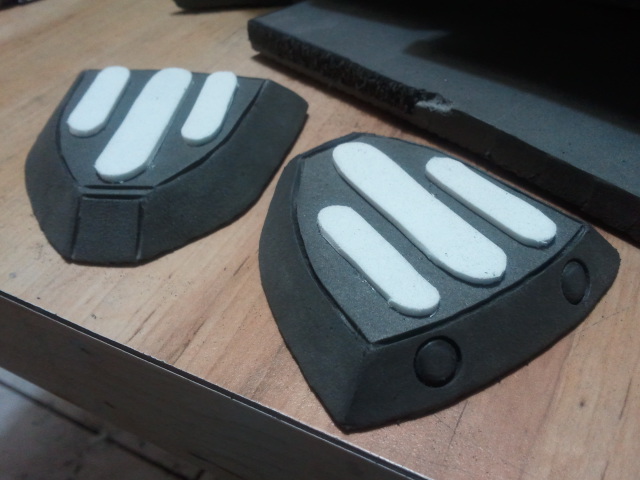

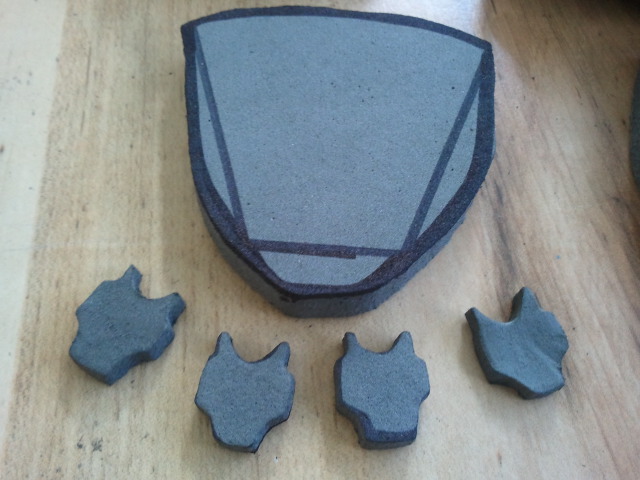

I also finished the hand plates as well.

Reference:

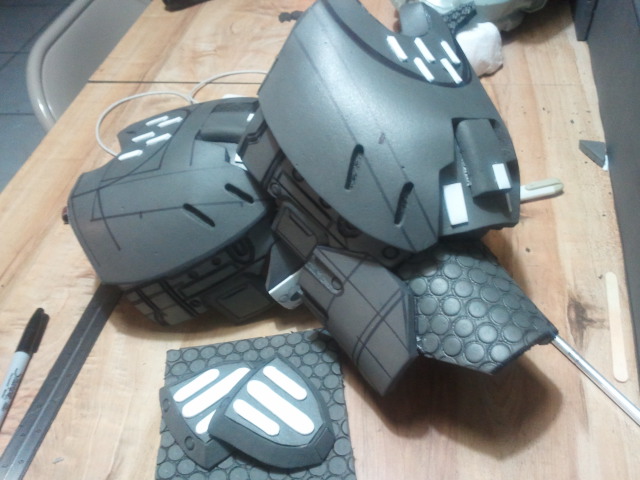

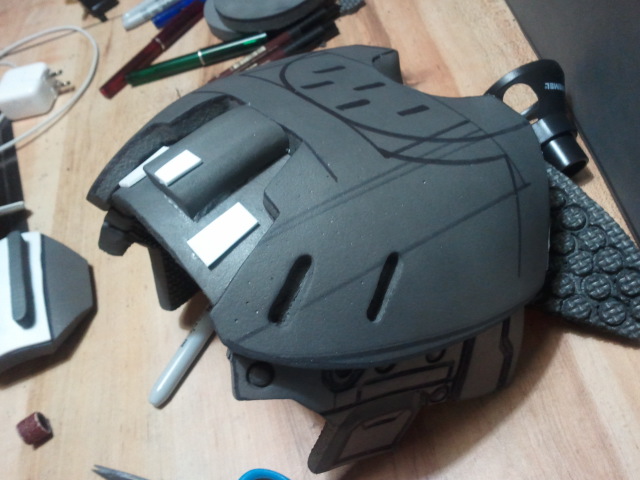

and hears everything put together and that's all for now.



[AI Blue Fox]

looking good! keep it up



[harnor]

Hey Man! It's very good!

Congrat!



[drack]

Really nice foam work there, am loving the details you have achieved with the dremel.

Keep up te good work,
Tom.



[ReveilleWolfie]

Very cool! Your stuff is so clean! This is going to be awesome, I can tell already. =]



[ZMX]

Very nicely done! You definetly have the eye for scratch-building, these pieces look fantastic!



[Hyperballistik]

Nice job man, its looking great so far



[koshima07]

Gotta say, that's an impressive start!
Keep it up, yo!



[Road Kill]

wow this is looking really good!!! keep up the great work =D



[TwiggyShip]

Hey now! That's awesome. Even cooler, you're doing it all from scratch and from what must be about only 3 reference pictures. Spectacular!



[Pipinacan]

wow man, really awesome work! that dremal on the foam texture REALLY came out nice



[fsracer]

*Update*

Hey guys thanks for all the complements !

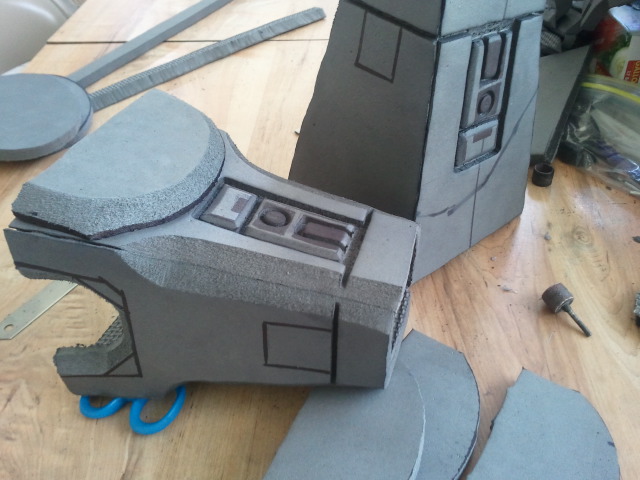

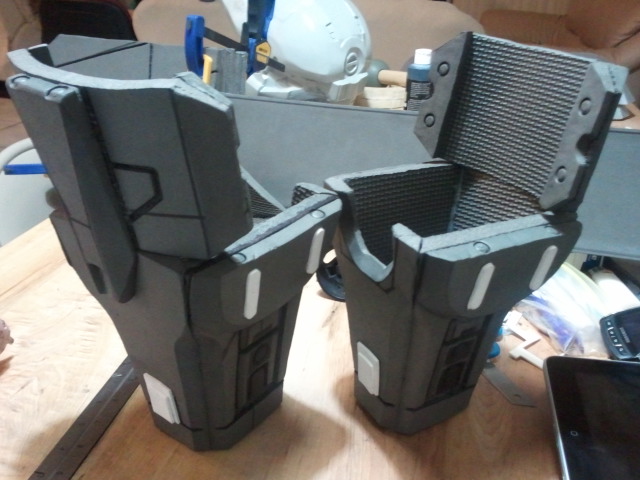

I started on the arms last night finished them about an hour ago (not the elbow plates)

I'll be honest I might be re-building thease, the thing that sucks about this being a scratch build is there is a lot of trial and error... In this case I think there to short and to blocky lol. You guys be the judge

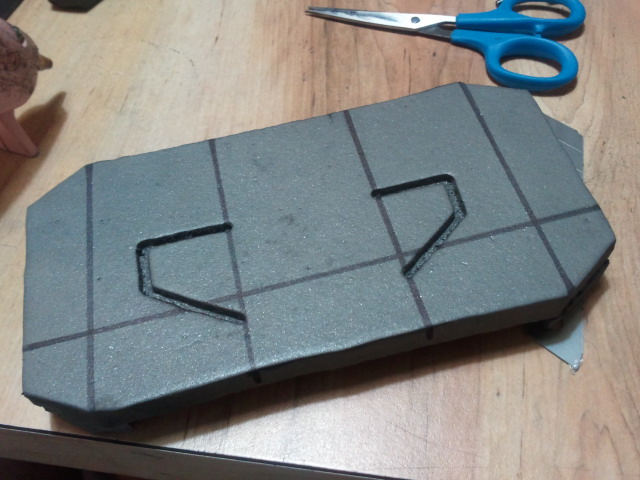

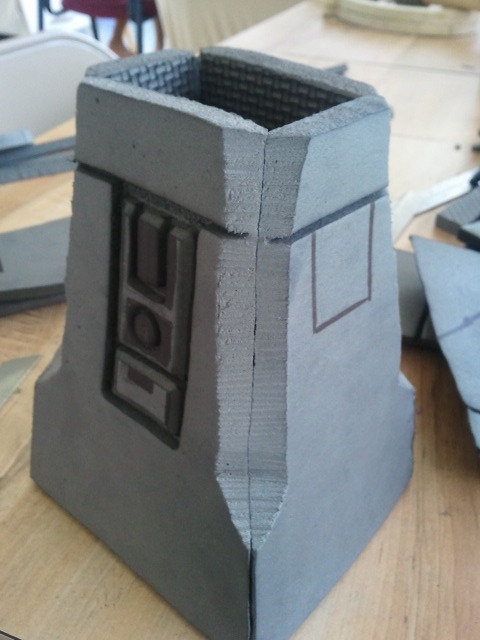

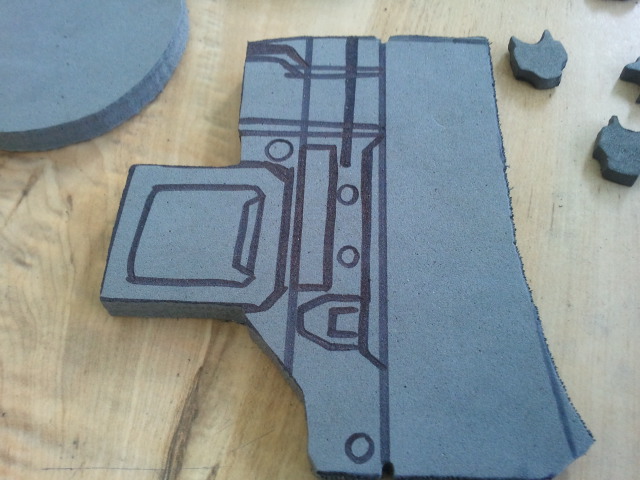

This is what I prepped last night just for the overall shape

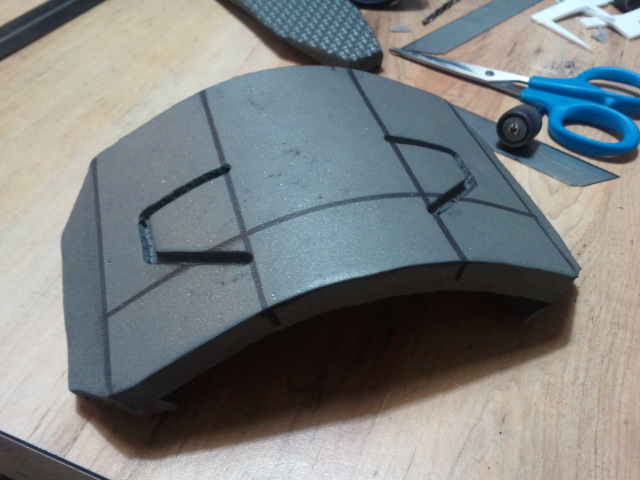

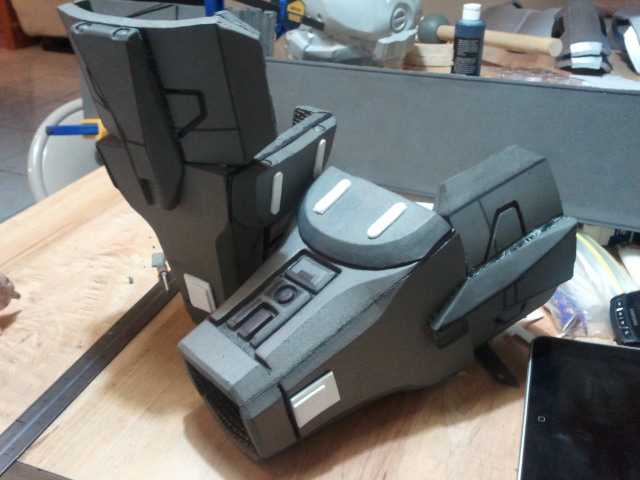

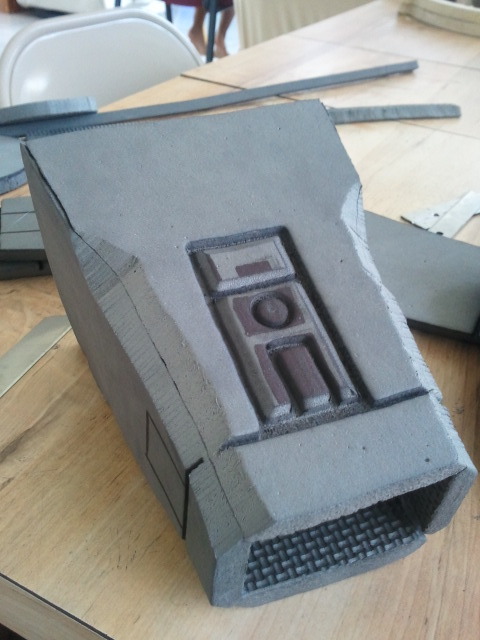

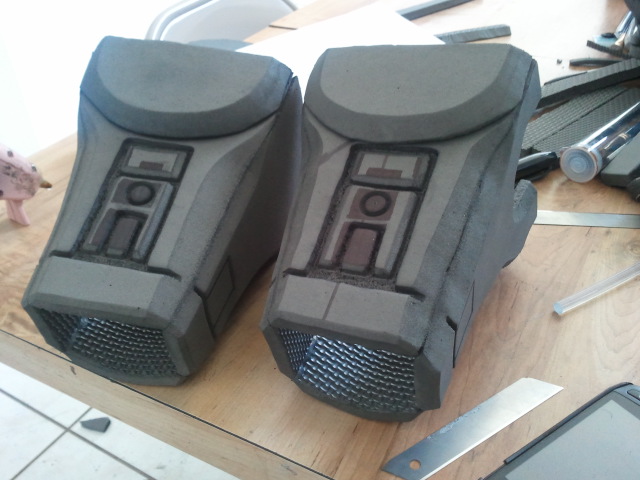

And now the build..

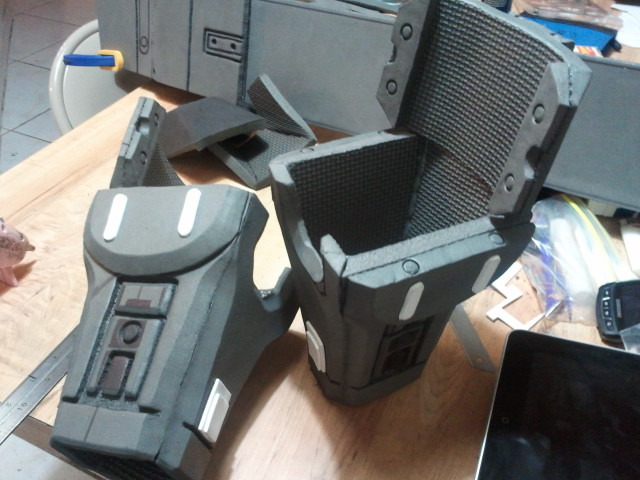

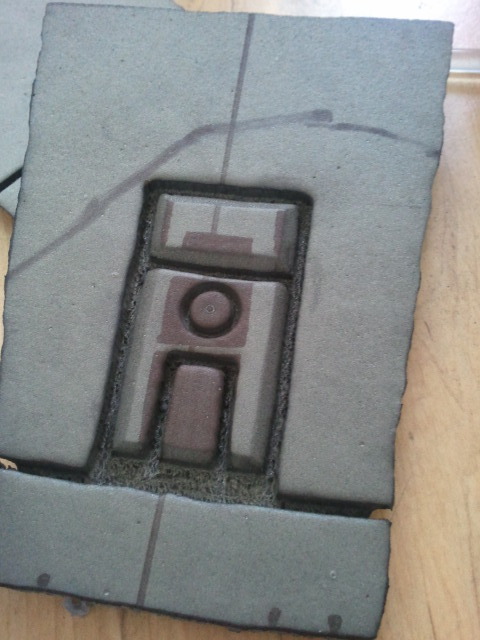

Raised detail

Well that's it for that I'll post late tonight on the knee plates shown in the first pic and also the elbow plates.

Seya!



[MissingSpartan7]

That bubble texture...how?! This is such an awesome build!

I don't want to bother too much, but, you didn't happen to make/save any templates for this? And I think we might want to see a more in-depth look at how you did that texture!

Will definitely be watching this!
CJ



[Hyperballistik]

After loking at some refrence pics of the Spartan IV armor, the forearms do look square, so It looks pretty good



[Spacemeat]

Totally awesome work! Especially for a scratch build, the eye you've got for the detail and construction is amazing. What head are you using to make the circular texture?



[Toja]

Technique and talent go hand in hand, impressive



[fsracer]

*mini update*

thanks guys^^^

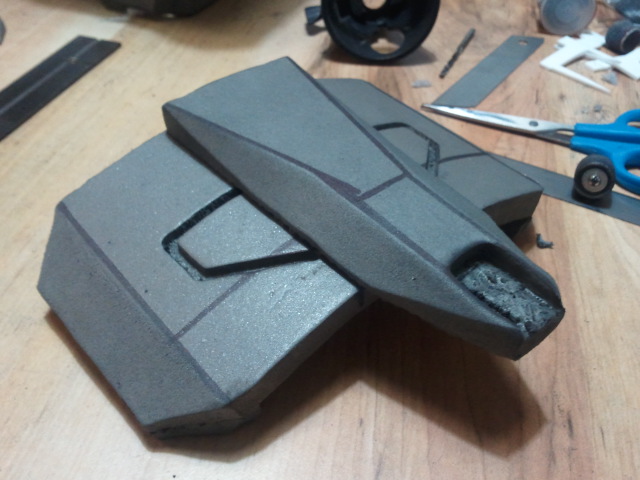

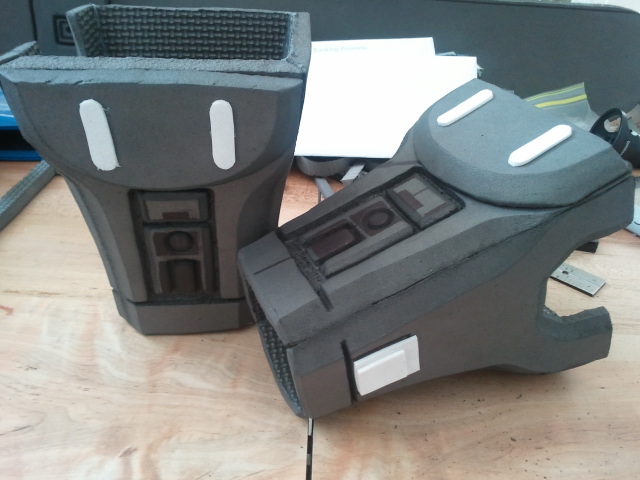

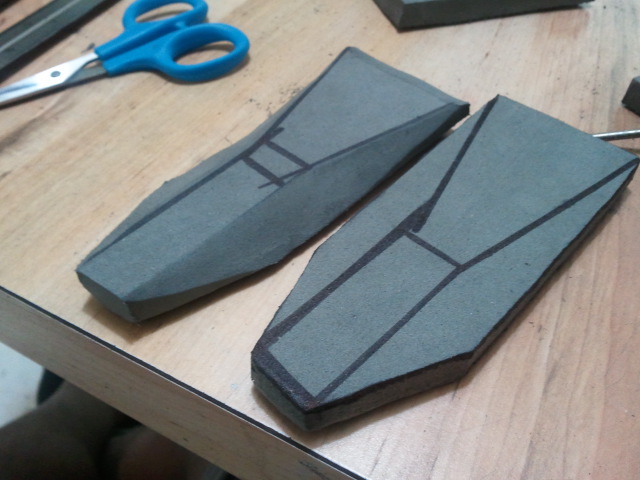

I meant to do this last night but, I feel asleep lol. Anyway... I finished the elbow and attached them to the forearms. Also I took some pictures for a mini tutorial on how I did the bubble part lol but that will be up later. That's it for now though

(since the forearms are kinda "boxie" I added some additional foam inside so it fits flush-er lol)

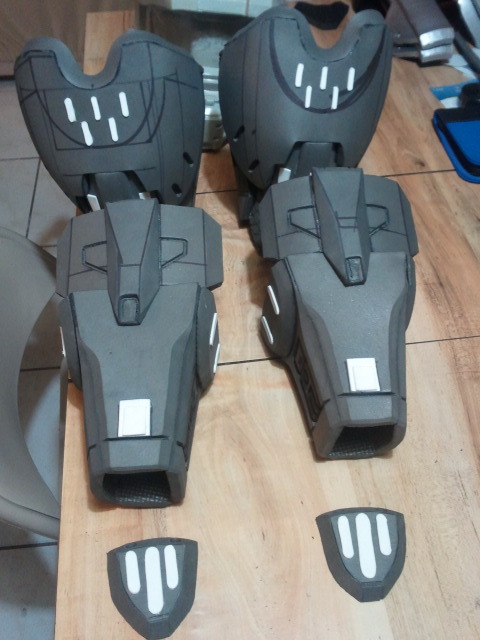

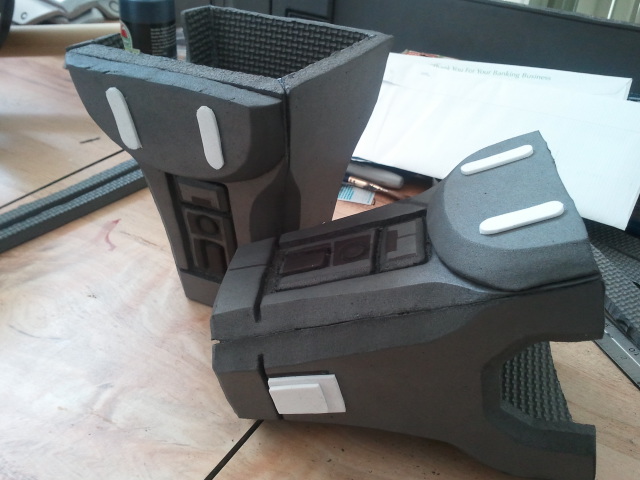

and both arms complete!

and me test fitting being a retard with Hypers h4 helmet lol

well that's it for now ill start on the chest next. Forgot about the knees... oh well seya!



[Zat German]

I love this build so far. Any tips for figuring out how to make a flat pattern into a curved surface, like for those shoulders? That's probably my biggest weakness is scratch stuff.

I am thinking about trying this: http://www.lowes.com/pd_271347-40688-2055002_0__?productId=3689976&Ntt=1/2"+hole+saw&Ns=

It's a 1/2" hole saw for glass and tile. It might work for foam too. I need to go to Lowes and check it out a little closer.



[Pipinacan]

Awesome work my good sir. What kind of bit are you using to shave the edges of the foam? Can't wait to see your chest get started
