This thing just blows me away. Every time I look at it, there is something that I didn't notice before. This is a great piece, and something to definitely be proud of!!

-Matt

thanks man. i made it and it's the same with me, the way the light bounces off a surface from a different angle can really change the way a feature is highlighted so i'm still finding stuff on it. of course it could be that i was tired while doing most of it and just don't remember doing those parts :) ... i'll get a "family" portrait with the other two helmets and my two pistols up soon...

X2 - awesome job man. This helmet keeps getting added to and added to. It just proves what I mean when I say that great things take time! And when you think your done, you think of something else.

Cheers,
Cereal.

yeah, i know what you mean. i nearly forgot about the extra bits over the wires until i was looking at the photo's as i put them up. and the extra details at the back of the neck. i'll probably do those parts tonight and post the pics in the morning. knowing that those area's are left undone is gonna bug the crap out of me today while i'm at work :D ...

Ok, so now I can officially call this one finished. I didn't get time to glue the extra bits in when I planned, life just has a way of doing that to me from time to time. Anyway, they're glued in now, so I figured I'd chuck some more photo's up for you all to enjoy...

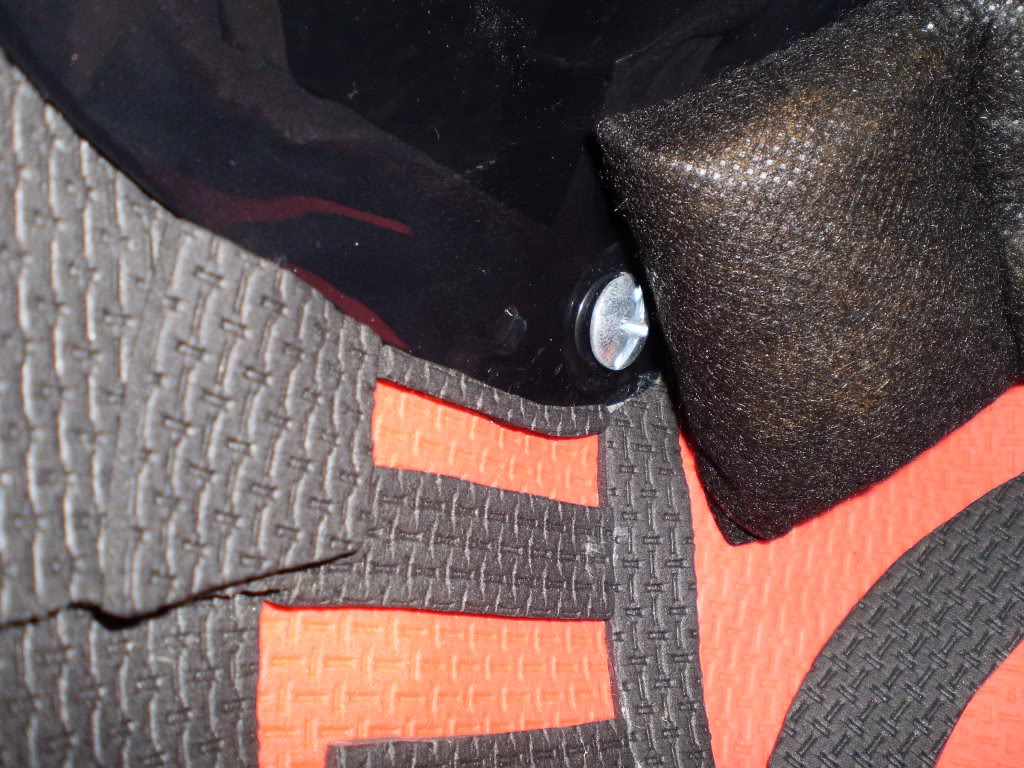

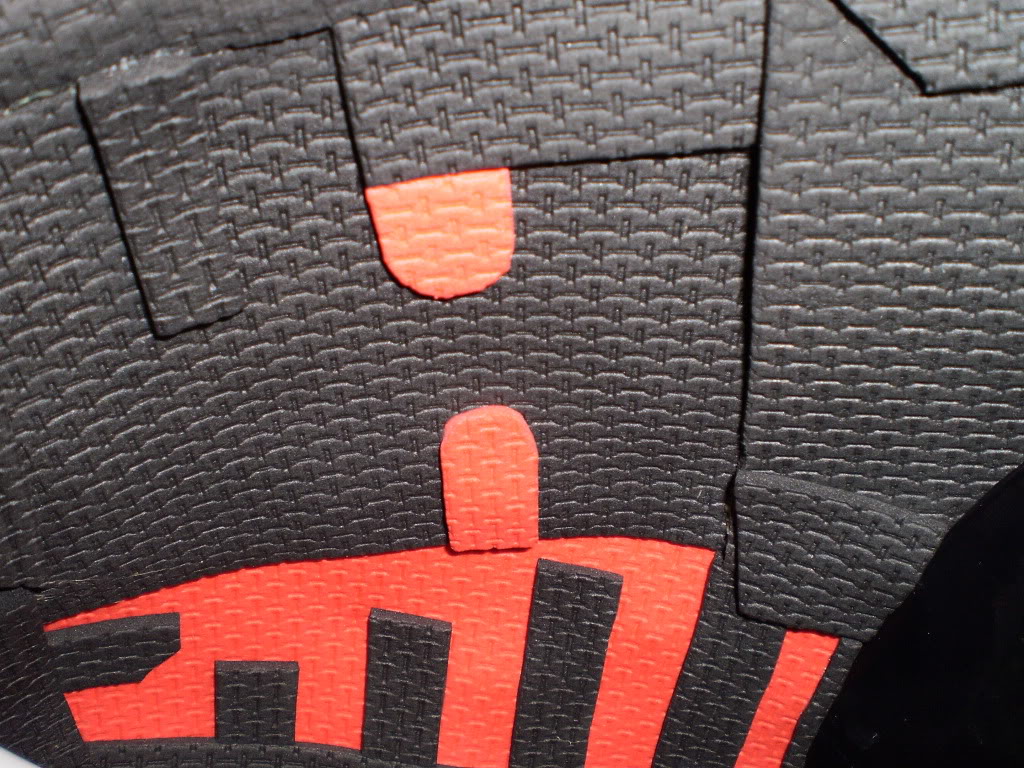

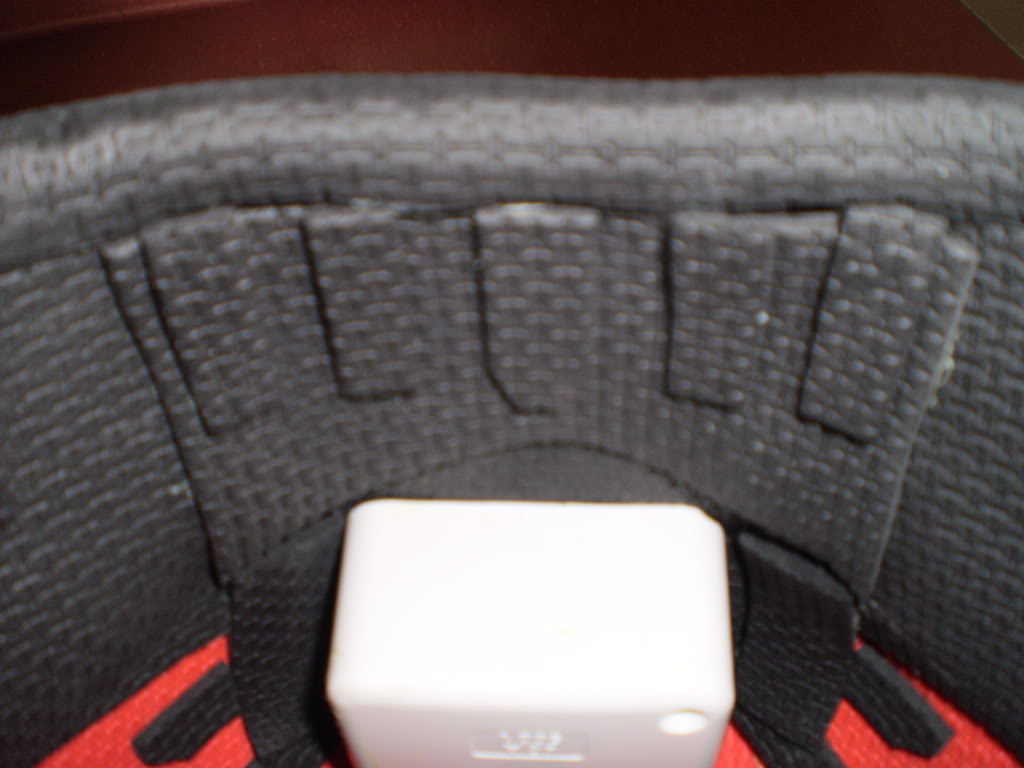

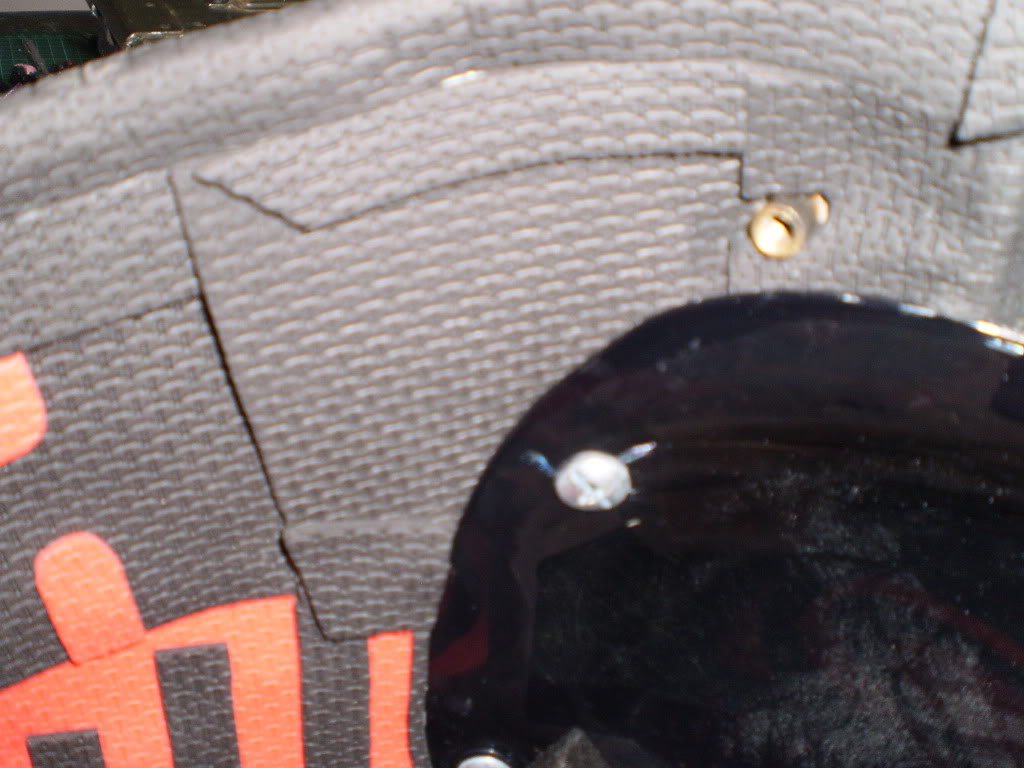

I don't know if any of you noticed or not, but there was a small gap between the lining and the visor on the inside of the helmet, and knowing me, I would spend the rest of my life knowing it was there, left unfinished, so my first call of order was to plug said gaps. I basically cut some very fine strips and using my ever trusty Fullaprene stuck them in place. Like so...



Then of course there was the problem with the exposed wires... Same fix for a different problem... Unoriginal, I know, but at least I know it works... I angled the edge so that it wouldn't catch on my ears as I put it on and took it off...



Ok, so this detail is just superfluous and didn't really need to be added, but whatever...



It's all about the eye candy with this helmet I guess...



Like I said, eye candy...

And of course the family portrait... Oh look, Fred's back, and this little collection of swag gets his thumbs up approval too!



(I know it's childish, but you should see the pics I got of this guy vs. Godzilla... Epic battle in my front yard, epic...)

Ok, well, so that's it people. Thanks once again for swinging by and checking out the goods. I had a lot of fun doing this build and I'm glad I got to share the experience this time round.

I plan on breaking my builds up into just a couple of themed threads so I can keep better track of what's going on where, ie: this thread will become my armour thread and my Anniversary M6b thread will become my weapons thread, both being retitled appropriately so as to avoid any confusion with what I'm doing...

So keep watching 405th'rs, there's sure to be more coming soon... Bai Bai...

Amazing man, thanks alot for documenting the painting progress it'll help alot in the future. this is elite level work you do, did you plan on making an entire suit? or just the helm? once again nice work, makes mine look like a blue trash bin XD

Quite the collection.
They look great!

Cereal.

thanks Cereal. i've pretty much got a whole bench top covered in these guys and a select few of Fred's smaller 7" scaled friends and vehicles (most of them are gonna stay in their boxes and currently hang from various walls in my place. i hope they don't end up jaded like Stinky Pete :D ) it seems that i mostly want to build just helmets and weapons at this point. one day i might branch out a bit more...

Fred fighting Godzilla?! Post pics!!!

uhh, ok....

well when i got Fred out of his box and took him out into the garden he wasn't pleased at all. he flipped the bird and told me where to stick it...



after some gentle persuading he eventually came round. i had to tell him the usual stuff - my what a big gun you've got, blue really suits you, that gold visor really brings out the highlights on your armour, blah blah blah... a few happy shots later and i got this heroic pose out of him...



then he just seemed to relax and feel much more at home in the elements...



so anyway, he climbed up the rock wall at the front of my place...



and it was there that he met Godzilla. at first he thought Godzilla was some kind of indigenous life form from Reach...



Godzilla made some screaming and roaring sounds trying to put Fred off, but brave Fred just stood his ground... i think Godzilla was clearing his throat or something...



i vaguely remember Fred saying something about some demon or what not... then he told Godzilla that he should back off, that he was a fearless intrepid super soldier exploring where no toy has ever gone before...



Godzilla pointed out that he was distant third cousin to the well renowned Philosoraptor, and that he too was a toy and was already there first. Fred didn't take that all too well, and, left with no intelligent response decided to open fire on poor unarmed and defenseless Godzilla...



fully satisfied that he had invaded Godzilla's territory and without provocation had seriously maimed him, Fred did his little cookie dance, shouting derogatory comments about B-grade Asian cinema while Godzilla writhed on the ground in agony...





and then he got real funky with the dance moves, fired a few rounds off in the air and told Godzilla that he was "the new king of this mountain, bia7ch!"



needless to say, they both now live at separate ends of the house... Godzilla wants a rematch seeing as he was both unarmed and unarmoured and called it "a rather unfair and unprovoked fight"... i tend to agree... maybe sometime in the future i'll let them have their round two... we'll see...

remember kids, bullying is for idiots. real people solve their issues with mock fights with toys. if there are still any unresolved issues, i recommend buying more toys...

no historical movie star figurines were harmed during the production of this thread...

uh... i need to get out more...

Amazing man, thanks alot for documenting the painting progress it'll help alot in the future. this is elite level work you do, did you plan on making an entire suit? or just the helm? once again nice work, makes mine look like a blue trash bin XD

ok, dude, that there is just wrong... you really shouldn't dis on your own work. there are plenty of nay sayers and no'er doers out there that are gonna try to bring you down no matter what. mainly because they are all just talentless hacks and bastards with low self esteem who won't have a clue how to build what you are capable of. don't give in to that crappy way of thinking and don't become one of them. i know i'm not as good as the guys who've been doing this stuff for ages, but you know, it doesn't faze me. i'm here to have some fun and show people what i get up to in my spare time. toys included...

ideally we're all here to share and learn together, and, as part of a community, help each other out. i like to think to myself "you'll only ever be as good as you want to be". so don't say that about your helmet, or you'll actually start to believe that crap. i'm sorry if it seems like i'm going off on you about it, but if you start to think like that, then you'll stop enjoying making stuff, and that'll stop you from making stuff... if that happens, then you'll never get to practice your skills and progress any further. keep a positive attitude and you'll always be able to make great work, regardless of what others will say...

also, on a happier note though, i'm glad you like the paint job, i'm pretty stoked about it myself too. i'd like to do a tutorial at some point to show people my actual techniques and stuff, what brushes i use and all, just to get it out there and see what someone else does with it... i saw a vid once where this guy was talking about the painting techniques that Stan Winston taught him, and the stuff he was saying i kinda just do intuitively, so i'm pretty happy that i'm already thinking in the same vein as THE special effects master. as for the tutorial, well i guess i'll get round to it some time :) ...

and i checked you work out. it's very good. you are a lot better with pepakura than i am. i get glue everywhere an never seem to get my tabs to line up properly. also, the details on your JFO are very clean and sharp and the suit is coming together nicely. it's very good work :) ...

Those are gorgeous man! Fantastic work on them.

i wish i had been able to walk down this road with the EVA helmet, but alas it was not to be... technology is omnipotent, but it is not infallible... memory cards can corrupt and it is best to always keep a backup copy of all digital photo's... with that lesson learnt, i was able to show my little collection off today. thank you for your kind comments...

LMAO thats righteous!

lol... i know i probably should go see a shrink (paid friends for hire) or something. sometimes i actually do talk to my toys (i don't expect a response though, so i'm not that crazy). i guess it actually helps to get stuff out of my head, so what if i seem a little unhinged for it, i probably could be a lot worse off for not chatting to them... i remember the first time i saw toy story, i kinda felt embarrassed that here were these toys that were fully aware of what was happening around them. it still hasn't stopped me from my little conversations though :D ...

Oh my God! I had one of those toys, too! LOL!

i actually got him from a friend who said my eyes lit up when i saw it beside her front door. she got him from a garage sale years ago, but her grandsons never really liked him. she gave me a few dinosaurs at the same time too, and now they all reside beside my front door with a Britney Spears barbie and a naked Ken doll (don't ask) lol ...

**EVA MkVI PROTOTYPE Field Test Unit**

I guess I should start to put these photo's up now seeing as they have been hosted for about a week on Photobucket.

I would like to point out at this point that this is a fully completed helmet at this time. I was working on this pearler last year and had literally taken the last photo, put my camera down to install my camera suit software on my laptop and the memory card became corrupted. As such I'm afraid to say, there are a lot of build photo's that nobody will ever get to see with this helmet, and unfortunately the only build photo's are very early on and in low resolution as they were taken on my old phone... It could have been a lot worse I suppose, they could have been taken with my old old phone which had an even crappier resolution, but I'm happy that I even have these photo's.

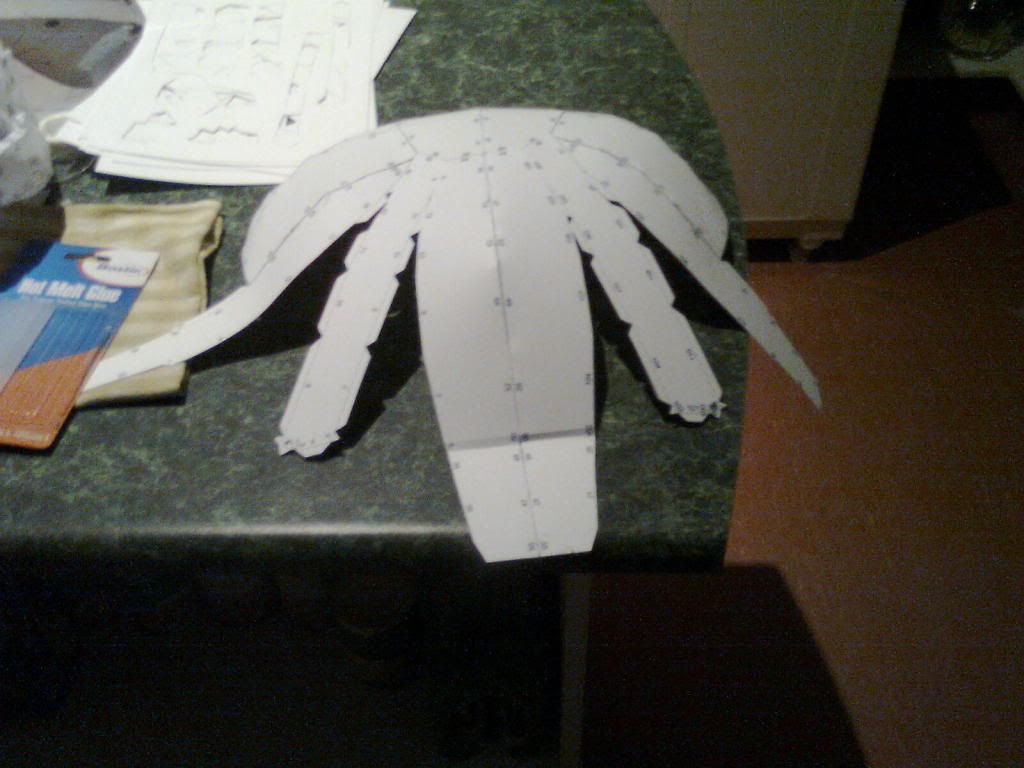

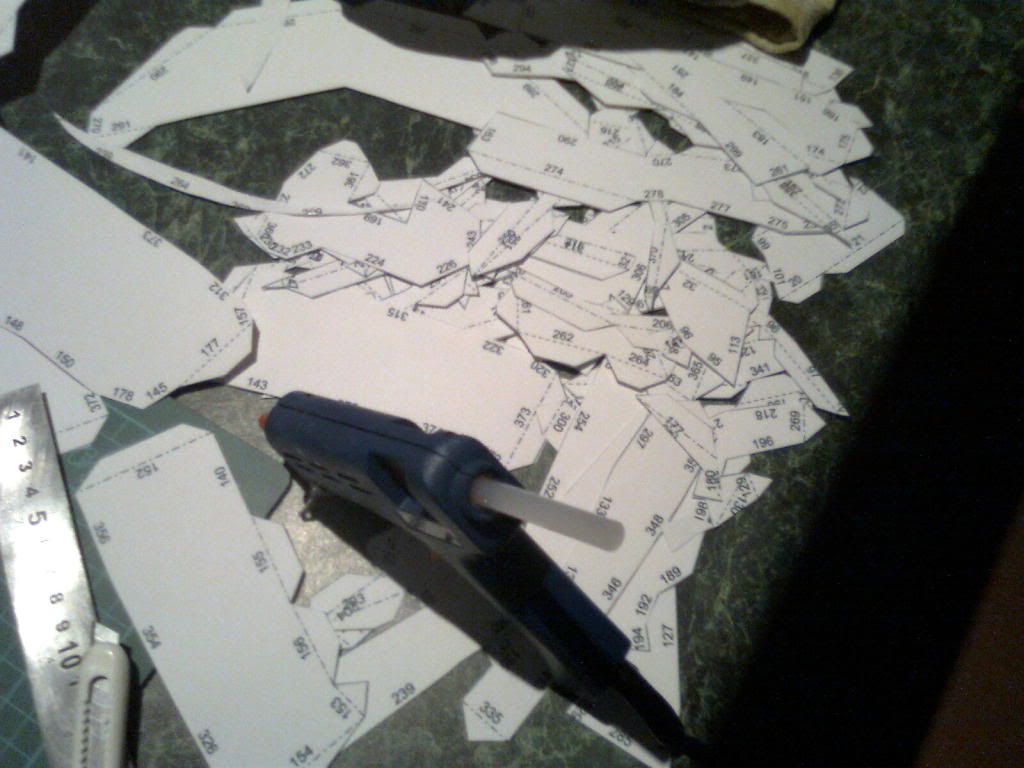

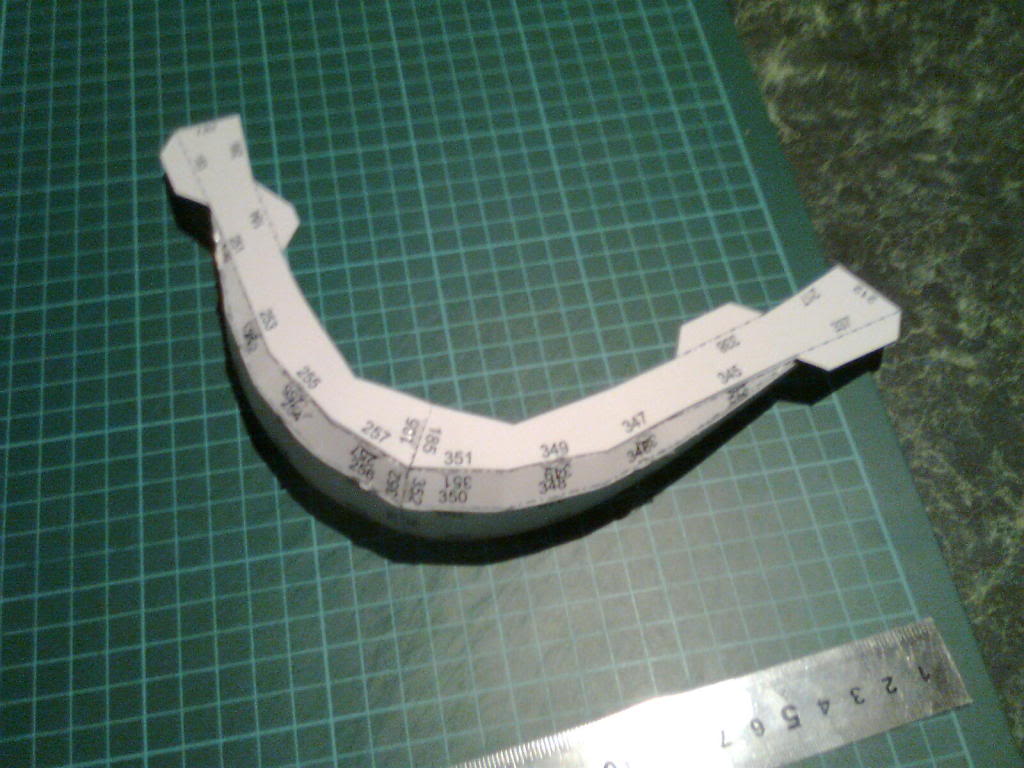

I used a low-res pep file by Slyfo, including the face plate to get the basic shape. Knowing that I wouldn't be able to do a proper visor without a vacformer I knew that I was up for some serious artistic licence with this sucker. As such, what I came up with varies greatly from what you would see in Halo 3 multiplayer and even incorporates part of the design of the WETA EVA helmet.

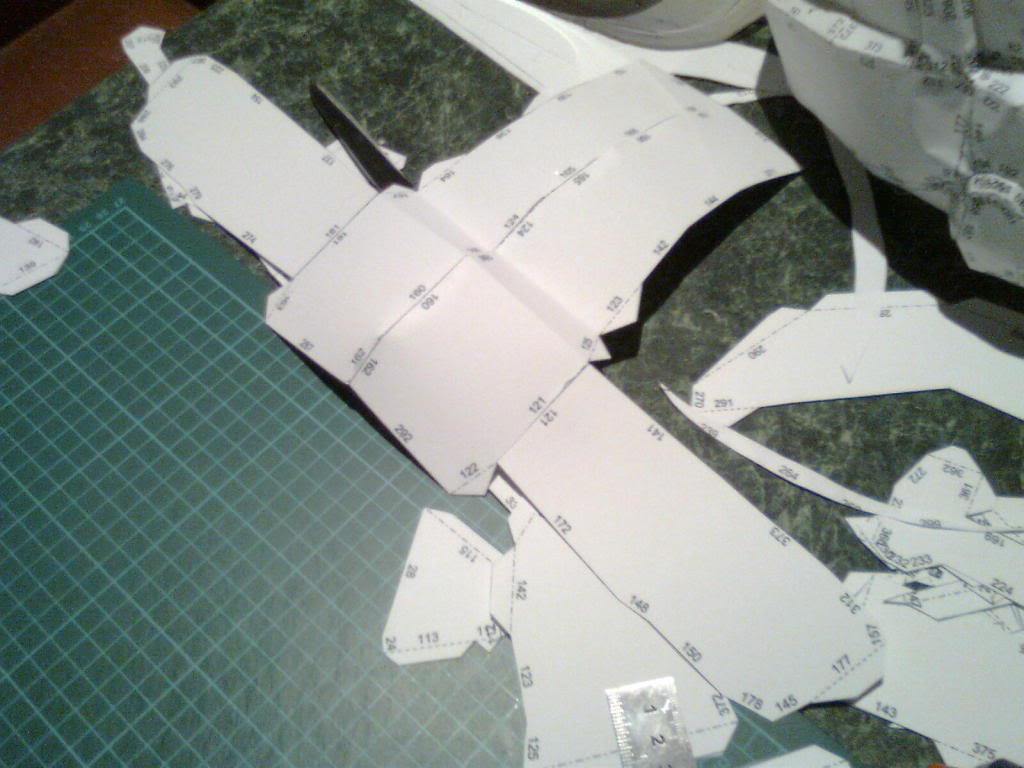

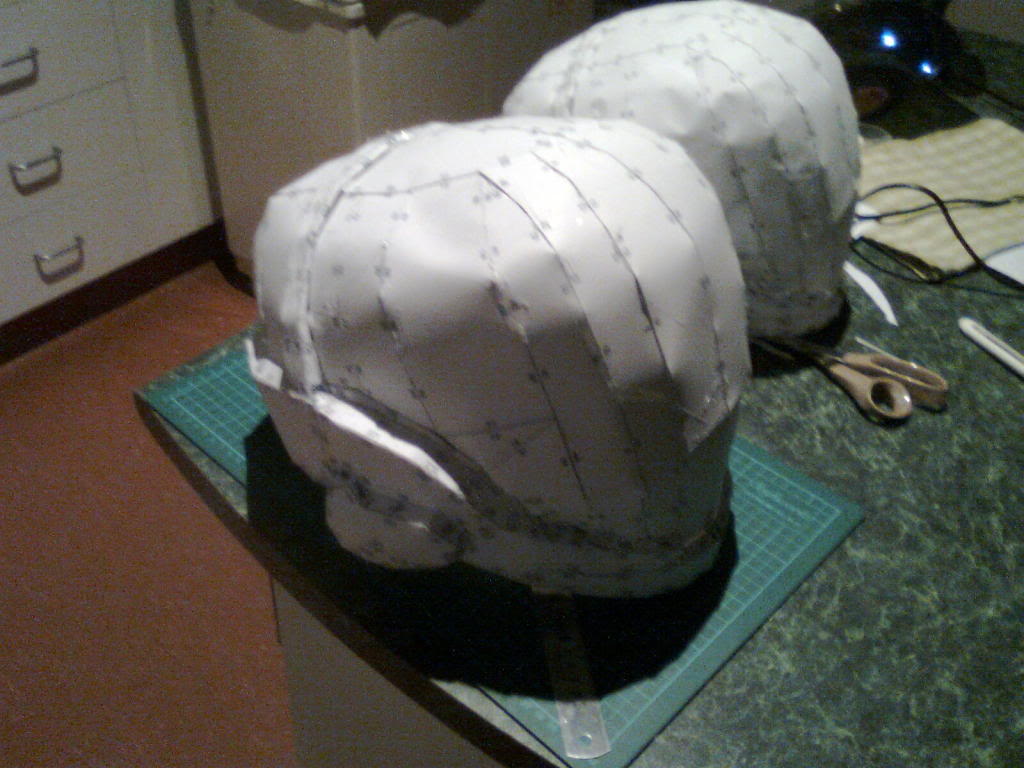

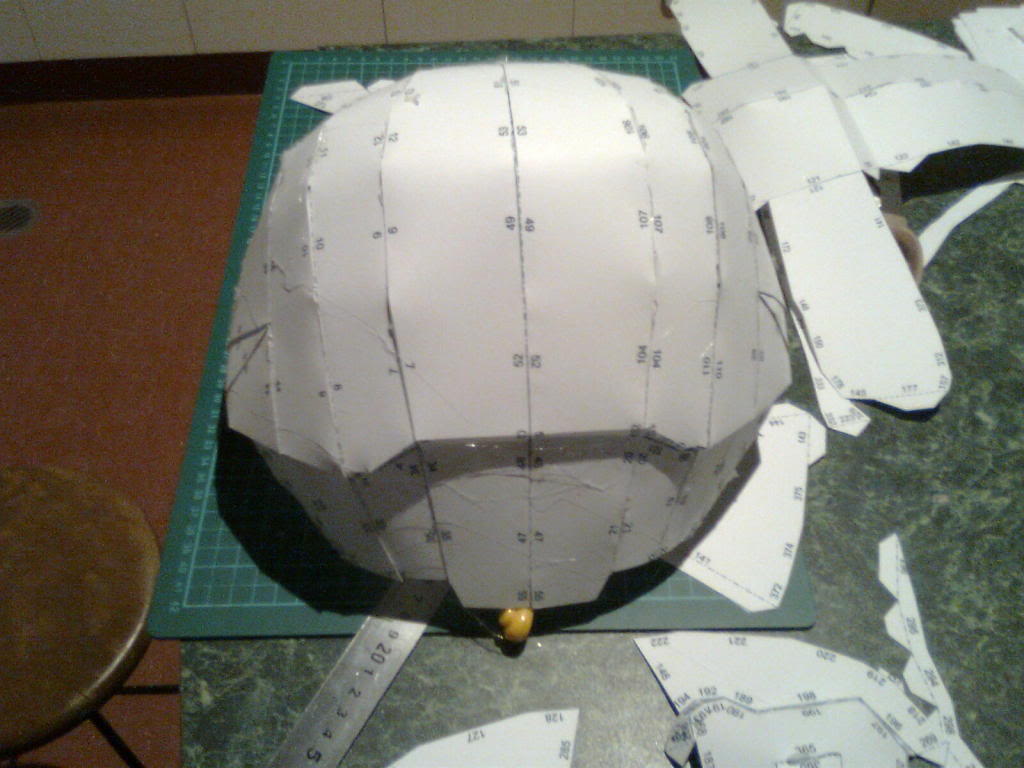

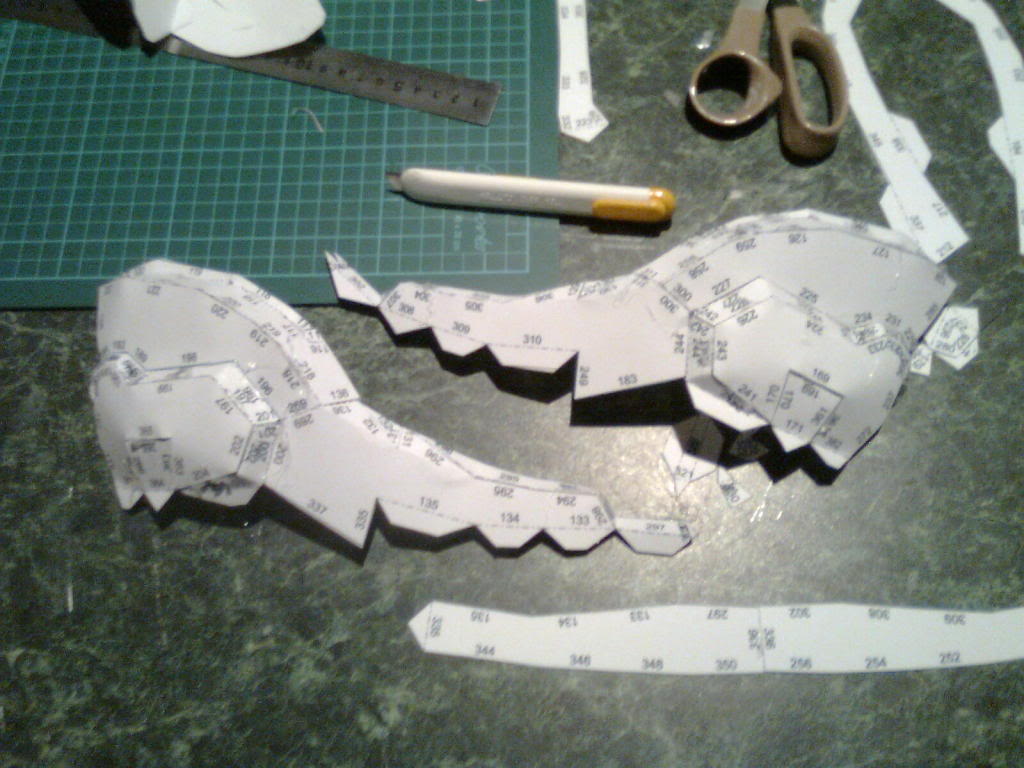

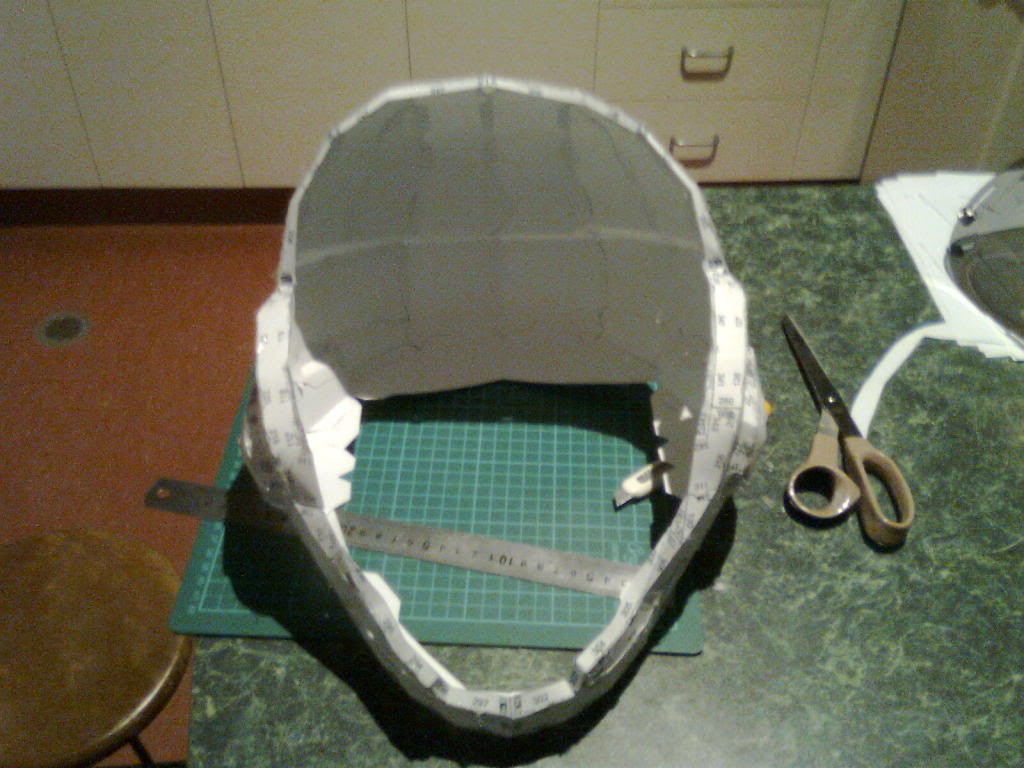

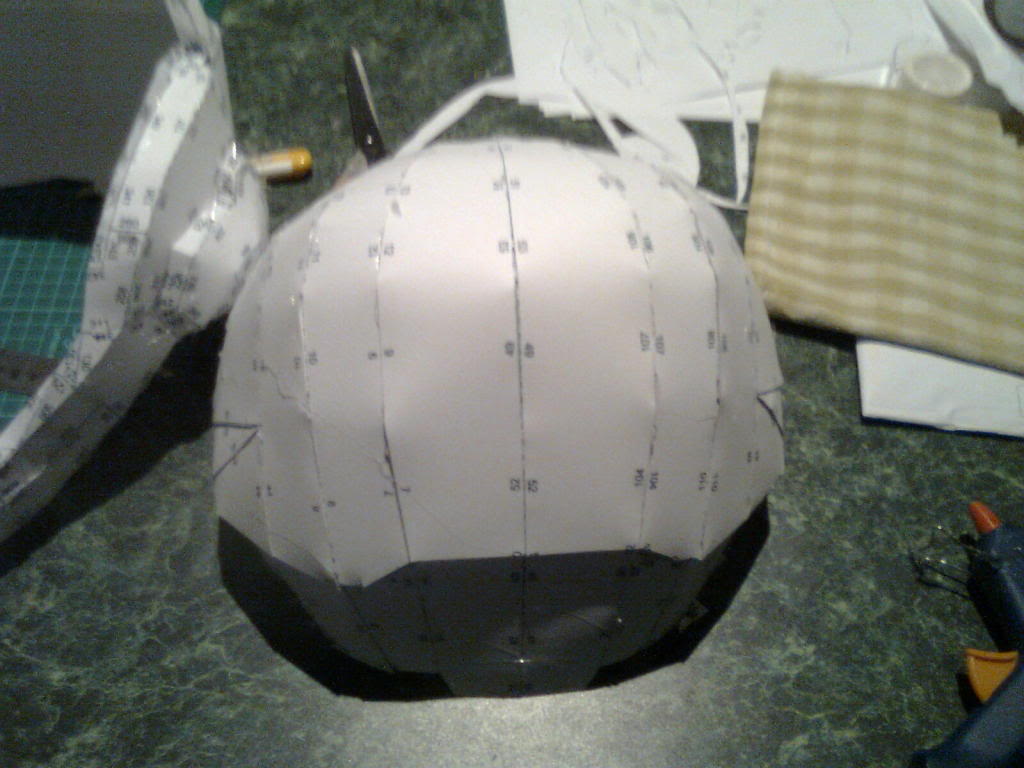

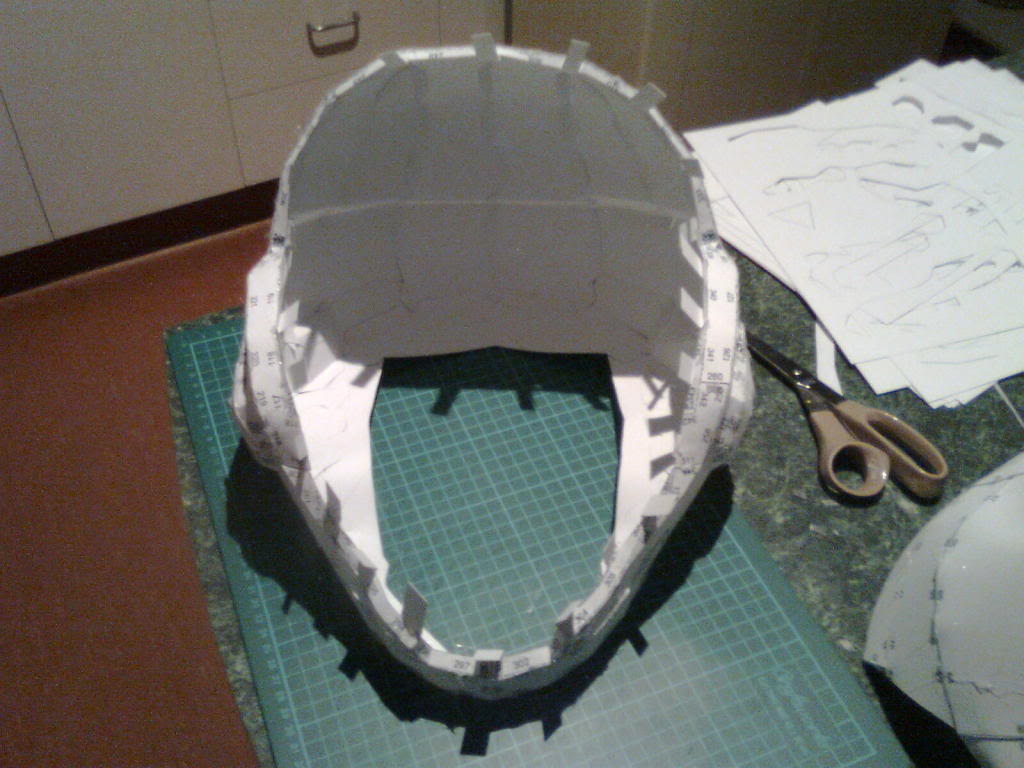

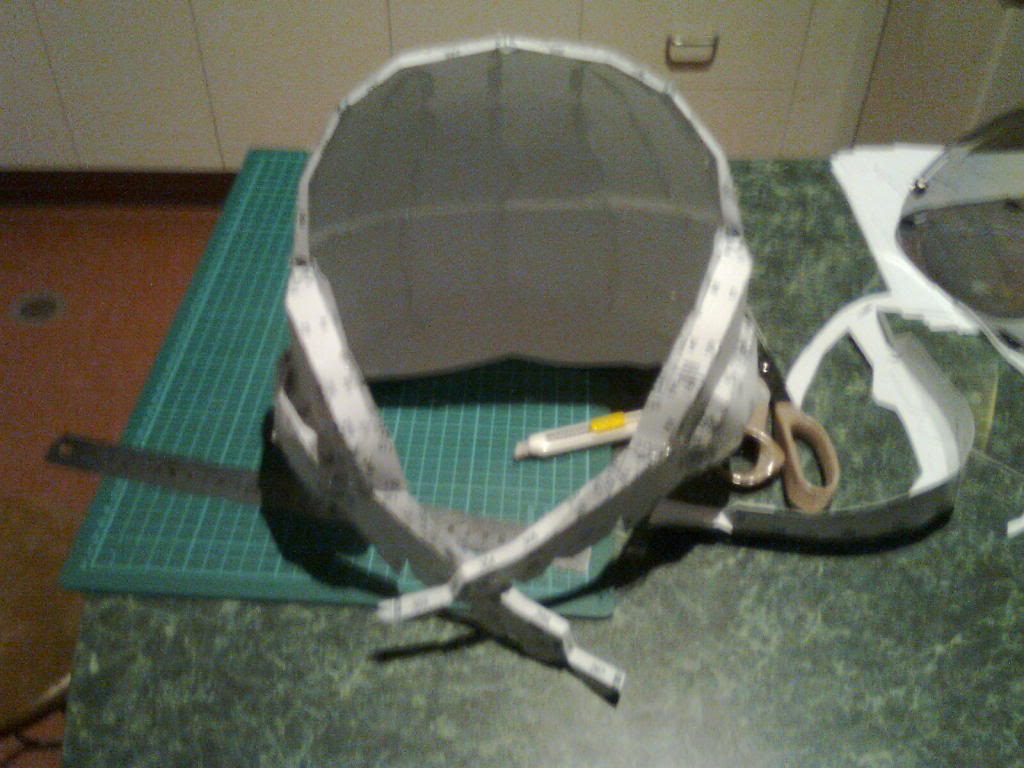

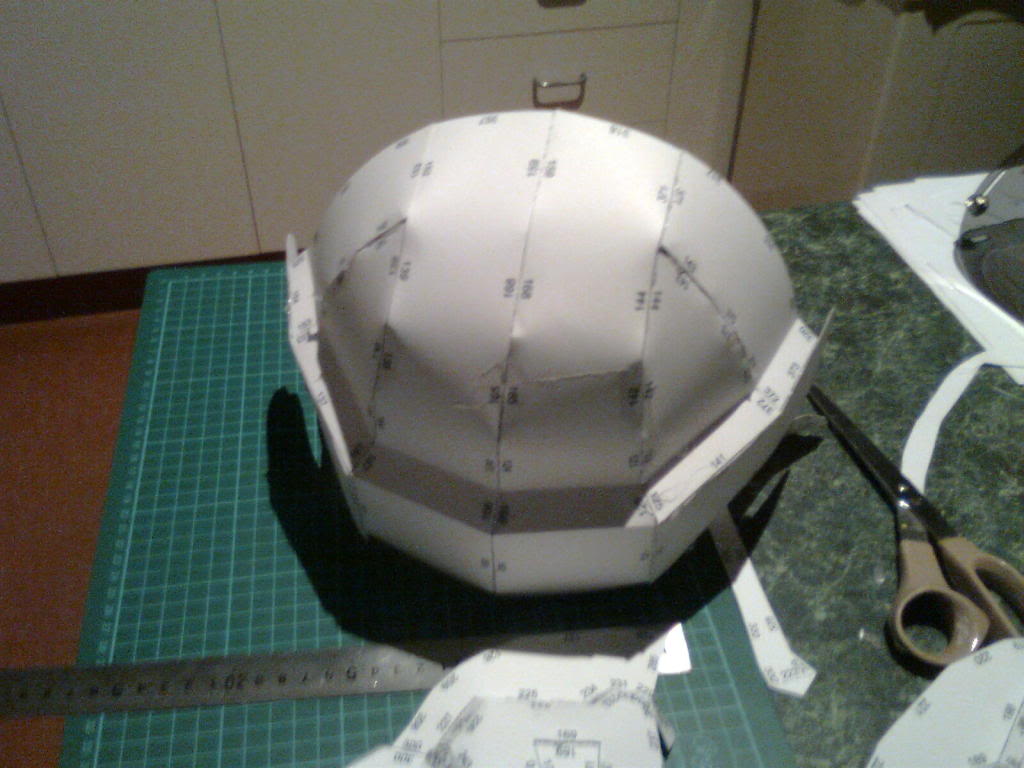

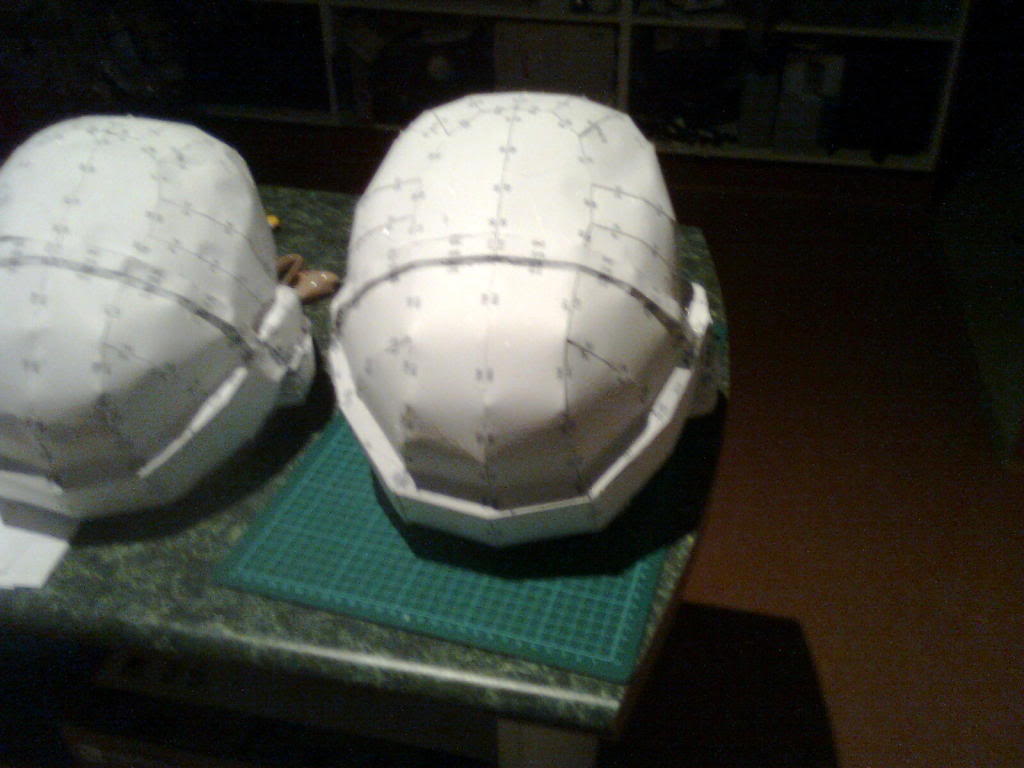

I built a rough paper model first to get a feel for the model, knocking it together in just a few hours, then knowing what the default size looked like, I knew I had to upsize. From memory I had to scale the helmet up an extra 10% to get it to fit my disproportionately large head...

But enough of this chit chat... You want to see pictures, so I'll just leave these here for you all... Enjoy :D ...



























Stay tuned groovers... Back with more shortly...

So I might have to do a few double posts to show this sucker off. Apologies to all...

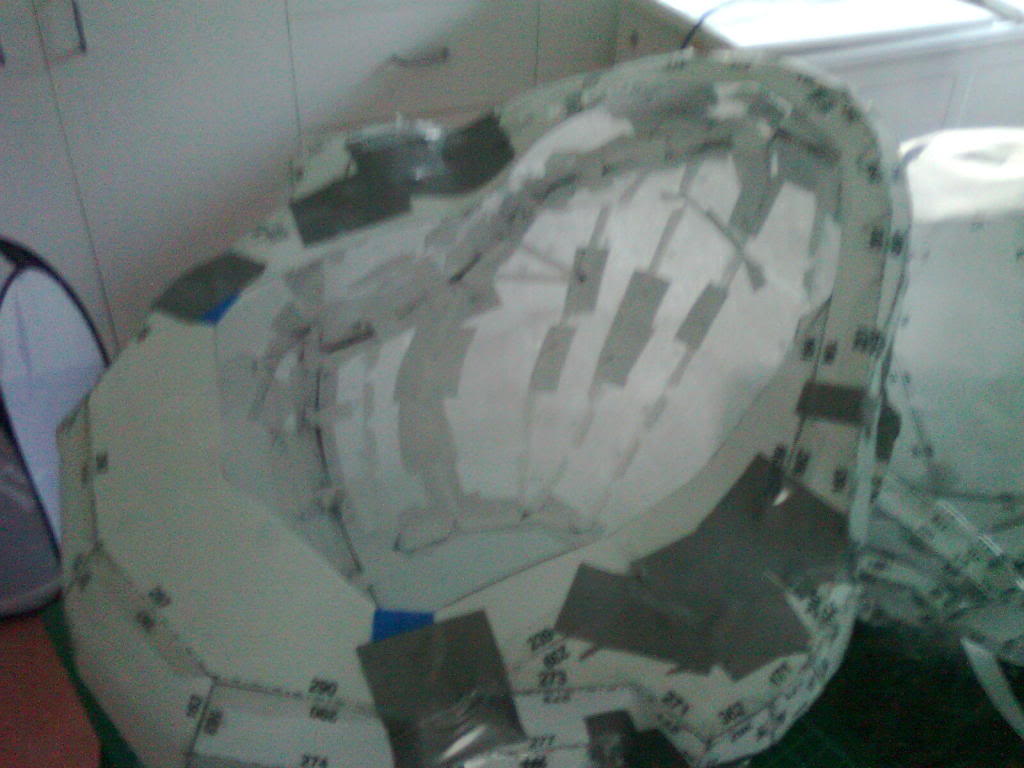

Anyway, before everyone starts on about open edges and how the visor is separate to the rest of the helmet - just make your own tabs... Easy solution... I mean it is just pepakura right, so tabs shouldn't be a problem :) ...

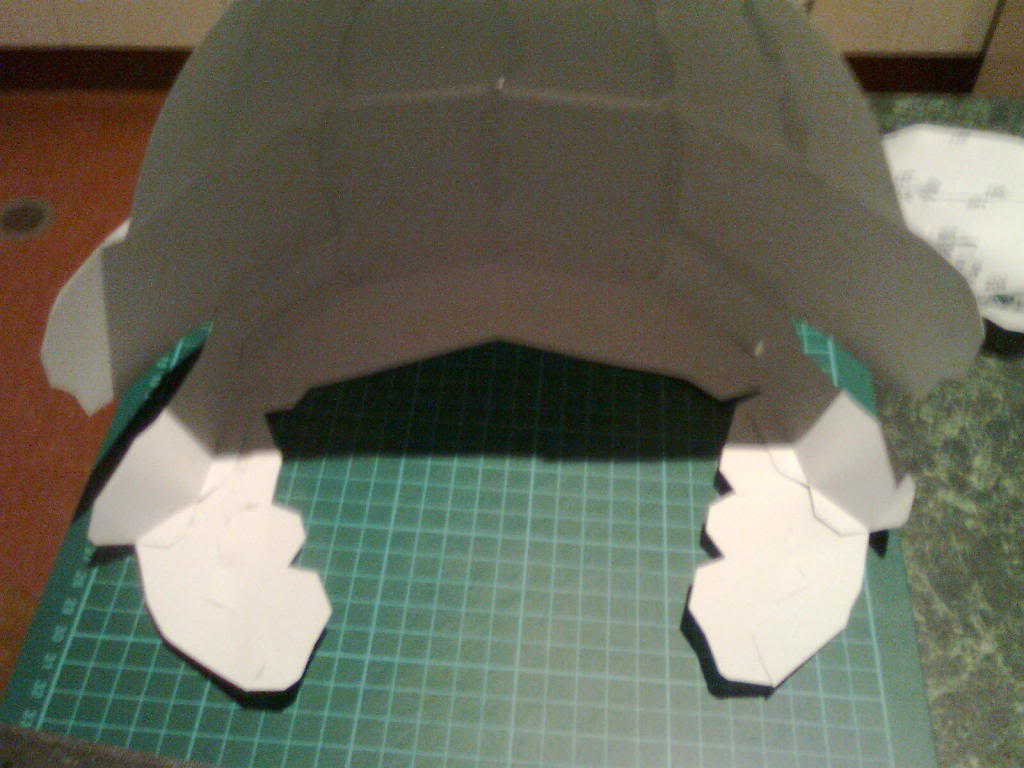

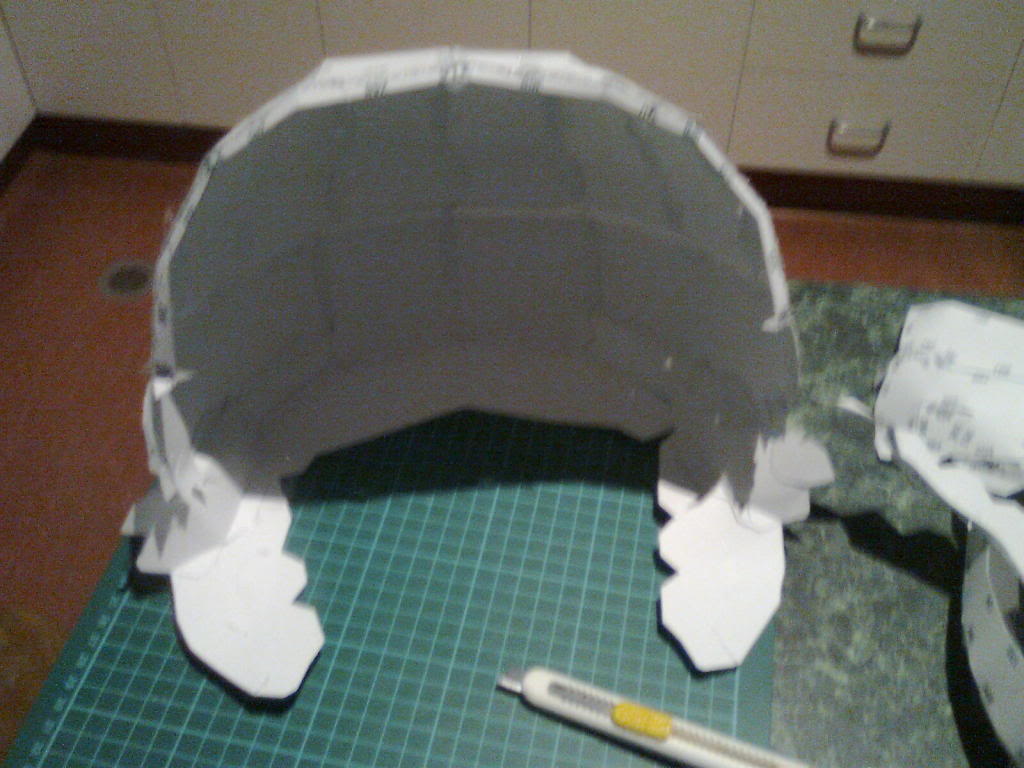

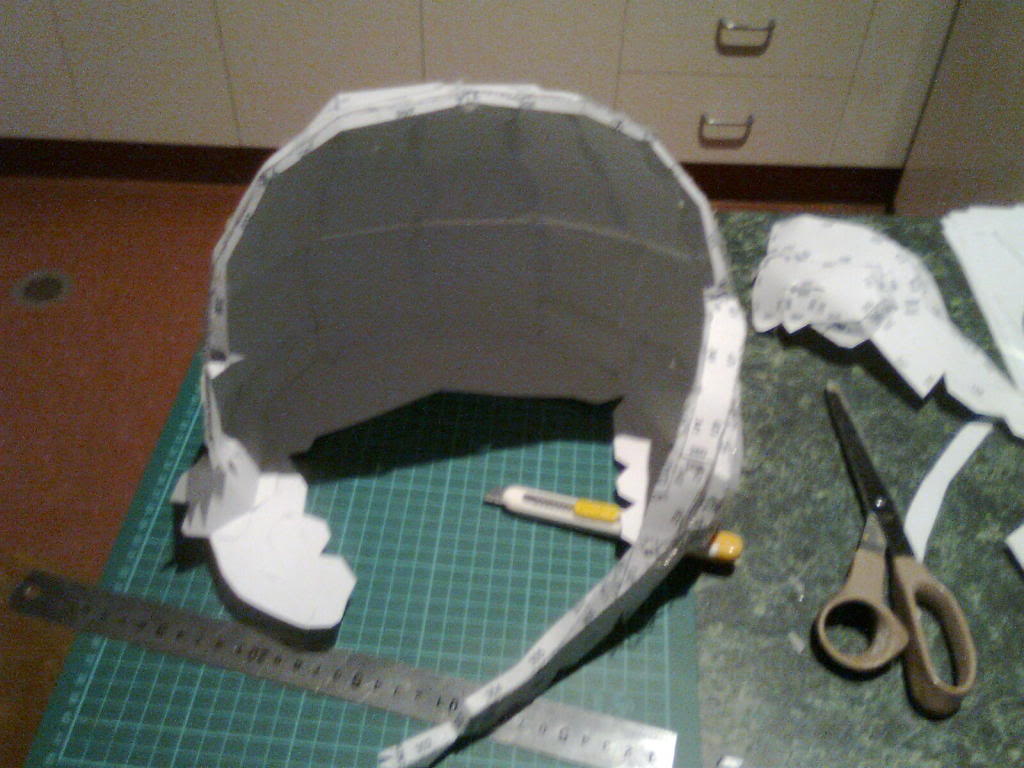

Easy... I just glued the visor in on those tabs, starting from the center of both the top and the bottom and working my way upwards, doing opposite tabs so as to prevent any warpage going on.

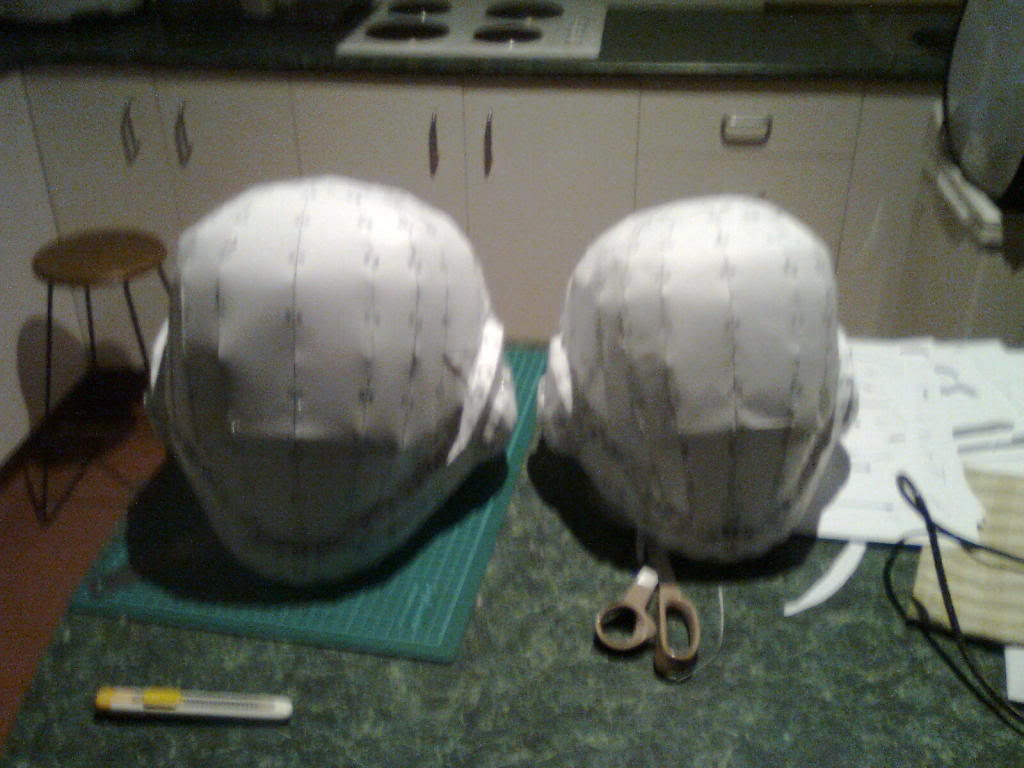

It's amazing what an extra 10% can do in relation to head room :) ...

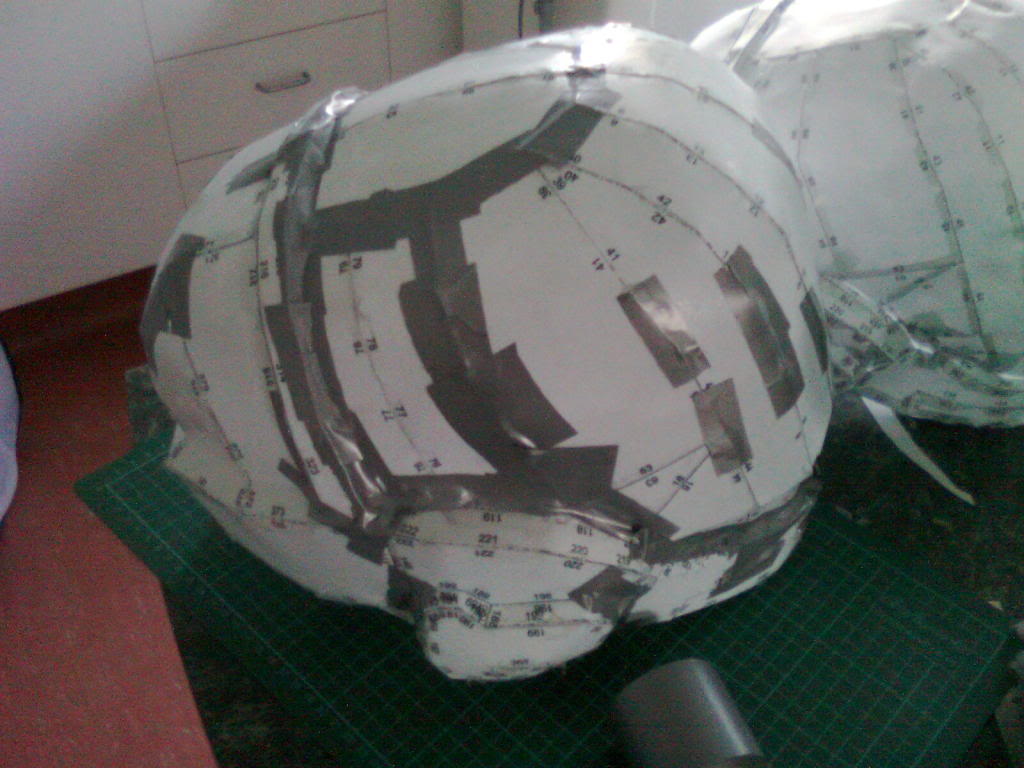

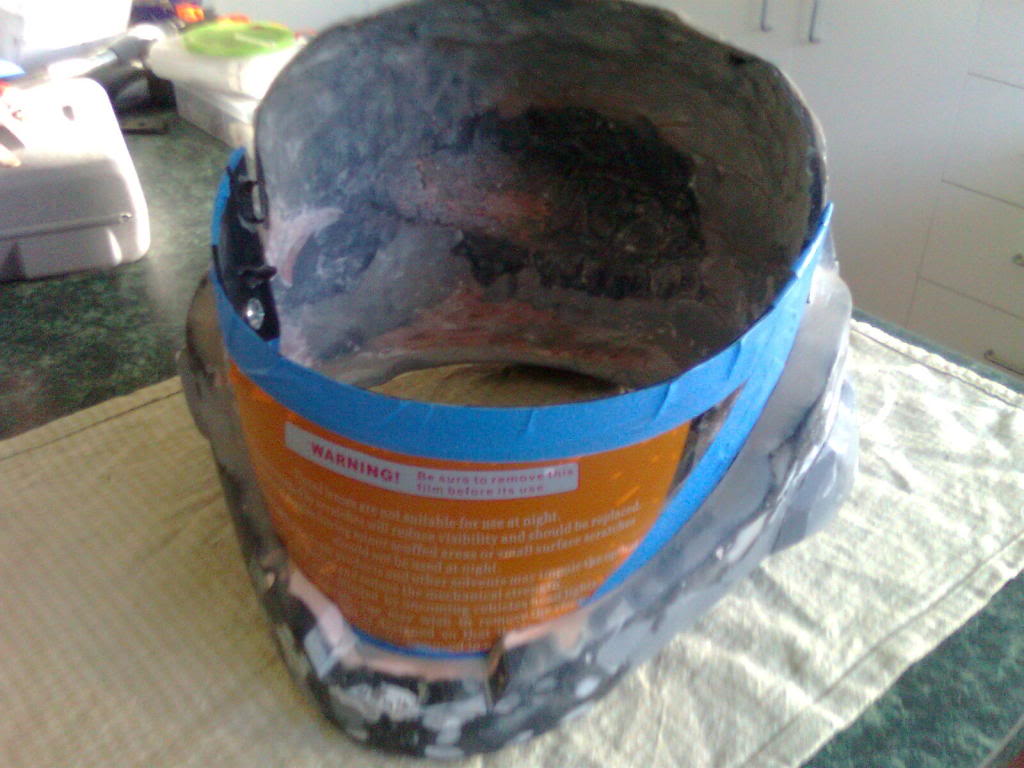

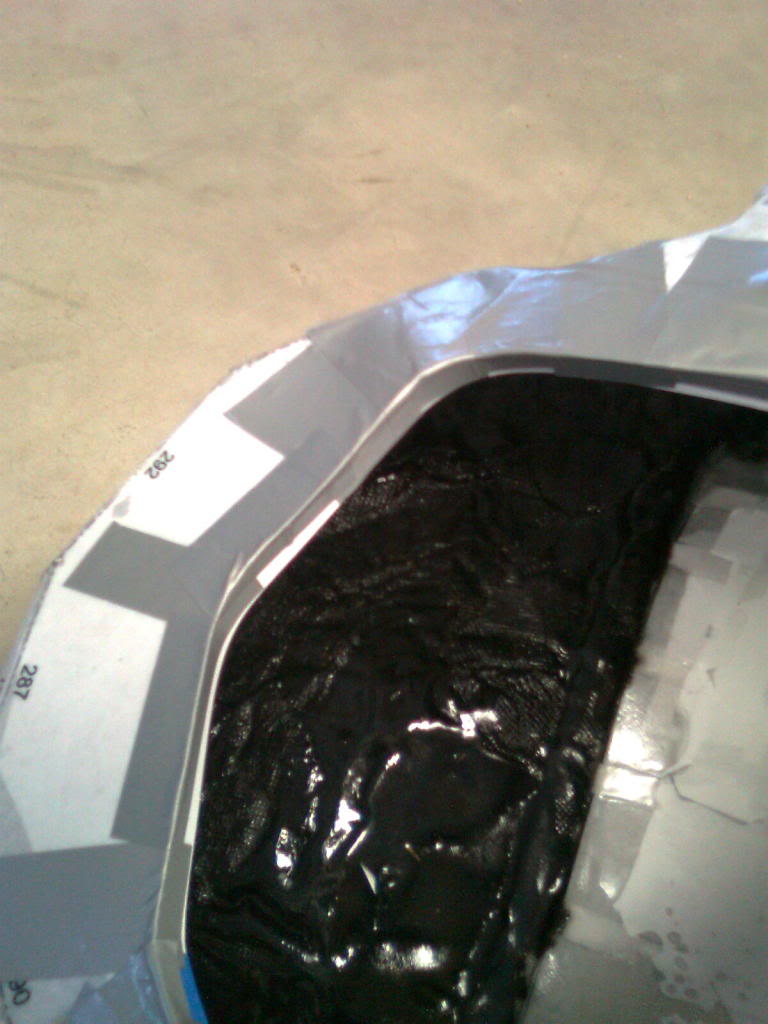

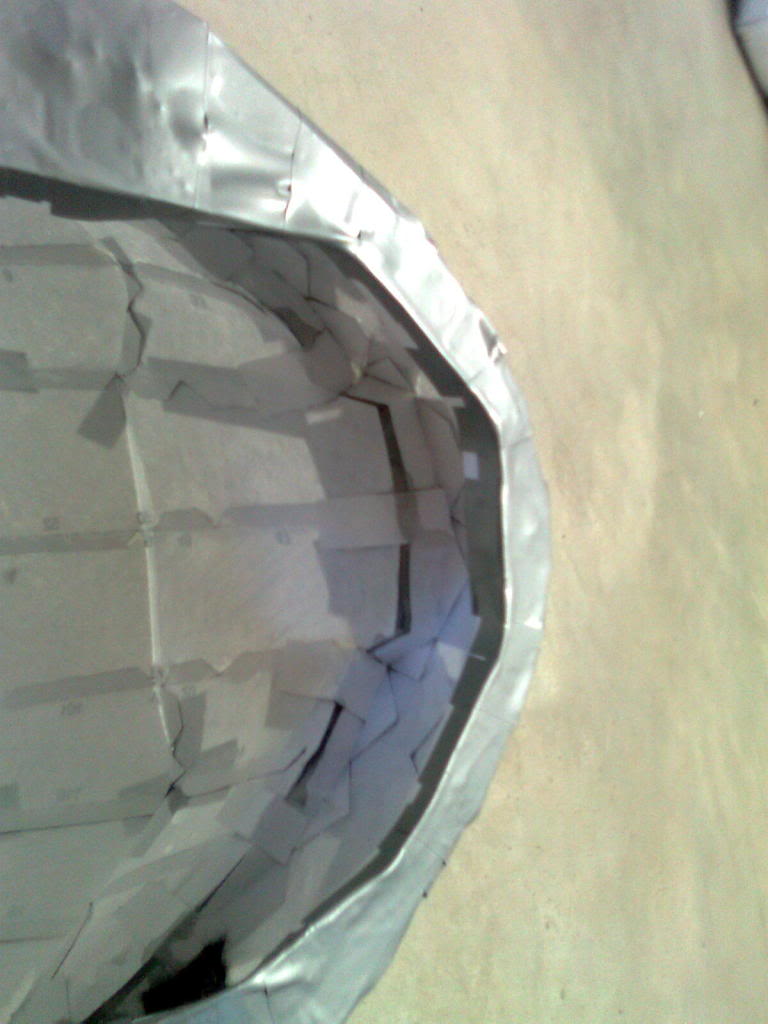

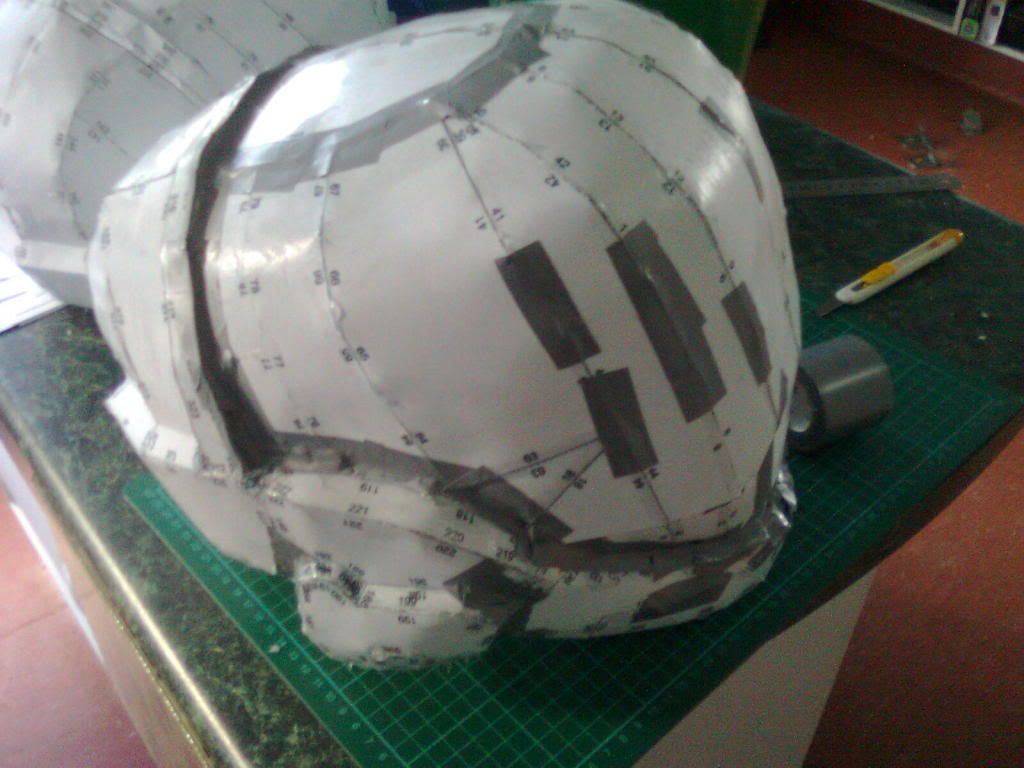

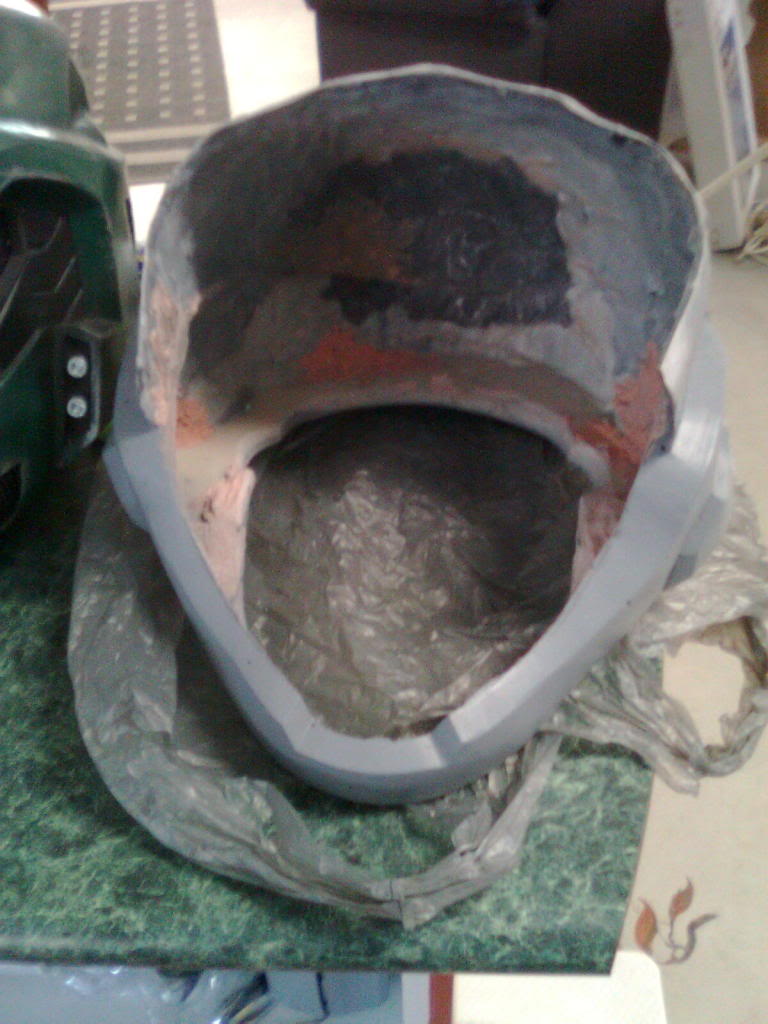

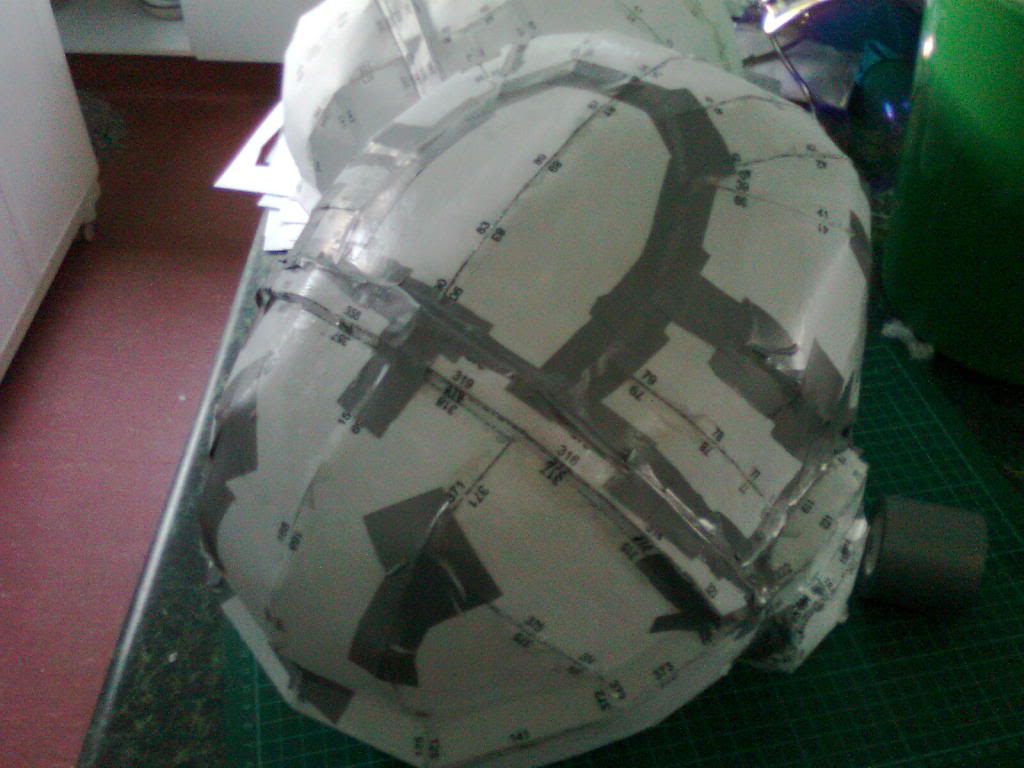

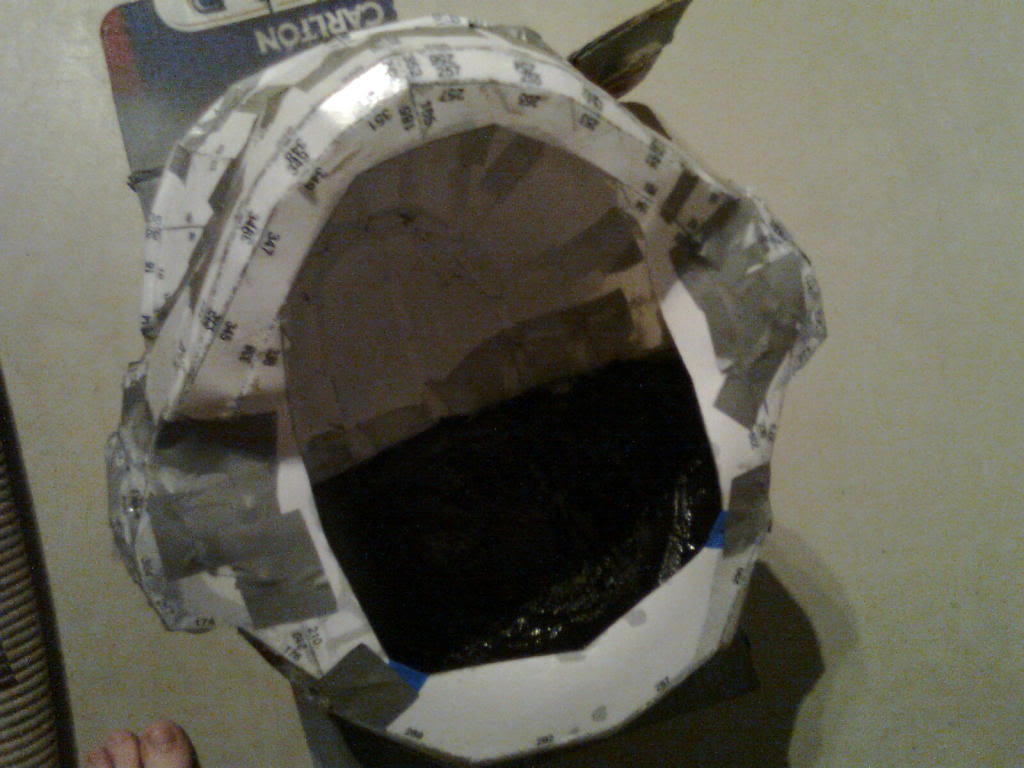

Ahh, duct tape... I chucked this up over any area's that the outer layer of resin didn't seal up so as to prevent any drips coming through while I did a roto thingy with resin on the inside. The main priority was the seal between the visor and the helmet as my psuedo tabs weren't as good as the pep designed ones... Still, they served a purpose well enough...







I added a small rim of paper to the inside of this helmet and taking "data" gathered from the plasma pistol incident, I applied a new filler/resin mixture of my own design to the inside. The rim prevented any leakage around the edges and allowed me to sit the helmet upright while the resin mix dried...*

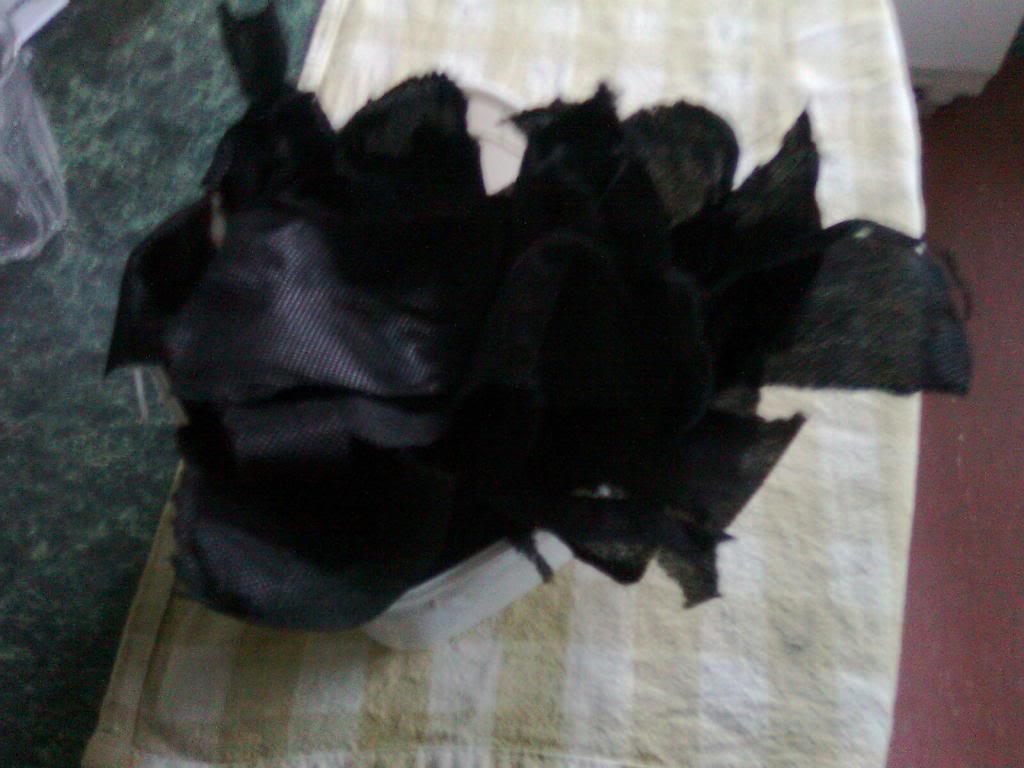

That's a photo of the stuff I use instead of fiberglass matting. It's actually polyester weed fabric. I love the stuff, and for those with savvy eyes, you'll remember it from earlier in the thread when I wrapped it around sponges to create padding for the MkV variant. It holds the resin quite nicely and tears very well into strips, leaving loose fibers along the edges that bond very well to the layers underneath the one being added...



More pics to come soon... I'll let you all dwell on these pics so far. It'll get more interesting soon, I promise...

Well come on lets see it! My eyes demand more! lol
Pep looks good, the picture quality isnt that bad. I have seen worse

Well come on lets see it! My eyes demand more! lol
Pep looks good, the picture quality isnt that bad. I have seen worse

lol... i'll put some more up tomorrow... i'm pretty tired now, had a big day doing the shop order. meh, the pep was ok i guess, but the duct tape shows that i didn't get the tabs anywhere near tight enough to do the roto job i did without using it. there was a lot of sanding involved in this project. "a lot" is probably an understatement, but i don't want to deter anyone who is thinking of doing this build from doing so. for anyone thinking of attempting this build, i say go for it. the challenges are very rewarding in the long run :) .
as for photo quality, i wish i had my current phone for these photo's back then. it's not as good as my camera, but it's a sh!7 load better than what my old phone can do...


EDIT...
It's ANZAC day here in Australia, so out of respect for all the fallen soldiers everywhere, both from my country and abroad, and for my two grandfathers who made their way home (both to Australia and Italy respectively) I won't be posting any pics today relating to war. ie, my armour and what not...

Lest we forget...

Ok, so there is a bit of a jump between where we last left off and the photo's I'm putting up now. Basically I did a 5h!7load of sanding, removing nearly every trace of the paper entirely with this build... Then I cut the visor almost completely off, leaving just enough to use as a "bed" for the upper part of the iridium visor I chose to use...

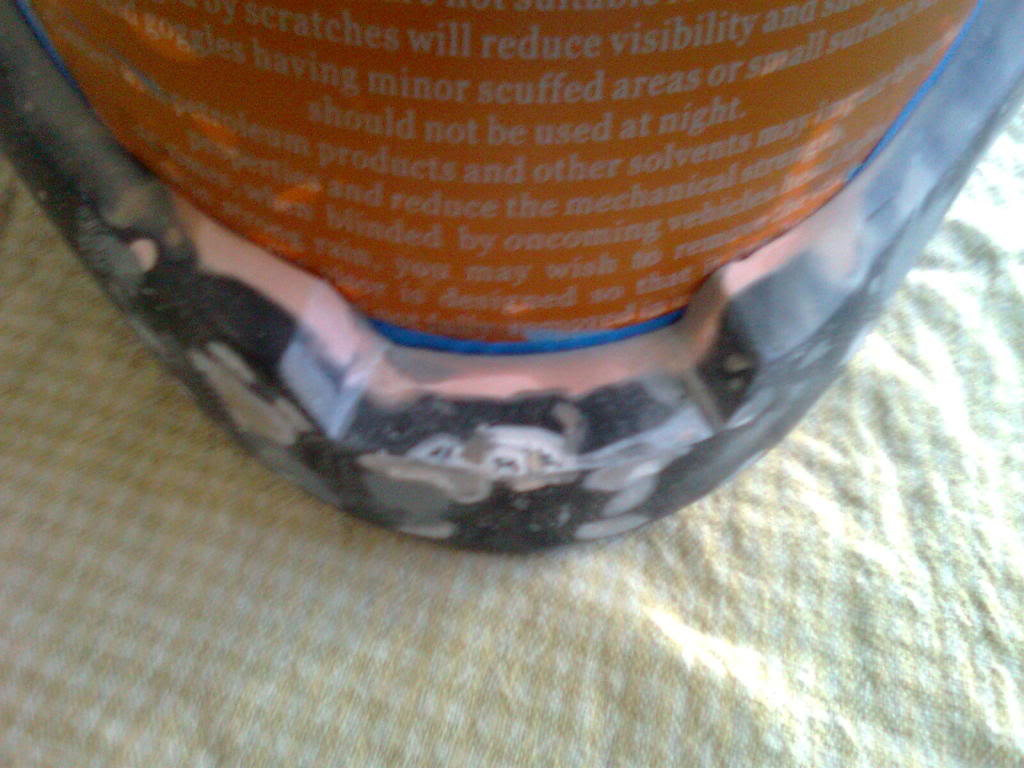

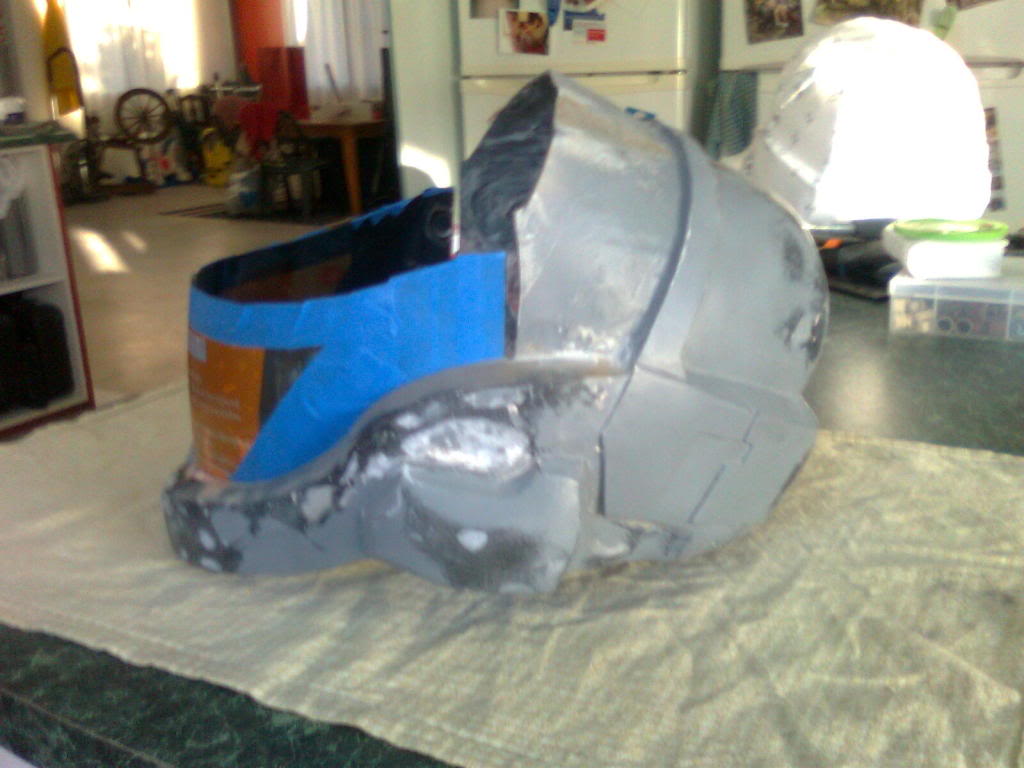

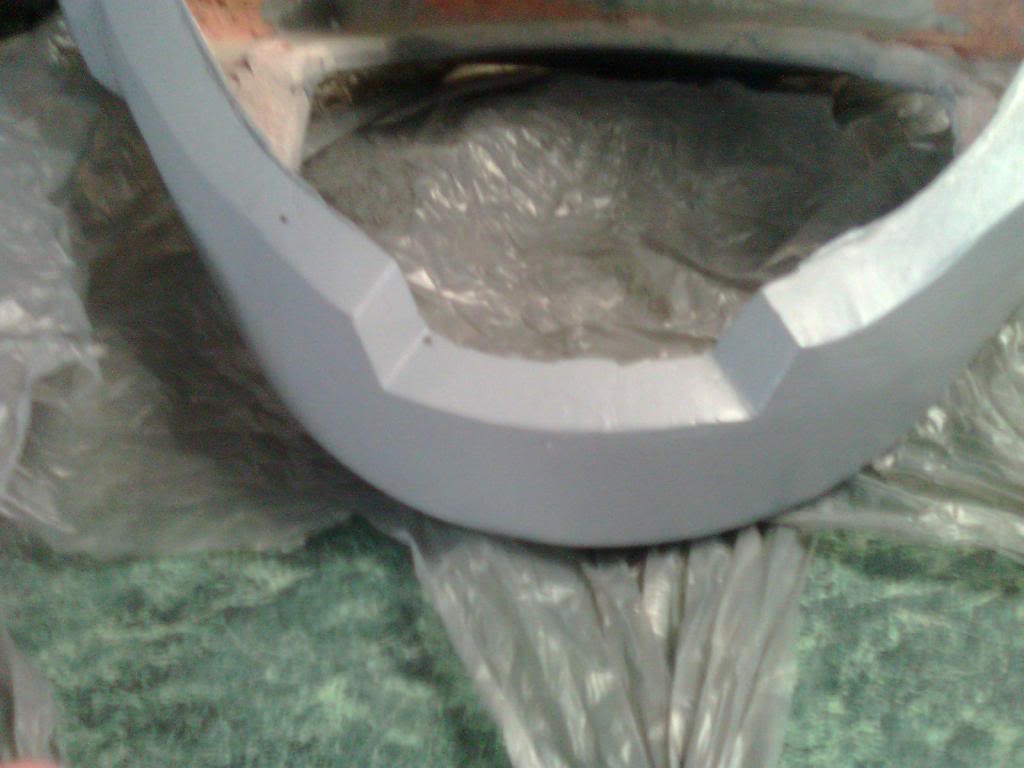

Here I've been back filling around the lower visor with builders bog, just like I did with the MkV build. The plastic film over this visor was a lot thicker than the one on the bubble visor on my MkV, so I didn't need to go overboard with the painters tape :) ...

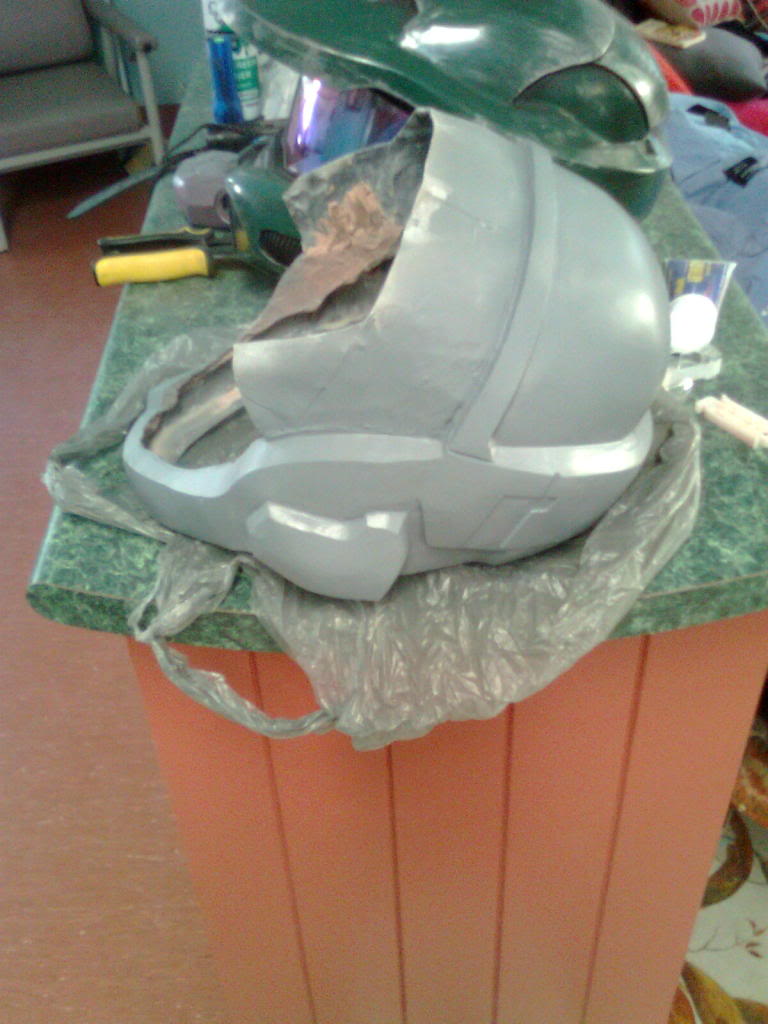

Here you can see just how much of the original visor was left in place...

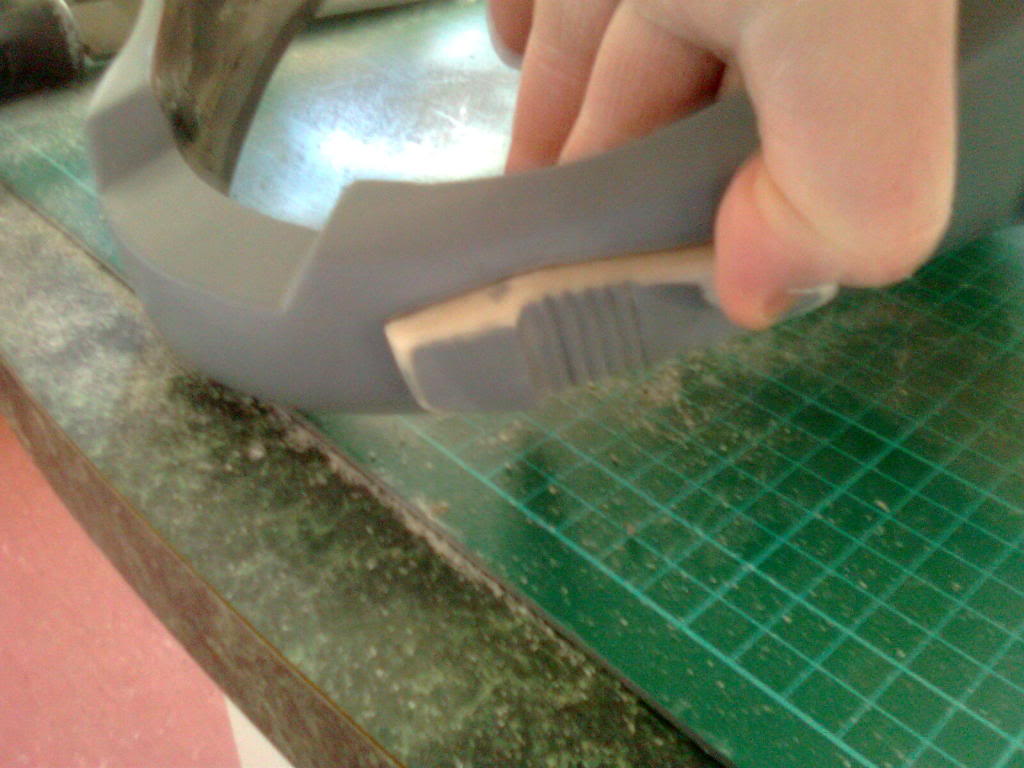

Like I said earlier, "lots" of sanding. It's not so bad with this helmet actually as most of it I removed ( the visor) and the rest of it is basically just a big dome on the back. The actual hard part was doing the detailing with my Dremel...

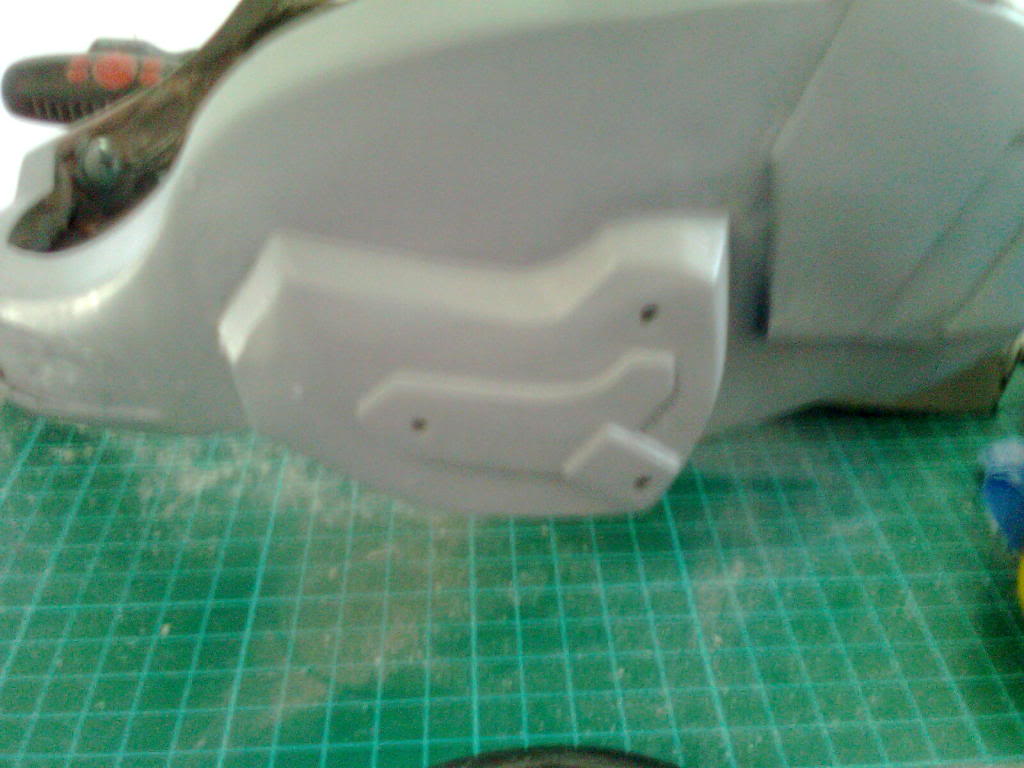

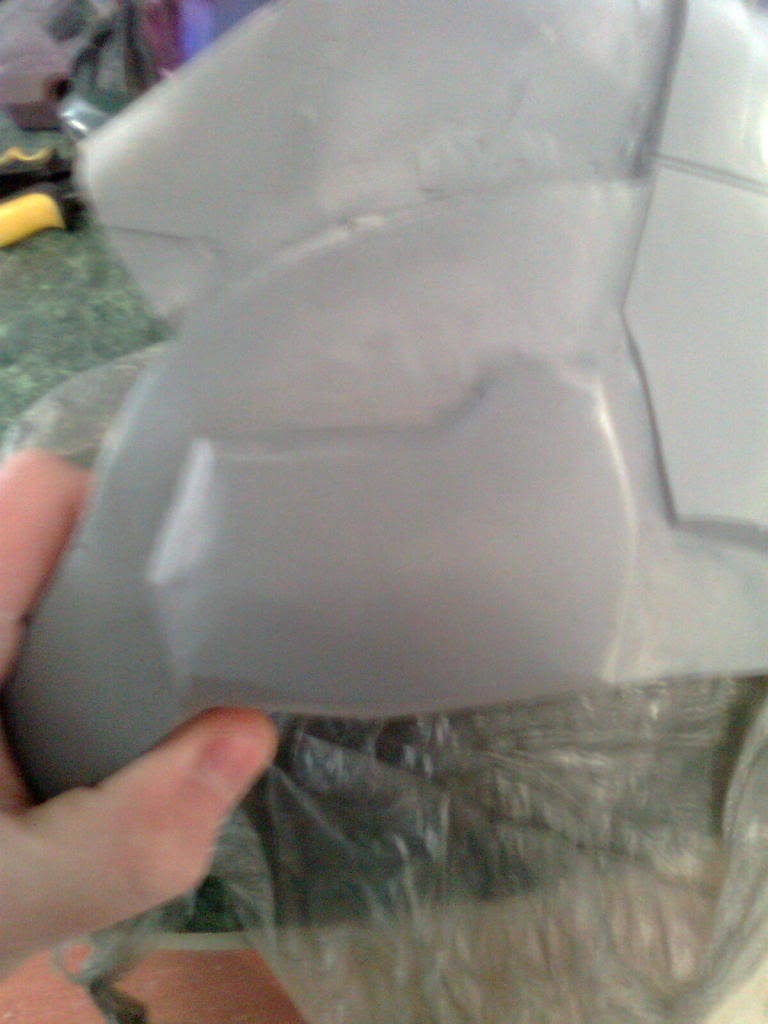

The cheeks are still plain in this pic. I planned on doing my own thing with them, making it just that little bit more original, and putting even more emphasis on the believability that this was a hybrid between the MkV and MkVI EVA, and that it was in fact a Field Test Prototype before the release of the production model...



There ya go... Told you it was going to be my own thing...

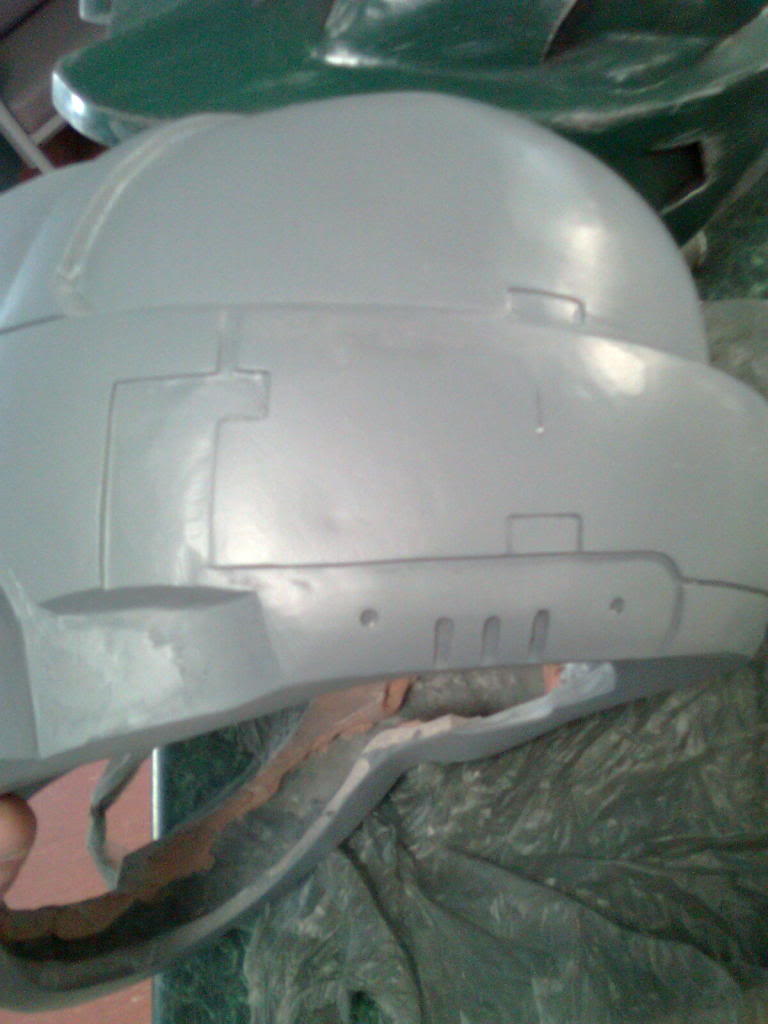

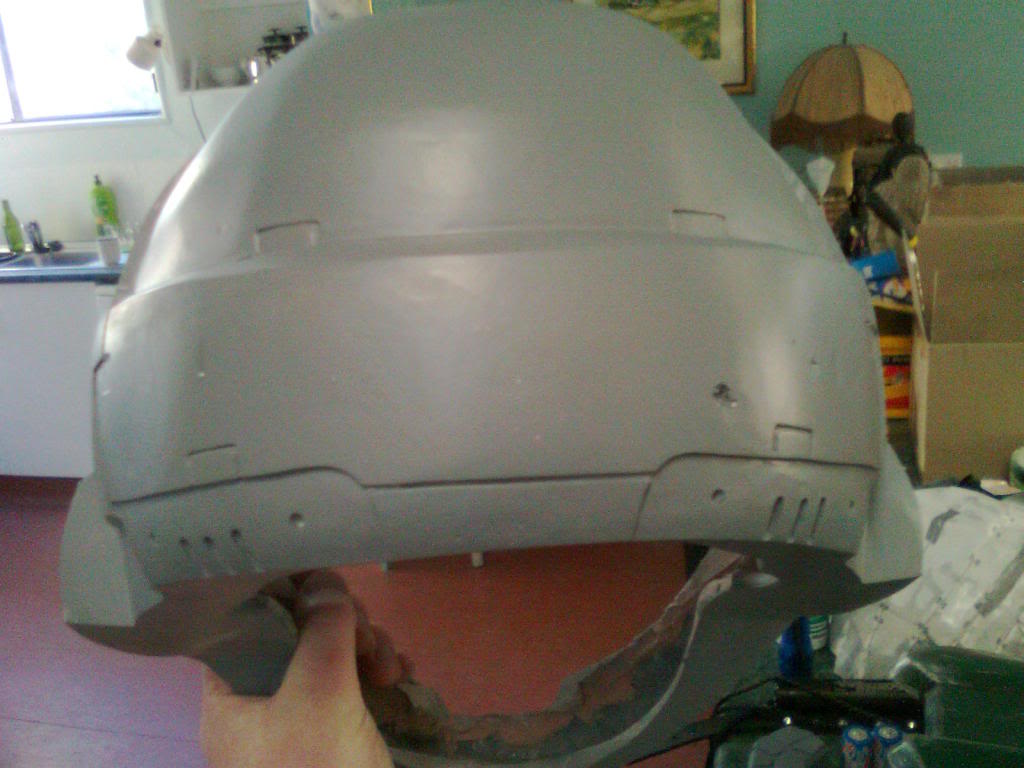

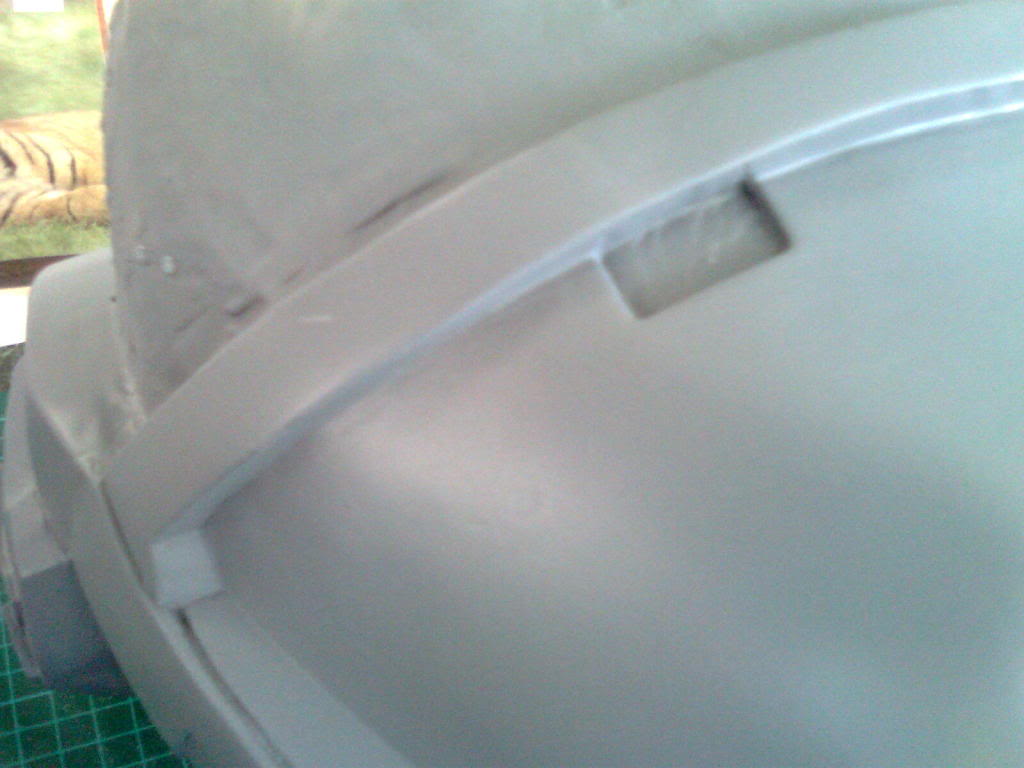

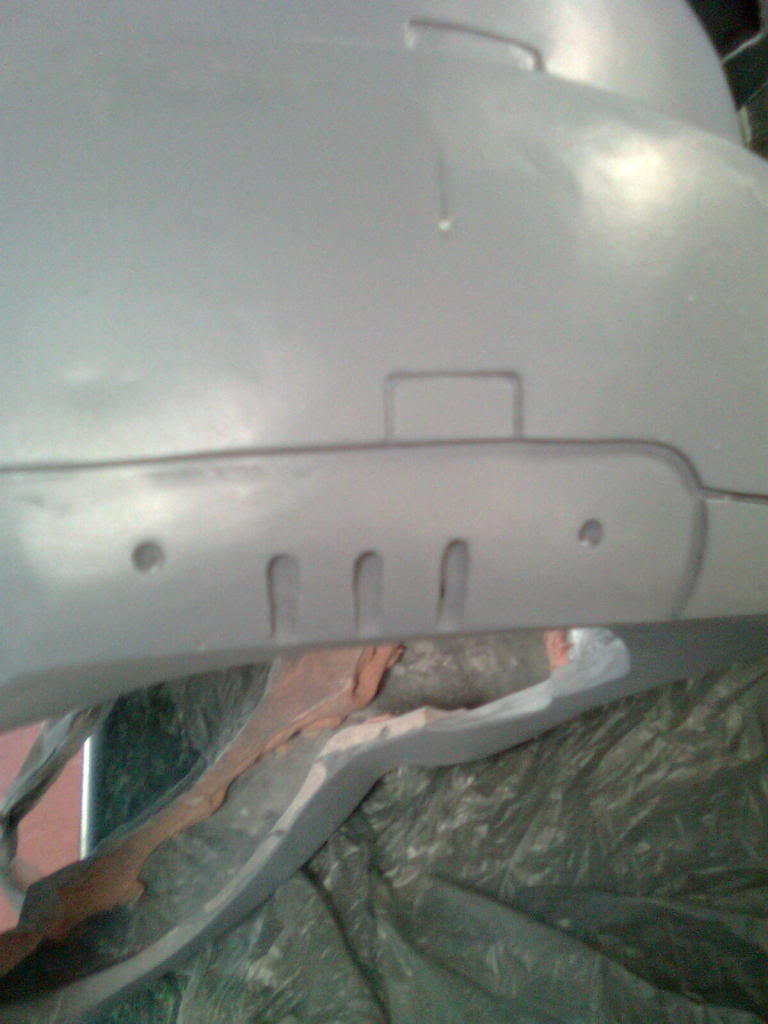

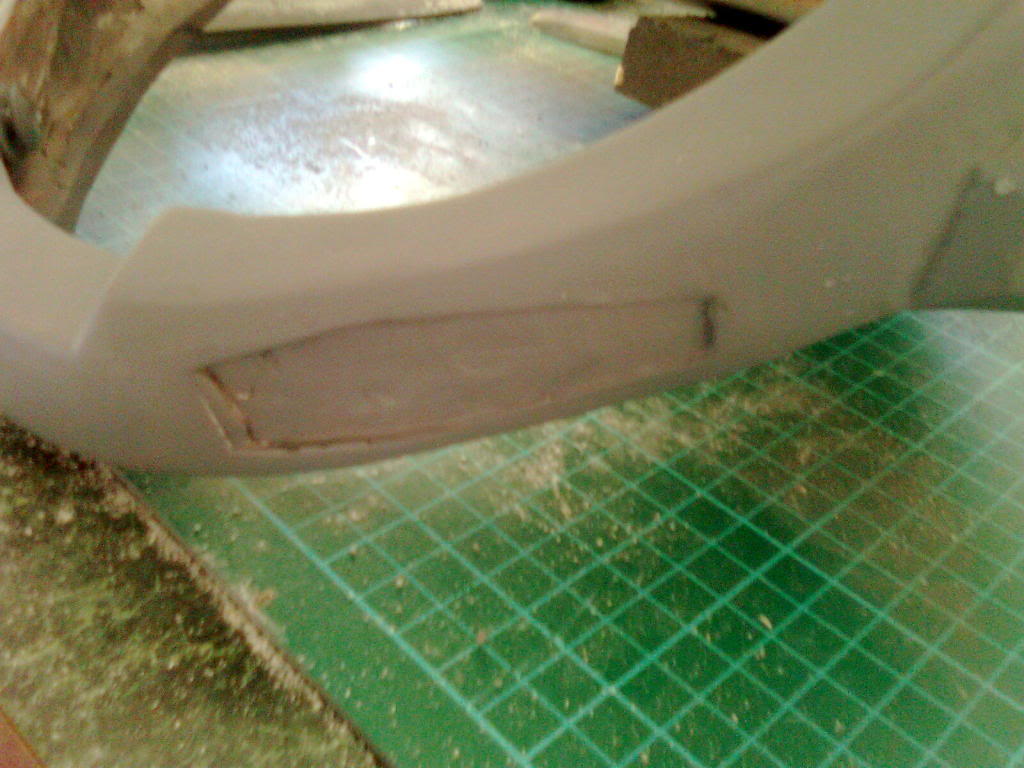

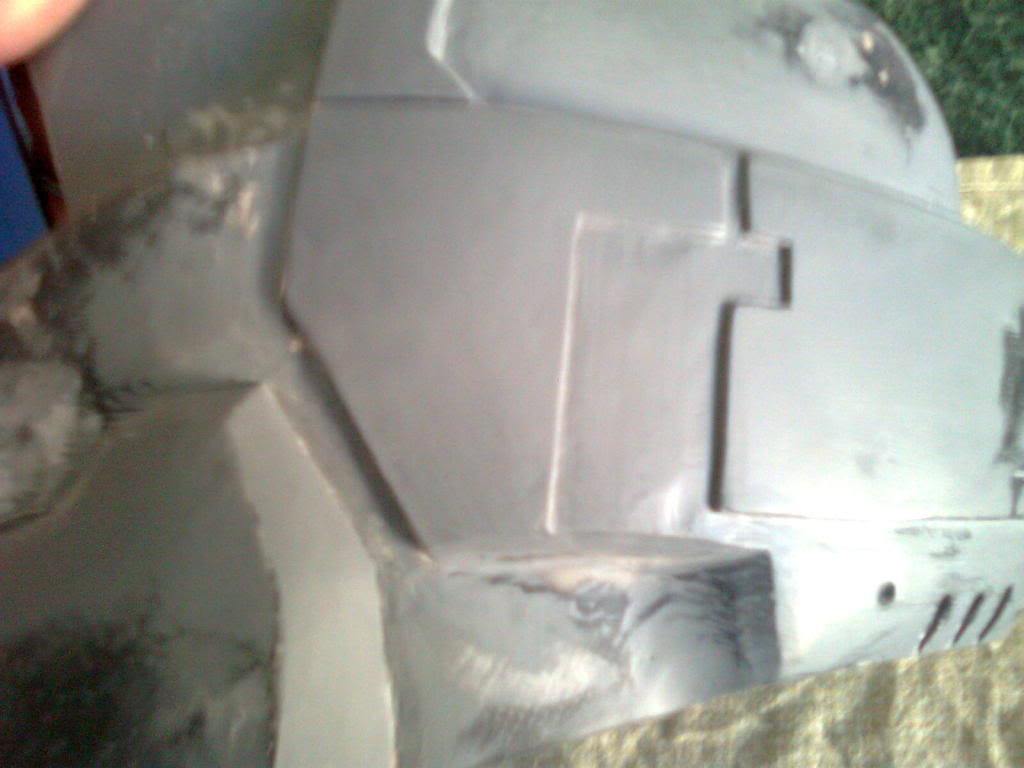

Some details cut into the back...

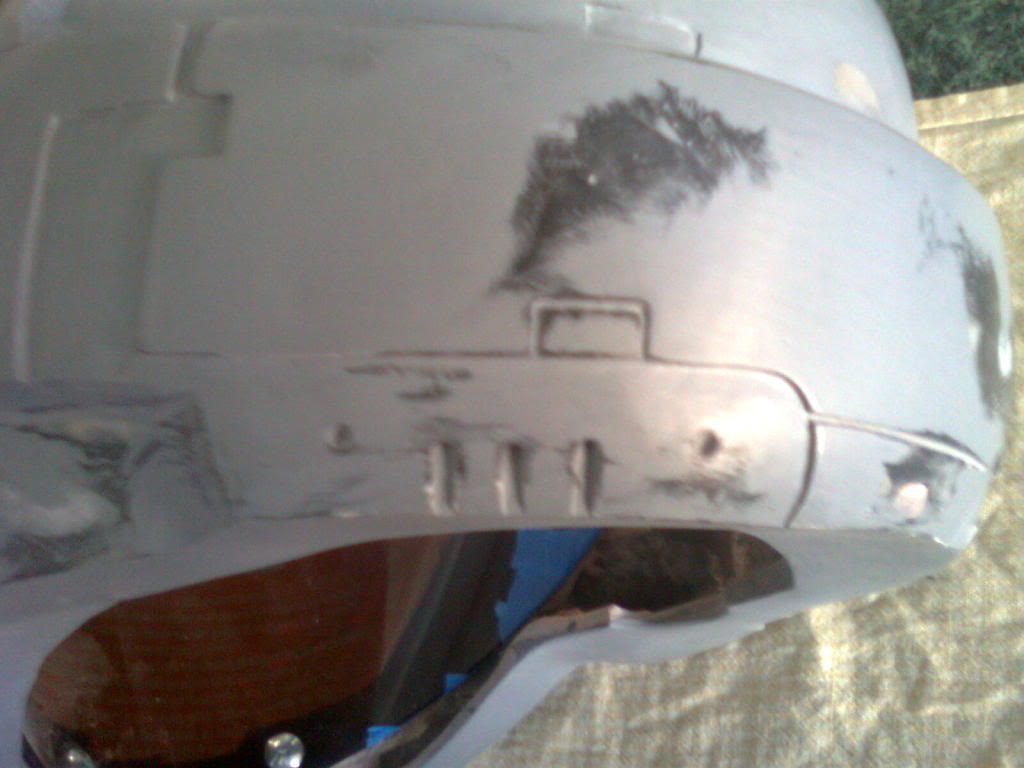

And the top...

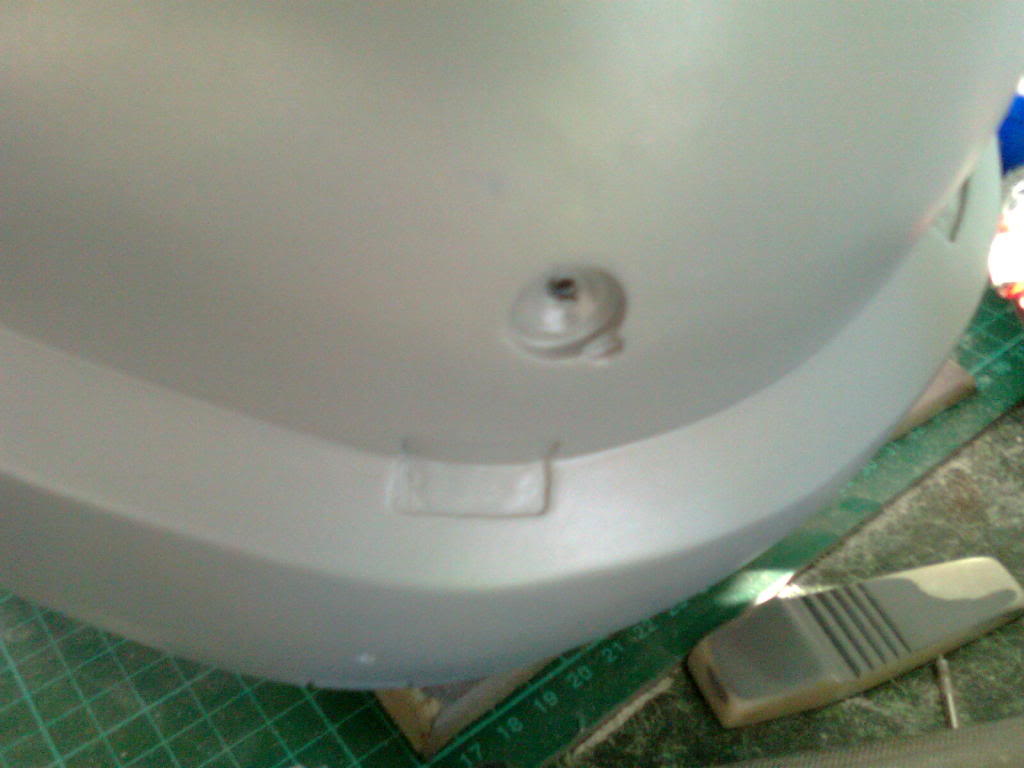

You can see in this pic the Master I made for the rebreathers. I added lights to the front of these using the same method as my MkV. I didn't want to over complicate things seeing as this was going to be my first mold, so I added the lights after I made the casts but before I glued them to the helmet...

To do so though, I had to cut two rebates into the front to house the rebreathers seeing as they had a flat bottom and couldn't be glued directly onto the round surface that makes up the jawline on this helmet...



From there I knew it was going to be pretty easy sailing, but I still checked the fit anyway...



I should note that they are not bread crumbs under this helmet in the above photos, that I am not some filthy pig that leaves the smaller morsels of his lunch under a work project, but they are rather the remains of the last file job I had done at the time. Being shaped with a file, the particles are a lot heavier than if I had been sanding so I knew it was relatively safe to do this kind of work inside. Otherwise people, take that 5h!7 outside. And wear a dust mask. I probably should have stated that before, but I'm saying it now. Wear a dust mask...

Stay tuned people, more details to come...

So just a few snaps before I toddle off again...

Yeah, the hardest part was the details. Seeing as I started with a low-def pep file I had to imagine where and what those details would be. Most of the back rings true to the MkVI EVA, but there are some slight differences to the Halo 3 model...

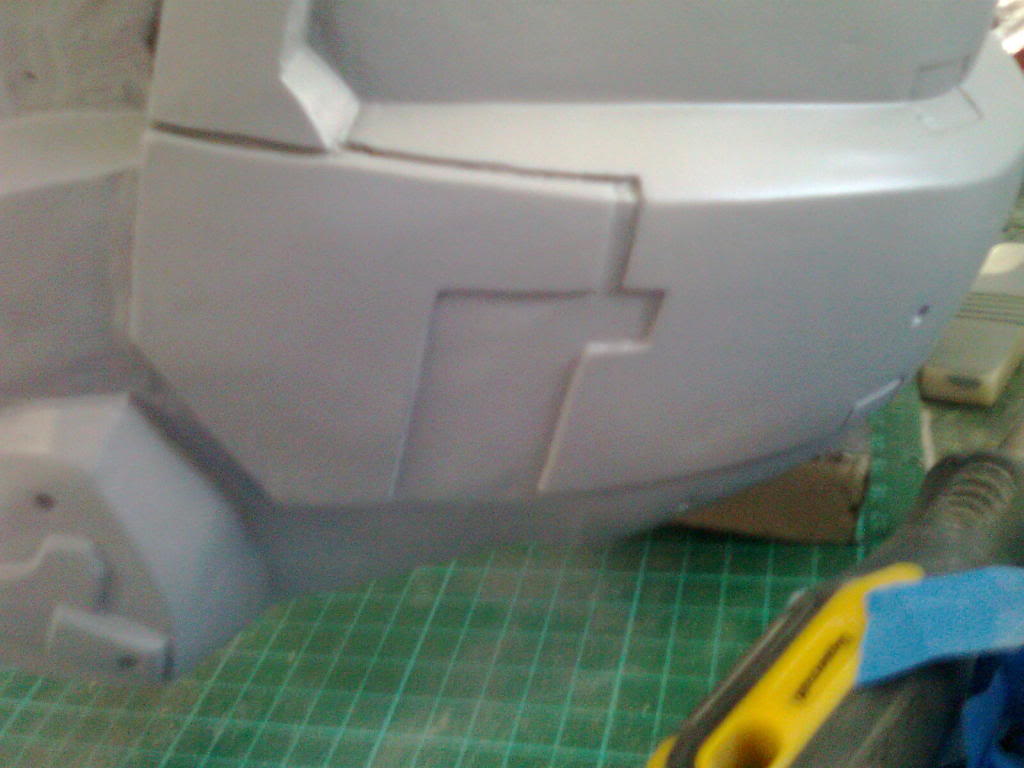

Big hole exposed there to fill. That's what sanding is for though I guess :D ...

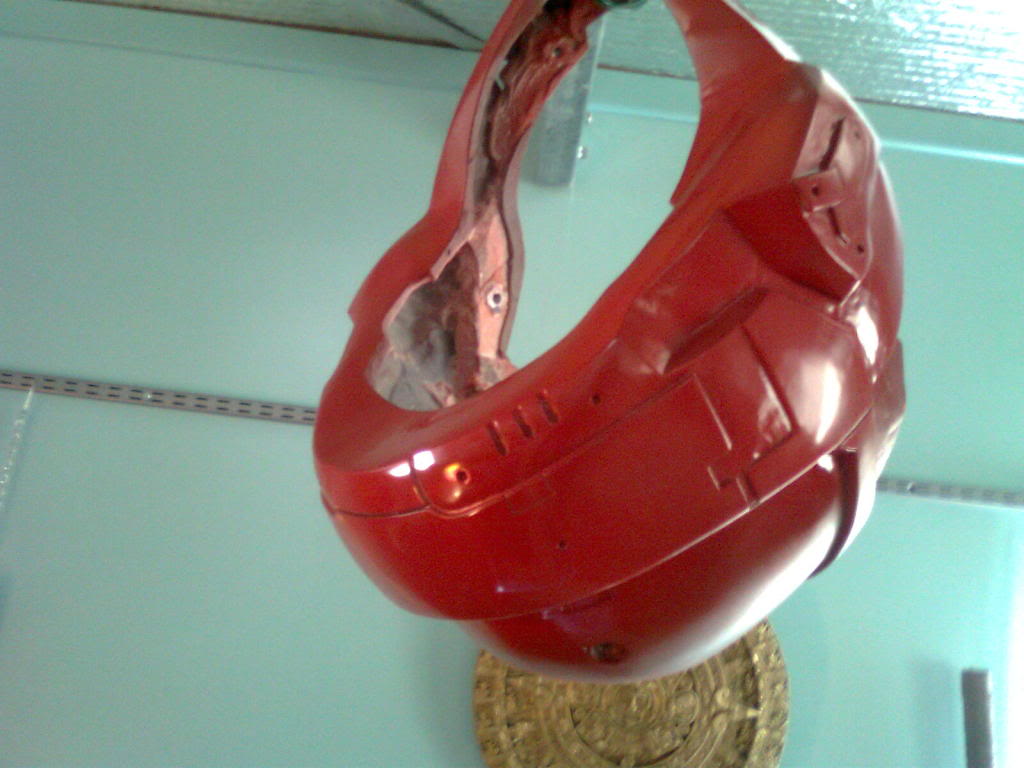

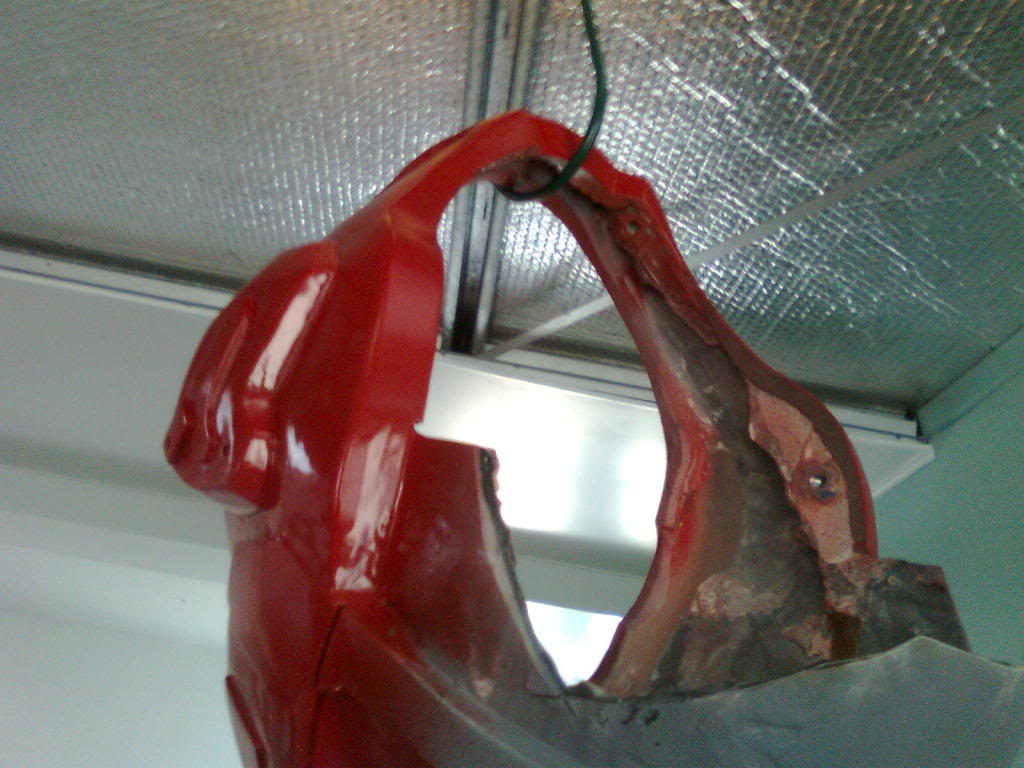

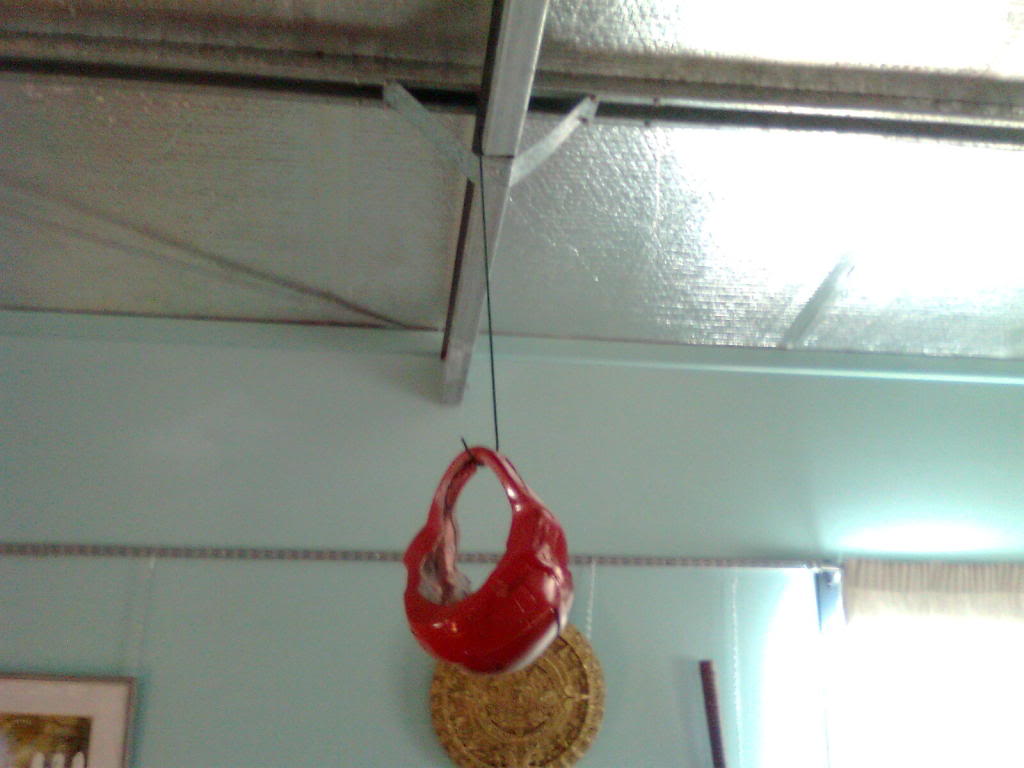

Lots more sanding ensued, lots more... Then I decided on a colour scheme... Cherry Red for the main bulk of the helmet, a Metallic Charcoal for the back dome, and the ridge across the top and the highlight band across the front in Mandarin... I will admit that prior to the weathering this colour scheme did look pretty crap. Even my Master Watercolour artist mum said it looked pretty bad, but she didn't know what I had planned :D ...







And that's the last build photo I've got of this baby, there just simply are no more thanks to the powers-that-be that decided I didn't need any more... Actually, it was the camera card thing... Jeez, you'd think I could just let it go...

I'll be back with more pics soon. Basically just me goofing off to show the size of this sucker, a few POV's and some real nice close ups of the finished details... Bai Bai...

That helmet looks pretty sick man, great job on the custom detailing! Looking forward to seeing the finished product. I never really liked the H3 version of EVA, but as you can see form my build, I LOVE Reach's EVA! It'll be interesting to see how you approach the visor without a vac-form, I'm guessing you'll be using a similar approach to the one in your profile pic/avatar?

Your too good at this XD i love the detail work, i think it's what makes a decent helmet something spectacular. That being said what kinda tools do you use for detail work?

That helmet looks pretty sick man, great job on the custom detailing! Looking forward to seeing the finished product. I never really liked the H3 version of EVA, but as you can see form my build, I LOVE Reach's EVA! It'll be interesting to see how you approach the visor without a vac-form, I'm guessing you'll be using a similar approach to the one in your profile pic/avatar?

thanks Sangheilioz. i'm very proud of this one. yeah, to be honest i never really was a huge fan of it in game either, but i wanted the challenge of the visor so i figured i would give it a burl...

this actually is the one from my avatar, i had a link to it in my sig to some photo's on my facebook page, but i was getting way to many random friend requests. i didn't mind so much about the ones where people told me they were from here, but people that thought i was like some pokemon friend where they had to "catch 'em all" and added me for the sake of adding me didn't impress me much. so i decided to take back a small slice of my privacy, deleted the link in the sig and put the small collection of build photo's i do have of this helmet here instead... that and i did have a tonne of people wanting some more close up pics of the finished details so i figured why not kill the two birds with the one stone (how is that even possible. you would think that the second bird would fly away after the first one got hit. stupid saying...)

once i've got the pics up of the finished piece it should be reasonably self explanatory of how i built the visor. if not, i'm more that willing to break it down in a diagram for those interested :) ...

i broke it... i needed to double post because my response was too big...

Your too good at this XD i love the detail work, i think it's what makes a decent helmet something spectacular. That being said what kinda tools do you use for detail work?

thanks Tenebrus. i don't know about being too good, but i guess i get by. i think it kinda helps that i've always been interested in art and exhibitions (the free food at those things might have had a small part in that when i was younger), what with having a watercolourist for a mother who encouraged me to be expressive, and so i have done it on some level or form since i was a child.

as for the tools i use. well, the best one isn't something you can buy or pick up from example from someone else. i would have to say my imagination would be my best tool when it comes to detail, and i guess i never lost that little pearl of light that kids get when they draw monsters and elven creatures and such. i used to draw a lot when i was younger, and i still have somewhat of an inquisitive mind so have no problem spending a few hours dwelling on a problem, figuring out the best way to go about something.

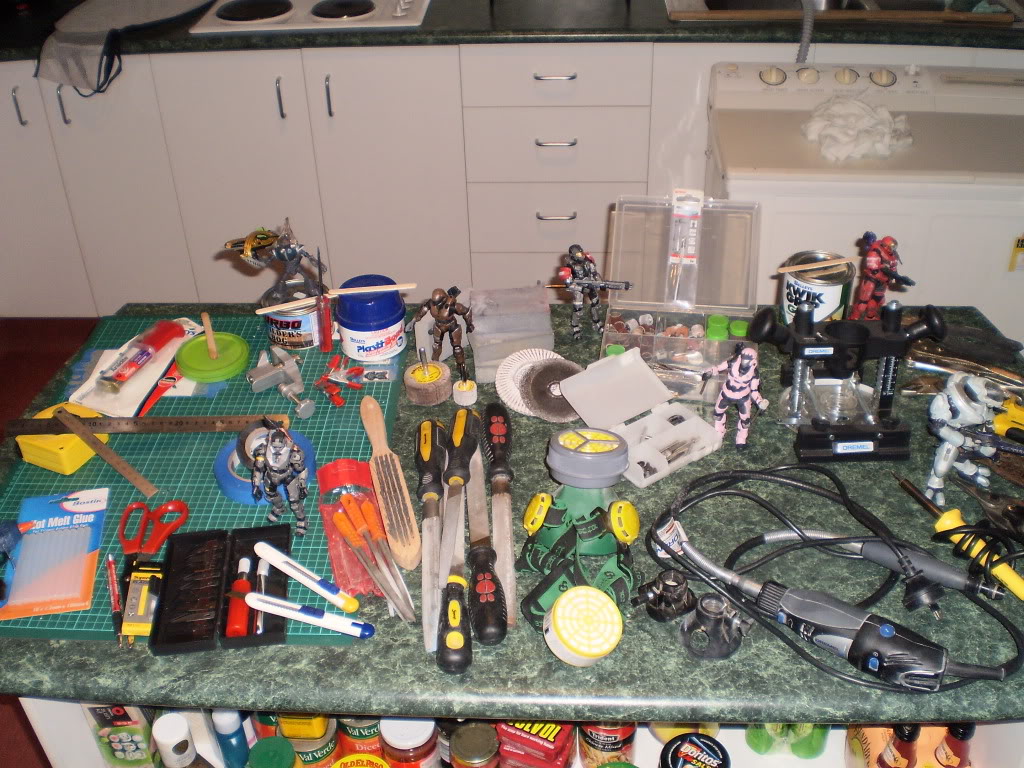

as far as physical tools go, i use a wide selection of stuff...

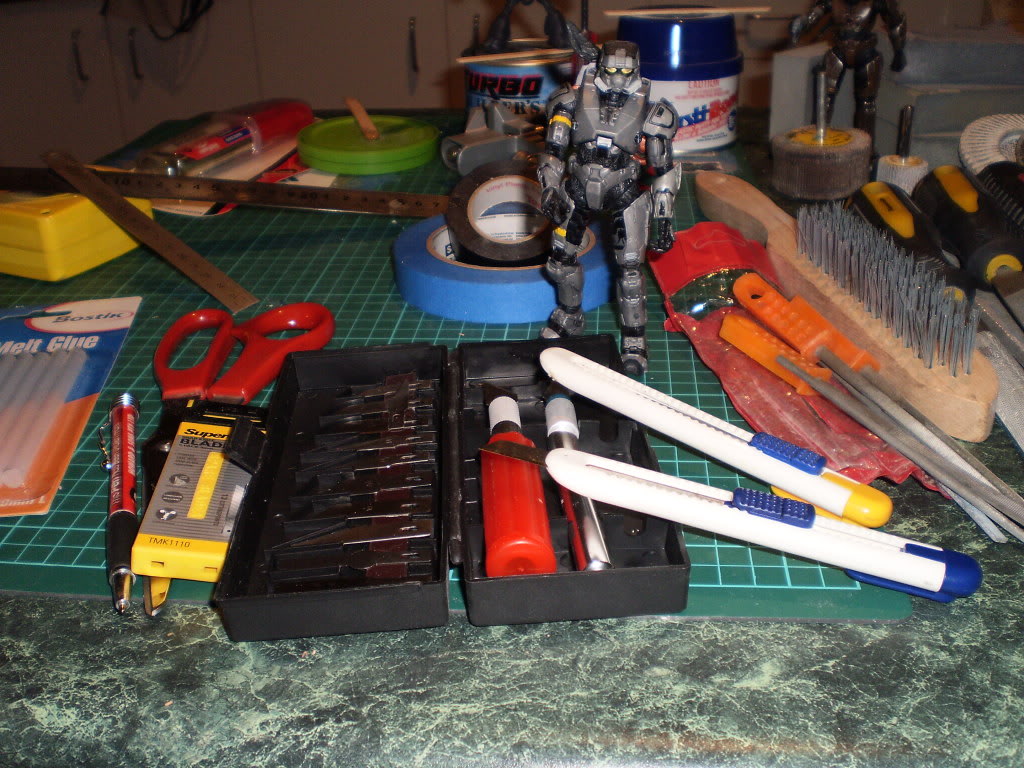

this is just a small selection of the more commonly used ones that i have... i start to plan details out at the pep stage if i want to change something, or even before then if i can help it. having all possible scenarios pre-thought out in advance can save a lot of time later on down the track... anyway, i'll show you all some of the tools i use during a build :) ...



Micky here is pointing at a basic selection of knives and scalpels. i use both a fair bit in the beginning stage (obviously during pep, but even during a resin stage as a sharp blade will even cut through thin layers of matting and resin with the slightest of effort)

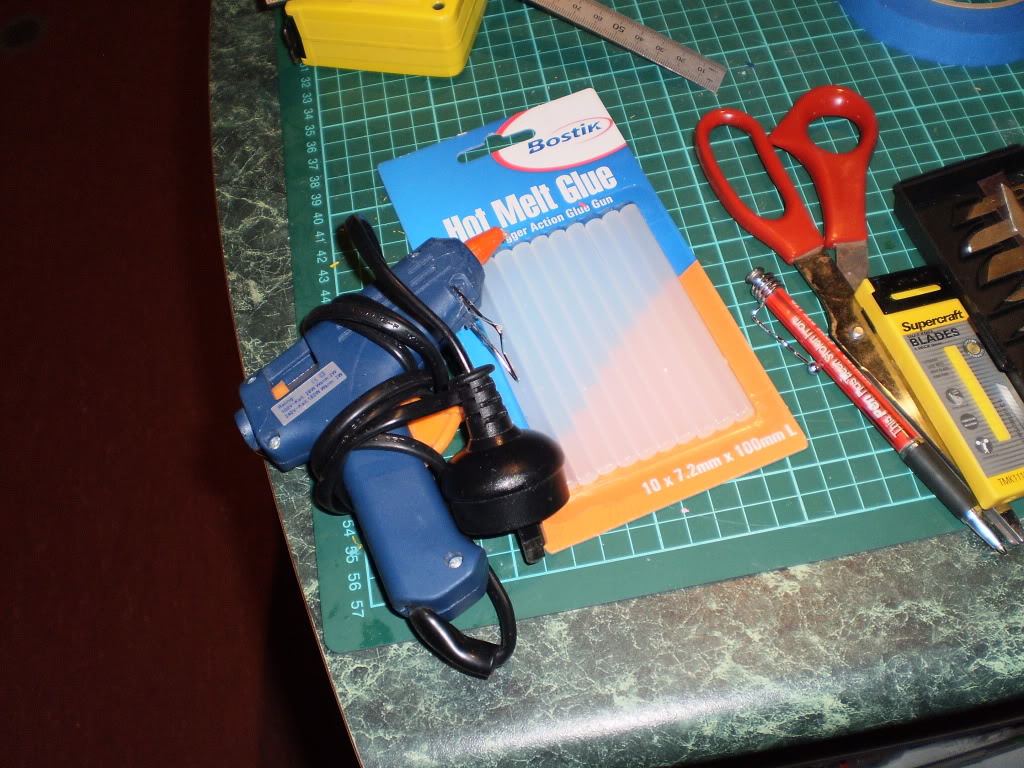

hot glue... i'd never used it before starting this hobby, but i've loved every burnt finger moment of it since...



ooh... rulers, uh rule? straight lines are easily thwarted with 'em and getting details symmetrical are a breeze too. i've got a sewing tape around somewhere, but couldn't find it for this photo.

on the left is some epoxy glue, the 5 minute variety because if i'm building something i want to build it, not sit around waiting for glue to dry... on the right is some tape. i use the blue stuff for masking off while painting, but also for doing alterations during the pep stage as the resin will stick to it and it sands off really easy... behind that is a small selection of spring action clamps. i've got a few different sizes in these, but i find the small ones best for tight areas. also, that there's a small benchtop vice, for doing small jobs. i've got a slightly larger one with a suction base and plastic teeth so it doesn't bruise my projects, but i've shown it in the MkV build. i use it mainly during the electronics stage...



groovy little Gro Yap here, who tells me is an excellent climber, is standing on a few of my favourite brands of builders bog. depending on the amount of hardener you add, you can get this stuff to dry pretty damn quick. again, i don't want to wait for stuff to dry...

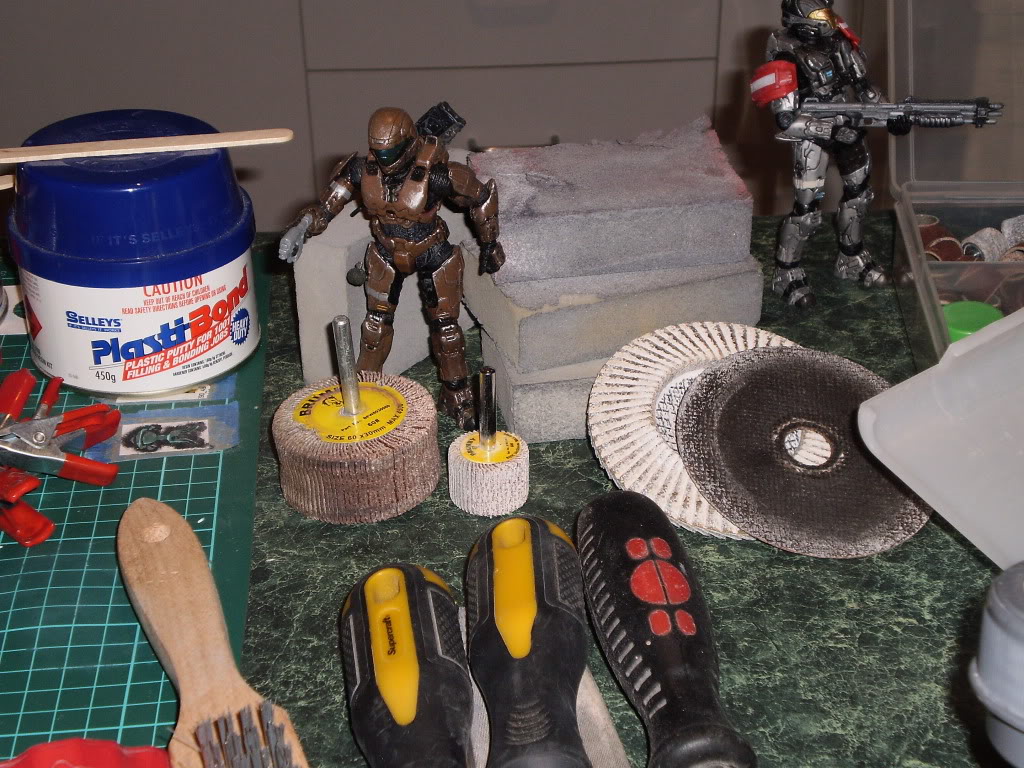

Gramps here is keeping some foam sanding blocks company. i use these for blocking in some hand sanding where using a orbital sander just wouldn't be practical or the aggressive nature or a flap disc on a grinder is just over kill... that's a flap disc to the right with a ultra thin cutoff disc (both used with an angle grinder) and in front of the old boy are a few flap wheels (used in a drill). because the drill rotates at a lower speed than a grinder i have more control over how much excess comes off at a time. however, it's at the expense of time... i use what's best for what scenario at this stage, time really shouldn't be an issue with details. in fact, the more time spent on something, the more likely you are to get it right...

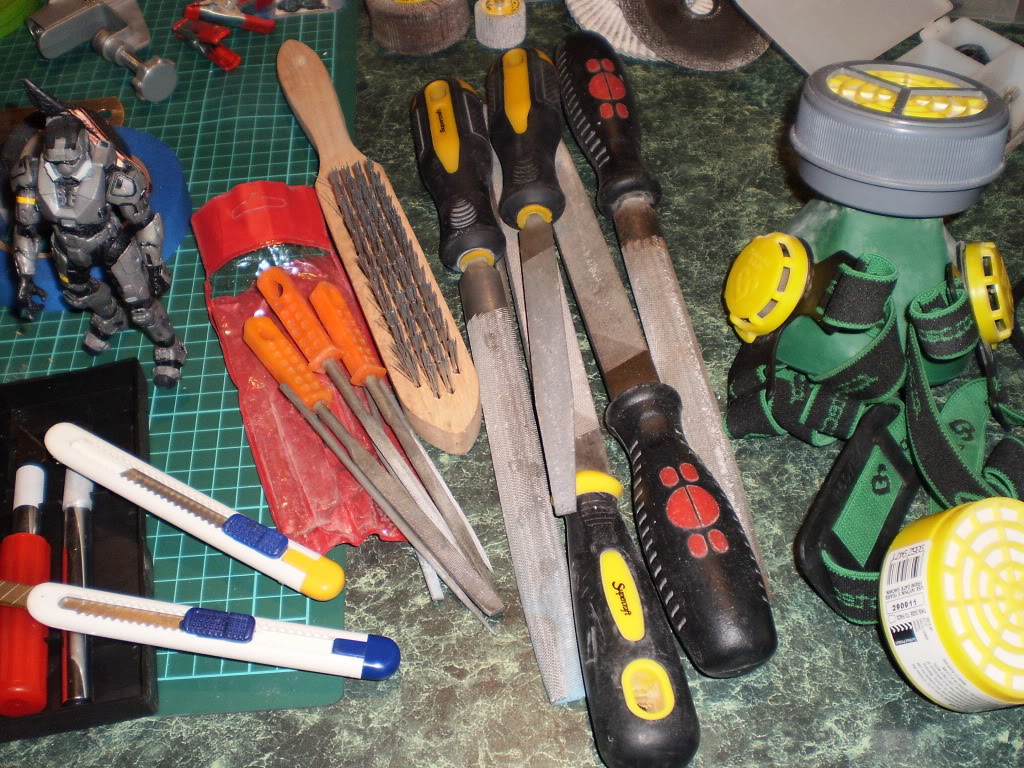

and of course some files. i've got a few more, but these are the ones i use most. there's a round and flat file in both bastard cut and fine tooth, and a milling file for a smoother finish as well as a small selection of needle files. all are handy for basically any project and i wouldn't consider a build without them...

i didn't mention it earlier, but use a respirator. in the resin stage and in the sanding/detailing stage. there's a gas filter in the respirator in this photo and a dust/particle filter sitting next to it. get both... they are both designed for a specific job and both are bad at doing the other ones job, so get both... also, safety glasses. i use them for every stage of a build, even while painting... clear, tinted, smoke or mirrored. whatever, just get a pair... when a large chunk or resin flies off your helmet and bounces off your safety glasses instead of going in your eye and blinding you, you'll thank me...

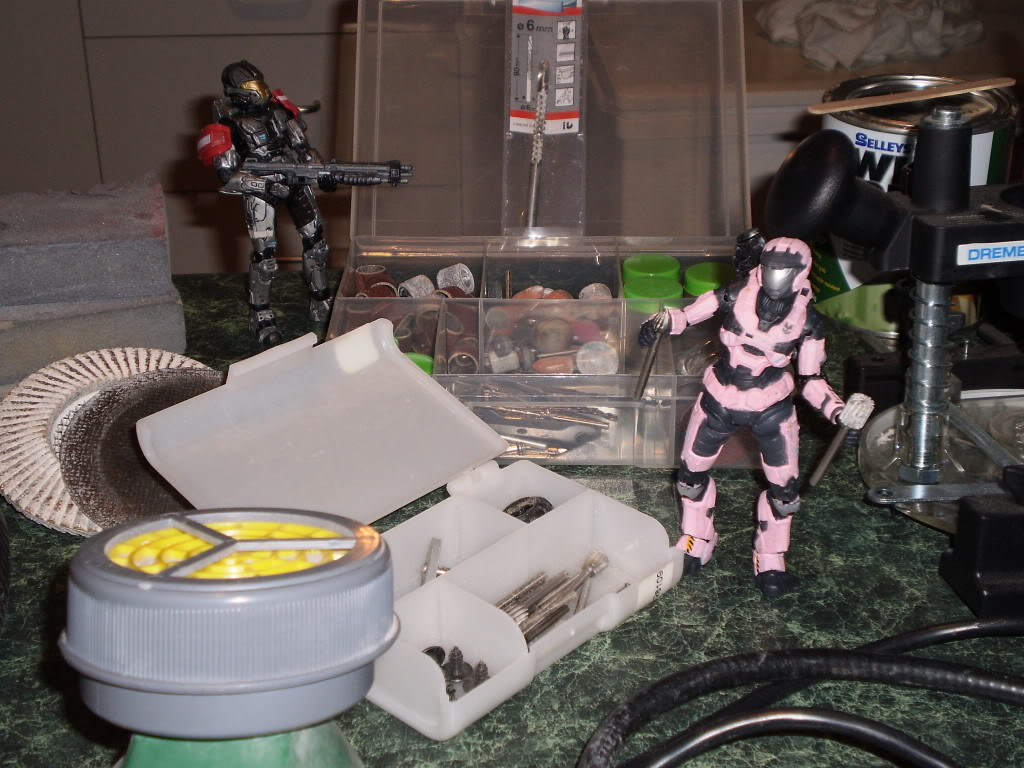

that's Jack and Jane. she's a bit of a hipster if you couldn't tell. she's holding a few of my favourite Dremel bits. they are part of the high speed cutter selection by Bosch tools. i just can't say how handy these suckers are, i've used them for every build now except my first one. i didn't own a Dremel for that build, so i stuck it out with chisels and the files... however, having the Dremel definitely makes a build a lot easier... the ever quite Jack stands watch over a few drum sander bits, also for a Dremel... they make sanding in tight area's a breeze, and there was a huge amount of shaping done on my EVA with these babies...

standing up in the packet in the background is a rotary file. it's a coarse toothed drill bit that rasps large chunks out in a circular motion... it's not a tool i use a lot, but it did help with the rebreathers on my MkV...

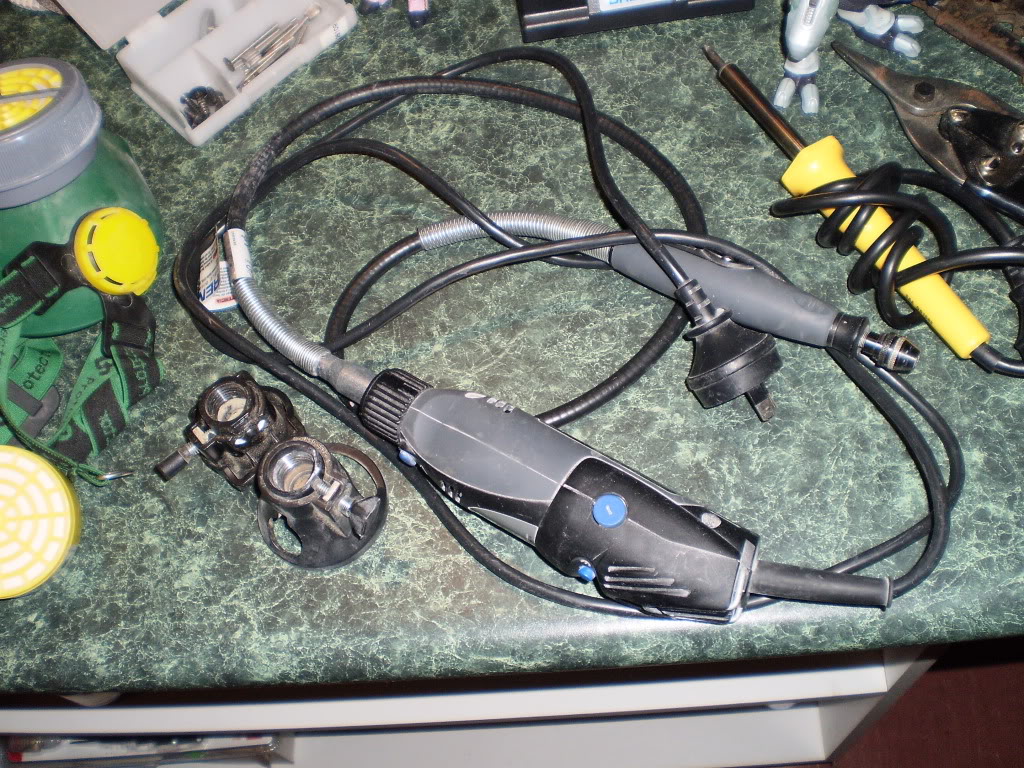

"ya tha bee's knee's baby, daddy sure did miss ya..." this is by far the most used tool in my collection. it's a 300 series Dremel, and i wish i had bought one ten years ago... i cut, file, sand, drill, router and whatever else i can think off with this thing... i'm not gonna tell everyone to go out and buy one, i know that they can be expensive and not everyone has an open budget, but for those that have an opportunity to acquire one, do so... i promise you won't be disappointed... i have connected to it the flexible shaft attachment, because sometimes, as small as the tool itself is, it is just a little too big for tight area's. the only time i've taken this off was to do some routing... on the end of the shaft is a small Dremel chuck. with it i can use other brands rotary bits without having to purchase other collets (the grip inside the tool that holds the bits) to fit them... beside the Dremel are two sanding heads. if i need the Dremel to be held at a right angle or forty five degree's exactly then i'll remove the shaft and chuck one of these on. not a real commonly used tool in my collection, but i've got them anyway. so far i've only used them on my M6b...
