Thorssoli's MkVI Costume Buildup

Status
Not open for further replies.
I think you just entered into the realm of Molding 1337357... the elite club of molders... lol ... WELCOME!... get ready to be bashed with the rest of us members lol.

People will never stop asking you questions, you just point them to a post and say read... I feel you... sometimes its overwhelming.

Off-topic update:

I've just been assigned to a ship and I'll be signing aboard on Tuesday. That means that after this weekend I'll be out of my shop for the next four months.

For those of you waiting for pieces and parts from me, I'll have them in the mail no later than Monday morning. I'll probably post a few times between now and work anyway, but I just figured I'd let folks know what's going on with me.

thorssoli said:
Off-topic update:

I've just been assigned to a ship and I'll be signing aboard on Tuesday. That means that after this weekend I'll be out of my shop for the next four months.

For those of you waiting for pieces and parts from me, I'll have them in the mail no later than Monday morning. I'll probably post a few times between now and work anyway, but I just figured I'd let folks know what's going on with me.


Best of luck onboard, and stay safe!

Last edited by a moderator:
Gee going out to sea, what an excuse.

I thought I was the only one alowed to use that!

Have fun and watch out for the fishing boats if your up in the North Pacific. :cautious:

So it's time for me to go to sea for a few months (my day job) and I won't be updating for a little while. I figured before I go I should post a few more images.

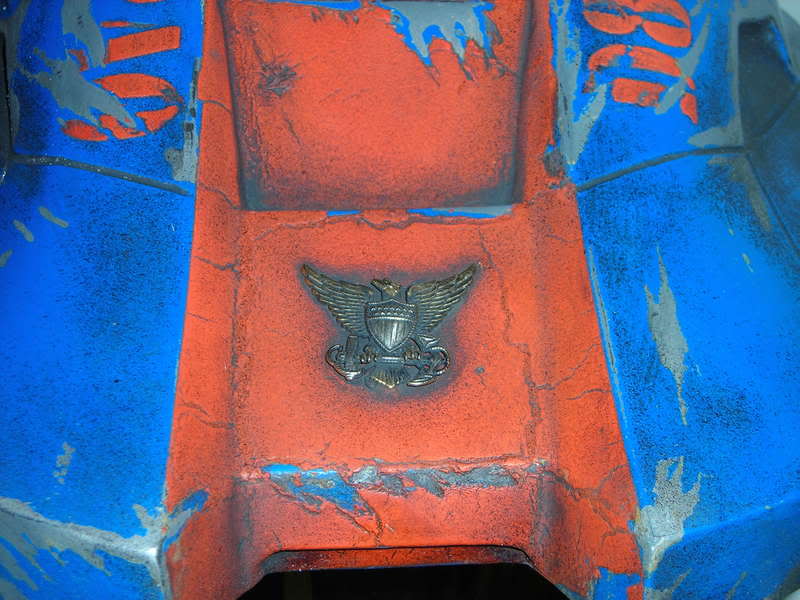

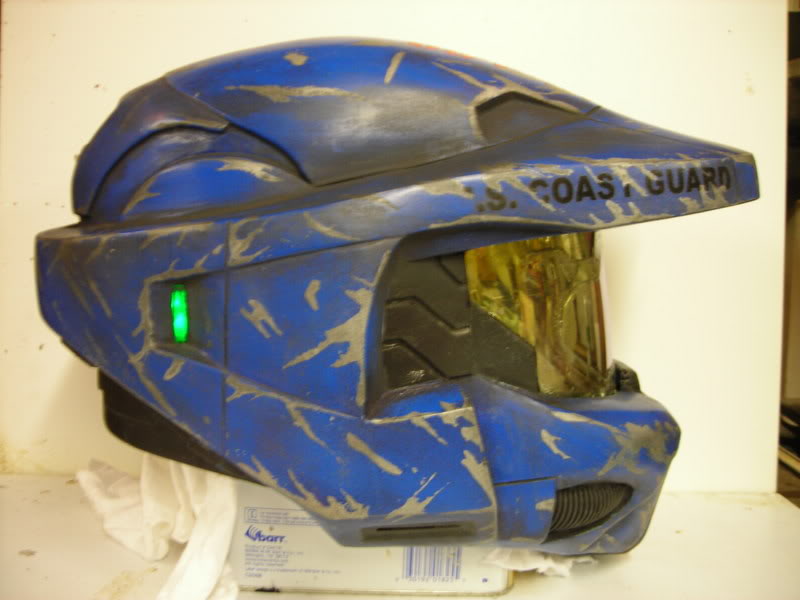

First is a helmet I painted up for my girlfriend. She's a US Coast Guard officer and made a joke that she should wear a helmet to the office some days. I figured I'd make sure she had one if she needed it.













The interior is fully padded and upholstered and includes cooling fans ducted to blow fresh air on the visor for de-fogging. I didn't get any interior shots yet.

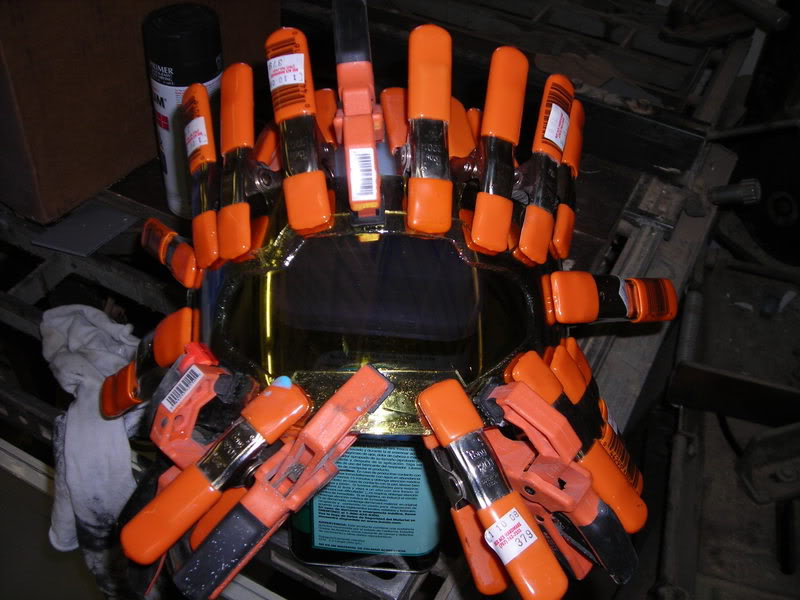

I laminated the visor using a slow-set epoxy, but ended up getting bubbles in between the two layers. I guess I didn't use enough clamps:


Oh well. Otherwise, most of the last couple of days has been rushing around putting things away so I can find them when I get back from sea.

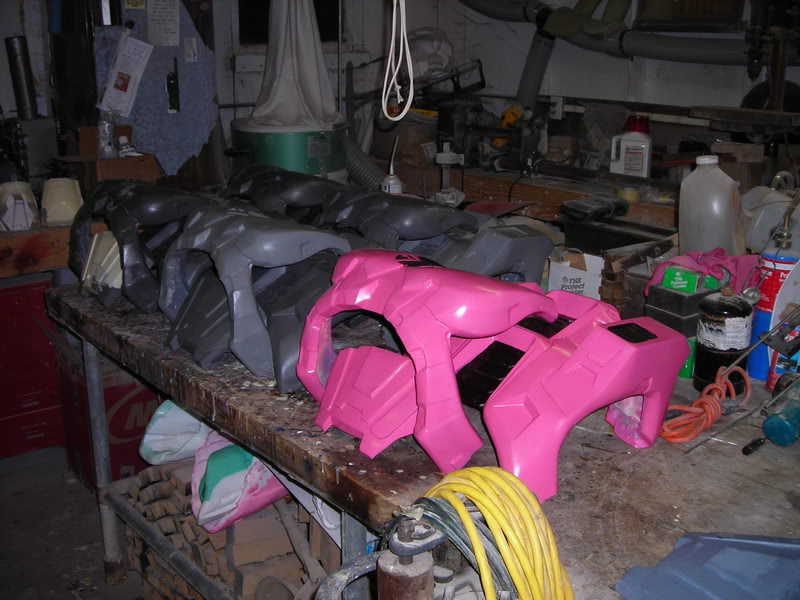

Then here's a shot of the armor lineup in the shop:

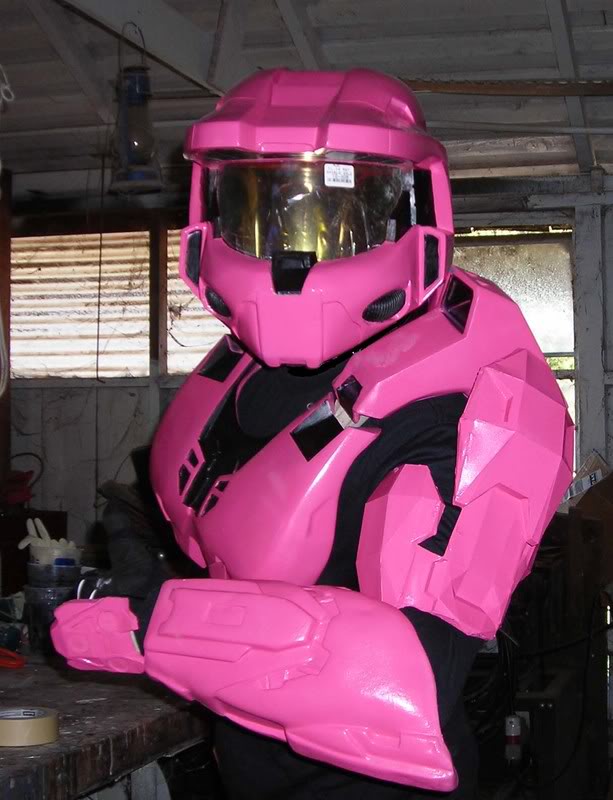

And finally, here's a shot of me in the first set of painted armor so far (the shoulder is just a size tester and the forearm is one of Adam's, but you get the idea):


So now it's time for me to disappear for a while. I'll post more when I get back.

xrallyman said:
ahh thats just grand!
ha

really quick if your not gone now, what did you use to attach the 2 pieces of the torso?

Masking tape. It was a rush job.

Last edited by a moderator:
Lookin' pretty good there Donut - that's some great lightish-red armor :) Safe Deployment and can't wait for you to get back and finish the rest!

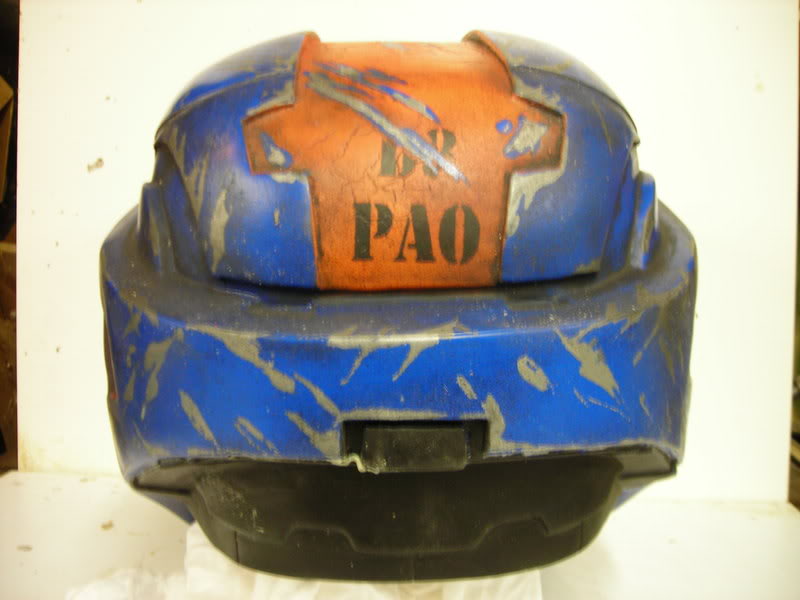

The weathering on that CG helmet is veeerrrry nice - I especially like the crackle "over-painted" finish on the back plate...

my GF would love some pink armor!!
looks great!
the CG helm looks great!!!!
I understand how you got the silver weathering but the cracks in the blue/orange paint?? wow...how?

also the green/red boat lights! just a little thing most people might not pick up on. GRRREAT idea!!

thorssoli said:
Our biggest guy is going to be Sarge. I'll be Church. My girlfriend is going as Tex.

My friend's wife is going to be Sister. Here's a shot of her test fitting last night:



The helmet is my prototype since I didn't have any castings handy with the faceplate cut out. The armor is the third or fourth casting out of my molds. She is wearing a medium size sweatshirt under it which fit very loose.

We still don't have a Donut or a Doc.

i want to be ur friend :cautious:

Last edited by a moderator:
thorssoli said:
I'm gonna have to be the very first annoying guy to post a question now that you're gone so you'll have something to answer when you get back...

This battle damage looks amazing. Is there any chance of method-mention? I'm by no means asking for a tut, or a drawn out explanation. But if it's one of those "trade secrets," then I don't mind at all if you wanna keep it to yourself.

Have a good time on the water! You will be missed...

Last edited by a moderator:
There are a lot of ways to get paint to crack like that, you can put down a thin coat of an acrylic enamel, then coat it with a laquer based paint, it can take a long time to dry though, there are also a lot of cracking agents you can buy from hobby stores.
there is a pretty good weathering tutorial here
http://web.ukonline.co.uk/bingo275/making_boba.htm
It dosnt go into cracking though, still pretty good imo.

NZ-TK said:
There are a lot of ways to get paint to crack like that, you can put down a thin coat of an acrylic enamel, then coat it with a laquer based paint, it can take a long time to dry though, there are also a lot of cracking agents you can buy from hobby stores.
there is a pretty good weathering tutorial here
http://web.ukonline.co.uk/bingo275/making_boba.htm
It dosnt go into cracking though, still pretty good imo.
I think he actually sanded a few of the cracks, from what i see...

-Fin(n)ish

Last edited by a moderator:
hey Thor,

the armor looks great man. I've been watching your progress over at therpf.com.

But hey, do you have any idea when they will be opening up registration for newbs? The forums are locked atm. :cautious:

I’m in South Korea, so today I decided to make the quest to find the internet and check in for a few minutes. While I’ve been out on the ship I have been making some progress, however small. I brought a ream of cardstock and some glue along and now I’ve got a bunch of pep models done. Here’s some pics.

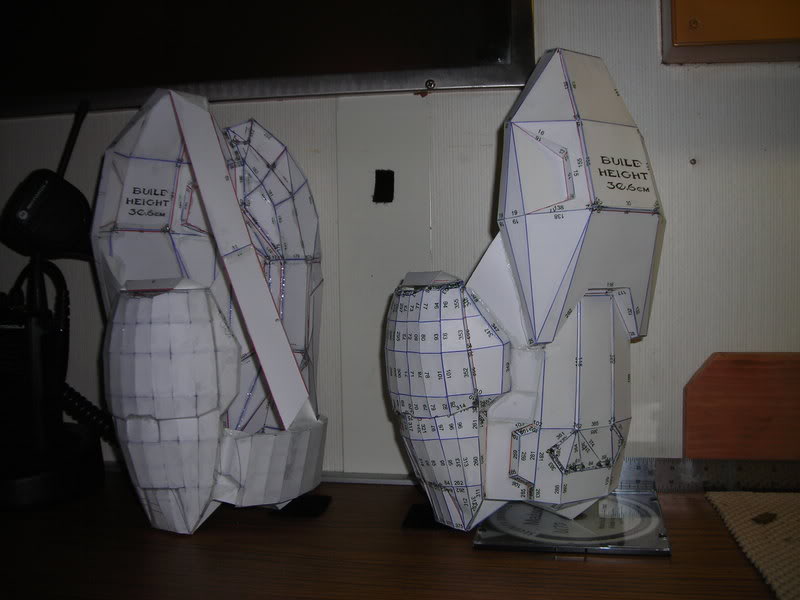

First, Flying Squirrel’s HD bicep armor:

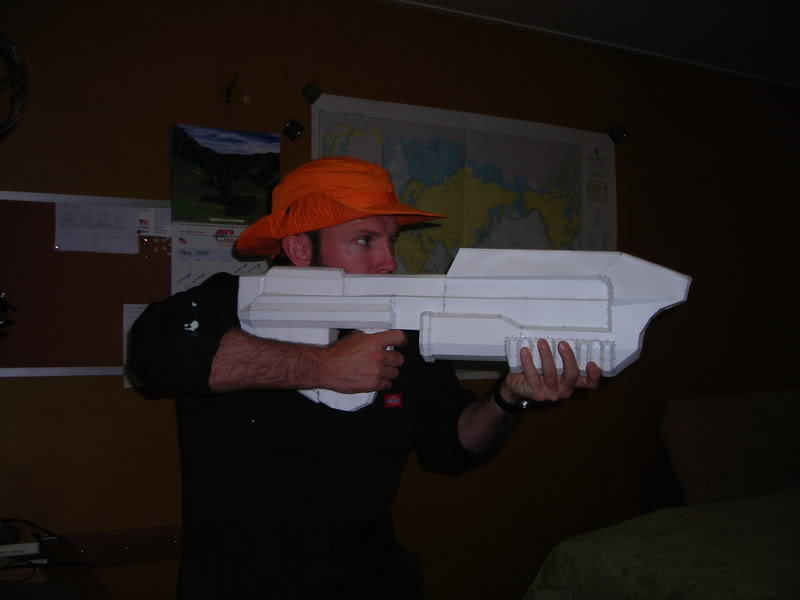

Then the Robogenesis (I think) model AR:

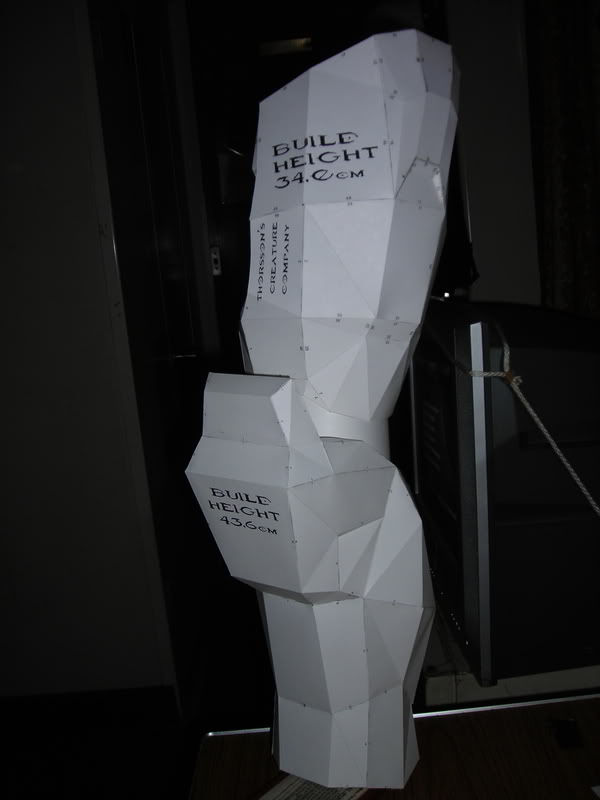

Finally (because I'd run out of hi-res models to build) I made low res versions of the thigh and calf so I’ll know exactly what size to build them in whenever someone makes high resolution versions.



Now I've uploaded the hi-res forearms so I've got something to do on the next leg of the voyage. Thank you Nugget!

In other news, the girlfriend liked her helmet:



Since a few of you asked, I’ll tell you what I remember about the paintjob on my girlfriend’s helmet.

The whole thing was a rush job and took about two days. I used the following ingredients:
Grey spray primer
Reddish-brown spray primer
Black spray primer
Krylon Royal Blue
[some other brand] neon orange
Krylon “Original Chrome” paint
Plasti-Dip Rubberizing paint (black)
French’s Mustard
Custom-cut adhesive stencils
Custom-cut vinyl lettering
Authentic USCG rank insignia

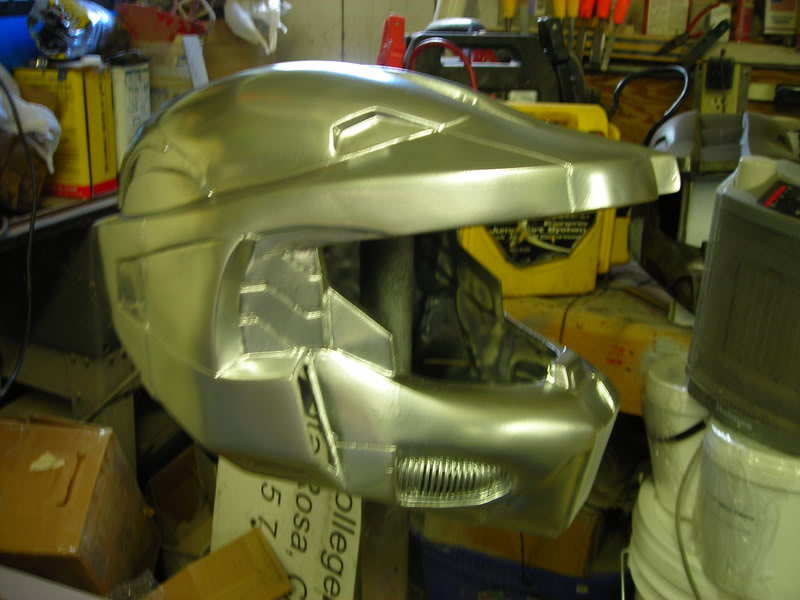

After washing the raw casting with warm, soapy water and drying it with the air gun, I gave the whole thing a liberal coat of grey primer. Once the primer had set up (and it dries pretty quick) I dusted on several coats of Krylon Original Chrome. This is one of the better metallic paints I’ve found for the price. At this point, it looks like so:

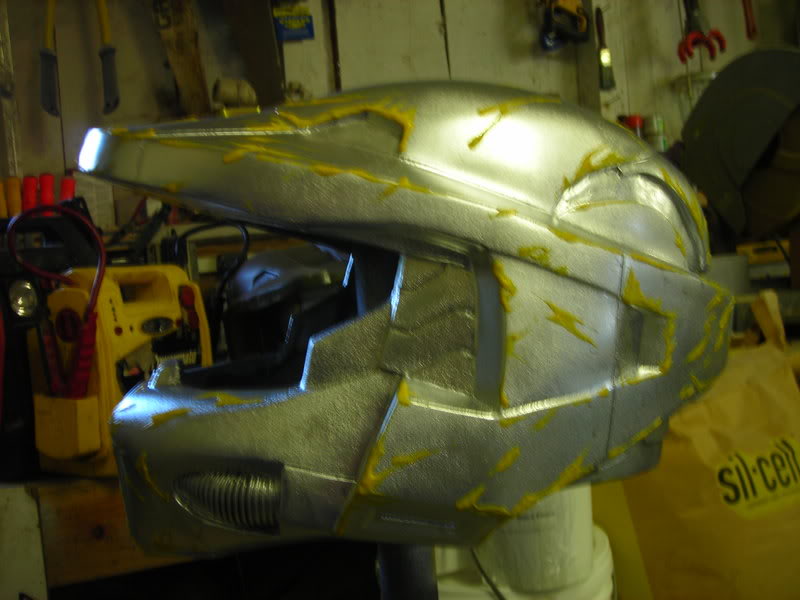

Then I let the paint dry before masking off all of the areas I wanted the silver to show through. Since all of the paints I’m using are enamels and they won’t stick to wet surfaces, I did the masking with mustard. The mustard works out to be thick enough that I can goop it on wherever I want it and not have to worry about having it dribble all over the place. It doesn’t have to be mustard. If you’d rather use ketchup or catsup or horseradish sauce or béarnaise, it’s entirely up to you. You just want something that the paint won’t stick to. At this point, the helmet looked like so:

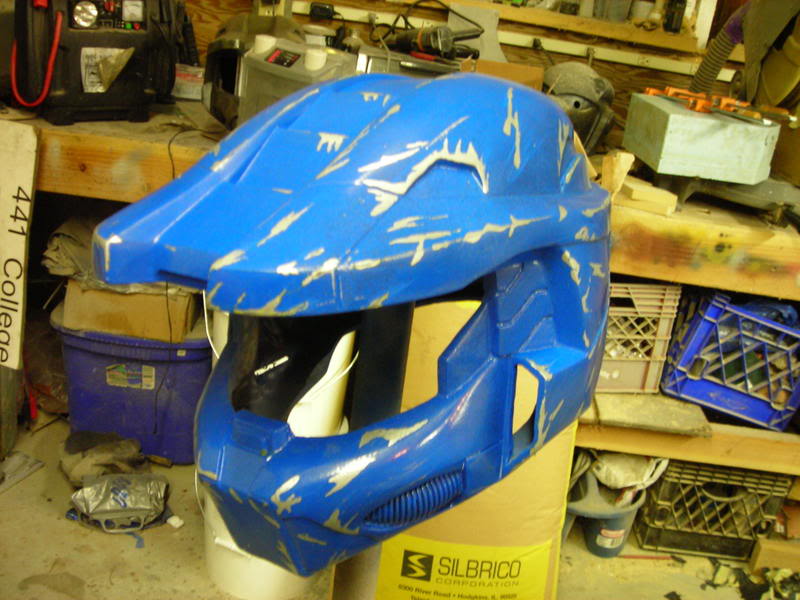

Then I gave it a couple of coats of Krylon Royal Blue, let dry, and picked off all of the mustard-filled blisters with a pointed stick (think toothpick, but I actually probably used a pointed piece of tongue depressor) So now it looked like so:



Then I masked off all of the areas where I wanted to have the orange stripe with the gentlest (read: least sticky) variety of masking tape I could find. Bear in mind that this is all still the first day of painting, so all of the paint is still a bit soft and the blue is pretty easy to lift off if the tape is too sticky. Then all of the areas where I didn’t want orange paint got the mustard treatment too. This way there were some scratches that showed through the orange to the blue as well as some that showed all the way down to the bare metal.

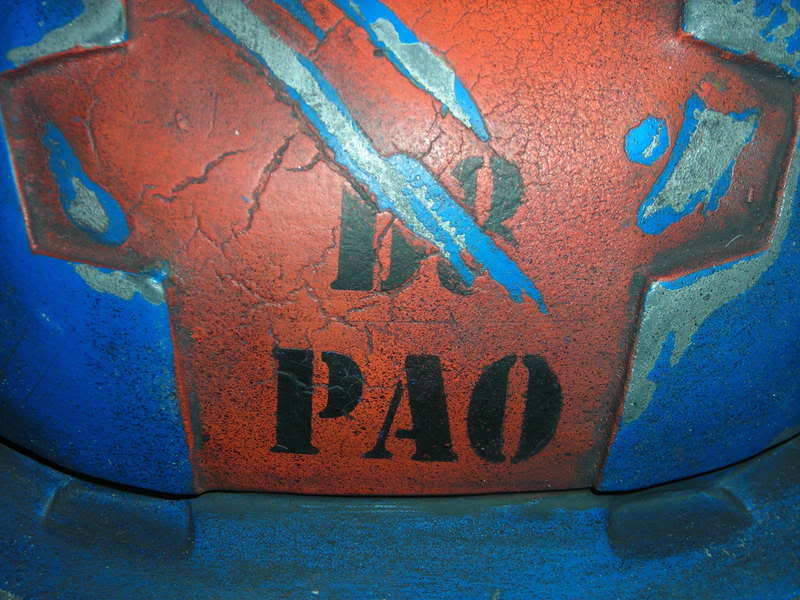

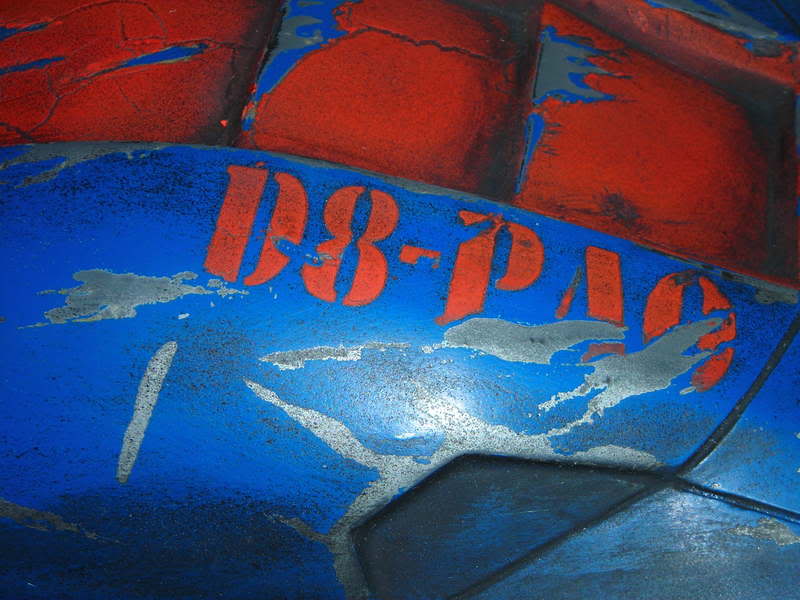

The crackling effect in the orange paint was a side effect of the fact that none of the layers below it were completely dry and the orange paint had a very high solvent content. Essentially, it wasn’t sticking the way it was supposed to and it was trying to eat the layers below it. In short: I screwed up and it came out looking (luckily) pretty cool. Then I dusted the whole thing with a bit of the black and red/brown primer, added the vinyl lettering, and let it dry overnight. At that point, it looked like so:



The next step was to mask off all of the areas that needed to be black. I did the black details in Plasti-Dip rubber paint (the spray version of the rubber stuff you use on the handles of pliers and such) because I wanted it to have a different texture when you touched it. So the neck details, the cheek inserts, the temple areas, and the recess under the brim are all essentially painted with a thin layer of black rubber.

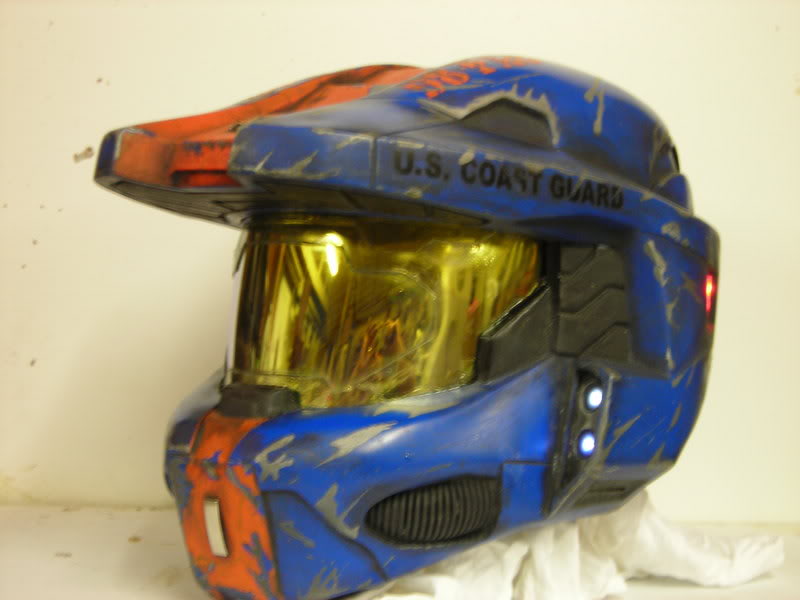

Then I drilled holes to mount the rank insignia, scuffed them both with some emery cloth to take the shine down a bit, glued them in place with some 2-part epoxy, and then attacked the whole helmet with black spray primer and a rag. Every nook and cranny got sprayed with primer and then wiped with a rag to get it off of the high spots. When it had dried I scuffed it a bit more with some fine steel wool to both reduce the shine of the blue parts and make the black grit in the recesses a bit more pronounced and random looking. This really brought out all of the details and I’m quite pleased with the results:



I didn’t take any pictures of the inside, so when I finish my next one I’ll tell you all about how I built the padding system and wired the fans and lights as well as how I made the ducting system so that the fans defog the visor. First we’ll have to wait until I get back into my workshop in August or September.

Next port call will be next month in Hawaii, so with a little bit of luck I’ll have some more pep models done and there will be more hi-definition models available for download here.

Stay tuned.

Looks awsome. I am sure you're having a great time explaining what your doing to the other folks on your watch. I have had some strainge looks from Captains when I talk about the armor thing.

What type of ship are you on? It does not sound very fast...
