While many start with their helmet, I'm starting from the bottom up. Here are my self made halo pimp shoes that add 4 inches. I'll be 6'8" without the helmet.
First build - Jorge, Halo Reach
- Thread starter PapaBear271
- Start date
- Member DIN
- S271

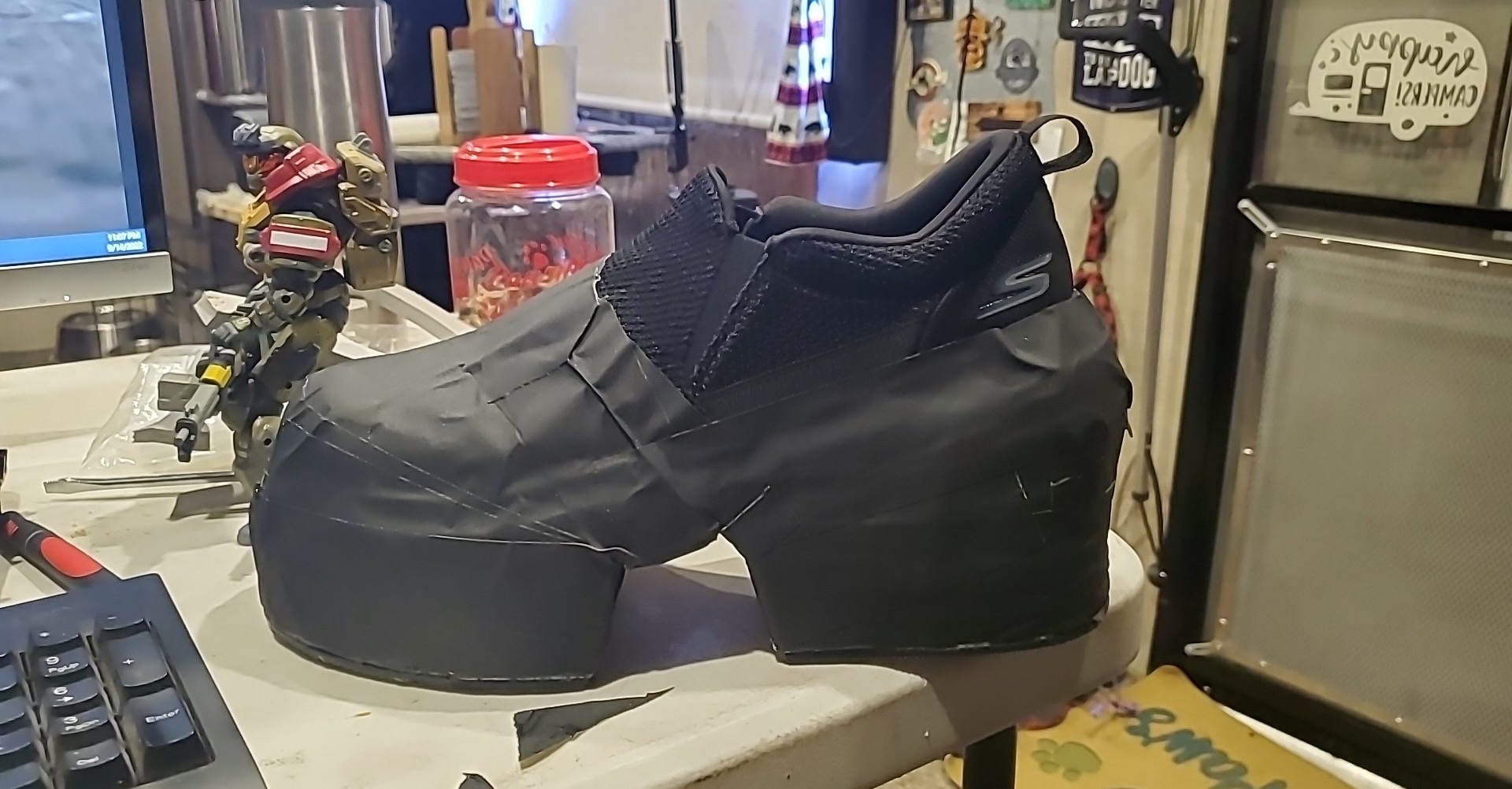

The base shoe is some Sketchers. I traced the sole out on paper. I cut 3 layers of 10mm foam and glued them together. Then I added two stair stepped layers of 10mm in the heal. I filled in gaps with foam wedges and hot glue. Once the toe and heal are glued down, I cut out the middle to allow for flex in the shoe (otherwise they slip off my heal as I walk). I filled any holes and gaps with hot glue as best as I could. I used gaffer tape for extra strength. To finish it I added a rubber sole with contact cement. This will all be covered by the armor pieces coming here soon
Lesson learned: I would cut the platform foam addition to match the toe armor piece and heal piece instead of matching the sole of the shoe. This will give you a better surface to mount these pieces. I had to add wedges after the fact. Also I would add the rubber sole after the toe and heal piece is mounted to the shoe to protect the foam and strengthen the bond between the shoe and the armor pieces.
Rubber Sole: https://www.amazon.com/dp/B083KLM6YZ?psc=1...
Sketchers: https://www.amazon.com/dp/B07FKX52DJ?psc=1...
Lesson learned: I would cut the platform foam addition to match the toe armor piece and heal piece instead of matching the sole of the shoe. This will give you a better surface to mount these pieces. I had to add wedges after the fact. Also I would add the rubber sole after the toe and heal piece is mounted to the shoe to protect the foam and strengthen the bond between the shoe and the armor pieces.
Rubber Sole: https://www.amazon.com/dp/B083KLM6YZ?psc=1...
Sketchers: https://www.amazon.com/dp/B07FKX52DJ?psc=1...
Last edited:
L337 H473R
Member
I know it’s just begun but I can’t wait to see the finished product of the whole armor set! Is there any other part that you have made yet that you can show off or is the footwear your starting piece?
WhiskeyHammer
New Member
Cannot wait to see a Jorge come to life. One of my favorite characters written into a game.
pippon
Member
- Member DIN
- S671
Ah youve started with comfortable shoes.
Its going to be a good build.
Shoe bases for cosplays nearly always seem to be the kind youd find that sorta look the part, not the sort youd ever choose to wear for 8 hours.
Good that youve not fallen into that trap. Looking forwards to the build!
Its going to be a good build.
Shoe bases for cosplays nearly always seem to be the kind youd find that sorta look the part, not the sort youd ever choose to wear for 8 hours.
Good that youve not fallen into that trap. Looking forwards to the build!
sithlord5051
New Member
Are You going to build his turret
- Member DIN
- S970
I can't wait to see your complete set! I also appreciate the list of materials and your attention to detail in your build log so far!
adognamedRunt
New Member
As soon as i can get a printer the right size im going to be scaling the feet to fit an allbirds shoe inside. I dont wanna stand all day on uncomfortable shoes so im glad to see others doing the same thing
marinesniper
Sr Member
- Member DIN
- S118
yes i am with everyone when i say this is going to be a awesome thread to watch. and the list of materials are a nice touch.
CasuallyFlacid
Member
- Member DIN
- S121
Good call on the shoes. after a few hours, my boots kill....
- Member DIN
- S271

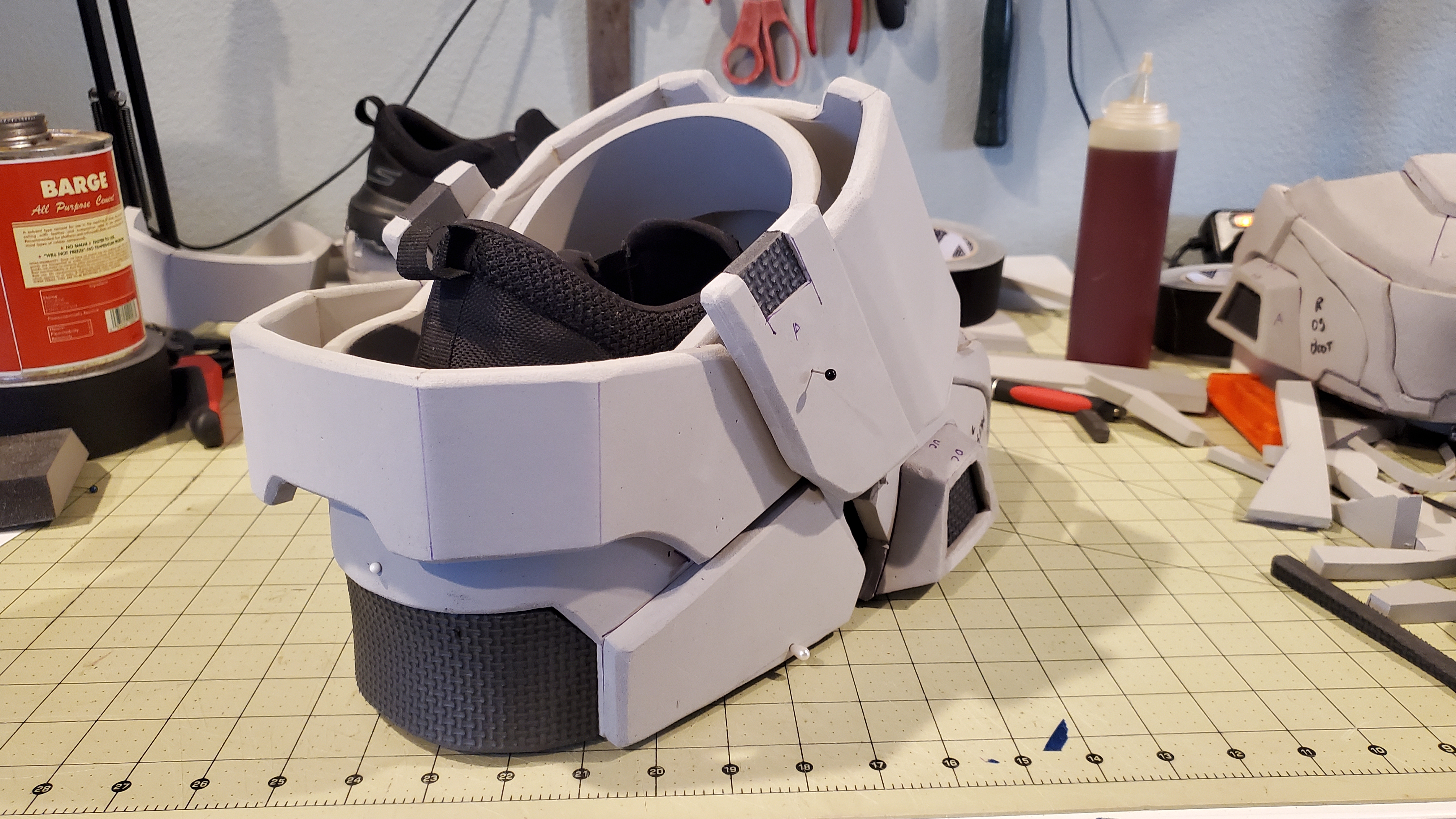

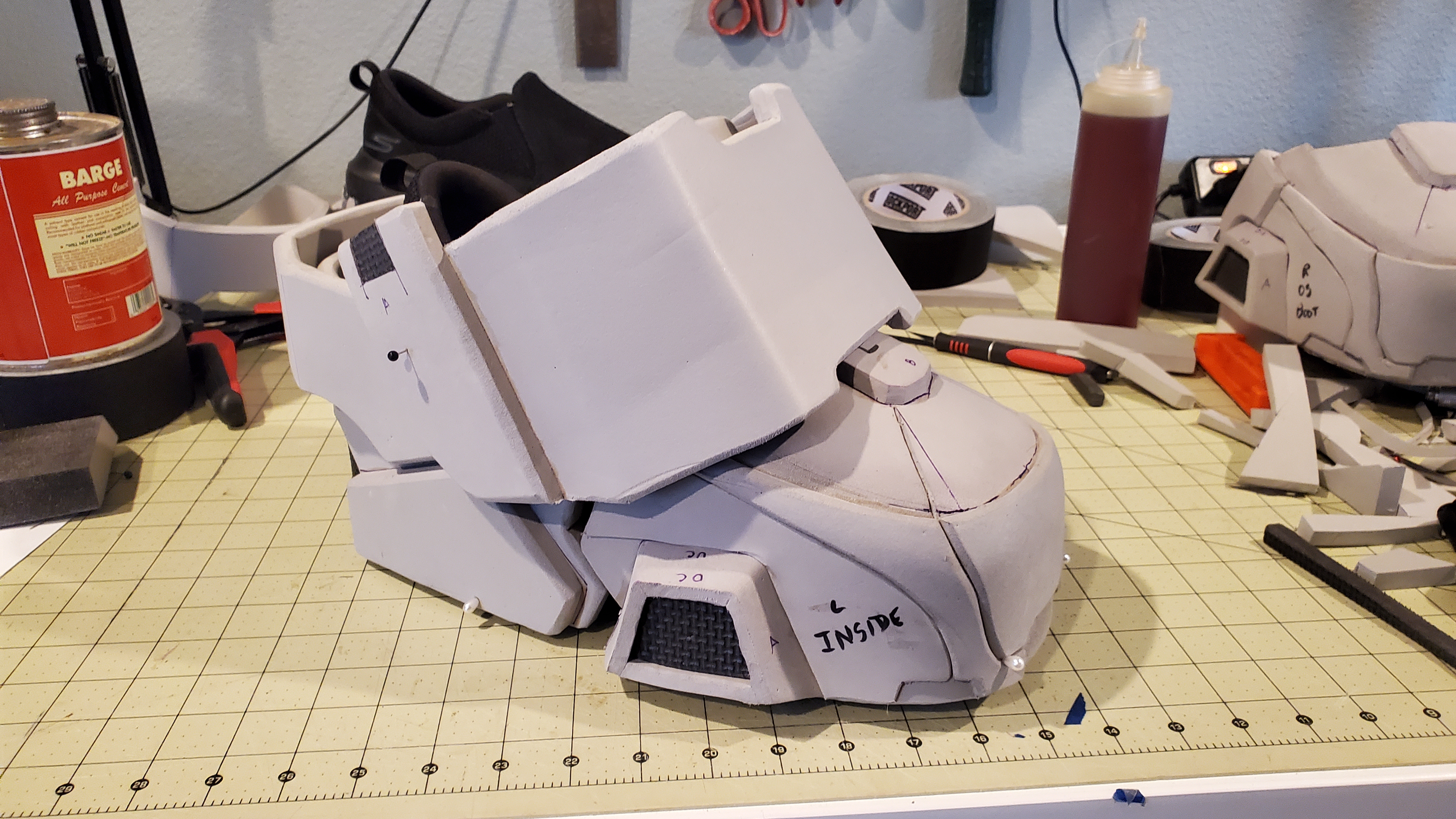

Left boot ready for paint. All patterns were created from scratch looking at a lot of reference pictures and theater mode Halo Reach.
- Member DIN
- S970
Looks great! Are you doing foam for the entire build?
- Member DIN
- S271
IDK. I'm thinking I want the helmet 3d printed as that is what people focus on. Some details will be 3d printed as well, like the specialized rivets on Jorge's armor.
- Member DIN
- S271
The armor piece in front of the laces will hinge at the ankle to allow flexibility while walking. Going to use Chicago screws for the pivot. The great part is the chicago screw is right where one of the two rivets is located on the actual game model!
Here are the chicago screws I order:
Here are the chicago screws I order:
- Member DIN
- S271
absolutely, I put the 3d modeling on hold to work on the armor
- Member DIN
- S271
Full Scale!!! I want to put lights, speaker, and smoke on it. I want to be able to "shoot" it with muzzle flash, sound and overheat condition with hot barrel smoke. I see an arduino in my future...
- Member DIN
- S271
So the gaff tape I ordered didn't hold for long. I ended up scrapping the tape. Ever gap between the shoe and the foam platform was filled with hot glue. It had a great bond and was really strong when I tried to pull it off. So I pulled all the gaff tape off, re-cemented the rubber soles directly to the foam. See "Lessons Learned" in my original edited post.
- Member DIN
- S271
This is my first build so I'm starting from the bottom up. People tend to focus at the helmet and work their way down. By starting at the bottom, my errors and mistakes are less noticeable and my skills will improve as I go. At least that is my theory...
