He's Back!!!!!
PM me some pictures that have more detail that you are looking for. I'll update the model when I get a chance.
Free 3D Model Index
- Thread starter TurboCharizard
- Start date
imamorron
New Member
Hello all,
I'm looking for some printable files for the Halo wars Mk IV armor as seen in Halo wars 2. I've seen the current armor that is available but i was wondering if there would be a way to get some more accurate files.
Looking closely at the files converted from pepakura to 3d printing they are segmented, especially in the legs which caused some inaccuracies between the models and game.
Are there any game assets out there that can be converted to 3d print?
Thanks!
I'm looking for some printable files for the Halo wars Mk IV armor as seen in Halo wars 2. I've seen the current armor that is available but i was wondering if there would be a way to get some more accurate files.
Looking closely at the files converted from pepakura to 3d printing they are segmented, especially in the legs which caused some inaccuracies between the models and game.
Are there any game assets out there that can be converted to 3d print?
Thanks!
marinesniper
Sr Member
- Member DIN
- S118
i like the looks of this model you do some good work buddy... keep it up
MDBDesigns
Active Member
- Member DIN
- S894
Halo 2 ODST by Berwickarts
These are the files for Halo 2 Anniversary edition ODST.The files were provided by Islandhopper and Tahu505 and myself worked on modeling out the armor and getting it ready for 3d printing. I have not personally printed these parts so they may have issues I do not know about, but within all the...
www.thingiverse.com
Halo 2 Anniversary ODST
Tahu505 and myself worked on getting these all modeled up and ready for 3d printing for Islandhopper. There should be helmet, visor buck for vacuum forming, headlamp, chest piece, knife handle for back of chestpiece, shoulder, kneecap, right shin, back of shin.
It may take a day for the files to fully load on thingiverse's sight, but in a days time they should all be there!
was glad to help on this and work with you guys! cheers!
ReClaimer8015
Active Member

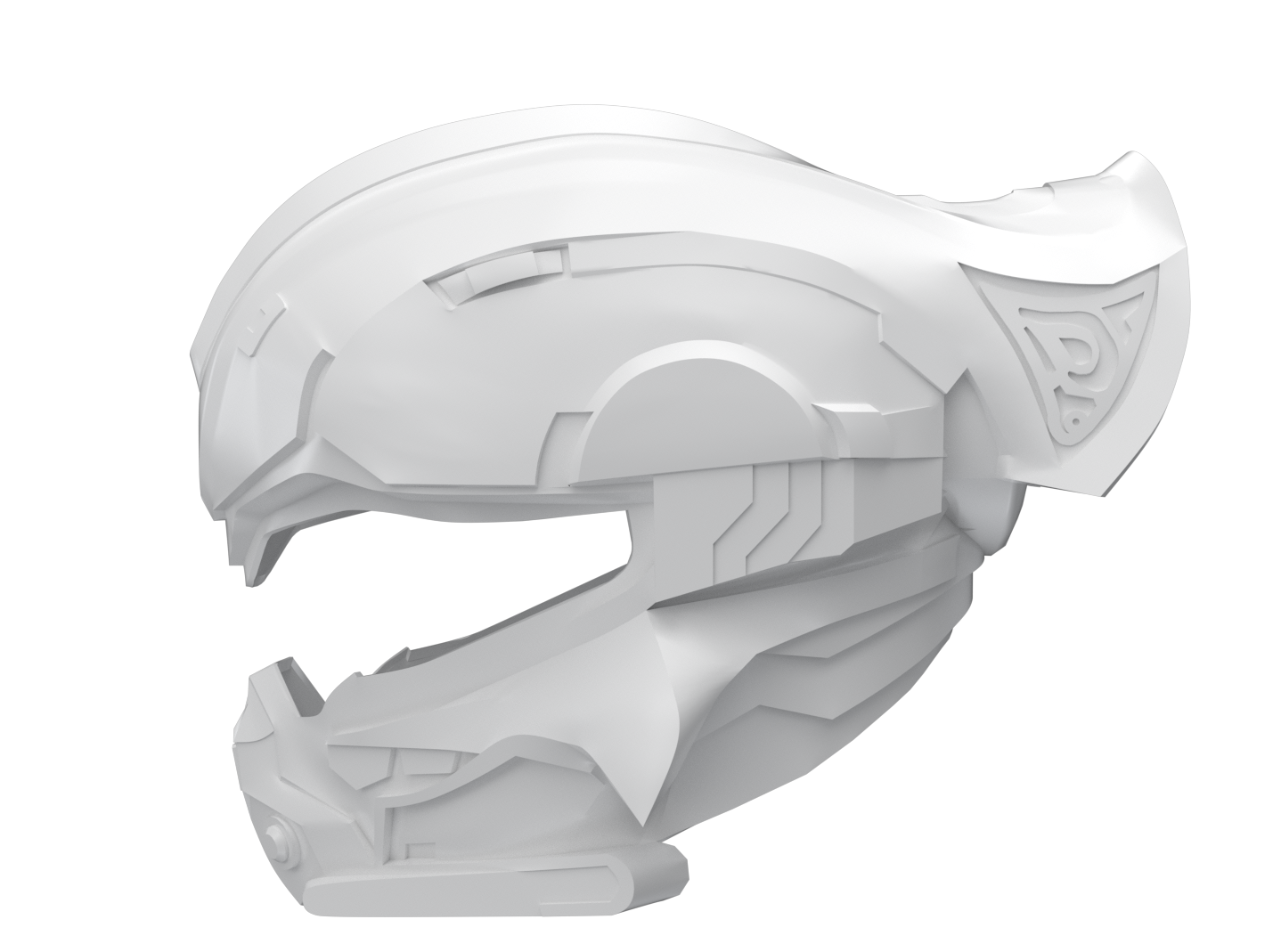

I am trying a remix of this file, adding some more details.
Designs seen in game footage from beta or the finished game or even concept art vary a little, i am going in the direction of Kory Hubbells artwork.
Not sure if this will print, at this point it still has some issues because i am working over an stl. which is not a good idea at all.
Thanks again for providing these files Moe!
Last edited:
Updating for an HD Halo Reach Recon Helmet (an improvement over my old one): Halo Reach - HD Recon Helmet by moesizzlac
marinesniper
Sr Member
- Member DIN
- S118
That is awesome you dont make it easy on a guy to pick a fav. great job buddy
Mastert3318
New Member
Hello! I was wondering if anyone still had the files for the Light Rifle that was posted in this thread: Mendez's Halo weapon 3D print file dump [Download] (HELP NEEDED)
The link is a dead link now so I was hoping that someone might still have the files laying around somewhere.
The link is a dead link now so I was hoping that someone might still have the files laying around somewhere.
operator
New Member
oh man, you're a life saver! Thank you so much for everything, especially the H3 Recon set!Updating for Halo 3 - Recon Chest, Biceps, and Shoulders:
Halo 3 Recon Armor - Shoulder and Chest by moesizzlac
Here is the Recon Chest and Shoulders from Halo 3. You may need to resize this as it is currently sized for a 5'10" 185 LB person. Enjoy!
View attachment 291499 View attachment 291500
View attachment 291501 View attachment 291502
ReClaimer8015
Active Member

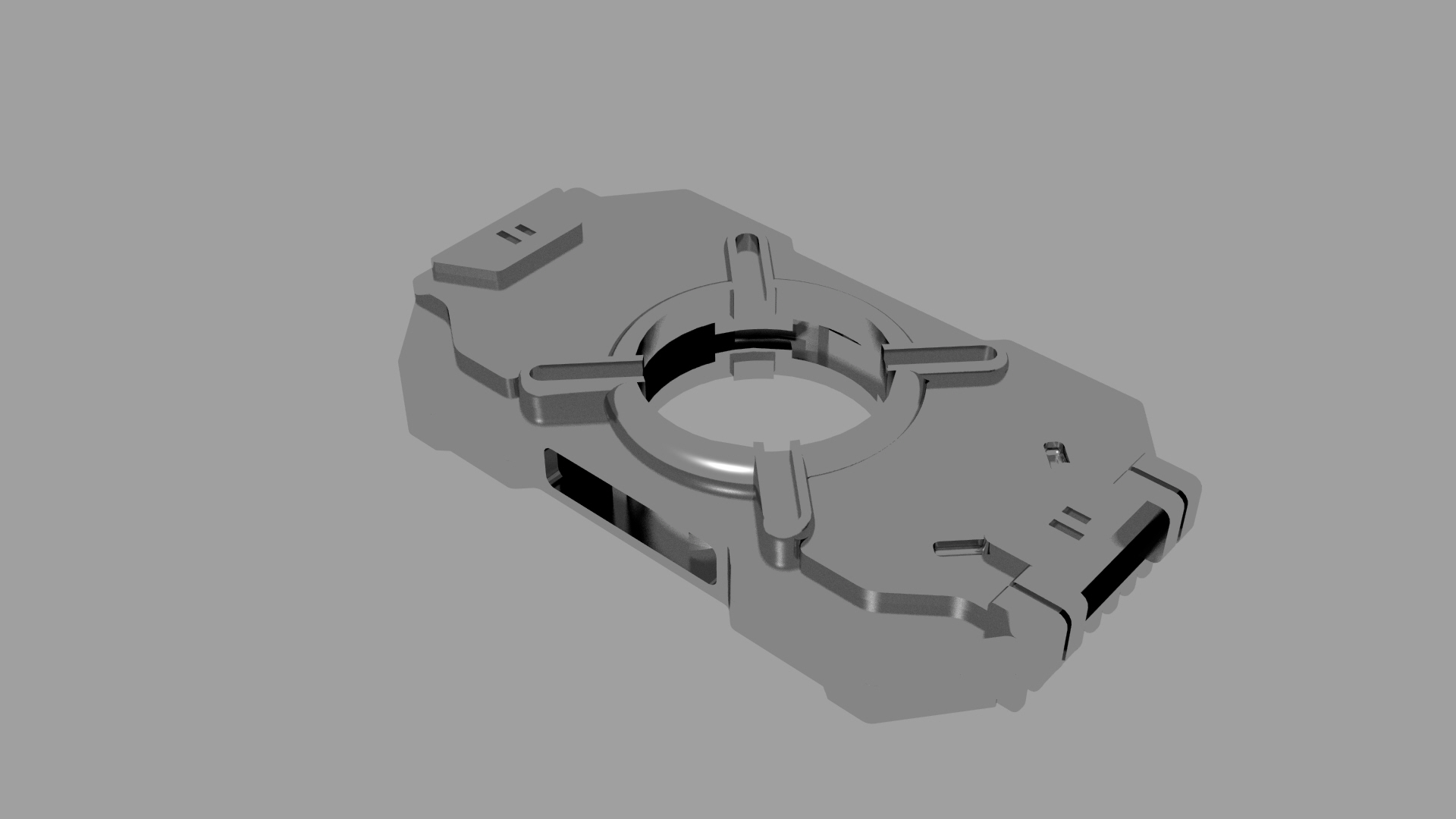

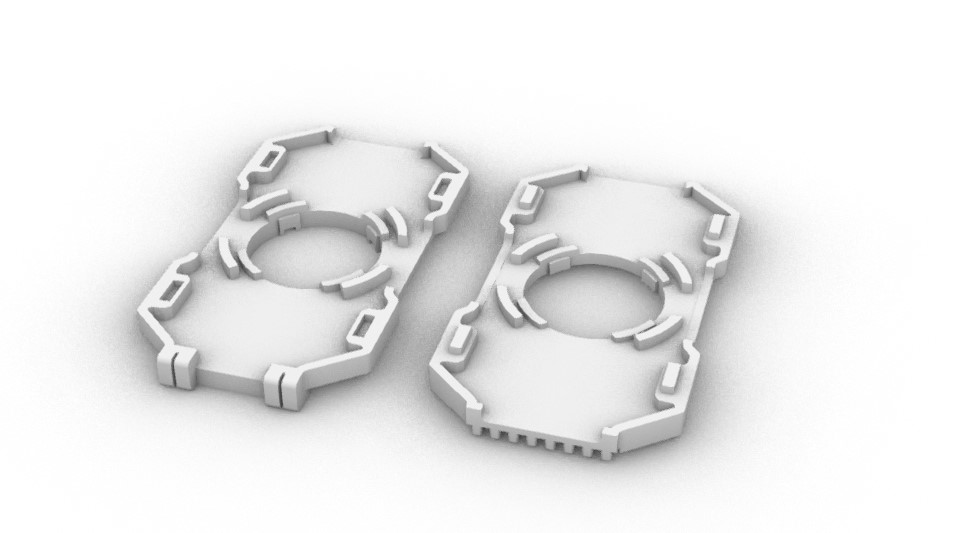

By request of marinesniper i did a hollow version of my Cortana data chip.
there is some space now for electronics ( USB port maybe?) and transparent/ opaque sheets to hide LEDS...
Check the proportions yourself and scale as you see fit.
Chip hollow.stl
there is some space now for electronics ( USB port maybe?) and transparent/ opaque sheets to hide LEDS...
Check the proportions yourself and scale as you see fit.
Chip hollow.stl
Last edited:
marinesniper
Sr Member
- Member DIN
- S118
thank you so much it will work perfectly
Spartan Recon
New Member
So guys who's going to be doing an stl for this when it comes out ?
marinesniper
Sr Member
- Member DIN
- S118
i would love to build this one it looks pretty awesome i hope someone makes this model soon do you have any other picture of this....
Supre_
Member
Moesizzlac has a version of it on Thingiverse:
www.thingiverse.com

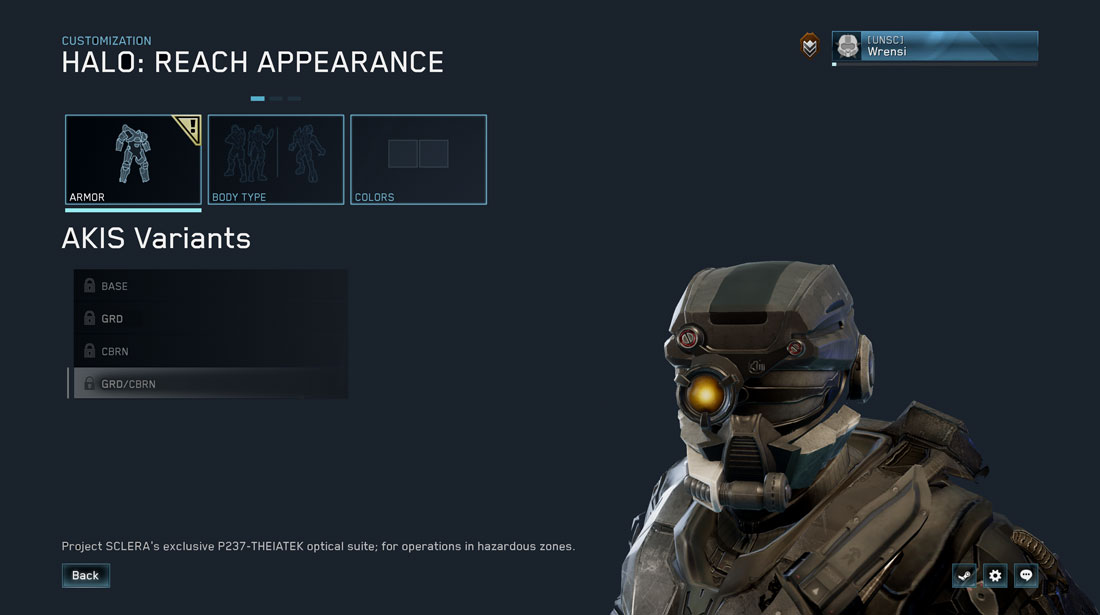

Halo Reach - GRD Helmet by moesizzlac
This helmet is part of a joint collaboration between myself and user Glitch5970 (https://www.thingiverse.com/Glitch5970/about)I found this model on Glitch5970 Sketchfab page (https://sketchfab.com/3d-models/grd-set-halo-reach-a99c202748694942a8dc7a45c6f468e8#) and he was kind enough to share the...
www.thingiverse.com
J0sephAguilar
New Member
I previously post some models here, and it was pointed out to me that this was for "free" models. Sorry for the confusion, I will start a separate thread for anyone interested
Last edited:
While your designs are, without a doubt, fantastic, I don't believe they fall under the "free" 3D model index category. Thank you for sharing them though.Thought this would be a great place to post about my ODST Helmet, M45 Shotgun, Kukri Knife, ODST Pistol, ODST SMG, and Halo 5 Magnum.
All the models are designed for ease of printing/painting/assembly.
Below I will include a basic description and all the links for the article that shows all the features of each model as well as the store page where you can get the models for yourselves
ODST Helmet:
ODST Helmet
Sometimes it pays to be the strong silent typeMajor FeaturesSimple Two Piece DesignThe helmet itself is comprise of a front and back piece. The back piece doesn't require supports while the front only supports internally meaning that you should have a nice smooth print on the outside. This of...www.aguilarworkshop.com
View attachment 297664
ODST Helmet | Aguilar Workshop
Major Features*The ODST Armor can be found here * Simple Two Piece DesignThe helmet itself is comprise of a front and back piece. The back piece doesn't require supports while the front only supports internally meaning that you should have a nice smooth print on the outside. This of course...
Major Features
Simple Two Piece Design
The helmet itself is comprise of a front and back piece. The back piece doesn't require supports while the front only supports internally meaning that you should have a nice smooth print on the outside. This of course always depends on your print settings, more than likely both pieces will still benefit from supports.
The model also contains two alignment pins that allow for easy alignment and glueing of the pieces together.
Visor Insert Features
The inside of the helmet features Guides to hold the visor in place. While the visor can sit on these alone I would recommend a low strength glue or tape to help fasten hit while still allowing you to remove the visor.
Sizing Ring
Model includes a sizing ring to help you scale the helmet to fit over your head. Sizing ring is a equal to the size of the throat of the helmet so make it so you can fit your whole head through without slicing your ears off.
Full Visor Resin Kit
This model includes a full kit to help you make a rubber mold capable of casting a resin visor. A resin visor in and of itself will have some reflective properties while more importantly allow you to make the visor see-through and a color of your choice. It also allows for more complex geometries than vacuum forming and makes for a sturdier visor. The visor, baseplate, and mold shell all fit together to ensure that the the model only requires a minimal amount of rubber. The less rubber required, the less it costs and the more reusable the mold and easier the demolding process. Model also features a mold stand so that you can ensure the mold can be filled to the top without deformation when you pour in the resin.
Visor Resin Volume: 91.7 mL
Visor Rubber Mold Volume: 391.3 mL
Emile's Knife:
Emile's Knife | Aguilar Workshop
Major Features Simplistic, Support Free DesignThis is a great prop for starters. The only supports required are a minuscule amount on the inside of the handle. The blade slides into the handle and is further stabilized by the connecting rod. As with all of my props, the tolerances allow for...View attachment 297665
Emile's Knife - Halo Reach
"Now that's a Knife!" - Crocodile Dundee to Emile in a cross-over we didn't know we neededPerhaps the reason our precious Emile bit the dust on Reach was because he simply had one. With the magic of 3D printing, feel free to make yourself enough Kukris to take down the entire covenant...
Major Features
Simplistic, Support Free Design
This is a great prop for starters. The only supports required are a minuscule amount on the inside of the handle. The blade slides into the handle and is further stabilized by the connecting rod. As with all of my props, the tolerances allow for secure assembly without sanding or filing.
M45 Shotgun:
Emile's M45 Shotgun | Aguilar Workshop
Seamless, Modular DesignAs you can see this model includes a lot of parts. This was done to minimize the overall supports required (as almost all of the parts can be printed support free) and make the painting and sanding process easier. This also allows this entire piece to have no ugly seams...View attachment 297666
M45 Shotgun - (Reach Shotgun)
A deadly CQC weapon, second only to a Kukri...
Seamless, Modular Design
As you can see this model includes a lot of parts. This was done to minimize the overall supports required (as almost all of the parts can be printed support free) and make the painting and sanding process easier. This also allows this entire piece to have no ugly seams anywhere that they don't naturally lie in actual design.
Working Flashlight Ring Clamps
This piece also includes some flashlight rings that screw together to clamp the placeholder flashlight in place. The place holder flashlight was modeled roughly after a flashlight I found in real life (found in a park so I don't have a link). If like me you want to include a working flashlight in the design. Feel free to try and design your own flashlight rings using the included ones as reference. Or just print some simple rings to make your flashlight fit in the existing ring clamps. Also feel free to message me and I may be able to do you a solid.
ODST Pistol:
M6C/SOCOM - (ODST Pistol) | Aguilar Workshop
Major Features Sliding ReceiverThe back half of the receiver slides back and springs forward just as it does in game. The hooks there can easily support a tensional spring or a small rubber band. The tolerances on the inside of this piece are also slightly larger to allow it to actually slide...View attachment 297667
M6C/SOCOM Pistol - (ODST Pistol)
For the connoisseur of stringing together Grunt Headshot KilltacularsBefore you drop into the streets of New Mombasa, make sure to bring one (or two for all you dual wielders out there) of these for optimal shieldless enemy disposal. Major FeaturesSliding ReceiverThe back half of the receiver...
Major Features
Sliding Receiver
The back half of the receiver slides back and springs forward just as it does in game. The hooks there can easily support a tensional spring or a small rubber band. The tolerances on the inside of this piece are also slightly larger to allow it to actually slide along the grooves. The front half of the receiver features guiding grooves that make sure that the back half only slides backwards and forwards. Similarly, the root of the slide is angled so that no supports are required to be printed above or around the hook.
Removable Magazine
This design features a removable magazine w/ separate bullet (easier to paint), that can actually be seen in the correct position when the slide is back. The magazine slides in easily but there currently is not mechanism to hold it in place. A little bit of double sided tape or folded tape should easily hold it in place while still allowing it to be removable as opposed to a permanent glue solution. Also if you print multiple you can have them all loaded into your ODST ammo pouches and isn't that just the coolest?
Flashlight Compatibility
The flash light in this pistol includes two pieces, a placeholder flashlight and the flashlight attachment. This is done because the placeholder flashlight is based on a keychain flashlight i found on Amazon small enough to fit into this pistol. The design allows this flashlight to be inserted and activated by just twisting the end as the back of the flashlight is locked in place by the attachment.
Modular, easy to print design
As shown in the assembly picture, this print was sliced in such a way that all seams are hidden along where they would naturally lie, so there is no awkward lines to cover up on the end product. Similarly, minimal support are required, with the only major supports required (depending on your bridging) being on the grip and receiver slide. While the design allows for mix and matching, one should definitely glue the pieces together once you decide as the pegs are not too long and will most likely not support the whole print and are mostly meant for alignment and testing out different configurations. I go into one exception later on in the "Builds" section.

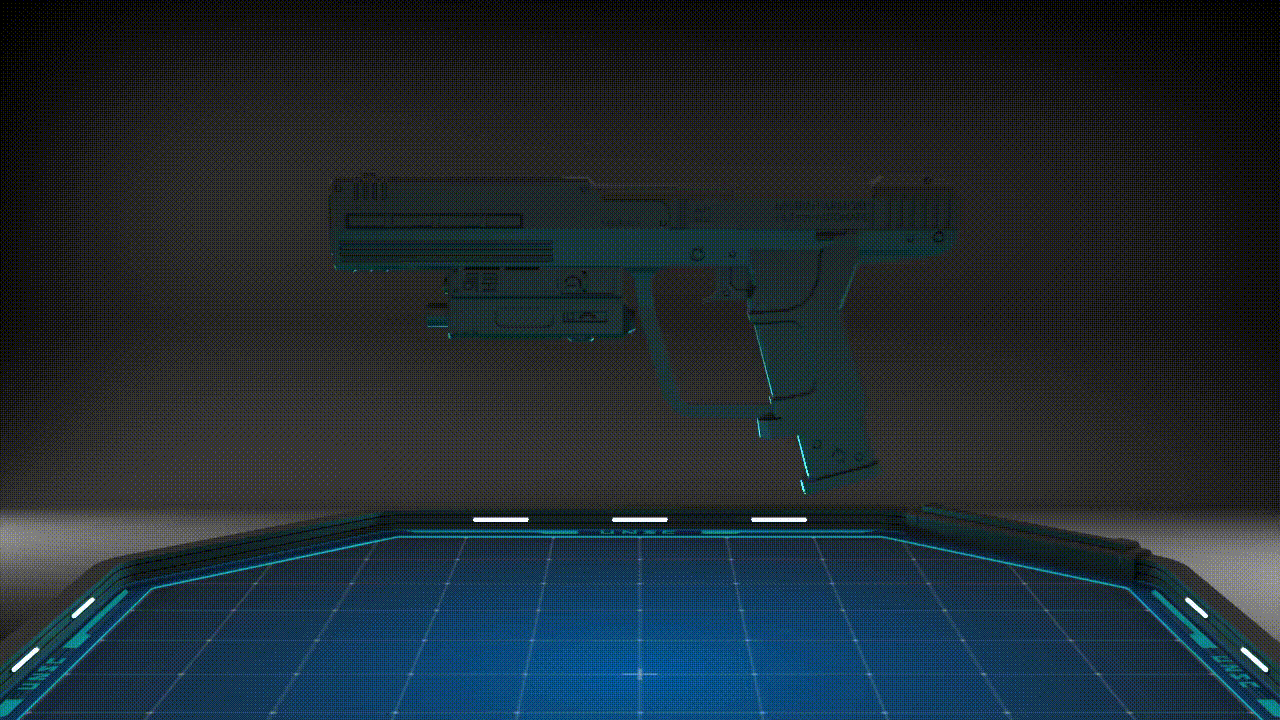

Halo 5 Magnum:
M6C/SOCOM - (ODST Pistol) | Aguilar Workshop
Major Features Sliding ReceiverThe back half of the receiver slides back and springs forward just as it does in game. The hooks there can easily support a tensional spring or a small rubber band. The tolerances on the inside of this piece are also slightly larger to allow it to actually slide...M6C/SOCOM Pistol - (ODST Pistol)
For the connoisseur of stringing together Grunt Headshot KilltacularsBefore you drop into the streets of New Mombasa, make sure to bring one (or two for all you dual wielders out there) of these for optimal shieldless enemy disposal. Major FeaturesSliding ReceiverThe back half of the receiver...
View attachment 297668
Major Features
Modular Design
The design of this pistol is such that most of the parts hold themselves in place without the need for glue, this allows for plenty of fun mix and matching. This is of course provided your printer is calibrated correctly. Even so a little glue never hurt once you find your preferred configuration/paint job.
This model makes it so that a majority of the places that require supports end up being hidden upon assembly, so those rough surfaces will be covered. This makes for a much less stressful post print process.
Flashlight Compatibility
The flash light in this pistol includes two pieces, a placeholder flashlight and the flashlight attachment. This is done because the placeholder flashlight is based on a keychain flashlight i found on Amazon small enough to fit into this pistol. The design allows this flashlight to be inserted and activated by just twisting the end as the back of the flashlight is locked in place by the attachment.
