Halo 5 Agent Locke Pre-game Build: Photo Updates and stuff!!!

[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

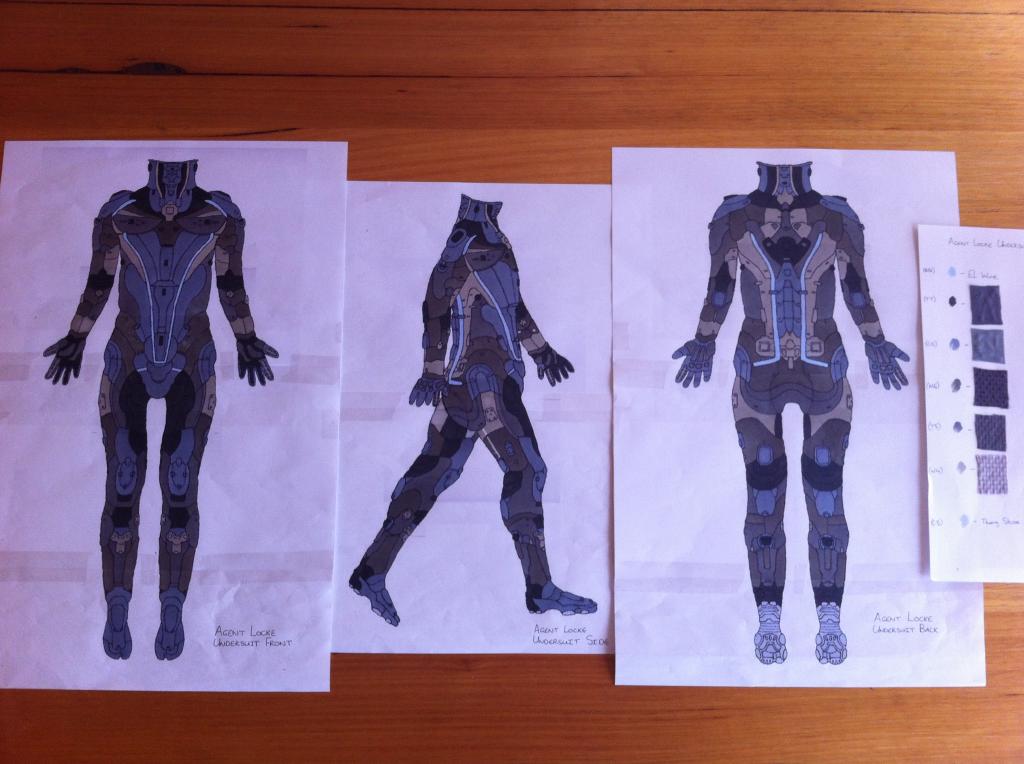

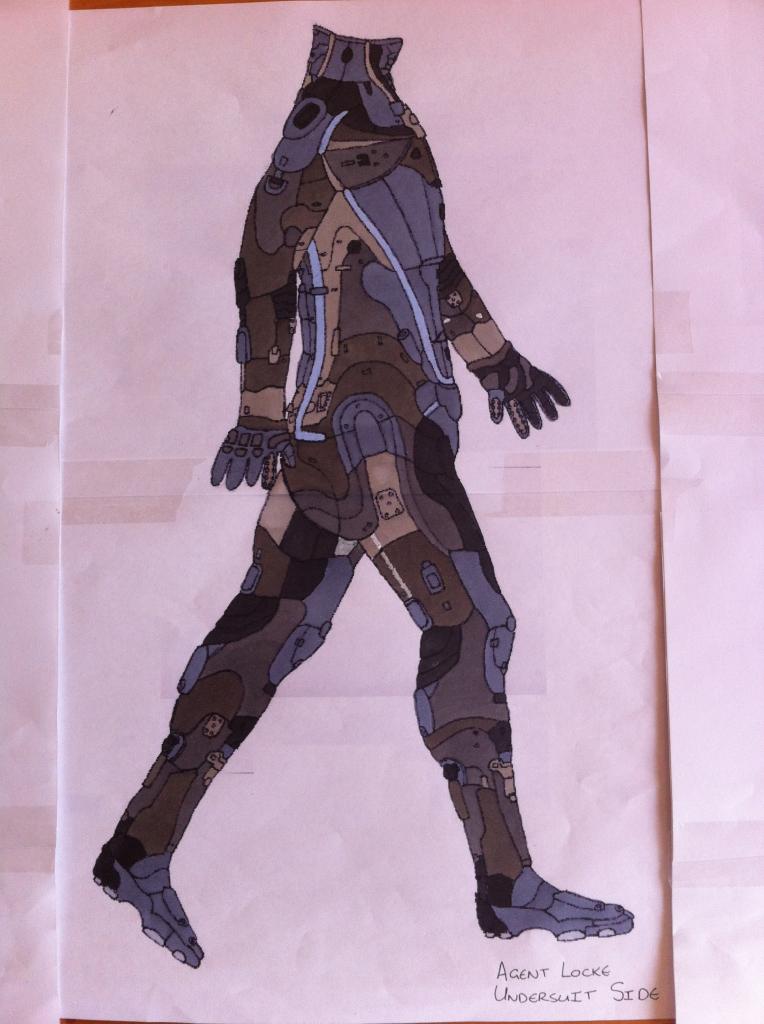

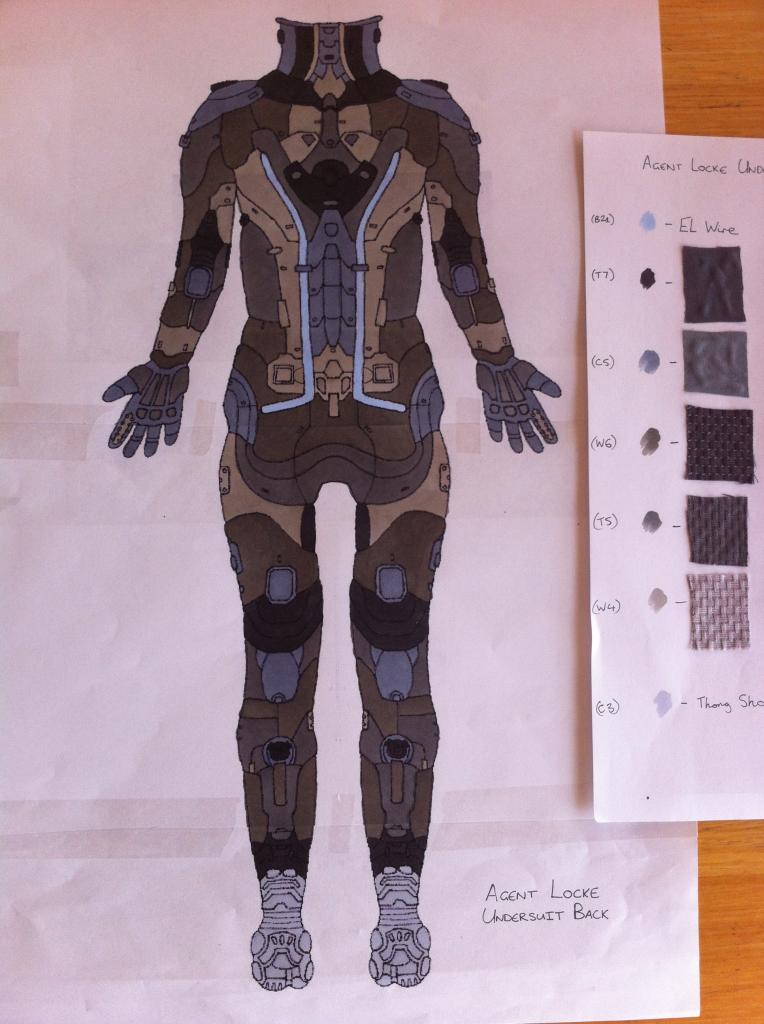

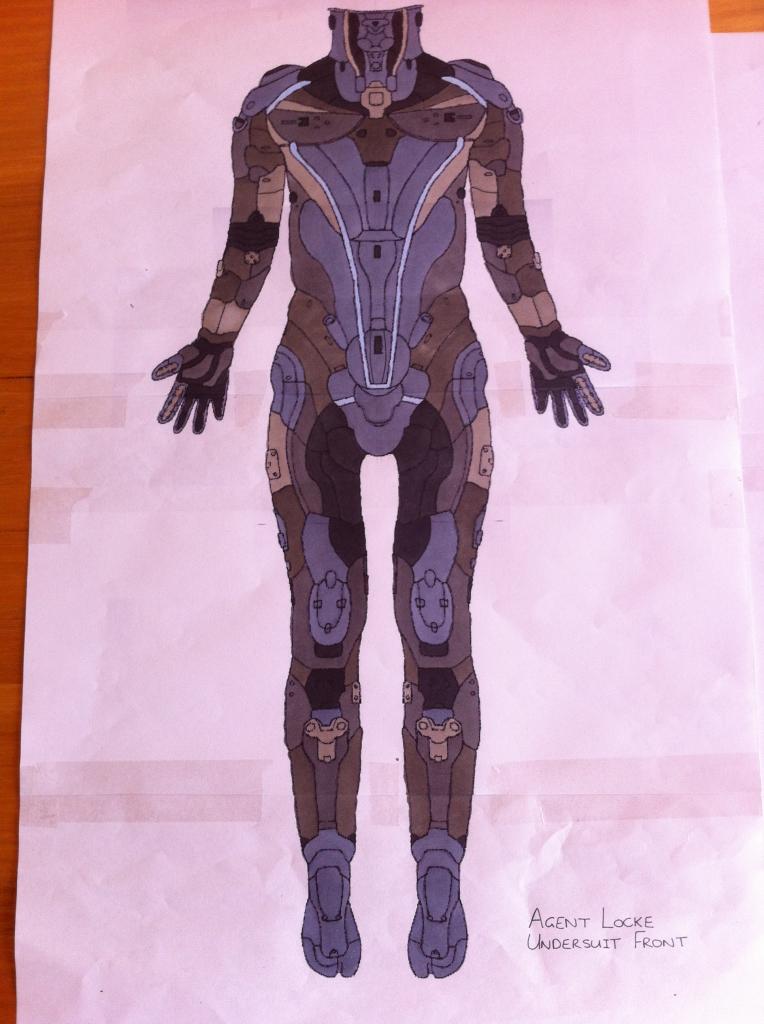

Finalised fabric concepts are now complete.

After work I plan to begin creating the undersuit from the feet up.
I will be using 5 different fabrics to create it.
The current plan is to have the undersuit as one piece, but when I have worked my way up to the torso I will work out the best locations for zips.









.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

It begins with one small step...



.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT [Again]:

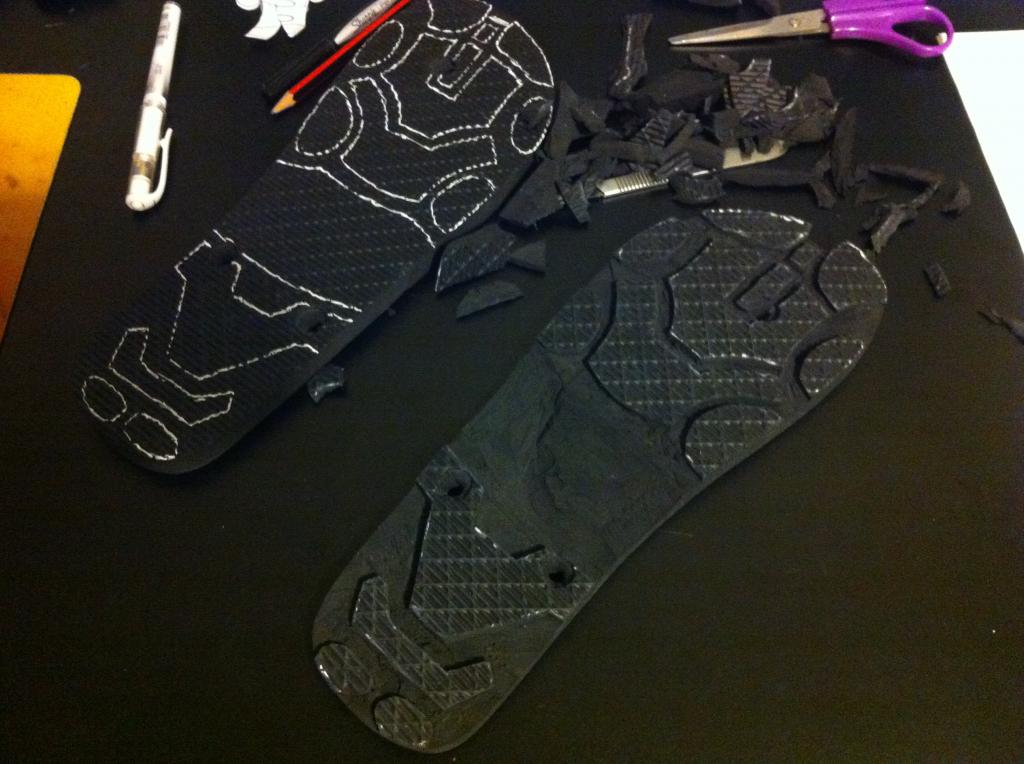

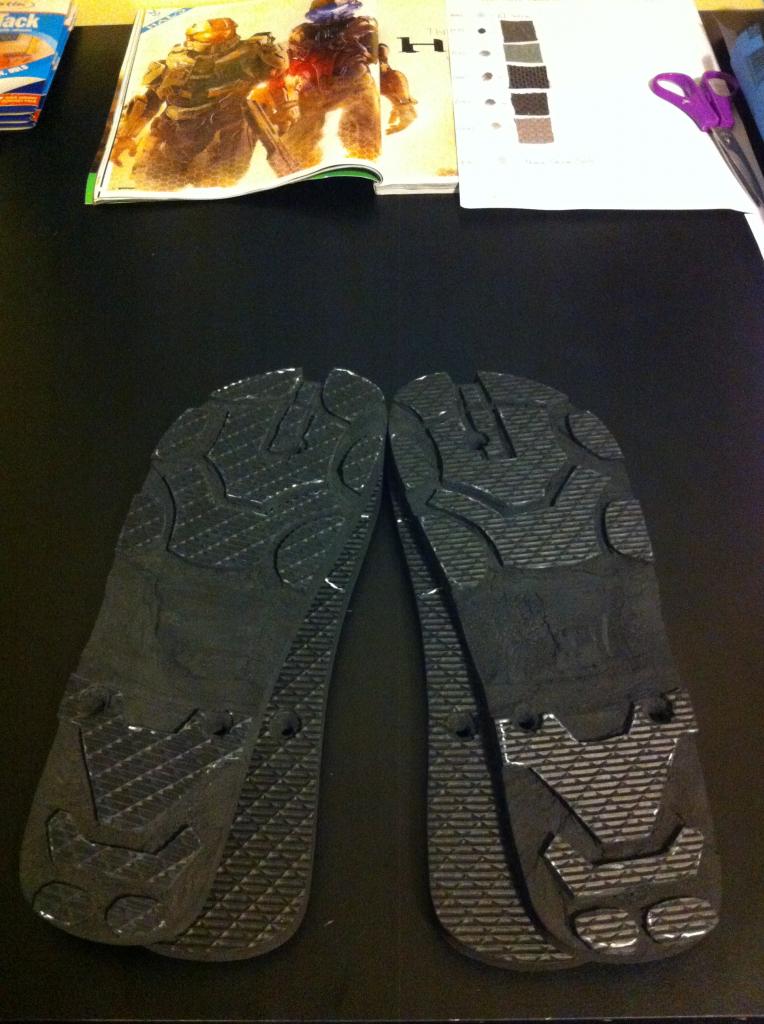

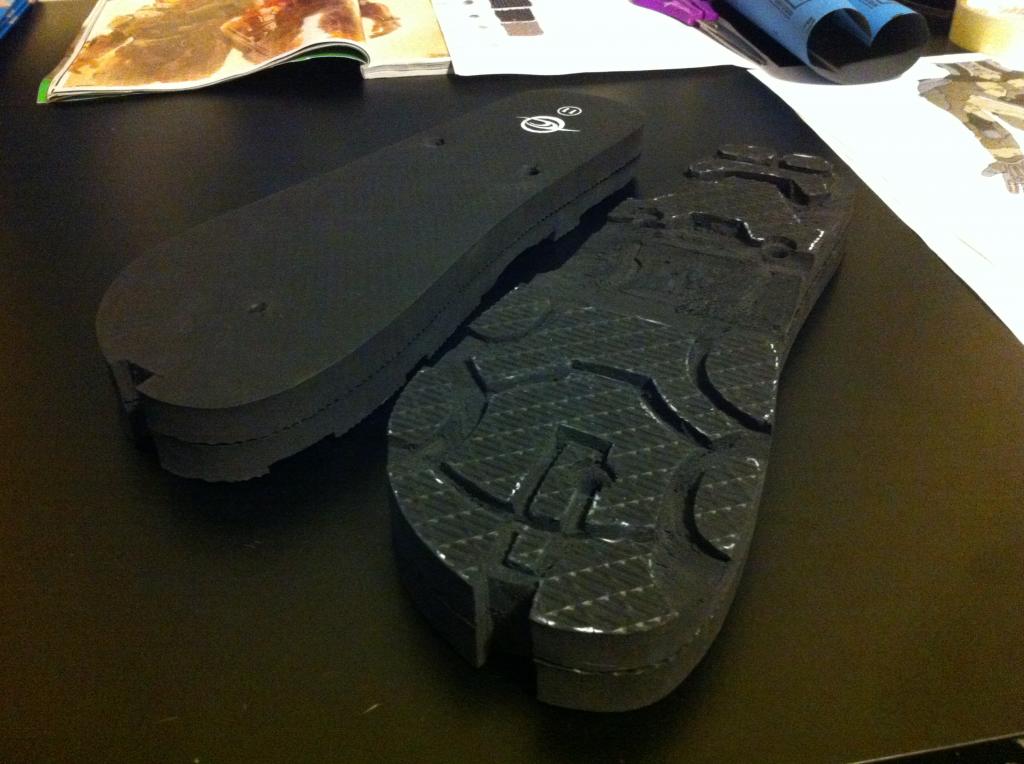

Both soles complete.

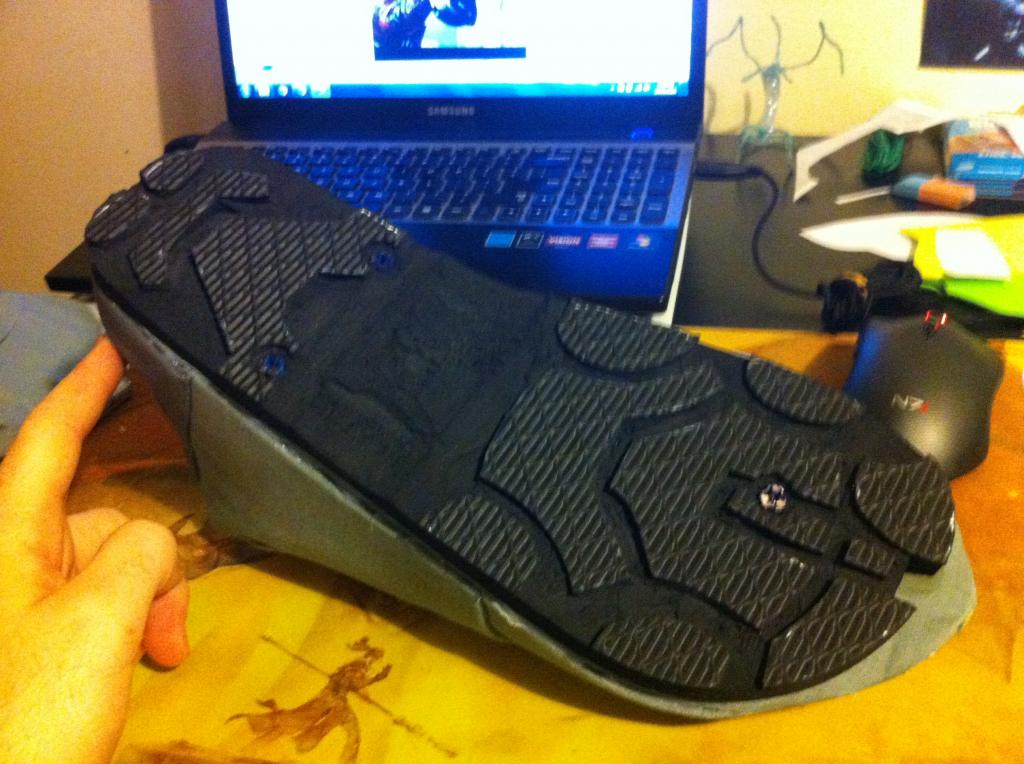

If your wondering how I am going to be making the shoe part of the undersuit, I plan to have 2 sole pieces for each foot.
The carved one will be on the outside of the fabric, and will be connected to the inner sole by 3 bolts [where the thong straps normally are].
The fabric will run between the 2 sole pieces and be held in place by the bolts.
This should make the boots pretty durable and also replace able if need be.





Got the day off tomorrow, so I will be working on it pretty much all day.
Next update soon...



[Roku]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Wow O.O! I'm blown away by not only how it looks, great foam work. But also by your referencing and just the dedication to this build is awesome!

Looking forward to seeing this progress looking good so far.



[ferret304]

Re: Halo 5 Agent Locke (New Oni Spartan) Pre-game Helmet Build [Stage 4 COMPLETE]

I got it from my local fabrics store after about 20min of searching.
I believe the fabric is just called Hamlet.

May I enquire as to what the fabric store is?



[Zoogami Snowfox]

Re: Halo 5 Agent Locke (New Oni Spartan) Pre-game Helmet Build [Stage 4 COMPLETE]

Wow O.O! I'm blown away by not only how it looks, great foam work. But also by your referencing and just the dedication to this build is awesome!
Looking forward to seeing this progress looking good so far.

Thankyou I appreciate the complement.
As for an update, I have a small one today.

May I enquire as to what the fabric store is?

[Kennedy's] Discount Decor, Bega.
Basically a curtain fabric store.

Update time:
Slow progress, but none the less progress.

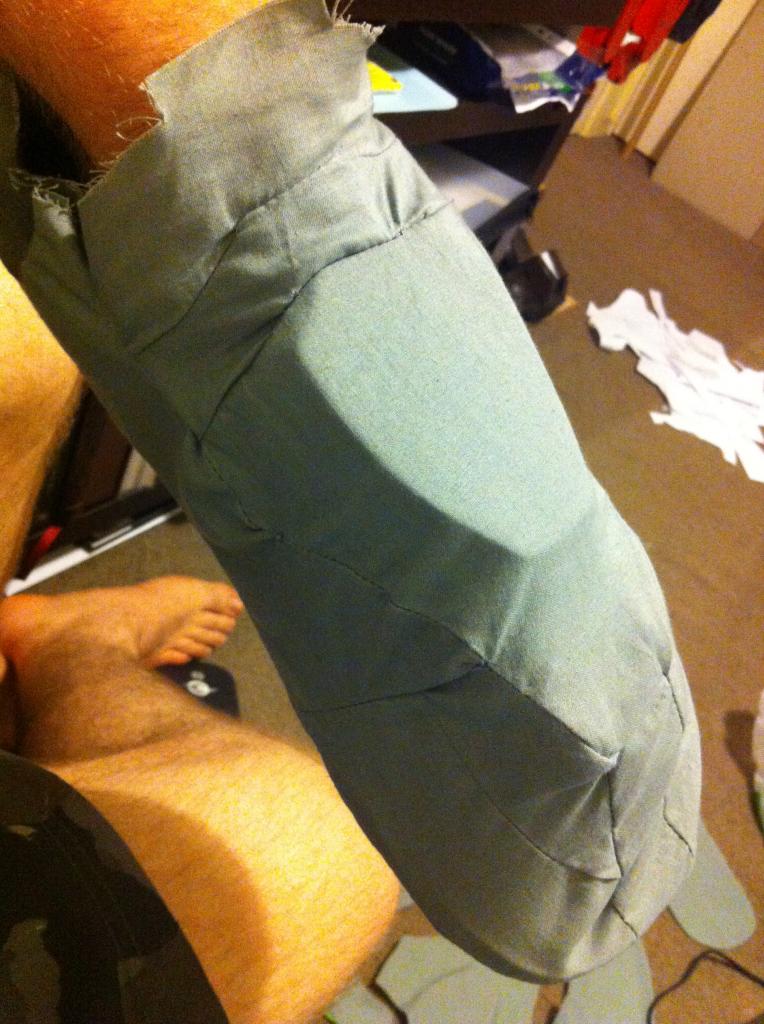

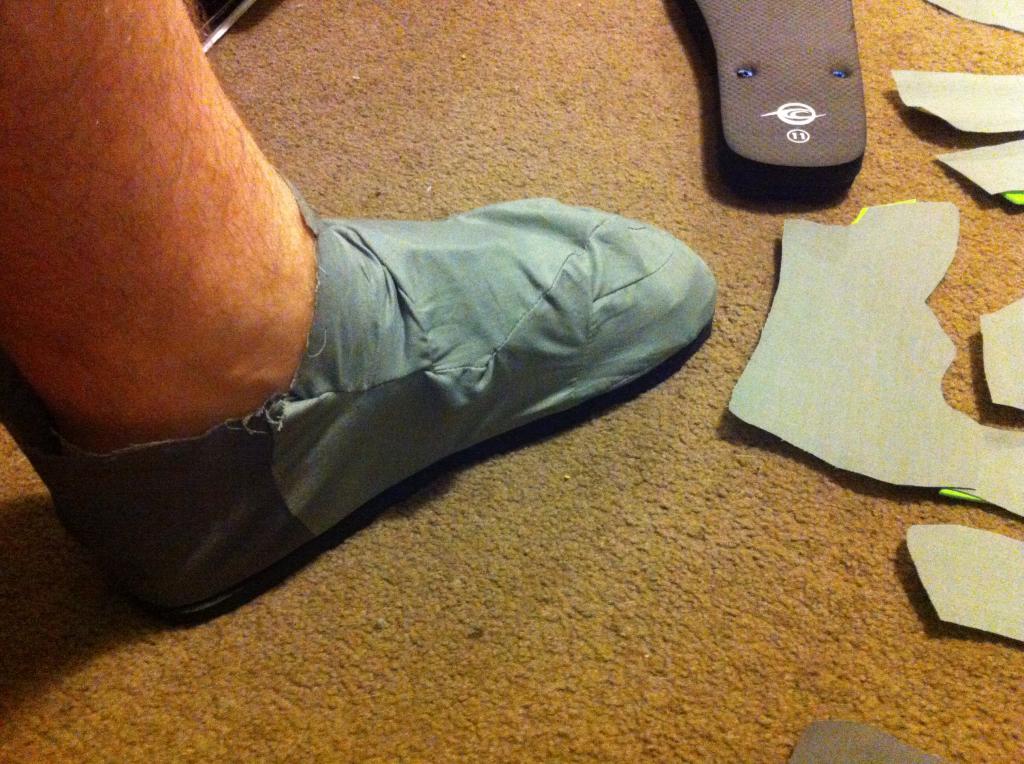

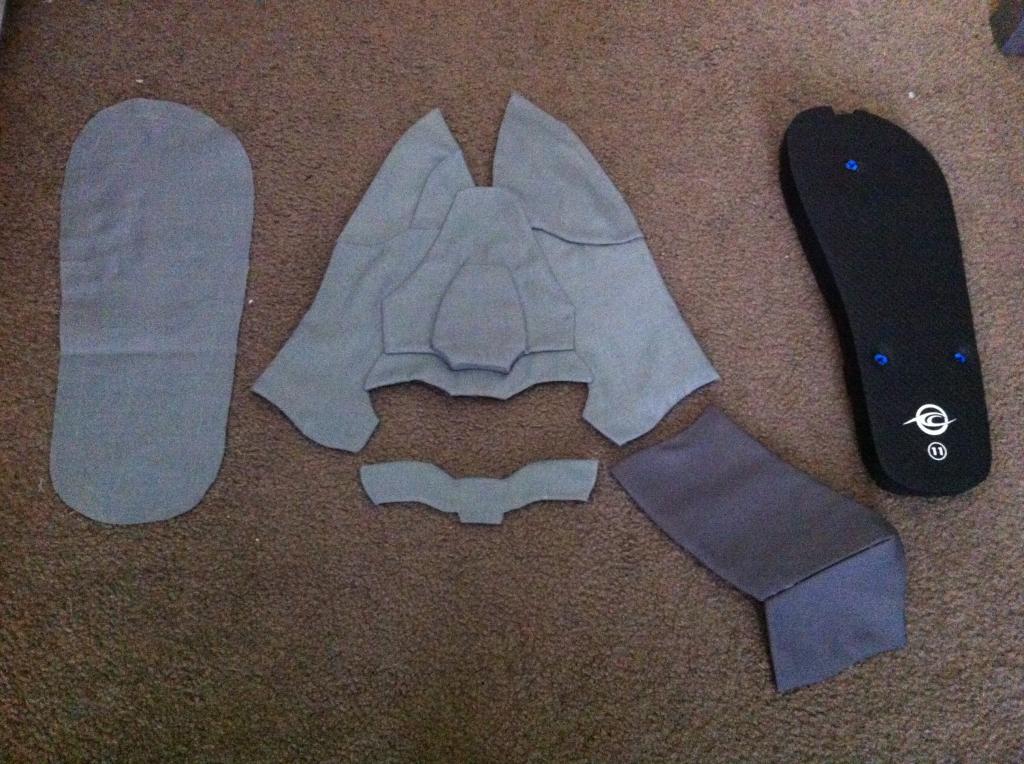

I boot sewn together [pre reinforcing with interior foam / finalising]



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

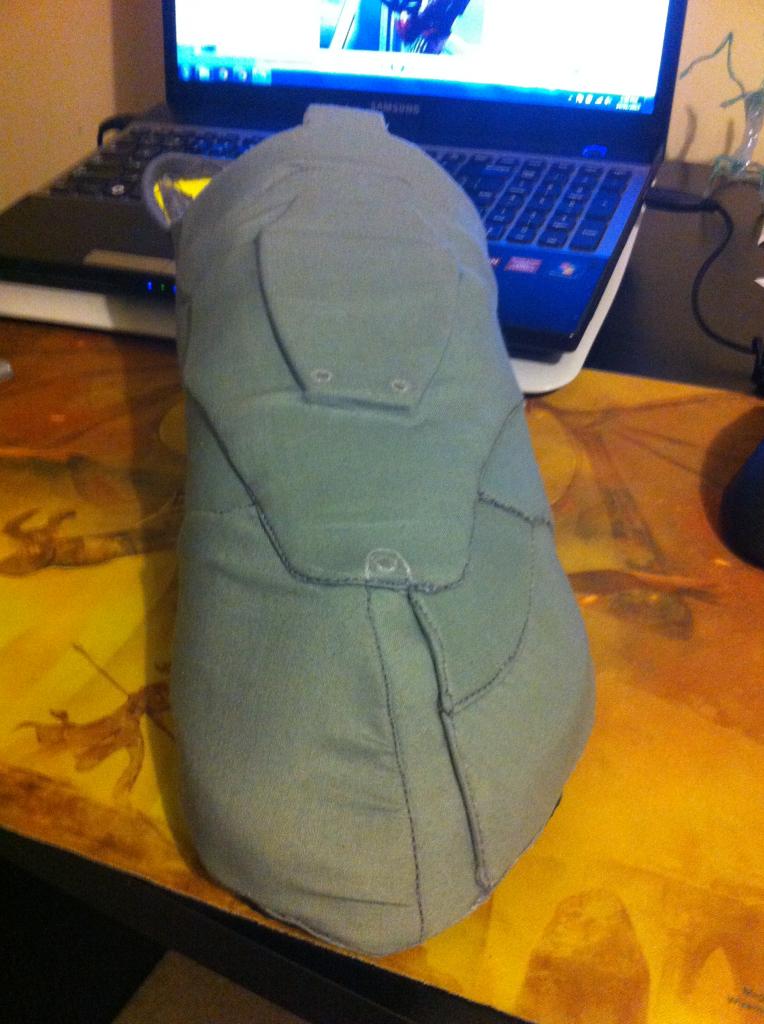

I didn't like how boot attempt no. 1 was turning out, so I decided to start again.
I feel it looks alot better with attempt no. 2
Now I have 1 boot basically finished.
Onto boot 2...







Old vs New.

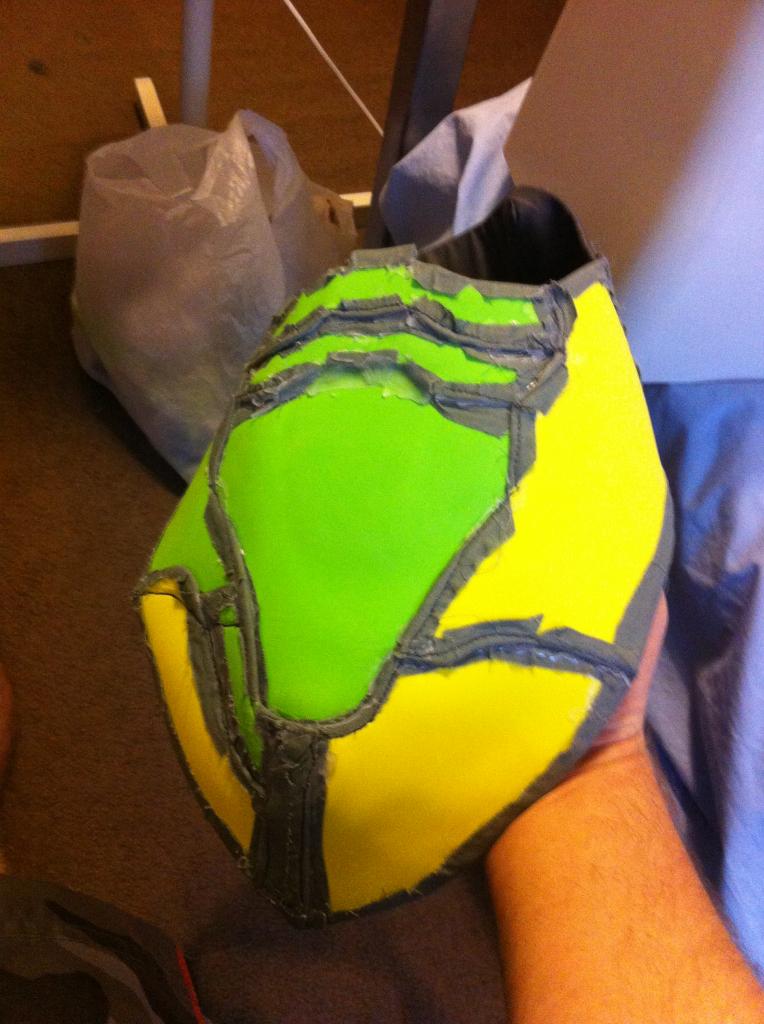

Inside the boot pre-sole attachment.



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

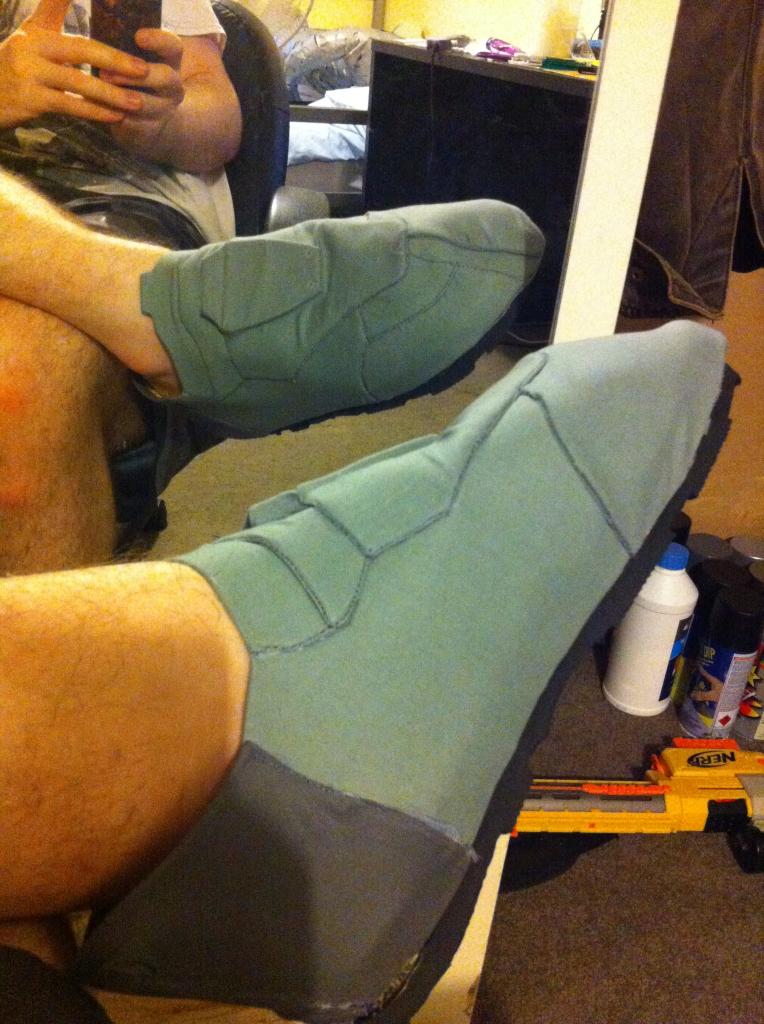

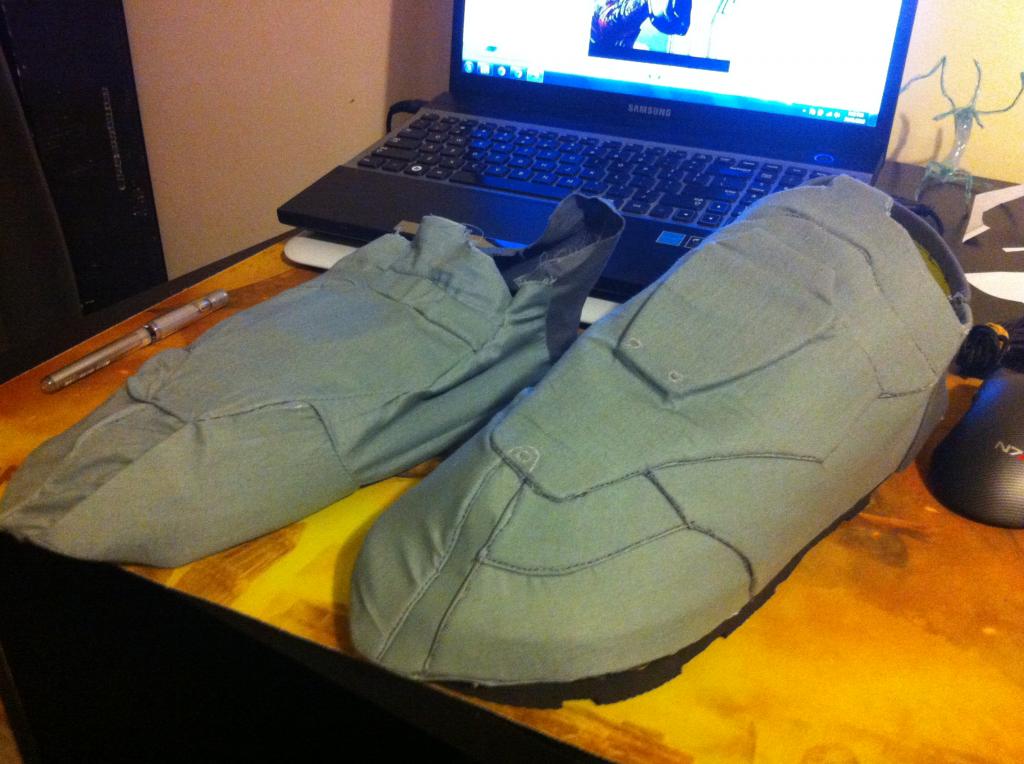

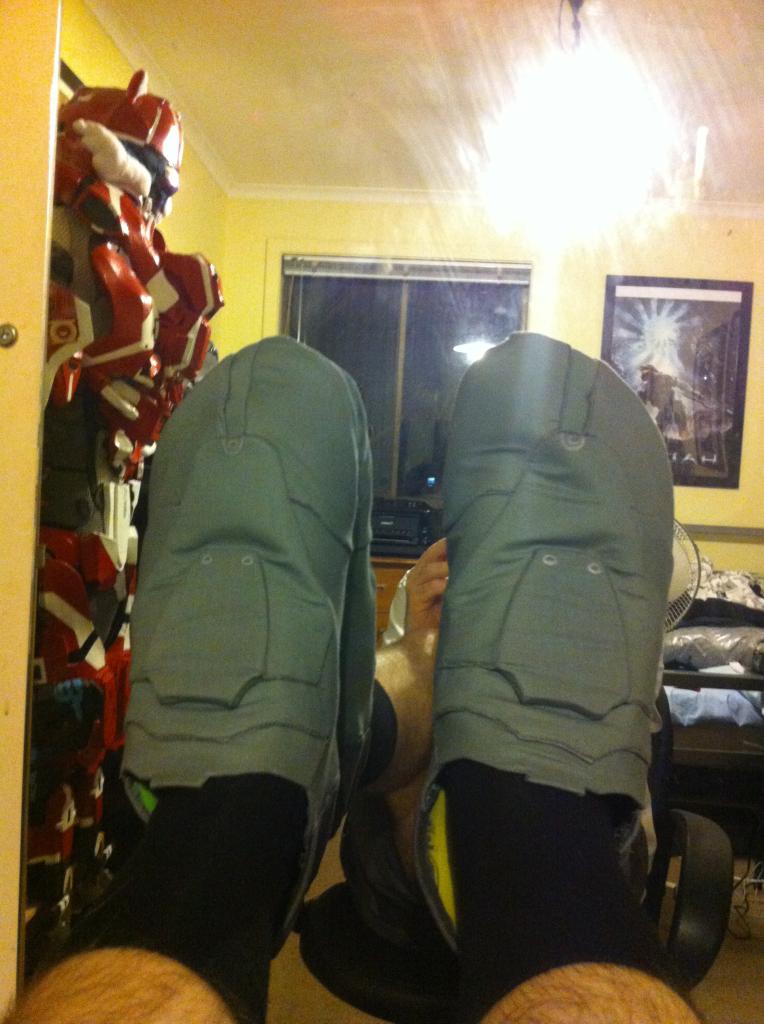

And then there was 2.
Technically this is my 1st ever built pair of shoes, minus the Halo 4 suit thongs.
I took them for a test run, and they work just like runners... halo runners

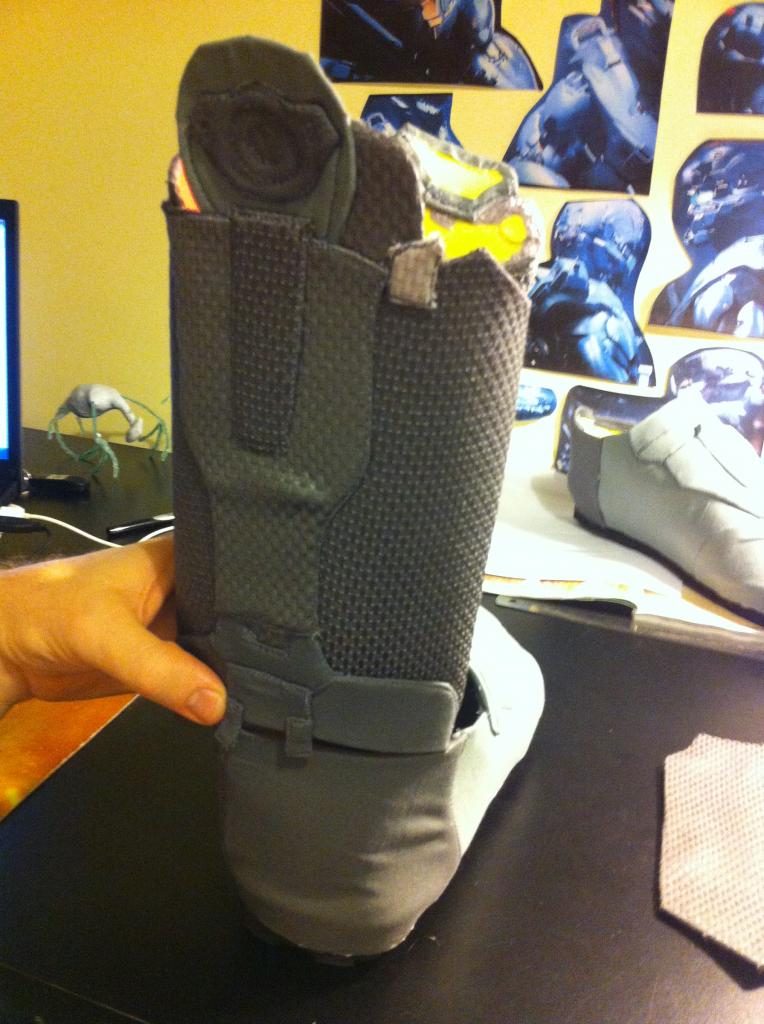

Now to begin working my way up the legs...



.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

Small progress after work tonight.

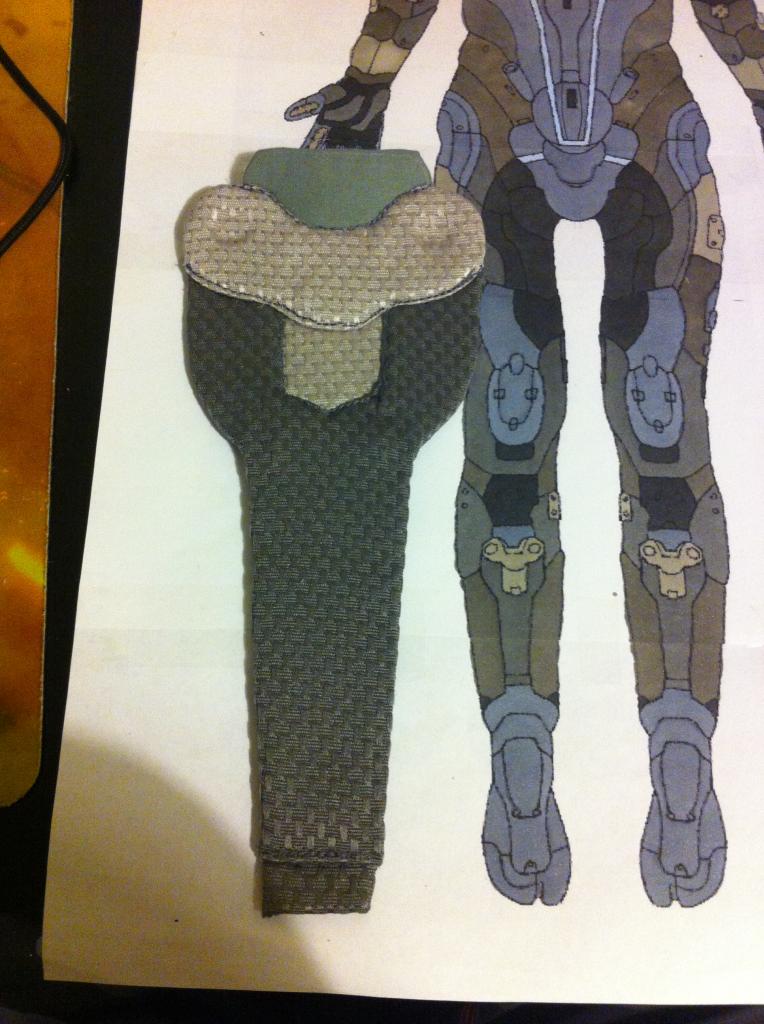

1st time using the hexagon like pattern. I think its going to work well.
Only downside is that most of the leg part of the undersuit won't be visible with the armour on... then again I could always go as a non-armoured spartan



Anyway more updates soon...



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

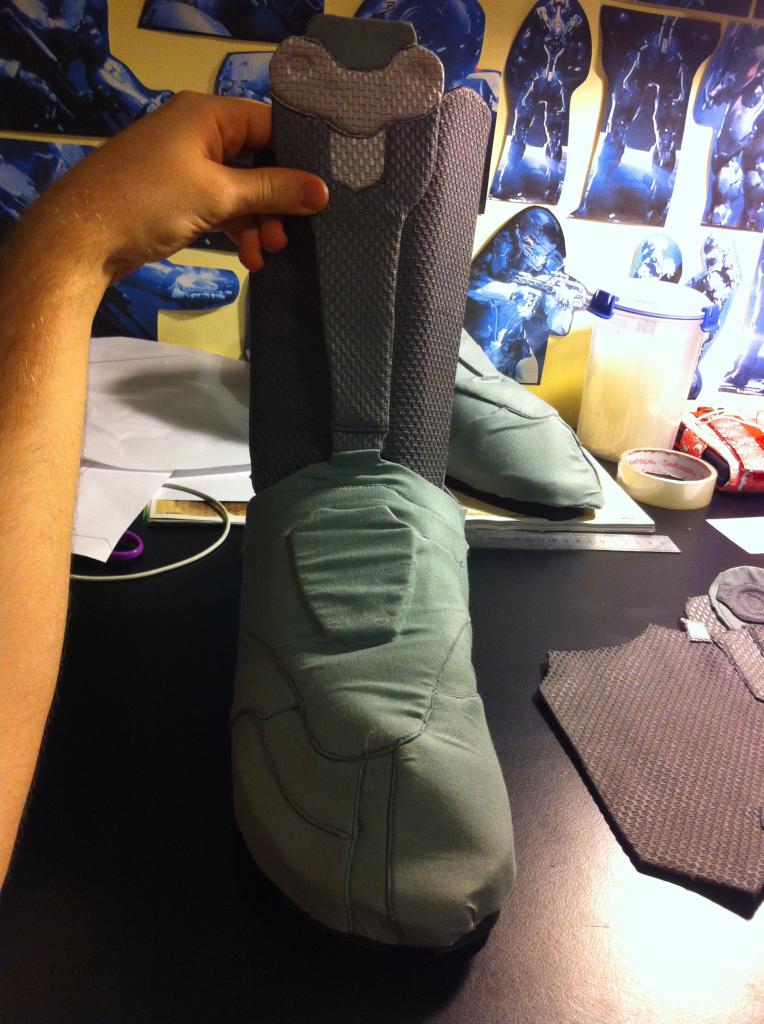

The undersuit begins to crawl up my legs

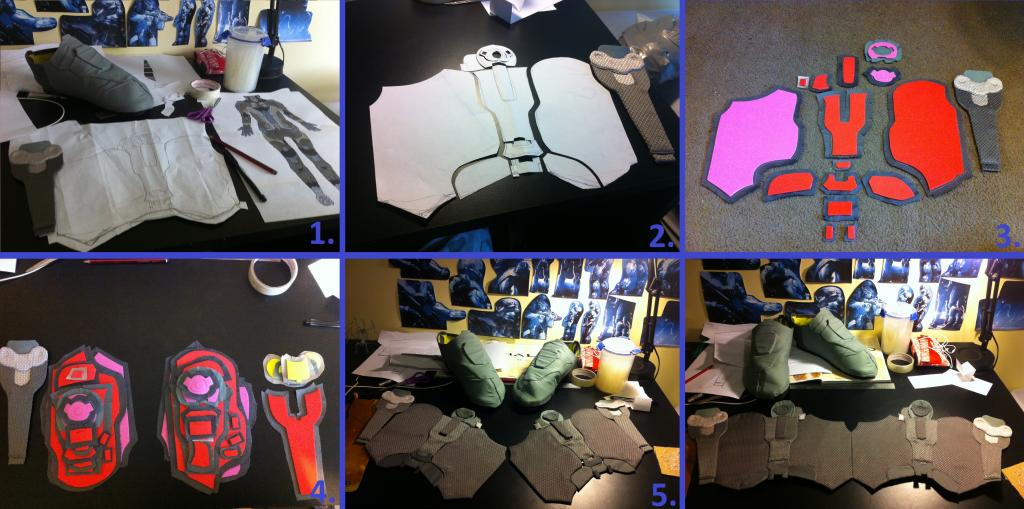

If you have been wondering what my progress to build this is, I follow a few simple steps [only downside each step takes a while]

Step 1: Free-hand pattern using undersuit sketch concepts as my reference.
Step 2: Create my templates.
Step 3: Cut out fabric and foam pieces for each template [x2]
Step 4: Iron each piece.
Step 5: Glue fabric to foam.
Step 6: Sew together.

This is my progress from today, and I mean ALL day.
Its a shame I couldn't get more done today, but unfortunately it takes alot of time to make.

BUT there is always tomorrow .
For now I will sleep...



[Noble 10]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

dude amazing



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

dude amazing

Thanks

Not the update I wanted to post tonight, but alas I ran out of sewing thread just before finishing the undersuit up to the waist.
To assist with movement while wearing this I have put elastic between pieces at the back of the leg.
I plan to attach elastic between the boot / lower leg area to also assist in movement, but at the same time make it easier to take the undersuit on / off [foot wise].
Next update soon





.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

Almost have the legs complete, just currently adjusting bits to allow more flexibility.



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

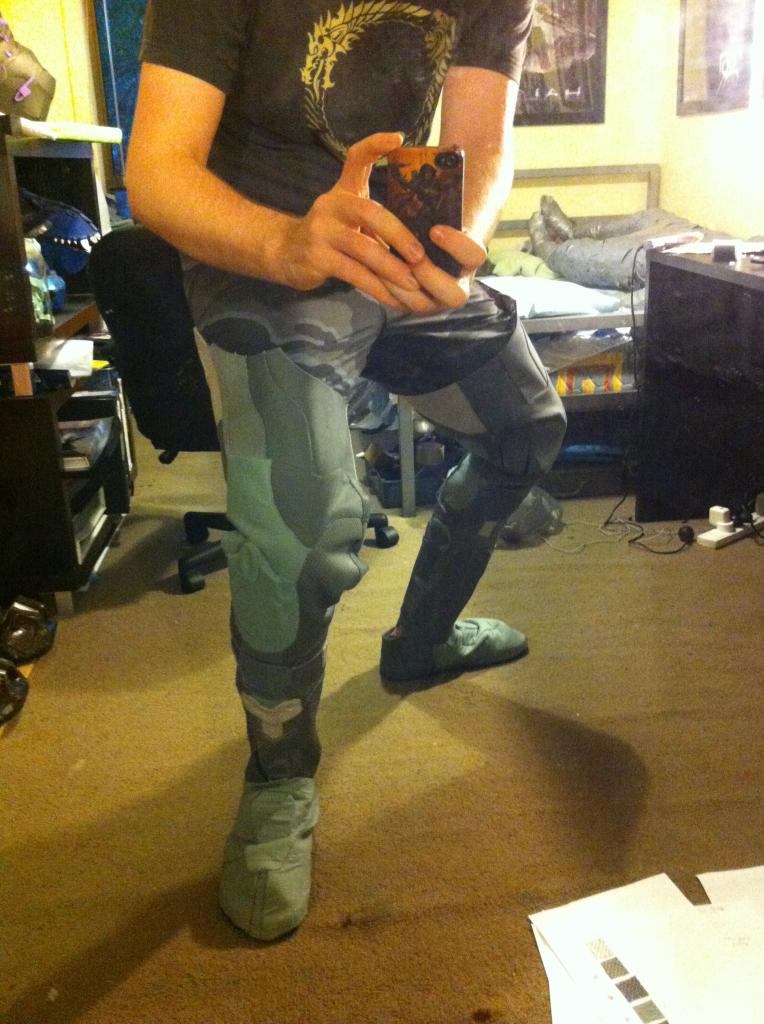

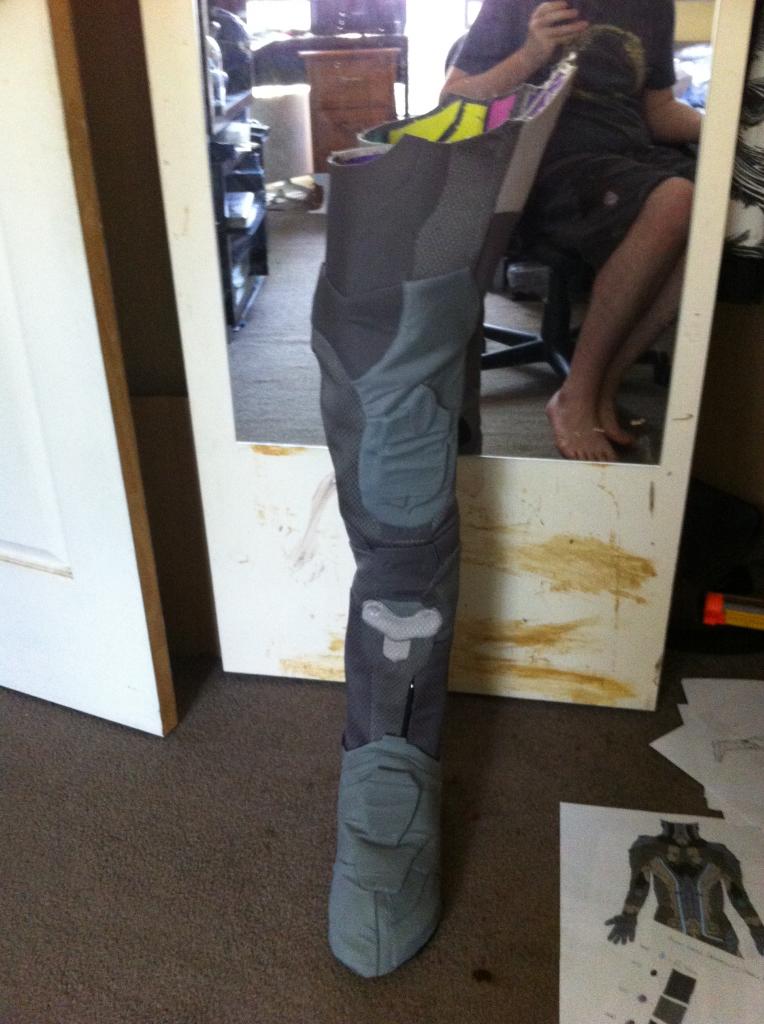

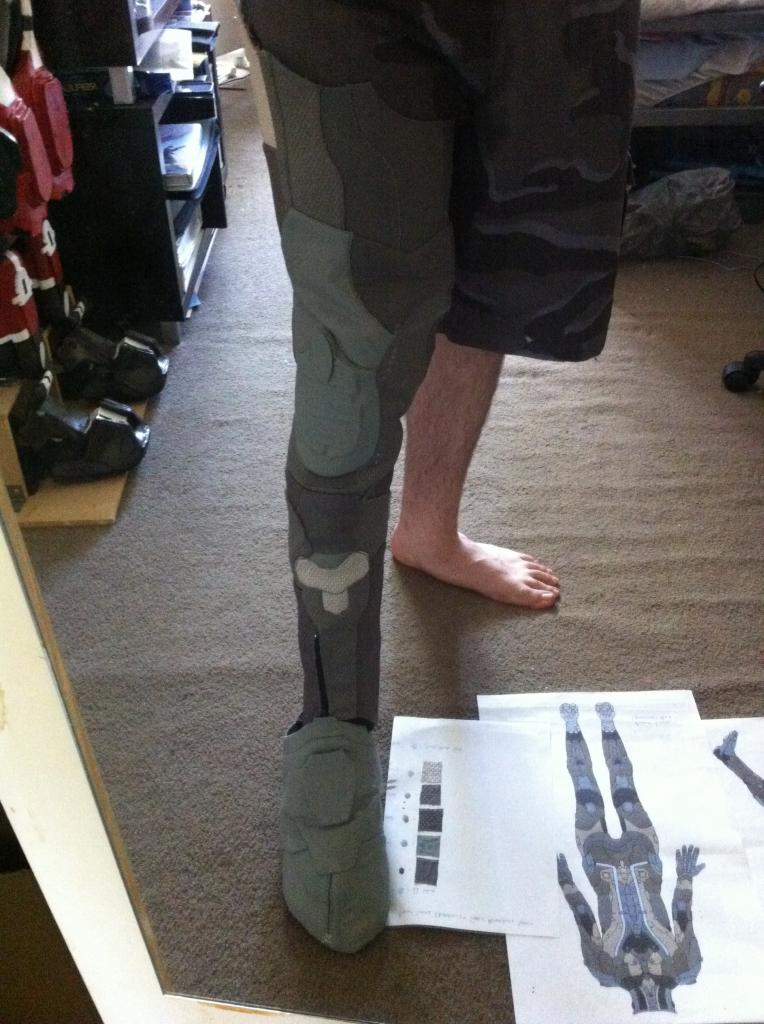

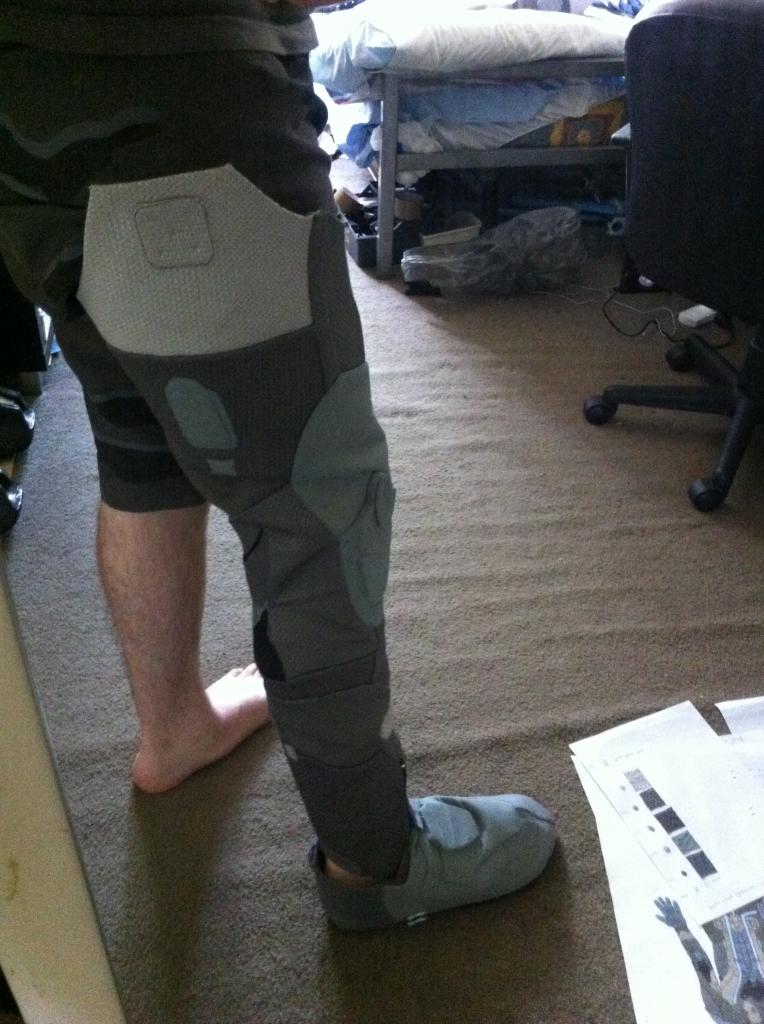

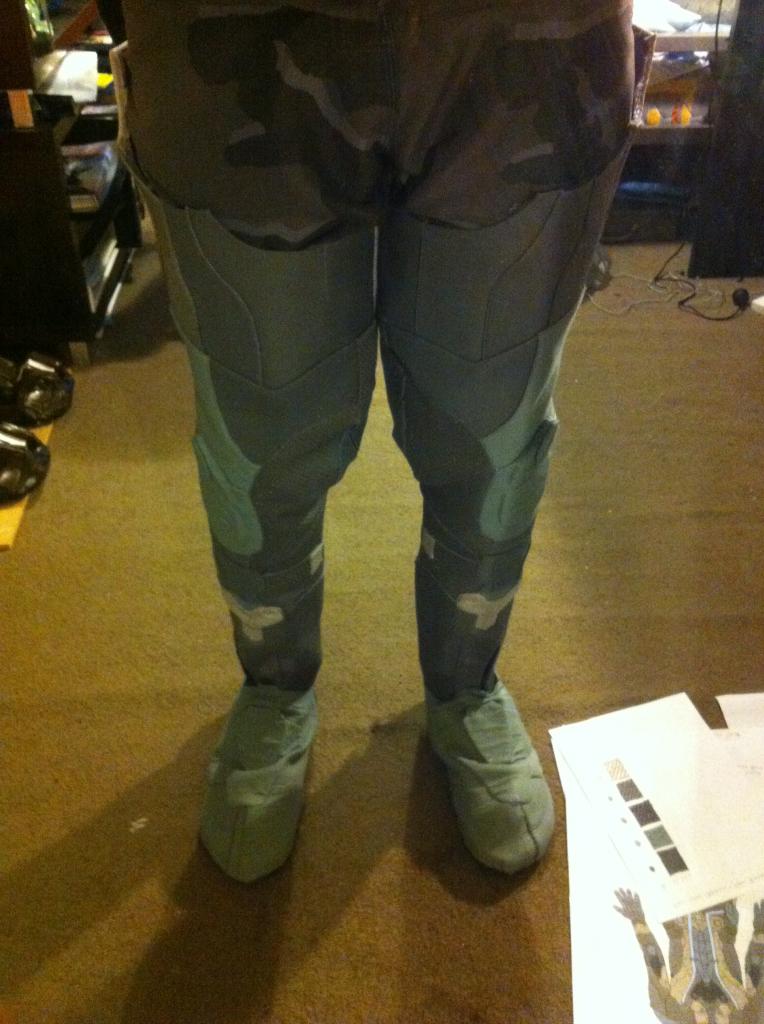

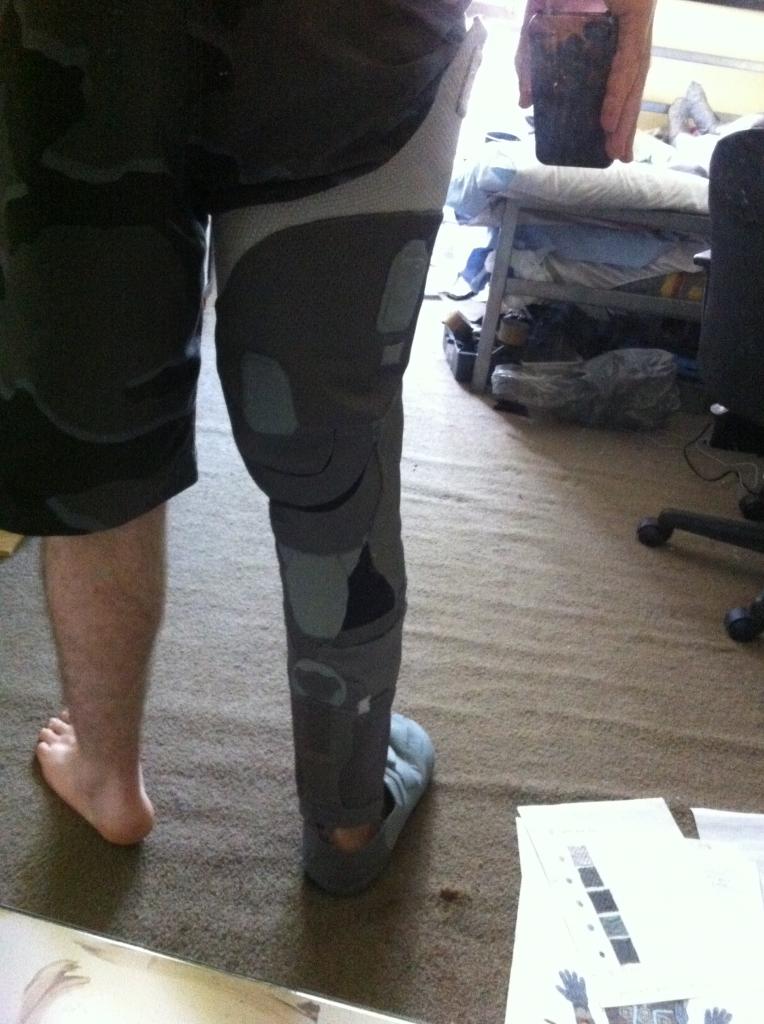

One leg complete, second almost done.
My not be the best looking at some spots but I'm happy with how it turned out. Movement is also pretty good.
To get it on I had to add a small zip at the bottom to allow my ankle through.
Not sure how I will attach it to the boots, but I will leave that for now.



[Termhn]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Just the undersuit by itself is going to be a work of art!



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Just the undersuit by itself is going to be a work of art!

Thanks I am hoping it will work out well when done.

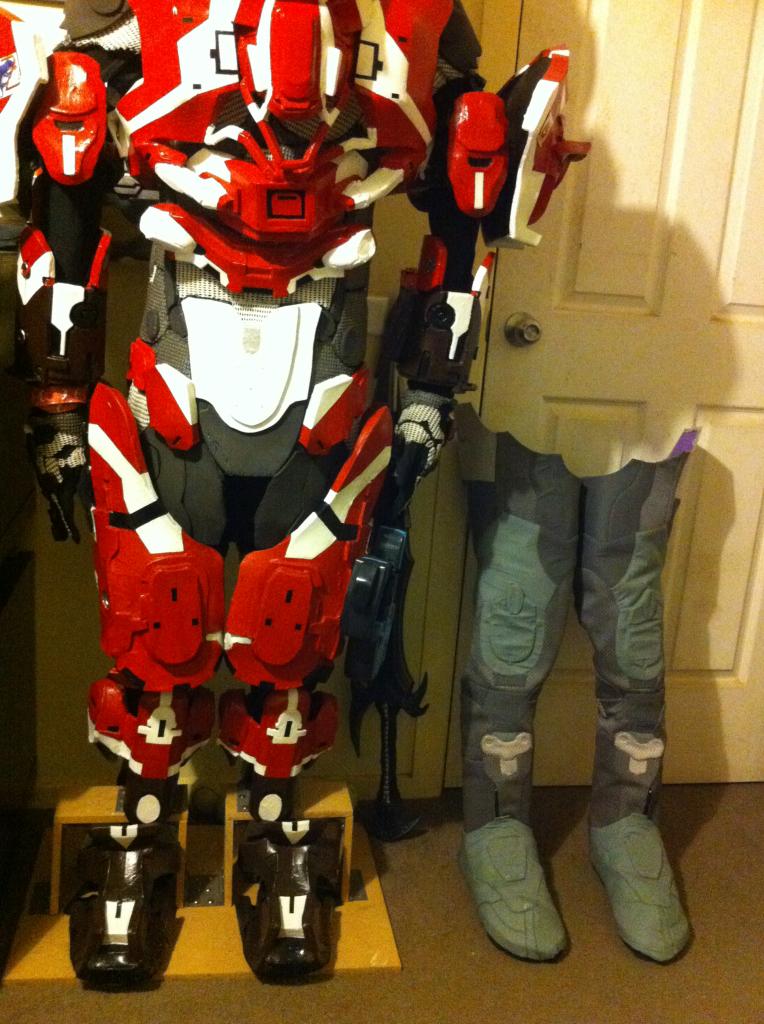

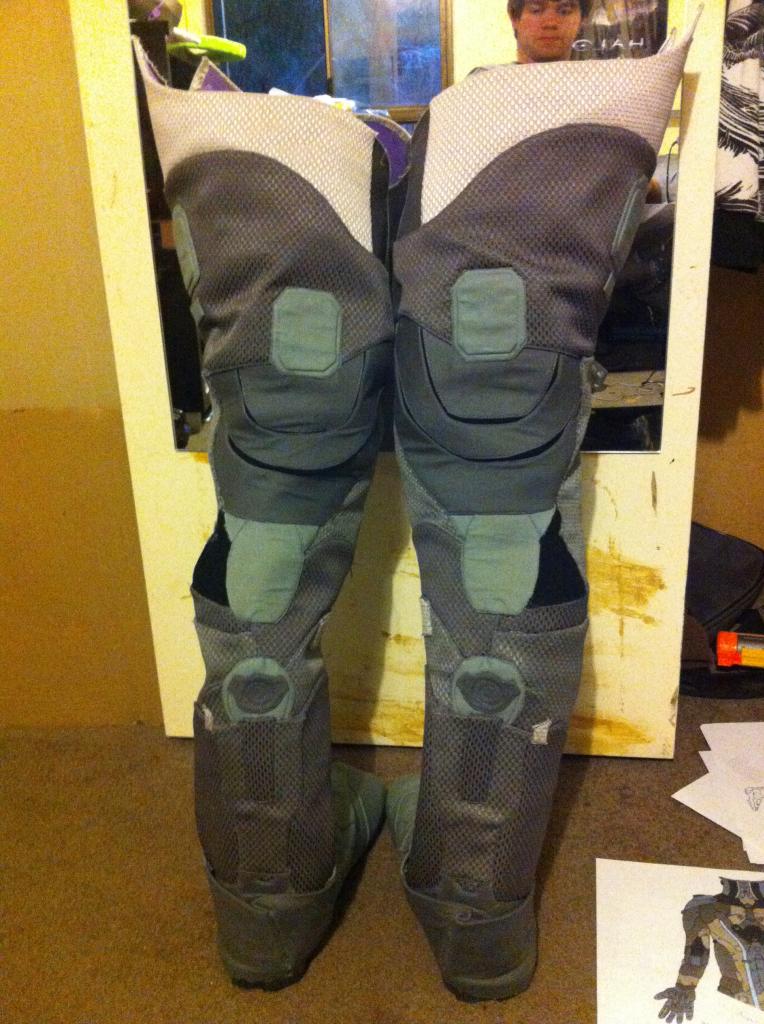

Both legs are finally complete, my hands are so sore. [Damn hand sewing] A little tight atm but I am sure after a little while they will get better. The main issue will most likely be overheating in them... Will have to work something out later. For now more pictures
Boots aren't connected yet, will most likely use zips / velco...









Next up the waist...



[The Chief Master]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Not to rush you or anything but... MOAR pics please!!! Things are looking amazing so far!



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Not to rush you or anything but... MOAR pics please!!! Things are looking amazing so far!

Request Approved:

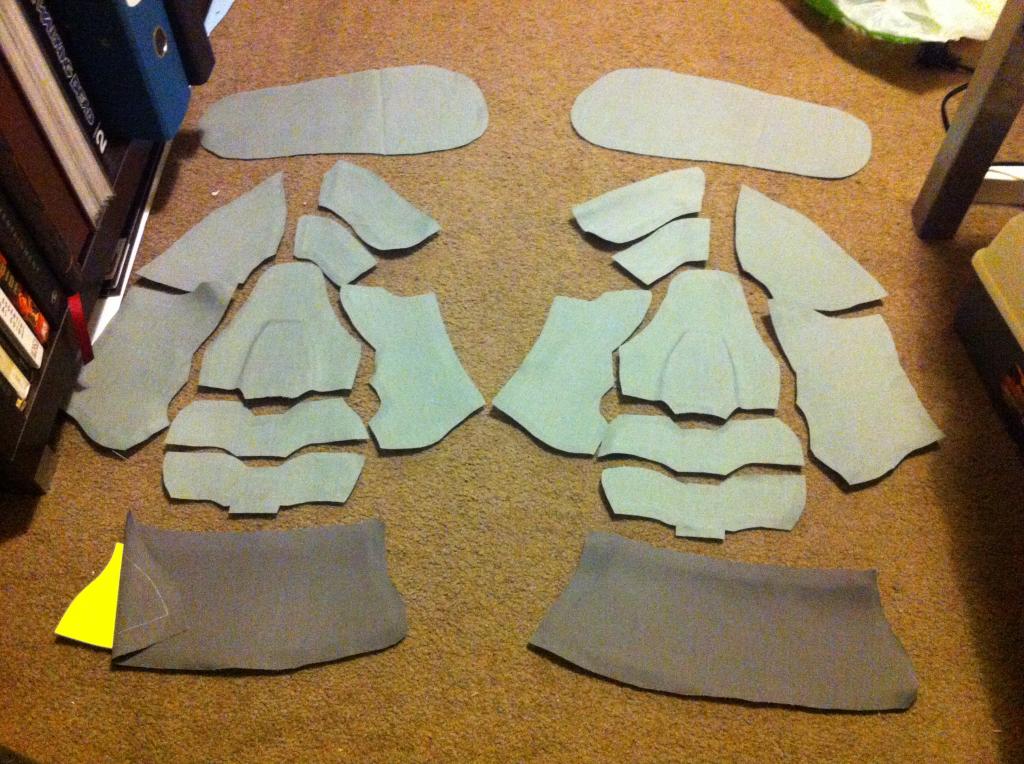

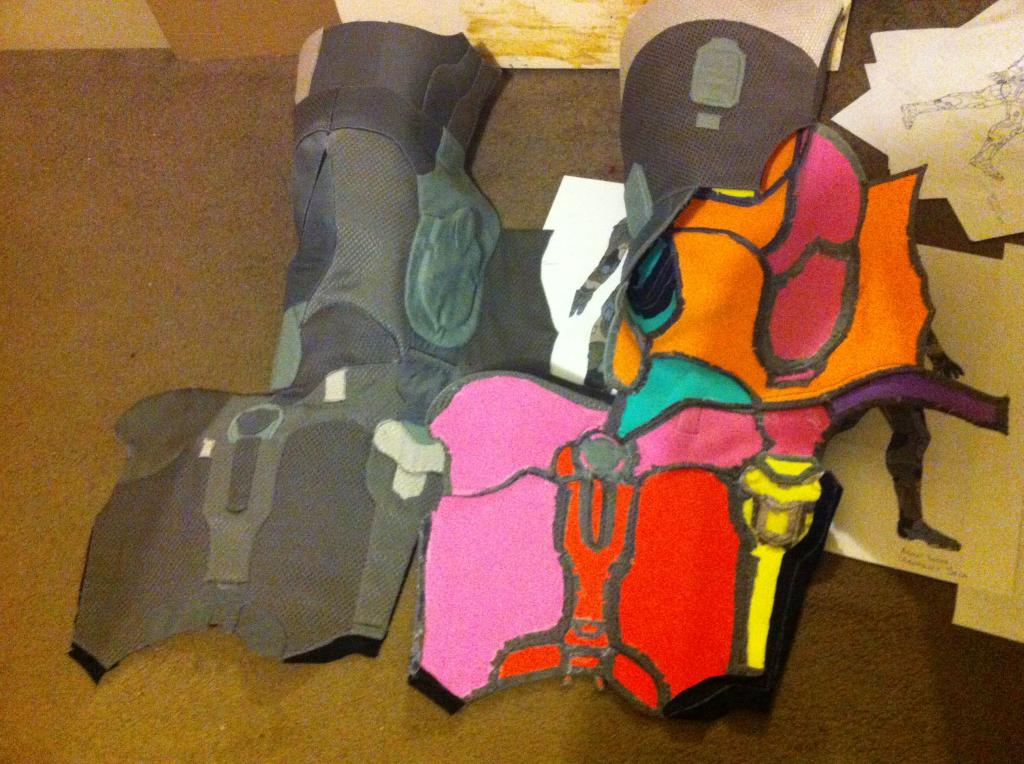

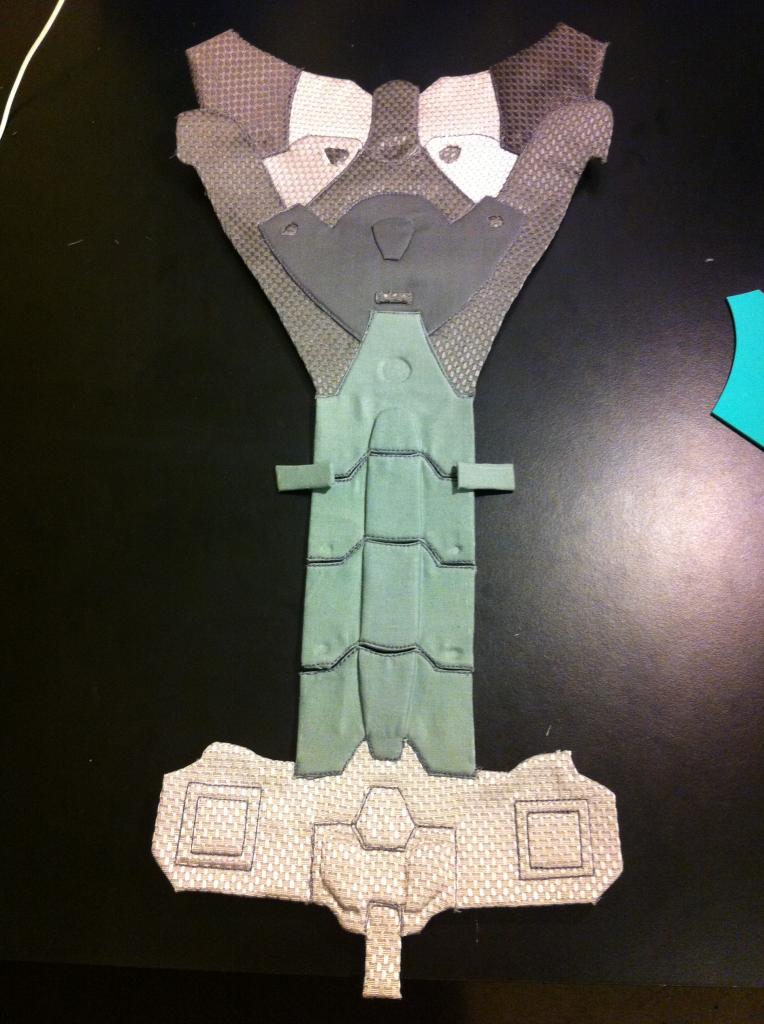

The undersuit torso begins...
I plan to use 2 zips [will be next to the El wiring] on the front to be able to take this on / off.





Next update soon



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

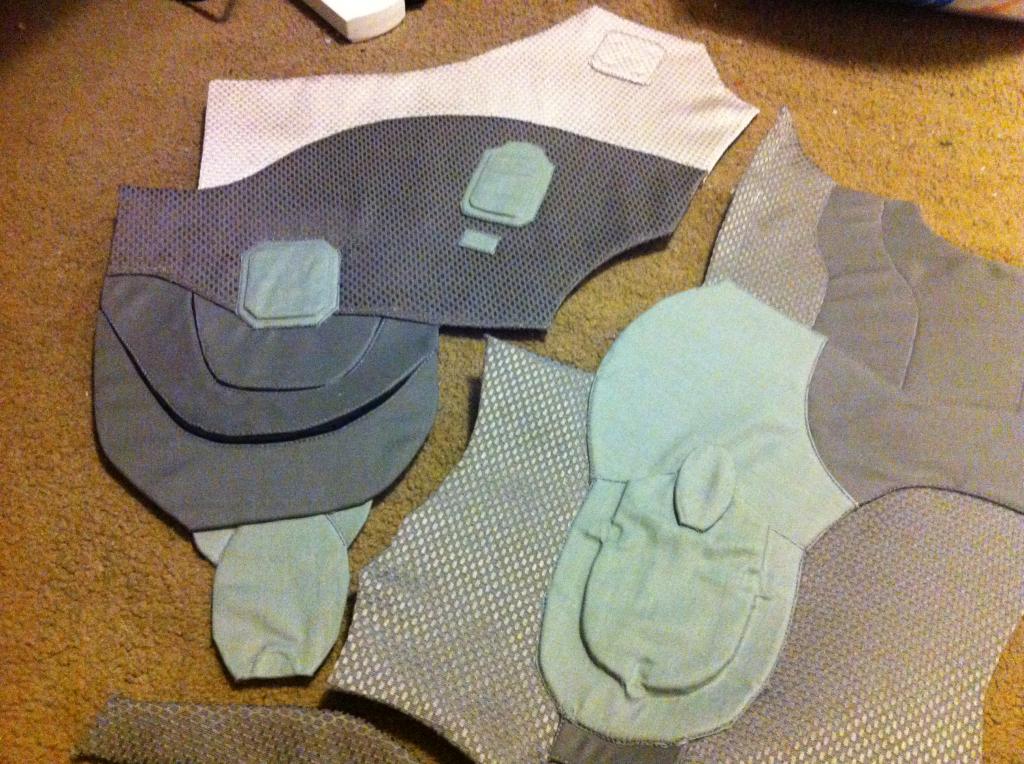

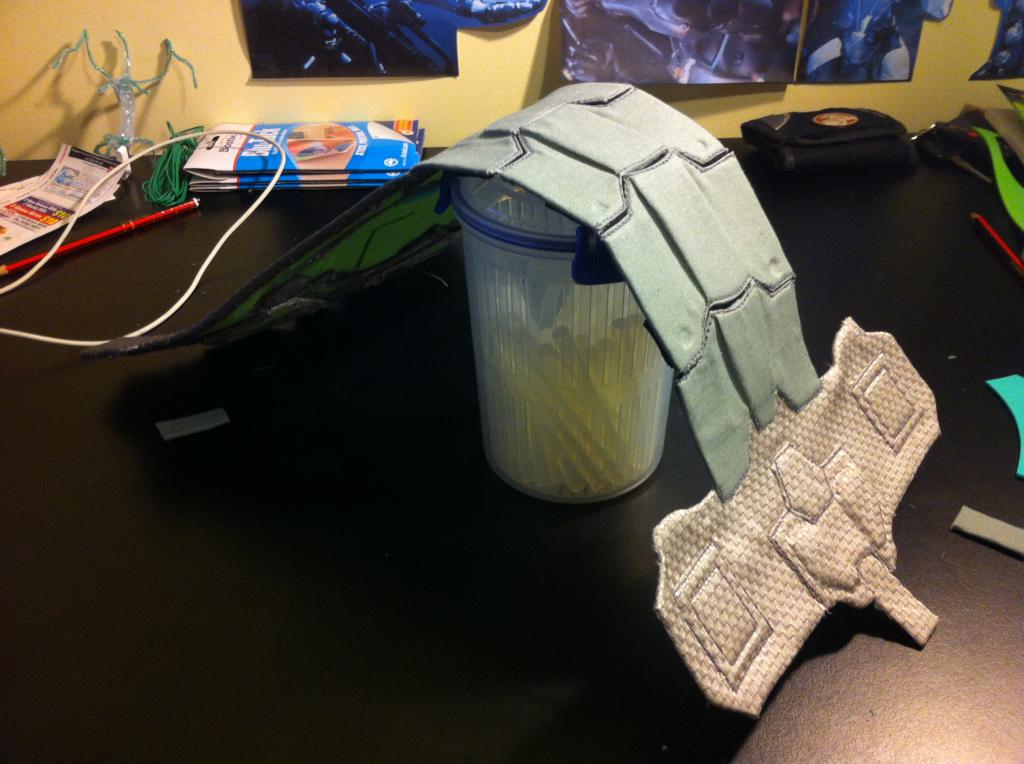

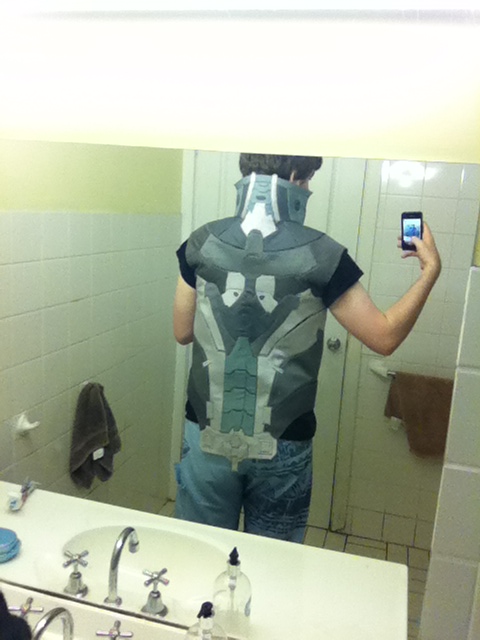

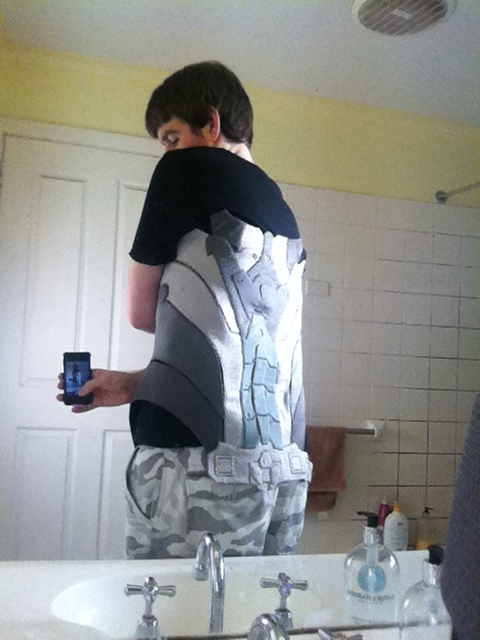

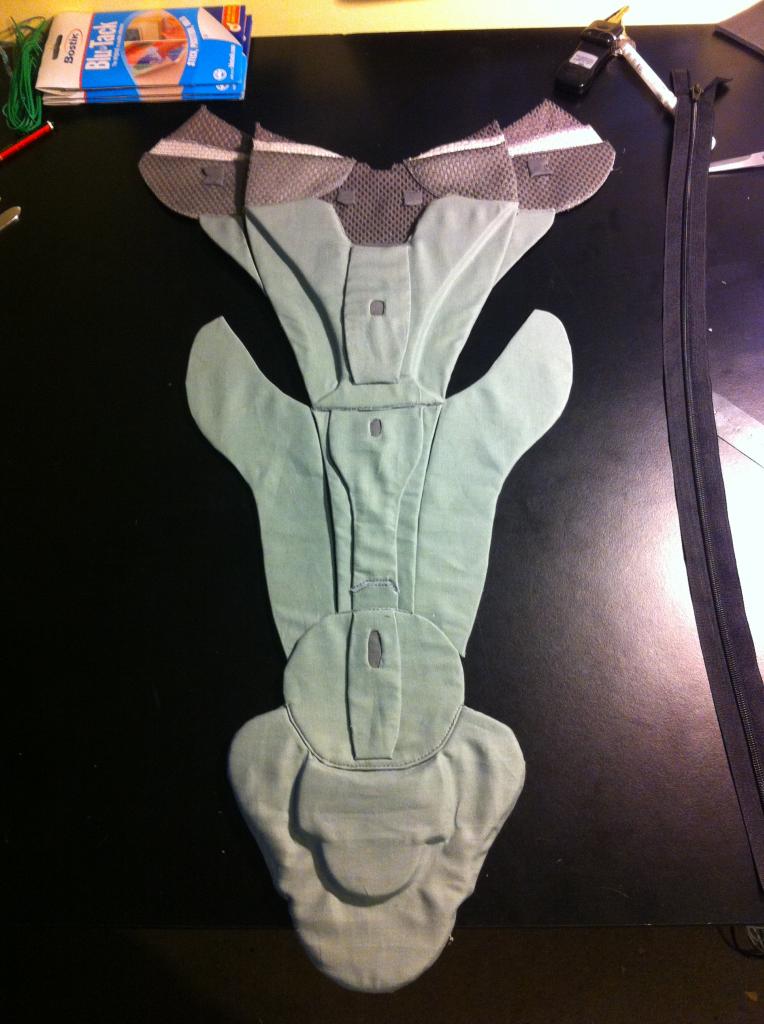

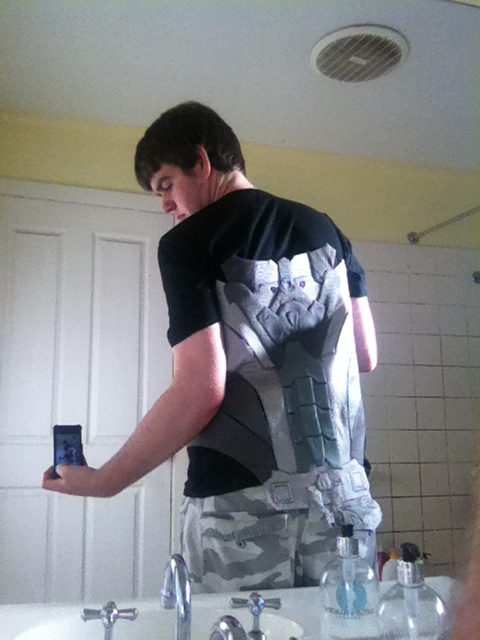

Another update on my undersuit progress but this time its the back.
I made the spine area have elastic between the pieces to allow for easier movement.





.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

Side thigh bits: [Check]
Lower waist: [Next]



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

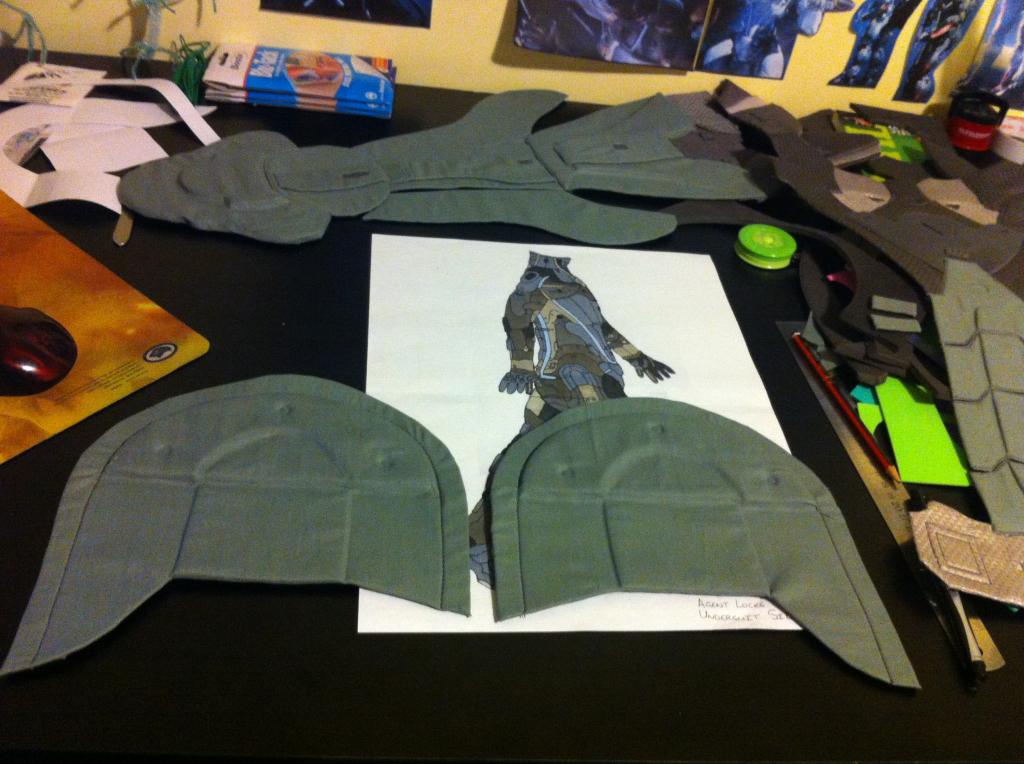

Starting to work on the waist sides.
Got the rest of the day to work on this so hoping to get a bit done




.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

IT FITS!!!
Waist area of undersuit is now complete.
All that is left to do with this bit is add the El wires and front zips.
These will be done at the end though.

[Test fit pics / Undersuit part inside and outside]



[GuitarMaster157]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Geez, man, this is looking nice... You work cleanly, and you work very well!

That's a killer undersuit, and if the armour is up to par, then this is going to be a killer final product



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Stage 4 COMPLETE]Working on Under

Geez, man, this is looking nice... You work cleanly, and you work very well!

That's a killer undersuit, and if the armour is up to par, then this is going to be a killer final product

Thanks man I just hope it will all work out in the end.
Compared to the undersuit the armour is going to be really easy.
As for being neat, the state of my room is lets just say 'really untidy'...

Update time:

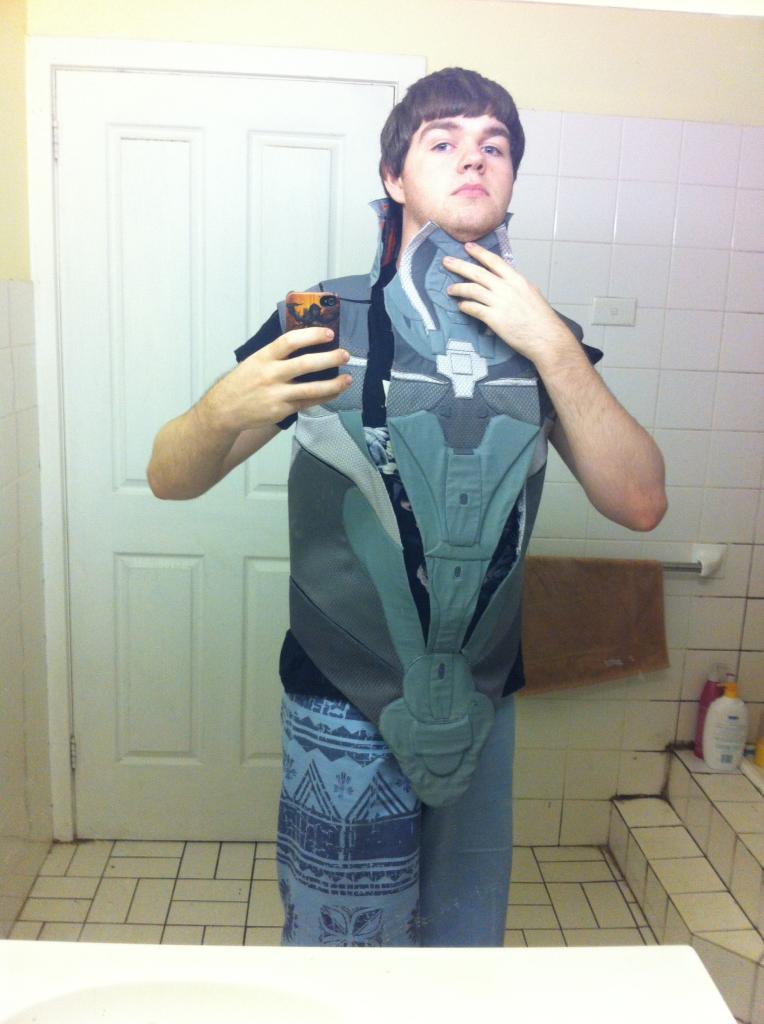

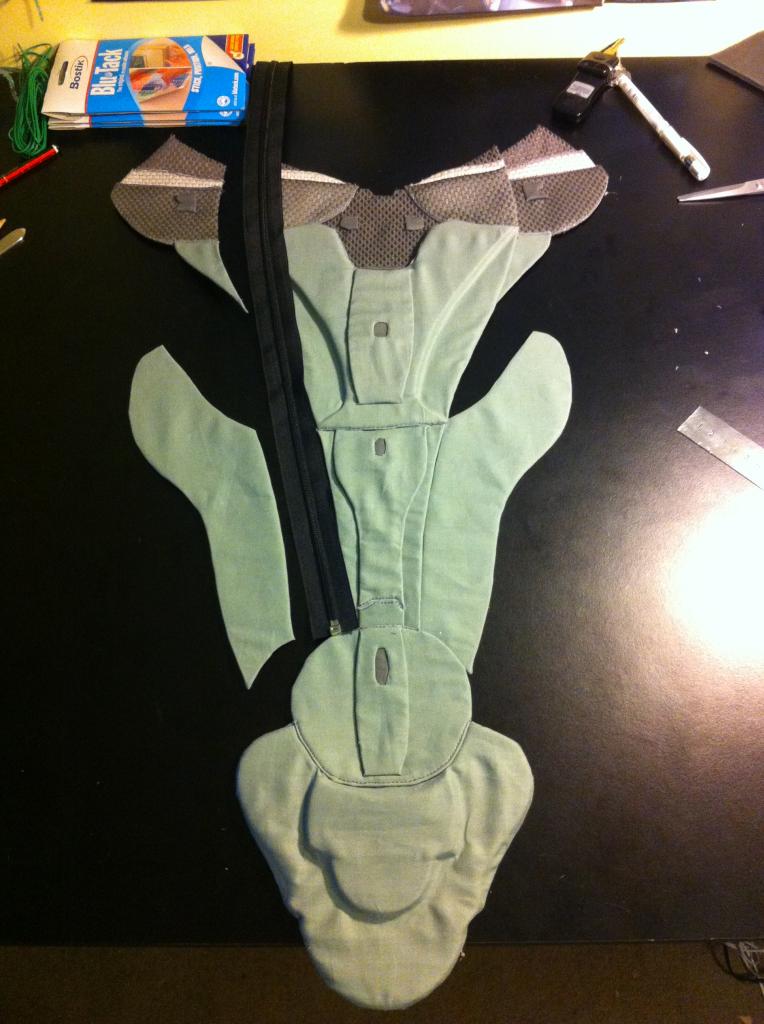

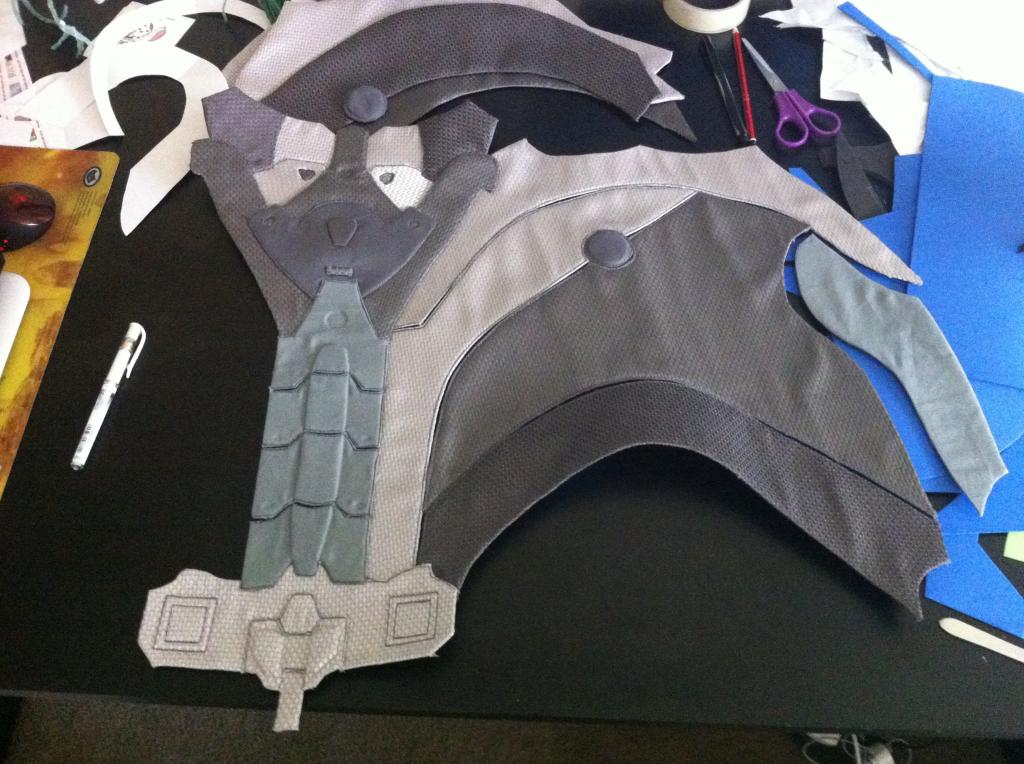

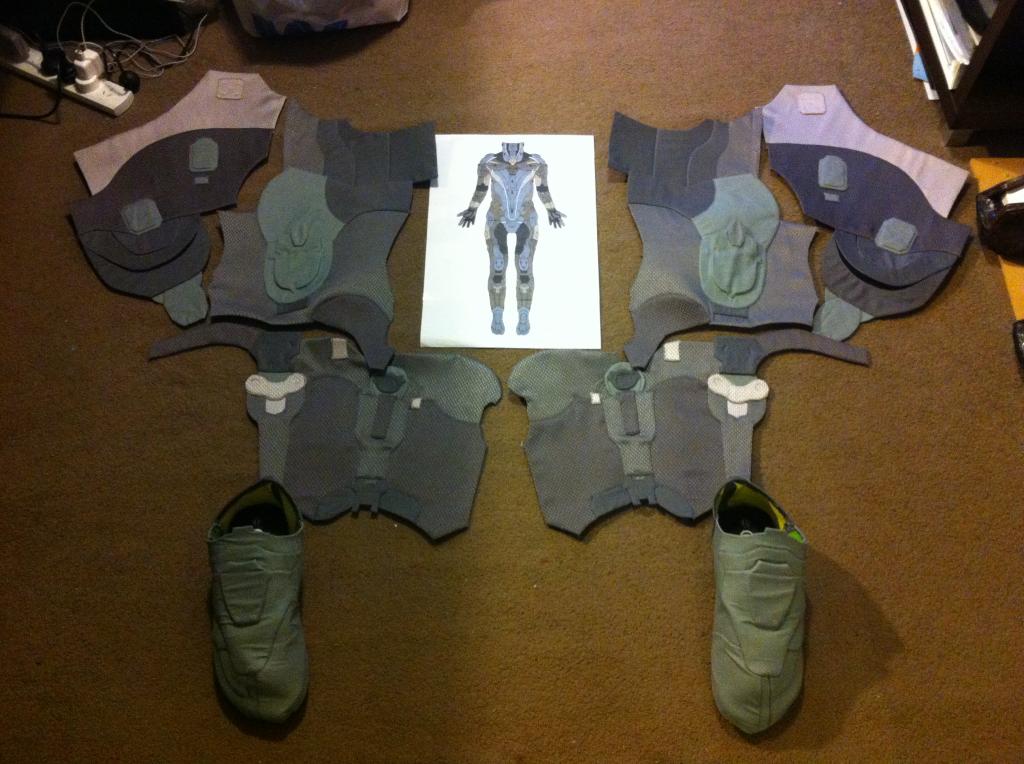

Been working on the torso today, and this was as far as I got.
Just got to add the zips, do the 2 small cylinder bits, and fix up the neck area.





Until next time...

.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

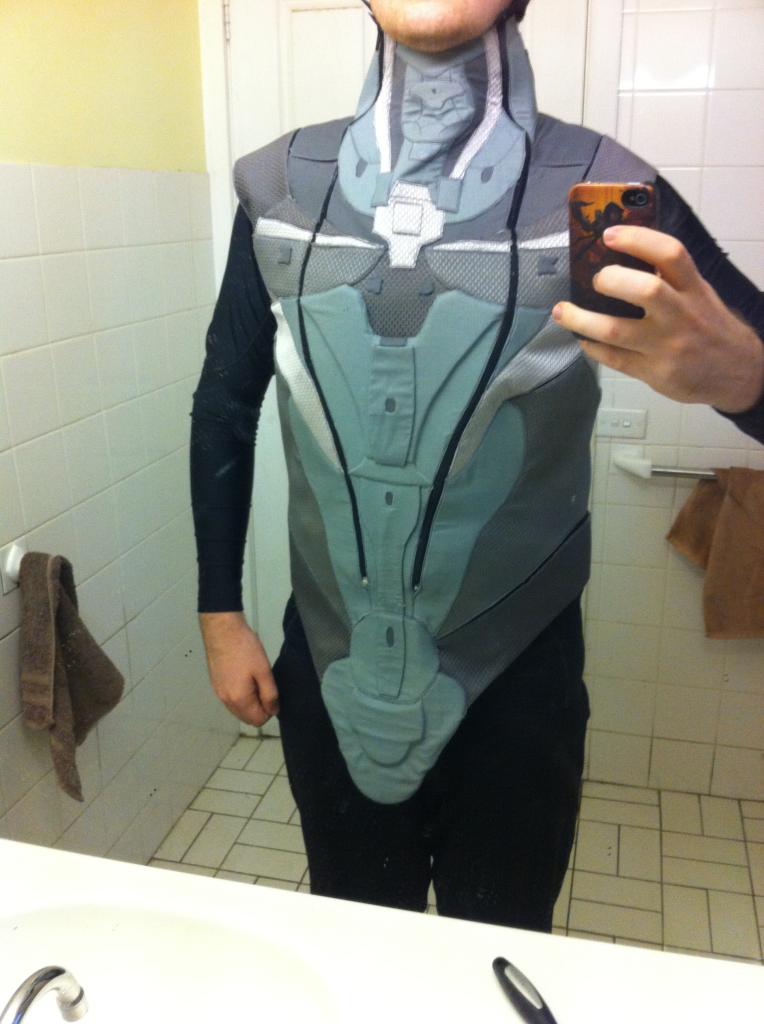

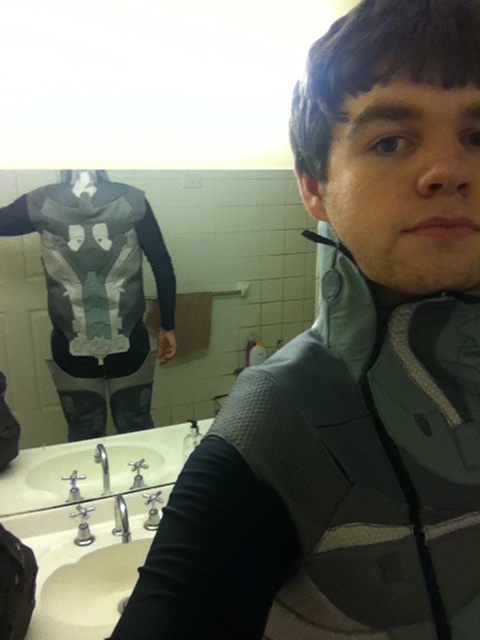

Zips attached, and happy to say it fits and is pretty comfortable.
Just need to make the neck area more flexible and add 2 waist bits.
Having this piece basically done takes a huge weight off my chest. Basically the hardest / most time consuming part is done.



.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT: [Again]

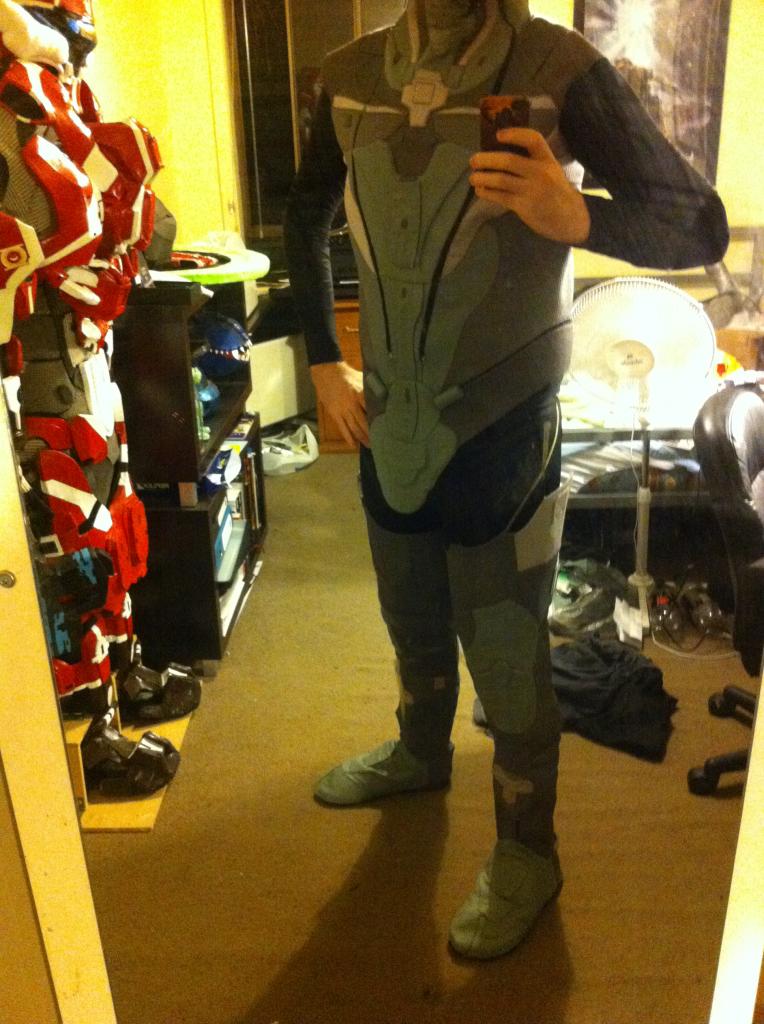

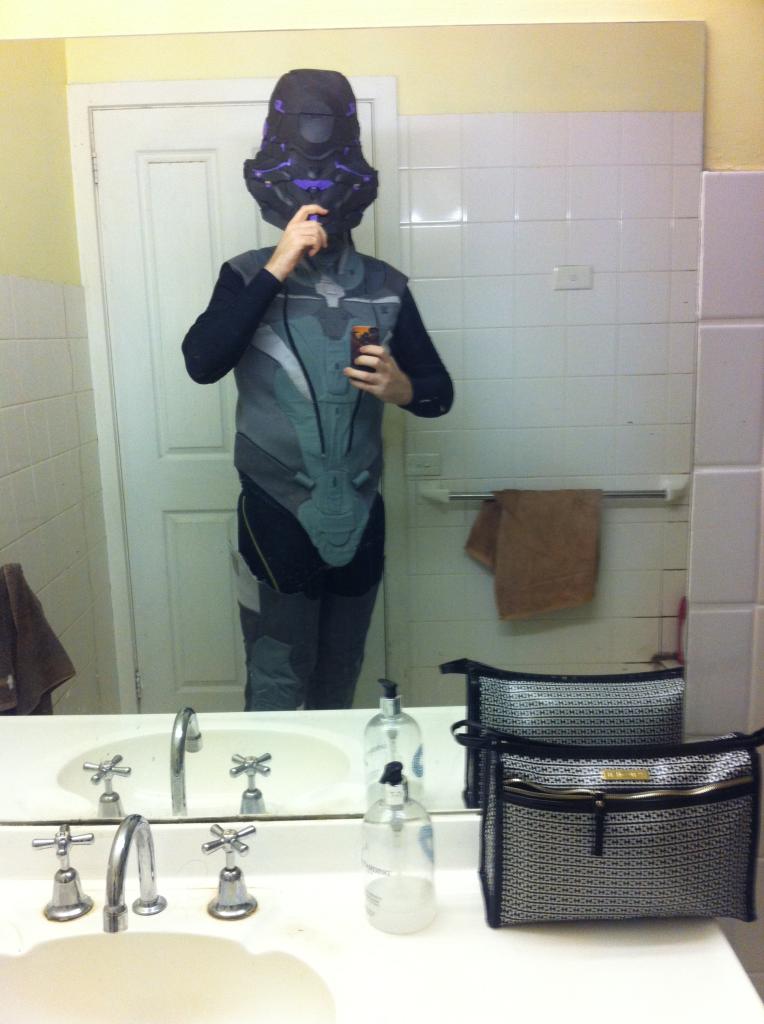

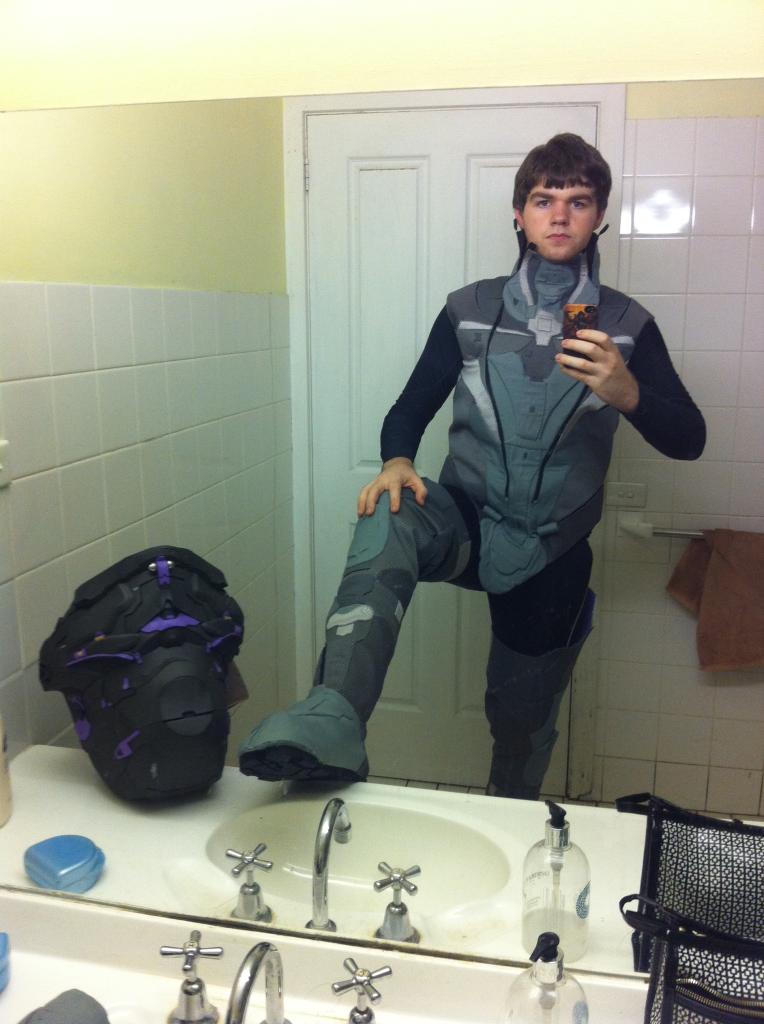

Ok I just test fitted having everything on at once... its accurately comfortable and not that hot to wear. I just need to add elastic on the knee joint, and fix the neck. Turns out I won't need to attach the shoes to the legs too, they work fine as is. The only bits left now is the butt area and the arms, and of course the armour on top. Downside the helmet is still a little to large so will have to adjust that too. Also tested taking the lightrifle from off my back and will be able to actually do it [i think] um anything else not sure as of now lol



[jamestfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Undersuit Torso ALMOST COMPLETE!]

The under suit is amazing! especially since you are just looking at basic reference pictures and are designing your own templates! I really hope you get this done the way you want it to be!



[Zoogami Snowfox]

Re: Halo 5 Agent Locke Pre-game Full Build: Helmet [Undersuit Torso ALMOST COMPLETE!]

The under suit is amazing! especially since you are just looking at basic reference pictures and are designing your own templates! I really hope you get this done the way you want it to be!

Thanks man I am hoping so too.
Fingers are crossed

So today has been a good day.
All current issues with the undersuit have been resolved.

Undersuit boots: Finalised and ready for overlaying armour.
Undersuit legs: Added elastic between the knee joint to allow for more flexibility
Undersuit torso: Neck area made more flexible by removing some of the interior foam.

Last but not least construction on the undersuit arms has begun.

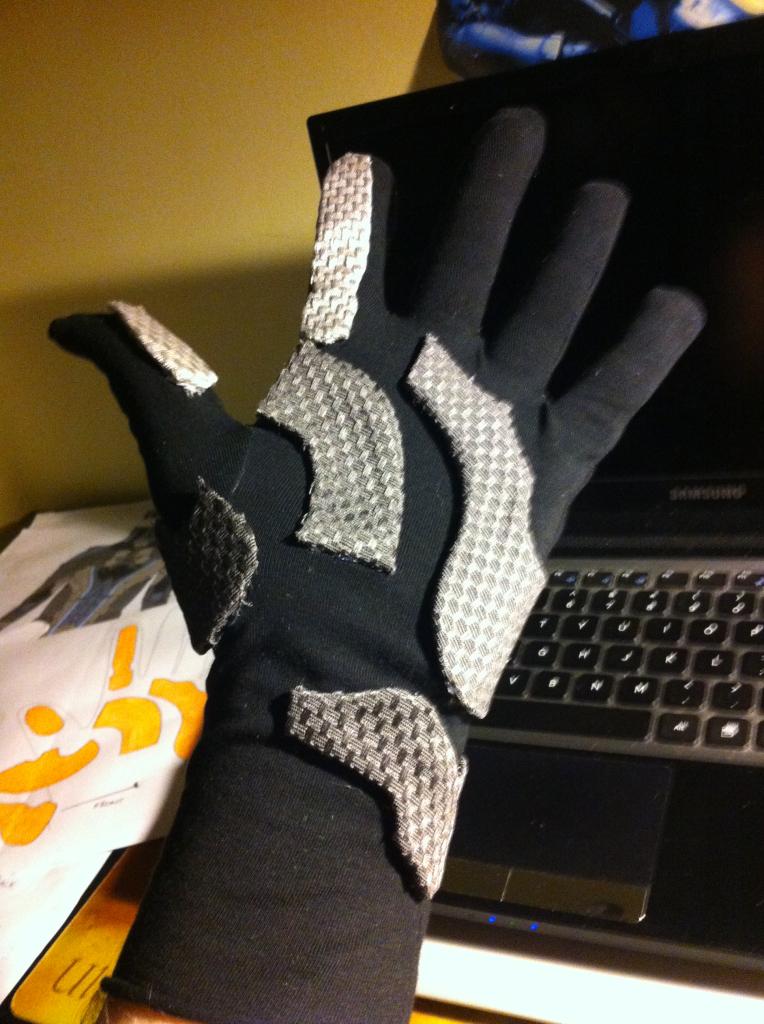

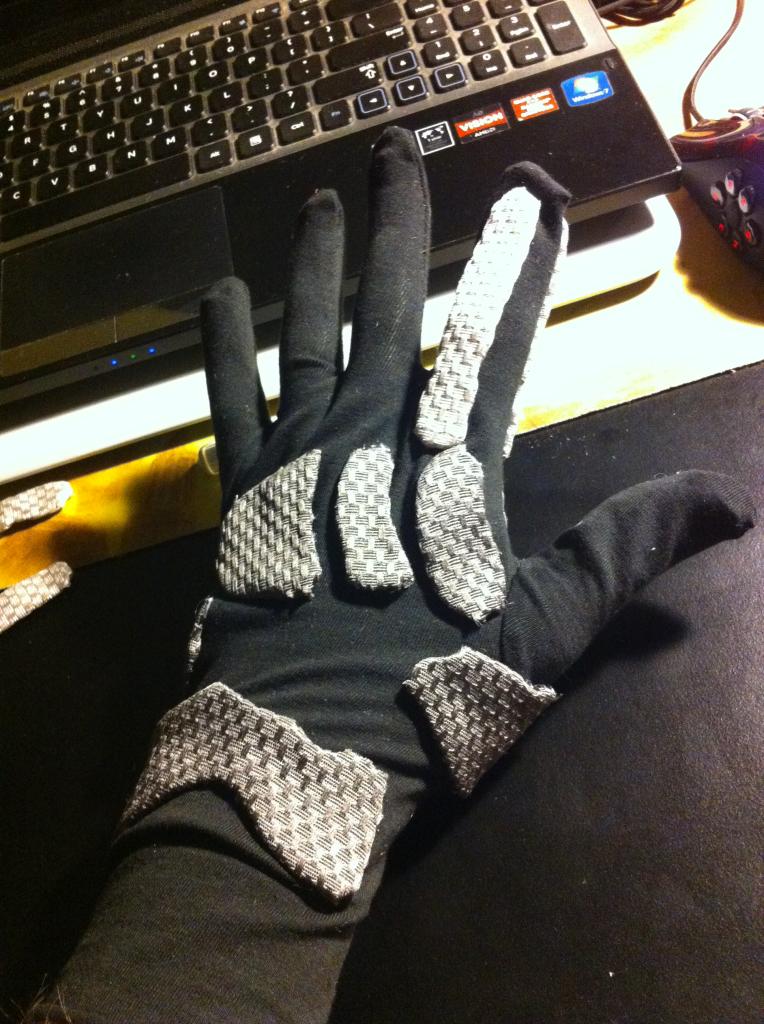

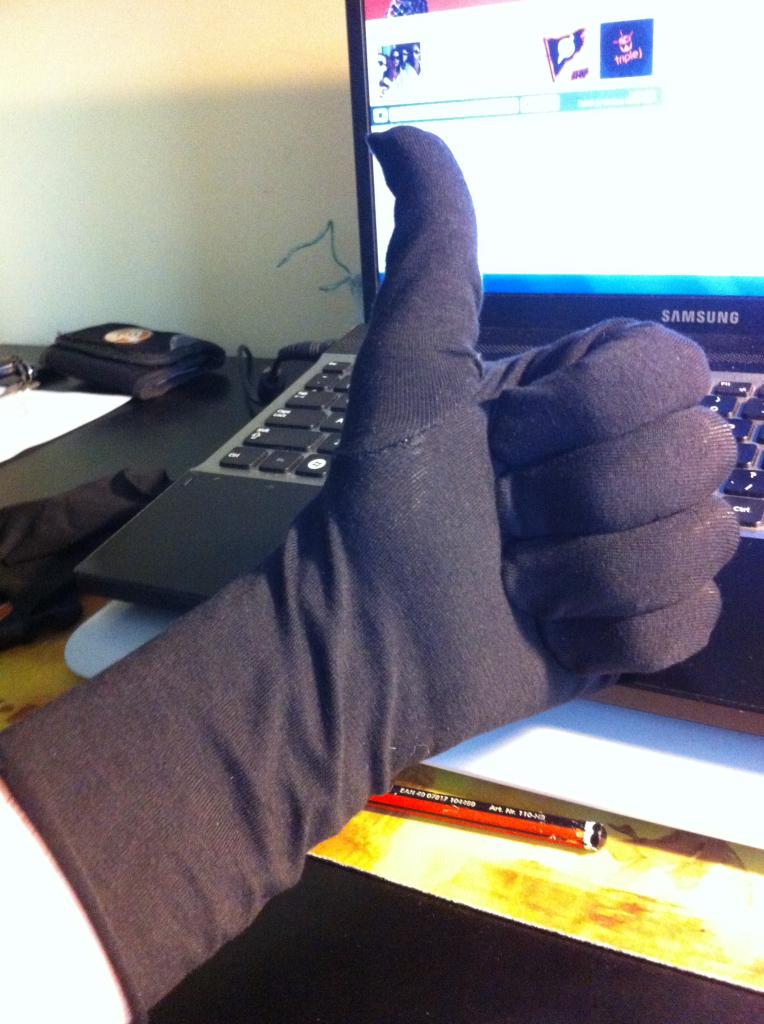

I have begun by creating my gloves by using some women's leggings...



Only a month and a bit left to get this all complete so expect lots more updates to come

.................................................. .................................................. .................................................. .................................................. ..................................................

EDIT:

Gloves complete and ready for armour [minus touch-ups]
