Super Hd Halo Wars Mk Iv Armor

[scandomfo]

For me it was roughly 8.25 inches

Idk if that sounds about right though.



[agbates]

For me it was roughly 8.25 inches

Idk if that sounds about right though.

That sounds about right. The thing is pretty big. I guess We will find out when the first person builds it.



[scandomfo]

Lol I got a lot on my plate but I think someone new should do it

Well I'll scale it to 200 mm so it would be able to fit inside the Letter Paper



[agbates]

Lol I got a lot on my plate but I think someone new should do it

Well I'll scale it to 200 mm so it would be able to fit inside the Letter Paper

That sounds good. When somebody makes it they can just re-scale it.



[Remraf]

Also, when you get there,the belt/codpiece in the reference pics you have in post #19 has a lot more detail than the ingame cinematic. Compare it to the last pic in post #53.



[jakedobbin]

im 4'10 ( ten year olds want props to) what should i scale too ?



[agbates]

im 4'10 ( ten year olds want props to) what should i scale too ?

Scale yours to 14.25 cm tall. It should fit ya perfectly.



[jakedobbin]

thanks



[agbates]

thanks

No problem.



[jakedobbin]

sorry bout the double post but should i scale my helmet to the same size



[agbates]

sorry bout the double post but should i scale my helmet to the same size

I doubt it. The helmet will be a different size.



*****

EDIT

*****



I just noticed that there was a problem with the file. The 3d model had a bunch of extra vertices. I must have accidently added them at some point.



Here is the link for the fixed file. Sorry SoullessSin and anyone else who has unfolded it. I just didn't want anyone to actually start building it and have it screwed up.



HD MK IV Right Shoulder



[scandomfo]

Here Abagates

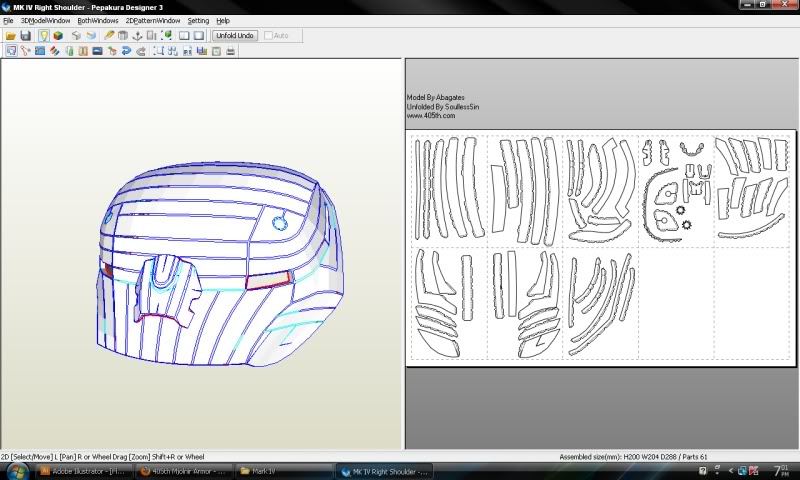

Mark IV Right Shoulder

Make sure to scale correctly

As of now, It is set at a height of 200 mm/20cm which is 7.84 inches

I did that for just to get it inside the letter papers

Now, I may end up doing a 300mm/30cm version which is 12 inches

For those that are bulky or tall

New File in last post



[agbates]

Here Abagates

Mark IV Right Shoulder

Make sure to scale correctly

As of now, It is set at a height of 200 mm/20cm which is 7.84 inches

I did that for just to get it inside the letter papers

Now, I may end up doing a 300mm/30cm version which is 12 inches

For those that are bulky or tall

Mark IV Right Shoulder at 200mm

Ahhh now I feel like crap....sorry.



[scandomfo]

Feel like crap?



[agbates]

Feel like crap?

Look a post above you...



[scandomfo]

Ah I see

What did you do differently?



[ka5p3r]

if no one beats me to it, which im sure someone will ill try to build it when i get home from work friday



[agbates]

Ah I see

What did you do differently?

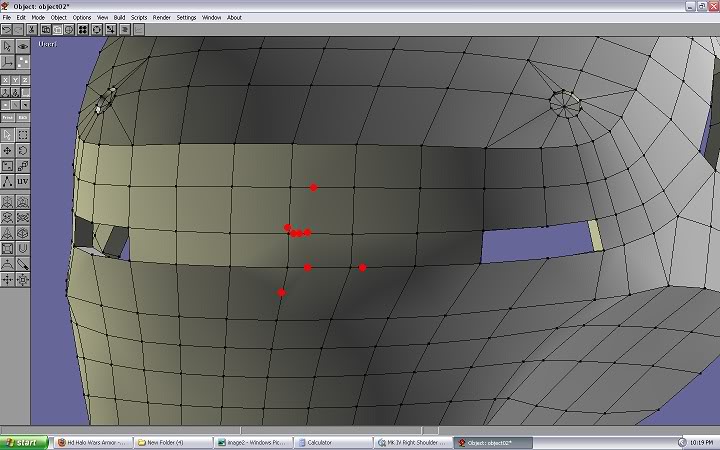

You see all those red dots? Those were all extra vertices. I think I accidently cut into this model when I was modeling the little piece that sits on top. If you still want to use your file it probably won't hurt you it will just add extra folds.



[jakedobbin]

hey would the right shoulder look right on the left shoulder because the right is all you have been talking about



[agbates]

hey would the right shoulder look right on the left shoulder because the right is all you have been talking about

You can use it on whichever shoulder, but in the game it is on the right. Just to clarify each shoulder is not the same.



See
