3D Printed Halo Forward unto Dawn Master Chief Helmet (Pic Heavy)

[vshore100]

Ohhh Shiny!

Camera flashy!

that is awesome! i love the FUD helmet, and this 3D print is spot on. keep the updates coming man, it looks great.

I appreciate that Rosh. Everyone involved put a lot of work into making both the model and the print great.

progress is coming along nicely

Thanks M!

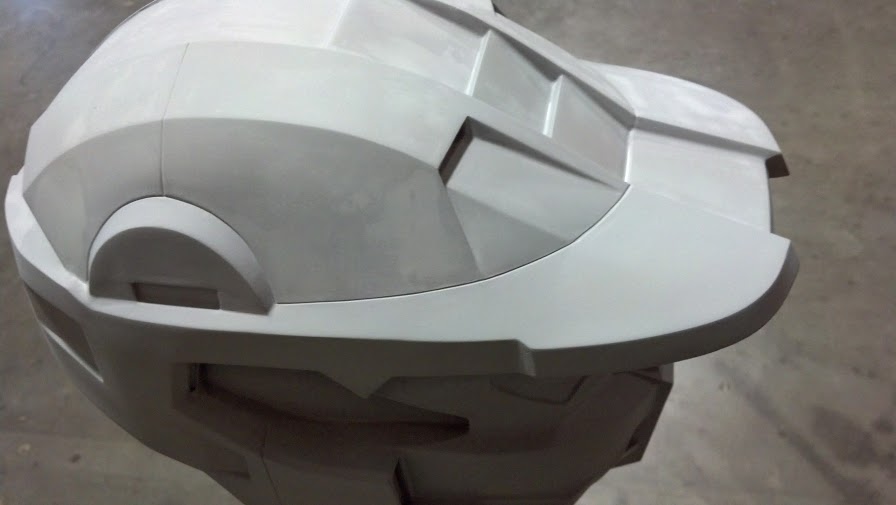

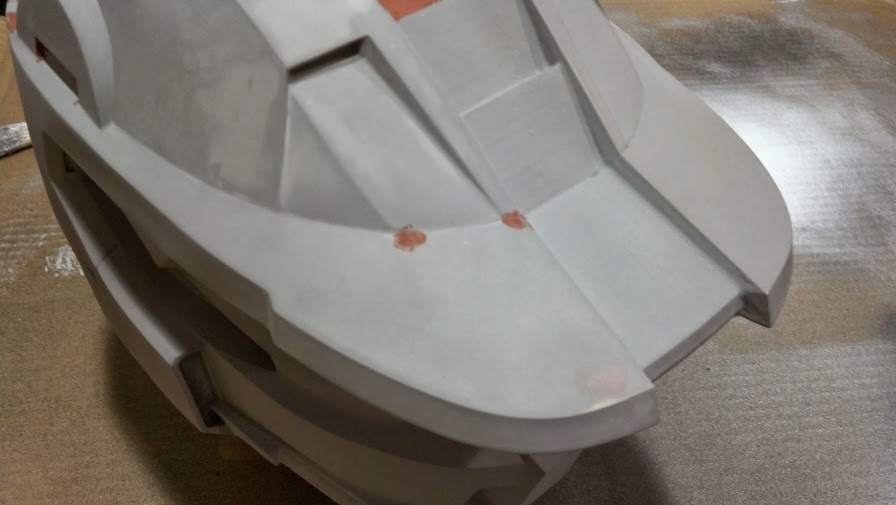

I have a little bit of progress to show on the FUD. I smoothed out right side of the brim more. There are only a couple of tiny spots to touch up, carve the detail line that separates the brim from the upper part of the helmet, then that area will be more or less done.

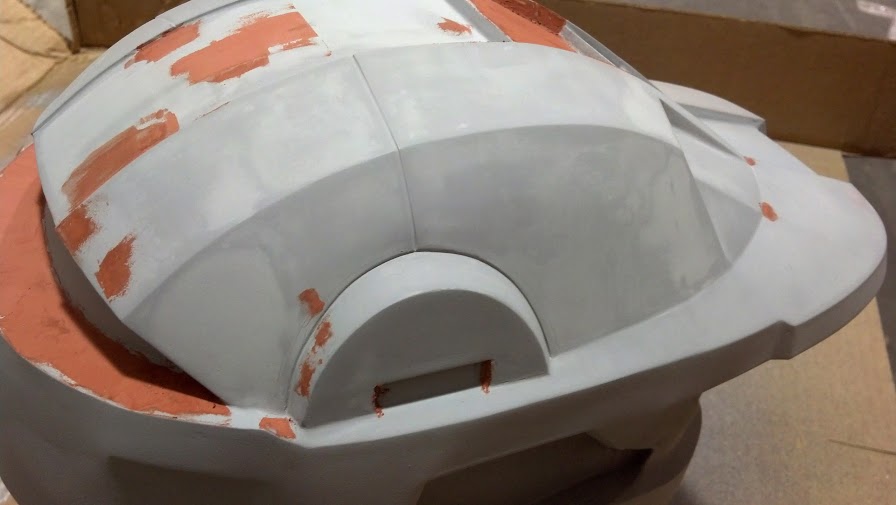

I also have most of the upper right side done. I added the detail lines around the semi-circle portion, and cleaned the line that runs up toward the top of the helmet. You can see other areas being worked on by the spot filler that's in place.

We're close to the half way point now. I'm ready to get this puppy done and get some silicone on it, but...I'm not going to rush. I want it to be as close to perfect as I can get it.



[Retralpha]

Such amazing work.



[vshore100]

Such amazing work.

Thanks for that alpha! I'm still working on smoothing out the areas that have spot filler on them, as I went home early yesterday not feeling good. I'll be back at it today.



[vshore100]

Back with another FUD update!

I added the detail line that separates the brim from the upper portion of the helmet.

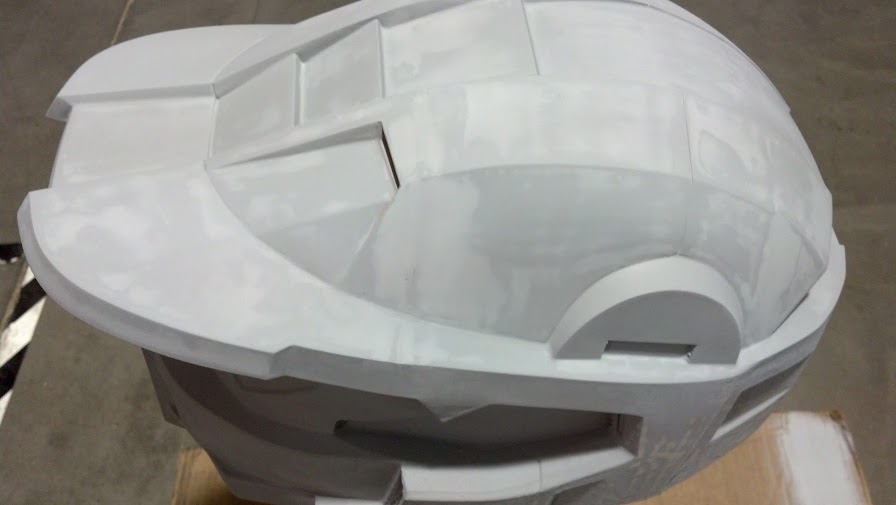

I've also done some work on the center and top left sections of the helmet. Still more to be done.

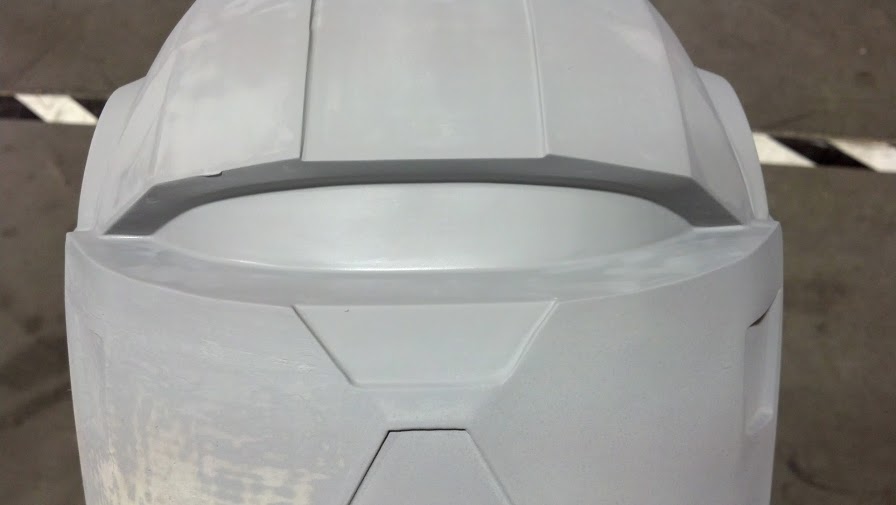

The recess on the rear of the helmet received quite a bit of attention. Just a couple of small touch ups and that area will be done.

The left side brim and temple area also got some love. Again, still more to be done but we're making progress!

I'm hoping to have the bulk of the filling and sanding done by the end of the week.



[Mstruvmgc]

Everything is coming along nicely V



[vshore100]

Everything is coming along nicely V

Thanks M. We're nearing the end now.

Detail lines are now carved in on the left side as well.

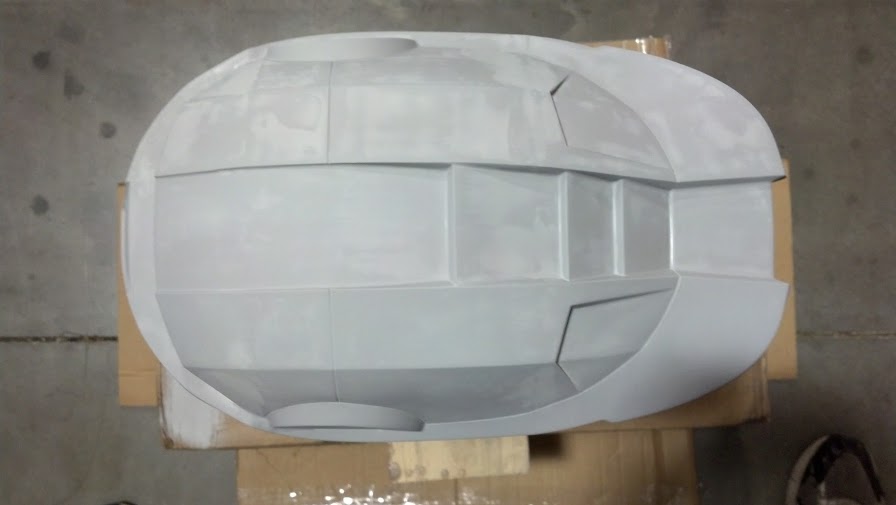

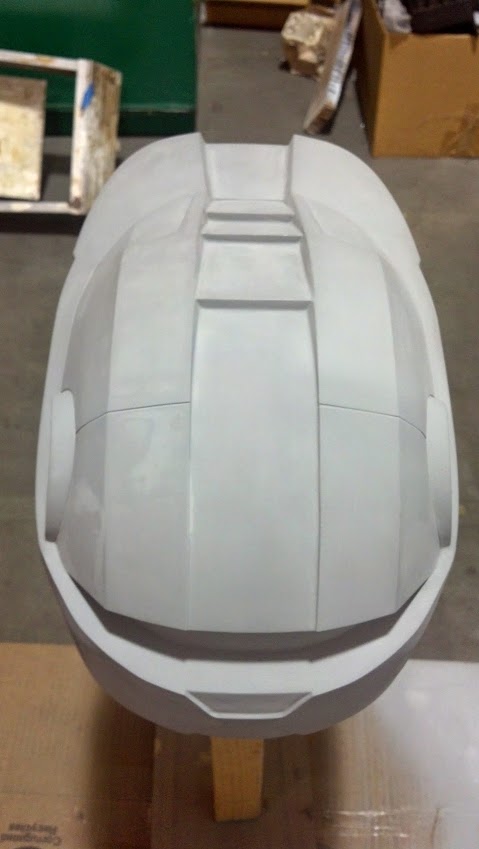

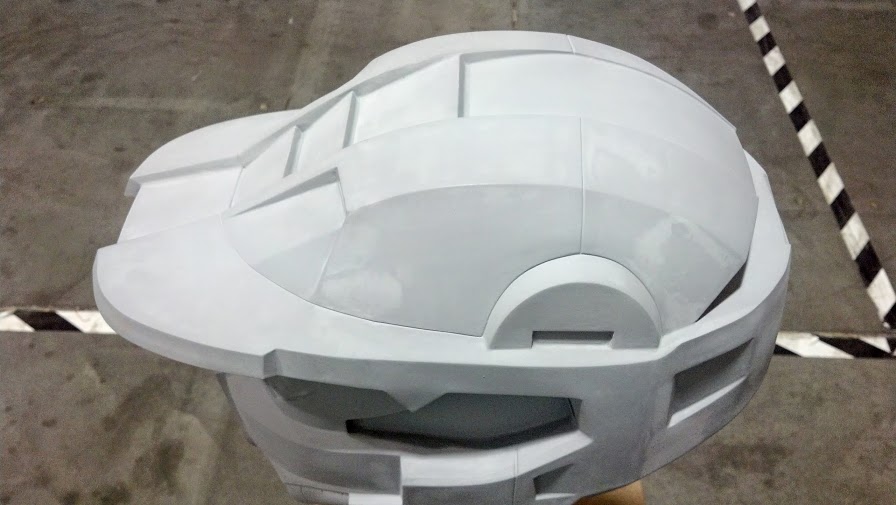

The top is more or less done.

Small bit left to finish on the left side, then the back is done.

Smoothing out the underside of the brim in preparation for the raised details.

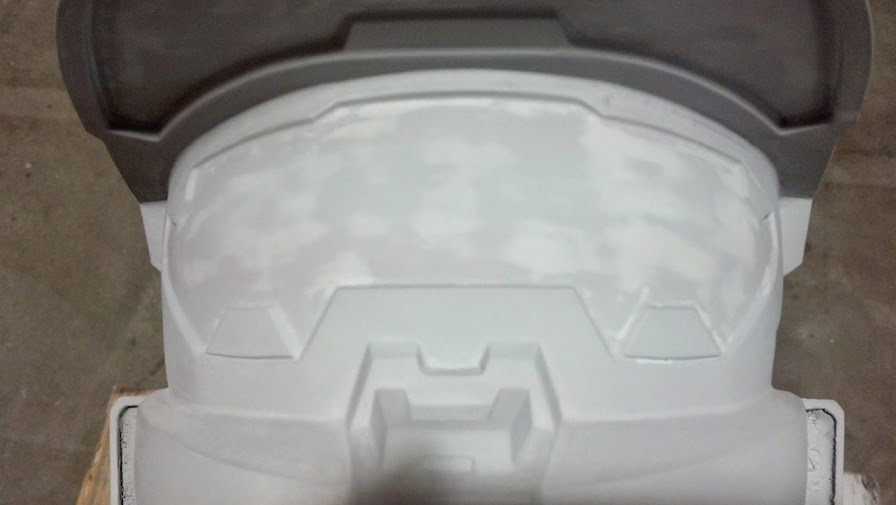

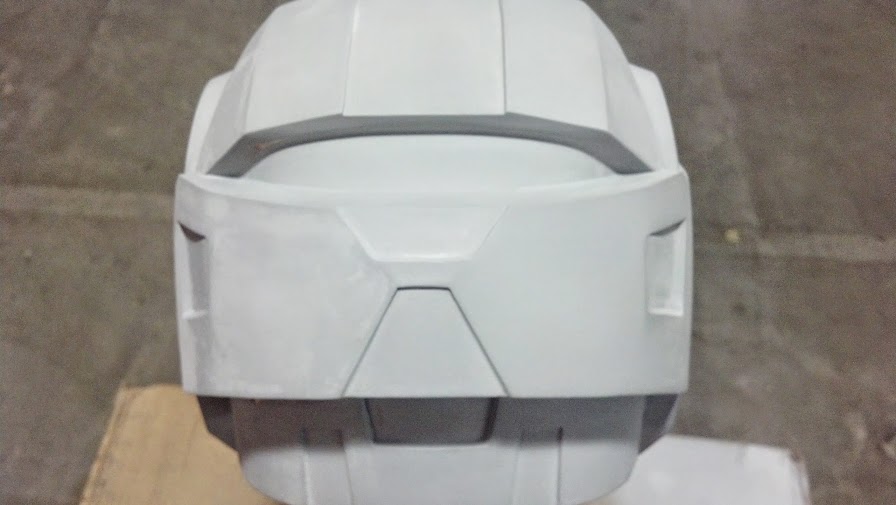

Visor needs another coat in some areas, but it's nearing completion.

Temple details are almost done as well.

I appreciate all the support thus far, should be wrapping the build portion up soon!



[RTWHOCKEY]

It looks awesome, Vshore! It never ceases to amaze me the detail and accuracy that can be achieved in 3D printed helmets.



[vshore100]

It looks awesome, Vshore! It never ceases to amaze me the detail and accuracy that can be achieved in 3D printed helmets.

Thanks!

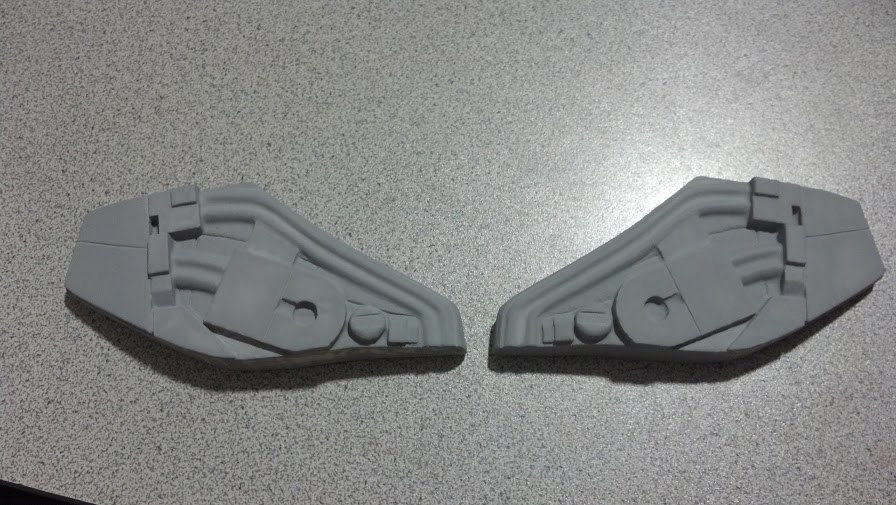

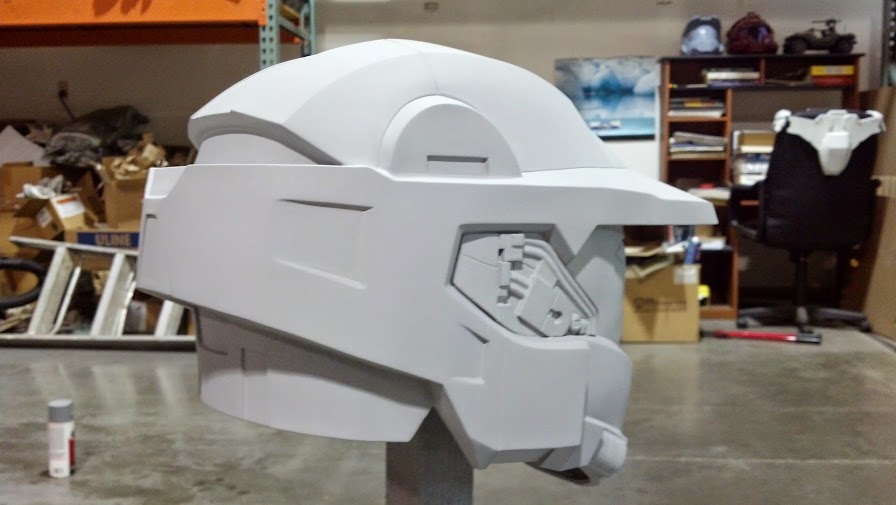

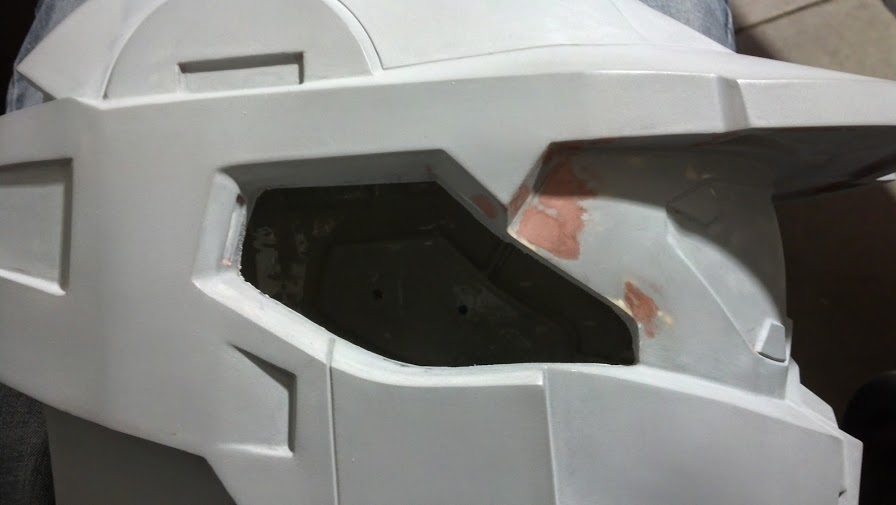

I had to end up cutting out the recess opening because the temple detail wouldn't go far enough back to get it accurate looking. After I drilled holes in the corners, I used the exacto saw blades to cut it free. Next I super glued the temple and cheek details in place and did a final sand around the areas where the glue had ran out.

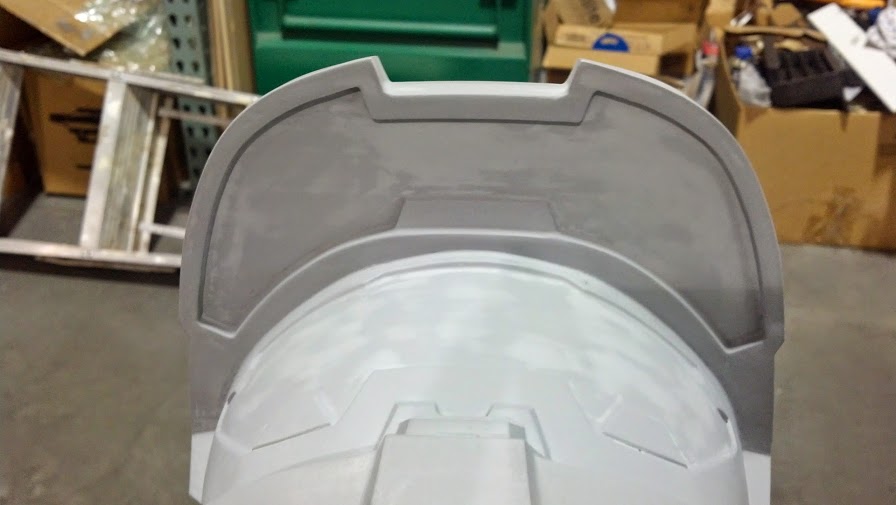

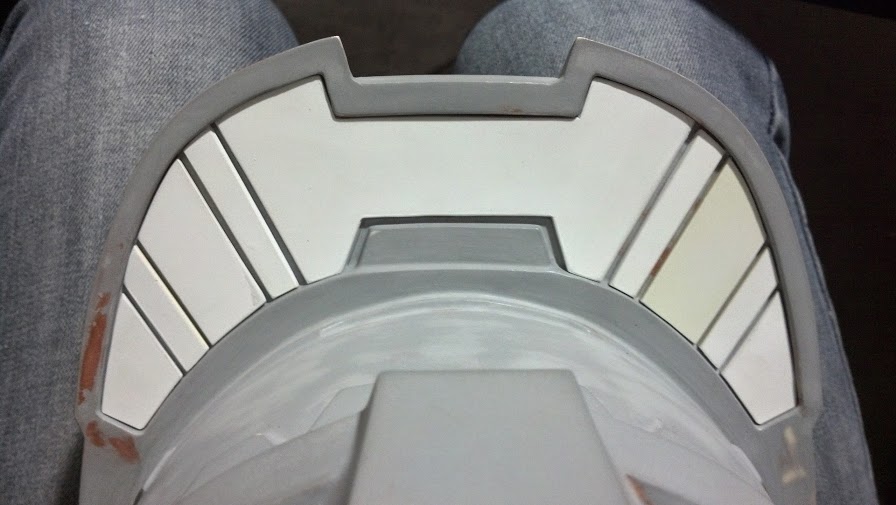

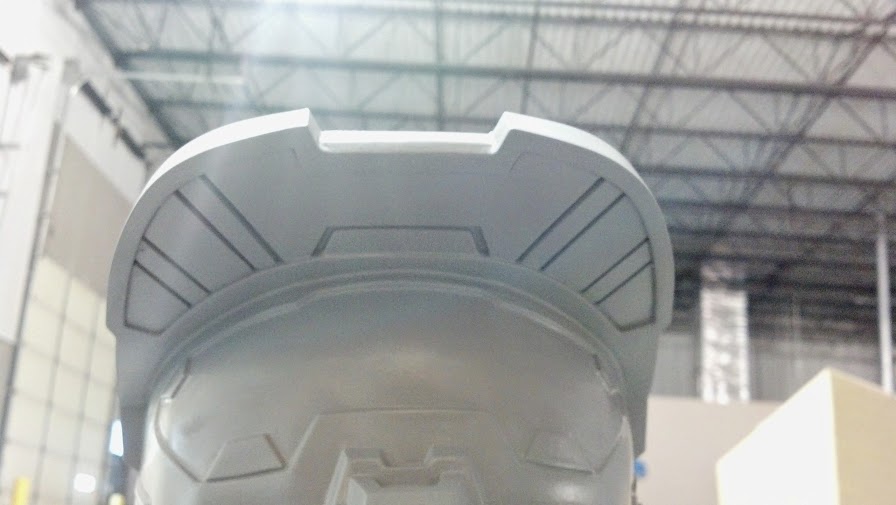

After that, I made up some templates for the under side of the brim, then transferred those to thin plastic, and super glued those in place.

I then used spot filler to fill in any gaps around the edges and sanded it smooth and gave it a coat of primer.

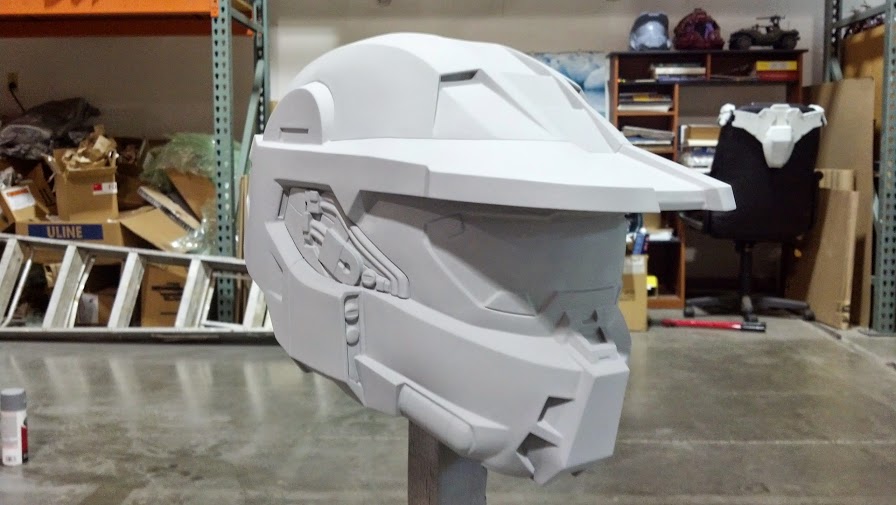

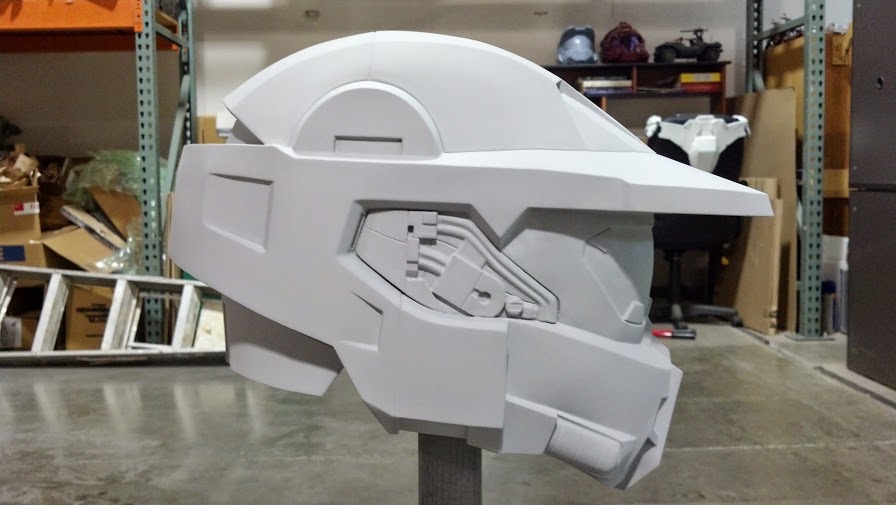

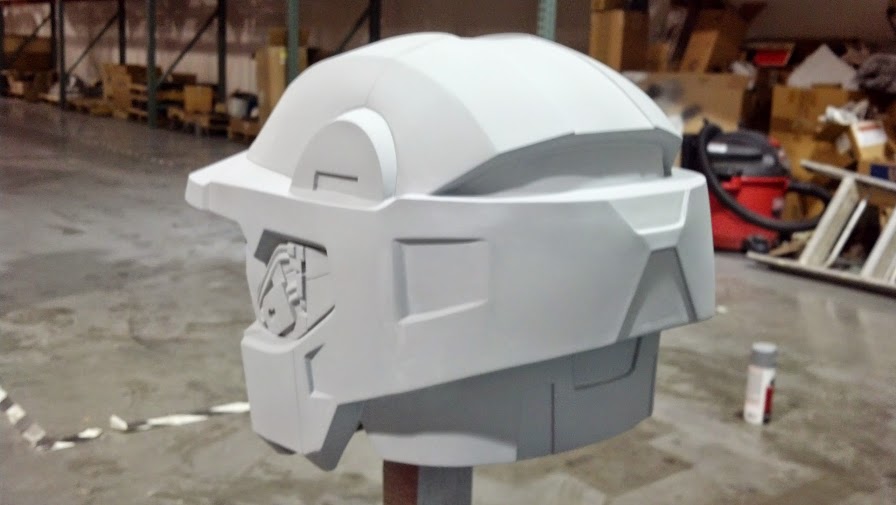

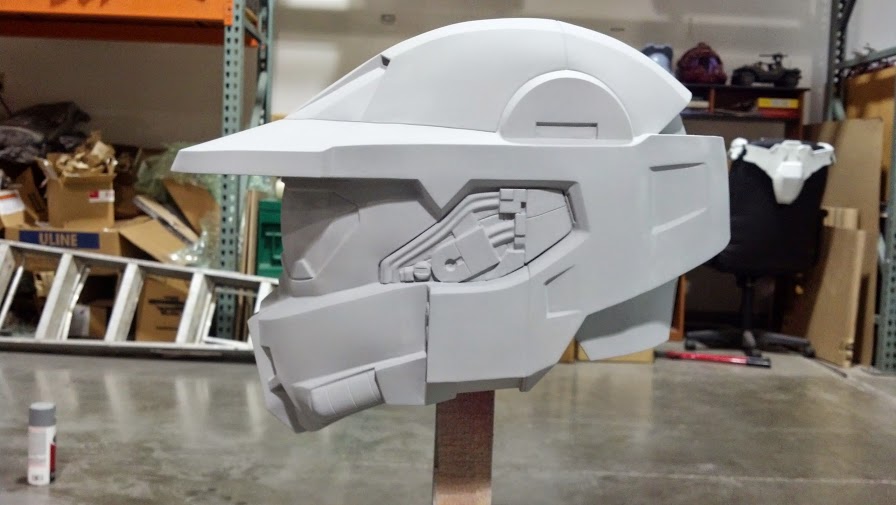

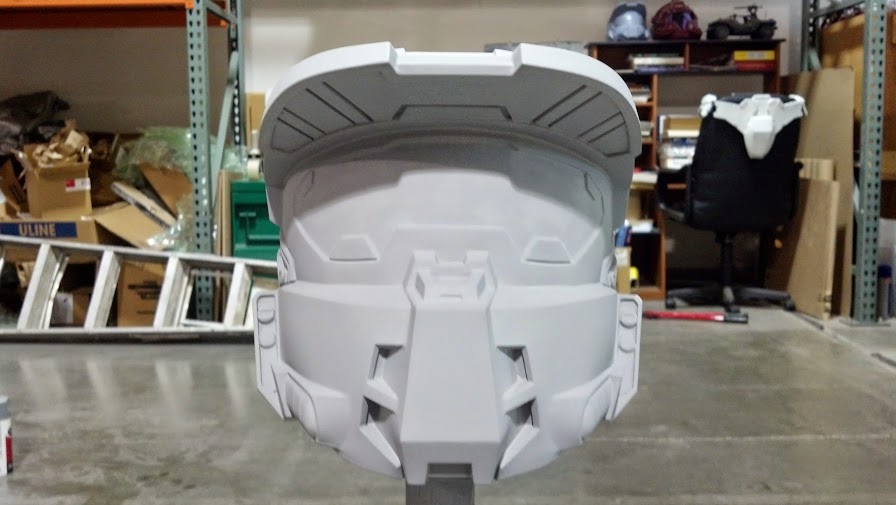

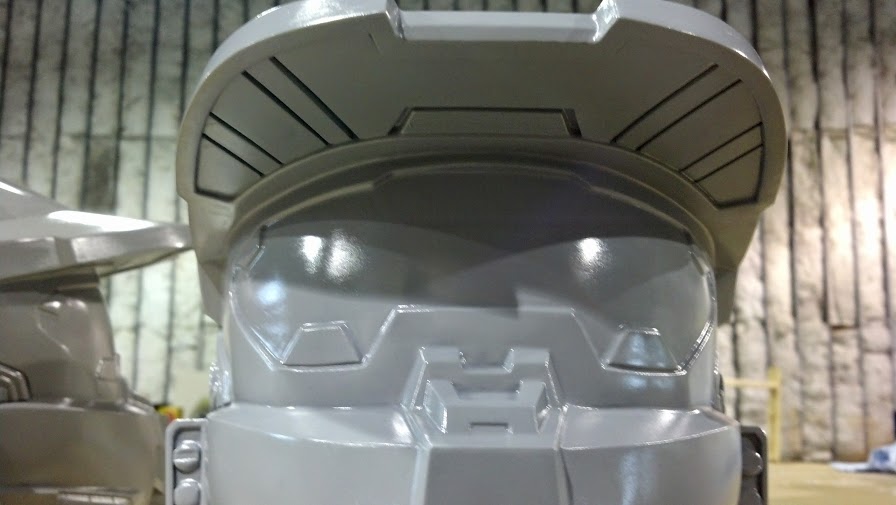

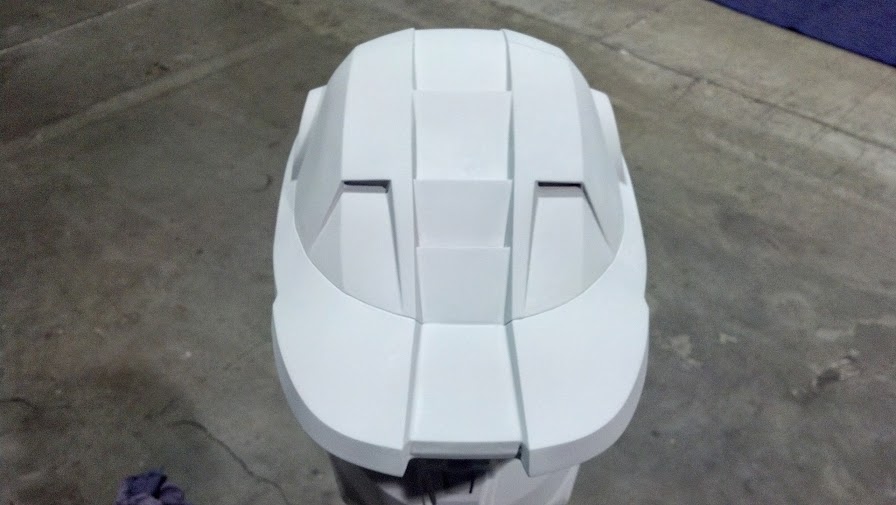

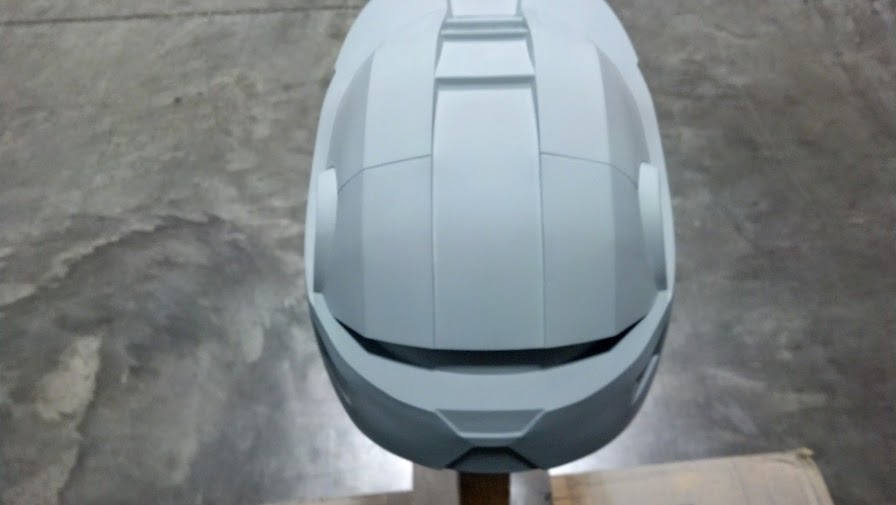

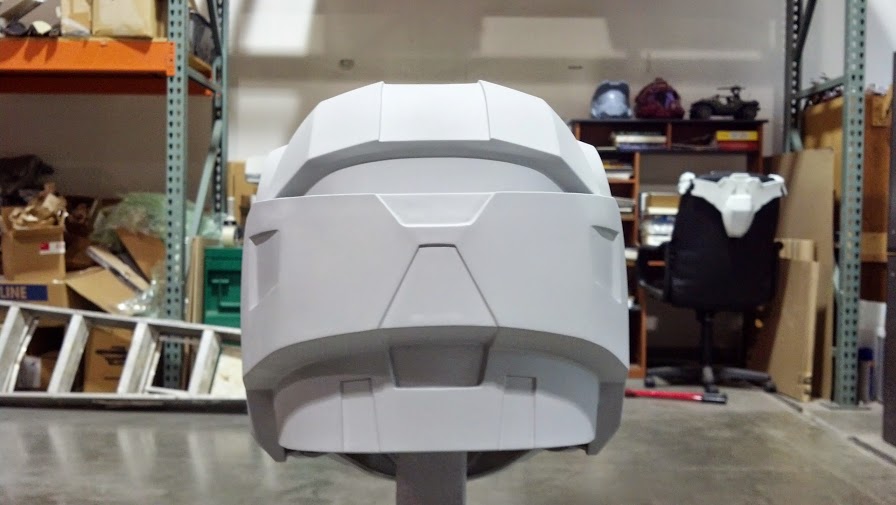

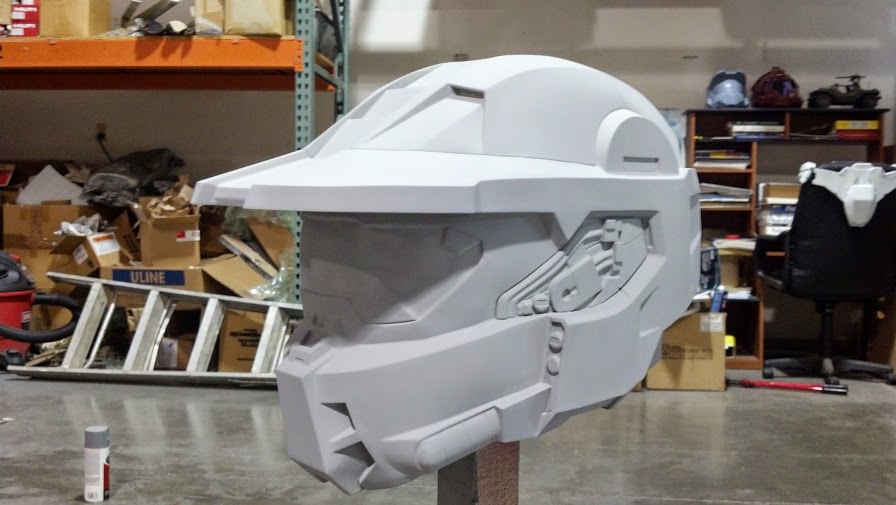

Well, we are finally at the end with this, build wise anyway. Here are some pics for you to peruse.

I'm going to go over it lightly once more with fine sand paper, then I'll be clearing it to get it all slicked out and ready for the silicone. Now the scary part begins.....molding. :eek



[Flynney]

Came out amazingly well, actually quite speechless at the craftsmanship! Good luck with the molding!



[vshore100]

Came out amazingly well, actually quite speechless at the craftsmanship! Good luck with the molding!

Thanks Flynney!

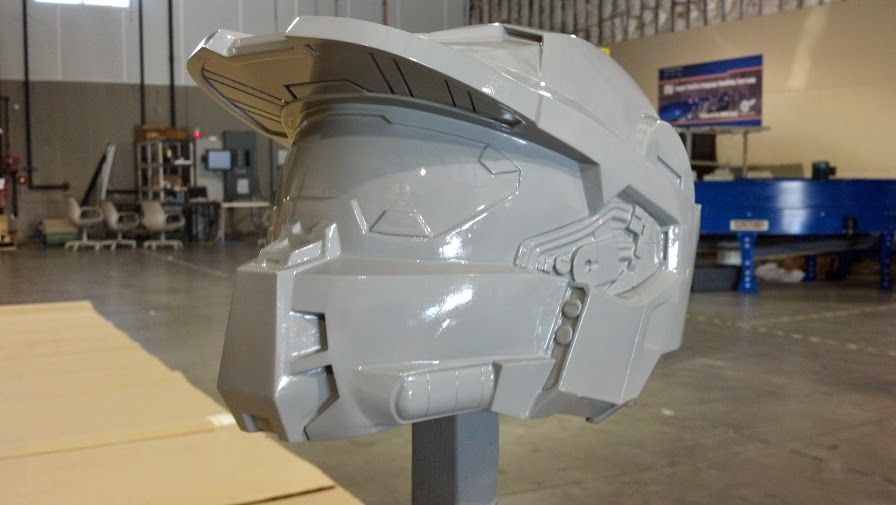

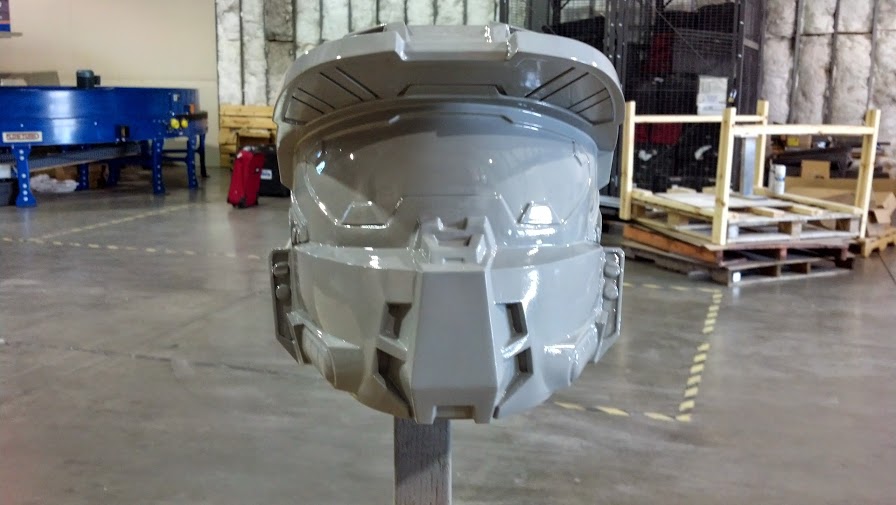

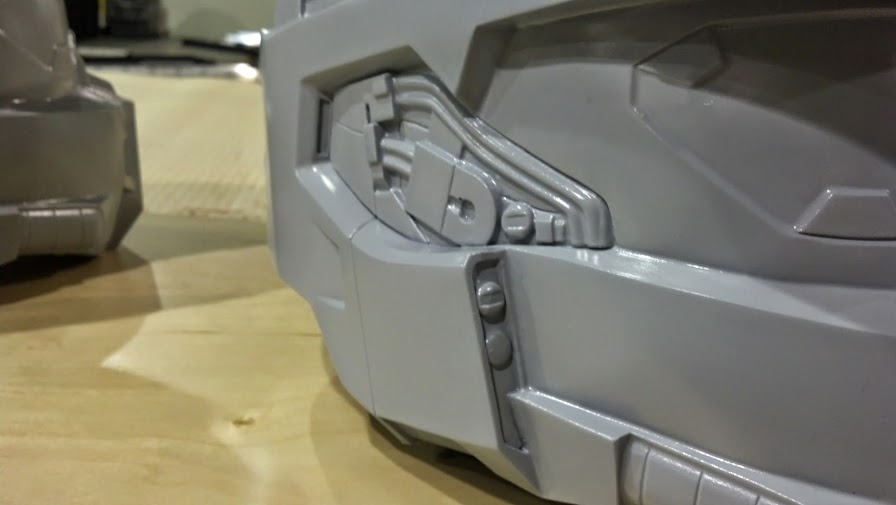

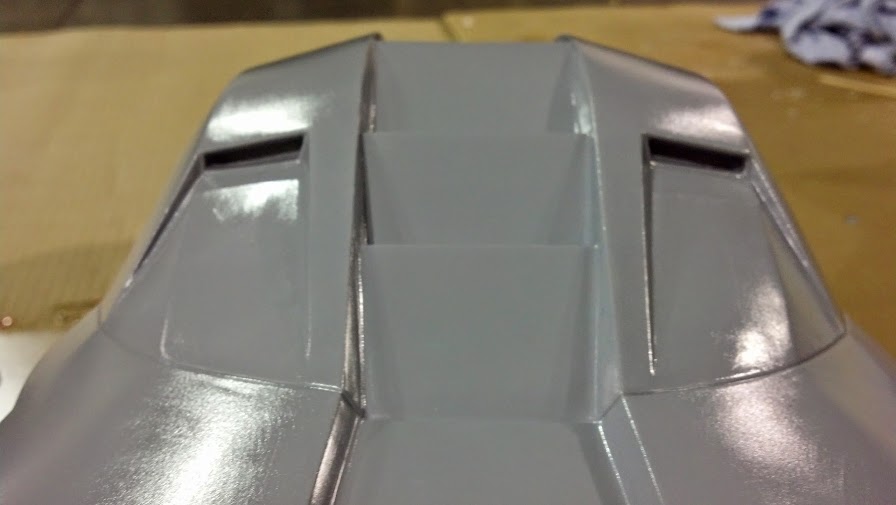

Well, the clear has been applied...

So you know what that means.....

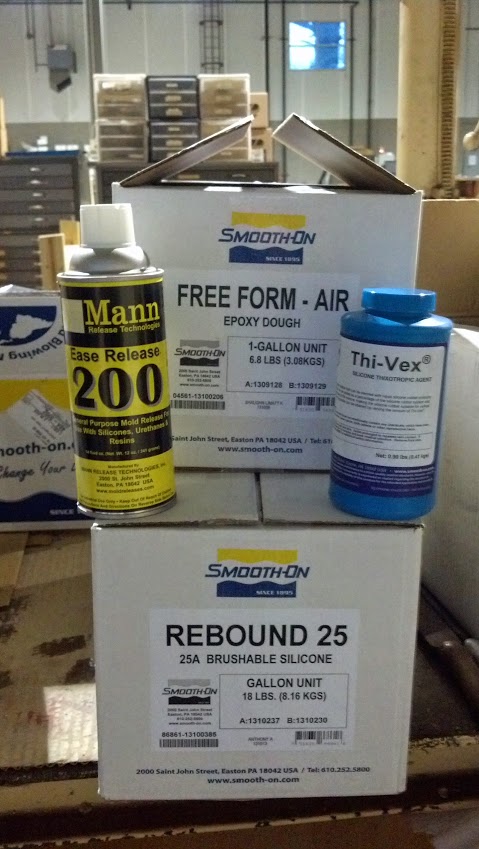

Yep! It's molding time! I'll be taking photos throughout the process to share with you guys and gals. Wish me luck!



[glasscutter]

Hot damn that is one sexy helmet!



[JUSTINIAN 117]

Looking awesome! I can't wait to see this thing finished and in my hands.



[Lerris Galiron]

That is some seriously clean work you've done there. Very impressive.



[Russett]

You dont see too many The Package MC builds get this kind of attention
Very impressive!
I spy a robot diaper in your pics, maybe the helmet was just the start?



[Dekk]

very cool to see that 3-D printing is now a option for helmet making. my library has one and this could save major time!



[vshore100]

Hot damn that is one sexy helmet!

Thanks GC!

Looking awesome! I can't wait to see this thing finished and in my hands.

Thanks my friend! That means alot. You'll have one soon, very soon.

That is some seriously clean work you've done there. Very impressive.

You dont see too many The Package MC builds get this kind of attention
Very impressive!
I spy a robot diaper in your pics, maybe the helmet was just the start?

Thank you FS. I appreciate that. I'd eventually like to do a full FUD/The Package build. The cod piece you are referring to actually belongs to my CQB build. There is a link in my signature if you'd like to take a look.

very cool to see that 3-D printing is now a option for helmet making. my library has one and this could save major time!

It saves time over pepping, but there is still A LOT of work to be done. It does have it's advantages though.

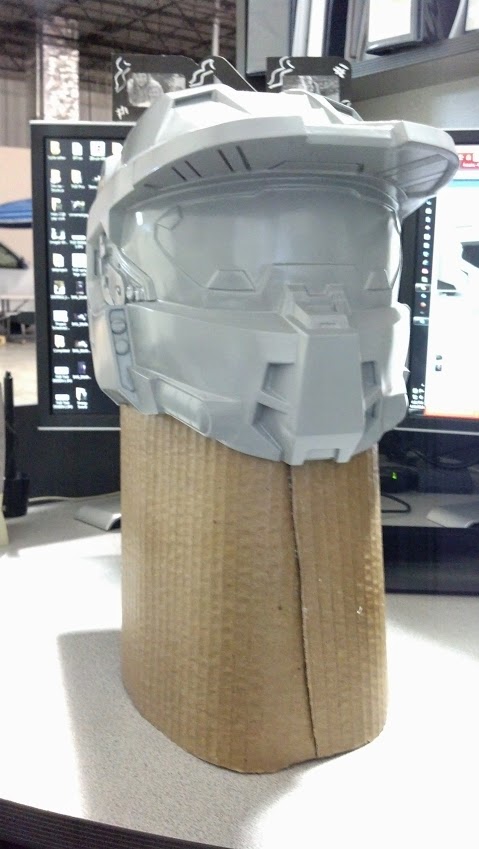

I have the cardboard insert glued in place, and I'll be starting this morning on the silicone.

I got slammed with work yesterday, and didn't get a chance to do anything with it.



[Dekk]

Of course there is work to be done, but as I suck at Pepakura and prefer foam (which is hard to make a quality helm out of) so I'm glad to see theirs a 3rd "resource" to use



[vshore100]

Of course there is work to be done, but as I suck at Pepakura and prefer foam (which is hard to make a quality helm out of) so I'm glad to see theirs a 3rd "resource" to use

For sure.

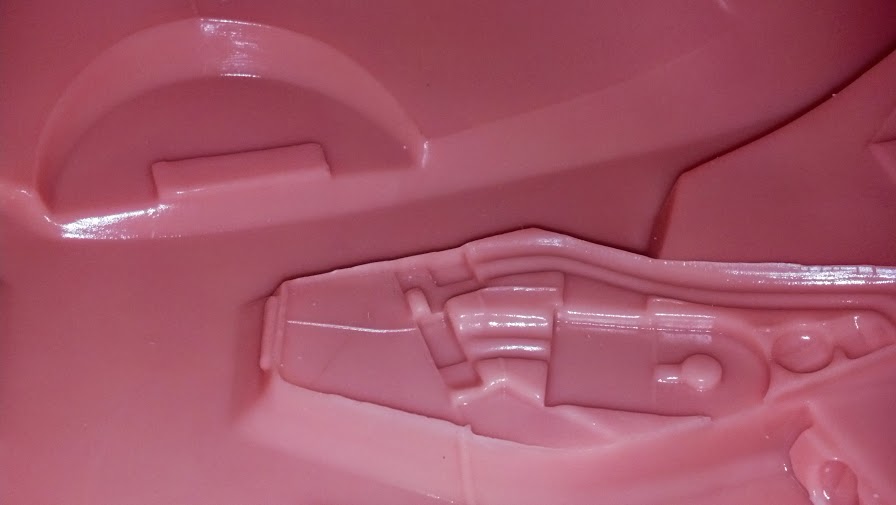

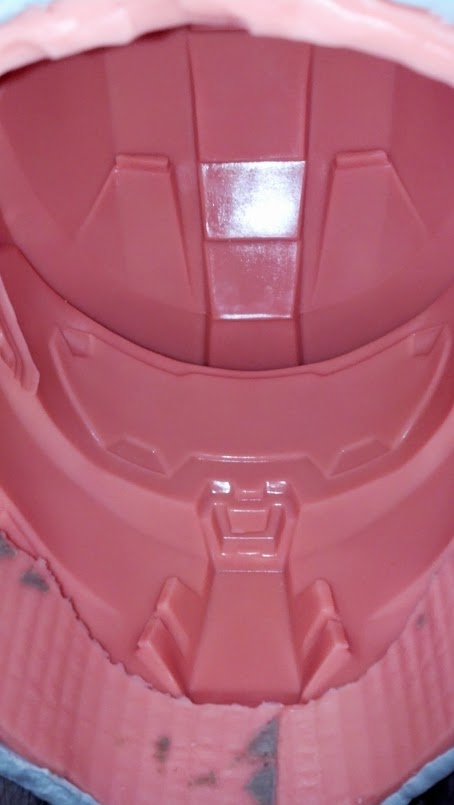

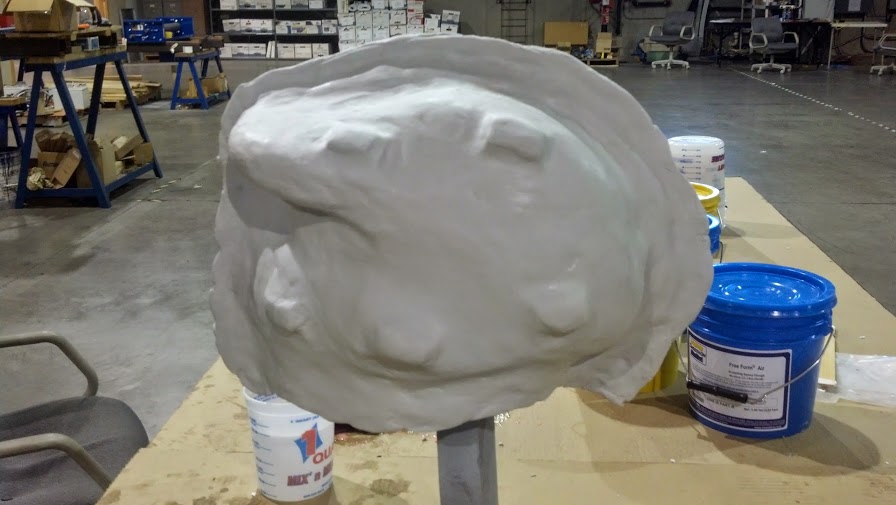

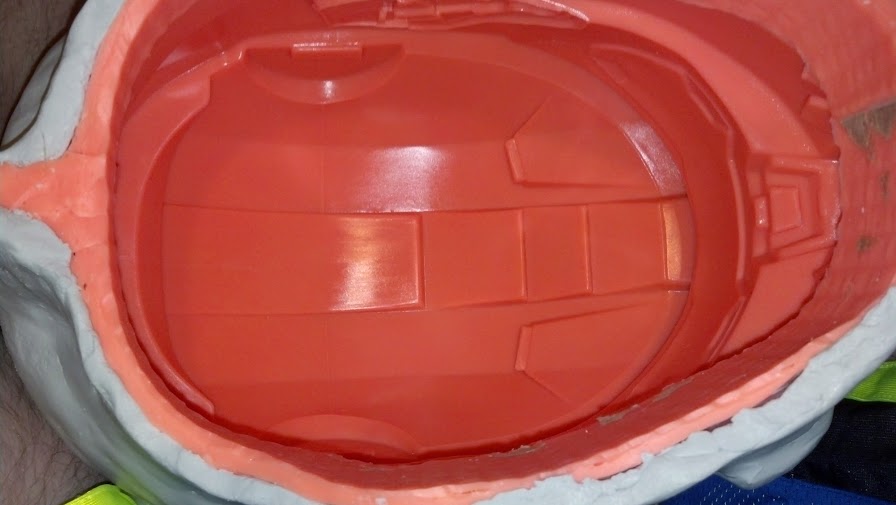

The mold is done and it turned out great! I couldn't be happier...especially for the first time ever making a mold.

The shell isn't the smoothest, but for a first try it turned out fine.

I'm in the process of pouring the first cast now, so we'll see later today if all the hard work has paid off.



[DD117]

So exciting!!!!!!!!!!!!!!



[vshore100]

So exciting!!!!!!!!!!!!!!

Indeed!!!

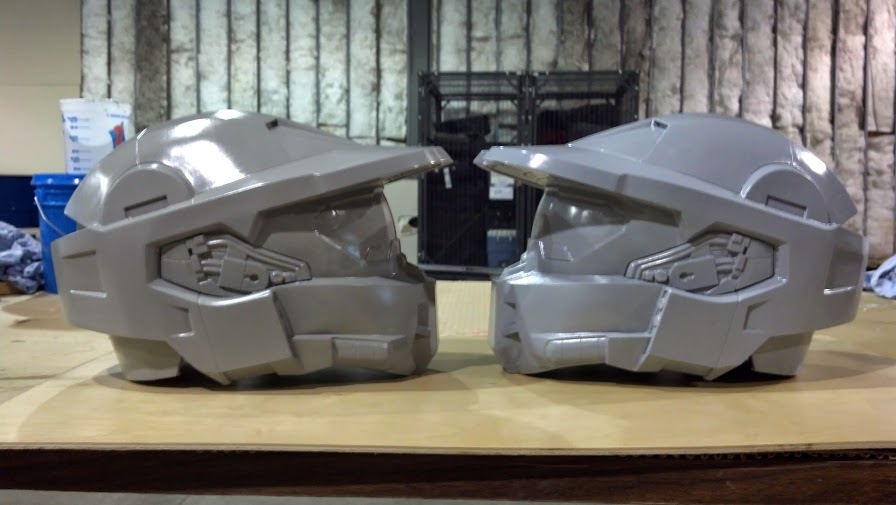

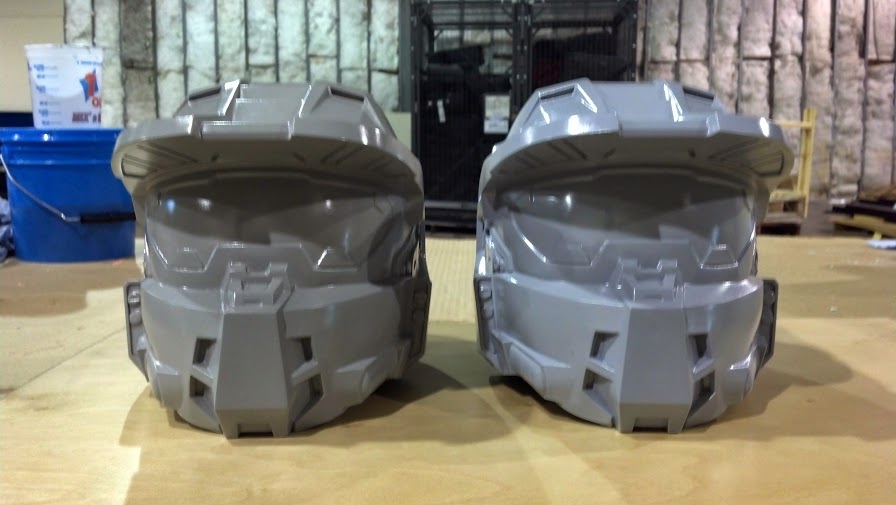

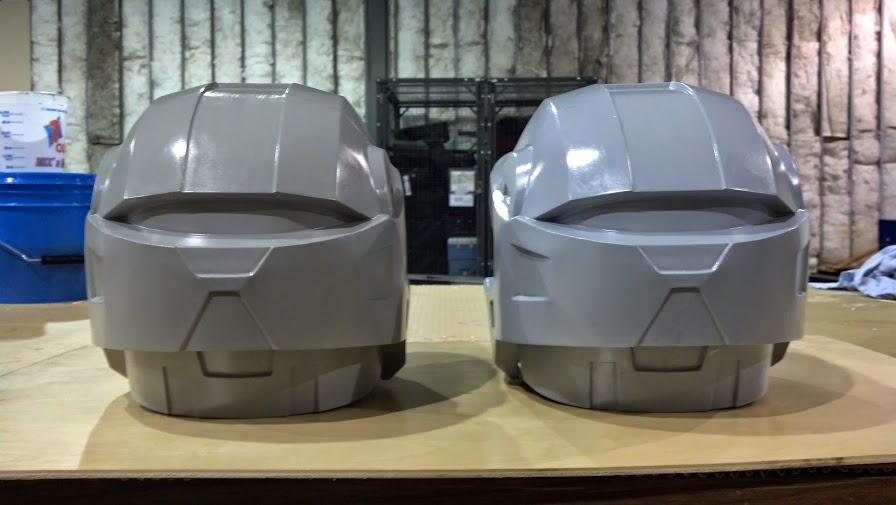

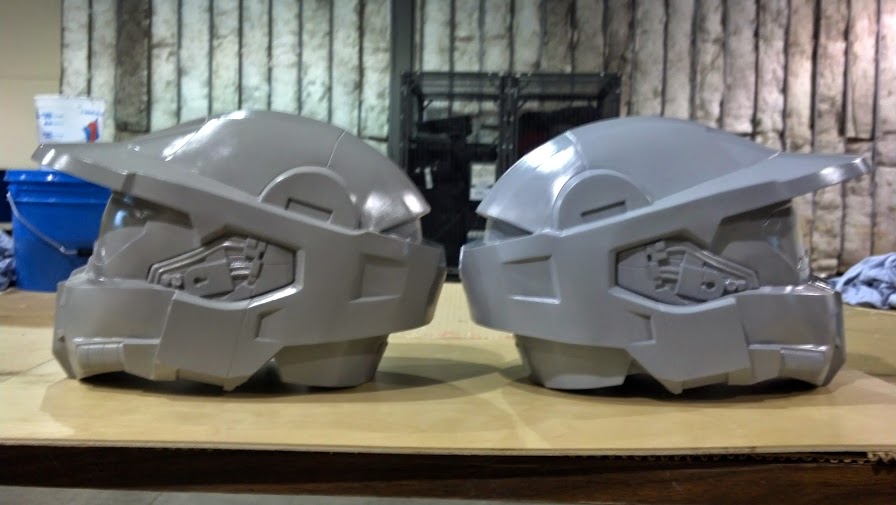

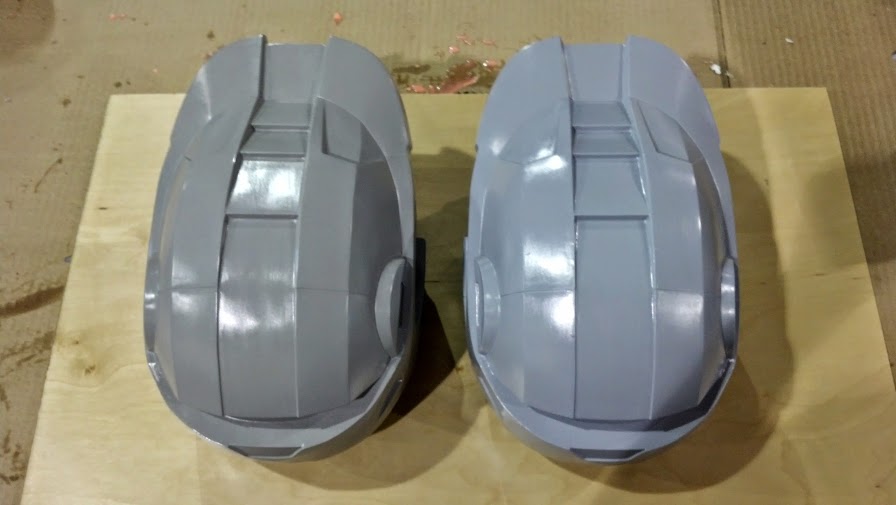

It has arrived!!! The master is on the left in dark gray and the cast copy is on the right in light gray.

I'll have a F/S thread up soon for those who are interested. If you can't access the classifieds. Send me a pm and I'll work with you the best I can. I'm so glad to see this part finished.
