CEREAL'S - Mk VI Comprehensive WIP **(With Videos)**

Status
Not open for further replies.
Man I can't wait to see what you do with that damage when you get to painting! The front looks wicked better, friend! My dad was wondering, so I thought I'd ask for him, how do you cut out like on the underside of the chin without going through, but still get the edges so smooth?

Thanks, happy that you like it so far. None of the damage is final. Some of it will be covered up. It was more so a test to see the different types that could be made. As far as the front goes I felt that the rounded front softened the overall look of the helmet giving it a better flow. With regards of the cutouts under the chin and any other detal that requires "cutting in" for that matter;

1. MEASURE TWICE, CUT ONCE!!!
- If you look at the images on the previous page, the shape is first measured out, not just cut willy nilly. So I know where I'm going before I even start doing the mod.

2. Razor blade and Needle files.
- Carve away the material that is not needed, while keeping in mind that you have to follow the existing taper from the original detail.

3. How do I not break through?
- I do break through sometimes (not on purpose of course) If you look at the previous image where I did the mod under the chin, you can see that there is most certainly a breakthrough in the helmet. But to avoid this, in advance I make sure that the backing of the area will be thick enough to support the work that I will be doing.

Hope this answers your question, If you have anymore please feel free in asking :)

You do gorgeous work, how do you smooth out the small recesses like the curved part of that triangle on the front?

Thanks for the complement!
As far as how to do the round over in the front; I use a rotary tool with a 1/8" cutting bit. With regards to how I get the shape proper and smooth... See the process that I listed in the reply to Kyre. :cool

Cheers,
Cereal

Last edited by a moderator:
You've made a lot of progress since the last time I checked this thread. There is so much detail I want to cry :)

Thank, glad you like it. Long way to go still, I think that I will be moving on to the chest piece once the helm is done.

Should have a progress update posted, hoping by thursday evening.
Till then, I sit, waiting for a good chunk of free time to get this helmet to the point of paint.

Cereal.

I wanna see this lol.

Everything is looking great man! I am loving the process pics and the detail fixes you are making. :) Thanks again for sharing with all of us this awesomeness. :)

Lol, see the Jig...
Yeah I bet!
Glad you like the style of the thread, of course I would share it, thats the whole reason it was made ;)

Should have an update posted tonight...
Cereal.

Earlier than expected update! :D

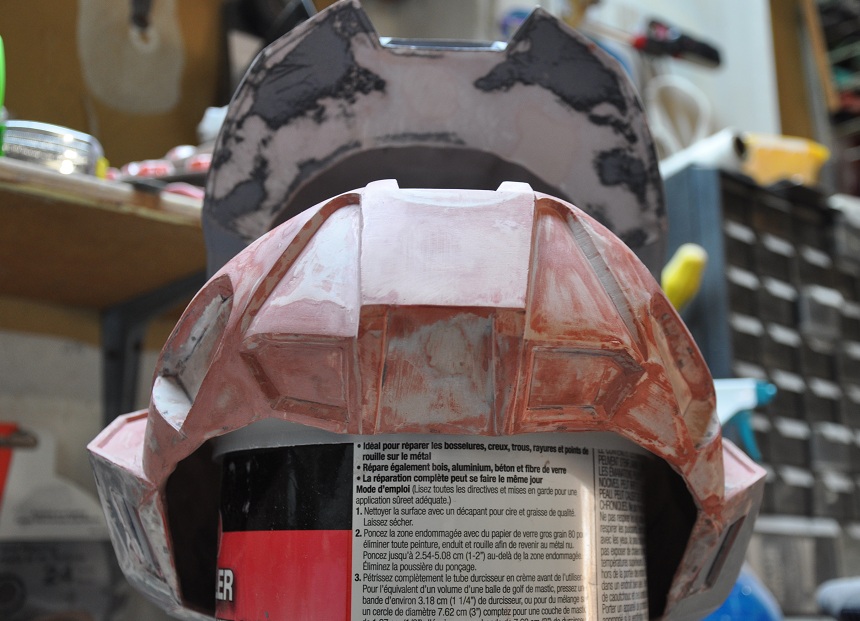

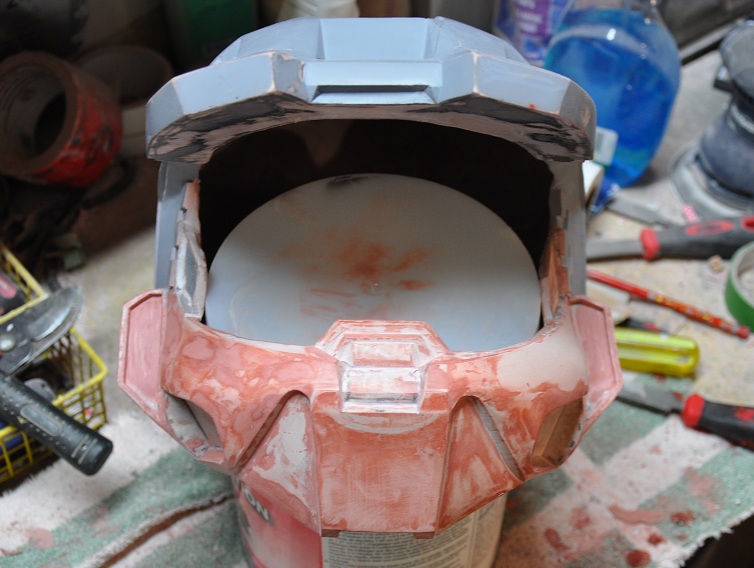

Ok, I had some time to work on the helmet and ended up finishing the front off. It was basically the same process as in the previous update, just had to repeat on the opposite side. I used templates to ensure that all the corresponding parts on the left would match those on the right. So, after a bit of carving, sanding, filling and measuring and then some more sanding and carving and then one last final complete coating of glaze, here is where I ended up:





And then some more sanding....

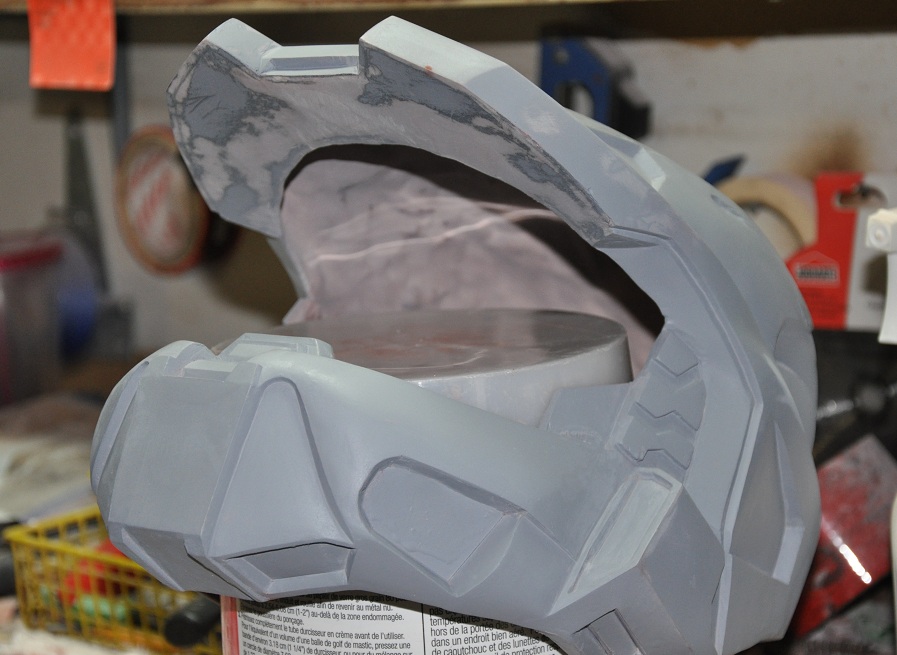

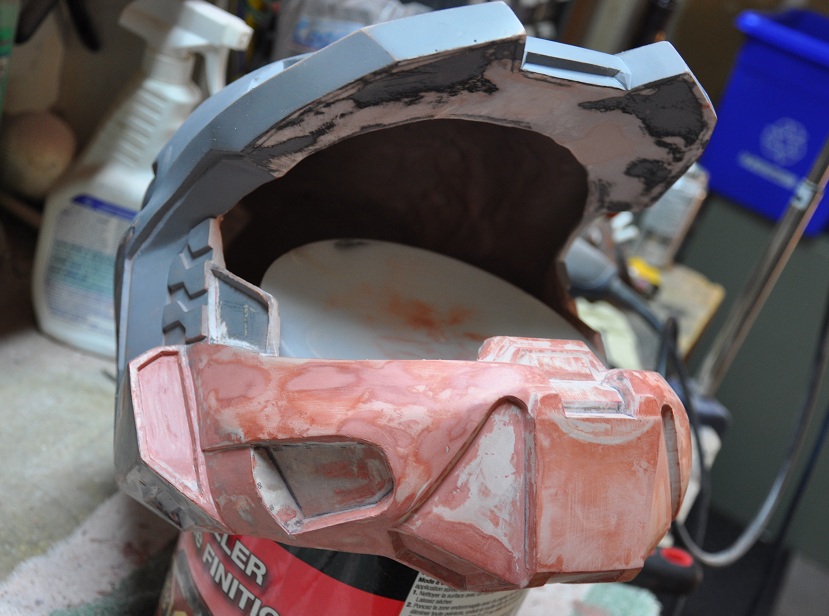

Which gave me this:






And let's not forget the underside of the chin, yet again...

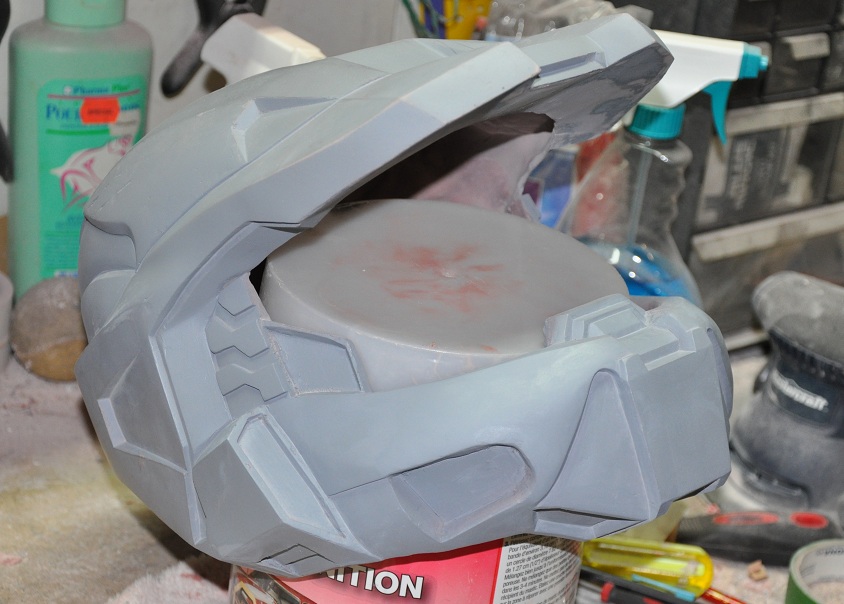

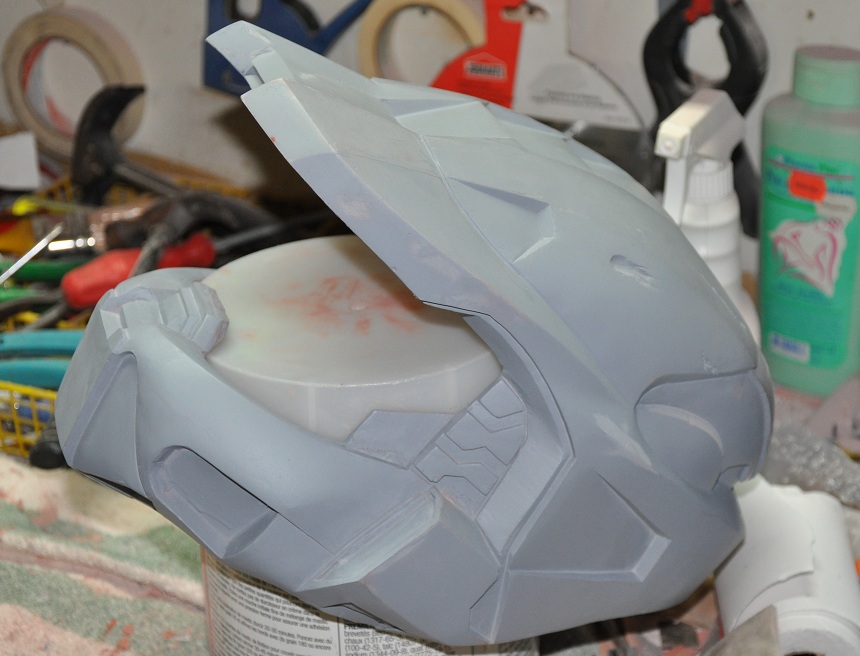

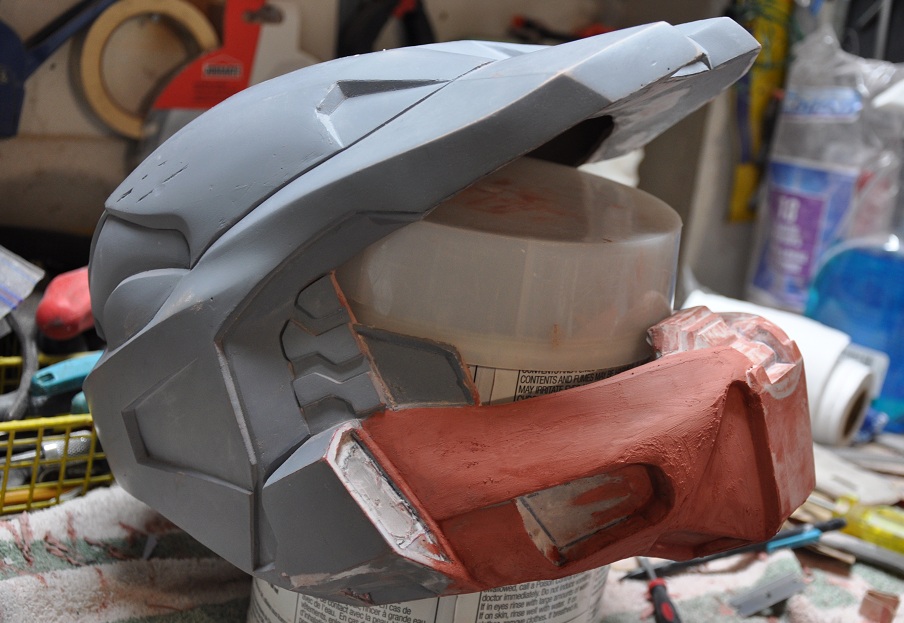

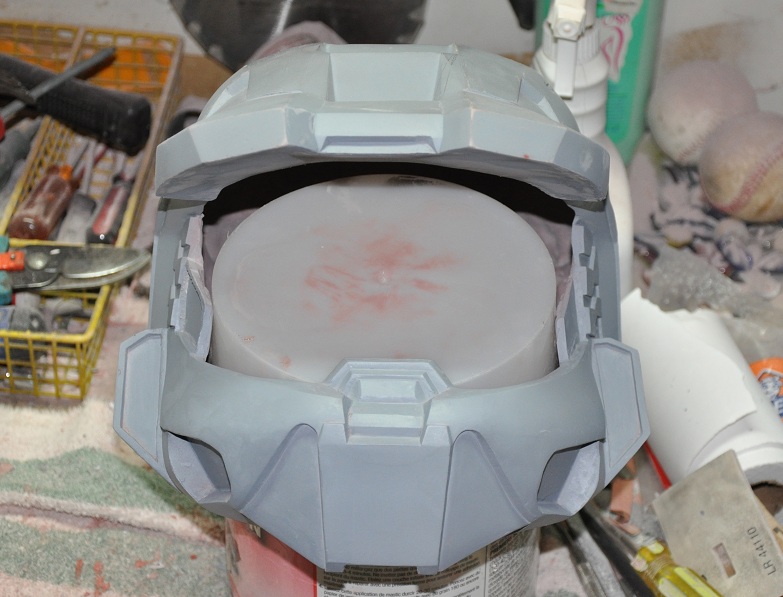

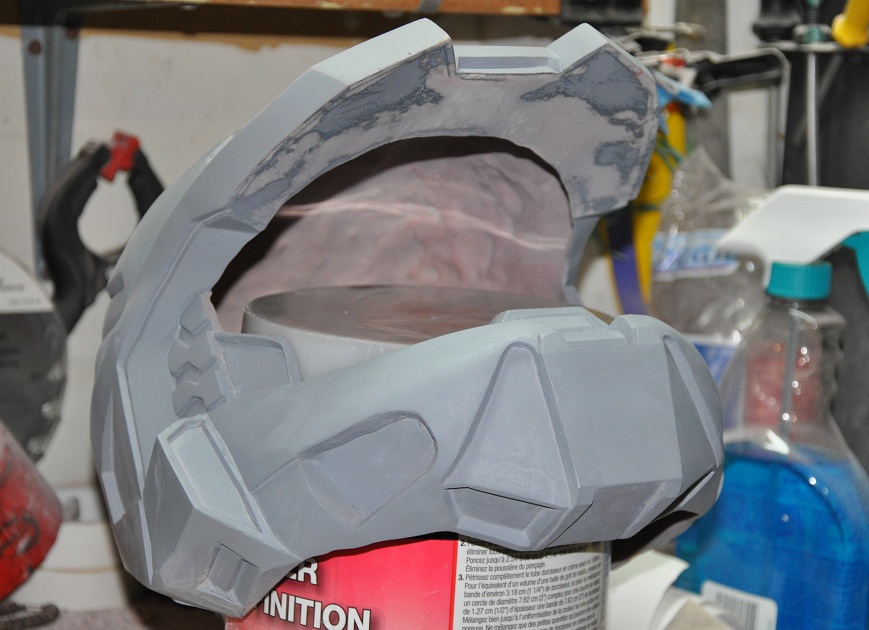

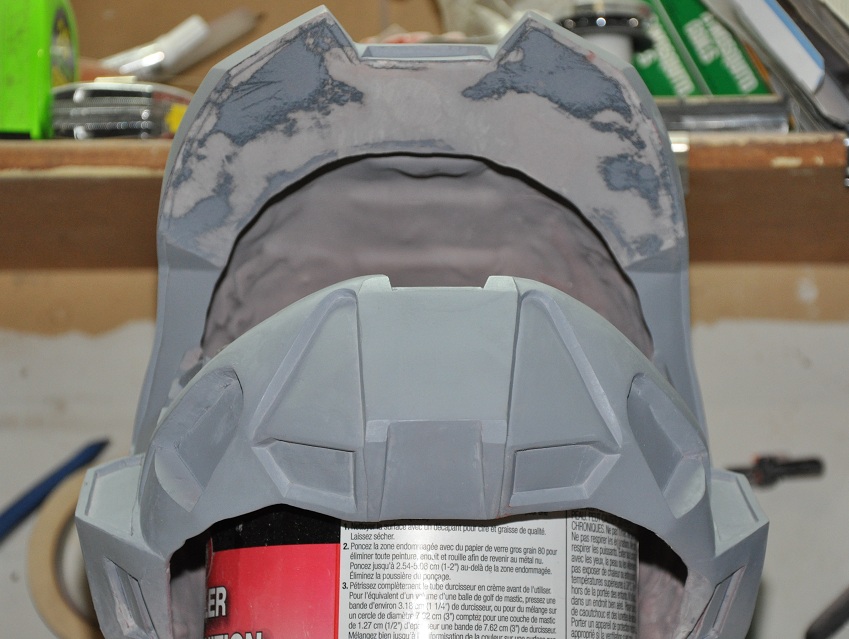

Once again, my impatient side kicked in and I was once again compelled to shoot some primer onto the front of the helmet, just so I could see how it looks!














Actually, the primer helps out with seeing all of the small imperfections and any highs and lows that there may be which were not visible when it looked like the Technicolor Dream Helmet.

That's about it for now. Next will be the details on the underside of the brim. I also may return to the back of the helmet as there is a feature that I may want to add to the underside of the back. But... that's another topic for another update...


As per normal; any comments, questions, critiques... Always welcome!

Till then...
Cereal; Out.

Last edited by a moderator:
I just can't get enough of this thread!!! You so greatly inspire me and it's truly a privelege to watch this coming together. This is coming together to be one of the most beautiful pieces of armor I've seen and I truly agree this is elite worthy like so many others do.

just amazing work! are you planning on molding this? and is it me or is the top and bottom of the helmet off a little? the top seems to be fixed to the left a bit when looking at it. or is it the way its sitting?

DANG great job man!!! the detail work you did makes the helmet look great =D love the helmet man, keep up the good work

I just can't get enough of this thread!!! You so greatly inspire me and it's truly a privelege to watch this coming together. This is coming together to be one of the most beautiful pieces of armor I've seen and I truly agree this is elite worthy like so many others do.

Thanks man, I'm happy that you are enjoying the thread and the build!
Plenty more to come.

just amazing work! are you planning on molding this? and is it me or is the top and bottom of the helmet off a little? the top seems to be fixed to the left a bit when looking at it. or is it the way its sitting?

I have thought of the "possibility" of molding the armour, once everything is done. But that's a long time away. As far as a warp goes... Not that I can see, it could be the angle that the picture was taken.

DANG great job man!!! the detail work you did makes the helmet look great =D love the helmet man, keep up the good work

Thanks Road Kill. This build has been a long time coming, I'm at the point now where I can't wait to start the next piece. It's probably going to take me another few days at least working on this helmet to get it to the point of paint, that's when I will allow myself to move on.


With my haste in posting my last update, I forgot my "Then & Now" shot!

So, without any further ado...

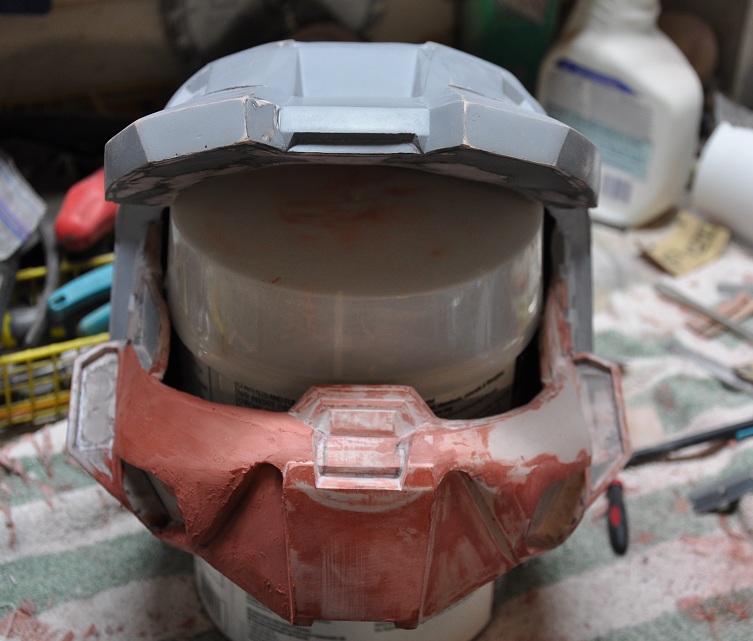

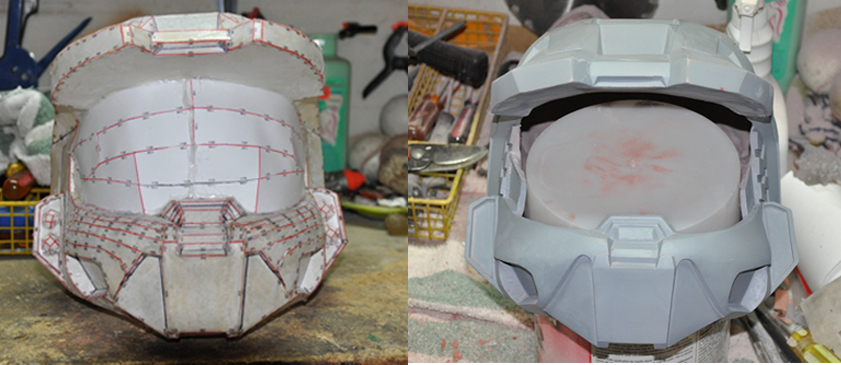

Then & Now.


Last edited by a moderator:
As usual, this continues to look great Cereal!

Thanks! As do things on your side of the fence ;)

top notch man, just amazing work. cant wait to see the rest if just the helmet looks this good already

Thank you, I've been itching to start pepping out my torso... but rules are rules. Can't start anything else until the helm is done!

Wait... who made up that rule?!?! Tell them their fired!!! :angry

Ive figured it out, cereal is a magician. :) Looking great man

Thanks man,
A magician... if that were true, I'd be done!!!! lol :)

Lmao,
Yeah true enough!
Well, last night I broke down and printed off all of the sheets for my chest piece.
But I promised myself that I will not touch them. Besides, I have to work on the helm today, anyways.

Update should be coming soon...

Update time...
It's been a few days since I've posted anything of interest. So here goes. I've started working on the underside of the brim. I will explain step by step what I have done as I go.

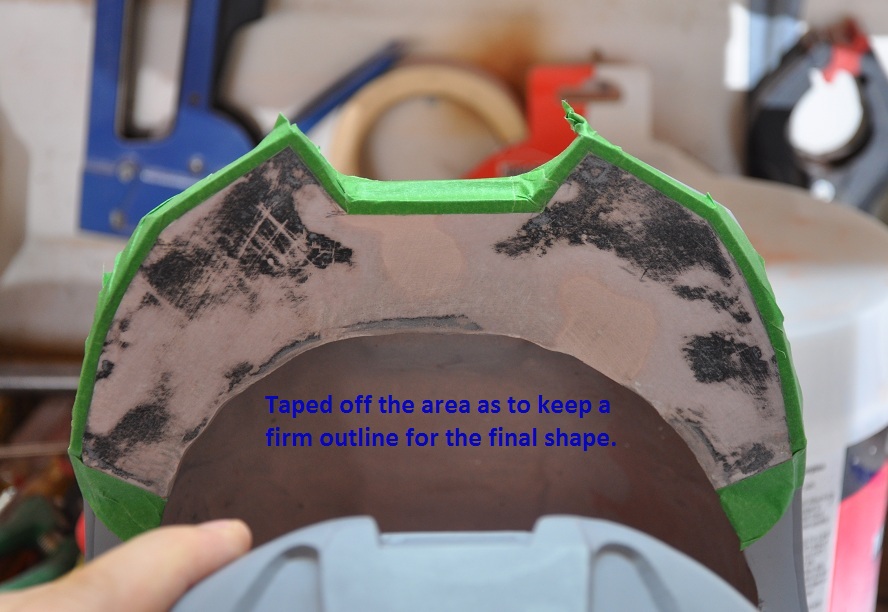

I've taped off the brim to contain the overall shape of the layer that I will be adding. When complete it will be about 2.5mm high and be recessed by about 2mm from the outer edge of the brim.

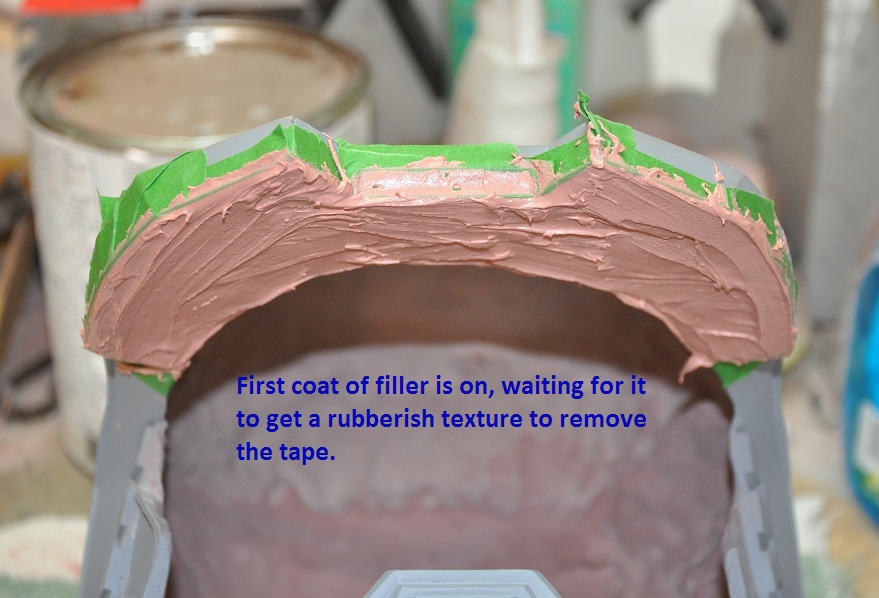

Applied the first of two coats of filler, this first coat will act as a 'foundation' for the overall detail. Once the filler cures up to a rubbery solid I will **gently** pull back the tape piece by piece while pressing down on the adjacent side to prevent lift off.

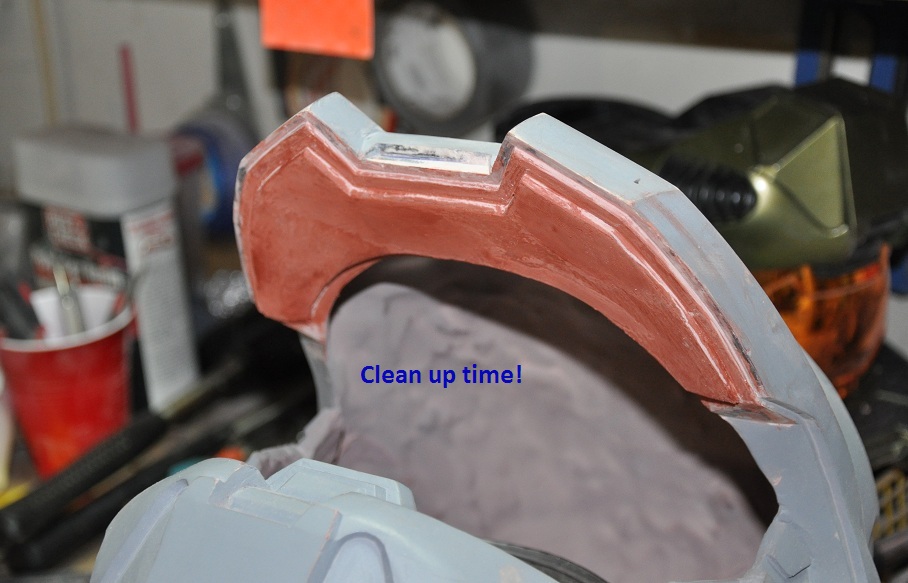

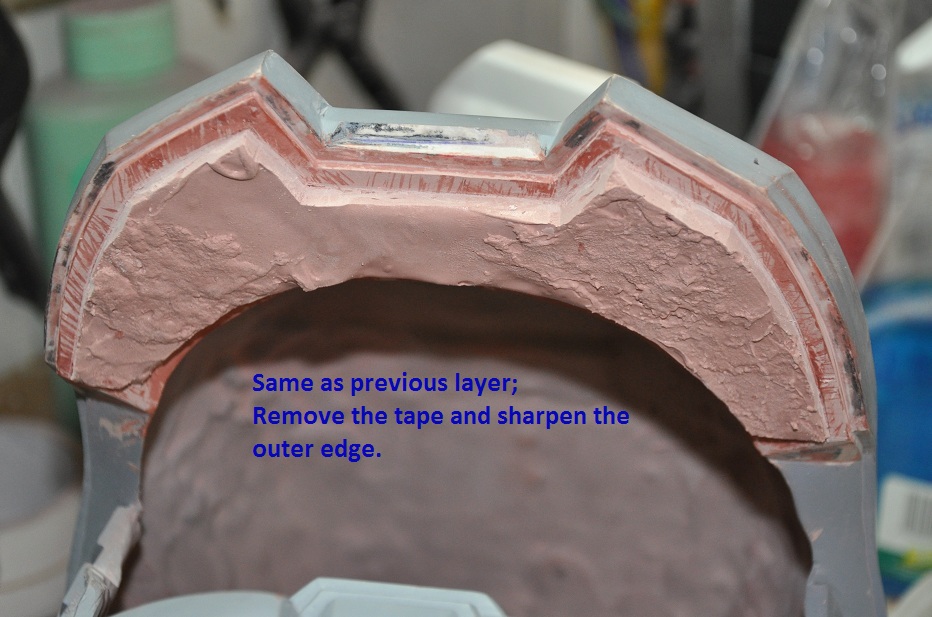

Once the tape is removed, I clean up the outer edge of the layer with a razor blade; reinforcing it's shape.




After the second filler coat is applied and has cured fully the measuring starts. As shown in the image above, I clean the outer edge of the shape. I do this for 2 reasons;

1. It is far less sanding later, preventing any possible damage to the underlying brim.
2. It gives me a smooth reference point that allows me to completely level this new layer.

What I do it draw a line to indicate the final overall height of this layer. This line goes around the whole piece at about 2.5mm off the face of the brim. Once the line is committed, using a smoothing file; I file the perimeter of the layer on a 45 degree angle bringing the height down to the pencil line I made earlier that outlines the layer. This makes the outer edge uniform and level around the whole layer.

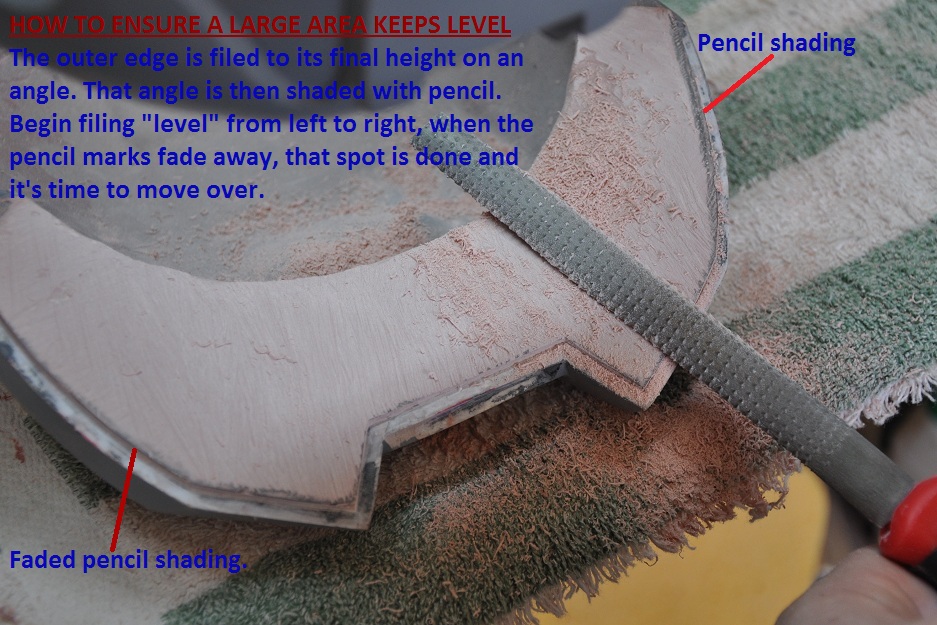

Next, I shade in another line around the face of the layer (as seen below). I use a rasp (flat and level) on the layer and from left to right begin removing material slowly and evenly. Because the outer edge of the layer is on a 45 degree angle, when I file against the face of the layer it will not remove any further material from the outer edge until the piece as a whole is filed down to that level. When the shaded line begins to fade, I stop as that area is now level with the outer edge, and I move on to the right.

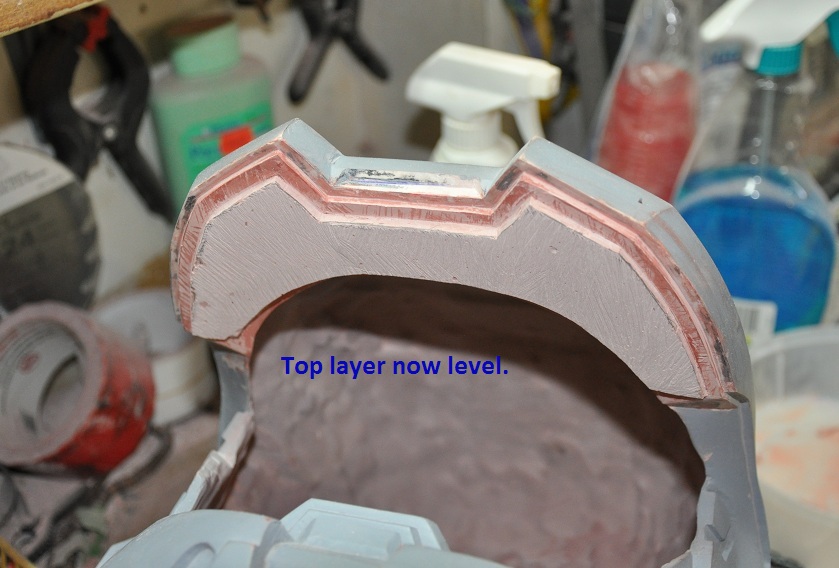

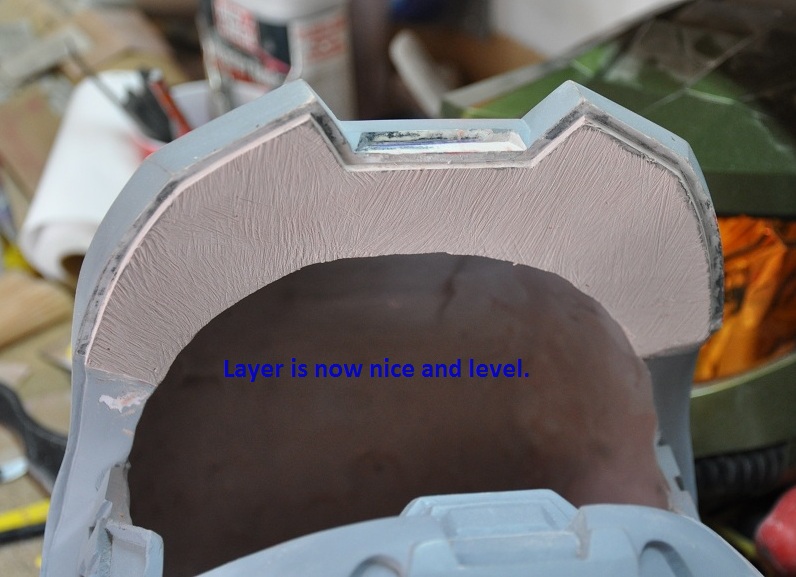

Once the rough filing is done, I'm left with a nice level surface.

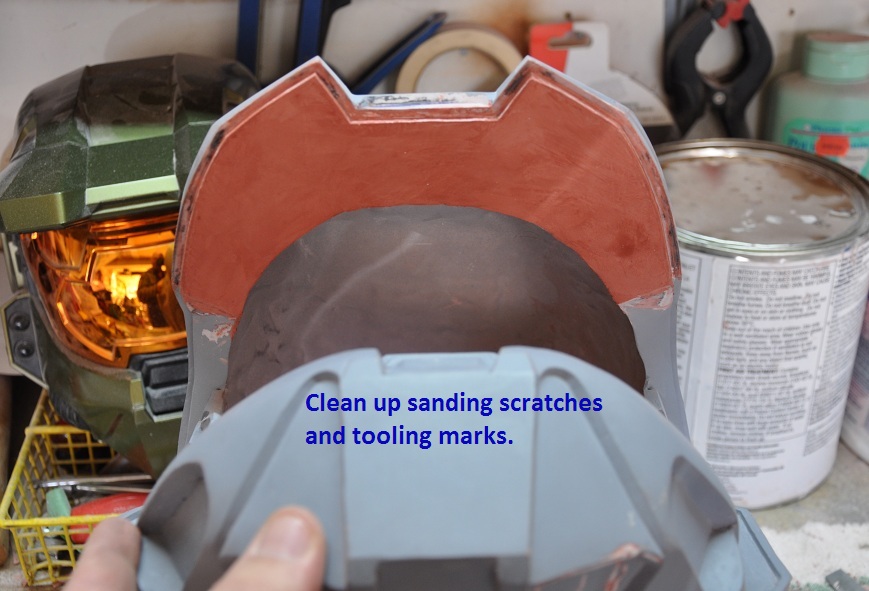

After a sanding with 120grit, I glaze the whole area with spot putty to fill in all tooling marks and sanding lines.

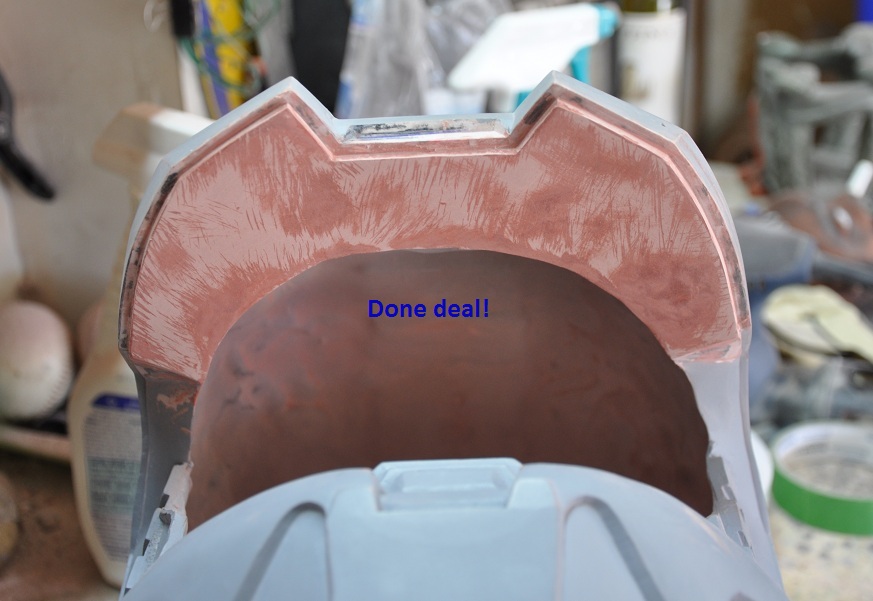

Once the glaze is cured, it gets another sanding with 120.




Lather, rinse, repeat...

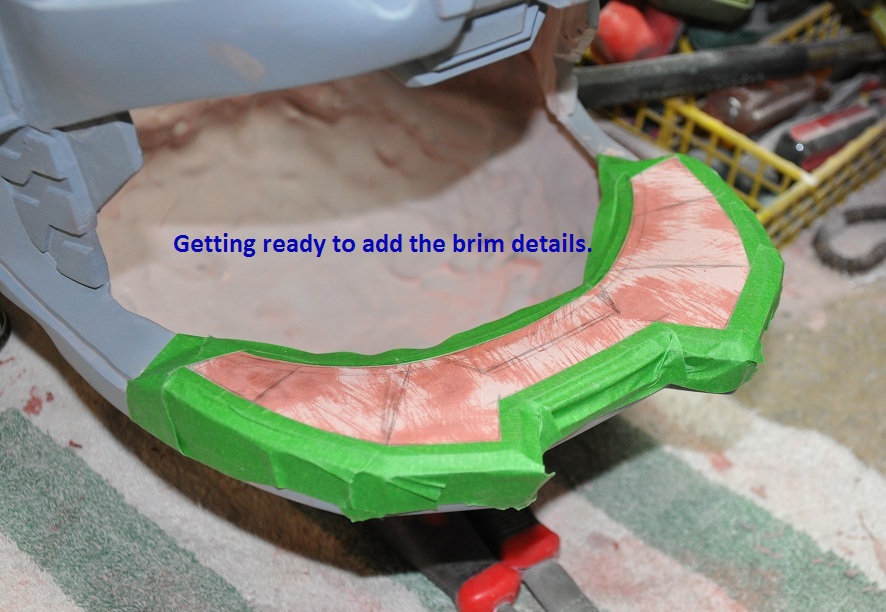

Once again setting up, now to do the final under brim details. I thought about doing this after the face with foam or plastic pieces, but I figured... what the hell. I'm here now, why not go a bit further.




Lather, rinse, repeat... yet again!

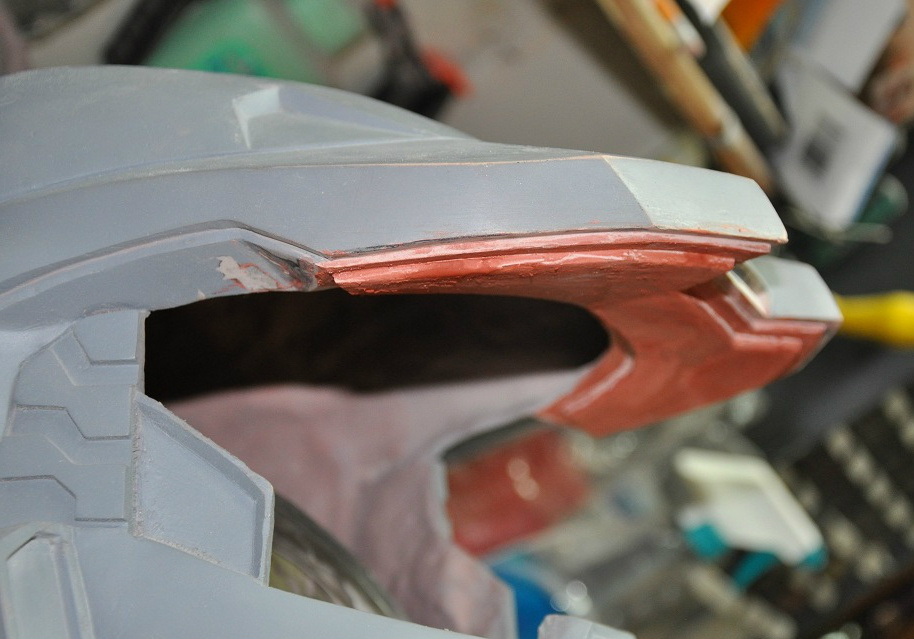

As I wait for the glazing layer to dry, I figured that I would take some profile pictures to show the overall look of the additions to the brim. The lower of the two layers that I added blends perfectly with the existing chamfer from the side of the brim. Everything is smooth and equal.

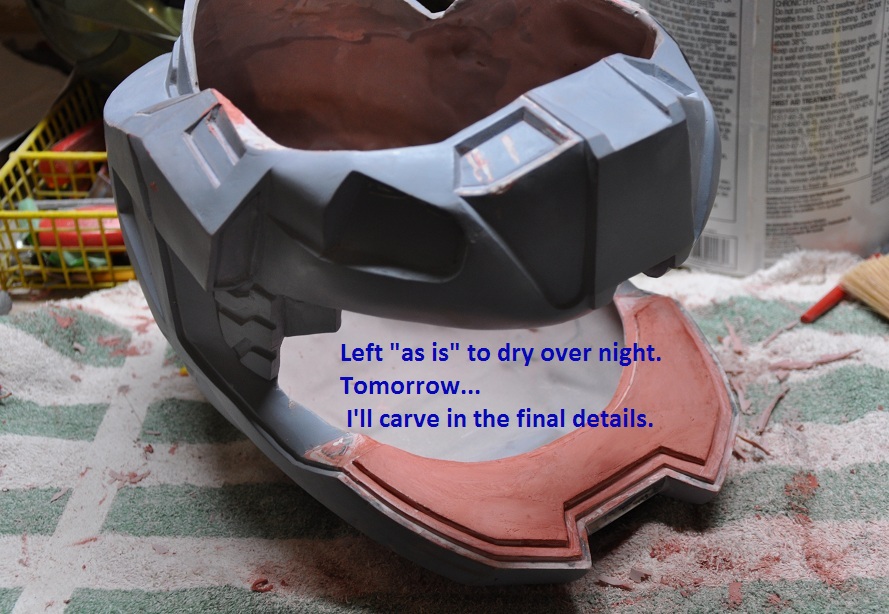

This is as far as I will take it today, not because I'm tired, but because this glaze must cure completely or it will have a crumbly consistency and I will just have to do it over again. I'll pick up from here later today with a final sanding and the top layer will get cut up into its final shapes.







Well that's it for now, another update will come later on today... :cool
Till then;
BLARG, BLARG!!
Cereal.

Last edited by a moderator:
That looks so good! Your like the Michael Angelo of sculping filler :D
Really great job, Cereal.

First let me say, GREAT WORK! Lol. Second, I love the fact that Lost Viking called you the "Michael Angelo" of bondo sculpting. I loled. You should be proud of the name. It's great. But, I agree, you are the bomb nasty at sculpting bondo. Great work all around!

Tony

This is simply brilliant ! You are taking your time and adding some SERIOUS detail. Great job man! You know , the Unity project still needs some people to work on some armor pieces.... :p lol

- Jacob
