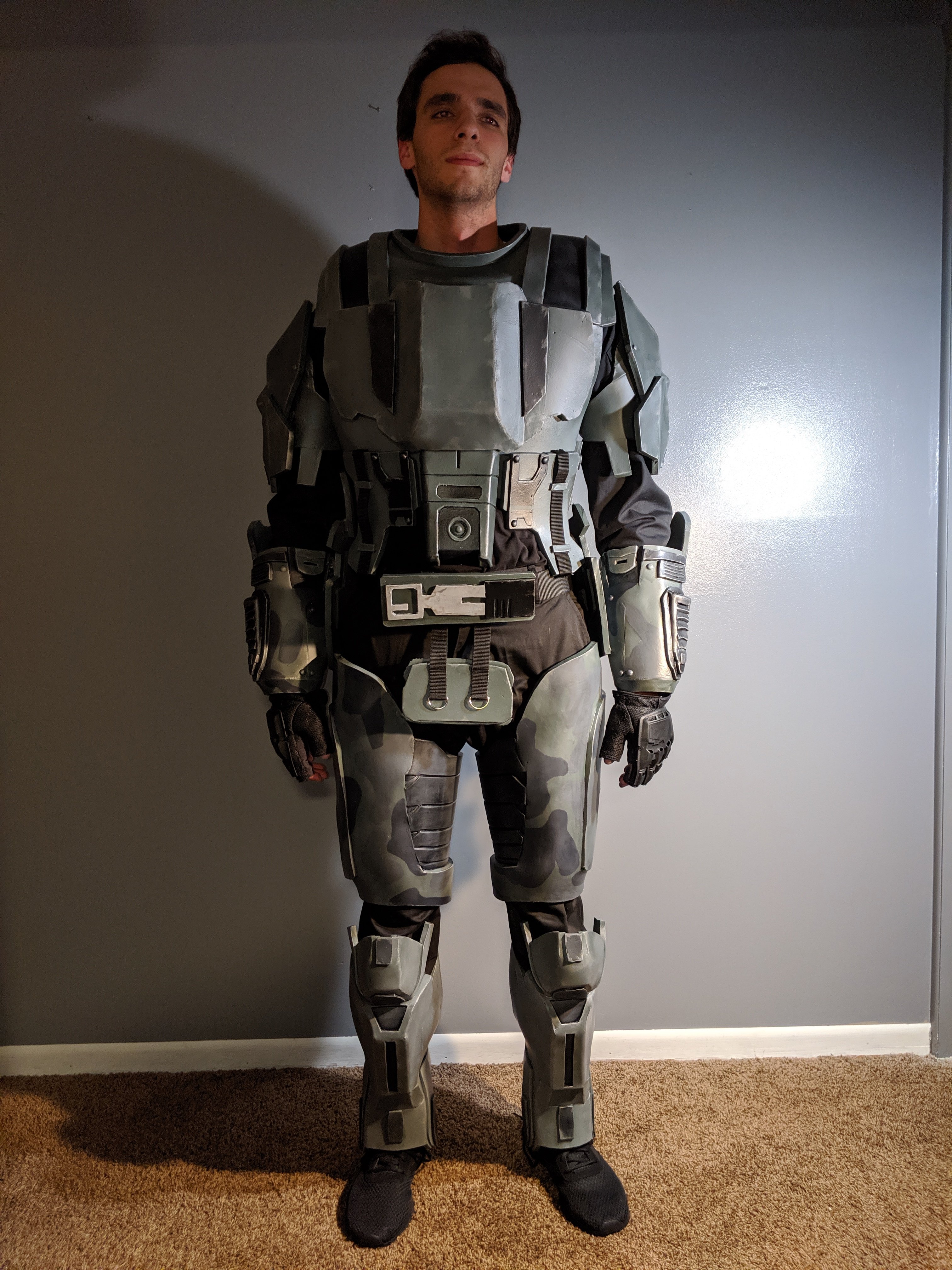

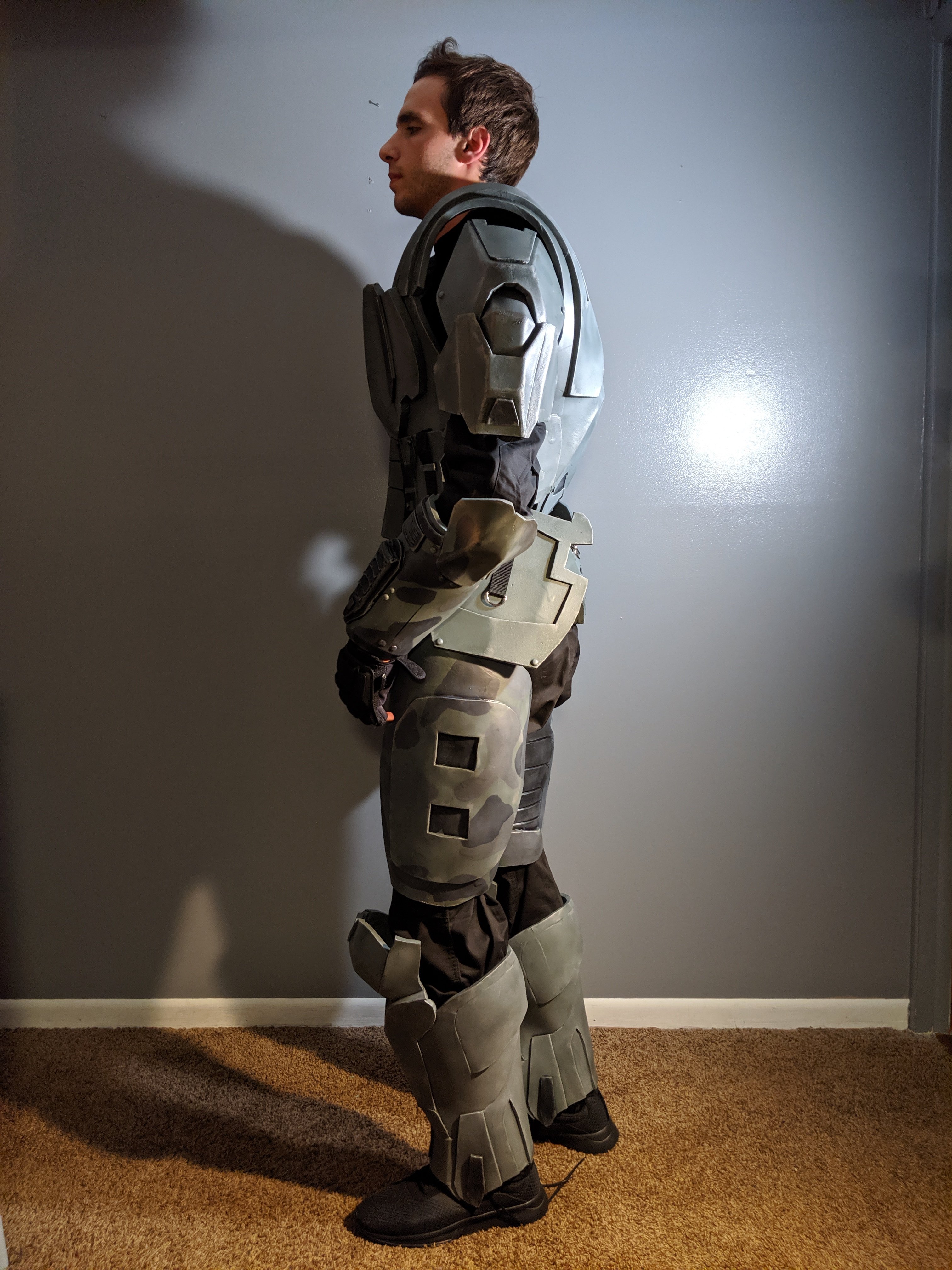

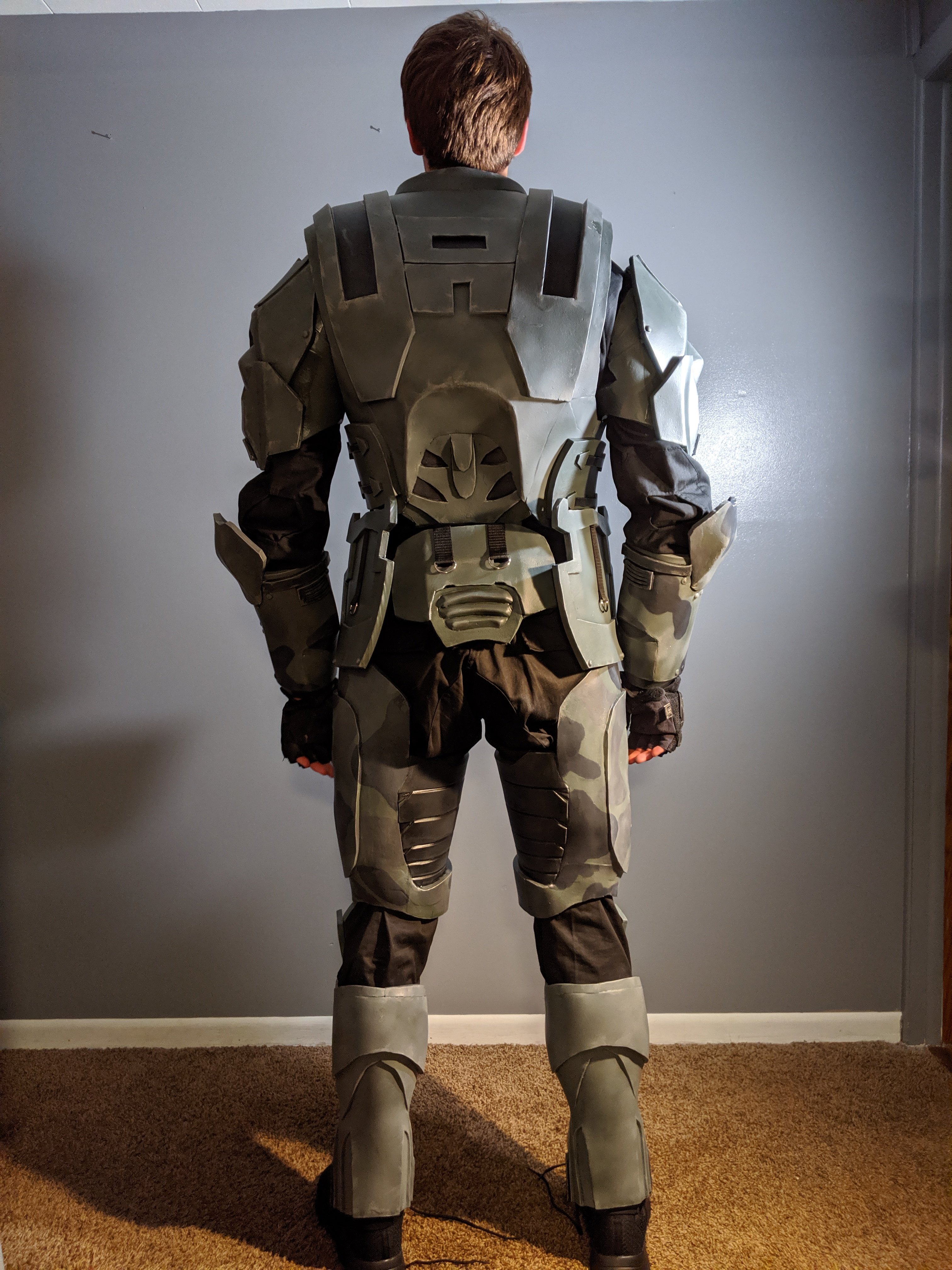

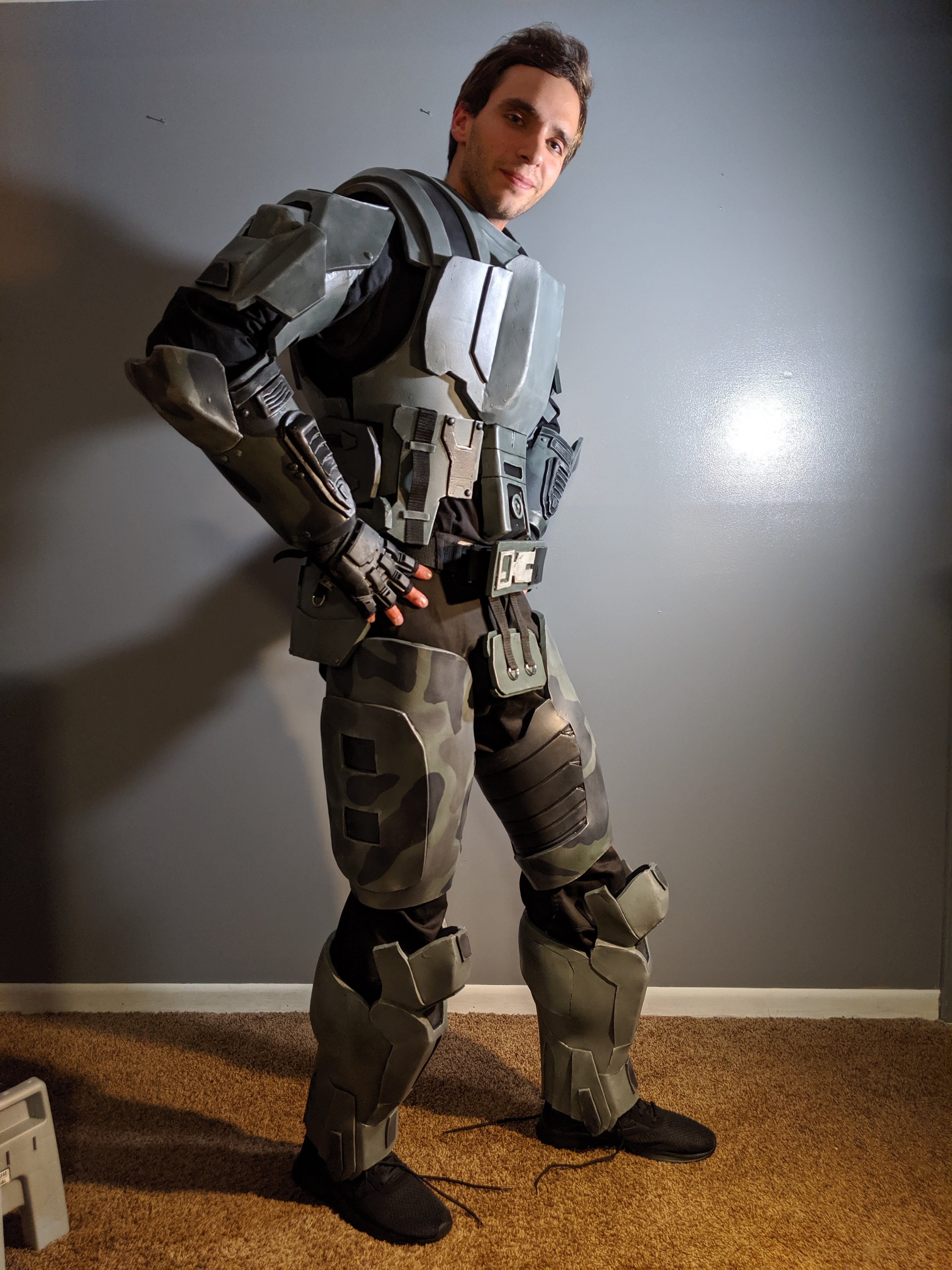

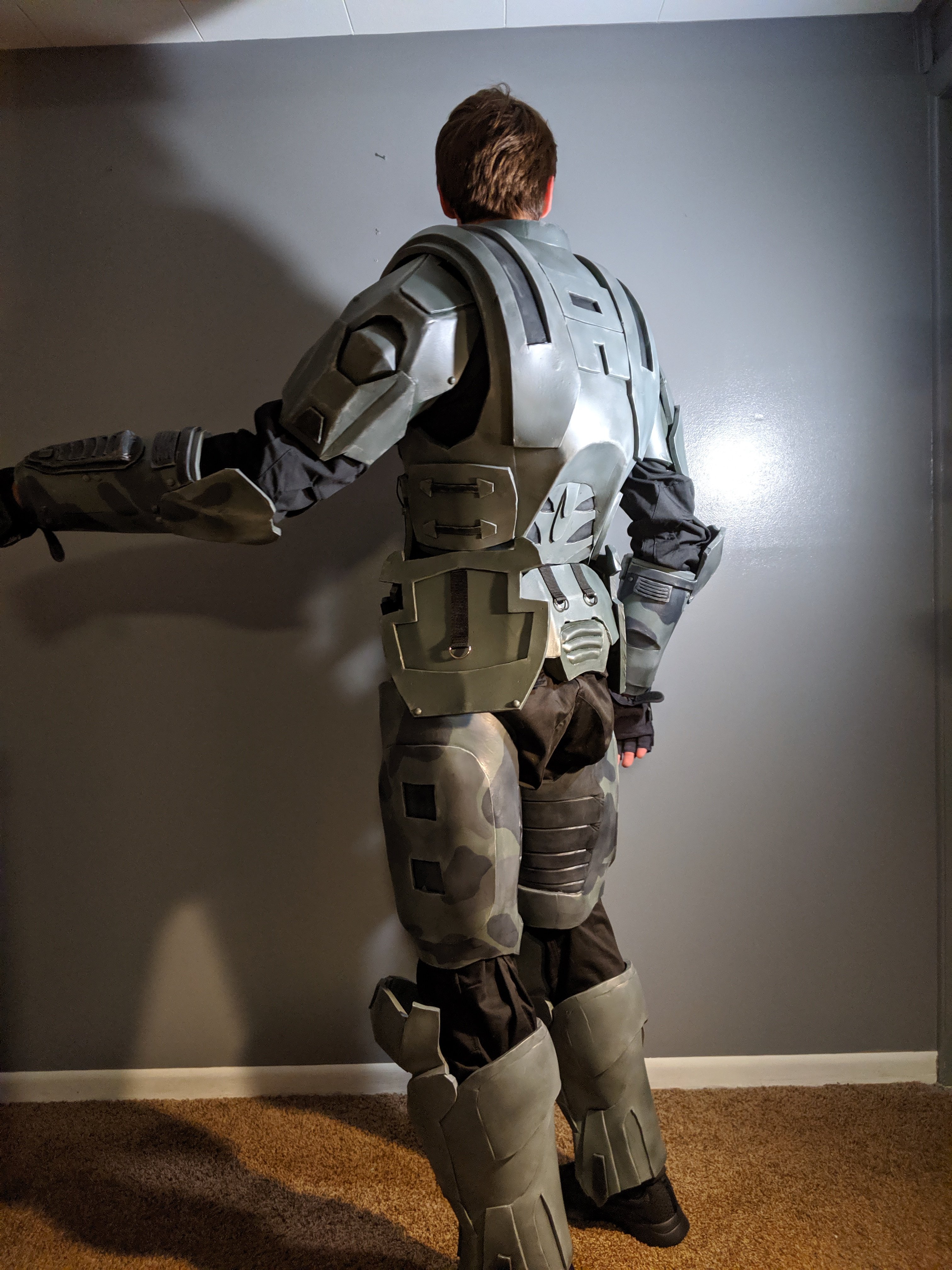

Photo dump time. Got everything fastened except the boots. Time finish my helmet.

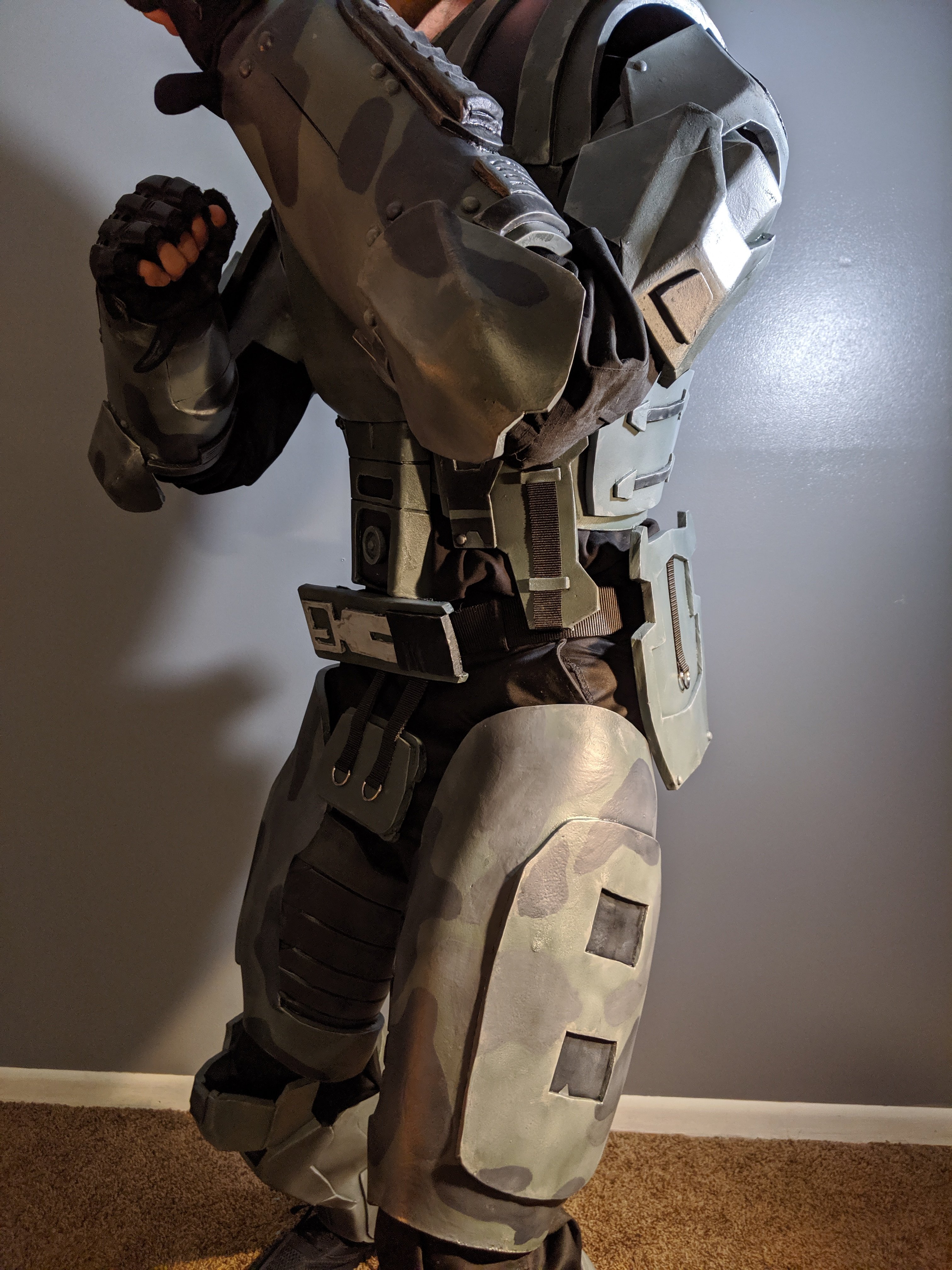

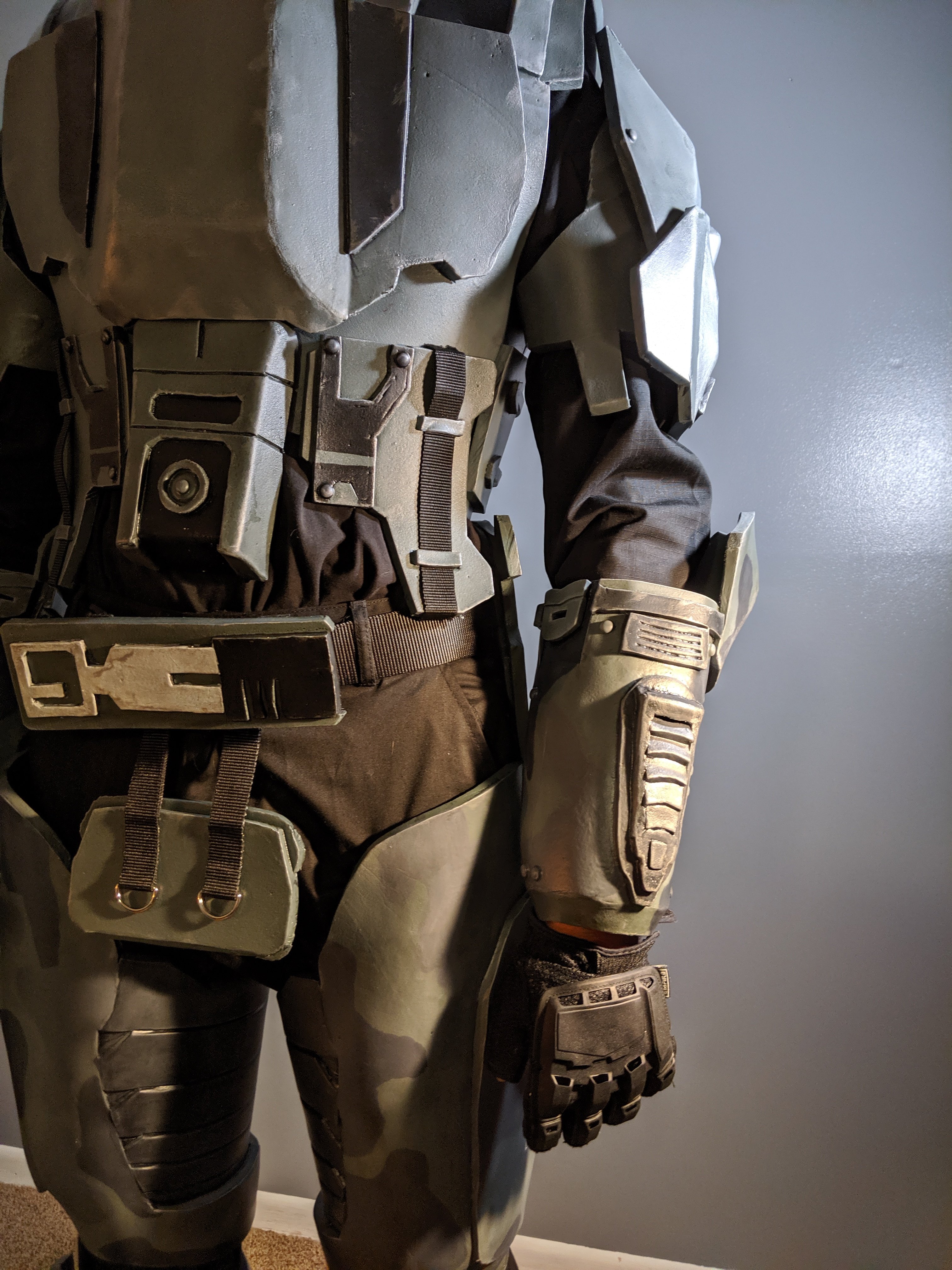

The thighs, shins, and shoulders are held in place by heavy duty snap fastners, thanks Sean Anwalt for the suggestion & PaiganBoi for the examples. Gauntlets are friction fit but I have to loosen some of the foam up to get my hands further in. the crotch, butt, and hip plates are looped through my belt from the nylon straps creating a hanger for them.(they could have been forward more but it was late). Belt I tried velcro but will probably just do the nylon strap looping like I did with the butt & hip plates.
To preface I haven't glued my boot covers on that's why they are missing.
Also i'm pretty mobile in this build. can do squats and walk around easily, can't crouch super far down without squishing the thighs but it can be done. also I can sit down in it.
The thighs, shins, and shoulders are held in place by heavy duty snap fastners, thanks Sean Anwalt for the suggestion & PaiganBoi for the examples. Gauntlets are friction fit but I have to loosen some of the foam up to get my hands further in. the crotch, butt, and hip plates are looped through my belt from the nylon straps creating a hanger for them.(they could have been forward more but it was late). Belt I tried velcro but will probably just do the nylon strap looping like I did with the butt & hip plates.
To preface I haven't glued my boot covers on that's why they are missing.
Also i'm pretty mobile in this build. can do squats and walk around easily, can't crouch super far down without squishing the thighs but it can be done. also I can sit down in it.
Last edited:
Sean Anwalt
Sr Member
- Member DIN
- S530
Heck yes, man. That's looking really good! Now you need a weapon.
- Member DIN
- S434
I definitly have enough foam leftover... i'm thinking BR, but a SMG would be easier. Don't wanna get ahead of myself though I gotta get my helmet done first
. Luckly my first con isn't till november so I have time for the weapon. Halloween however is closer and just needs the costume.
- Member DIN
- S063
My vote goes towards making the H3: ODST silenced smg.I definitly have enough foam leftover... i'm thinking BR, but a SMG would be easier. Don't wanna get ahead of myself though I gotta get my helmet done first
TurboCharizard
Sr Member
- Member DIN
- S068
Vote for BR!I definitly have enough foam leftover... i'm thinking BR, but a SMG would be easier. Don't wanna get ahead of myself though I gotta get my helmet done first
PaiganBoi
Sr Member
I am particular to the DMR myself.I definitly have enough foam leftover... i'm thinking BR, but a SMG would be easier. Don't wanna get ahead of myself though I gotta get my helmet done first
- Member DIN
- S434
I'll probably do SMG, I know I have enough foam for that at least haha. And man someone on the facebook group just pointed out I put the crotch plate and belt on upside down, G Dangit! luckly i can just flip the belt, but crotch plate I might have to leave alone or just make the straps hang a little further down when reattaching upside down.
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
- Member DIN
- S922
Better to go too light than too much and be sanding for weeks. It's looking good.
How did you attach the straps to the crotch plate? If it's hot glue, a little rubbing alcohol should pull off no problem. A little more risky since they're already painted, but if it bugs you enough to change and not enough to remake the part it's an option.
How did you attach the straps to the crotch plate? If it's hot glue, a little rubbing alcohol should pull off no problem. A little more risky since they're already painted, but if it bugs you enough to change and not enough to remake the part it's an option.
- Member DIN
- S434
Thank you! And I used contact cement.. so I have a feeling the paint would come with it even if I used rubbing alcohol.
- Member DIN
- S063
Contact cement requires acetone.
Also, looking good Heath! It's gonna be great.
Also, looking good Heath! It's gonna be great.
Sean Anwalt
Sr Member
- Member DIN
- S530

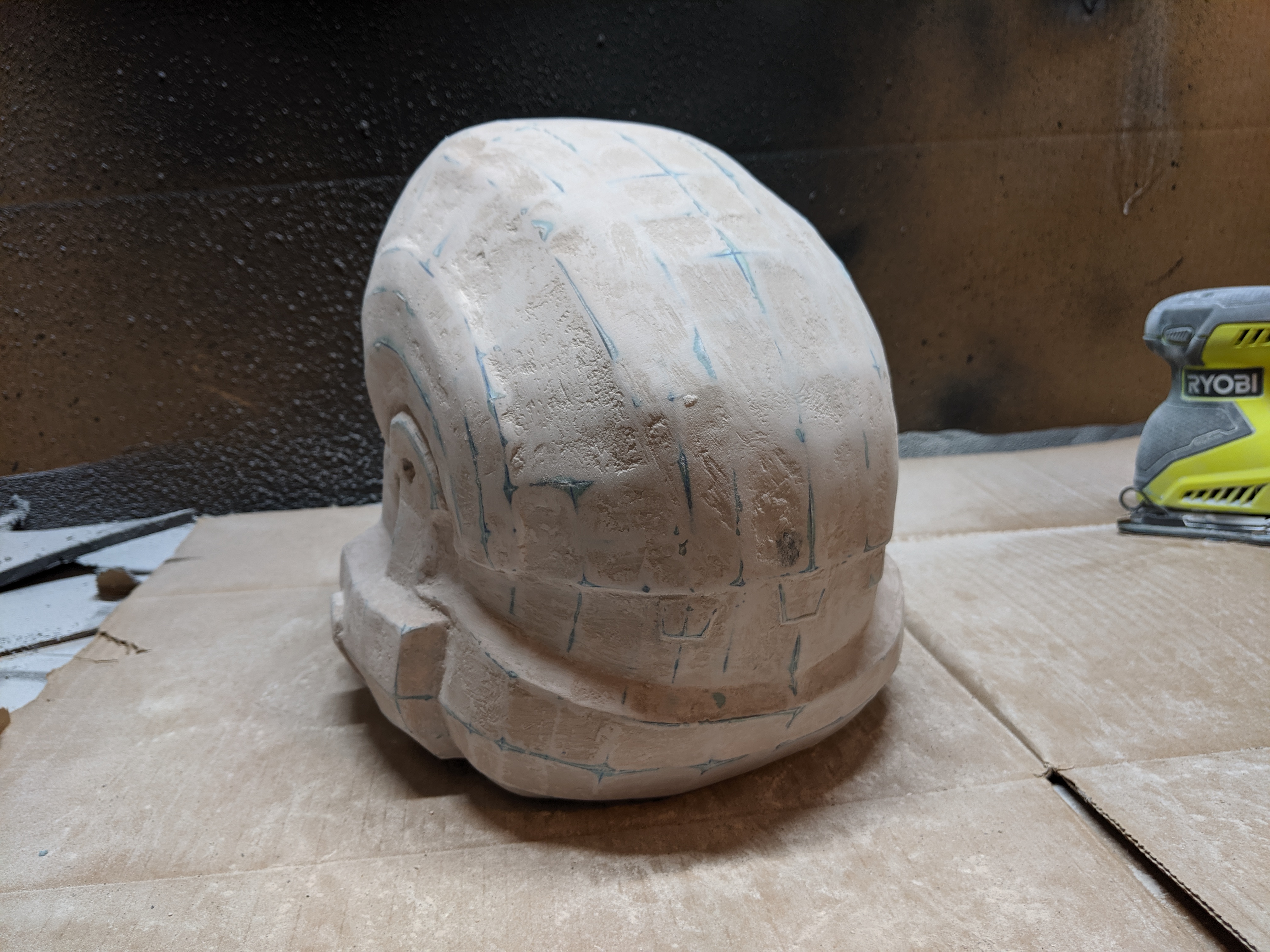

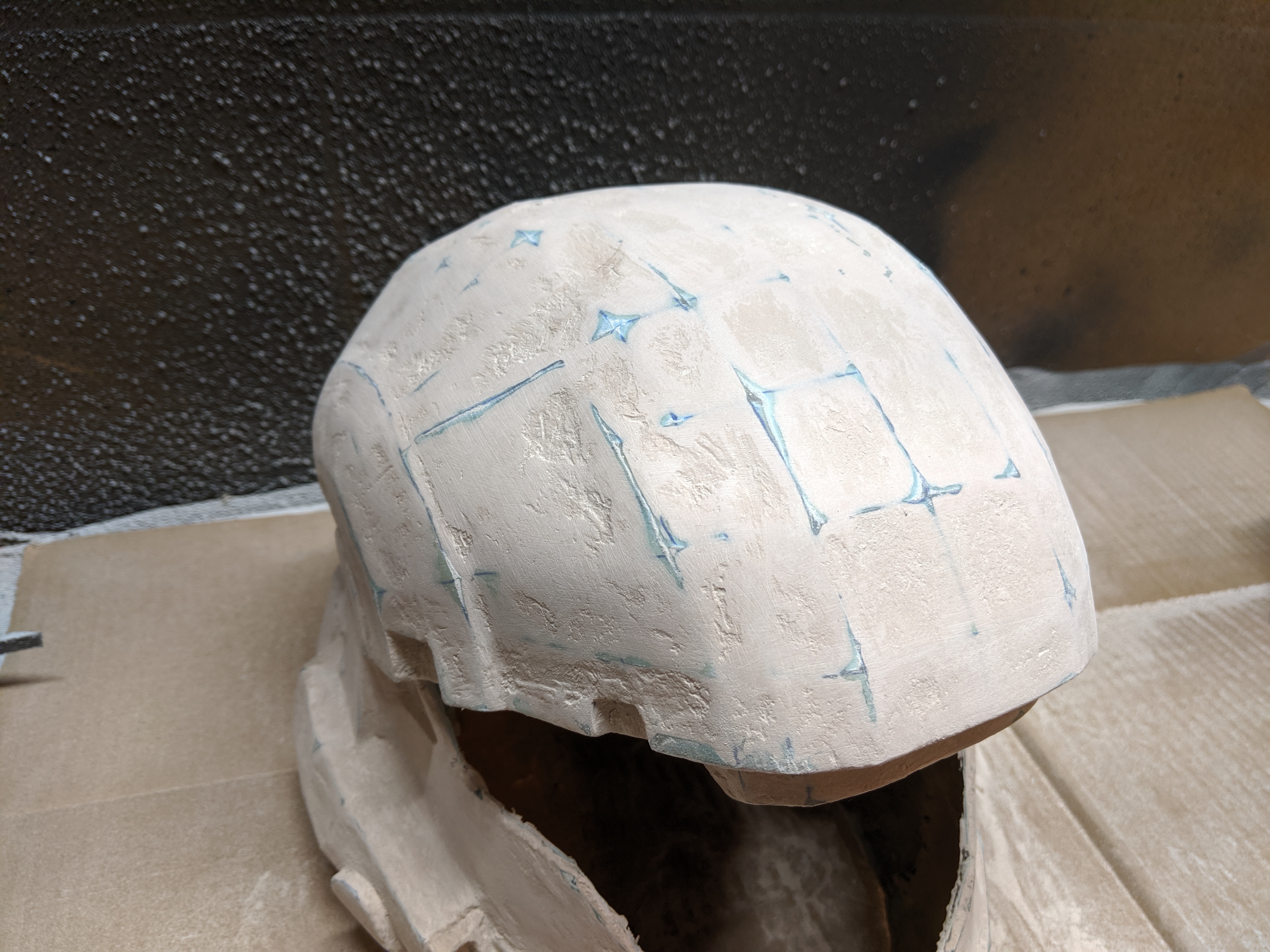

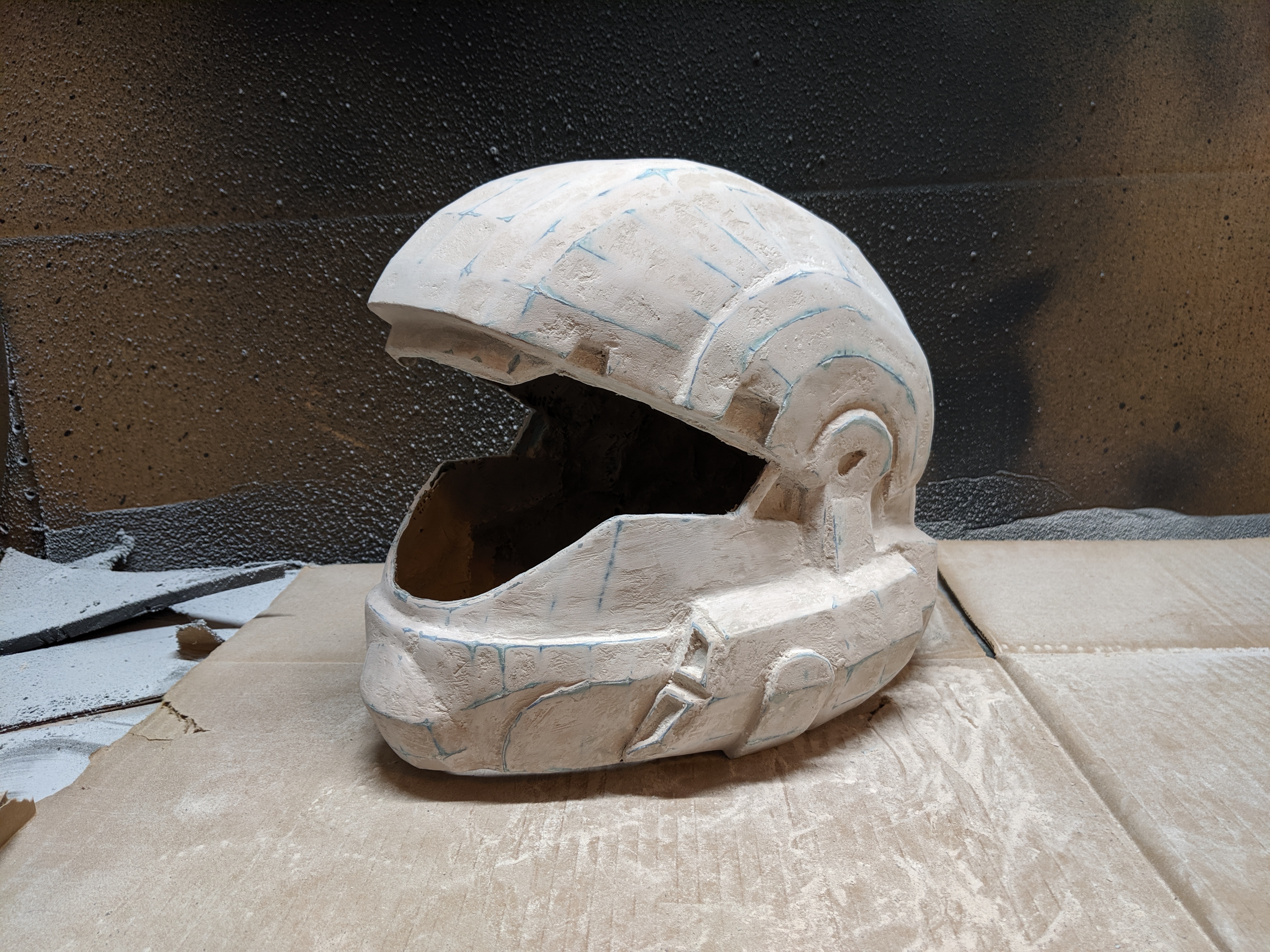

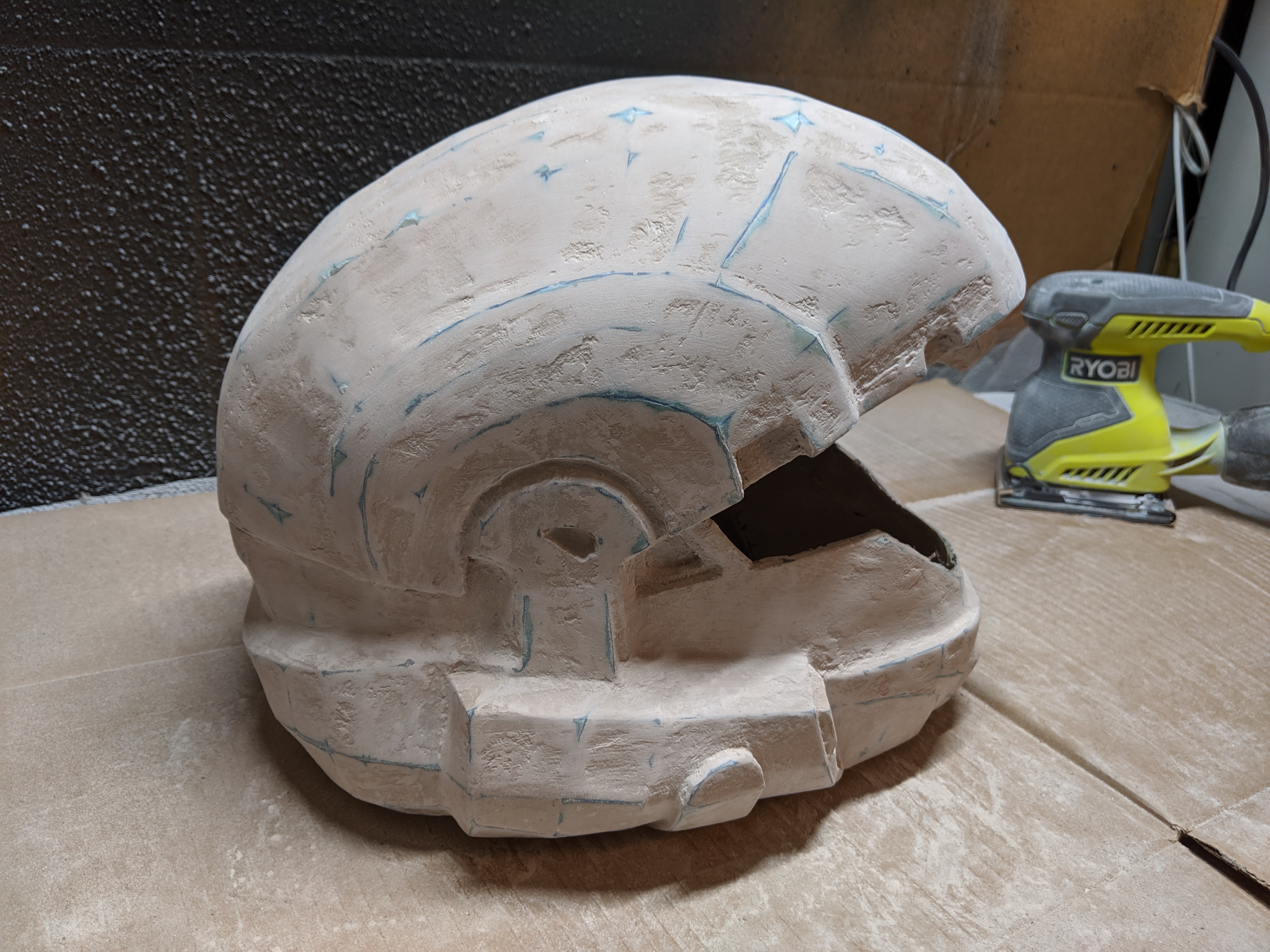

I agree with RandomRanger. The helmet is looking good. And don't worry about adding more bondo, it's a natural part of the bondo process. Another layer or two and some wet sanding with 400 grit paper and that puppy is going to shine!
As for the crotch plate, try cutting the straps free with a razor by sliding it in between the plate and the straps, then once free, you'll need to touch up the plate front, since it will probably be marred. A little acetone on a rag will help. Though you'll need to repaint it.
Shouldn't be a huge issue, hopefully.
As for the crotch plate, try cutting the straps free with a razor by sliding it in between the plate and the straps, then once free, you'll need to touch up the plate front, since it will probably be marred. A little acetone on a rag will help. Though you'll need to repaint it.
Shouldn't be a huge issue, hopefully.
xXDashIVXx
Sr Member
I
Just because that is how it works, you may end up needing more than one coat. I reccomend while the bondo is still curing, sculpt it as much as you can to get the shape you want, but still keep the layers thin so you dont have to do extra sanding. Try and just fill inside the pepakura lines on the top and keep the edges as they are. This will smooth it out the best
TurboCharizard
Sr Member
- Member DIN
- S068
This is the trick here to save time and sandpaper! I do the same when working on 3D prints with a razor to trim off excess blobs when the Bondo has gone past the point of no return of no longer being a smooth paste and starts looking like oatmeal when spread.
- Member DIN
- S434

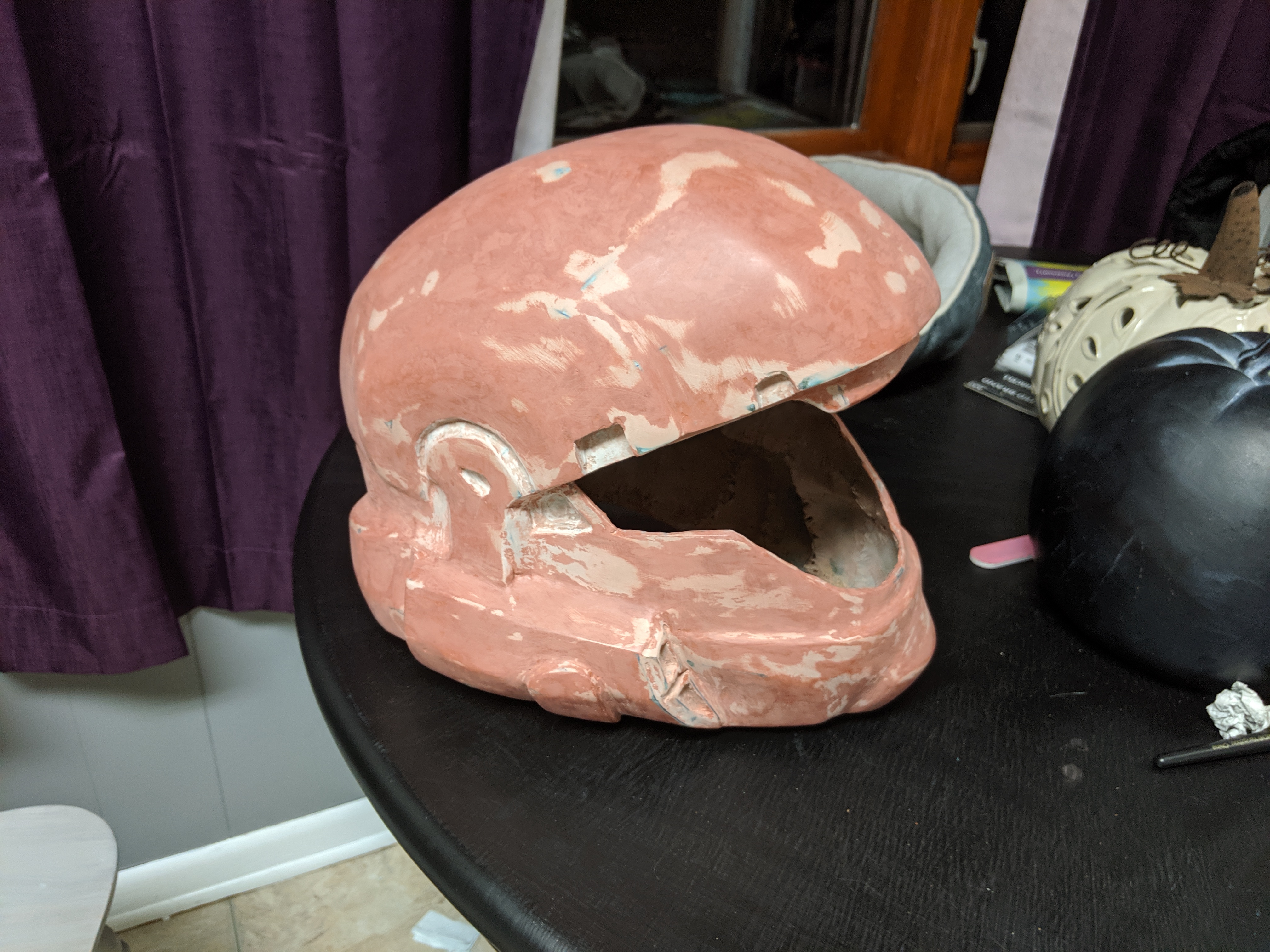

Update time, last weekend I did sanding and then covered the whole thing in spot putty cuz why not.
Then last night I sanded down again and filled in the negative with more spot putty.
I did final sanding starting at grit 120 -> 220 -> 320 -> 600 -> 1200
I can say this thing is buttery smooth on most of it besides some crevices that were hard to reach.

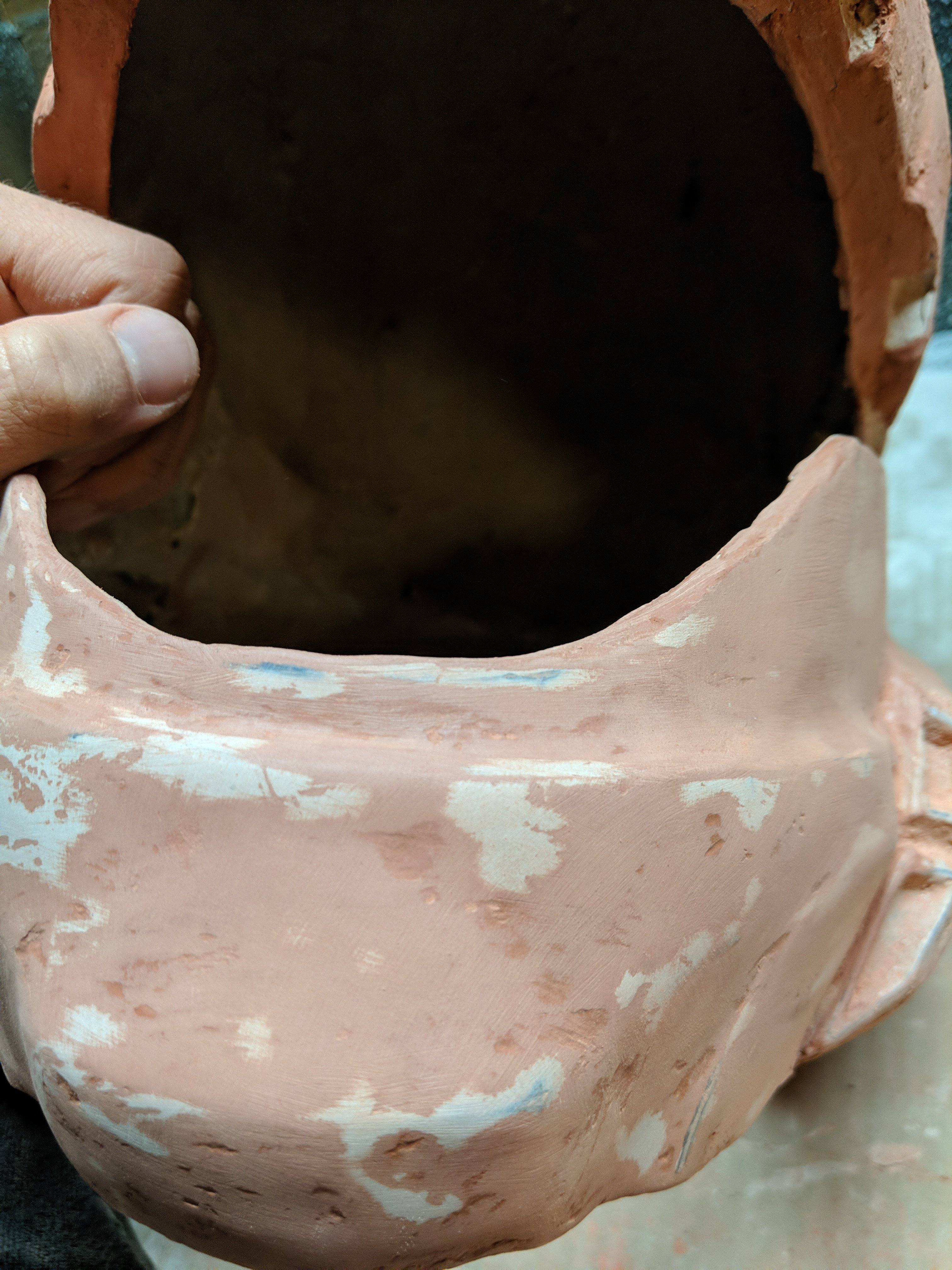

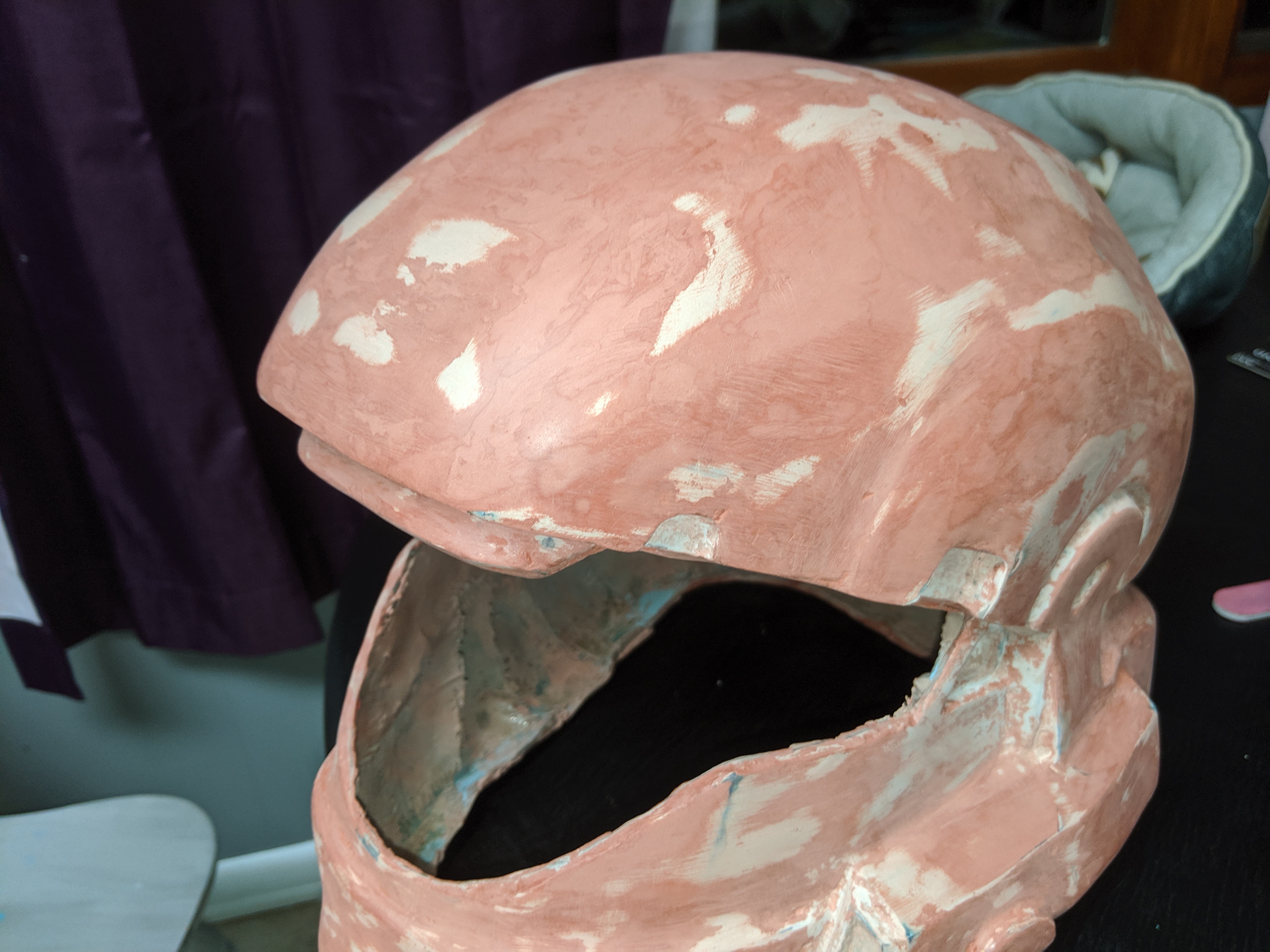

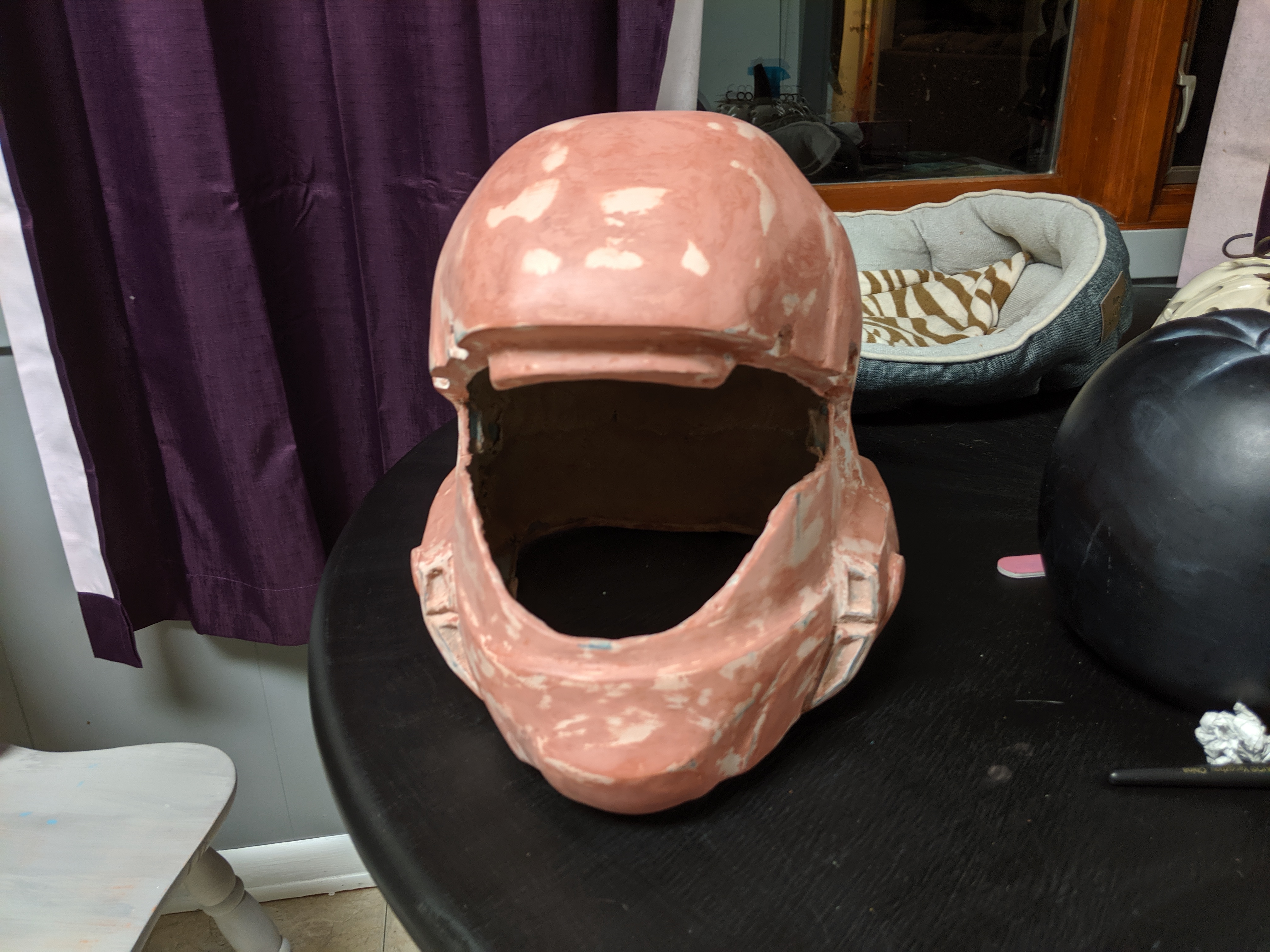

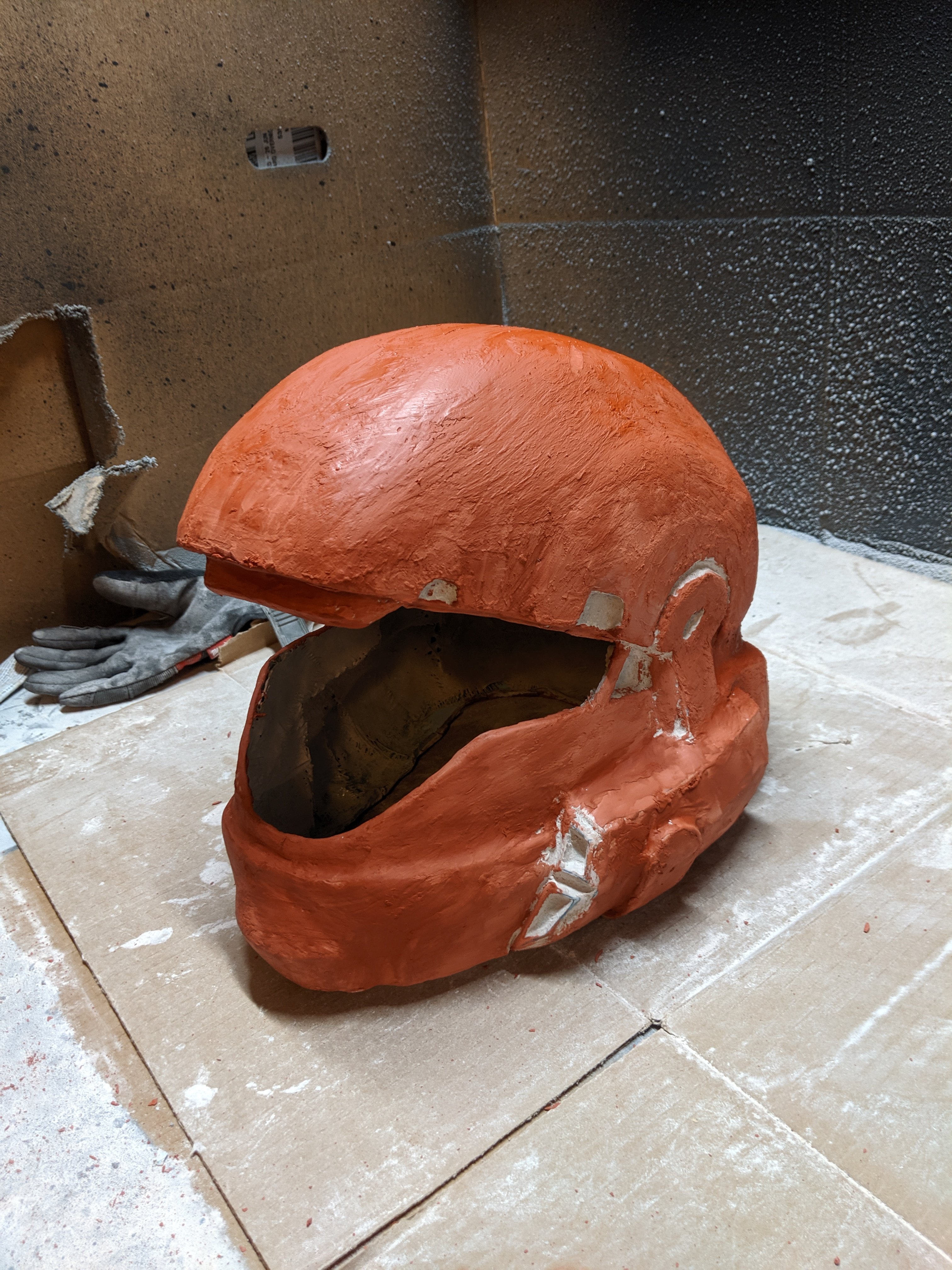

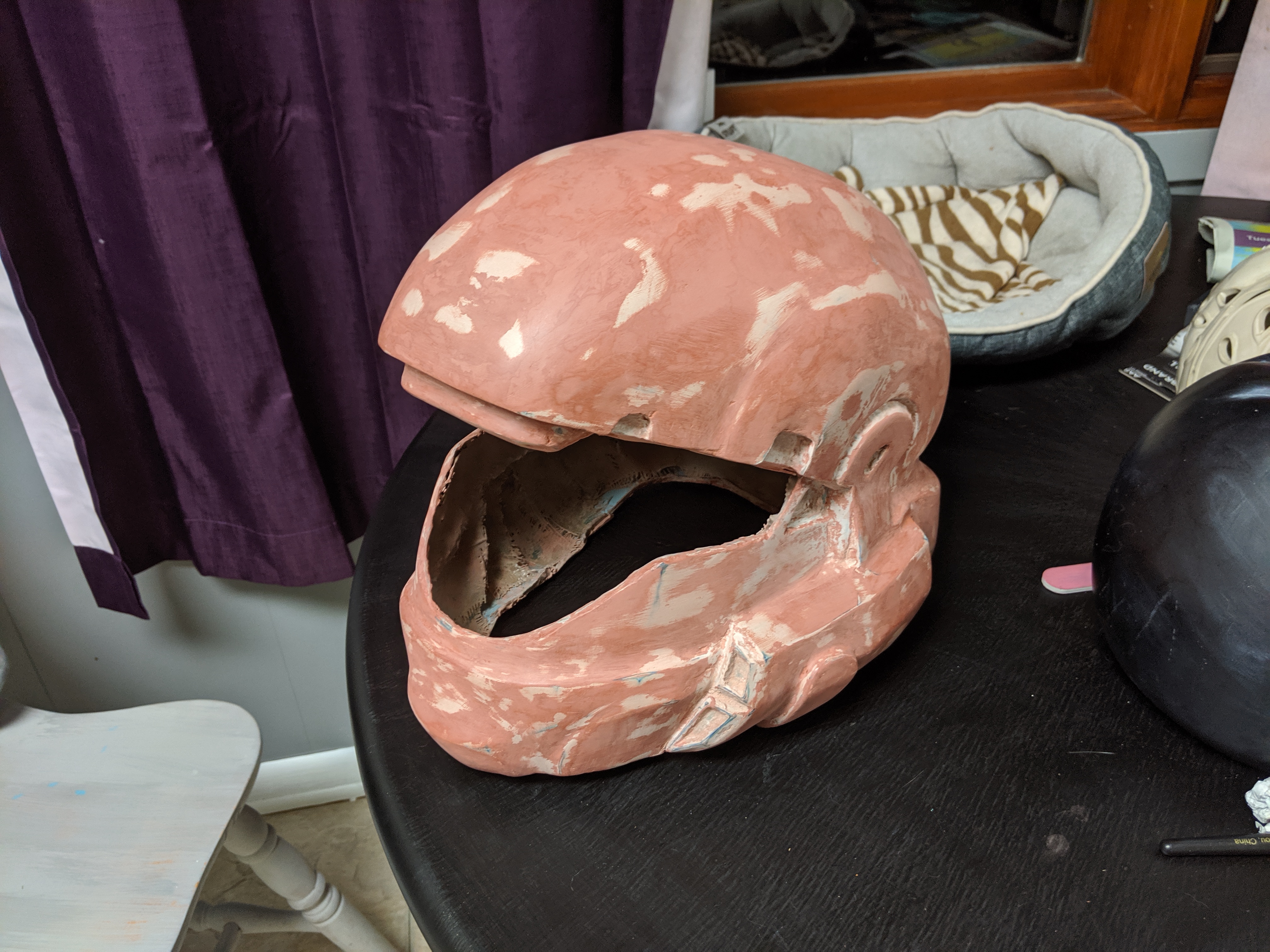

Pictures: 1st was first spot putty pass, 2nd was showing fill spots. The rest were after the 1200 grit pass
Now to start adding the detail lines with my Dremel I think...
Then last night I sanded down again and filled in the negative with more spot putty.
I did final sanding starting at grit 120 -> 220 -> 320 -> 600 -> 1200
I can say this thing is buttery smooth on most of it besides some crevices that were hard to reach.
Pictures: 1st was first spot putty pass, 2nd was showing fill spots. The rest were after the 1200 grit pass
Now to start adding the detail lines with my Dremel I think...
Sean Anwalt
Sr Member
- Member DIN
- S530
Dude that's awesome. Be super careful with your dremel lines and you've got it made!
